Audi Coupe GT Digital Dashboard
(Some information applies to UK MB and RR ur-quattros)

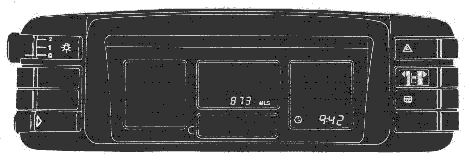

Orange digital dashboard - Odeometer and clockBoth the odometer and clock can be displayed with the ignition off. By pressing the reset button of the trip computer switch, both of these displays will come on. They will go out when the reset button is released. To activate the clock setting mode, press the right side of the trip computer reset switch for more than four second when the ignition is switched on.

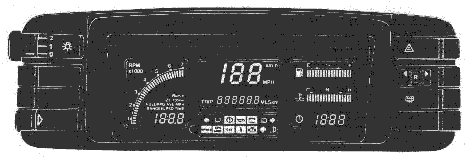

Orange digital dashboard - self checkWhen the ignition is switched on the complete display will light up automatically for approximately three seconds. The first digit of the speedometer, trip computer and clock appear as the number 2 for one second and then as the number 1 until the check is completed.

After the self check the display returns to the normal mode.
