Audi ur-quattro 10V WR, WX, GV and MB Engines
Engine Installation

• The position of the engine and gearbox must always be checked and aligned if necessary after removing and reinstalling the engine.
  • Loosen both mounting bolts of left and right gearbox carriers.

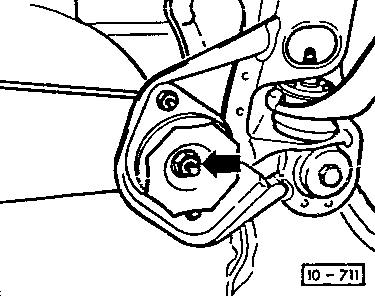

  • Loosen both mounting nuts on left and right engine mounts.

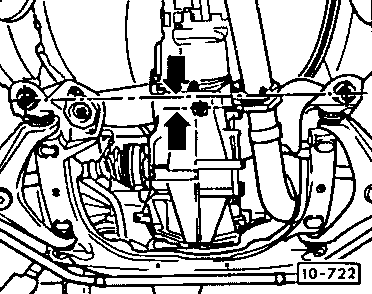

• Rock engine and gearbox until distance "a" is 17.9mm +/- 1mm.
• Note there is not transverse or height adjustment.
