Crankshaft Group - Crankshaft Sender Clearances

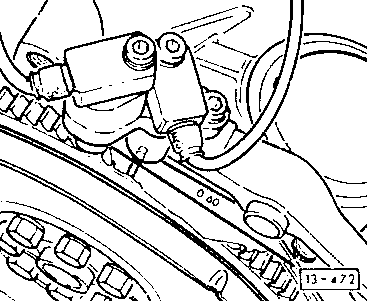

• Screw in the ignition point (flywheel pin) sender. Note the illustration is for the combined sender platform used on the MB engine - the WR senders are mounted separately.
• Using a feeler gauge, check for a gap of 0.45mm to 1.25mm.

• Screw in the flywheel tooth sender.
• Using a feeler gauge, check for a clearance of 0.52mm to 1.24mm
