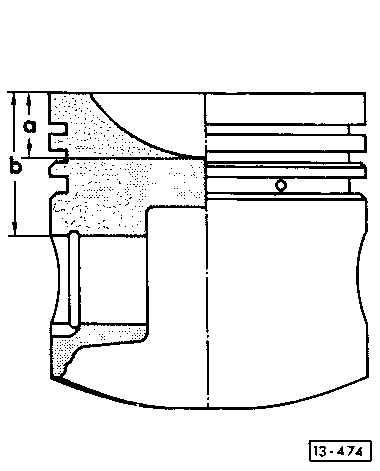

Piston Dimensions - MB engine

• Recess depth -a- 14.9mm
• Dimension -b- 30.5mm

• Honing dimensions

  Stage	Piston	Cylinder Bore
  Standard	80.89	81.01
  Stage 1	81.23	81.26
  Stage 2	81.48	81.51

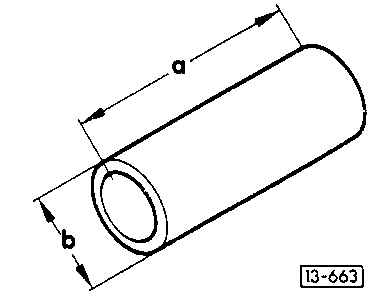

• -a- 67mm
• -b- 22mm
