Audi ur-quattro 10V WR, WX, GV and MB Engines
Removing and Reinstalling Parts of the Fuel System

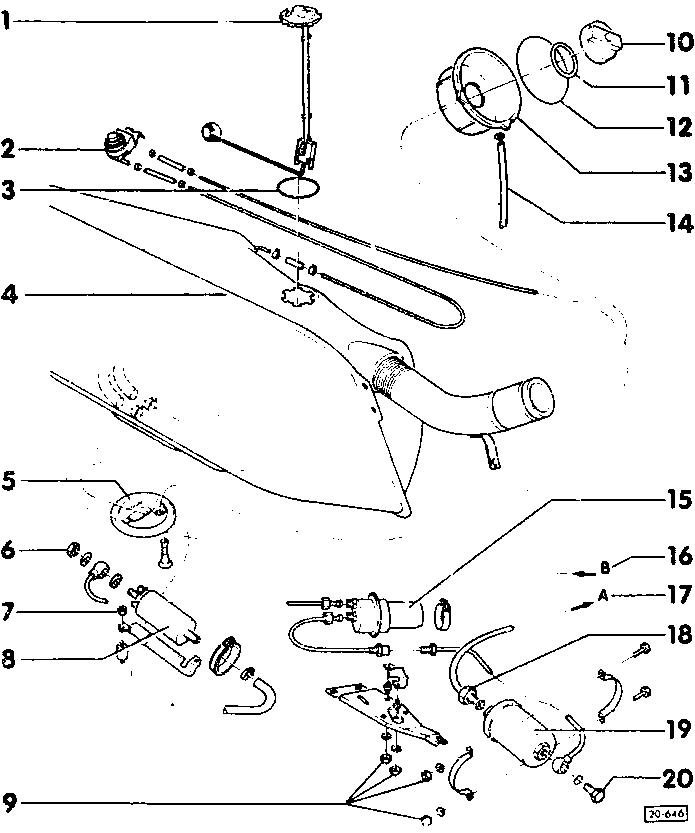

20-646 Fuel System

  1. Fuel gauge sender - see 20-8
  2. Gravity valve
  3. Sealing ring -- rub with glycerine before fitting
  4. Fuel tank - see 20-11 for removing
  5. Sealing boot
  6. 20Nm
  7. 10Nm
  8. Electric fuel pump - checking 20-14
  9. 10Nm
  10. Fuel filler cap
  11. Sealing ring - replace if damaged
  12. Tensioning Ring
  13. Rubber boot
  14. Overflow line
  15. Fuel pressure accumulator
  16. Return pipe
  17. Feed pipe
  18. 10Nm
  19. Fuel filter - see 20-1 and 20-7
  20. 10Nm
