Audi ur-quattro 20V Engine - Block, Crank and Pistons

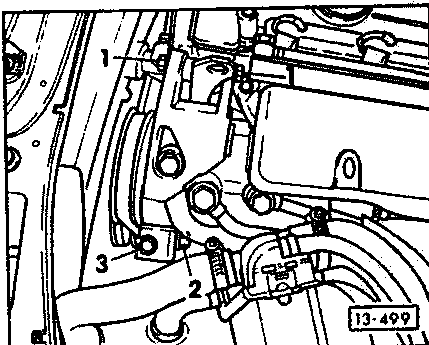

Loosen pivot nut 1

Loosen clamp nut 2

Turn adjuster 3 to correct tightness

Check tension via thumb pressure - 10mm for both new and old belts.

Tighten both 1 and 2 to 22Nm.
