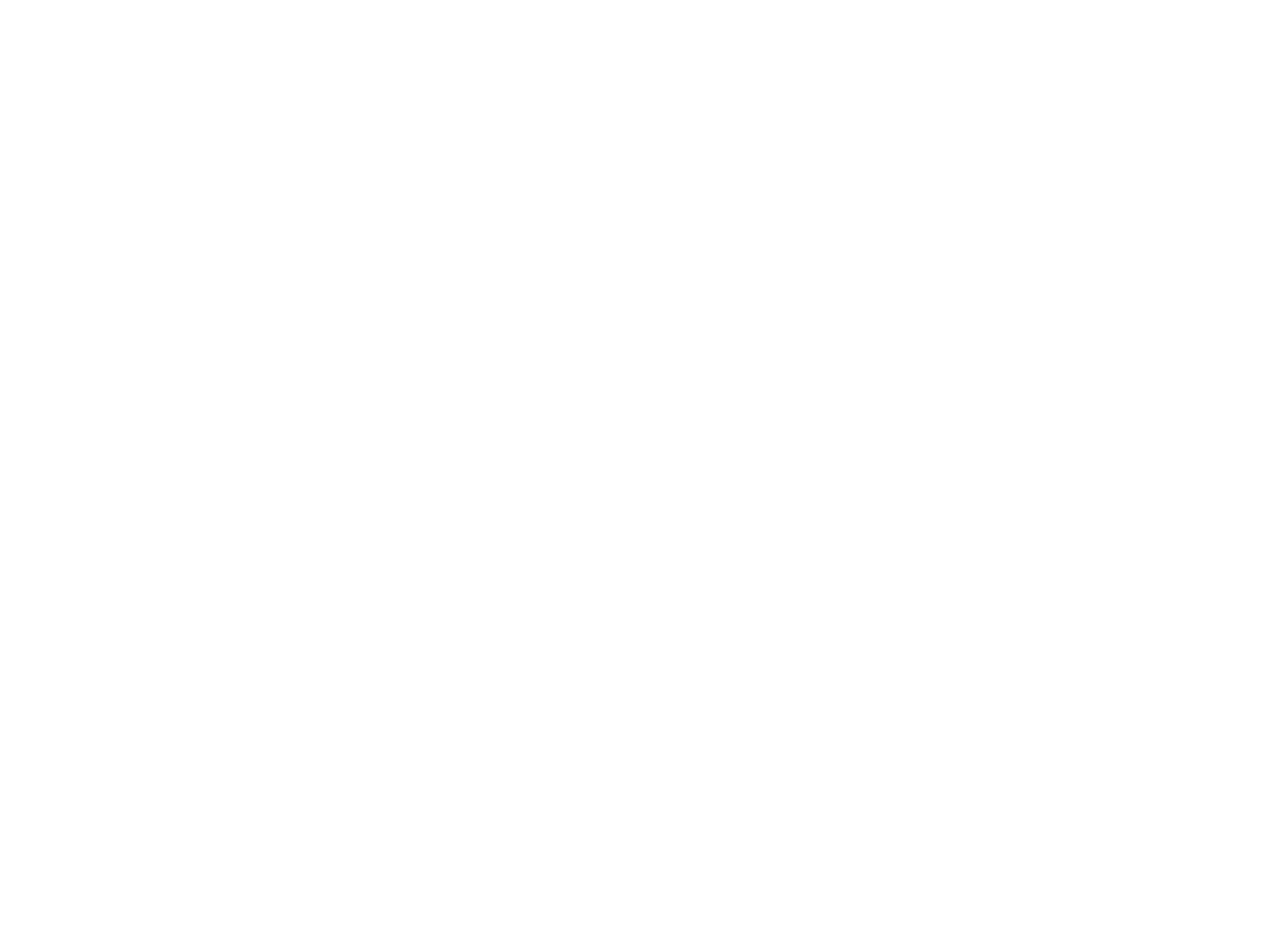

| Designation | Function | Type | Location |
|---|---|---|---|
| J2 | Flasher unit | Relay | Behind instrument panel |
| J4 | Horn | Relay | 7 |
| J13 | Fresh air fan | Relay | 11? |
| J17 | Fuel pump | Relay | 10 |
| J26 | Radiator stage 1 | Relay | 3? |

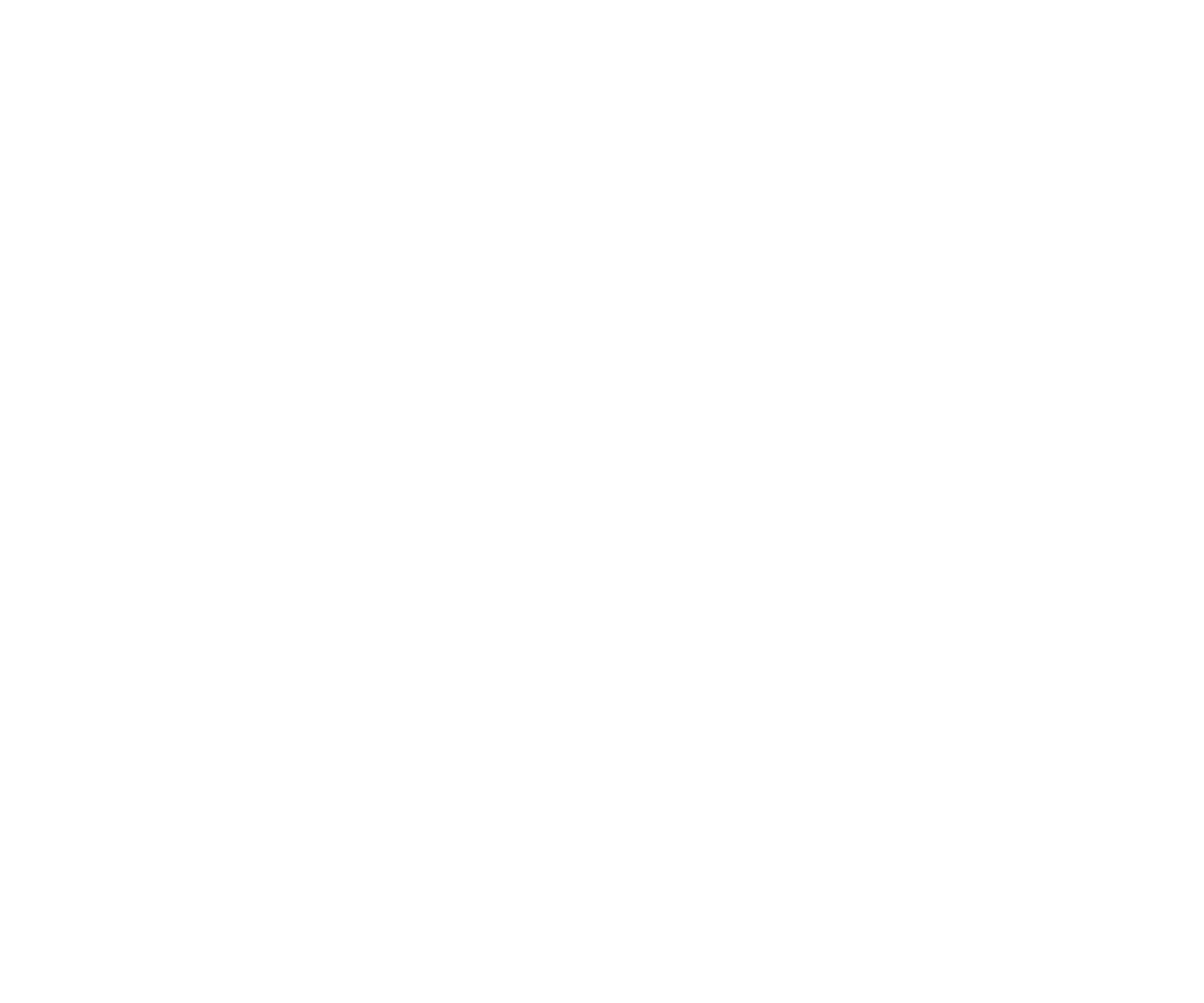

| J30 | Rear wash/wipe | Relay | Aux 11 |
| J31 | Wiper interval | Controller | 9 |
| J59 | Load reduction | Relay | 5 |
| J88 | ECU | Controller | Under right dash |
| J97 | Injector cooling | Relay | Aux 9 |
| J101 | Radiator - stage 2 | Relay | Aux 10 |
| J104 | ABS | Controller | In boot |
| J105 | ABS return pump | Relay | In top of ABS pump |
| J106 | ABS magnetic valve | Relay | In top of ABS pump |
| J114 | Oil pressure | Controller | Aux 6 |
| J128 | Digital dashboard unit | Controller | |
| J131 | Heated seat - left | Controller | Aux 14 |
| J132 | Heated seat - right | Controller | Aux 13 |
| J135 | Radiator fan - stage 3 | Relay | 2 |
| J142 | Idle stabilisation | Controller | Aux 7,8 |
| J152 | Warning buzzer | Aux 2 | |
| J153 | A/c magnetic clutch | Controller | Aux 4 |
| J155 | Turbo cooling | Controller | Aux 5 |
| J156 | ABS combination relay | Controller | Aux 1 |
| J187 | Differential locks | Controller | Under rear seat |
| S43 | Electric windows | Thermal cutout | Aux 16 |
