Audi ur-quattro 10V WR, WX, GV and MB Engines
Engine Removal

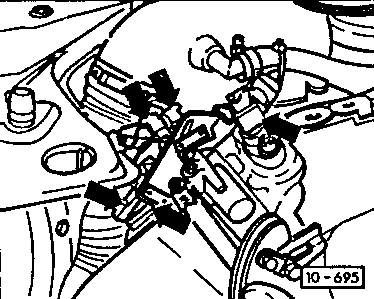

10-695 Clearing the right side of the engine

Pull the connector(s) off the throttle body switch(es)
Detach the top of the inlet concertina hose
Free the loom and tie it back with a cable tie

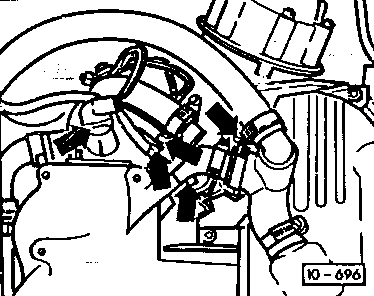

10-696 Clearing the rear of the inlet manifold

[WR] Pull the connector off the auxiliary air valve
[MB] Pull the connector off the idle stabilisation valve
[WR, MB] Detach both vacuum hoses from the inlet manifold
Detach the breather hose from the cam cover
Pull the connector off the injector cooling fan thermoswitch
Free the loom and tie it back with a cable tie
