Crankshaft Group - Crankshaft Measurements

• The ignition timing pin on the engine side of the flywheel is CRITICAL for engine operation. A damaged pin should always be replaced before the engine is reassembled. The metal composition is such that a broken pin may have to be removed by a well-equipped machine shop, possibly even using spark erosion.
• Pin height is 11.8mm +/- 0.1 mm.

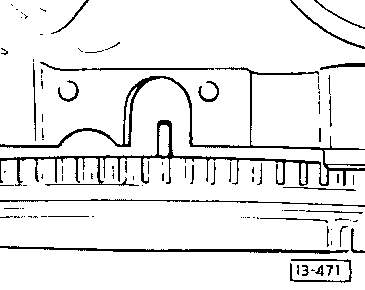

• Move the flywheel timing pin into the sender window.
