Removing and installing camshaft oil seal
- Loosen the hydraulic pump tensioner clamp nut
- Loosen the hydraulic pump pivot bolt
- Loosen and remove the hydraulic pump belt tensioner
- [WR] Remove the hydraulic pump pivot bolt
- [MB] Detach the hydraulic pump mounting bracket - on the MB, the pivot bolt fouls the auxiliary radiator. The lower bolt is difficult - a waisted 13mm socket, e.g., Carolus, Teng, is useful
- Detach the drive belt
- Tie the pump out of the way - cord or tie wraps

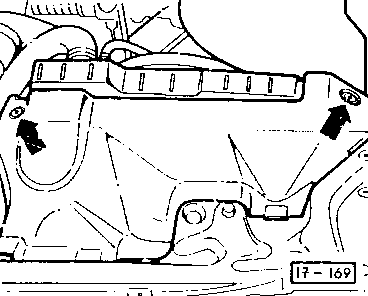

- Remove radiator upper shroud
