Removing and installing camshaft oil seal
- Remove the injector cooling shroud and hose.

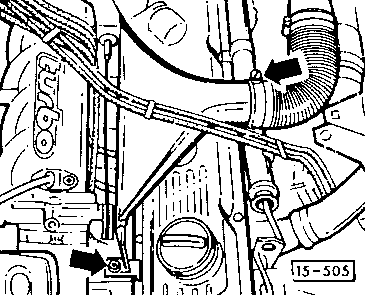

- Note that illustration 15-505 does not show the 25mm hole that Audi added via TSB to the earlier cars and in production on the later ones to direct air against the underside of the bonnet to cool the injector lines as well as the injectors.

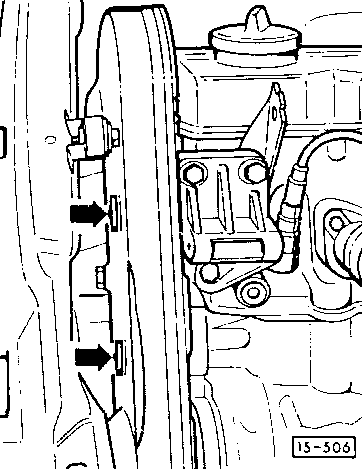

- Remove upper cam belt cover - 6mm Allen.
- These nuts are exposed to corrosion and the Allen recess is very often unusable. A useful tool is the 10mm ratchet spanner now sold by Messrs. Halford, combined with the 6mm bit holder and a ground-down 6mm Allen bit. Various types of pliers might also be useful. These are advisory replace items, purely because of the corrosion.
