Audi K-Jetronic ur-quattro MB and Audi 100/200 1B/MC-2 Wide Open Throttle Simulator Lead

General

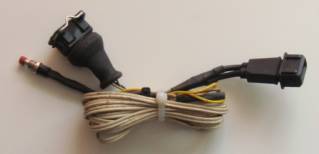

This is a simple lead for shorting pins 1 and 2 of the throttle body switch

• The WOT switch closes at 55° throttle opening to tell the ECU to enrichen the mixture and control boost
• Debugging can otherwise be difficult because the switch may become intermittent with engine vibration at speed
• The lead is long enough to be operated from the driver's or passenger's seat during a test drive in conjunction with the wastegate frequency valve lead
