Audi ur-quattro 10V WR, WX, GV and MB Engines
Engine Removal

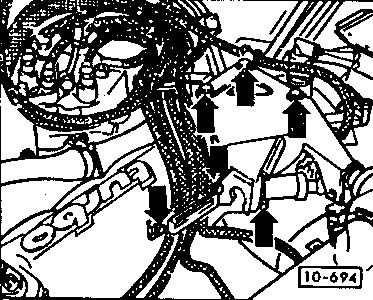

• Pull locking clips off end of accelerator cable and detach from quadrant. The end clip can be reversed under the replaced upper clip for safe keeping
• Pull accelerator cable out through bracket

• Detach bracket holding fuel pipes
• Pull injectors out of their seats

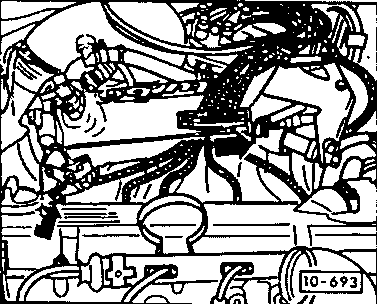

• Detach cold start valve - 5mm Allen - special tool useful
• Pull the connector off the injector cooling fan thermoswitch
• Free and tie back the loom and vacuum hoses
