Engine Control Unit (ECU) Coolant Temperature Sensor
Idle Stabilizer Valve (ISV) System Coolant Temperature Sensor
ECU Air Temperature Sensor
1986-90 5000/200TQ
ECU COOLANT TEMP SENSOR and ISV COOLANT TEMP SENSOR
The ECU coolant temp sensor (single wire version) that is screwed into the cylinder
head just slightly below and forward of cylinder #1 spark plug should be tested
if you are having any mixture problems. If you have a broken wire or poor connection
between the ECU and this sensor, the ECU will think the engine is cold and will
run rich.
NOTE: The Idle Stabilizer Valve (ISV) control system uses a coolant temperature
sensor that is screwed into the top of the coolant outlet that is mounted on
the cylinder head. This ISV temperature sensor has the same part number as was
used for the ECU coolant temperature sensor.
Two different systems, two different sensor locations, but they use the same
part numbered sensor to measure coolant temperature. The test procedure for
the ECU and ISV coolant temperature sensor is the same.
To test, you disconnect the single wire terminal at the sensor and measure the
resistance from the sensor connection to the cylinder head (ground). Check continuity
between pin 10 on the ECU and the blue wire connected to this sensor. Sometimes
the BL/G (Blue wire with Green stripe) wire from the idle stabilizer temp sensor
nearby gets incorrectly connected to the engine coolant temp sensor.

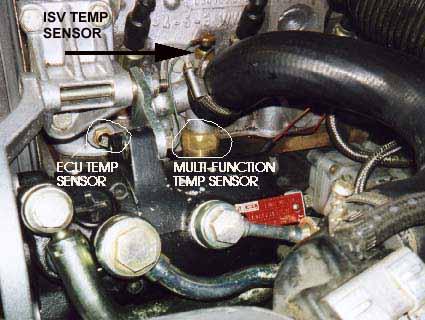

See photo below for location info. In some cases the sensor can be intermittent
when the engine warms up, which will cause some strange rich running conditions
because the ECU will occasionally think the engine temp is much colder than
it really is.
Although it is not stated anywhere in the Bentley service information, the ECU
will operate the cold start valve briefly as you begin accelerating when the
engine is cold with a coolant temp below 150F. If the sensor is intermittent,
the ECU may activate this cold start valve when the engine is warm and this
will make the engine run very rough.
With the single wire removed, the resistance should be tested between the sensor
terminal and the cylinder head (engine ground). The resistance should be approximately
80 ohms with the coolant temp around 212F, (100C), approximately 130 ohms with
the coolant temp at 176 degrees F (80C), approximately 1000 ohms at 68F (20C),
and approximately 6000 ohms at -4F (-20C).
This sensor is a Negative Temperature Coefficient (NTC) type sensor, that
has decreasing resistance with increasing temperature.
This sensor is item P4036-13699 in our Audi
parts on-line catalog
AIR TEMP SENSOR
The air temp sensor
that the ECU uses to control boost and timing can have poor connections
and work intermittently. Sometimes
the terminals get broken off during other service work on the engine.

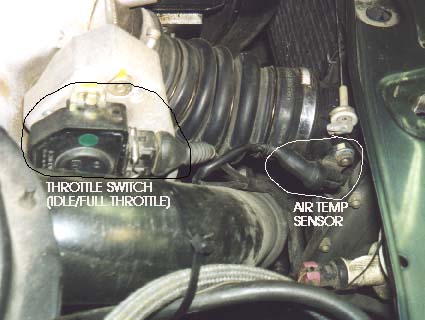

Here is a photo showing the location of the air temp sensor which is
mounted on the intercooler outlet.
It is a good idea to check the air temp sensor connections even if
no fault codes are recorded by the ECU. I have found several cases
where the wires on
the air temp sensor were broken off and the throttle switch was defective,
but NO fault codes were recorded by the ECU.
Pull back the rubber boot around the wiring connection and cut off
the heat shrink tubing off the connection and visually check for frayed
or broken wires.
Often times the outer wire insulation will look ok, but the wire is
broken internally.
NOTE: If the ECU senses the air temp sensor or wiring are defective,
it will still operate the Waste Gate Solenoid system with a reduced
duty cycle value.
This reduced duty cycle driving the Waste Gate solenoid will limit
the amount of pressure added to the upper Waste Gate Chamber.
In other words, the system will appear to be functioning normally,
but the boost will still be lower than expected. The air temp sensor
connection terminals
are spot welded on by the factory.
Small crimp on terminals (0.110 inch size) can be used to repair this
connection along with soldering the terminals to the sensor. Factory
replacement air temp
sensors have gold plated terminals and gold plated connector terminals
along with a new connector housing. This sensor is located on the intercooler
exit
and has a rubber boot to keep water/dirt out.
When you check the resistance of this air temp sensor, you should first
remove the ECU connector to isolate the air temp sensor from the ECU
circuitry and
measure the resistance across the ECU connector terminals.
Next, you can reconnect the ECU connector and recheck the resistance
across the ECU connector terminals to see if the resistance value has
changed now that
the air temp sensor is connected to the internal ECU circuitry.
This last test will verify that the ECU connector terminals for the
air temp sensor are ok. You can also measure the air temp sensor resistance
across the
sensor itself, if one of the wires has already broken off, before you
make the repair.
The resistance measured across the air temp sensor should be around
500 ohms at 25C (70F). If you have intermittent boost problems and
the sensor wiring
tests ok, you may want to remove the air temp sensor from the intercooler
and inspect the sensor tip area with a magnifying glass and look for
a cracked connection
where the resistive sensor element is spot welded to the two terminals.
Please Contact US to purchase this Air Temperature Sensor
After removing the O-Ring seal, the plastic sheath/cover can be pulled
off the tip of the air temp sensor for better access. In a few cases,
I have found the
sensor to work one minute, then go open circuit intermittently at
other times, and this was due to cracked spot weld(s) at the tip
of the sensor
where the
resistive element is attached.

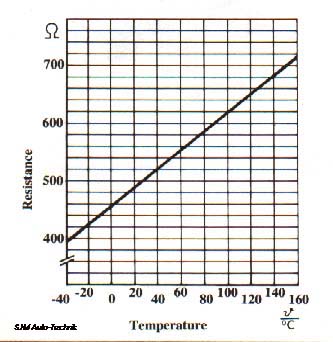

Here is a graph of the sensor resistance versus temperature. This
sensor is a Positive Temperature Coefficient (PTC) type sensor, that
has increasing
resistance
with increasing temperature .
Graph courtesy of Audi of America, Technical Service Training.
