Audi Boost Profile Graphs, also HP/Torque graphs

• 1992-96 S4/S6: Stock and Modified ECU

• 1991 200 20V Turbo Quattro: Stock and Modified ECU

• 1989 200 Turbo Quattro with Modified ECU

---

1992-96 S4 and S6

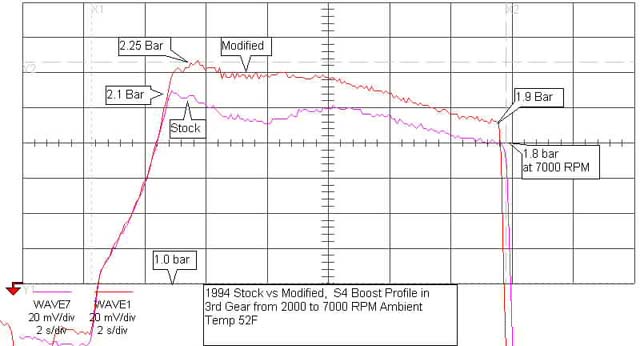

Here is a graph showing the actual boost output for the Stock S4 and from a S4 with a modified ECU (Hoppen Stage I) .



The actual boost output will vary depending on the air temp, fuel quality and altitude.

---

Here is another graph showing the actual boost output from a S4 with a modified 3 Bar ECU, using the RS2 Exhaust Manifold, and the RS2 Turbo. Vehicle has the stock exhaust system with catalytic convertors.



The actual boost output will vary somewhat, depending on the air temp, fuel quality and altitude. The graph was obtained using an electrical pressure transducer, and a portible Oscilloscope. The small rough peaks on the graph, are caused by electrical noise on the Oscilloscope trace.

---

1989 Turbo Quattro with Modified ECU



Modified 1989 200TQ with dual knock sensor MC engine:

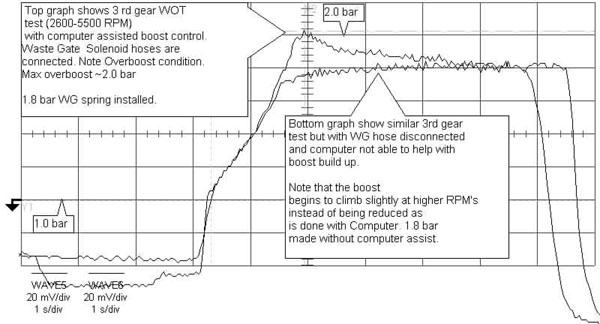

Boost output profile with and without WG solenoid ECU boost control

• Important Safety Information

  Engine Horsepower and Torque graphs courtesy of Audi AG
