Audi Engine Horsepower Graphs

1998 A4, 2.8 liter V6, 5 Valve Engine

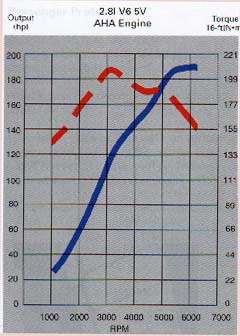

  • Here is a graph showing the Horsepower and Torque output of the stock 2.8 liter V6, 5V engine, 'AHA' designation.

1998 4.2 liter V8 from A8

  • Here is a graph showing the Horsepower and Torque output of the stock 4.2 liter 'ABZ' engine used in the A8. Note: the Horsepower and Torque scales used on this graph are in kW and Nm. (HP =1.36 kW, Torque lb-ft =Nm/1.36)

1997 1.8 liter Turbo 4 cylinder

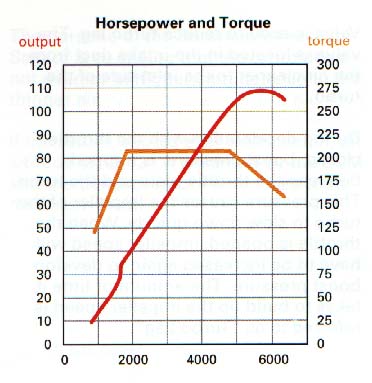

  • Here is a graph showing the Horsepower and Torque output of the stock 1.8 liter 5 Valve engine used in the A4. Note: The Horsepower and Torque scales used on this graph are in kW and Nm. (HP =1.36 kW, Torque lb-ft =Nm/1.36)

1992-96 S4 and S6

    Here is a factory graph showing the design specs for the maximum boost output for the S4 with AAN Engine.

    The actual boost output will vary depending on the air temp, fuel quality and altitude.

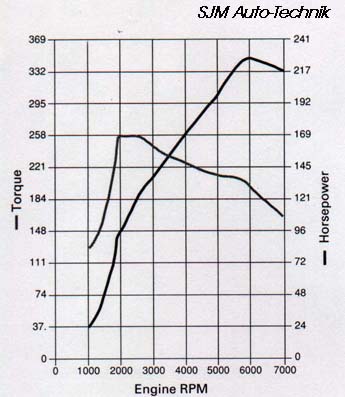

    Here is a graph showing the Horsepower and Torque output for the stock S4 WITHOUT the Overboost condition

    European S2 with 5 cylinder 20V Turbo engine

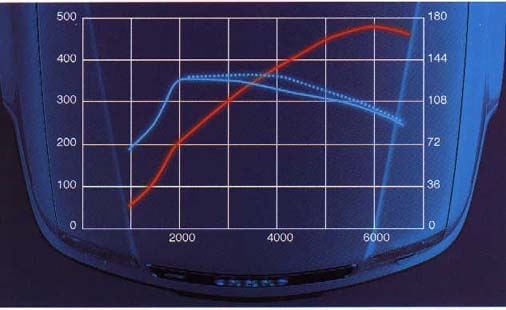

      Here is a factory graph showing the Metric Horsepower (kW) and Torque output (Nm) for the S2 with AAN Engine.

      The dotted line shows the torque increase with overboost mode.

      1992-94 Audi 100 with V6 performance

        Here is the Horsepower and Torque graph for the stock 1992 V6 2.8 liter engine.

      1991 200 20V Turbo Quattro performance

    • Here is a graph showing the Horsepower and Torque output for the stock 1991 200TQ 20V engine

      Note: the Horsepower and Torque scales used on this graph are in kW and Nm.
      (HP =1.36 kW, Torque lb-ft =Nm/1.36)

      1990-91 Audi V8 performance

        Here is the Horsepower and Torque graph for the stock 1990 V8 3.6 liter engine.
        Horsepower and Torque scales are in kW and Nm. (HP =1.36 kW, Torque lb-ft =Nm/1.36)

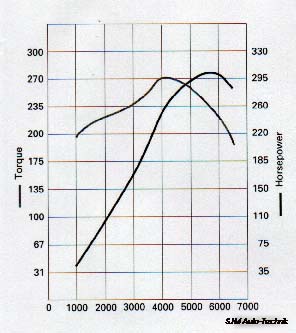

        Here is the Horsepower and Torque graph for the stock 1992 V8 4.2 liter engine.
        276HP @ 5800 RPM, 295 lb-ft @ 4000RPM

      1990-91 90 Quattro and Coupe Quattro with 20V

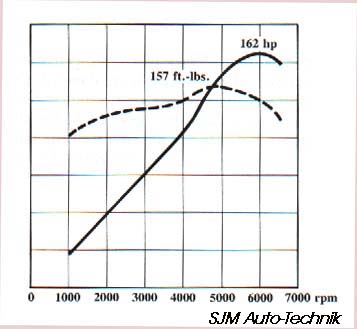

      Here is the Horsepower and Torque graph for the stock 1990 20V N/A Coupe engine.

      1984-88 5000 Turbo and Turbo Quattro performance

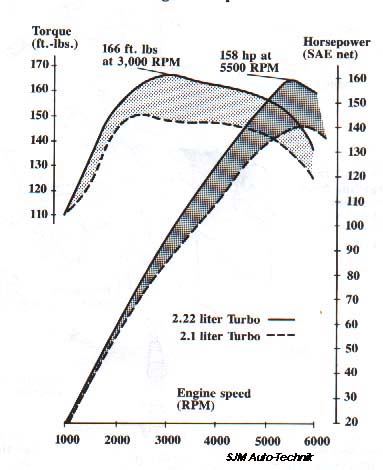

      Here is a horsepower and torque graph for the stock 2.22 liter MC Turbo engine used in the 1986-88 5000T/Q and early 1989 200T/Q versus the early 2.1 liter 1984-85 5000T engine output.

      Note: Audi published two HP and Torque ratings for this MC engine, one with unleaded Premium fuel, 121kW DIN (162bhp net SAE) power@5500, 240Nm, (177 ft.lb) torque @ 3000RPM, and one with unleaded regular fuel, 118kW DIN (158bhp net SAE) power @5500 RPM, 225Nm, (166 ft.lb) torque @ 3000 RPM. The Hitachi "MAC-11" Engine Control Unit used with the "MC" engine has two timing maps, one for Premium and one for Regular fuel.

      Engine Horsepower and Torque graphs courtesy of Audi AG, all rights reserved.
