Audi-VW Factory Service Training Booklets Forsale
Contact Us for a shipping estimate
These Service
Training booklets were designed to give the Audi Dealer Technicians
an introduction to the various
new features and systems introduced on Audi Vehicles.
They were supplied
to the technicians as part of their dealer sponsored training courses.
They have detailed information on the design and theory of operation
of the complicated systems found in the Audi vehicles which makes trouble-shooting
your vehicle much easier, once you understand how the system or component
is designed
to
work.
The "Model Change" booklets describe new systems and features found
in the various Audi Models introduced that year.
The New Old Stock (NOS) are booklets that are out of
print, but in new condition.
Many
of the latest booklets have glossy paper, nice multi-color system component
diagrams, color
coded wiring diagrams and/or color photos.
The older used booklets have Black and White (B/W) text, and may have fingerprints,
blemishes, and/or a
slight
musty smell, but otherwise are in readable condition.
Many of the books
listed are out of stock, no longer available.
Detailed descriptions of the contents of each booklet are in the next
section below.
Older
pre-1998 Audi Service Training Booklet Titles Forsale
- 097.530.801.23 Audi 100LS , Audi Fox, CIS Testing-Adjusting-Troubleshooting
Excellent condition
$45 used PHOTO
- 097.530.800.23 Audi 100LS - Audi Fox 1975 Model Changes, 32 pages,
B/W, Excellent condition, $75 used PHOTO
- W42-559-141-1 Audi 4000 Preliminary Repair Information 6/ 1979, B/W, 40
pages, $15 used,
- W42-559-860-1
Audi 5000 Diesel 1979, 20 pages, B/W $10
used PHOTO
- W-42-001-730-1 Audi Sunroof ProTraining Audi 4000, Coupe, 5000
1977-81, $15 used, PHOTO

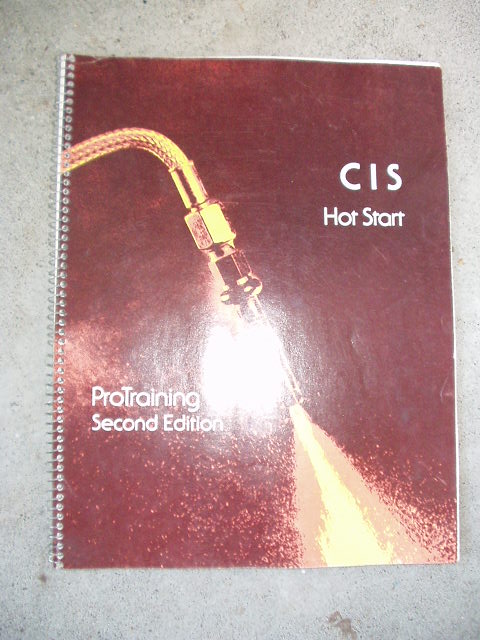

- W-42-001-732-1 CIS Hot Start ProTraining, 34 pages, B/W, $10 used PHOTO

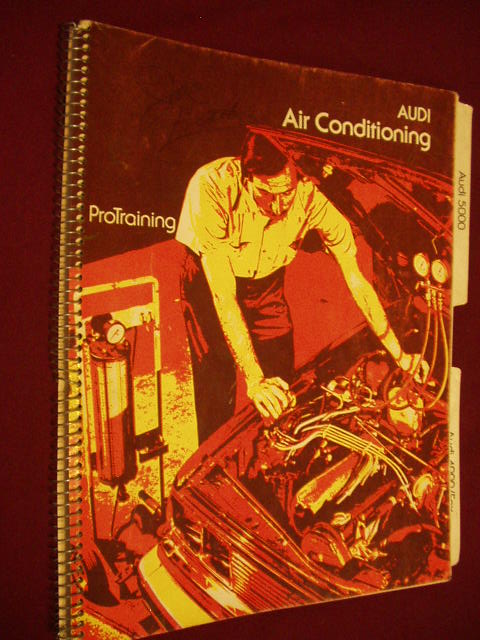

- W-42-001-734-1 Audi Air Coniditioning ProTraining 4000, Fox, 5000. 122
pages, B/W, $15 used, PHOTO
- WSP-451-555-00
Turbo Diesel -Introductory Service Training Information 1982 $10
used, PHOTO

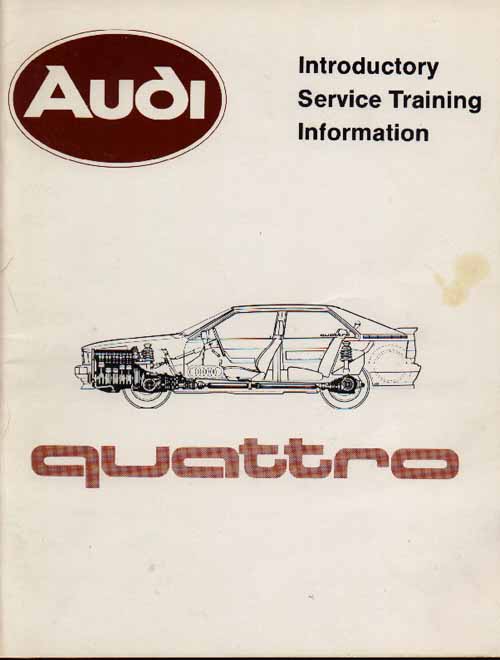

- WSP-451-556-00 Audi (ur)
quattro Introductory Service Training Information (IST) (1982) used
$45 PHOTO
- WSP-452-557-00 Audi (ur)
quattro Introductory Service Training Info. Maintenance/ Adjustments (1982) used
$45 PHOTO
- WSP-521-119-00 The 1984 Audi 4000 Model Line 1983, 68
pages, B/W $10 used PHOTO
- WSP-521-120-00 The 1984 5000 Introductory Service
Training Info, 78 pages, B/W
$10 used PHOTO

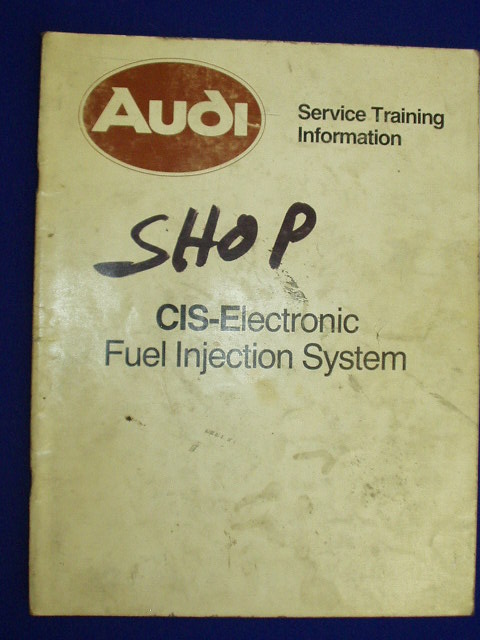

- WSP-521-121-00 CIS-Electronic Fuel Injection System
(1984) $10
used, PHOTO
- WSP-521-125-00 1985 Model Change Information $15
used PHOTO
- WSP-521- 127-00 1986 Model Change Information $15
used, PHOTO
- WSP-521-128-00 Audi 5000 Update ProTraining, 60 pages,
B/W, $15 used PHOTO

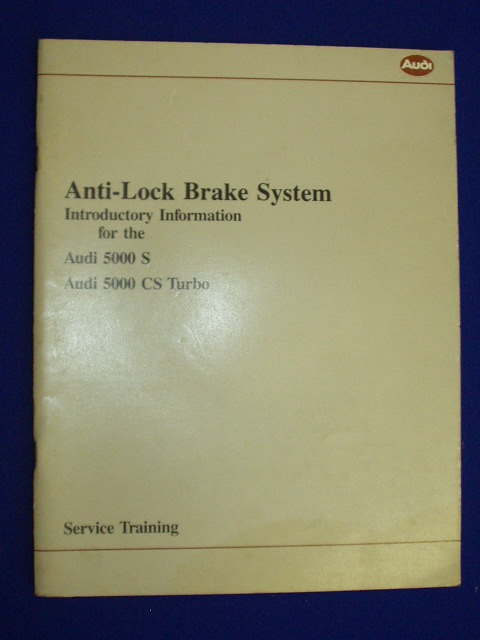

- WSP-521-134-00 Anti-Lock Brake System-Introductory Info
for the Audi 5000S, Audi 5000 CS Turbo $10 new, PHOTO
- WSP-521-138-00 Electronic
Instrument Display For the Audi Coupe GT (3/86) SALE PENDING
- WSP-521-139-00 Anti-Lock
Brake System Testing (using 2-LED tester) (5/86) $10 used, PHOTO
- WSP-521-142-00 CIS Electronic
Fuel Injection, 2nd Edition (6/86) (out of stock)
- WSP-521-146-00 2.3
Liter Engine with CIS E-III Engine Control System (12/86) (out
of stock)
- WSP-521-147-00 Electronic Ignition
Systems For 1984-87 Audi Models 2nd Edition 112 Pages, B/W $15 used PHOTO
- WSP-521-151-00 The
New Audi 80 and Audi 90, (9/87) (out of stock)
- WSP-521-170-00 The New
Audi 100 and 200 (6/88) (out of stock)

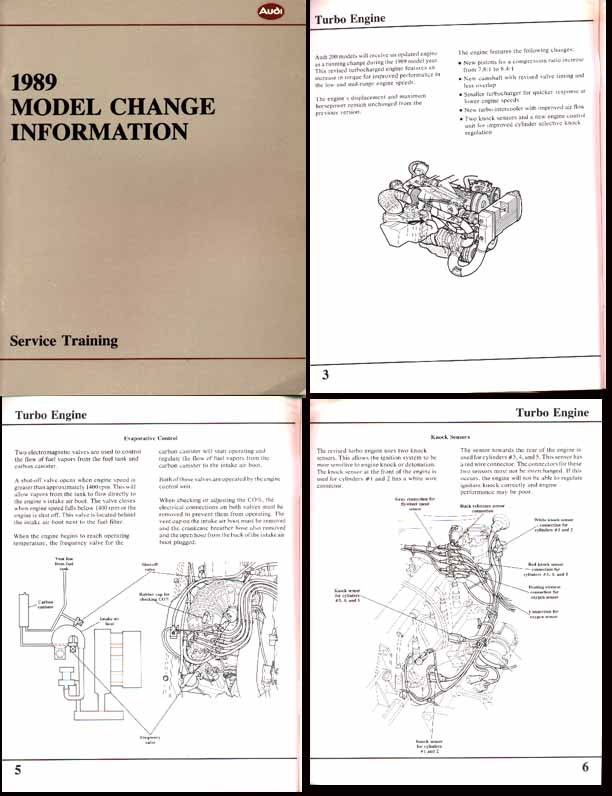

- WSP-521-180-00 1989 Model Change Information (10/88) $15 NOS, PHOTO

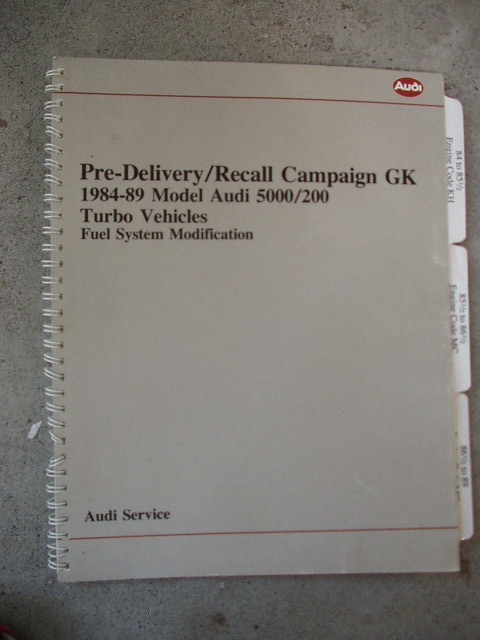

- WSP-521-195-00 Pre-Delivery/Recall
Campaign GK
1984-89 Model Audi 5000/200 Turbo Vehicles Fuel System Modification
50 pages, B/W $10 used PHOTO
- WSP-521-200-00 Audi
Coupe Quattro with 20 Valve Engine (5/89) (out of stock)

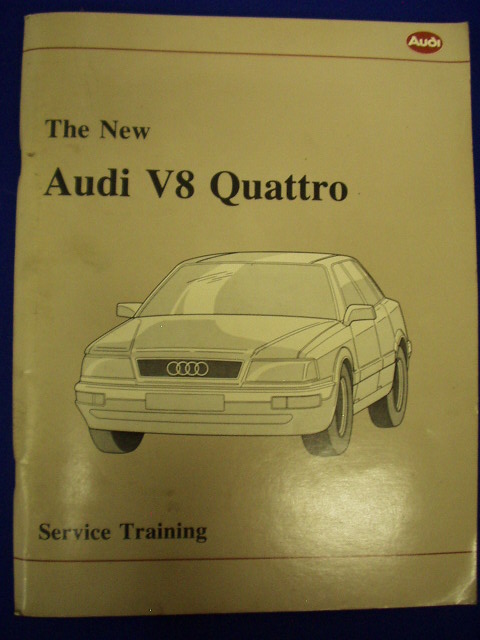

- WSP-521-201-00 The New
Audi V8 Quattro (5/89) used $25 PHOTO
- WSP-521-207-00 Audi Radio
Reception Manual NOS $15 PHOTO
- WSP-521-208-00 MPI Engine
Management for 80/90 Quattro 20V (4/90)
(out of stock)
- WSP-521-209-00 The New
20 Valve Turbo Engine for the Audi 200 Quattro (4/90) SALE PENDING
- WSP-521-210-00 Audi 4 Speed
Automatic Transmission (6/90) (out of stock)
- WSP-521-211-00 1991 Model
Change Information (9/90) (out of stock)
- WSP-521-212-00 The New Audi
100 (1992 Model) (8/91) (out of stock)
- W42-701-002-A04 1990 Audi V8/Coupe
Body Repair Supplement (photocopy) $10
- W42-701- 009-1 1988 Audi 80/90
Body Manual (out of stock)
- W42-701-011-1 1992 Audi 100/S4
Body Repair Manual SALE PENDING
- WSP-521-213-00 The New Audi
V6 Engine with MPI Engine Management System (8/91) (out of stock)
- WSP-521-214-00 1992 Model
Change Information (3/92) SALE PENDING
- WSP-521-215-00 The New
Audi 90 (4/92) (out of stock)
- WSP-521-216-00 Audi 01F
4 Speed Automatic Transmission $15 new, PHOTO
- WSP-521-217-00 Climate
Control with Fault Memory (1992) SALE PENDING
- WSP-521-218-00 Motronic
Engine Management Sys. for the Audi S4 & 4.2 l V8 (3/92) SALE
PENDING
- WSP-521-219-00 1993 Model
Change Information (10/92) (out of stock)
- WSP-521-220-00 Air Conditioning
Systems with R-134a (out of stock)
- WSP-521-221-00 The New
Audi Cabriolet (11/93) SALE PENDING
- WSP-521-222-00 The New
Audi A4 (out of stock)
- WSP-521-223-00 1996 Model
Change Information (out of stock)
- WSP-521-224-00 Aluminum
Body Audi A8 (1997) $29 New PHOTO
- WSP-521-225-00 The Audi
A8 Design and Operation (1997) (out of stock)
- WSP-521-226-00 ABS/EDL/TC
(Bosch) 5 in Audi, Design and Operation $29 New PHOTO
- WSP-521-227-00 Heating
and A/C Audi A8 1997 Design and Operation $29 New PHOTO
- WSP-521-228-00 On
Board Diagnostic II, Design and Function, V6, 8/1996 77 pages
B/W & Color $29 New PHOTO
- WSP-521-229-00 1998 Audi
A6 Design and Performance 9/1997 60 pages, B/W & Color $29 New
- WSP-521-230-00 On Board
Diagnostic II, Design and Function,
1.8 Turbo, 5 Valve 2.8 l V6 , V8 (3.7/4.2
l) 9/1997 94 pages, B/W and Color Diagrams $29 New PHOTO
- WSP-521-231-00 1998 Audi
A6 Component Locations
Preliminary Introductory Information 8/1997
40 pages B/W, 3 hole punched for binder $10 New
- WSP-521-232-00 1997
New Model Changes (out of stock)
Newer Audi Self Study Programs
(service training booklets)
- 921903 Audi
V8-5V Self Study Program (out of stock)
- 991903 Audi TT Self
Study Program (out of stock)
- 992903 Audi
V6 Bi-Turbo Self Study Program (out of stock)
- 961903
Audi Electronic Stability Program (ESP) Design and Function 12/1999, 75
pages B/W, Color $29,
new, PHOTO
- 991003 Audi TT Roadster Design
and Function 2/2000, 37 pages, B/W and Color diagrams $29, New, PHOTO

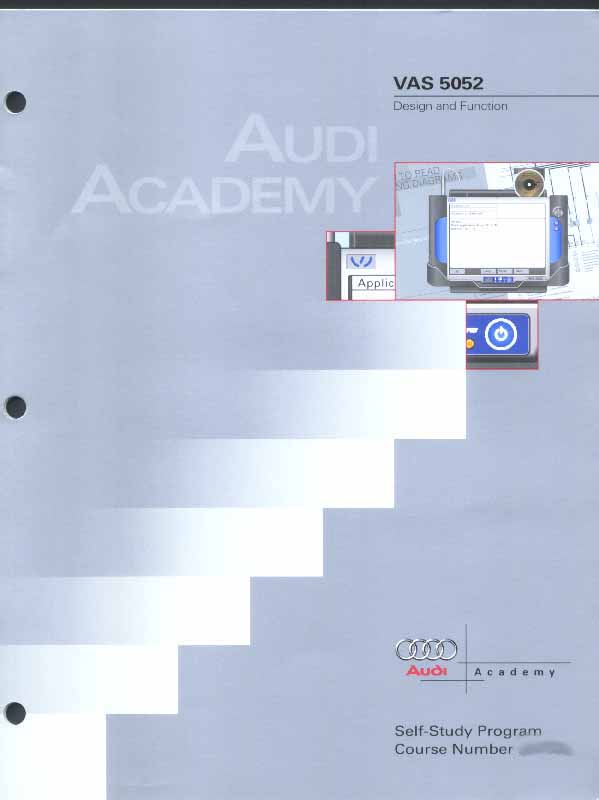

- 911203 VAS 5052 Design
and Function 2/2002 25 pages $24, New, PHOTO
- 962103
Audi Quattro: System Evolution of All Wheel Drive (AWD) 6/2001 (out of
stock)
- 992003
Audi Allroad Quattro self study program (out of stock)
- 993903
2000 Audi New Technology Design and Function (out of stock)
- 921103
Audi Academy Self Study Program 3.0L V6 Engine (out of stock)
- 971903
Audi CAN Bus self Study Program 10/1999 (out of stock)
- 941003 Audi Engine Management
Systems (out of stock)
- 99420-3 Audi ME 7 Engine Management
System (out of stock)
- 9521951-93 Audi Automatic Transmission
01V 01L (out of stock)
- 9521971
2000 Audi Wiring Harness Inspection and Repair (out of stock)
- 99939-3 2000 Audi New Technology
Design and Function
(out of stock)
- 99912-3 Audi Cabriolet, Design & Function
(out of stock)
- 99511-3 Audi Variable Automatic
Transmission (out of stock)
- 99611-3 Audi Handling Control
Systems (out of stock)
- 99740-3 Audi Airbag and Safety
System (out of stock)
- 99911-3 Audi A4 Design and
Function (out of stock)
- 99920-3 Audi Allroad Quattro (out
of stock)
- 99921-3 Audi A4 Body Training (out
of stock)
- 99922-3 2002 Audi New Technology (out
of stock)
Audi Service
Training Booklets: DETAILED DESCRIPTION
(NOTE:) Many of these are no longer available, information only.
Detailed Descriptions
- W-42-001-730-1 Audi Sunroof ProTraining Audi 4000, Coupe, 5000
1977-81
118 pages B/W
Protraining booklets and training courses were designed for the professsional
technician and was designed to help you understand how sunroofs work and
hot to fix them. Four sections: Diagnose the Problem, Identify the symptoms,
Repair the problem, Quality Check
- WSP-451-555-00 Turbo Diesel -Introductory Service Training
Information 1982
42 pages, B/W, Specifications, Introduction, 4 Cylinder Engine, waste gate
4 cyl, 5 cylinder Engine, Blow off valve, Fuel Enrichment, Oil circulation
4 cyl, Radiator fan control 4 cyl, Oil Circulation 5 cyl, Radiator fan control
5 cyl, Engine Components, Turbocharger Testing, E-Mode Automatic Transmission.
Additional New Product information: Evaporative Emission System, Dynamic
Oil Pressure warning system, Upshift indicator system, Additional changes
- WSP-451-556-00 Audi
ur-Quattro Introductory Service Training Information (1982)
65 pages, B/W, Audi supplied Photocopy on regular paper, Content: Specifications,
Quattro engine, Turbo system, Cooling system, Ignition system, Oxygen sensor
system,
Four wheel drive, 5 speed Transmission, Driveshaft, Rear Differential, Suspension,
Hydraulic assist system, Power Steering, Hydraulic power brakes, Brake pressure
regulator.
- WSP-452-557-00 Audi
ur-Quattro Introductory Service Training Information "Maintenance and
Adjustments" (1982)
52 pages, B/W, Audi supplied Photocopy on regular paper, Content:
Technical Data, Torque Data, Turbo System, Crankcase Vent system, Evaporative
emission system, Vacuum hose diagram, Cooling system, Basic adjustments -CO%-Idle
Speed, Timing system testing-Performance problems, Oxygen sensor system testing,
Timing system testing, Wiring diagram, Differential locking system, Driveshaft,
Fuse/Relay system, Maintenance schedules.
- WSP-521-127-00 1986 Model Change Information (10/85)
77 Pages, B/W, Great Book highlighting the major changes to the Audi 5000T/Q
with the new MC engine.
Model Line Information, Engine
Range, 2.22 liter Engine, Engine Control System, Self Diagnosis, Wiring and
Vacuum hose Diagrams, 5000CS Quattro: Introduction, Drivetrain, Suspension,
Brake System. Audi 5000 Rear Disc Brakes, Anti-Lock Brake System: Introduction,
Components, General Information, Wiring diagrams. Body Assembly: Galvanized
body, Seat belts, 5000CS Quattro and 5000CS Turbo changes. Electrical System:
Headlights, Trip Computer, dashboard lighting, Wiring changes, Heated seats,
Rear brake light, Radiator fan.
- WSP-521-138-00 Electronic
Instrument Display For the Audi Coupe GT (3/86)
23 pages, B/W, Content: Introduction, Display Operation, Component Descriptions,
Trip Computer Operation, Trip Computer Calibration, Troubleshooting.
- WSP-521-139-00 Anti-Lock
Brake System Testing (using Bosch ABS 2-LED tester) (5/86)
29 pages, B/W, Content: Introduction, Tester, Test Procedure, Wiring diagrams.
- WSP-521-142-00 CIS Electronic
Fuel Injection, 2nd Edition (6/86)
68 pages, B/W, Content: Basic System operation, Mixture control unit, Differential
Pressure regulator, fuel supply diagram, fuel pump, accumulator, fuel filters,
pressure regulator, cold starting controls, cold running controls, idle air
stabilization, exhaust gas emissions, electronic control unit, temperature
sensor, altitude corrections, after start enrichment, acceleration enrichment,
fuel throttle enrichment, deceleration fuel shut off, Test Procedures.
- WSP-521-146-00 2.3 Liter
Engine with CIS E-III Engine Control System (12/86)
43 pages, B/W, Content: 2.3 Liter Engine Changes, Oil Cooler, Fuel pump, fuel
accumulator, pressure regulator and fuel distributor, fuel injectors and lines,
exhaust system. CIS-E-III Components: Engine control system, control units,
coolant temperature sensor, air sensor potentiometer, altitude sensor, ignition
distributor, throttle switches, knock sensor, oxygen sensor, cold start valve,
differential pressure regulator, idle stabilization valve, ignition coil,
carbon canister shut-off solenoid. System Operation: Ignition timing, fuel
mixture regulation, fault memory. Troubleshooting: Fault Memory, Checking
/Adjusting engine settings, checking system pressures and operation.
- WSP-521-147-00 Electronic Ignition Systems for 1984-87 Audi Models
112 pages, B/W, Content: Covers 4000 Quattro, 5000S, 4000S (1984), Coupe
GT, 4000S (1985-87), 5000 Turbo (1984-85), 5000 Turbo (1986-87), 5000 Quattro
(1986-87)
Theory of operation, troubleshooting information. Great book!
- WSP-521-151-00 The New
Audi 80 and Audi 90, (9/87)
79 pages, Color diagrams, Content: Introduction, Engine range, Fuel/Ignition
system, Exhaust system, Transmission, Brake System, Steering System, Suspension
System, Body Assembly, Heating and Ventilation System, Air Conditioning refrigerant
system, Electrical system, Radio.
- WSP-521-170-00 The New
Audi 100 and 200 (6/88)
60 pages, B/W, Content: Introduction, Engine changes, Transmission: 012 Transmission,
01A Quattro Transmission, 01A/012 Shift linkage, Automatic Transmission Gear
selector. Torsen Center Differential, Rear differential Lock, ABS wheel speed
sensor. Body assembly: Doors, Dashboard, Automatic Seat Belt Tensioning. Refrigeration
system, Climate Control system. Electrical system: Instrument Cluster, Wiring
harness, Component Location. Windshield wiper/washer, Heated Door Locks, Radio,
Alarm System.
- WSP-521-180-00 1989 Model Change Information (10/88)
B/W Text and Diagrams, 47 pages,
Excellent technical publication which
describes the theory of operation of the new systems used in the 1989 Models.
Engine Fault Memory: Audi 100:
Dual Knock Sensor Turbocharged MC engine changes. Fuel Supply, Carbon Canister, Evaporative system, Knock Sensors, Fault Memory
Shift Lock II
Air Bag System Operation: Steering Wheel Assembly, Gas Generator, Air Bag,
Triggering Unit, Energy Reserve, Voltage Transformer, System Operation, Body Changes, Service Procedures.
Audi 100 E Sunroof
A/C Compressor Clutch Relay
Audi 100 E Air Conditioning
Audi 90 Climate Control Operation: Temp Sensors, Programmer Head/Control Unit, Temp regulating Servos, Fault Memory
Bose Sound System
Audi 90 Alarm System
- WSP-521-200-00 Audi
Coupe Quattro with 20 Valve Engine (5/89)
66 pages, B/W, Content: Introduction, 20 Valve Engine: Cylinder head, intake/exhaust
manifold, Crankcase breather. Fuel supply: fuel tank ventilation, Fuel tank,
Pressure regulator fuel rail. MPI: Overview, Control unit, oxygen sensor,
air mass sensor, throttle potentiometer/switch, coolant temperature, distributor,
knock sensors, reference/speed sensors, fuel injectors/series resistance,
Idle Stabilization, ignition coil /spark plugs, component locations, fault
memory. Chassis: Front suspension, rear suspension, wheel bearings/special
tools, wheels, brakes/steering. Central Hydraulics: Overview, Pump, Pressure
accumulator, Brake Servo/Master Cylinder. Body assembly: Front doors/Window,
Sunroof, Rear Window, Rear deck lid. Climate Control: Temp Sensors, Programmer/control
head, temperature regulation servo, fault memory. Electrical system: New component
location.
- WSP-SJM-201-00 The New
Audi V8 Quattro (5/89)
98 pages, B/W, Content: V8 Concept Overview, V8 quattro Engine (20 pages),
Engine management system (14 pages), Automatic Transmission (17 pages), Suspension,
Brakes, Power Steering, Body (12 pages), Electrical system (8 pages), V8 Quattro
Cellular Telephone (5 pages), VAG1551 fault diagnosis (1 page).
- WSP-521-207-00 Audi
Radio Reception Manual
(no details at this time)
- WSP-521-208-00 MPI Engine
Management for 80/90 Quattro 20V (4/90)
71 pages, Color diagrams, Content: Overview, Engine components, fuel
supply fuel injectors, fuel injector series resistance, ignition system, idle
stabilization, fuel tank ventilation, crankcase ventilation , exhaust gas
recirculations, electrical system, self diagnosis, inputs and outputs. Components:
Control unit, air mass sensor, coolant temperature sensor, Engine speed and
reference senders, hall sensor, diagram of control signals, throttle body,
throttle potentiometer and idle switch, knock sensor 1 and 2, oxygen sensor,
EGR temperature sensor, fuel injectors, Ignition coil with power stage, idle
stabilizer, carbon canister frequency valve, carbon canister shut off valve,
EGR frequency valve, Fuel pump relay, California OBD warning light, control
unit inputs and outputs. ECU self diagnostics, self diagnosis with VAG 1551,
VAG 1598, Wiring diagram.
- WSP-521-209-00 The New
20 Valve Turbo Engine for the Audi 200 Quattro (4/90)
40 pages, Color diagrams, Content: Introductions, 20 Valve Turbo Engine,
cooling system, system layout, Motronic Control Unit adaptive learning, system
diagram, Sensors/Actuators: hall sender, reference sensor/speed sensor, air
mass sensor, throttle Valve potentiometer and idle switch, intake air temp
sensor, coolant temp sensor, knock sensor I and II, oxygen sensor, altitude
sensor, intake manifold pressure sensor, multi-function temp sensor, idle
stabilizer, carbon canister frequency valve, fuel injectors, Ignition coil,
output stage and distributor, waste gate frequency valve, fuel pump relay/fuel
pump. Fuel system, Fuel Tank ventilation system, boost pressure control, idle
stabilization, knock control, connector assignments, Power supply, grounds,
wiring diagram, Self diagnosis with VAG 1551.
- WSP-521-210-00 Audi
4 Speed Automatic Transmission (6/90)
52 pages, B/W, Content: Overview, Torque Convertor, Planetary gear set, ATF
Pump, Valve Body, Power Flow, Electrical system Layout, Inputs, Outputs, Shift
Lock, Wiring Diagram, Transmission assembly, transmission installation.
- WSP-521-211-00 1991
Model Change Information (9/90)
48 pages, B/W, Content: Model Line Description: Audi 80, Audi 90, Audi Coupe
Quattro, Audi 100, Audi 200, Audi V8 Quattro. 20 Valve Turbo, Servotronic
Steering, Audi V8 Quattro 5 speed Transmission, 4 speed automatic transmission,
shift lock III, Audi V8 Comfort feature, Coupe Sunroof with Pre-selection.
- WSP-521-212-00 The New
Audi 100 (1992 Model) (8/91)
64 pages, B/W, Content: Introduction, V6 Engine, MPI System (engine management),
transmission, front suspension, rear suspension, brake system, steering, Doors,
Body assembly, Air conditioning, Climate Control, Electrical system, Central
Locking/Alarm, Power Windows, Electric Seats, memory mirrors, Infrared Remote
Control, Headlight washers, Temperature display, Radio.
- WSP-521-213-00 The New
Audi V6 Engine with MPI (Multi-Point-Injection) Engine Management System
(8/91)
76 pages, B/W, Content: V6 Engine Introduction: Crankcase and crankshaft,
cylinder head, poly ribbed belt, Oil circuit and engine lubrication, cooling
system, Crankcase ventilation, intake manifold, engine technical information.
MPI ENGINE MANAGEMENT: Fuel supply, fuel tank ventilation, MPI system Overview:
Component locations, ECU Inputs: air mass sensor, coolant temperature sensor,
reference and speed sensor, hall sensor, throttle valve potentiometer/idle
switch, knock sensors, oxygen sensors. ECU Outputs: fuel injectors, Power
stage/ignition coils, idle stabilizer, Intake Manifold changeover value, EGR
Frequency valve, EGR Temp sensor, Fuel pump relay. VAG 1551 Fault Diagnosis,
Functional wiring diagram.
- WSP-521-214-00 1992
Model Change Information (3/92)
63 pages, B/W, Content: Model line overview, S4 20 Valve Turbo engine, V8
engine, V8 transmission oil cooler, Dual Mass flywheel, 01E Transmission,
V8/S4 Front Brakes, 100CS Quattro Rear suspension, 01F Transmission, Airbag
II (system with passenger airbag), S4 Headlights, V8 Climate Control, V8 infrared
remote central locking and memory mirrors, V8 Auto check speed Warning System.
- WSP-521-215-00 The New
Audi 90 (4/92)
42 pages, B/W, Content: Model line overview, V6 engine, MPI system, Fuel supply
system, Dual mass flywheel, Transmissions, Steering, Front Suspension, rear
Suspension, Brake system, Body Assembly, Airbag, Air conditioning, Headlights,
Electrical system, Gamma Radio, Radio Antenna system, Central locking features,
Component locations.
- WSP-521-216-00 Audi
01F 4 Speed Automatic Transmission (6/92)
51 pages, B/W, Content: Overview, Input/Output Components: Engine RPM Signal,
injector opening time signal, throttle position sensor signal, wheel speed
sensor signal, shift point signal, multi-function switch, Gear selector display,
Brake light switch signal, Kick down switch signal, Climate control signal,
ATF temperature signal. Electrical System: power supply, auto trans. electrical
connectors, functions wiring diagram. Selector lever components: Gear selector
lever and starter lock out, electrical circuit, shit lock III. VAG 1551: Overview,
Function 03-Output check diagnosis, Function 08 Read measuring value block.
Service: Technical data, capacities, ATF dipstick, Multi-function switch,
filler locations. Transmission Power Flow, TCM Pin-out reference list.
- WSP-521-217-00 Climate
Control with Fault Memory (1992 Models)
52 pages, B/W, Content: Introduction, Overview, Refrigeration cycle, Refrigeration
circuit, Refrigeration Components, Temperature Regulation, Air volume control,
Air distribution, Self diagnosis, 1598 Test Box, Functional wiring diagram
Identification, Functional Wiring Diagrams.
- WSP-521-218-00 Motronic
Engine Management Sys. for the Audi S4 & 4.2 l V8 (3/92)
71 pages, B/W, Content: 20 Valve Technical specifications, V8 Technical specifications,
Motronic Overview: Component locations, Fuel delivery, Ignition system, Turbo
charger system, fuel tank ventilation, idle air control, crankcase ventilation,
Power and ground locations, Functional wiring diagrams. Motronic for the 4.2
liter V8: Fuel system, Oxygen sensor, EGR, Power and ground locations, Functional
wiring diagram. Sensors for both 20V and V8: mass air flow sensor, Hall sensor,
Crankshaft position sensor and engine speed sensor, Throttle position potentiometer
and closed throttle position switch, intake air temp sensor, Engine coolant
temp sensor, knock sensors, oxygen sensor, Barometric pressure sensor (20V),
Manifold absolute pressure sensor (MAP), Additional signals, Holding relay.
Self Diagnosis, Pin list, Nomenclature.
- WSP-521-219-00 1993
Model Change Information (10/92)
43 pages, B/W, Content: Model line overview, V6 MPI system, Phase I Automatic
Transmission, 01K Automatic Transmission, Airbag II, Sunroof, Audi 90 Central
Locking, Air conditioning, Body Assembly, Electrical system.
- WSP-521-220-00 Air Conditioning
Systems with R-134a (10/92)
20 pages, B/W, Content: Introduction, R-134a Characteristics, Component changes
for R-134a: A/C Compressor, Condenser, Restrictor, Evaporator, Accumulator,
Hoses and O-rings. R-134a Service Pointers: General Safety guidelines, General
service guidelines, Refrigerant Charge/Refrigerant Oil, Proper Gaskets and
O ring seals, Refrigerant Hoses, Interchanging control components, Interchanging
other components, sight glass, Leak Detections, Refrigerant Recovery/Recycling.
Refrigerant Blends, Legislation.
- WSP-521-221-00 The New
Audi Cabriolet (11/93)
44 pages, B/W, Content: Introduction, Body Assembly, Roof Assembly, Windows,
Rear WIndow Defroster, Windshield, Roof Sill, Seats, Roof Operation Overview,
Roof Operation Components, Component location, Hydraulic Pump, solenoid valve
block, solenoid valves, limiting switches, Convertible compartment lock, Central
Locking alarm system, On Board Diagnostics (OBD), Wiring Diagram, Technical
Specifications.
- WSP-521-222-00 The New
Audi A4 (9/95)
61 pages, B/W, Very nice book with gray covers, Content: Introduction, Technical
specifications, Audi A4 Equipment and Options, Engine, Transmissions, Five
Speed automatic Transmission, Front suspension, Rear suspension, Brakes, EDL
Traction Control Steering Column, Steering, Body, Airbags, Pyrotechnic Seat
Belt Tensioning, Alarm System, Central Locking, Climate Control, Radio, Electrical
System Headlights, Headlights.
- WSP-521-223-00 1996
Model Change Information (11/95)
81 pages, B/W, Very nice book with gray covers, Content: Introduction, Technical
specifications, Audi A4 Equipment and Options, Audi A6, Technical specifications,
Cabriolet Equipment and Options, S6 Wagon, Technical Specifications, S6 Equipment
and Options, Audi Model Line, Colors, Wheels, Radio Program, 5-Speed Automatic
Transmission, Bosch ABS 5, Cabriolet Sport Seat, Body, Central Locking, Alarm
System, Vehicle Key, Radio.
- WSP-521-224-00 Aluminum
Body Audi A8
71 Pages, Color Diagrams, Very nice book with gray covers, Content:
Audi A8, The Great Opportunity, Body, The Material Aluminum, Recycling, Audi
Space Frame, Vehicle Safety, Contact Corrosion, Heat Treatment, Joining Methods,
Repair Solutions, Insulation, Bumpers, Door, Straightening Bench, Noise.
- WSP-521-225-00 The Audi
A8 Design and Operation
65 pages, Color Diagrams, Very nice book with gray covers, Content:
Audi Space Frame (ASF), V8 Engine, Motronic M5.4, Automatic Transmission,
Running Gear: Front Suspension, Steering, Steering column, Rear suspension,
Wheel Alignment. Instrument Cluster, "delta cc" Sound system, Electrical System,
Thermal Insulation Glass, Air Conditioner/Heater, Seat Belt Tensioning.
- WSP-521-226-00 ABS/EDL/TC
(Bosch) 5 in Audi, Design and Operation
21 pages, Color Diagrams , Very nice book with gray covers, Content:
ABS (Anti-Lock Brake System) , EDL (Electronic Differential Lock) , TC (Traction
Control). System Overview, System General, Hydraulic Layout Diagrams, Functional
Diagrams, Electrics, On Board Diagnostic (OBD), Check your knowledge.
- WSP-521-227-00 Heating
and A/C Audi A8 1997 Design and Operation
25 pages, Color Diagrams, Very nice book with gray covers, Content:
Controls, Air Distribution, System Overview, Component Locations, Air Conditioner
Functions, Schematic Diagram, Self Diagnosis, Connector Plugs.
- WSP-521-228-00 On Board
Diagnostic II, Design and Function, 2.8 liter , 2 Valve V6 (8/96)
77 pages, Color Diagrams, Very nice book with gray covers, Content:
OBD-II Overview, System Components: Catalytic Converter, Oxygen sensor, Exhaust
gas recirculation, secondary air injection system, leak diagnosis, Misfire
detection, Other system components, Control module. Audi System Overview,
Diagnostics, Documentation Concept, Schematic Diagram- Audi V6, Review what
you learned.
- WSP-521-229-00 1998
Audi A6 Design and Performance (9/97)
60 pages, Color Diagrams, Very nice book with gray covers, Content:
Audi A6, Vehicle Body, Engine, Fuel System, Chassis, Brake System, Steering,
Electrical System, Communications, Climate Control, Functional Circuit Diagram.
- WSP-521-230-00 On Board
Diagnostic II, Design and Function,
1.8 Turbo 5V, 5 Valve 2.8 liter V6 , V8 (3.7liter and 4.2 liter) (9/97)
94 pages, Color Diagrams, Very nice book with gray covers, Content:
OBD-II Overview (13 pages), 1.8 liter Turbo 5V engine (3 pages), 2.8 Liter
V6 5V engine (3 pages), 3.7/4.2 Liter V8 Engine (3 pages), System Components
(46 pages), Diagnosis, Test your Knowledge, Documentation Concept, Functional
Wiring Diagrams:1.8 Turbo, 2.8 liter V6, V8 engines, Review what you learned.
- WSP-521-231-00 1998
Audi A6 Component Location (8/97)
50 pages, B/W, soft cover, 3 hole punched, Content: Audi A6 Model Year 1998
Component locations: 2.8 liter V6 5Valve engine AHA engine code Motronic Fuel
Injection and Ignition, Automatic Transmission 01V, ABS/EDL/ASR, Climatronic
automatic climate control, Body and Interior.
- WSP-521-232-00 1997
New Model Changes (1/97)
72 pages, Very nice book with gray covers, and some nice color diagrams/photos
of vehicles, Content: Audi A4, Technical Specifications, Audi A4 Equipment
and Options, Audi A4 1.8T, Technical Specifications, Audi A4 1.8T Equipment
and Options, Colors and Trim, Cool Shade Colors, Audi A6, Technical Specifications,
Audi A6 Equipment and Options, Audi A8, Technical Specifications, Audi A8
Equipment and Options, Colors and Trim, Audi Cabriolet, Technical Specifications,
Audi Cabriolet Equipment and Options, Audi S6 Wagon, Technical Specifications,
Audi S6 Equipment and Options, Audi Model Line, Colors, Wheels, 1.8 T engine,
1.8 T Engine Management.
- 921903 Audi V8-5V
Self Study Program
AUDI FACTORY SERVICE TRAINING BOOK: THE V8 5 VALVE ENGINE used in the Audi
A8 (310HP) and A6 (300HP)
Self Study program for dealer technicians, 70 pages, Very nice book with B/W
Text and Multi-Colored diagrams. This Glossy paperback training book features
Design and "Theory of Operation" Details on Engine Mechanical Construction
and Engine control system functions.
Contents Include:
THE V8 5 VALVE ENGINE OVERVIEW: ENGINE MECHANICALS: (New features
and Modifications. Includes Technical engine data and HP and Torque Graph
Crankcase, Electrically controlled Hydraulic Engine Mounts, Engine Lubrication,
Cooling Circuit, Cylinder Head (5 Valve Technology), Variable Valve Timing
Mechanism, Exhaust Manifold)
ENGINE-VARIABLE INTAKE MANIFOLD: (Intake Module, Intake Manifold:
Three Operating Stages for intake tuning, Effect of Variable Intake Manifold
on Torque including graphs, Vacuum Reservoirs)
ENGINE-SECONDARY AIR SYSTEM: (Secondary air system Overview, Component
Function)
ENGINE MANAGEMENT: (Motronic ME 7.1 System Overview, Functional Diagram,
Quick Start Functions, Electronic Throttle Function, The CAN Data Bus, CAN
Bus Interfaces, Additional Signals/Interfaces)
SERVICE: (Special Tools), TELETEST: (Self Test for Technicians
for review of material)
- 991903 Audi TT Self
Study Program
AUDI FACTORY SERVICE TRAINING BOOKLET: 2000 AUDI TT COUPE
Self Study Program for Dealer Technicians, "Design and Function" Information
(Theory of Operation), Glossy Soft cover, nice glossy paper with 98 pages,
Very Nice book with B/W text and excellent multi-colored cutaway diagrams
and some color photos. Great technical information not found anywhere else.
Contents Include:
Concept Car discussion and Overview
A BRIEF INTRODUCTION TO THE TT
(Design needs no explanation: Engines (180 and 225HP), Running Gear, Newly
Developed quattro drive train, Design. The safety concept: Air bags, front
and side impact, More passive safety, Safety belts with added features, Central
Locking system revisions, Design, The interior concept: The cargo area, Storage
and Convenience, Instrumentation, Music on the move. Vehicle dimensions, Vehicle
Identification, Environmentally friendly production)
BODY (Special Features: Front Bumper, Rear Bumper, Hood, Rear Deck
Lid, Doors, Fuel Filler Cap, Taillights, Dash Panel, Front frame Structure,
B Pillar Supports, Side Reinforcements in the doors, Door Sill)
VEHICLE SAFETY (Occupant protection: side and front air bags, passenger
air bag disable switch, roof padding, Brake and Clutch Pedal retraction, Fuel
cut-off, automatic unlocking)
POWERTRAIN (Engine and gearbox configuration), 1.8 liter 180 HP (132kW)
5V-Turbocharged engine, Horsepower and Torque Graph, Lubrication and cooling,
Engine and transmission mounts, Turbocharging system: Charge Pressure Control,
Air Divert in Overrun (Turbo Recirculation Valve)
FUEL DELIVERY SYSTEM (Fuel tank, evaporative emissions)
MOTRONIC ME 7.5 (Overview, torque based engine management, System Overview,
Electronic Throttle Control function, Mass Air Flow (MAF) Sensor, Camshaft
Position sensor, Secondary air system)
MANUAL TRANSMISSION (5 speed FWD and 5 Speed Quattro)
POWER TRANSMISSION (Haldex Coupling, Advantages, The System Configuration,
The Hydraulics, The Control System)
THE STEERING AND SUSPENSION (Steering, Front axle, wheel alignment,
Front Strut attachment, Rear Axle-FWD and Quattro)
BRAKES (Electronic Brake Pressure Distribution-EBD, Anti-Slip Regulation-ASR,
Electronic Differential Lock-EDL)
CLIMATE CONTROL (System Overview, Expansion Valve)
ELECTRICS (Overview, Component Locations, Interior monitoring, alarm
system, Sound system)
SERVICE (Vehicle Specifications), TELETEST (Technician Test
and answer form)
- 992903 Audi V6 Bi-Turbo
Self Study Program
AUDI FACTORY SERVICE TRAINING BOOKLET: The 2.7 liter V6 Biturbo
Self Study Program for Dealer Technicians. This booklet has "Design and Function"
(Theory of operation) details on the new twin turbo 2.7 liter V6 engine as
used in the 2000 Model year Audi S4 and Audi A6. Glossy Soft cover, glossy
paper with 78 pages. B/W text with excellent multi-colored cutaway diagrams
and some color photos. Great technical information not found anywhere else.
Contents Include:
Engine (27 pages, Technical Data, Crankshaft, Cylinder Head, Variable
Valve Timing, Cooling Circuit, Engine Lubrication), Overview of Components:
(Air Ducting, Turbochargers, Exhaust System, Pneumatically Controlled Systems,
Charge Pressure Control, Air Recirculating Control in Over-run, EVAP system,
Crankcase Breather).
Motronic ME 7.1 (28 pages, Subfunctions, System Overview), Subsystems
of the Motronic: (Torque-Oriented Engine Management, Torque-Oriented Functional
Structure, Electronic Throttle, Exhaust Temperature Control Details). Motronic
Sensors (Charge Air Pressure, Barometric Sensor, Mass Air Flow Sensor, O2
sensors, Crankshaft Position sensors), Additional Motronic signals (CAN data
bus, Vehicle speed sensor, coolant temperature sensor, A/C compressor on/off,
Cruise Control Interface), Functional ECU wiring Diagram and component identification,
VAS 5051 overview, VAG 1598/31 interface.
Power Transmission: (New Self Adjusting clutch with wear compensation), Manual
Transmission Cooler system, Technician Self-Test Exam.
- 99619-3
Audi Electronic Stability Program (ESP) Dec. 1999
75 pages, B/W and Color Diagrams
Contents:
Introduction-Looking back-What does ESP do?-Acronyms-Two ESP systems
Basic Physical Principals, Driving Dynamic Control, Overview of Bosch and
ITT Automotive Systems, Bosch ESP System, ITT Automotive System, Service,
Glossary, Teletest
- 99719-3
CAN Data Bus, October 1999
33 Pages, B/W and Color Diagrams
Contents:
Introduction, CAN Data Bus, Data Transfer, Function, CAN Data Bus in the Drive
Train, CAN Data Bus in the Convenience System, Teletest
- 99621-3
Audi QUATTRO System Evolution of AWD Engineering (1980-2001)
June 2001
45 Pages, B/W and Color Diagrams
Contents: Introduction to quattro, Torsen Differential, Haldex Coupling,
Electronic Differential Lock (EDL), quattro Fuel Tank, Teletest
- 99211-3 The 3.0 Liter V6
Engine
August 2001
37 Pages, B/W and Color Diagrams
Contents:
Introduction,
Engine-Mechanics: The Technical Data, Crankcase, Crankshaft, Balancer
Shaft, Oil Circuit, Crankcase Breather, Cylinder Heads, Camshaft Toothed Belt
Drive, Continuous Camshaft Adjustment.
Engine-Multi-Point Fuel Injection: Air Intake, Variable Intake Manifold,
Motronic ME 7.1.1 Engine Management System, ME 7.1.1 System Overview and Functional
Diagram
Engine-Exhaust System: Vacuum Systems, Exhaust Manifolds, Catalytic Converters
Service: Special Tools
Teletest
99910-3
Audi TT Roadster
Feb. 2000
37 Pages, B/W with many Color Diagrams and some color photos
Contents:
Body: Body Overview with exploded diagrams of the body panels, Roll
Bar, Occupant Protection, Gantry Gauge
Convertible Top Control: Convertible Top, Top Design, Hydraulic Diagram,
Top Hydraulic Pump V118, Component Locations, System Overview, Top Component
operation, Top Functional Diagram.
Wind Deflector: Deflector Operation, Deflector Functional Diagram
Central Locking System: Storage Compartment, Luggage Compartment emergency
Release, CD Changer Tray
Interior Monitor System: Interior Monitor, Monitor Operation
Teletest: Audi TT Roaster Design and Function teletest
Coming soon....
- 99420-3
Audi ME 7 Engine Management System
- 9521951-93
Audi Automatic Transmission 01V 01L
- 9521971
2000 Audi Wiring Harness Inspection and Repair
- 99939-3
2000 Audi New Technology Design and Function
- 99112-3
Audi VAS5052 Design and Function
- 99912-3
Audi Cabriolet, Design & Function
- 99511-3
Audi Variable Automatic Transmission
- 99611-3
Audi Handling Control Systems
- 99740-3
Audi Airbag and Safety System
- 99911-3
Audi A4 Design and Function
- 99920-3
Audi Allroad Quattro
- 99921-3
Audi A4 Body Training
- 99922-3
2002 Audi New Technology
VW
Manuals, Service Training
- WSP-521?-625-00 Four Cylinder Diesel 1977-1983 (82)
Introduction: Cold Running/Starting problems, Idle Problems, Warm Running
Problems, Special Repairs
Copyright © SJM
Autotechnik™ , all rights reserved
Return to SJM Autotechnik™ main page.
|
