Stromlaufpläne - Wiring Diagrams - Audi ur-quattros

The wiring diagrams were not published and numbered in order - exactly which diagrams need to be assembled to reflect a particular car is not intuitive. It is therefore better to use the "Index by Model Year" function.

01 - Audi Quattro, 1980/1
02 - Central locking
03 - Audi Quattro, 1982
04 - Electric windows and mirrors
05 - Cruise control
06 - Rear screen wiper
07 - Air conditioning

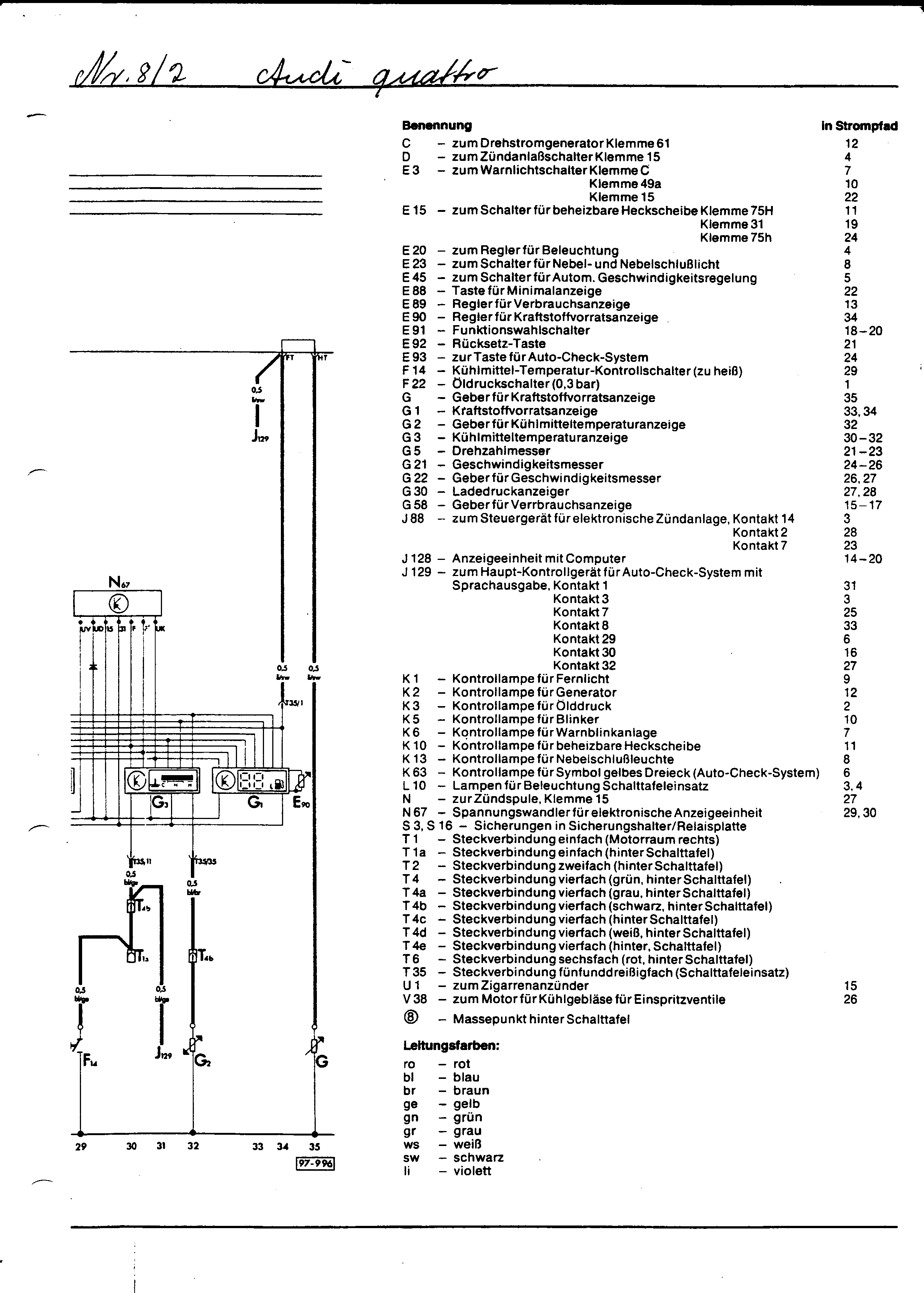

08 - Electronic dashboard

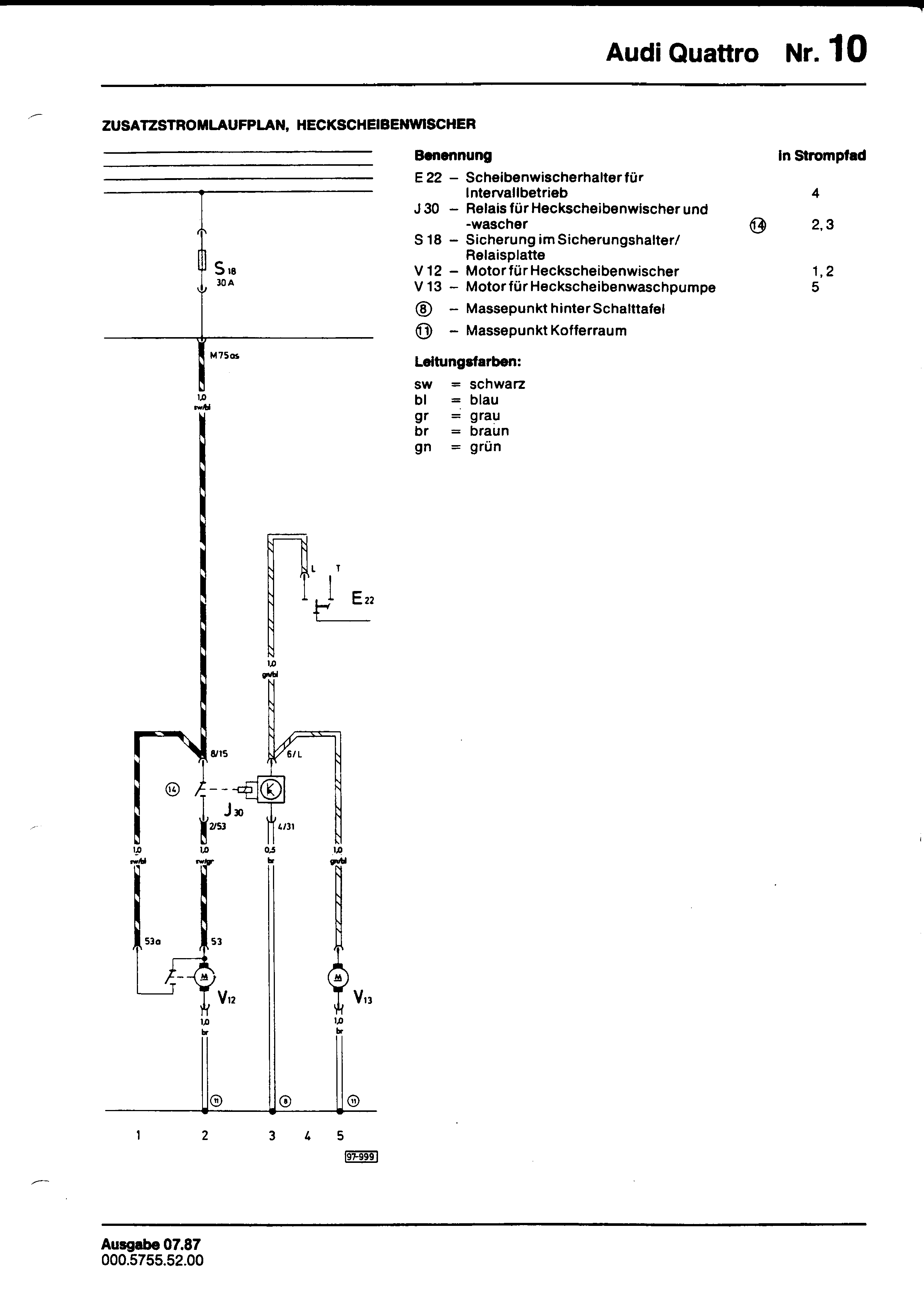

09 - Autocheck unit with speech synthesiser - 1983 - see also notes and pinout
10 - Rear screen wiper
11 - Brake warning lights - from D-901742 without autocheck
12 - Brake warning lights - from D-901742 with autocheck
13 - Audi Quattro, 1983
14 - ABS - see also notes and pinout
15 - Autocheck with speech synthesiser - 1984 - see also notes and pinout
16 - Electronic dashboard
17 - Audi Quattro, 1985
18 - ABS - see also notes and pinout
19 - Autocheck unit with speech synthesiser - 1985 - see also notes and pinout
20 - Electronic dashboard
21 - Audi Quattro, 1984
22 - Audi Quattro, 1986
23 - Autocheck with speech synthesiser - 1986/7 - see also notes and pinout
24 - Electronic dashboard
25 - Heated front seats
26 - Electric windows
27 - Central locking
28 - Electric rear view mirrors

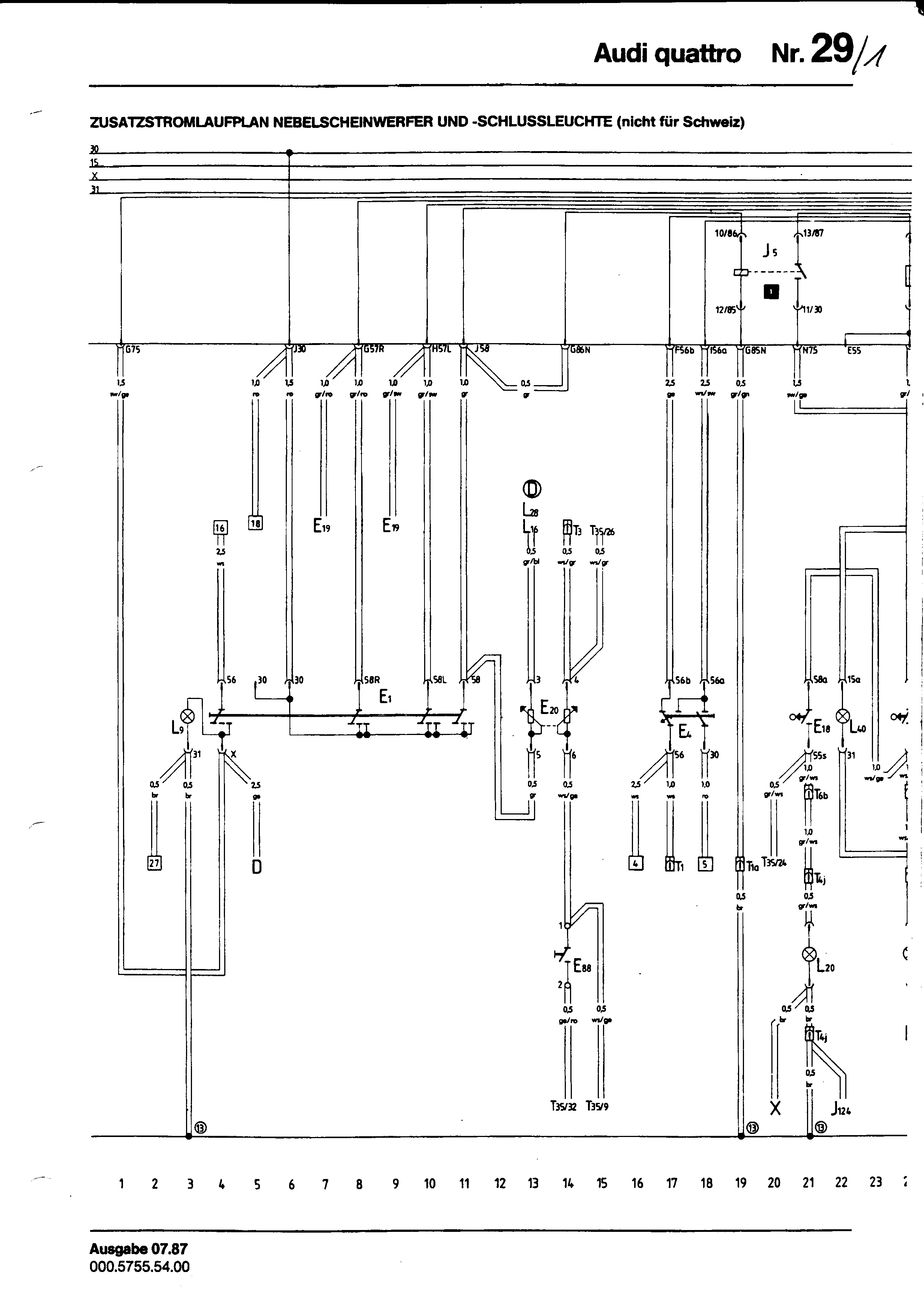

29 - Front and rear fog lights (not Switzerland)
30 - Front and rear fog lights (Switzerland)
31 - Cruise control

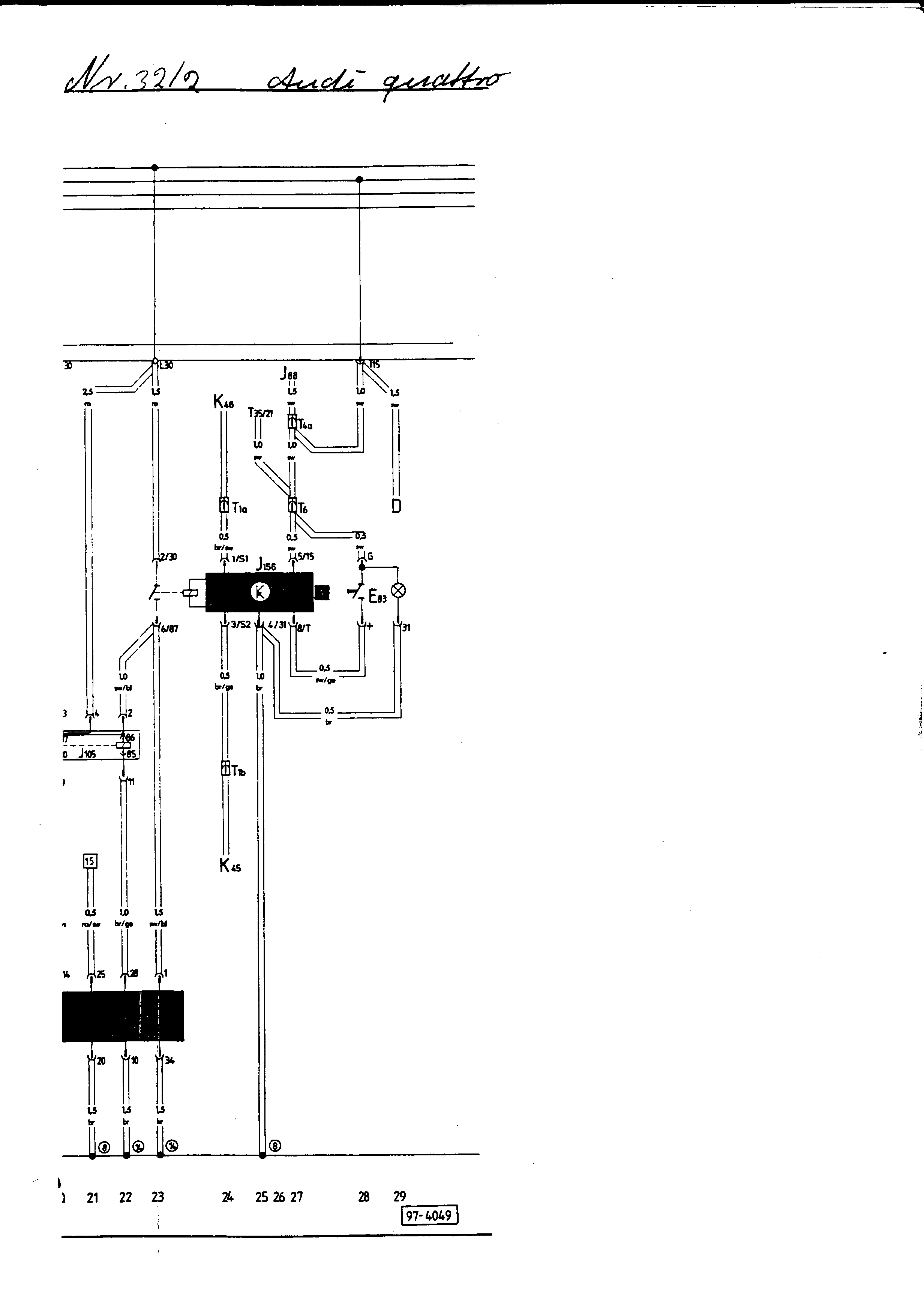

32 - ABS - see also notes and pinout
33 - Rear screen wiper
34 - Daytime driving lights and fog lights (Sweden)
35 - Daytime driving lights and fog lights (Norway)
36 - Radio - see also ISO connector conversion
37 - ABS with longitudinal accelerometer - see also notes and pinout
38 - Air conditioning

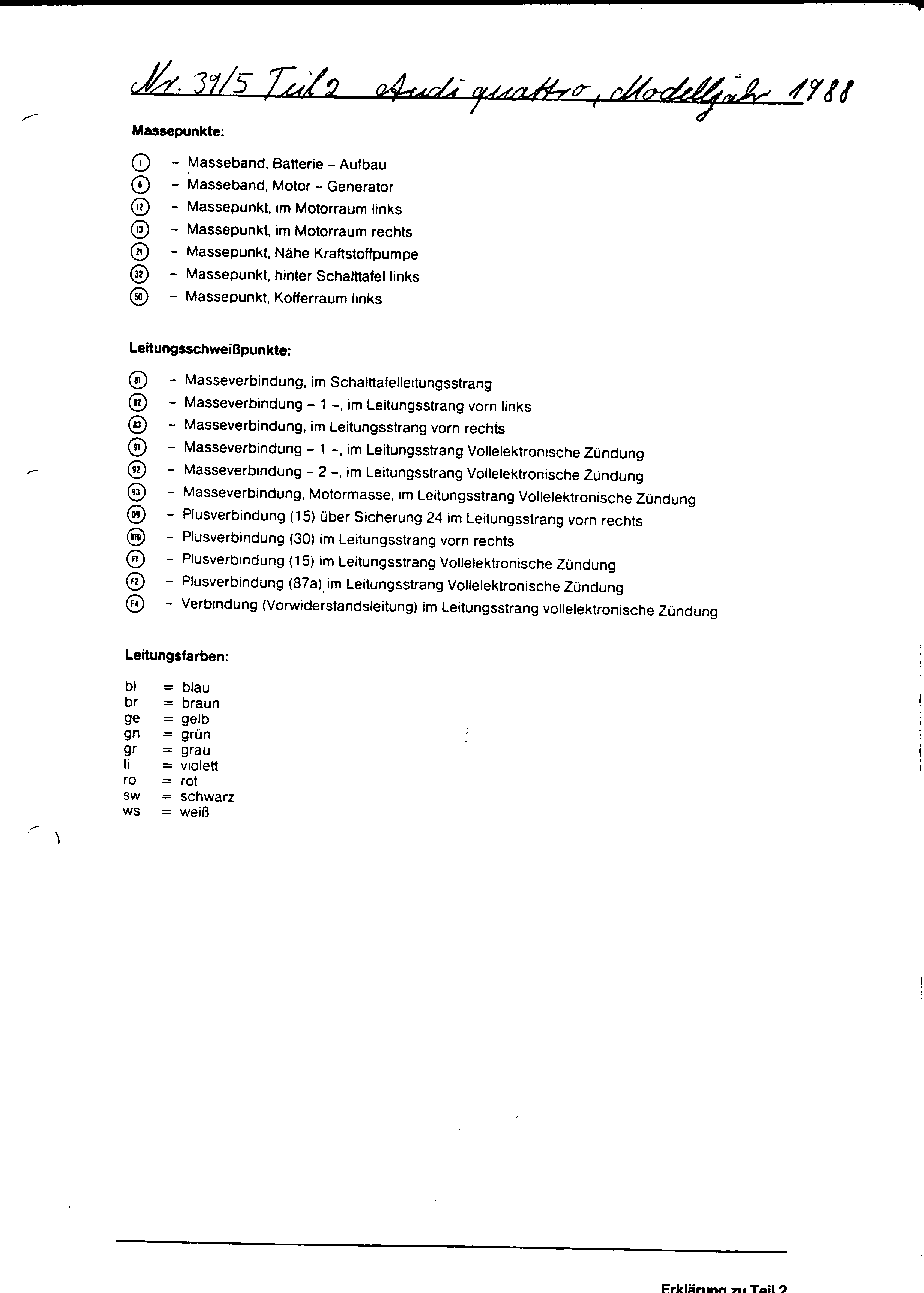

39 - Audi Quattro, 1988, MB engine

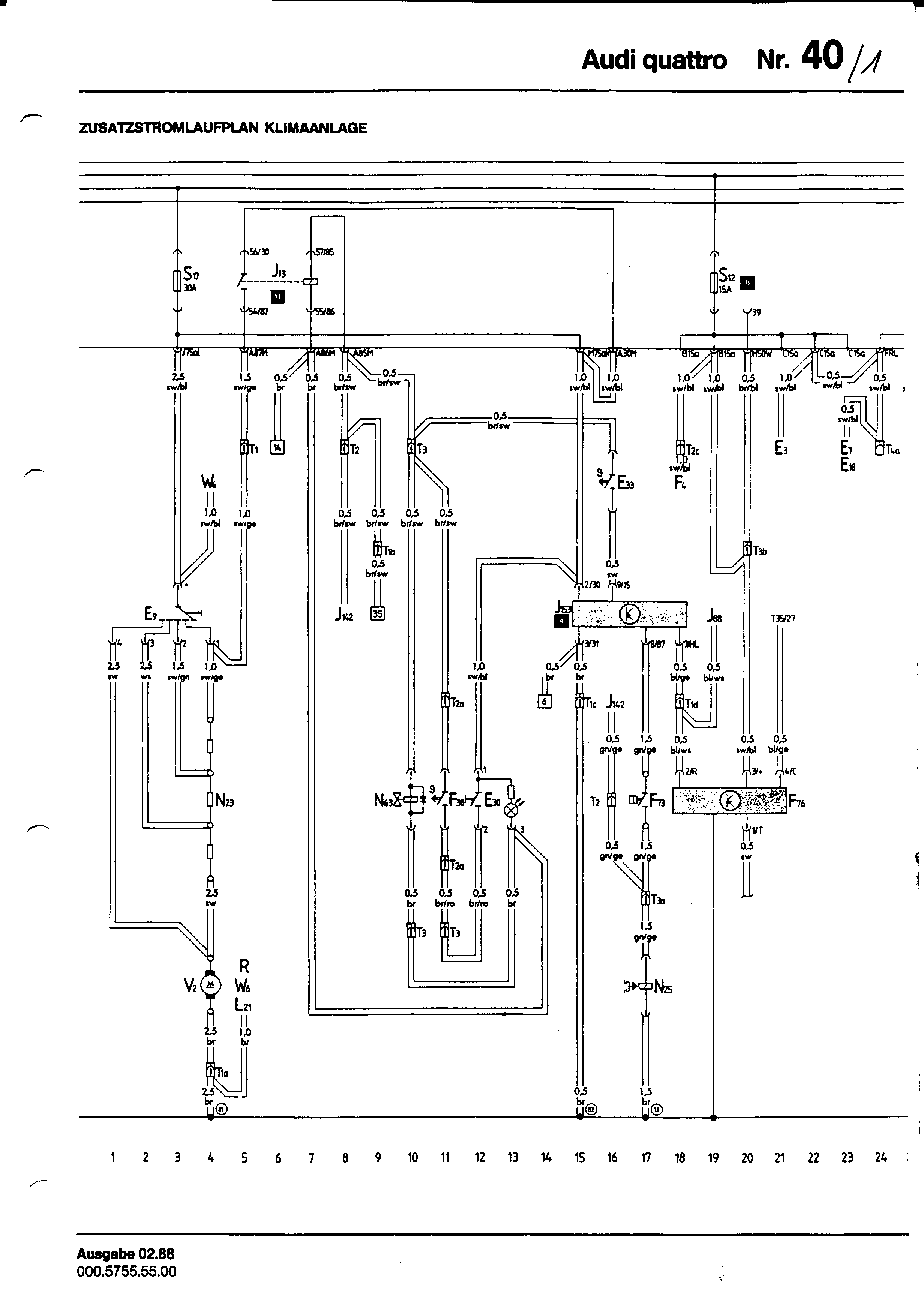

40 - Air conditioning - MB engine

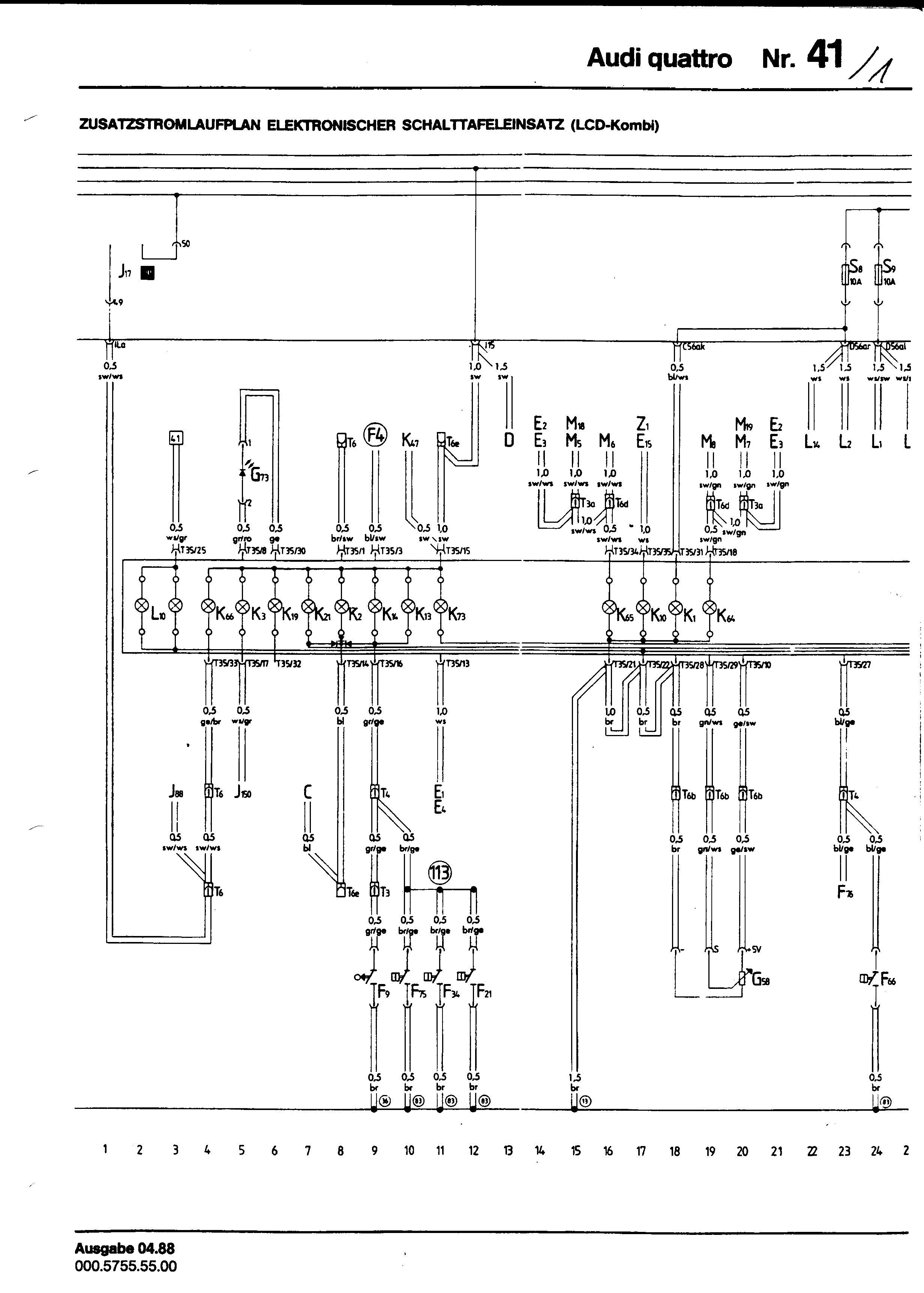

41 - Electronic dashboard

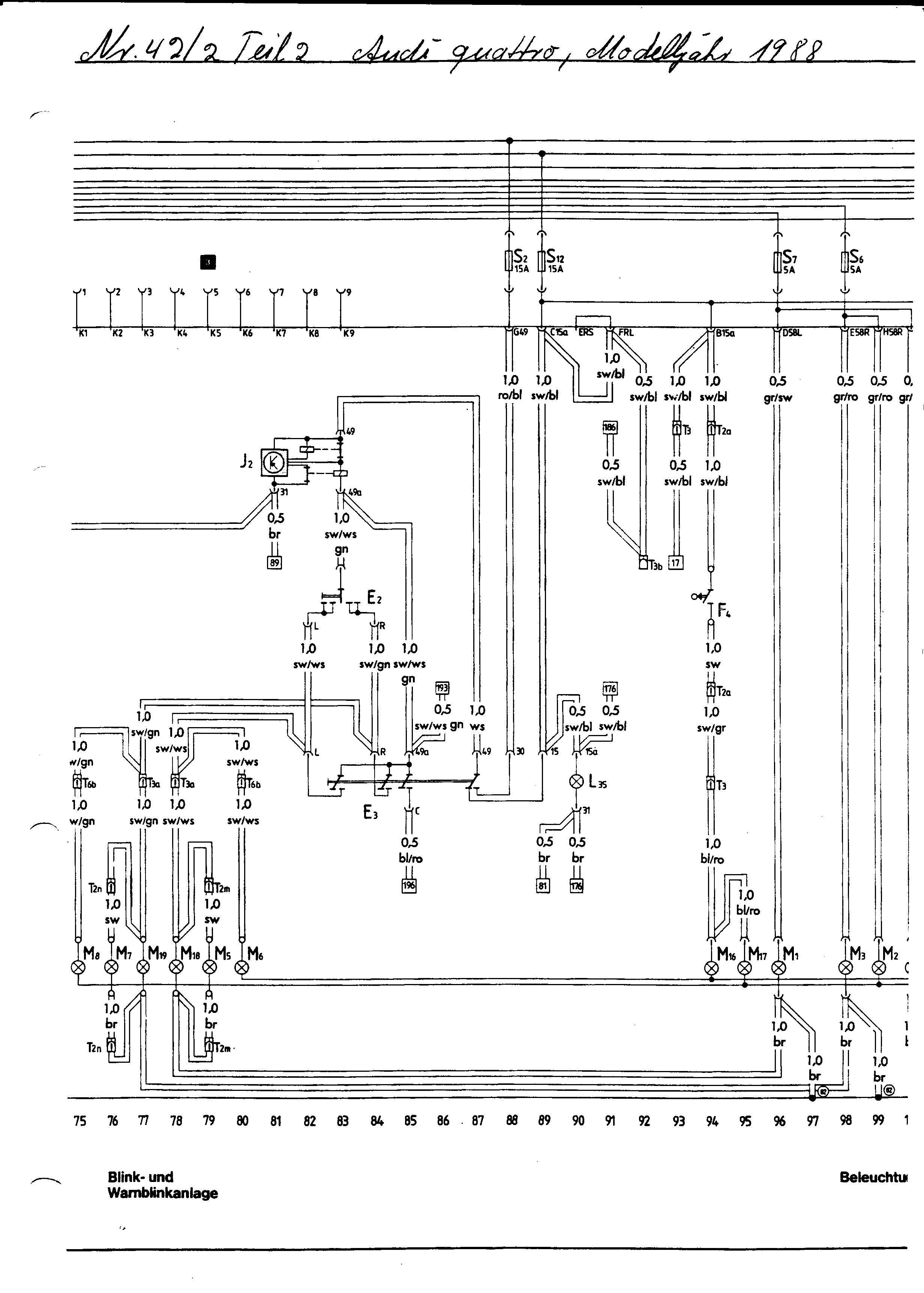

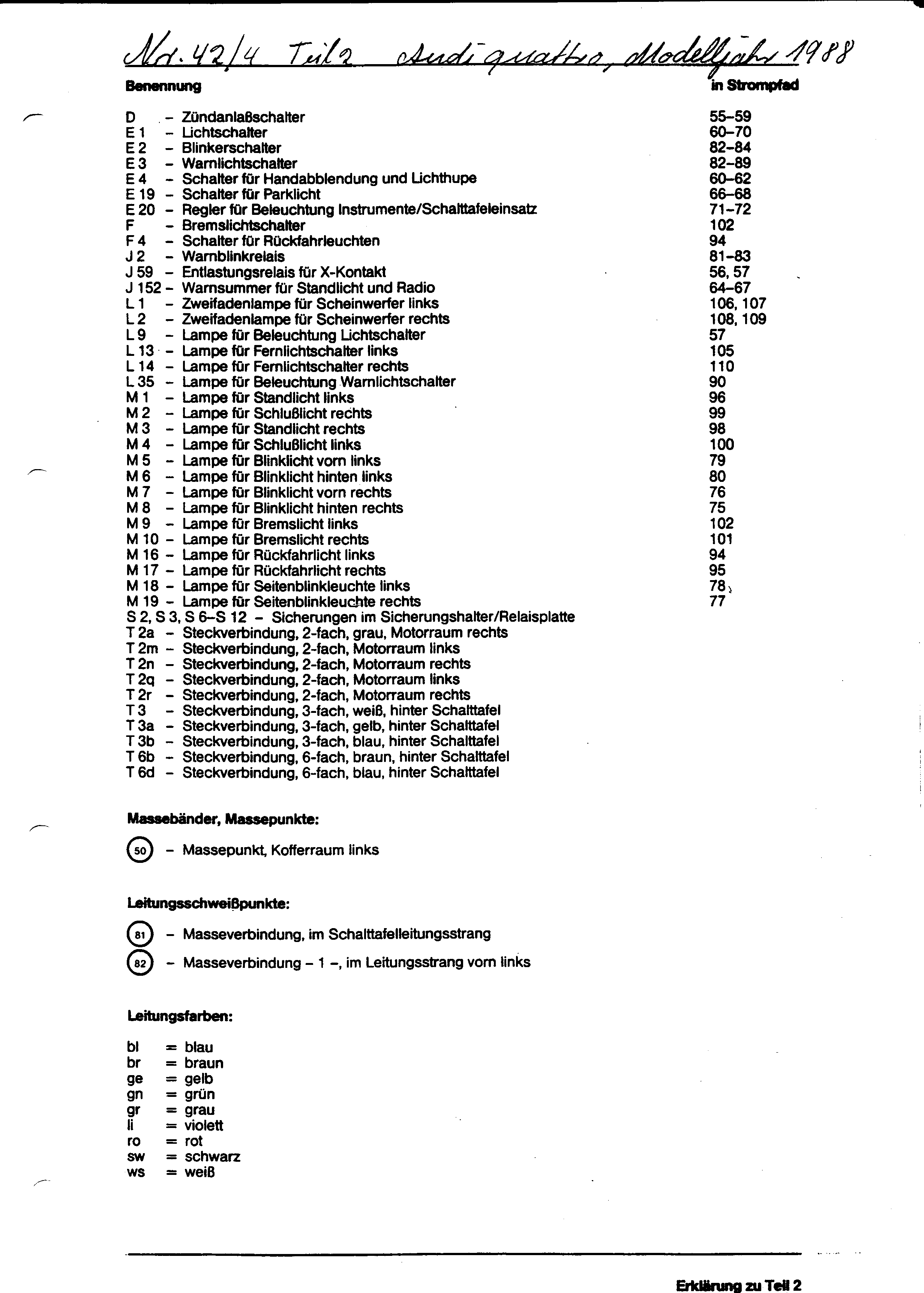

42 - Audi Quattro, 1988, WX engine
43 - Cruise control - WX engine

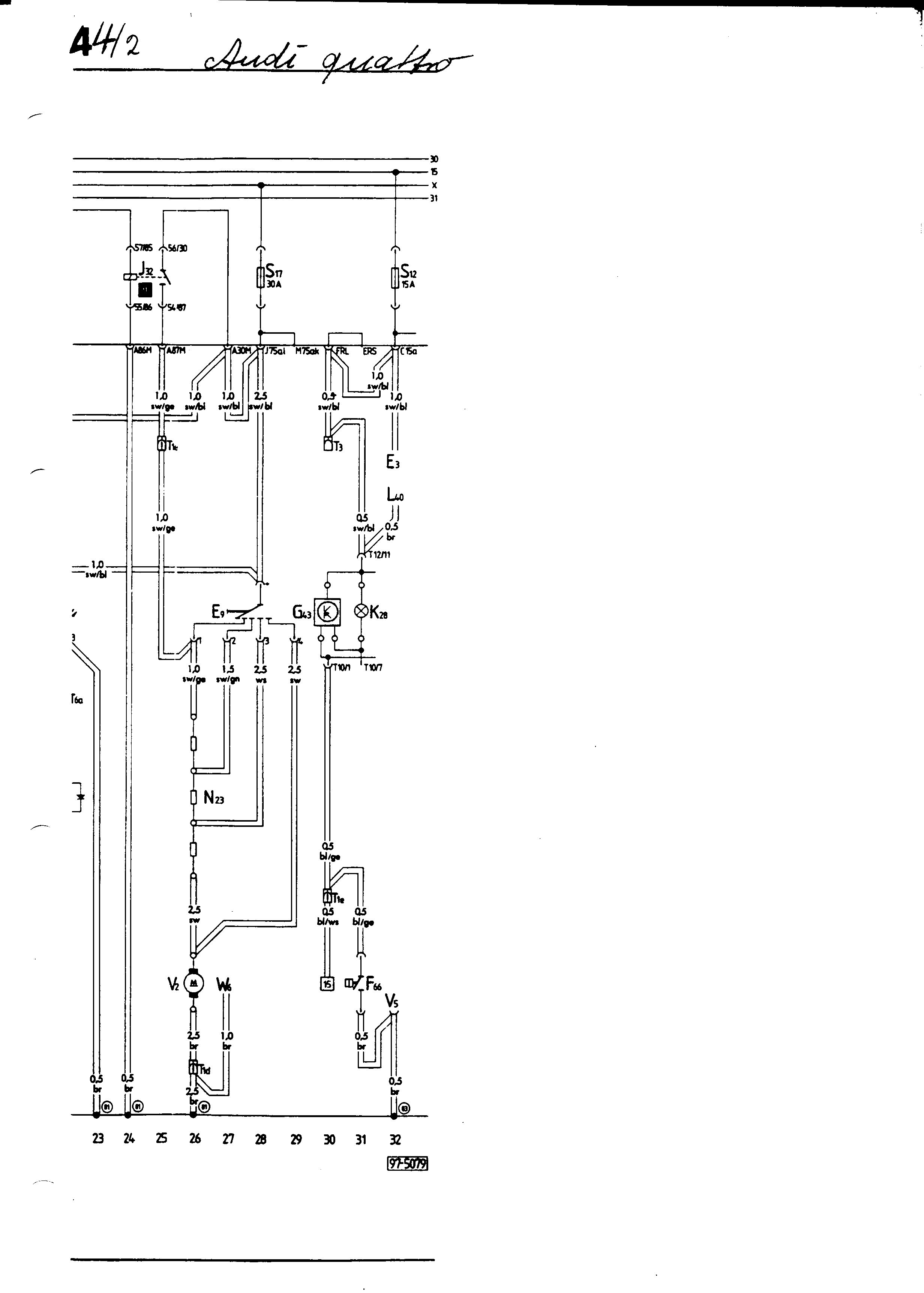

44 - Air conditioning - WX engine

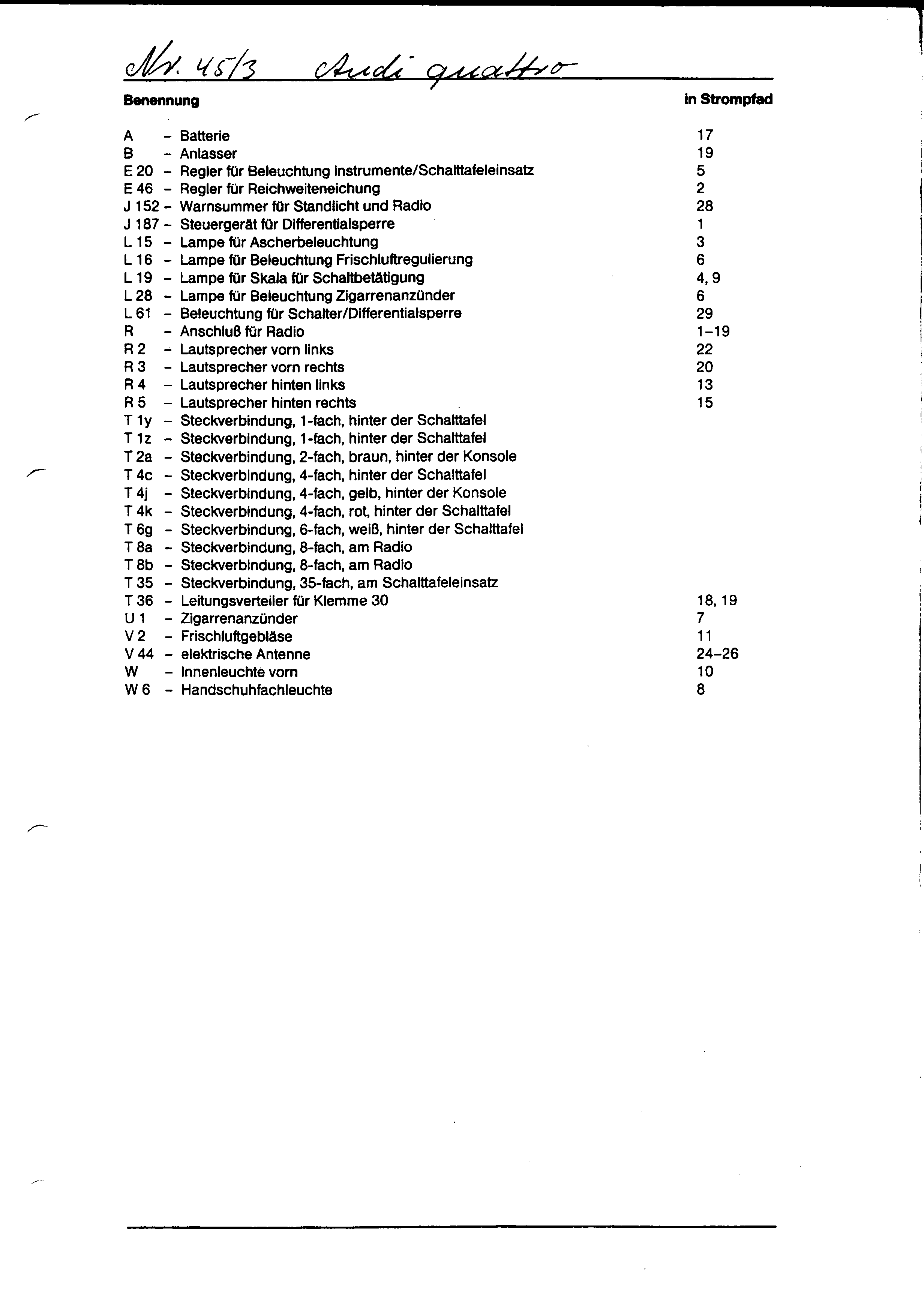

45 - Radio (not Switzerland, from 1988) - see also ISO connector conversion
46 - Radio (Switzerland, from 1988) - see also ISO connector conversion

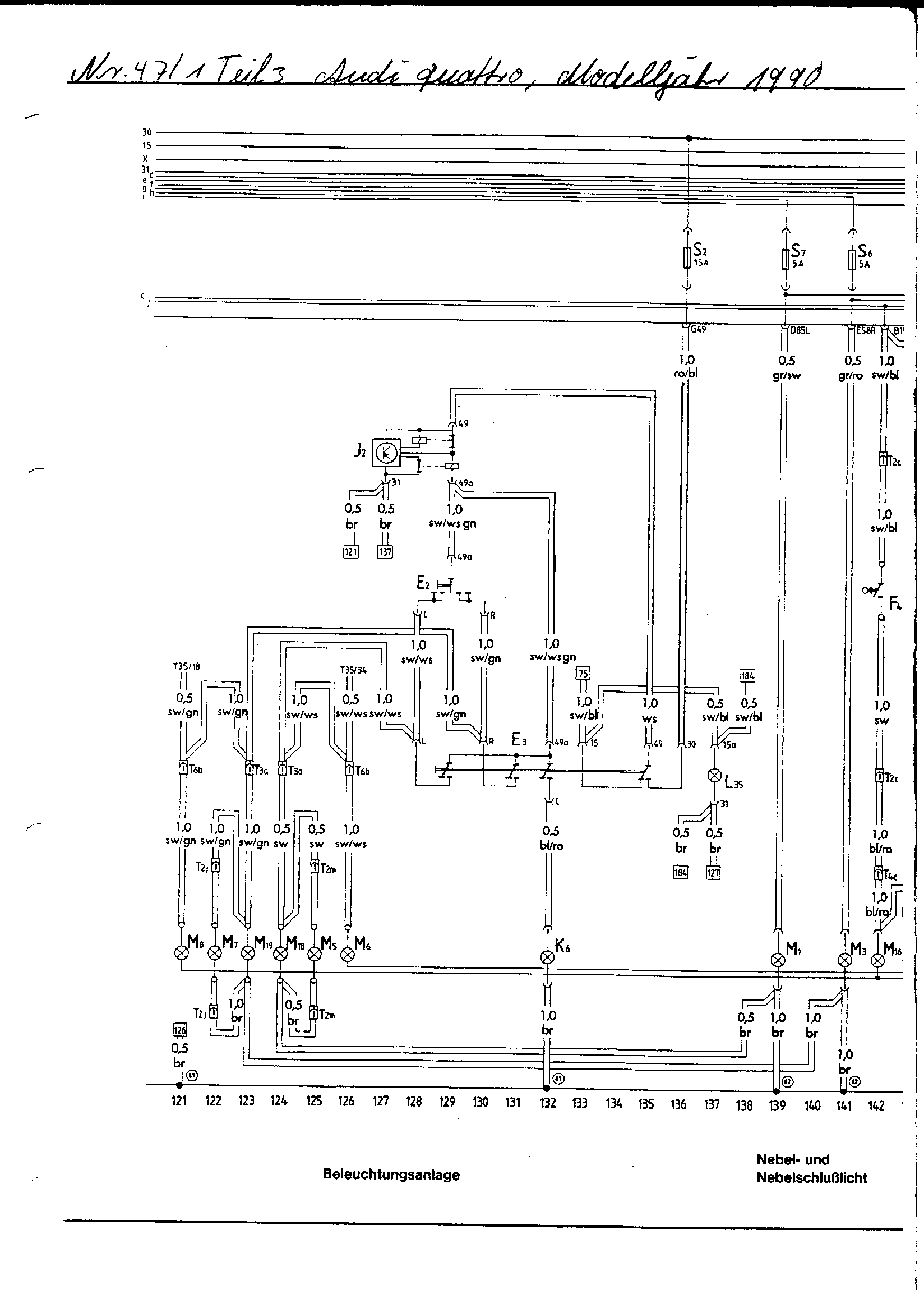

47 - Audi Quattro, 1990, RR engine

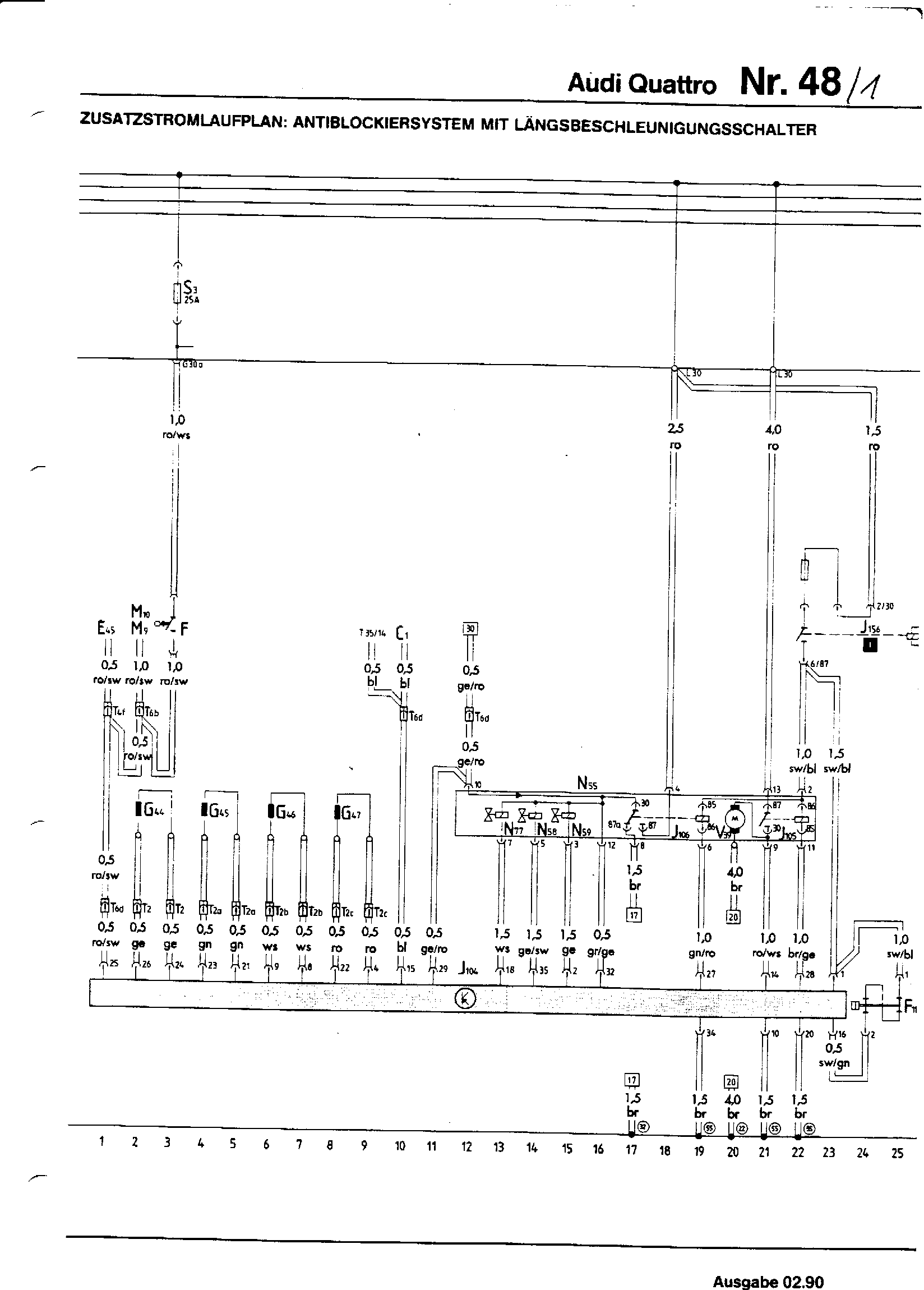

48 - ABS with longitudinal accelerometer - see also notes and pinout
49 - Radio - see also ISO connector conversion
50 - Air conditioning
51 - Daytime driving lights and fog lights (Sweden)
52 - Daytime driving lights and fog lights (Norway)
53 - Rear screen wiper
54 - Heated front seats

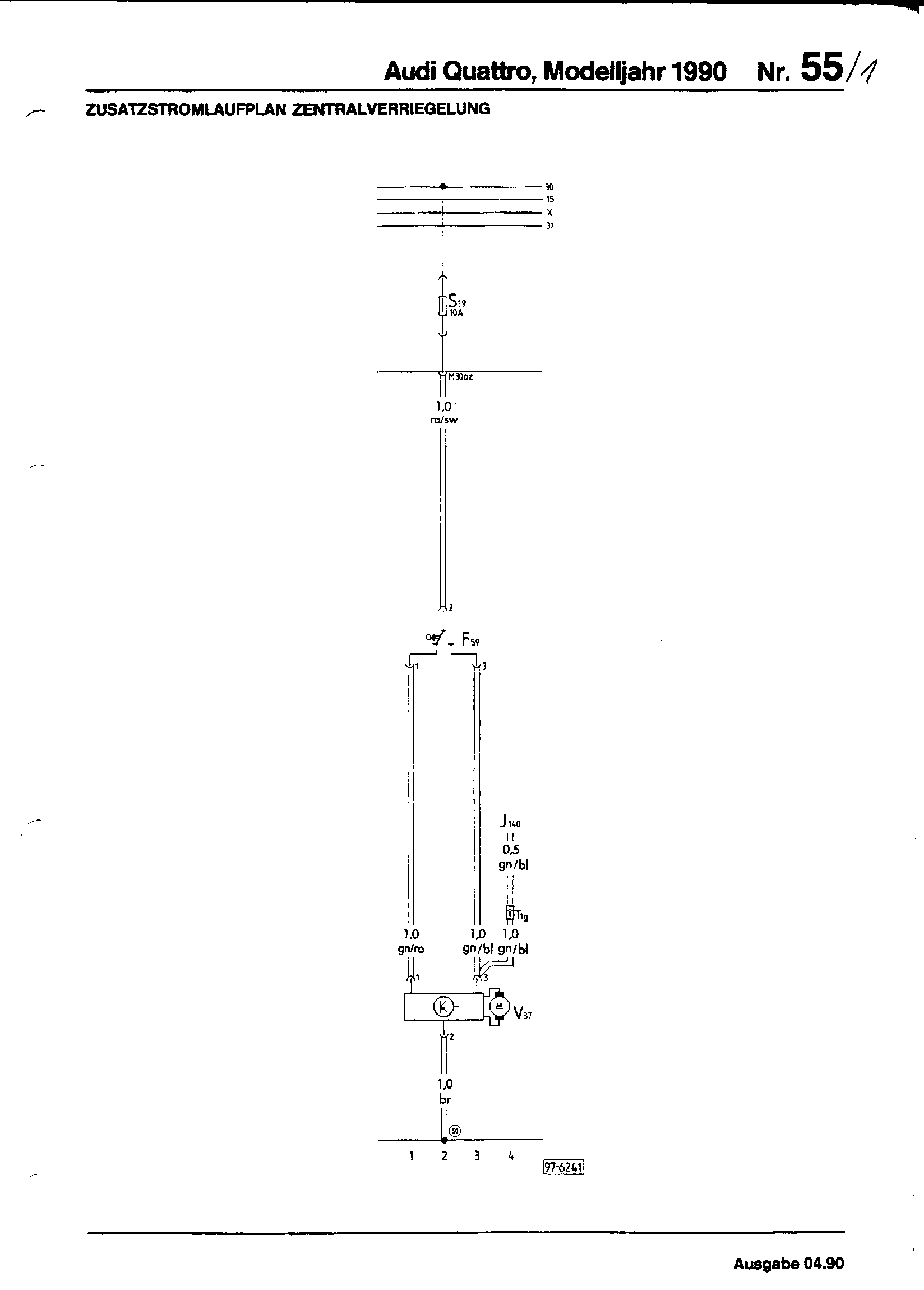

55 - Central locking
56 - Electric windows
57 - Cruise control
58 - Electric rear view mirrors
59 - Electronic dashboard

01 - Audi Quattro, 1980/81

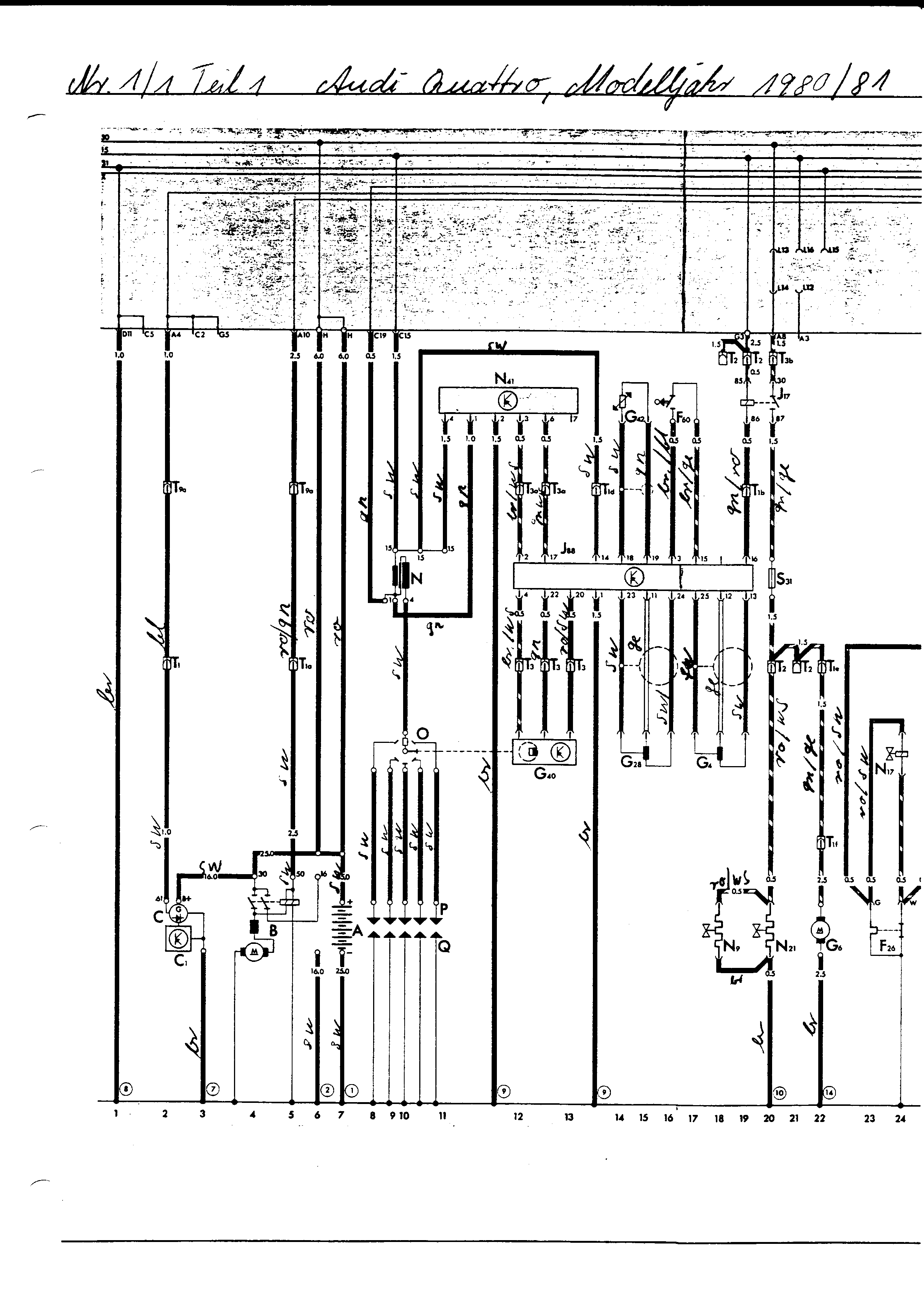

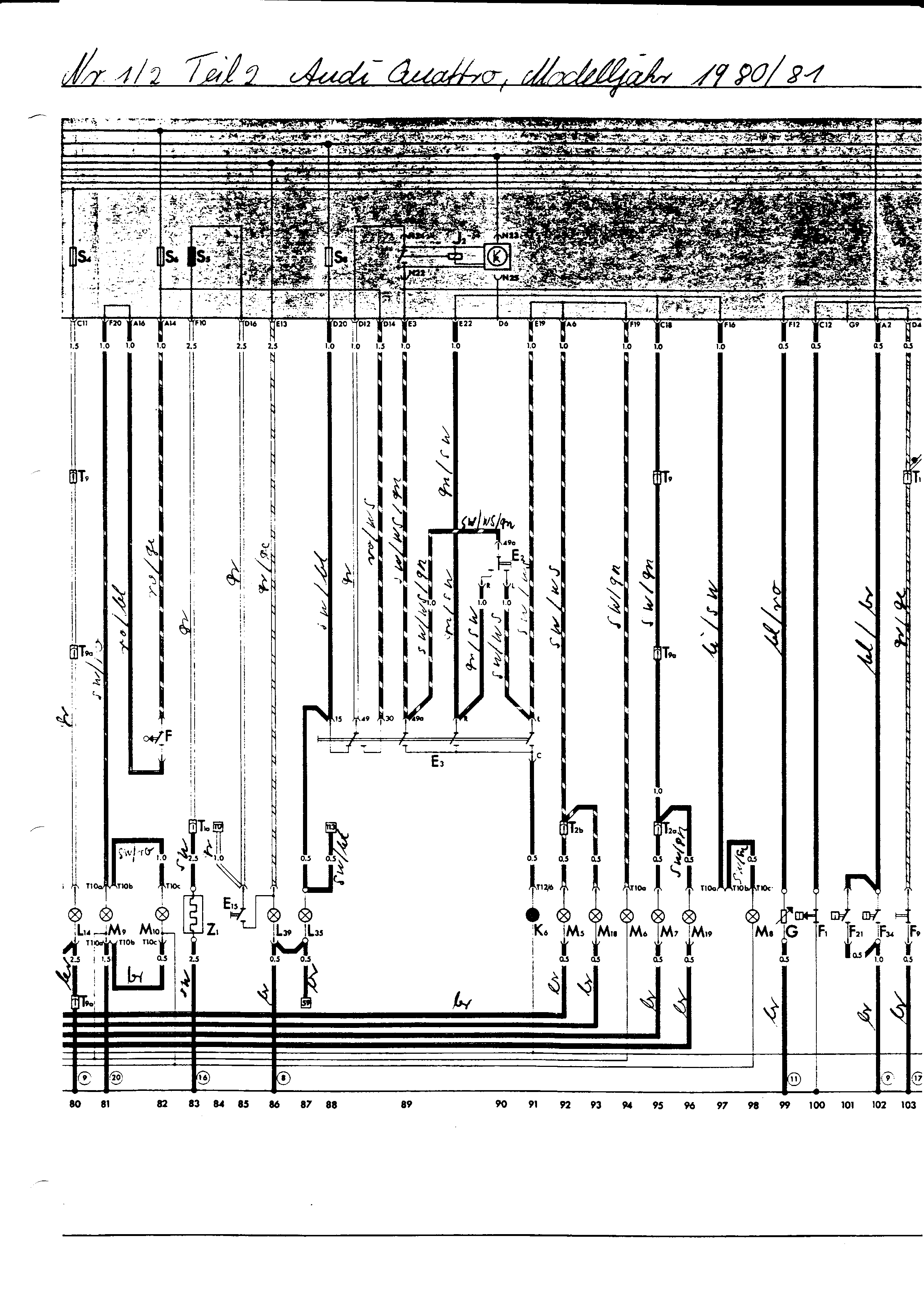

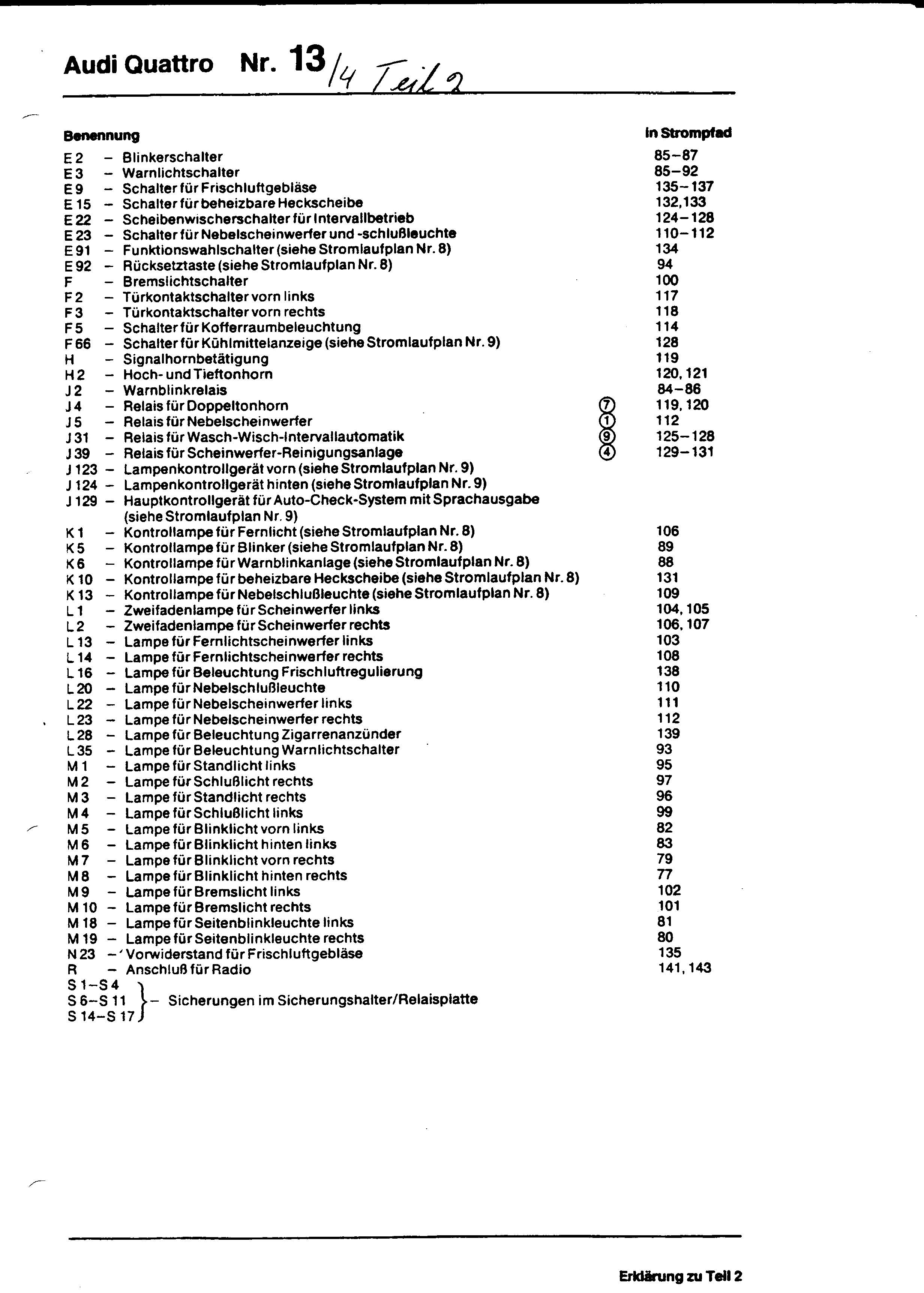

• Index to the 1980/81 diagrams

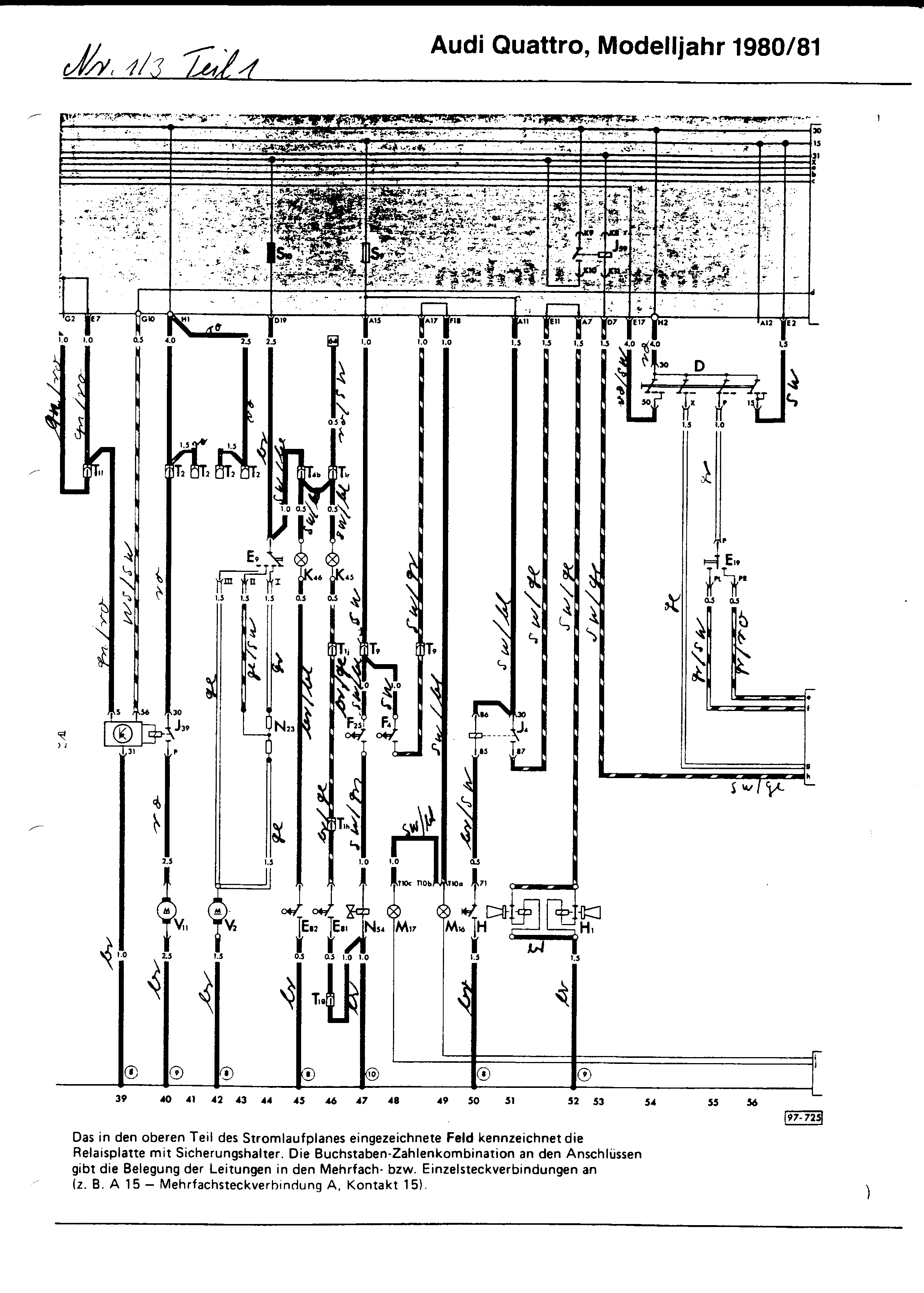

• Tracks 1-24 - alternator, starter, battery, ECU

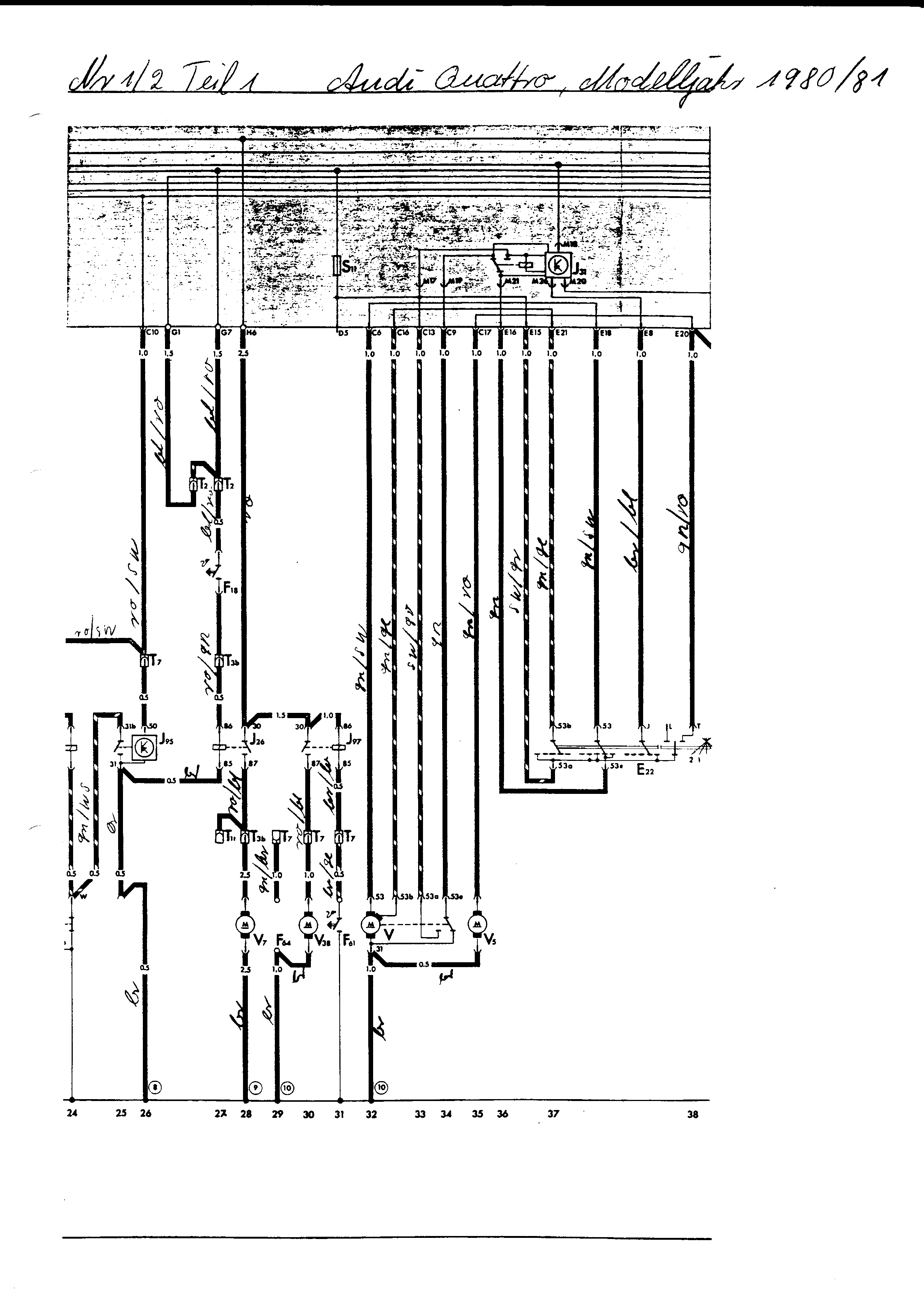

• Tracks 25-38 - cold start valve, cooling, windscreen wipers
• Tracks 39-56 - windscreen washers, fresh air fan, horn

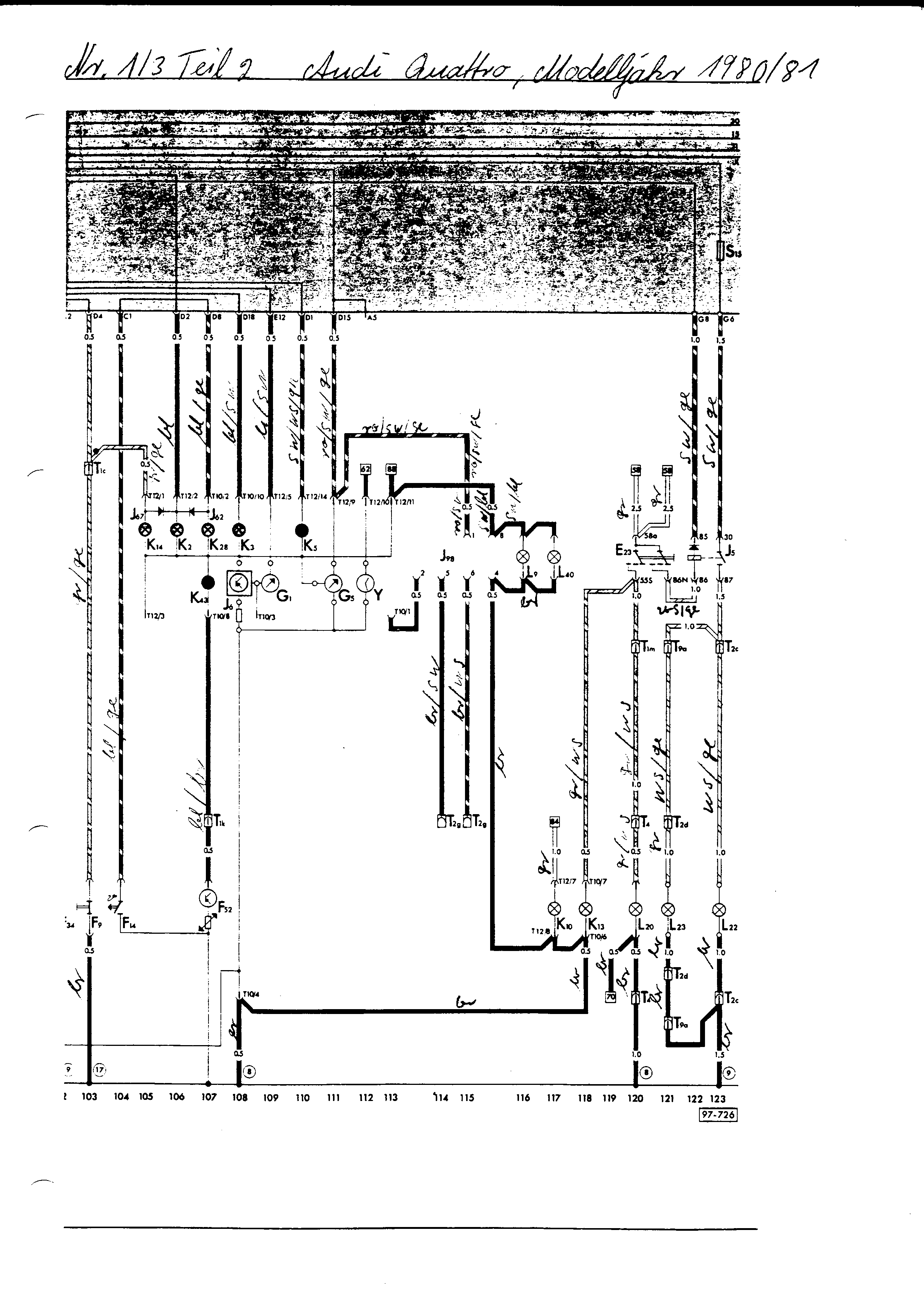

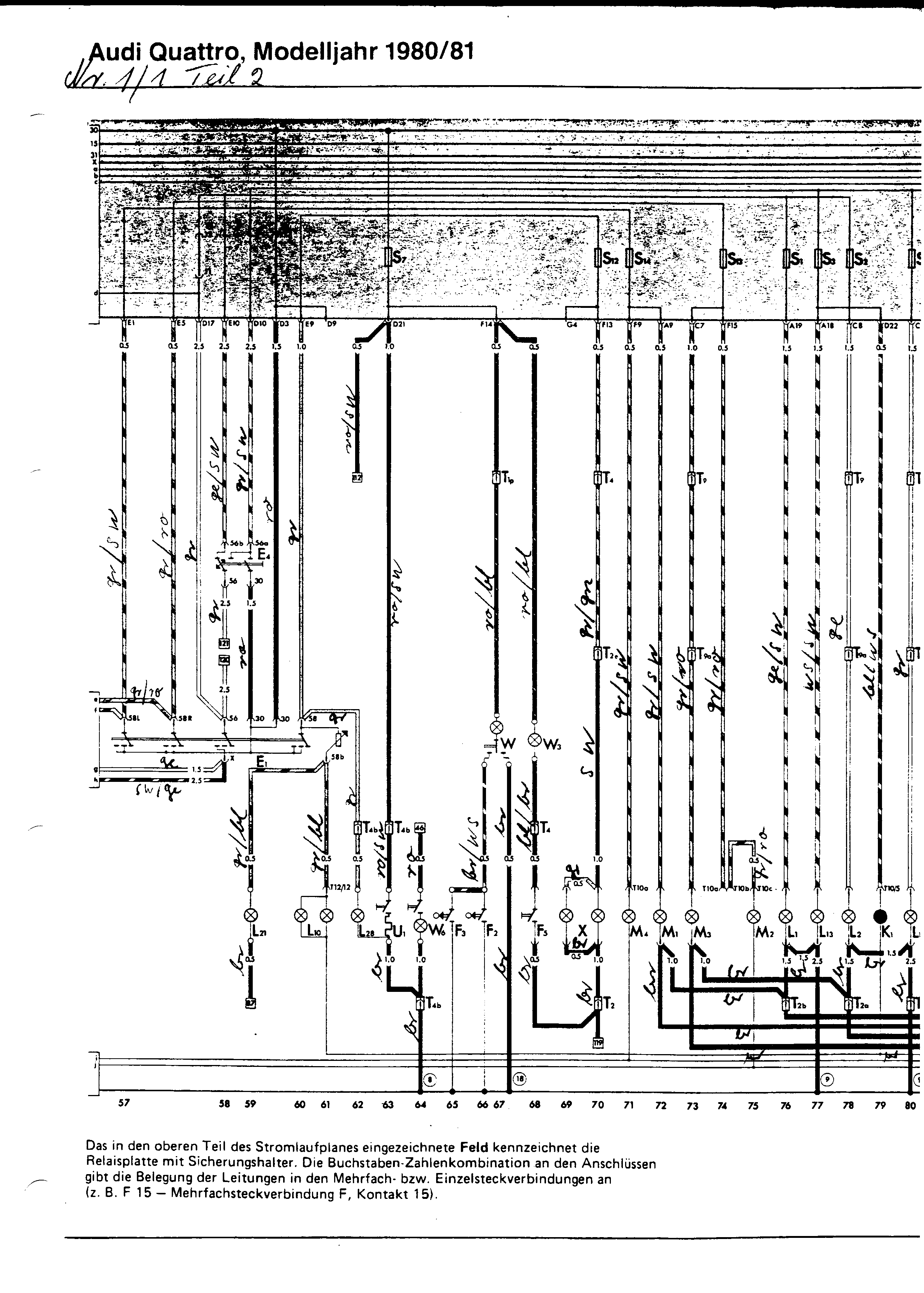

• Tracks 57-79
• Tracks 80-102
• Tracks 103-123

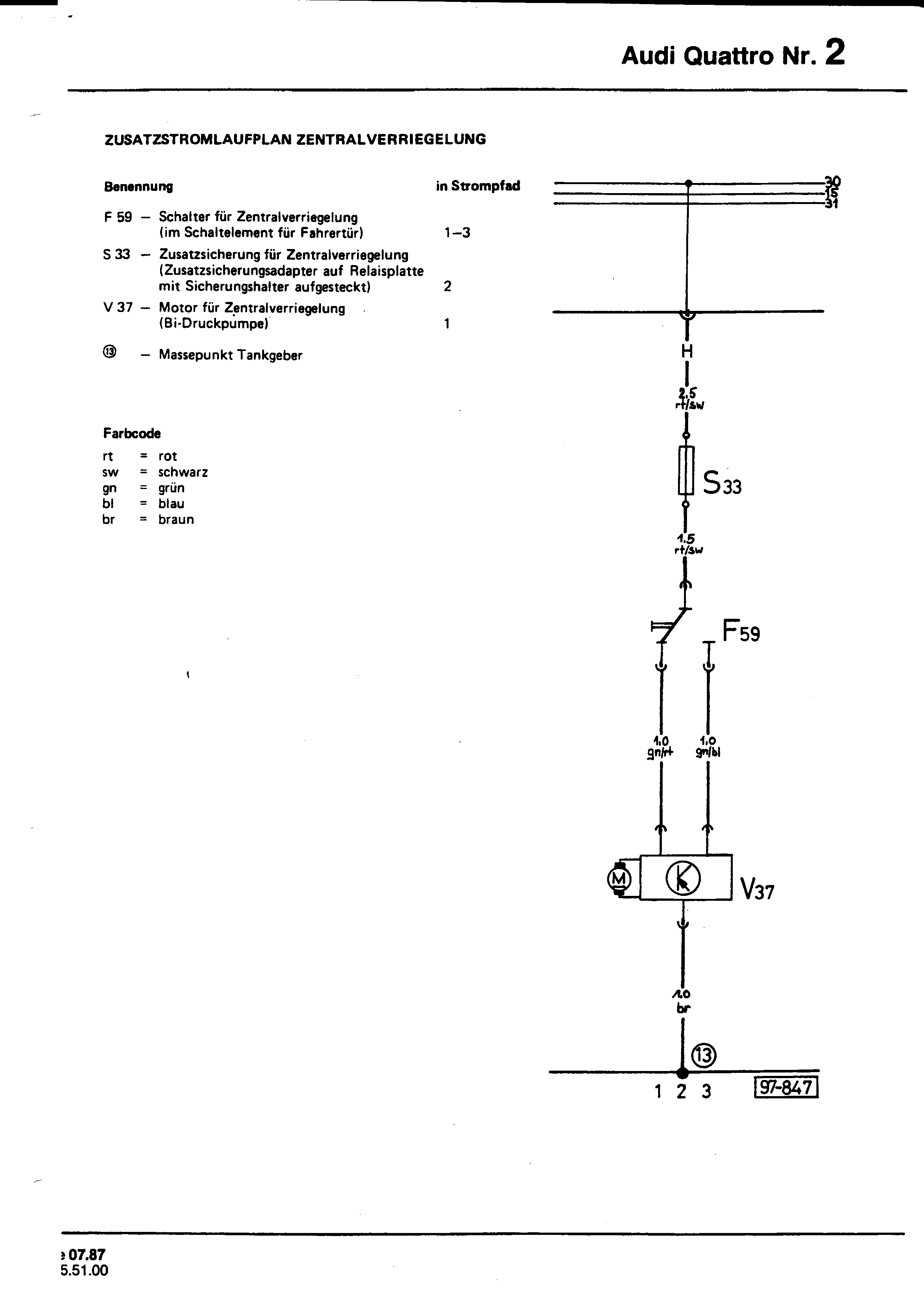

02 - Central Locking

• Index to Diagram 2
• Tracks 1-3

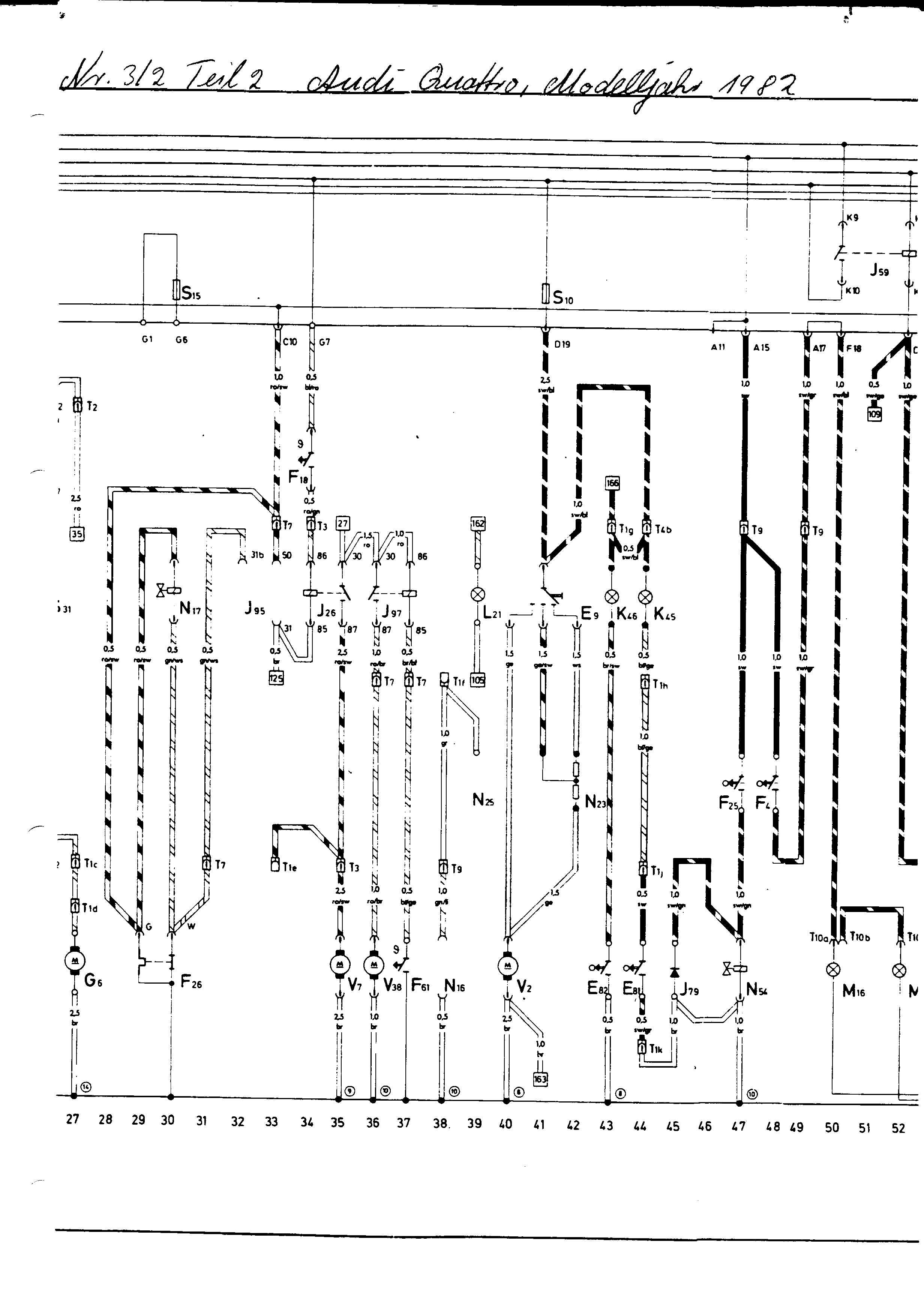

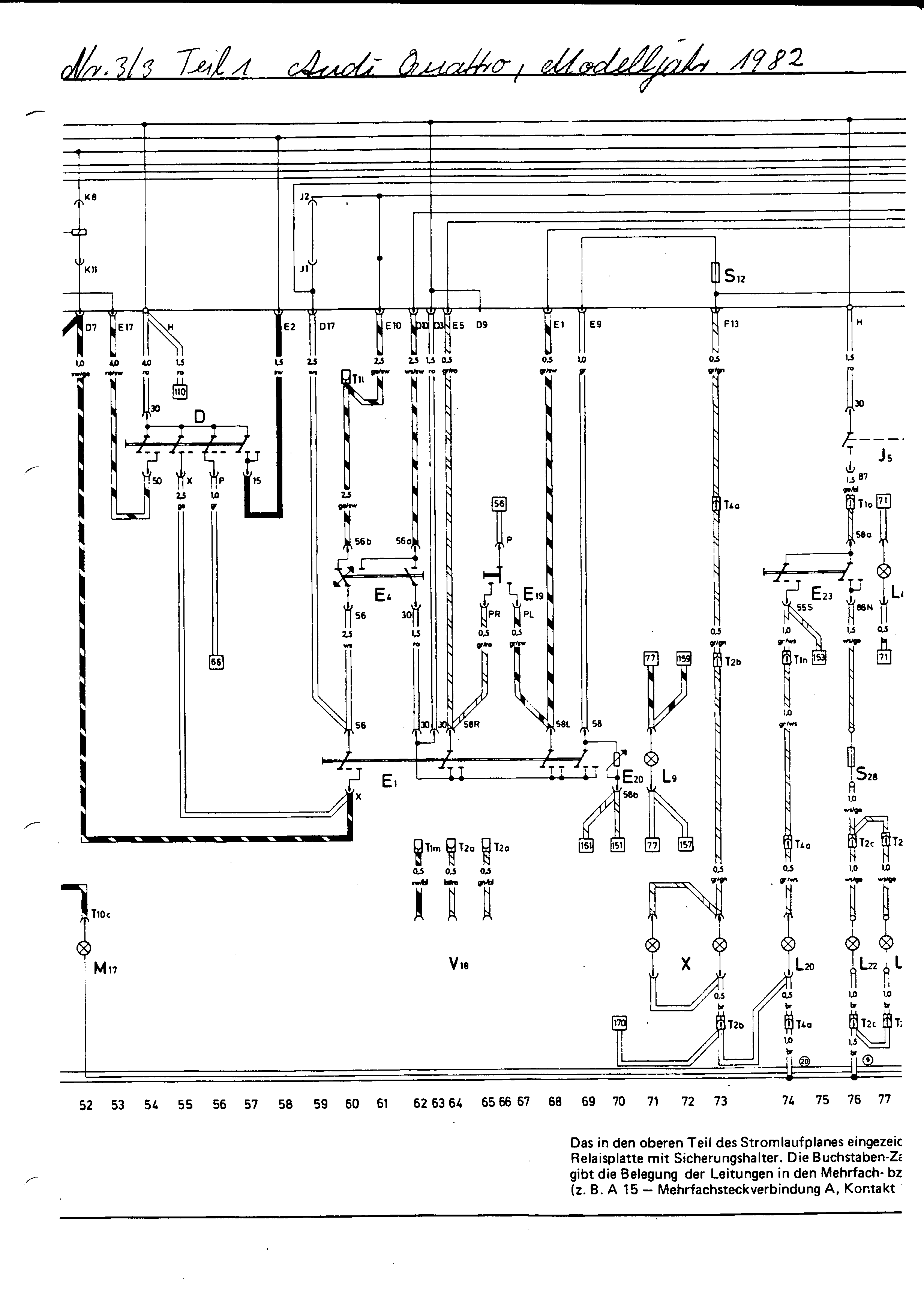

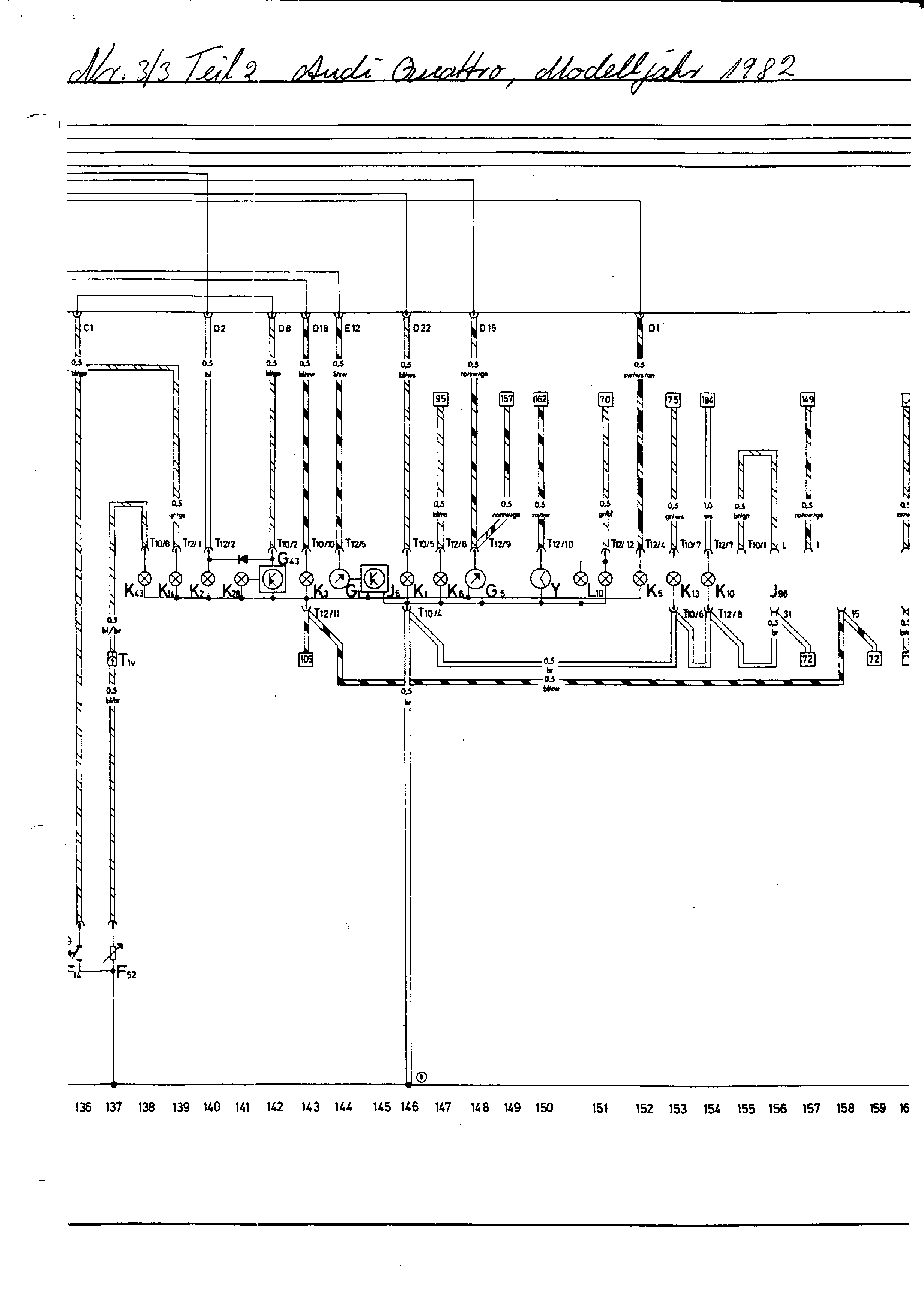

03 - Audi Quattro, 1982

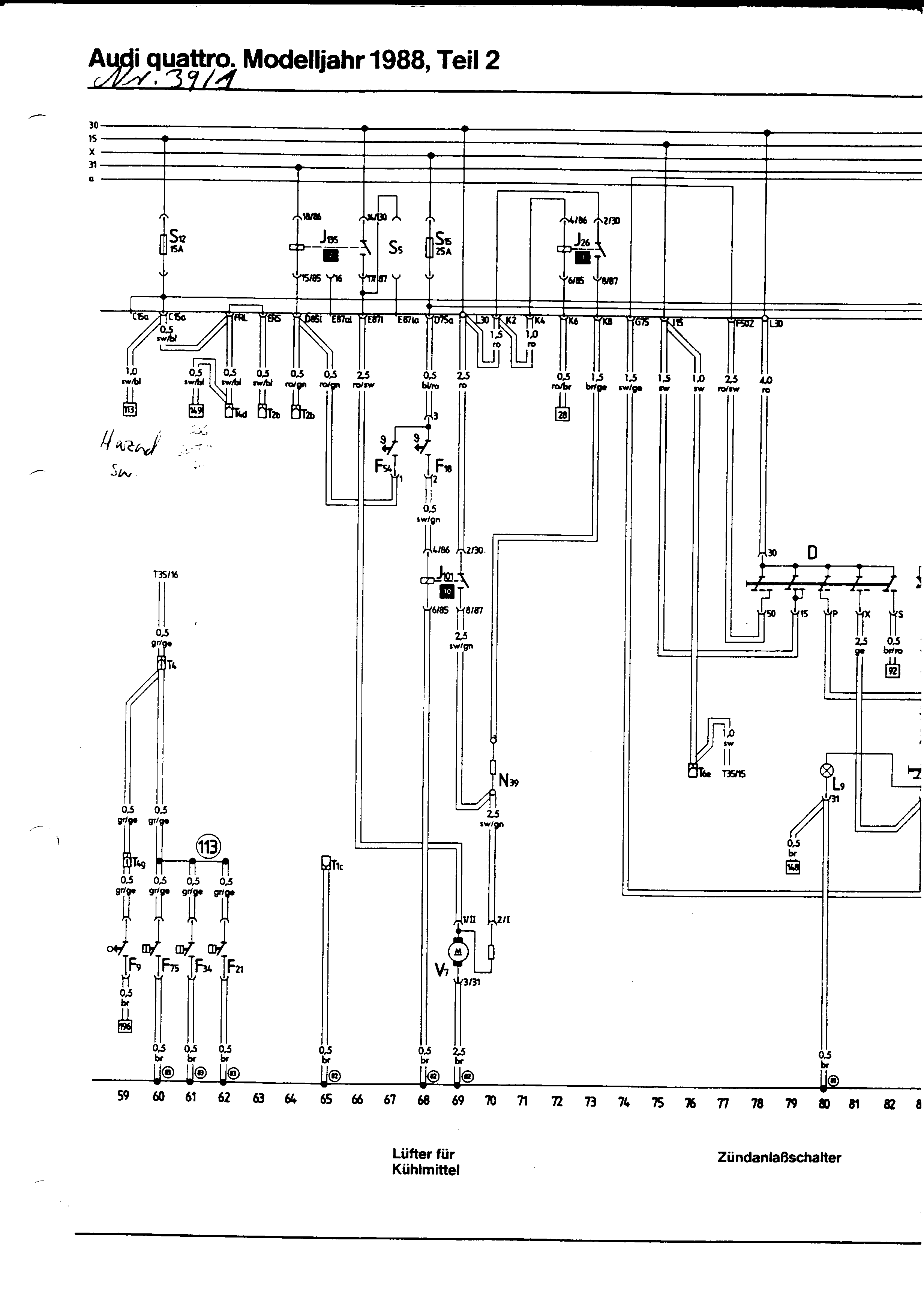

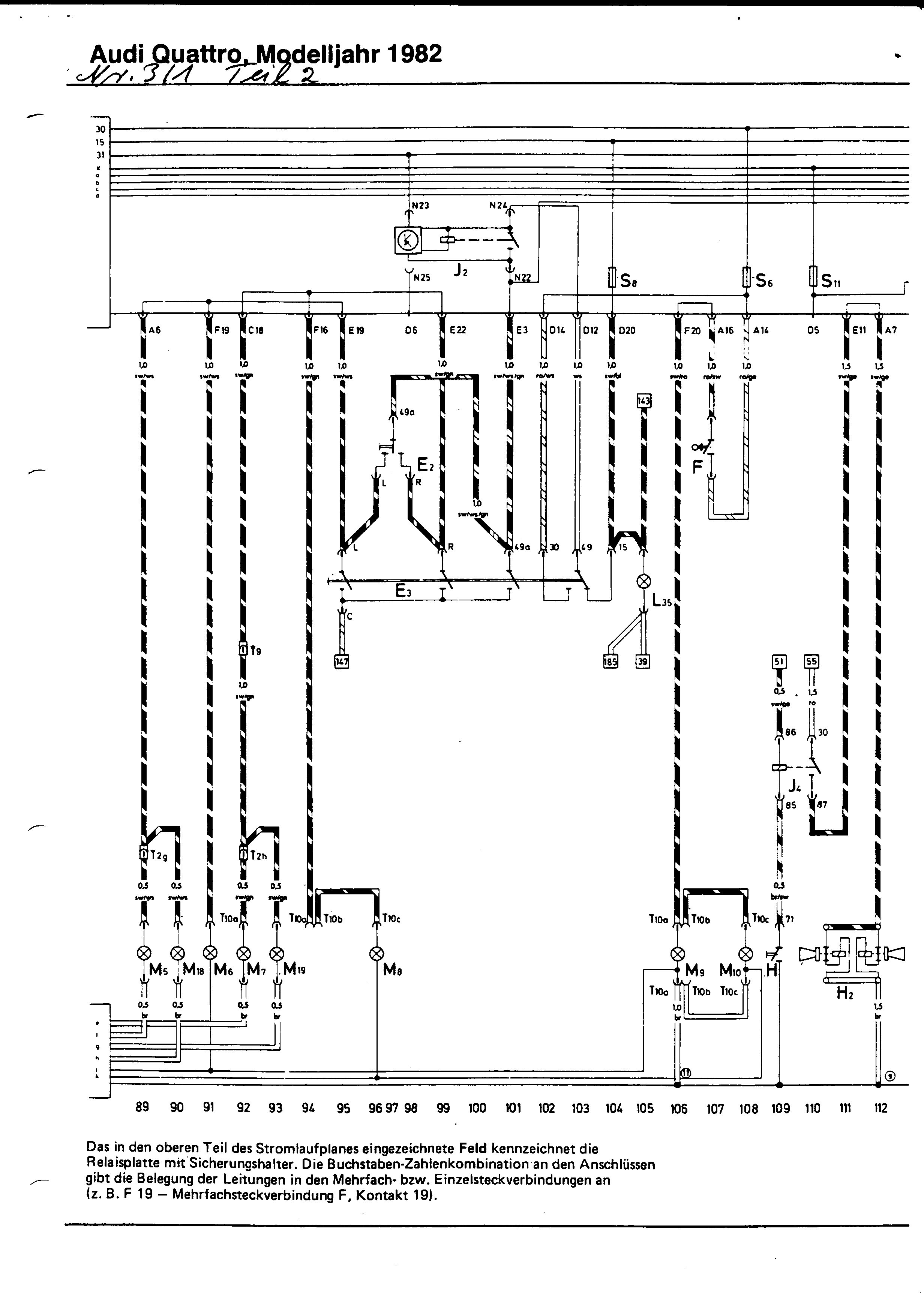

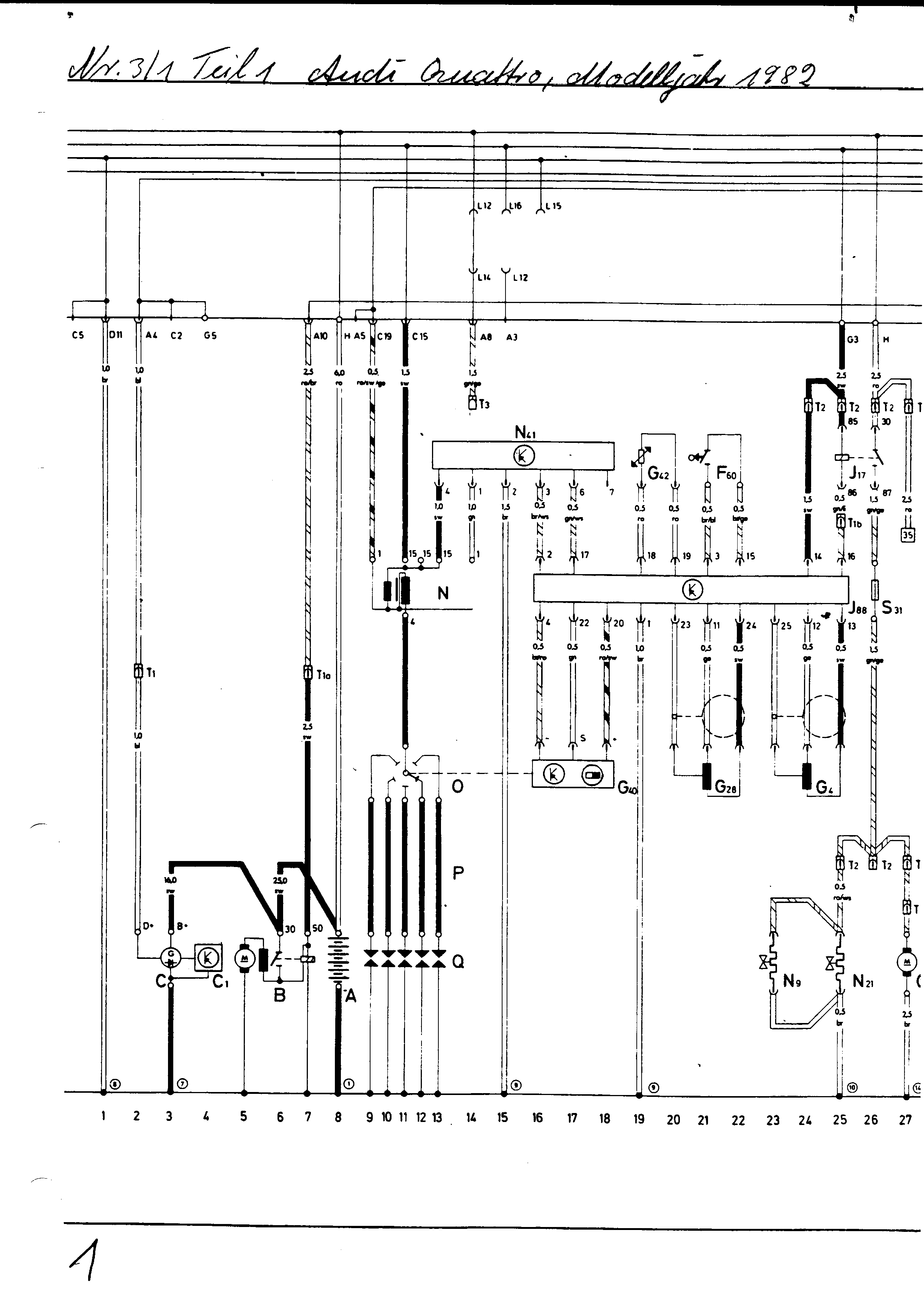

• Tracks 1-26
• Tracks 27-52
• Tracks 52-77

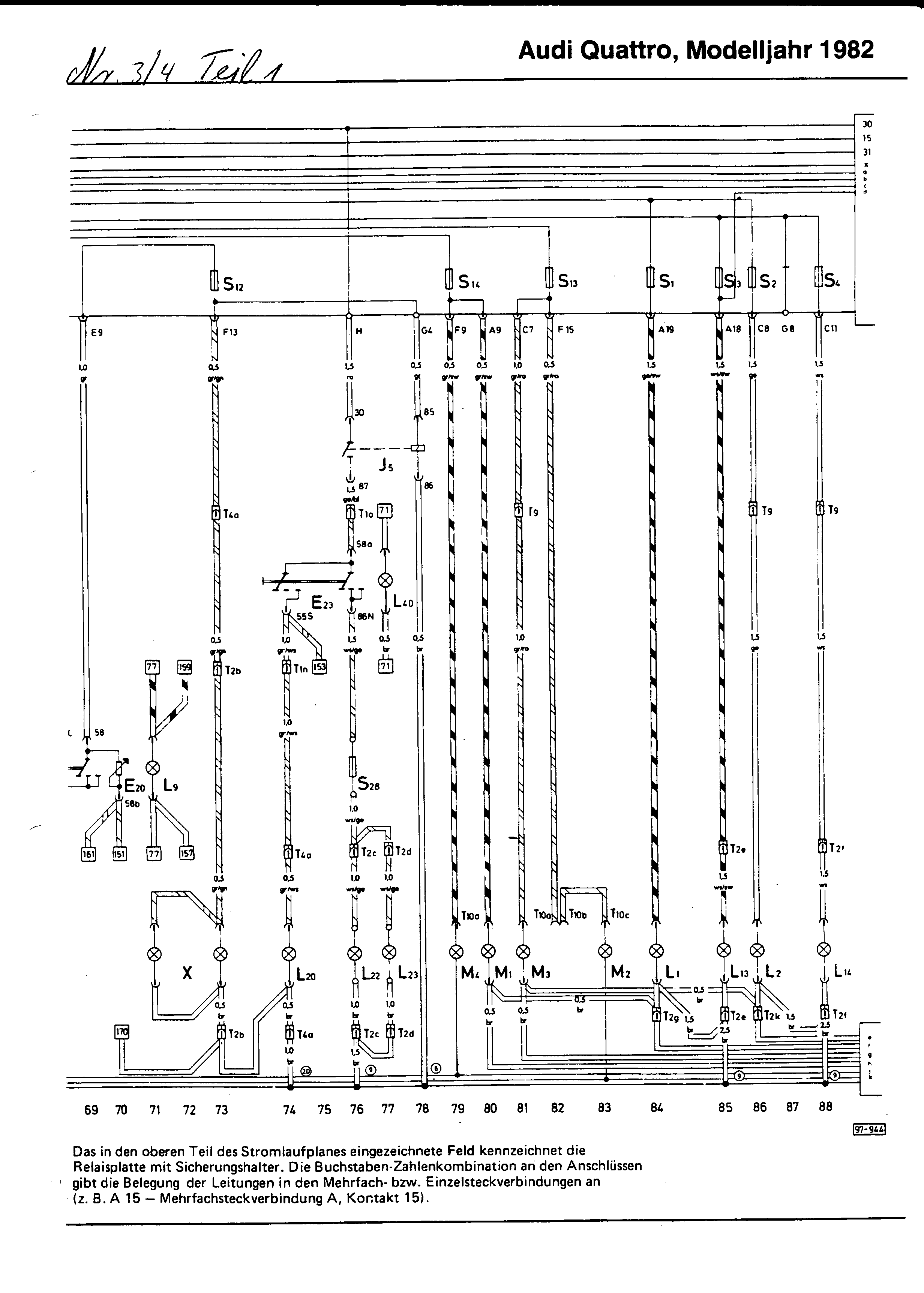

• Tracks 69-88

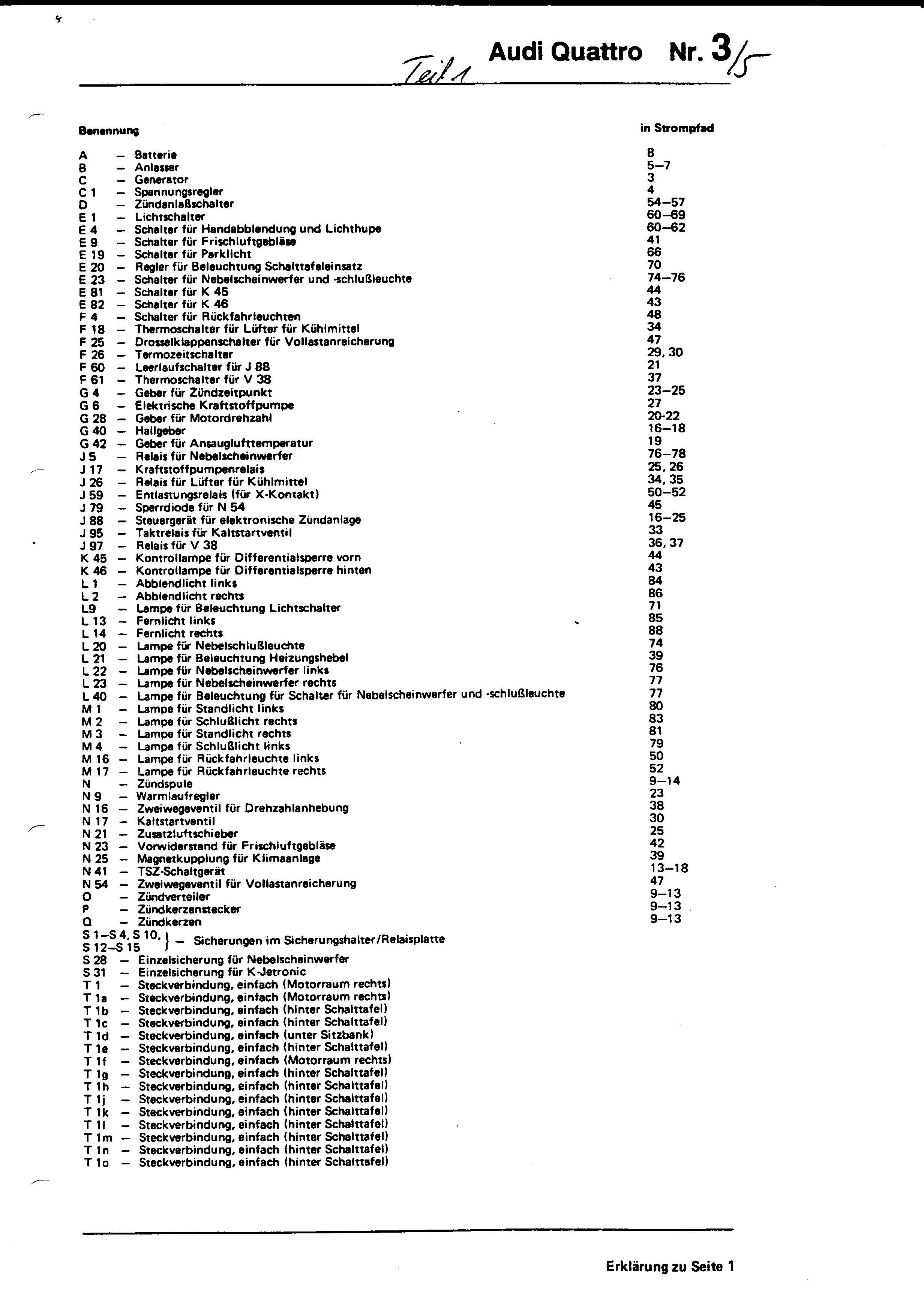

• Index to tracks 1-88

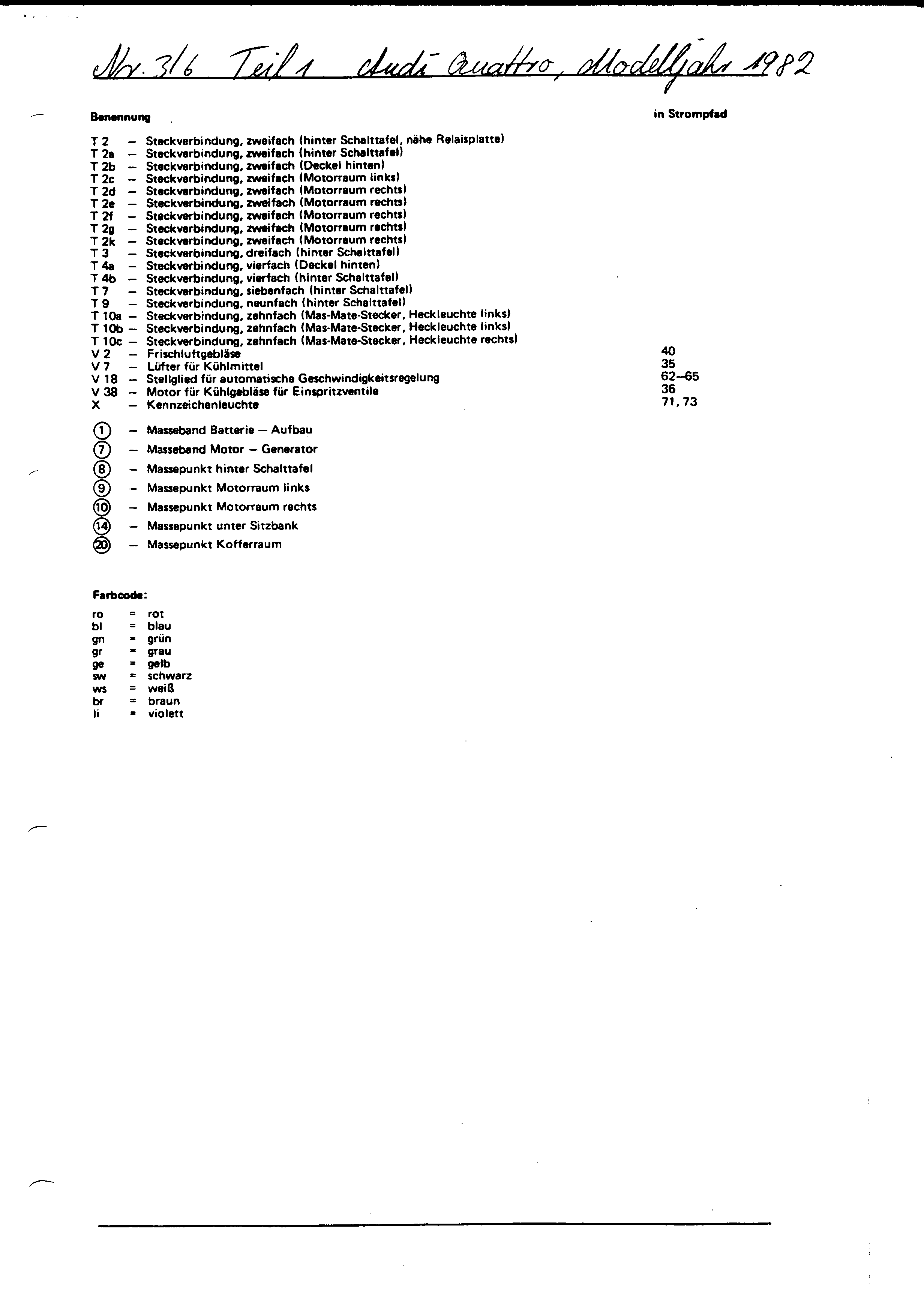

• Index to tracks 1-88 (contd.)
• Tracks 89-112

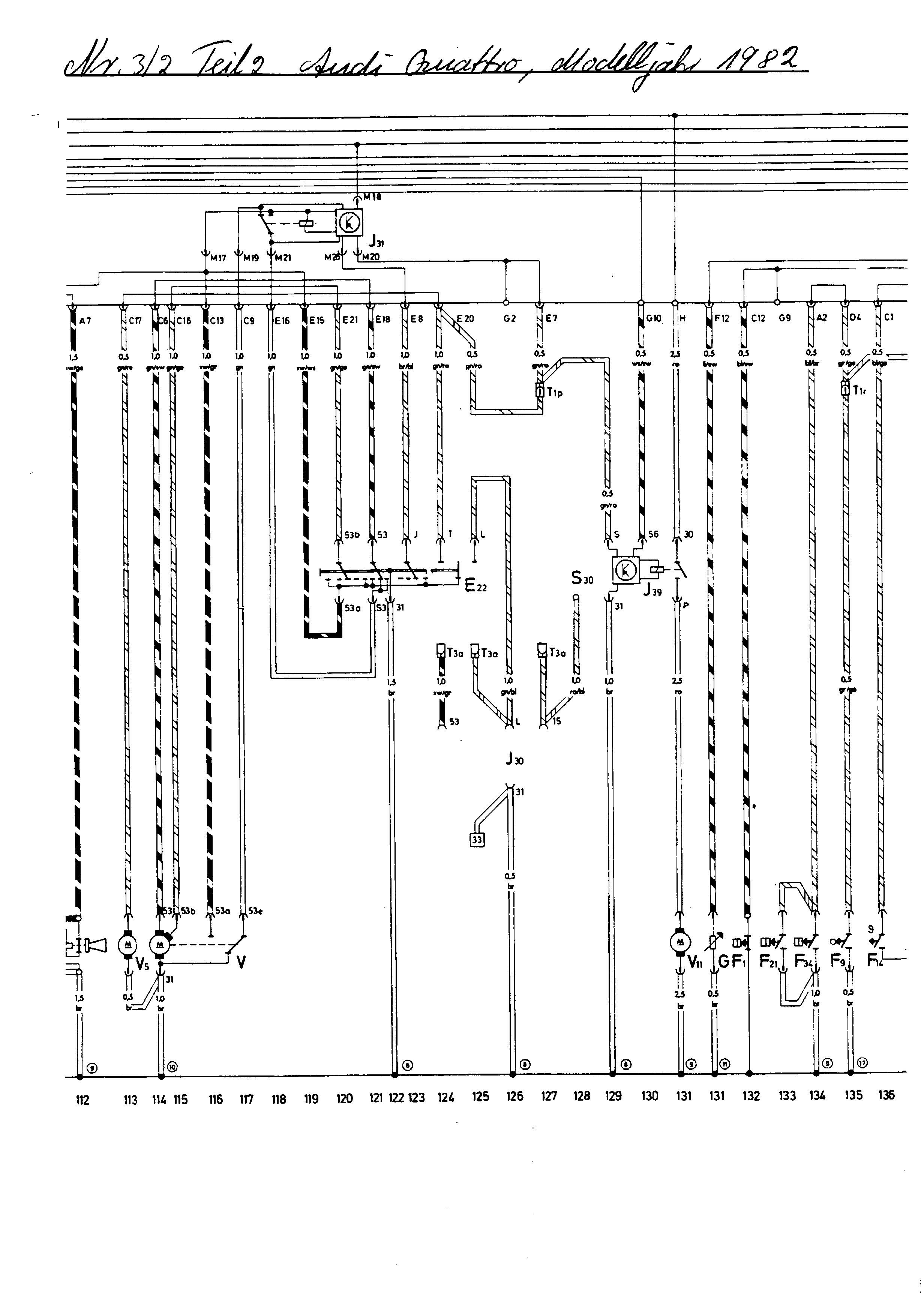

• Tracks 113-136
• Tracks 137-159

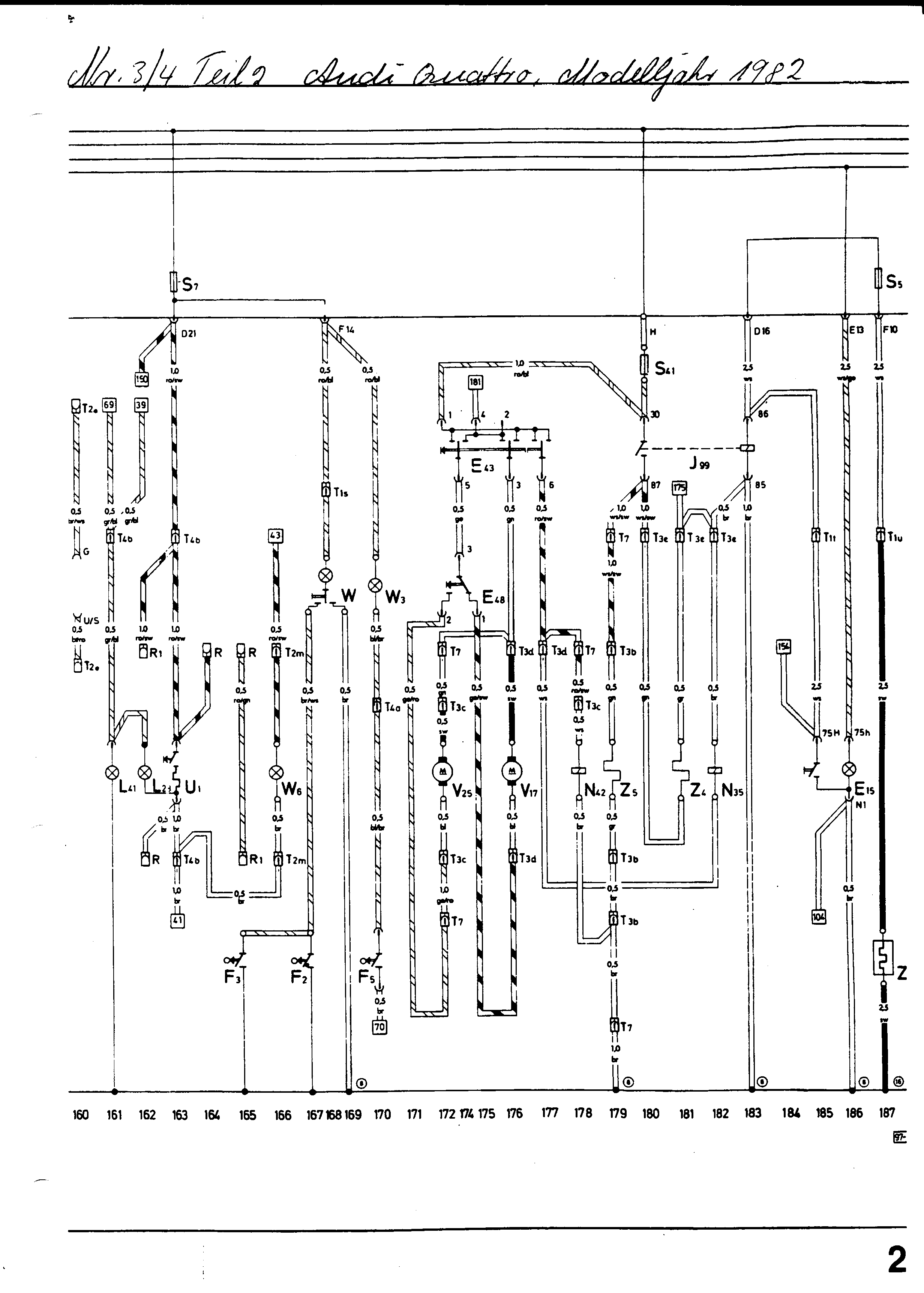

• Tracks 160-187

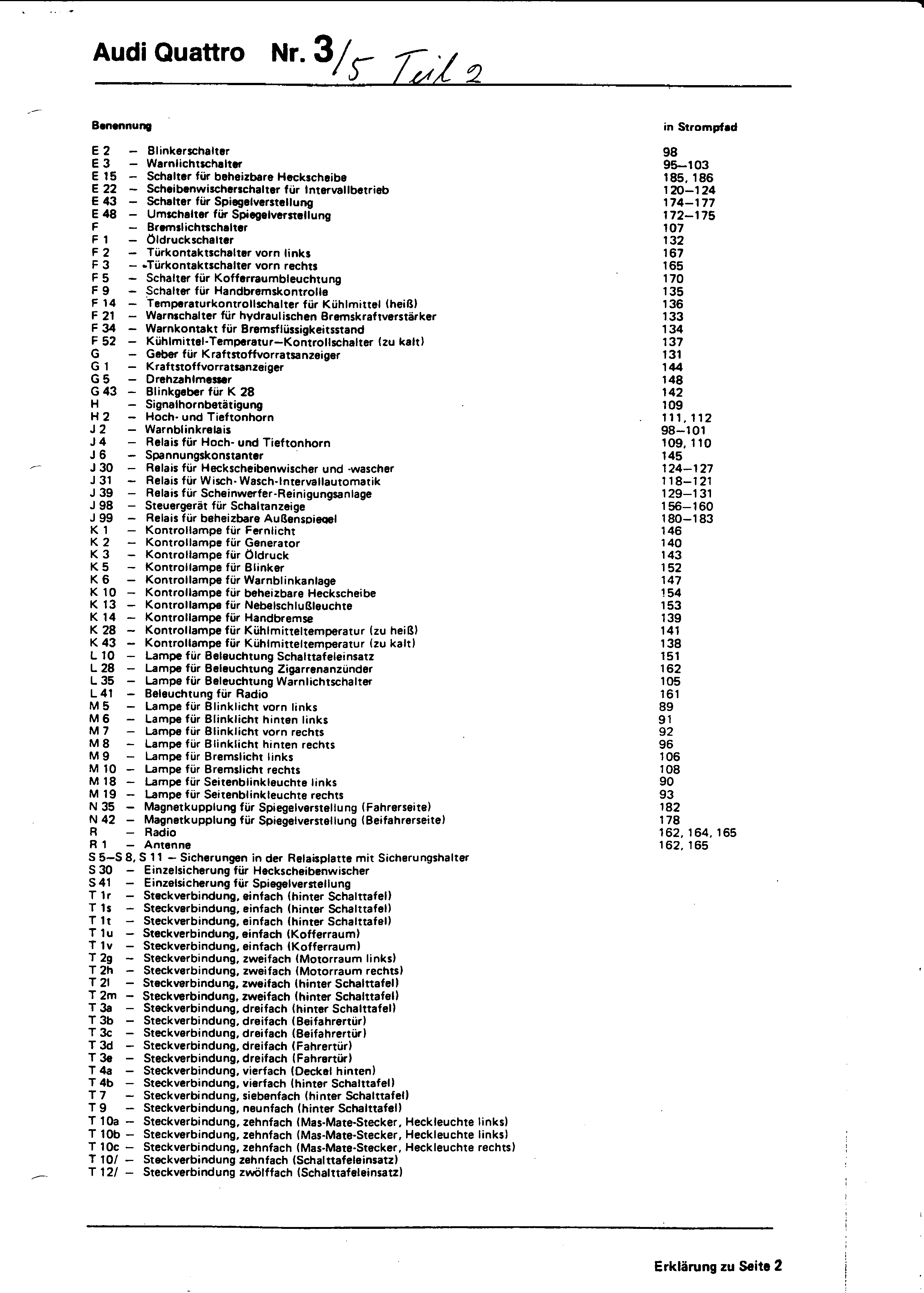

• Index to tracks 89-187

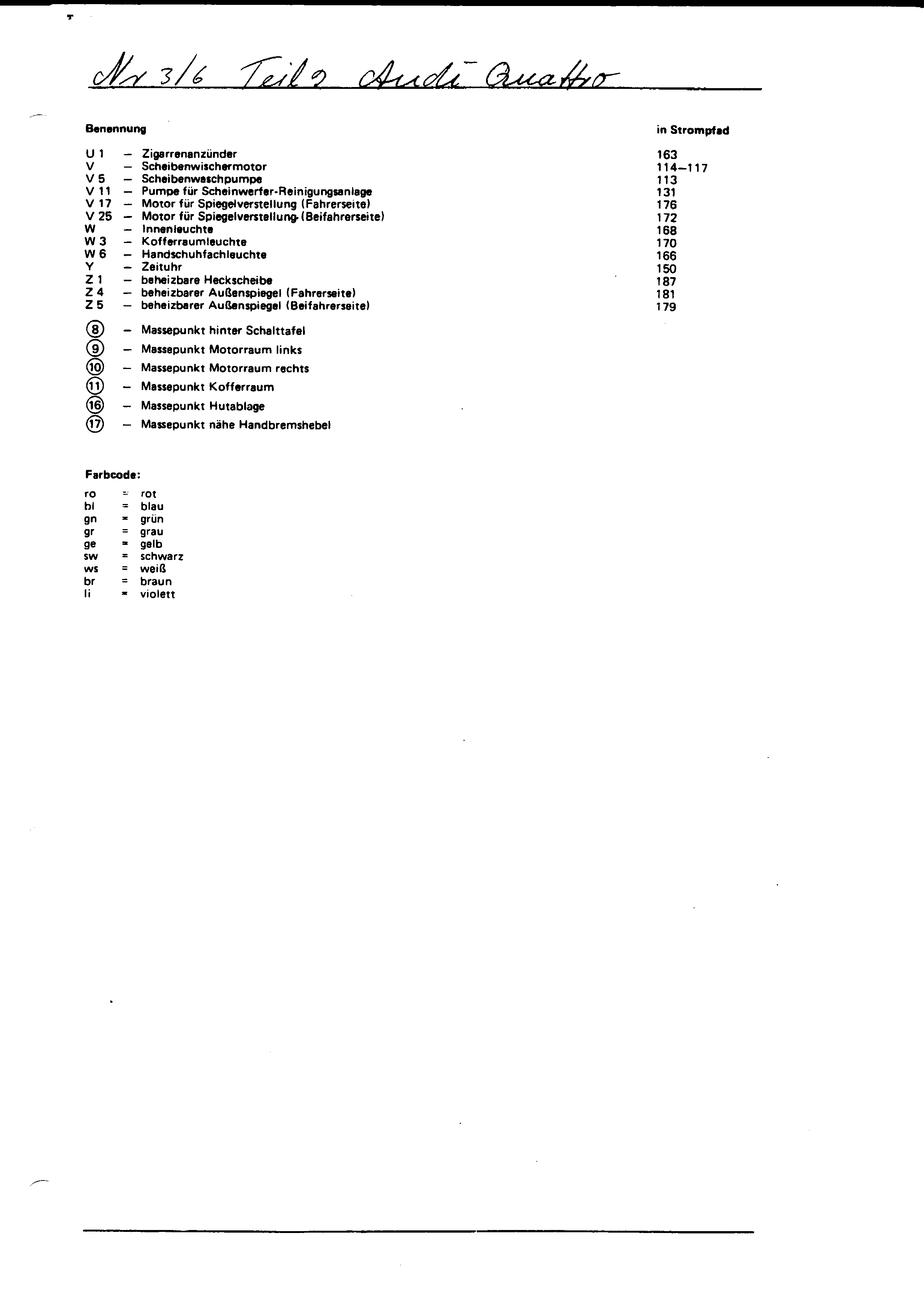

• Index to tracks 89-187 (contd.)

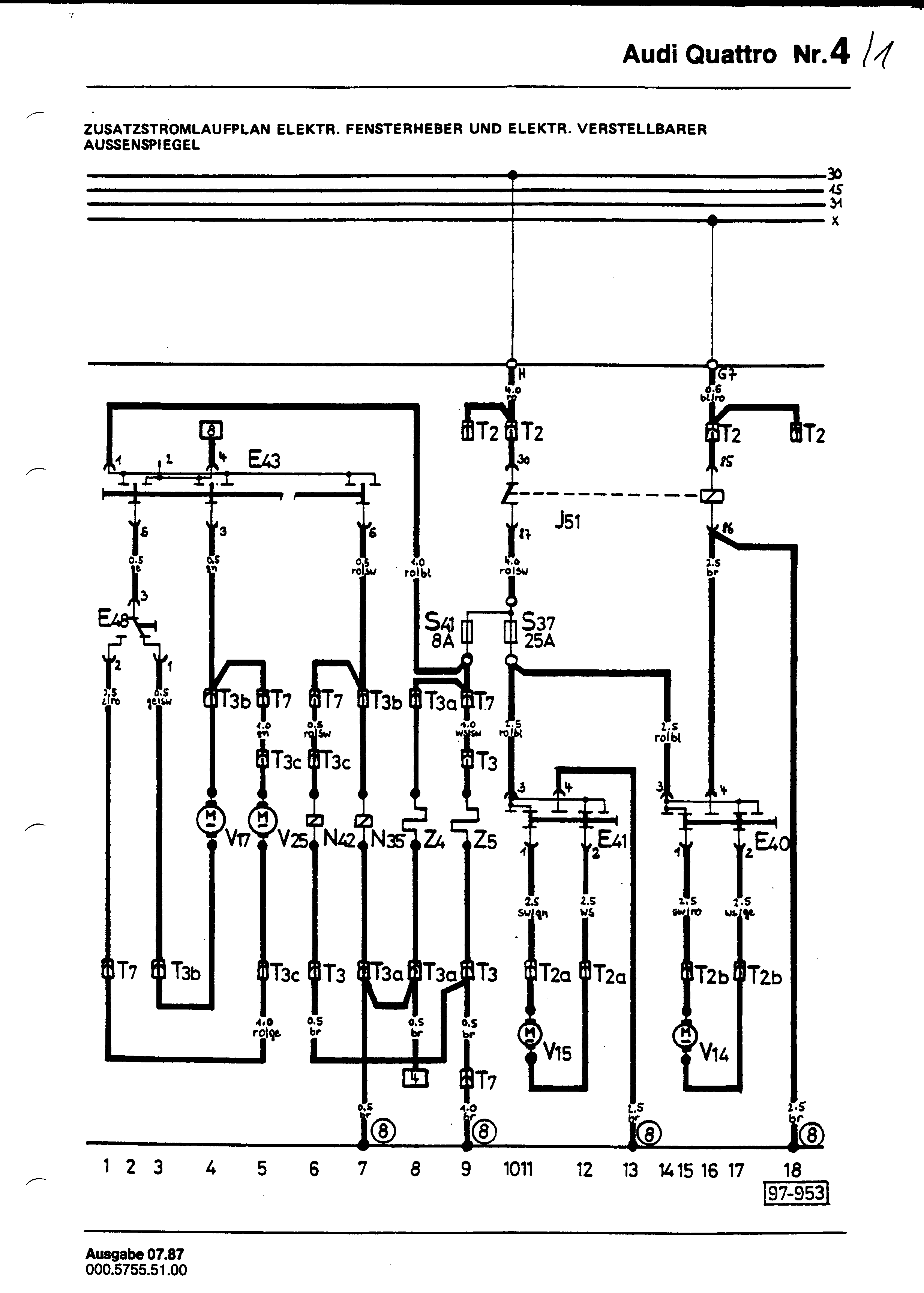

04 - Electric windows and rear view mirrors

• Tracks 1-18

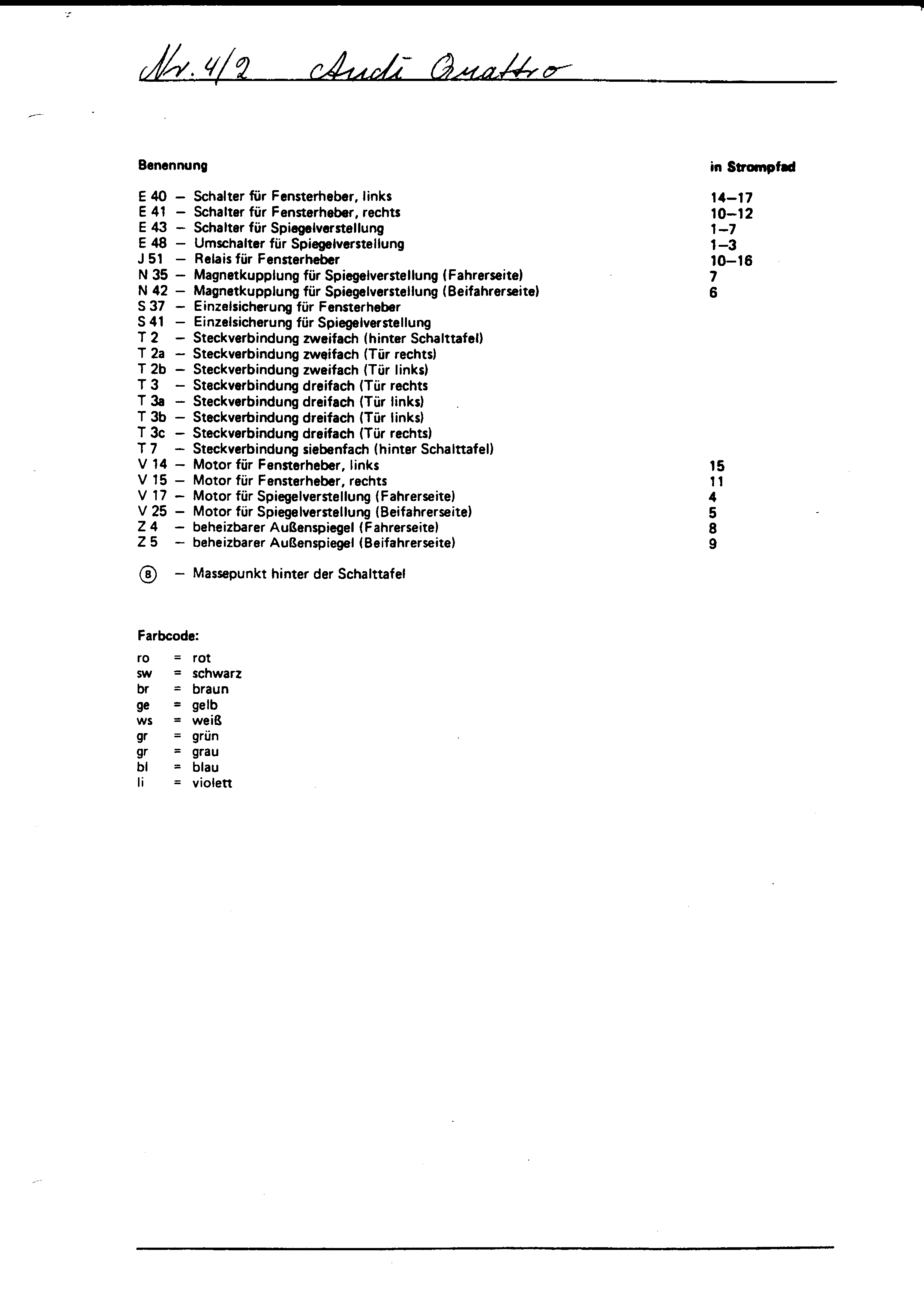

• Index

05 - Cruise control

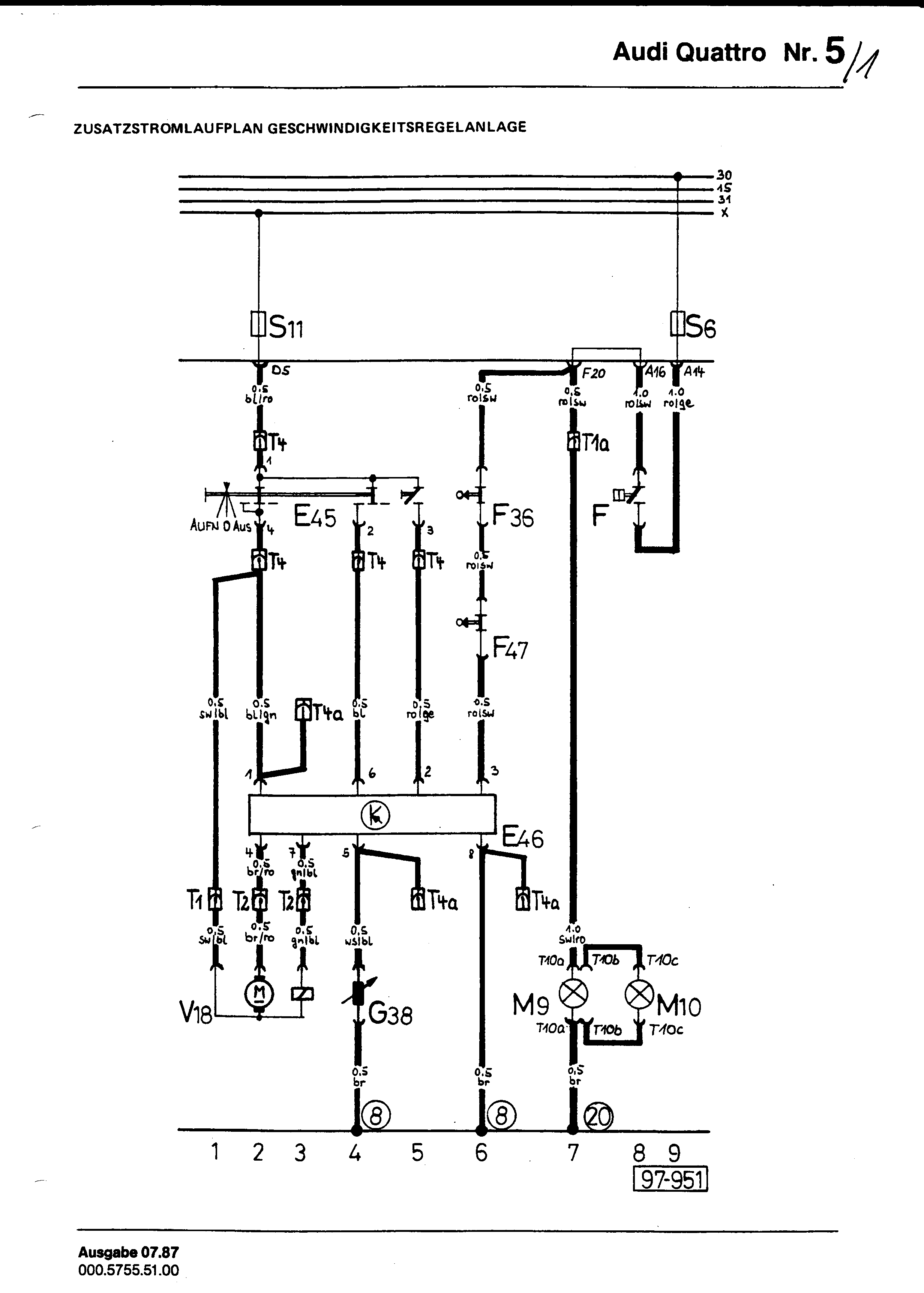

• Tracks 1-9

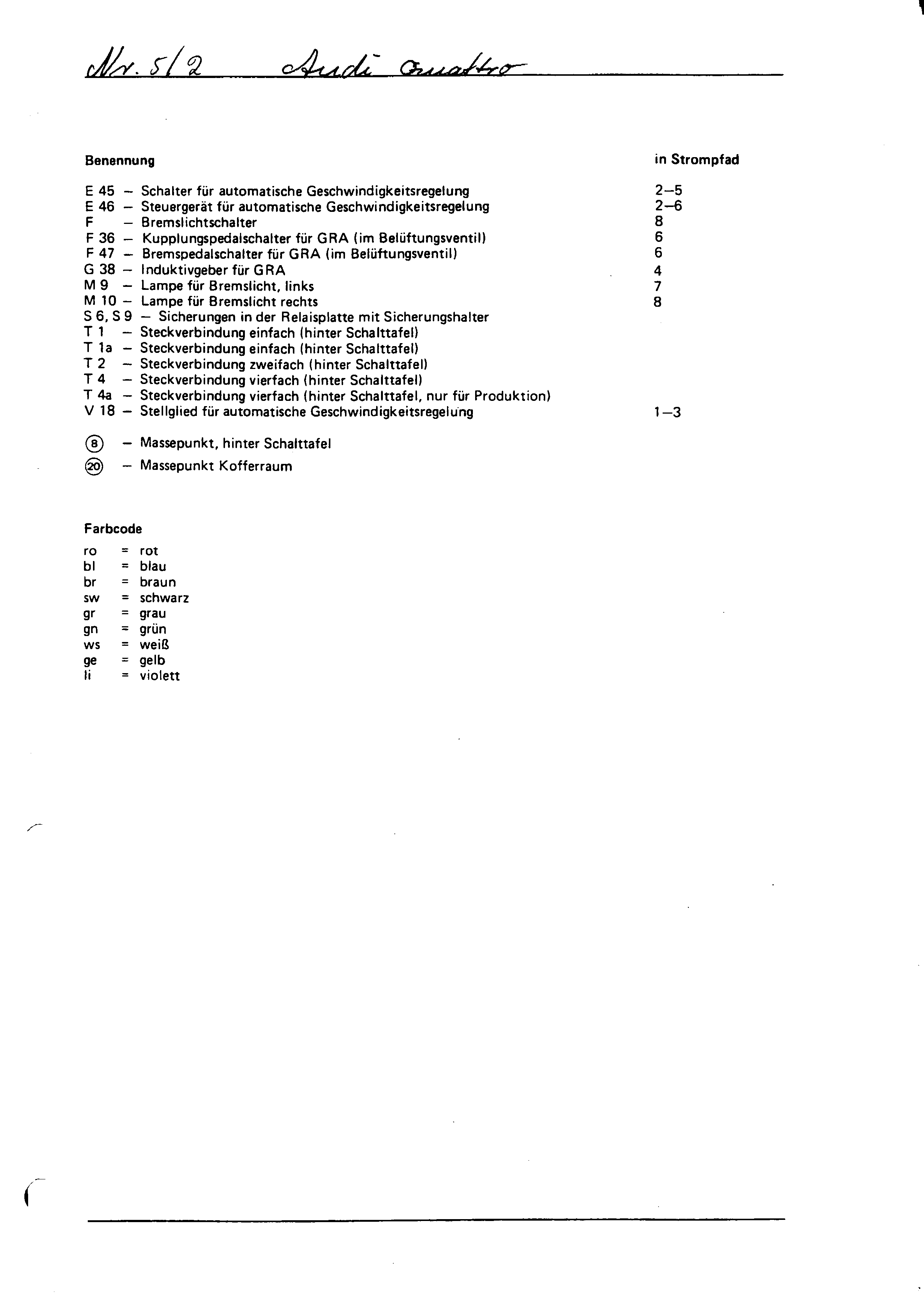

• Index

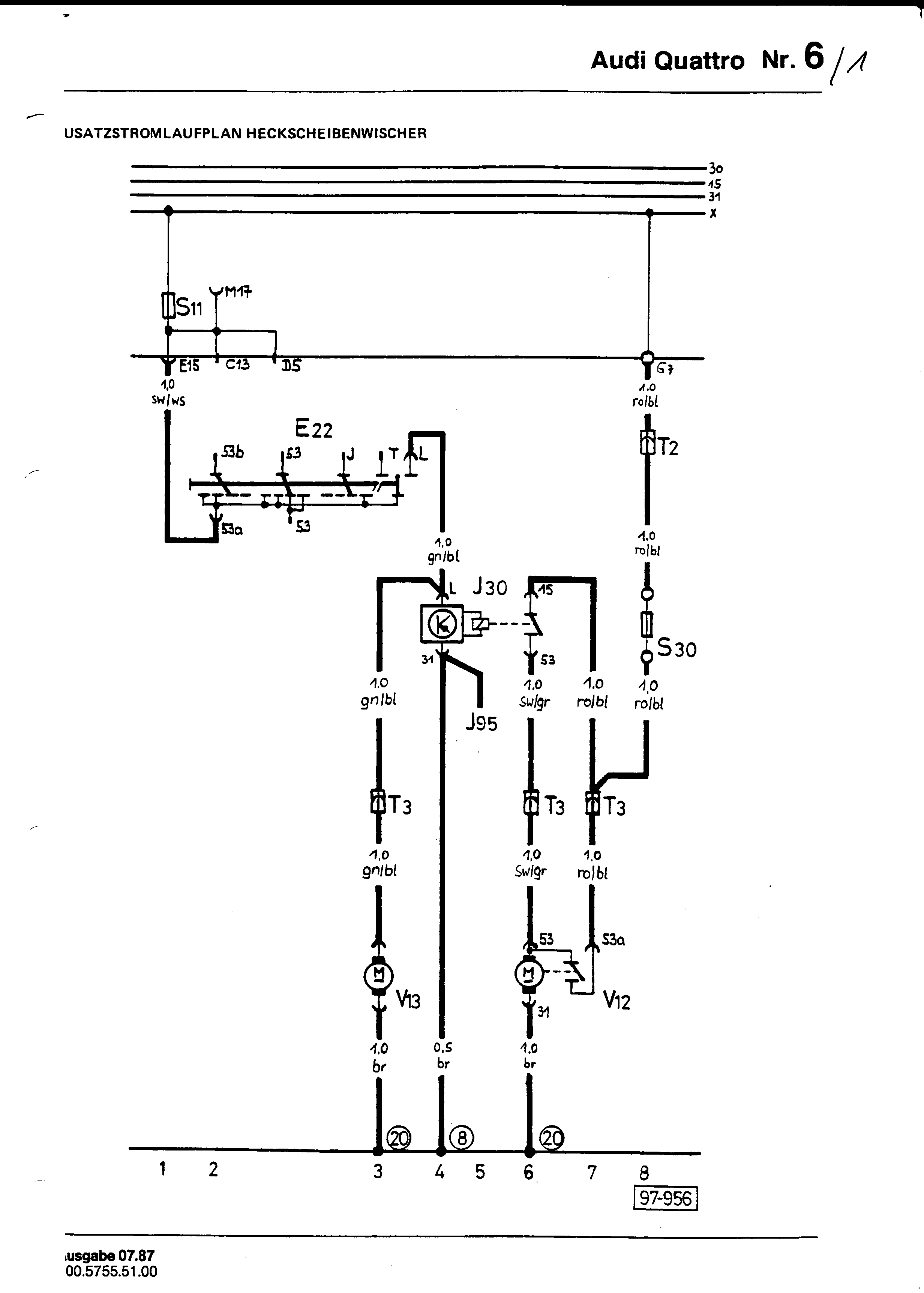

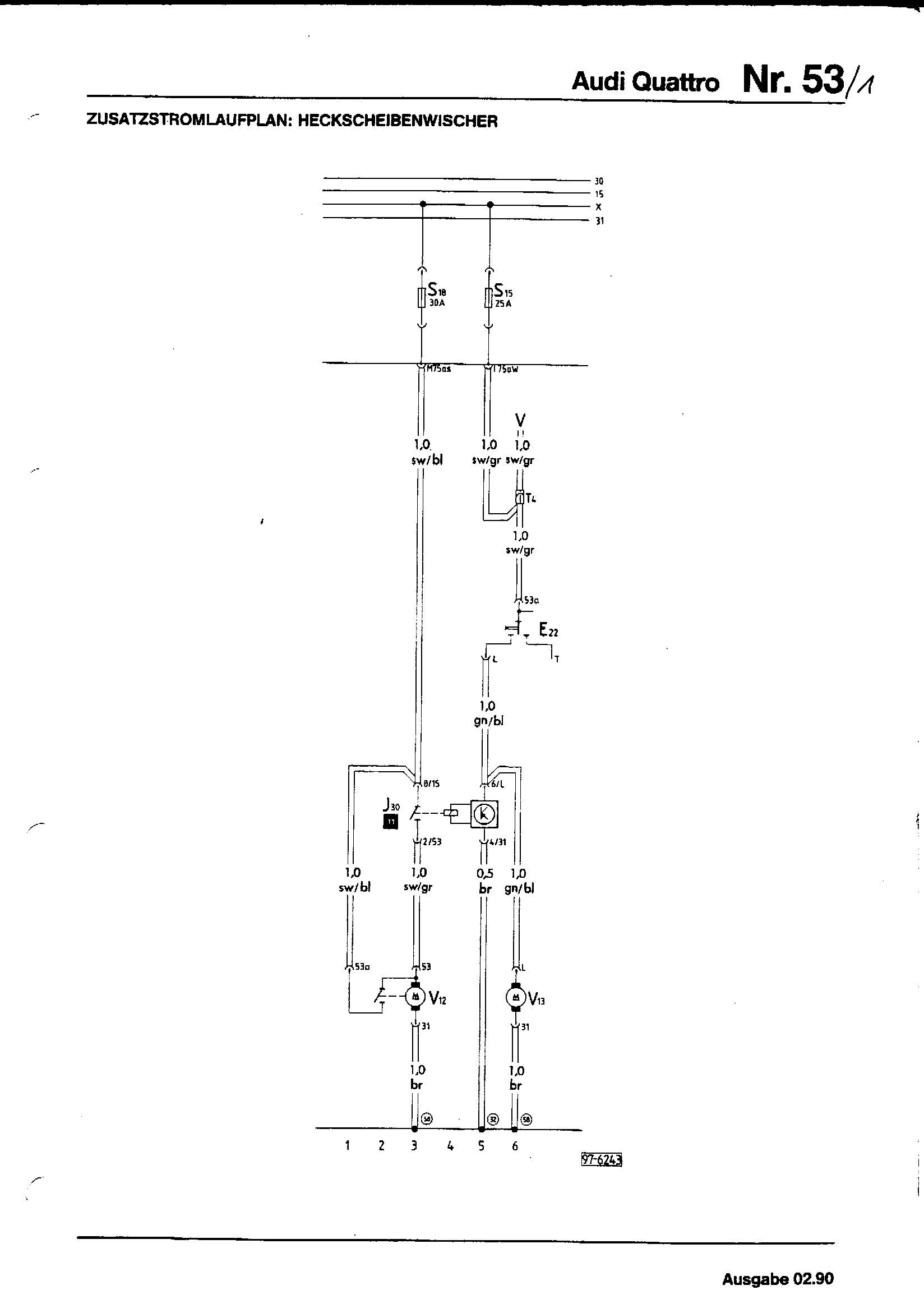

06 - Rear screen wiper

• Tracks 1-8

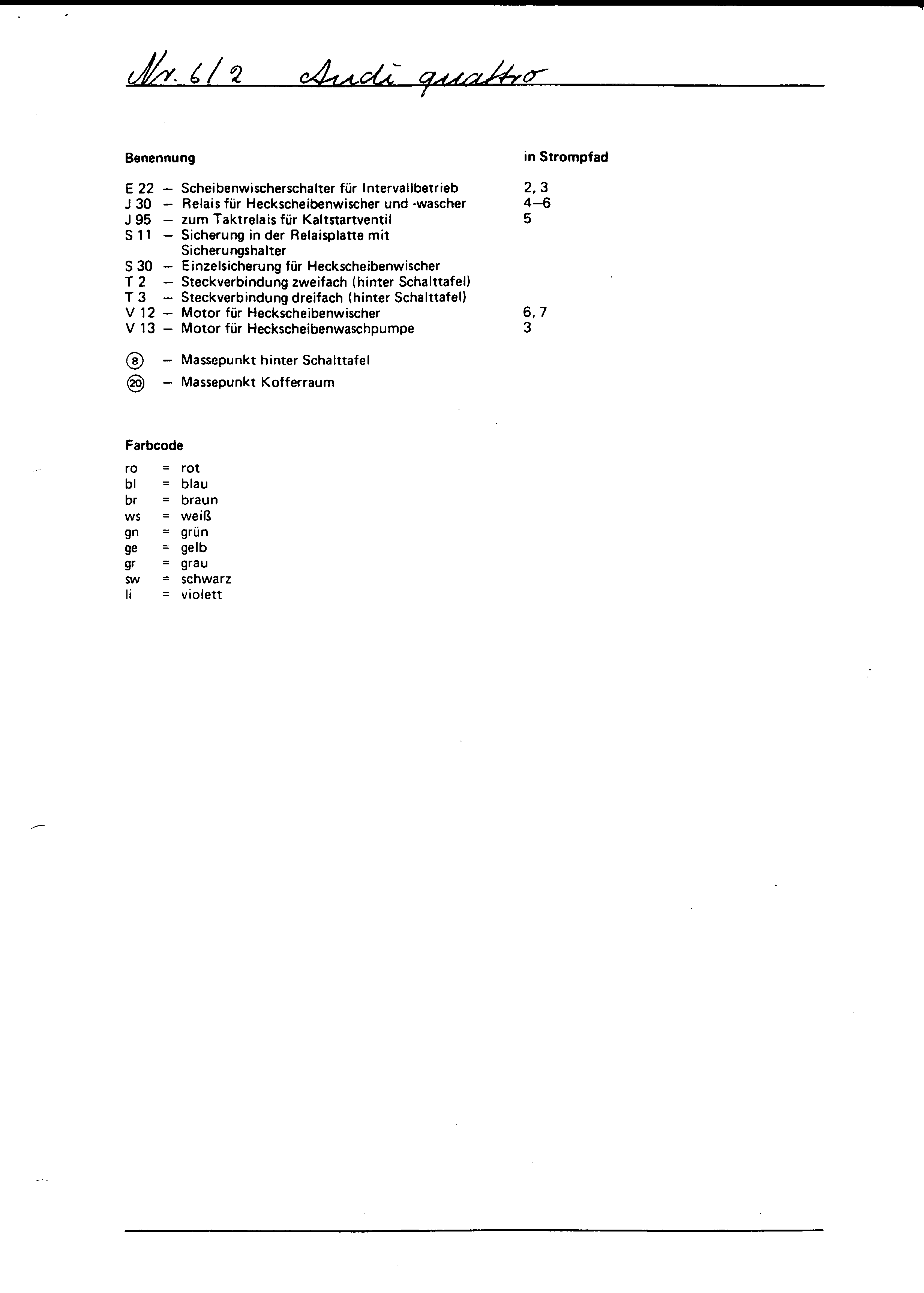

• Index

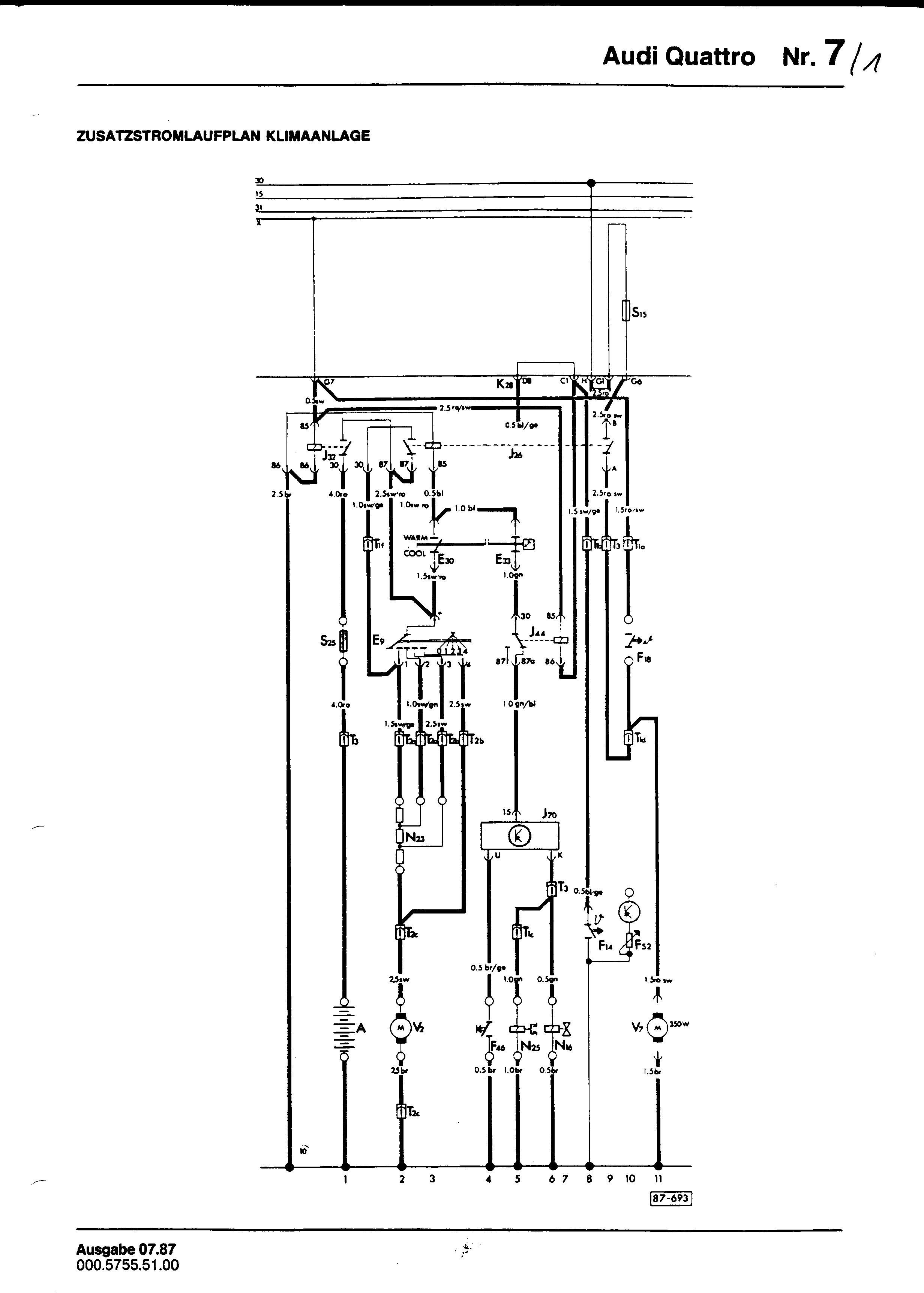

07 - Air conditioning

• Tracks 1-11

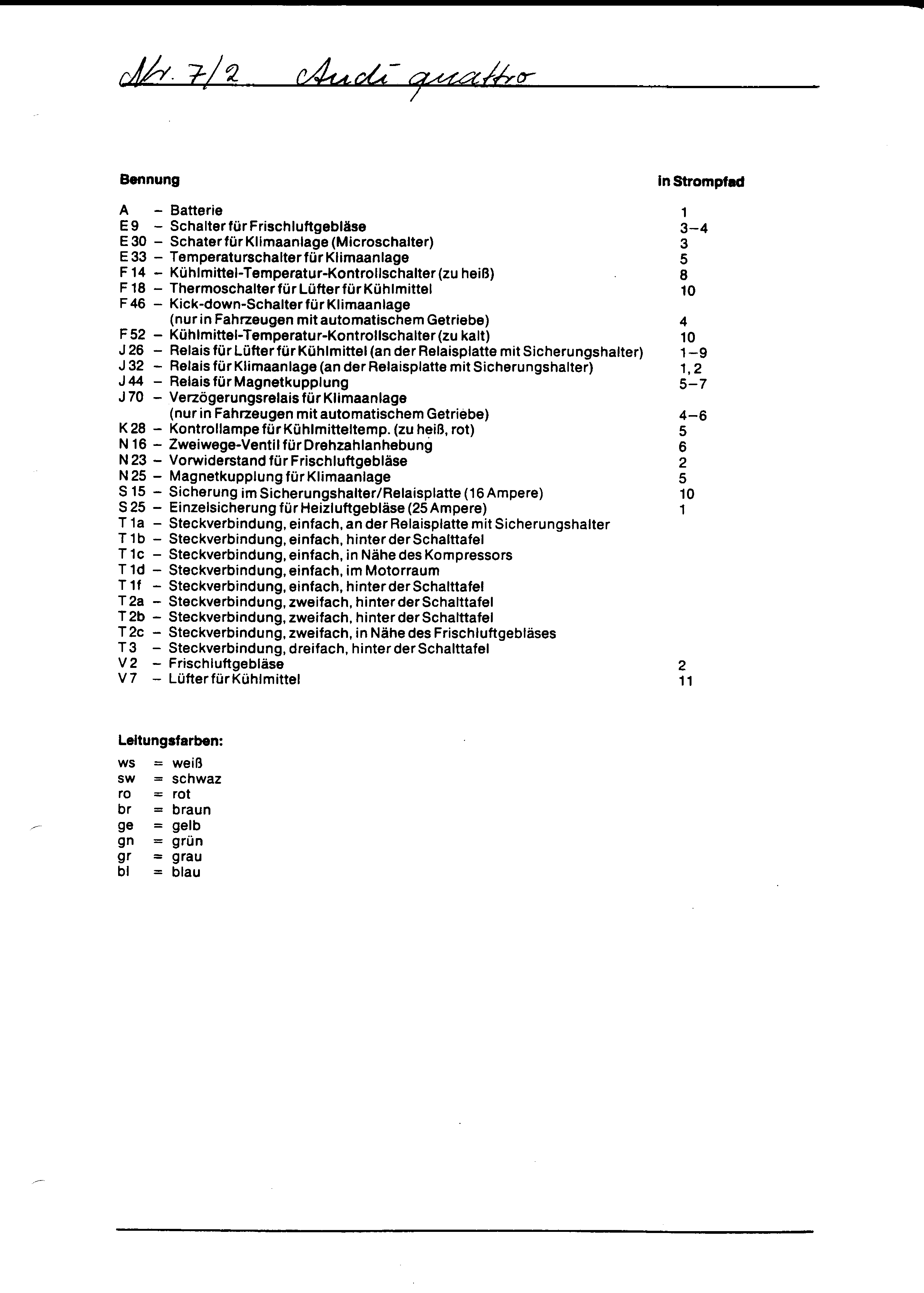

• Index

08 - Cruise control

• Tracks 1-28
• Tracks 29-35 and index

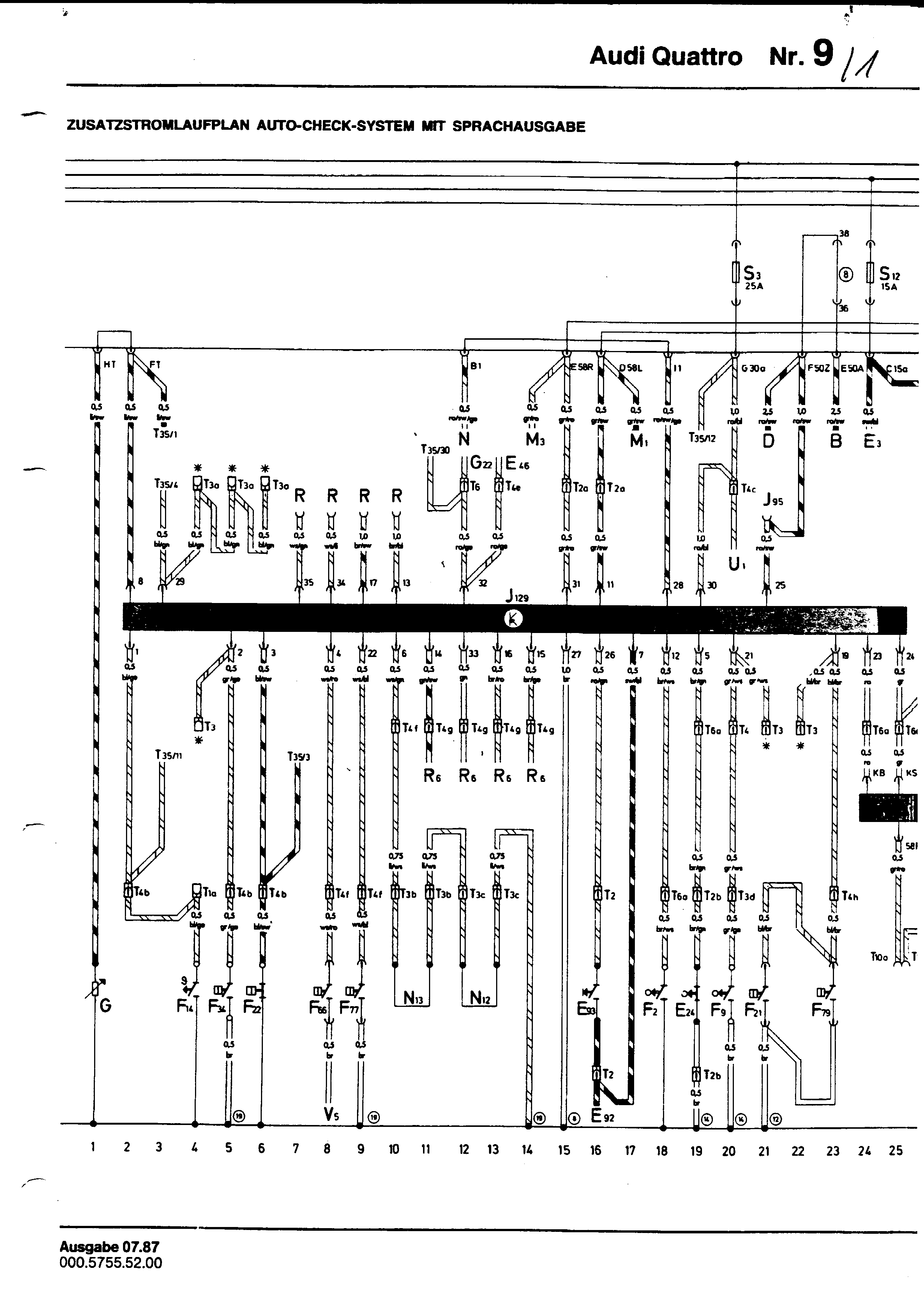

09 - Autocheck with speech synthesiser

• Notes and pinout
• Tracks 1-24

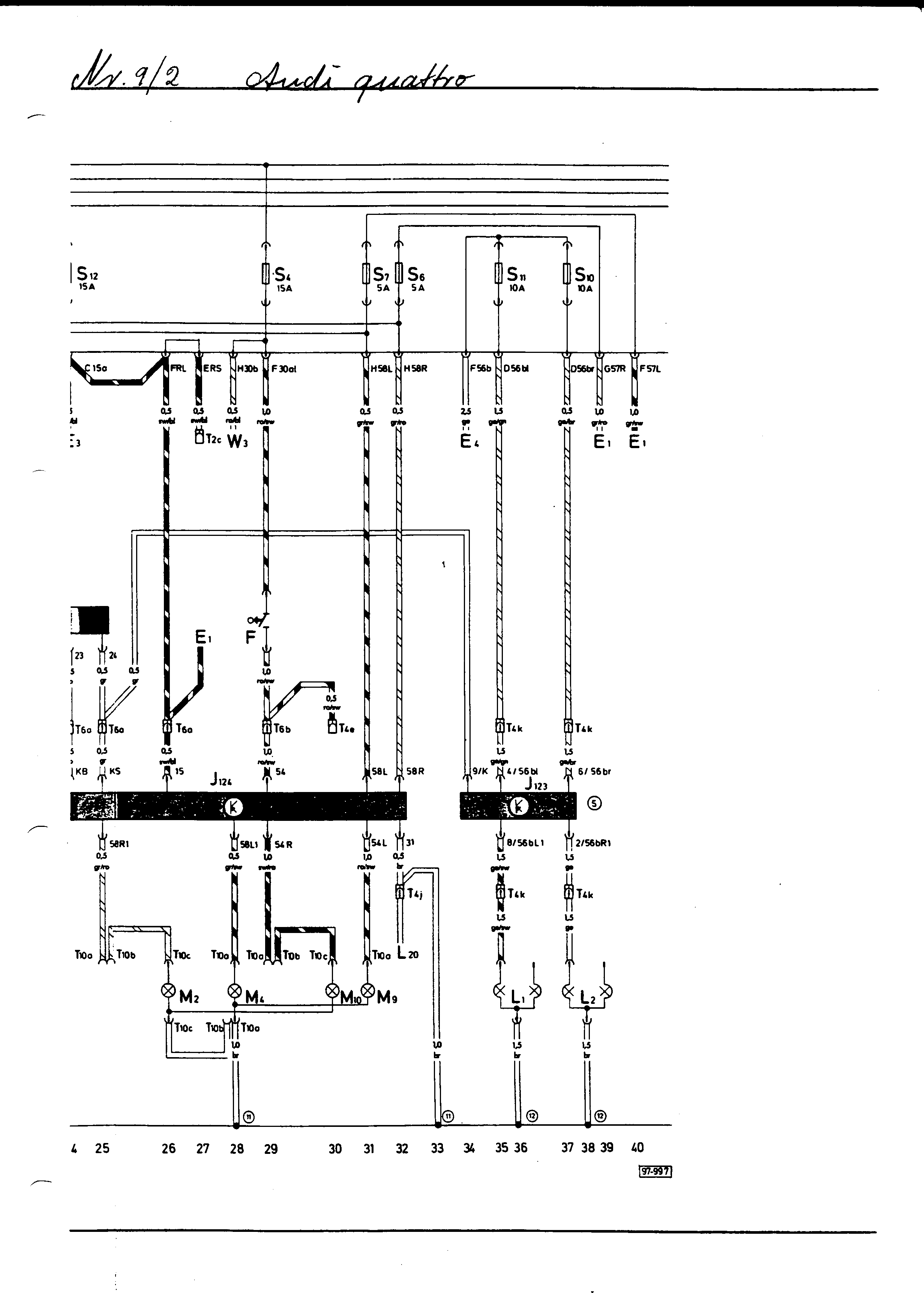

• Tracks 25-40

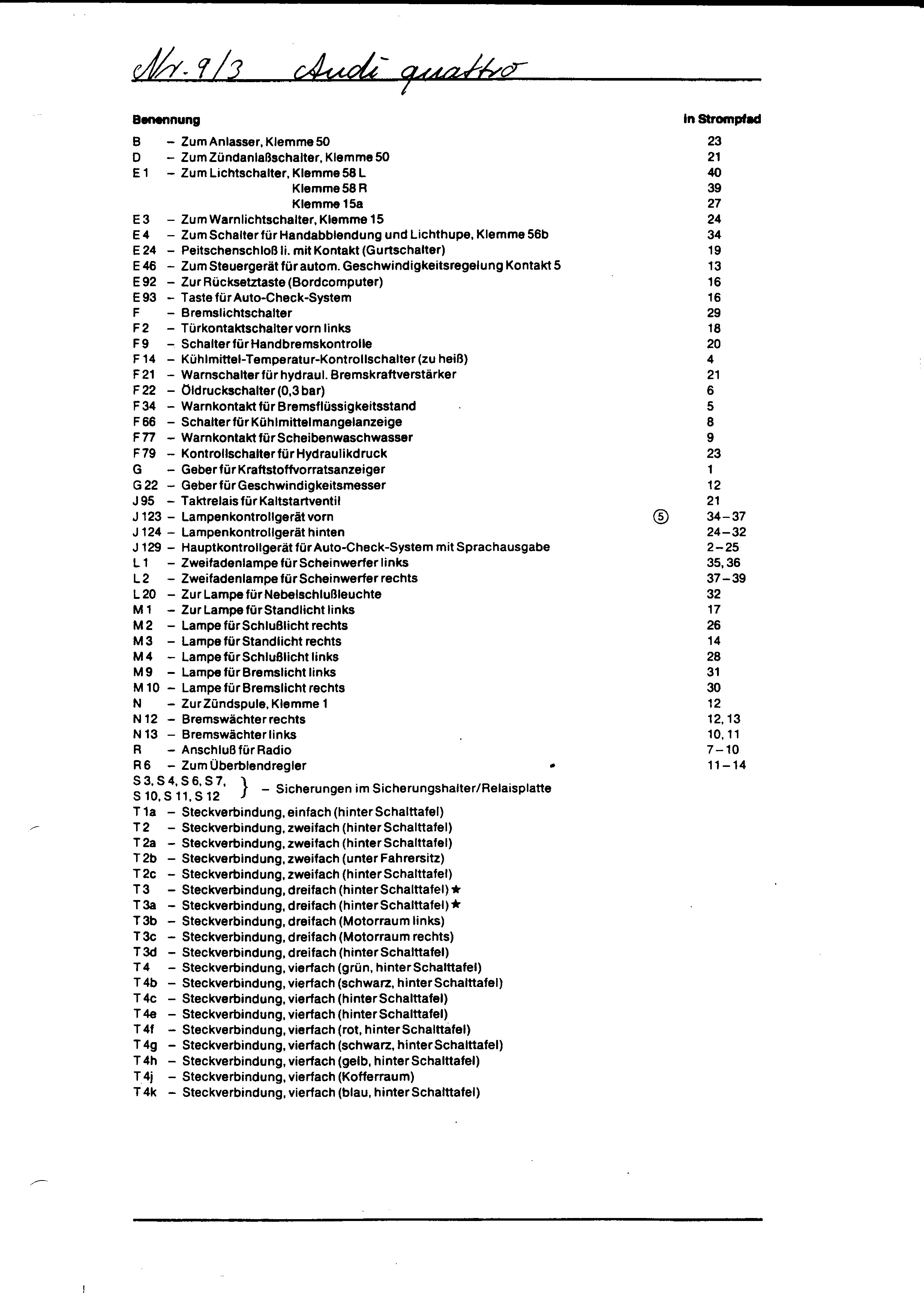

• Index

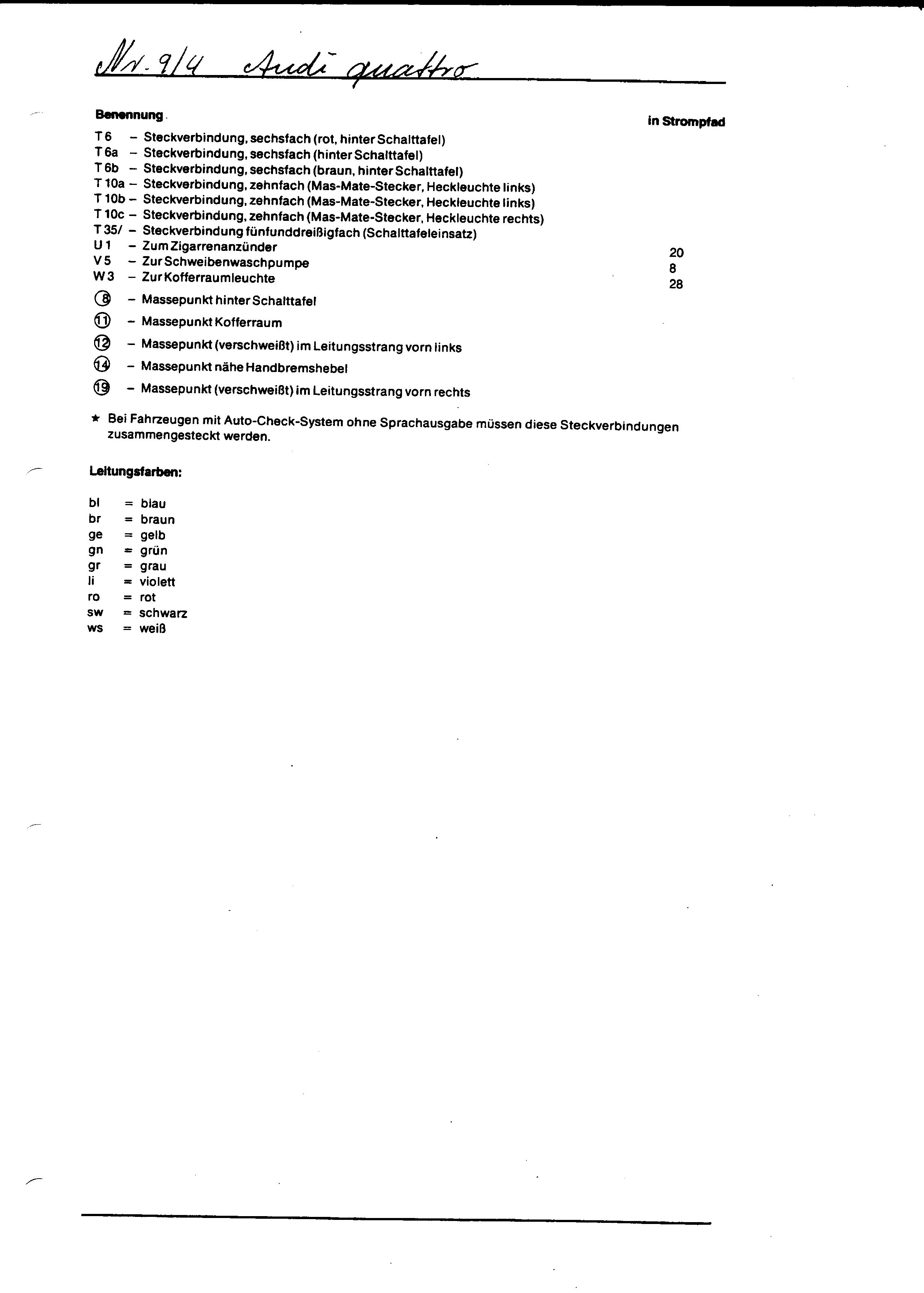

• Index (contd.)

10 - Rear screen wiper

• Tracks 1-5 and index

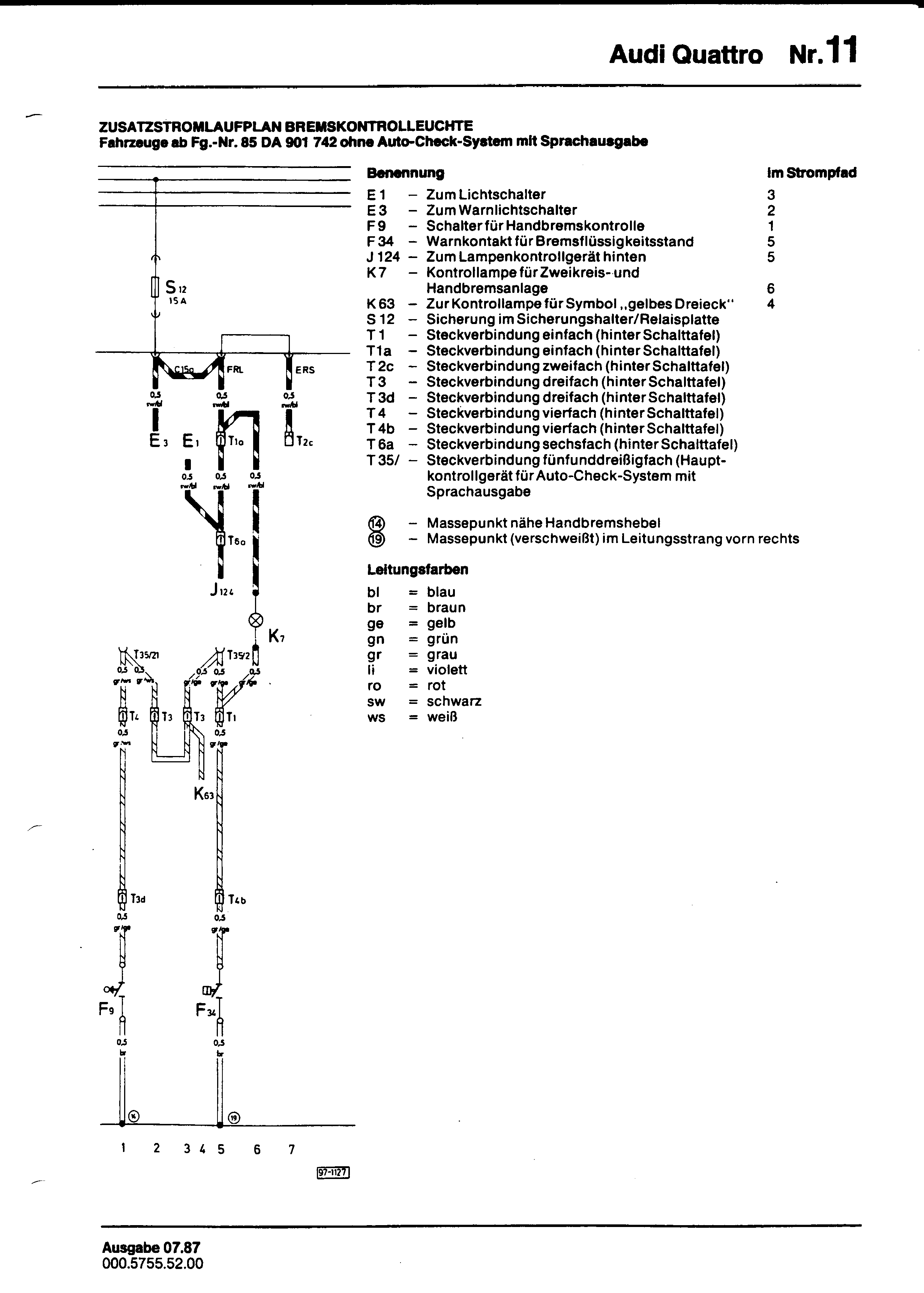

11 - Brake warning lights - from 85-D-901742 without Autocheck

• Tracks 1-7 and index

12 - Brake warning lights - from 85-D-901742 with Autocheck

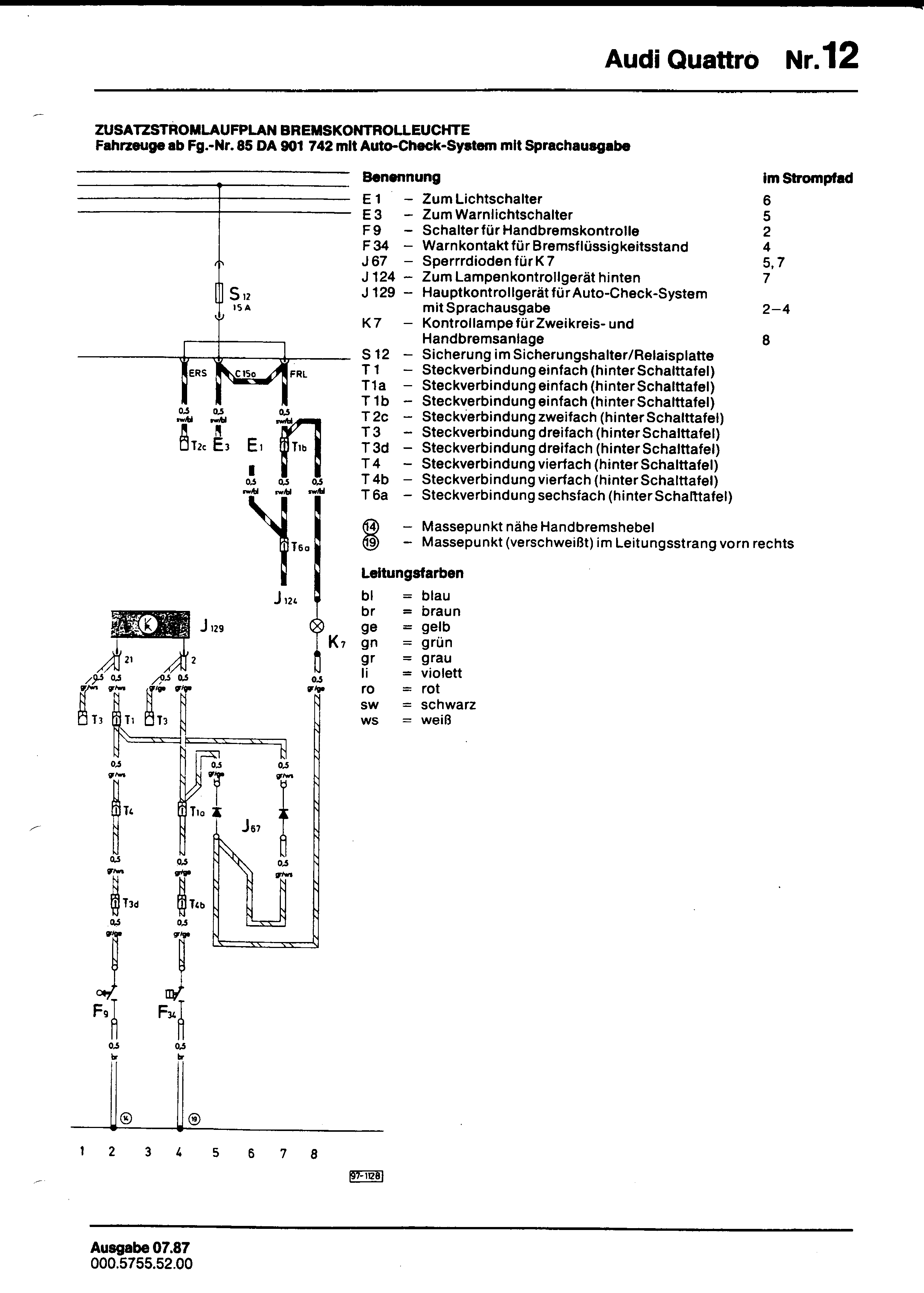

• Tracks 1-8 and index

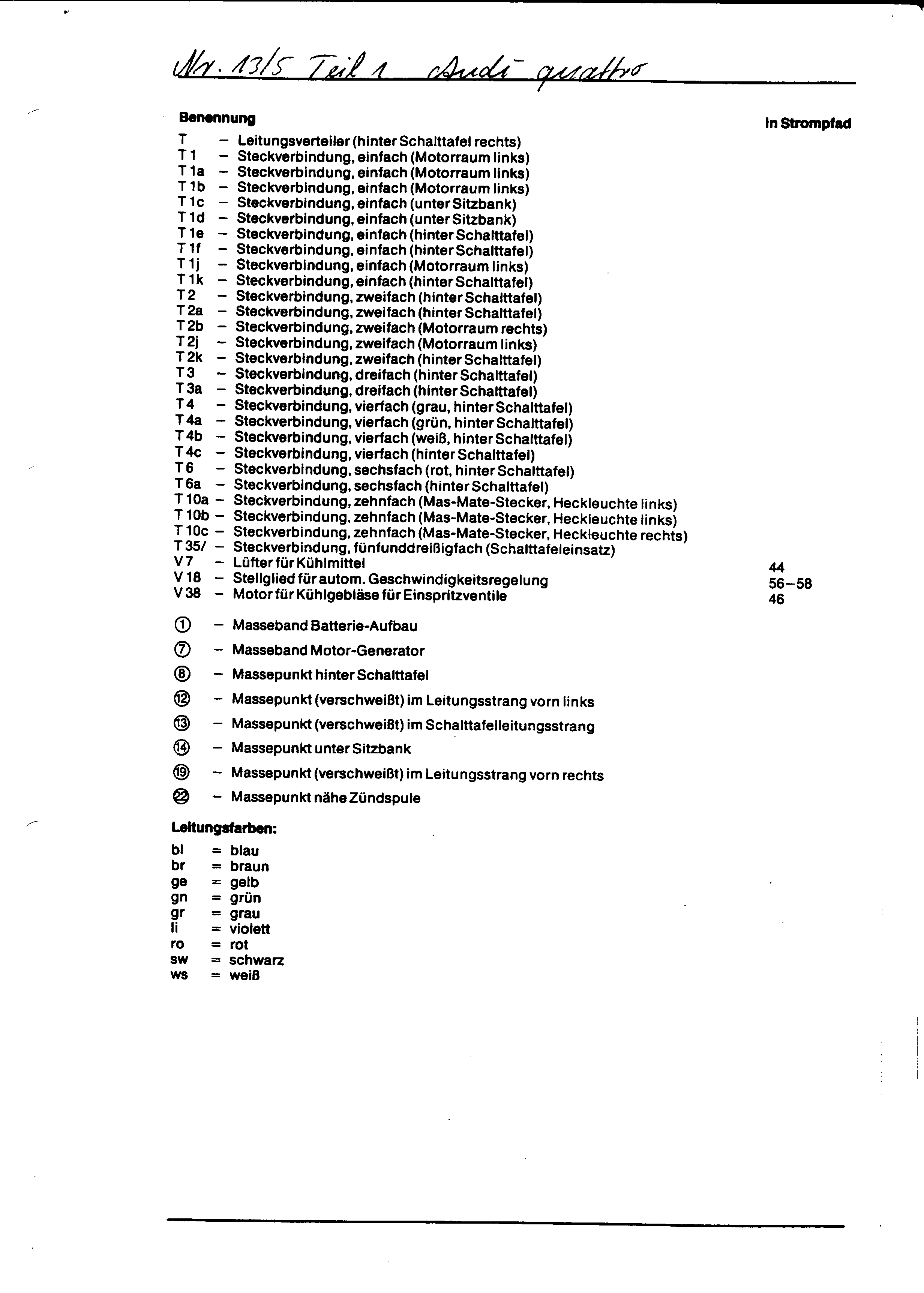

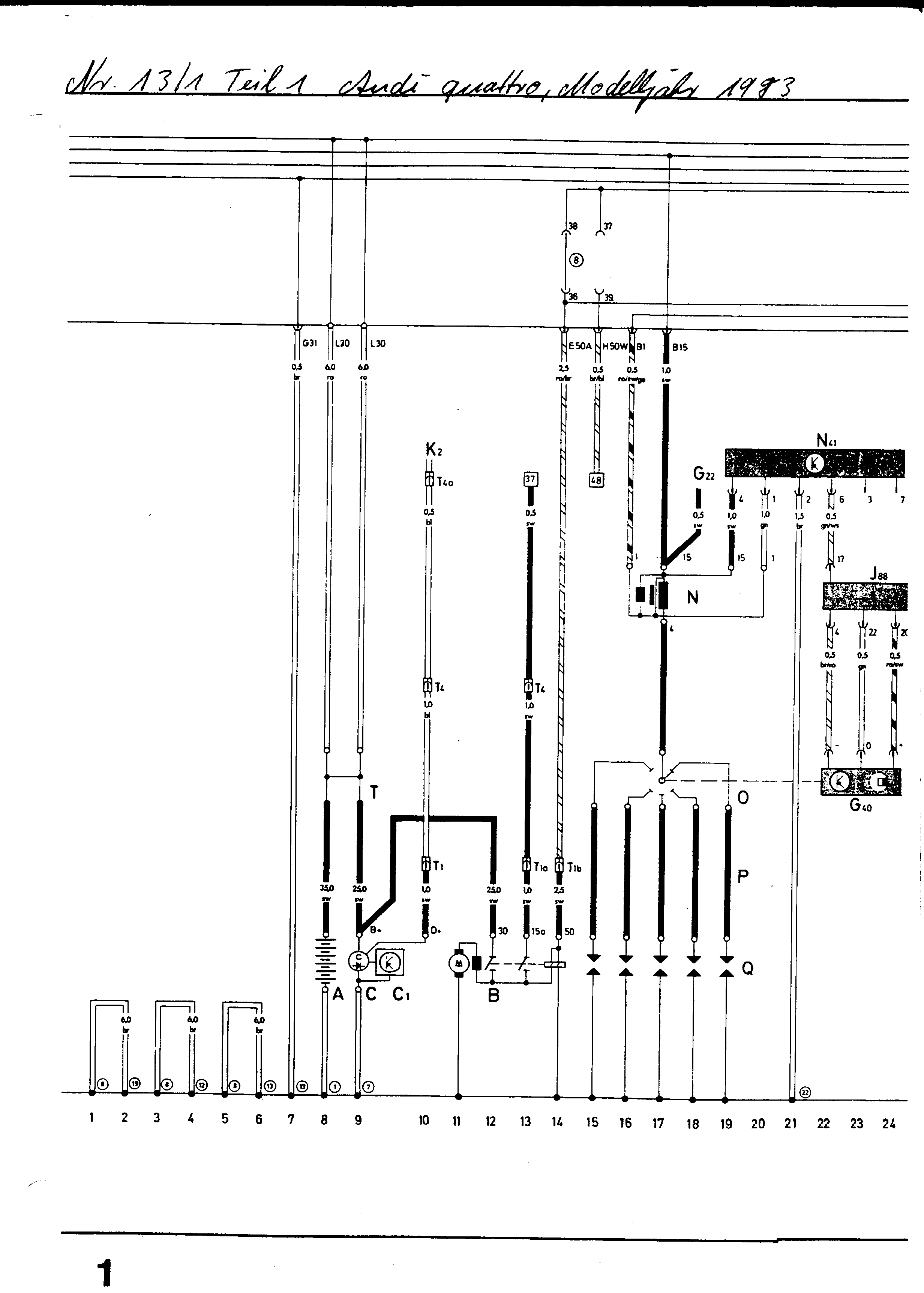

13 - Audi Quattro, 1983

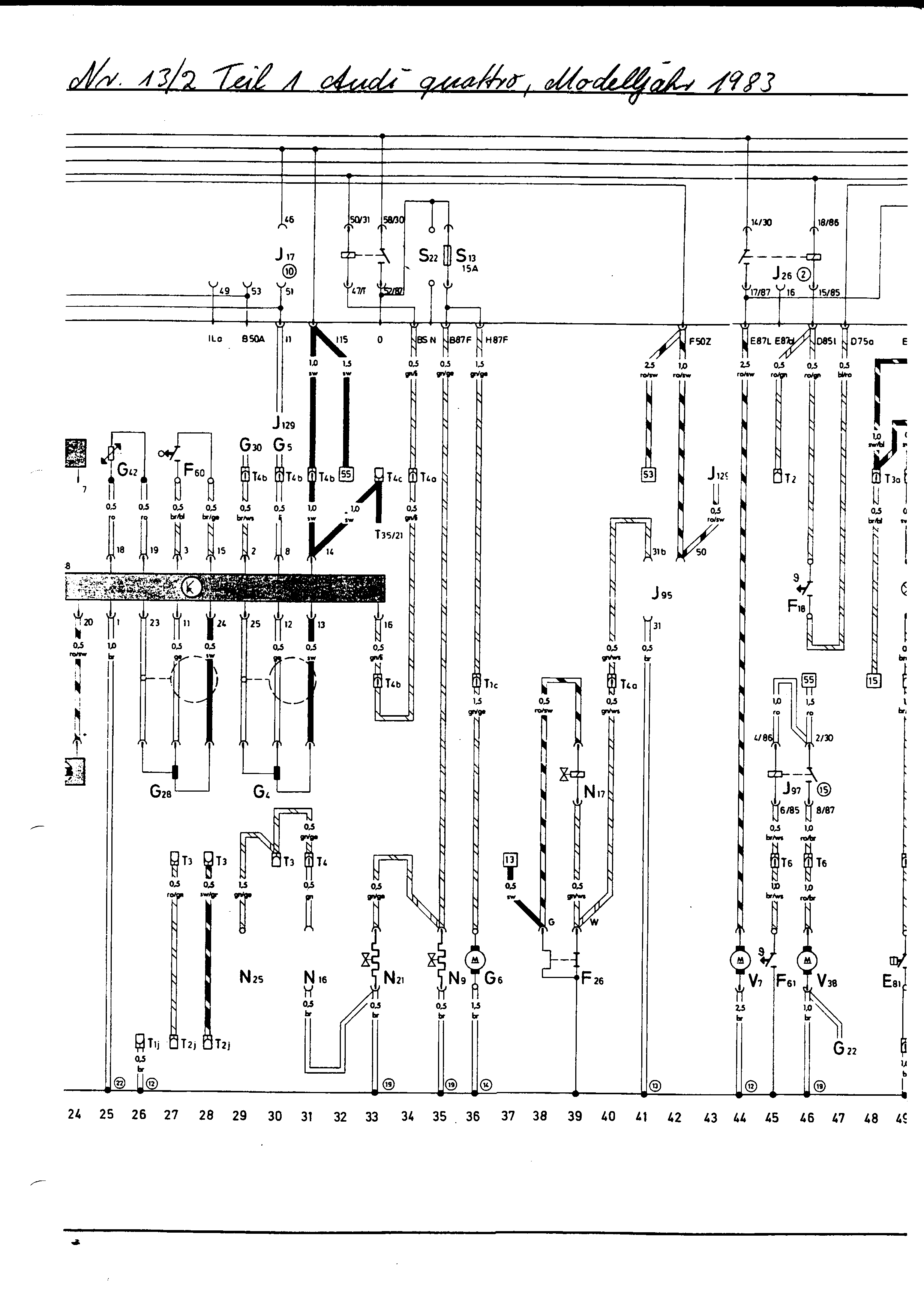

• Tracks 1-24
• Tracks 25-48

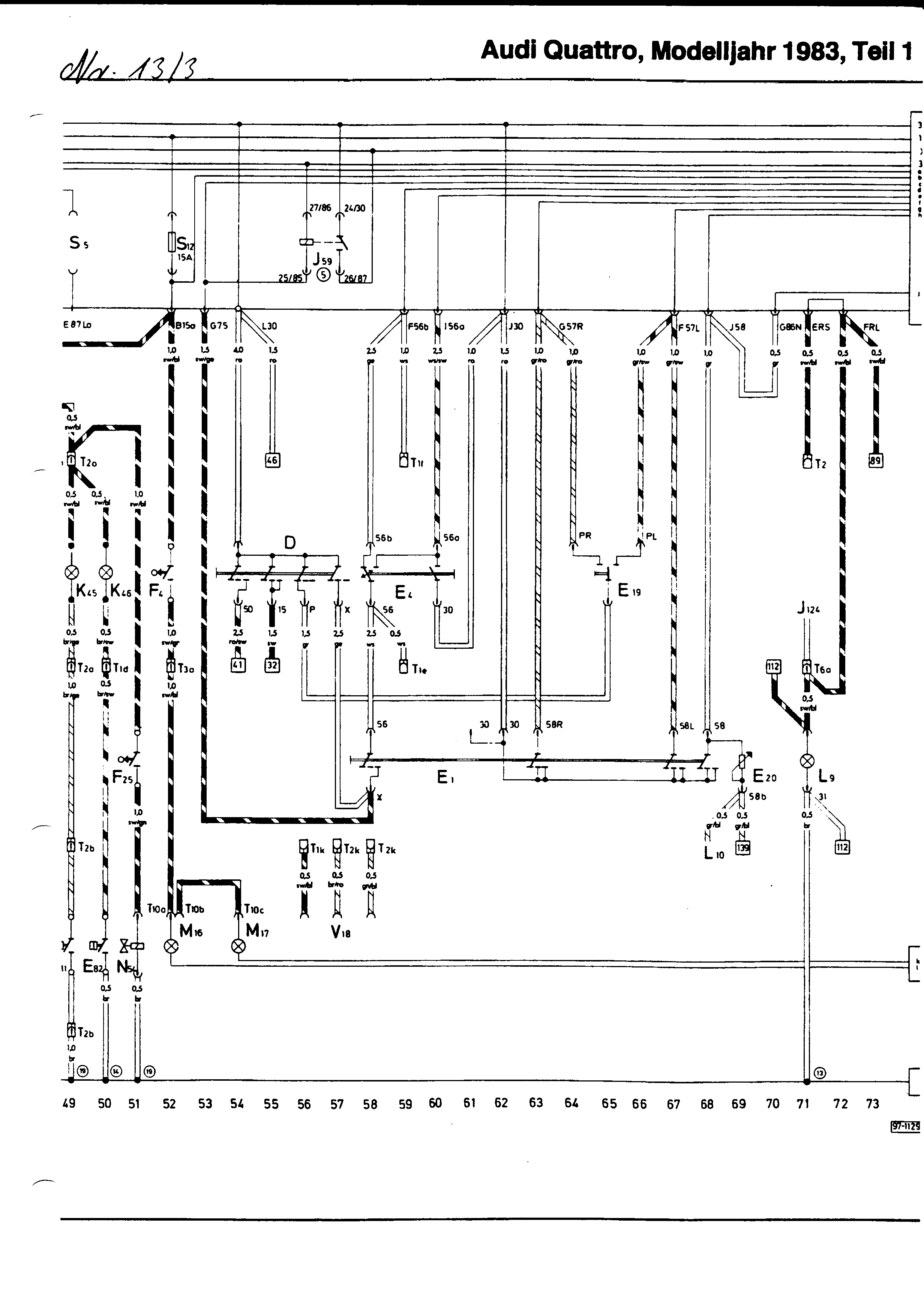

• Tracks 49-73

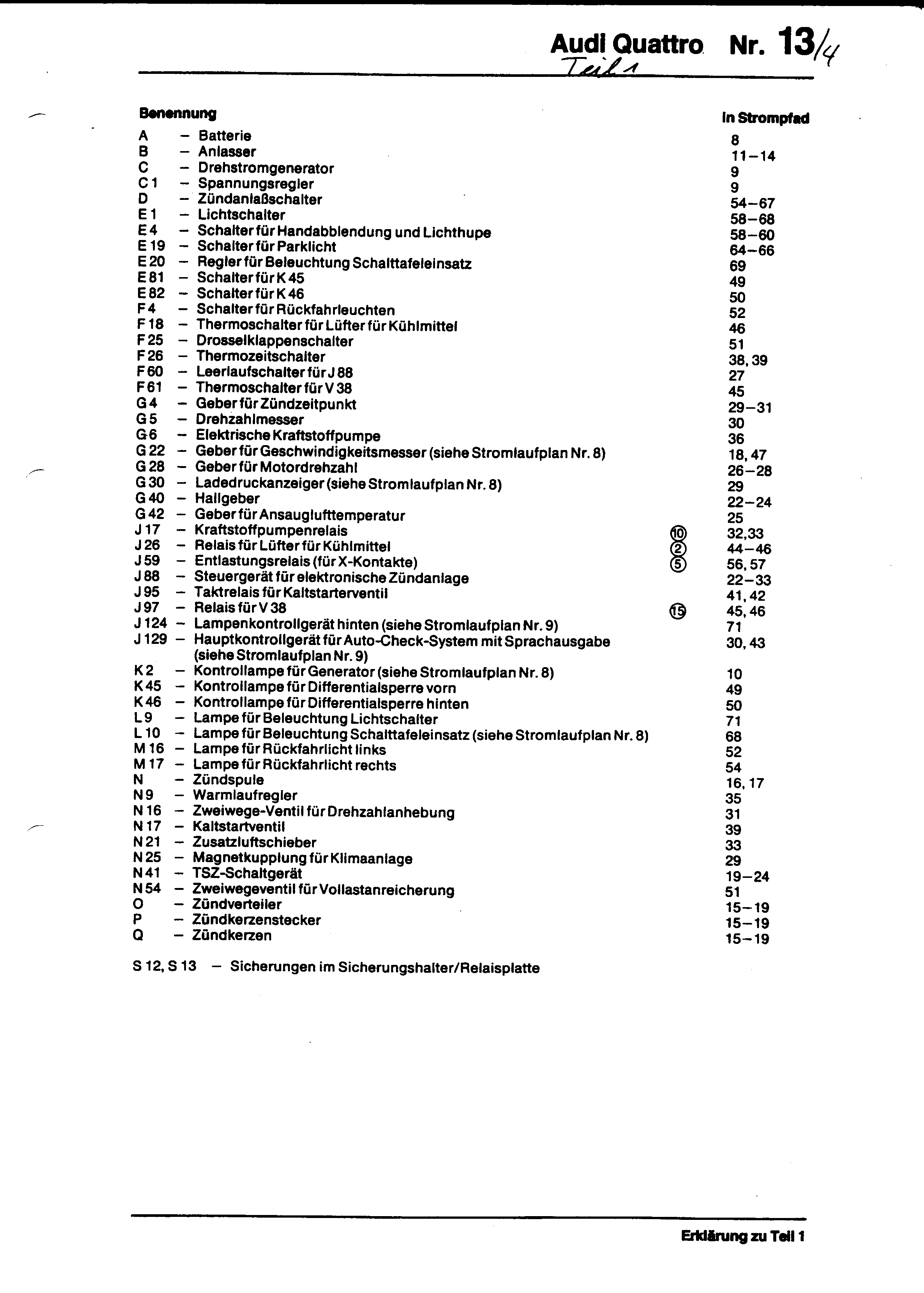

• Index to tracks 1-73
• Index to tracks 1-73 (contd.)

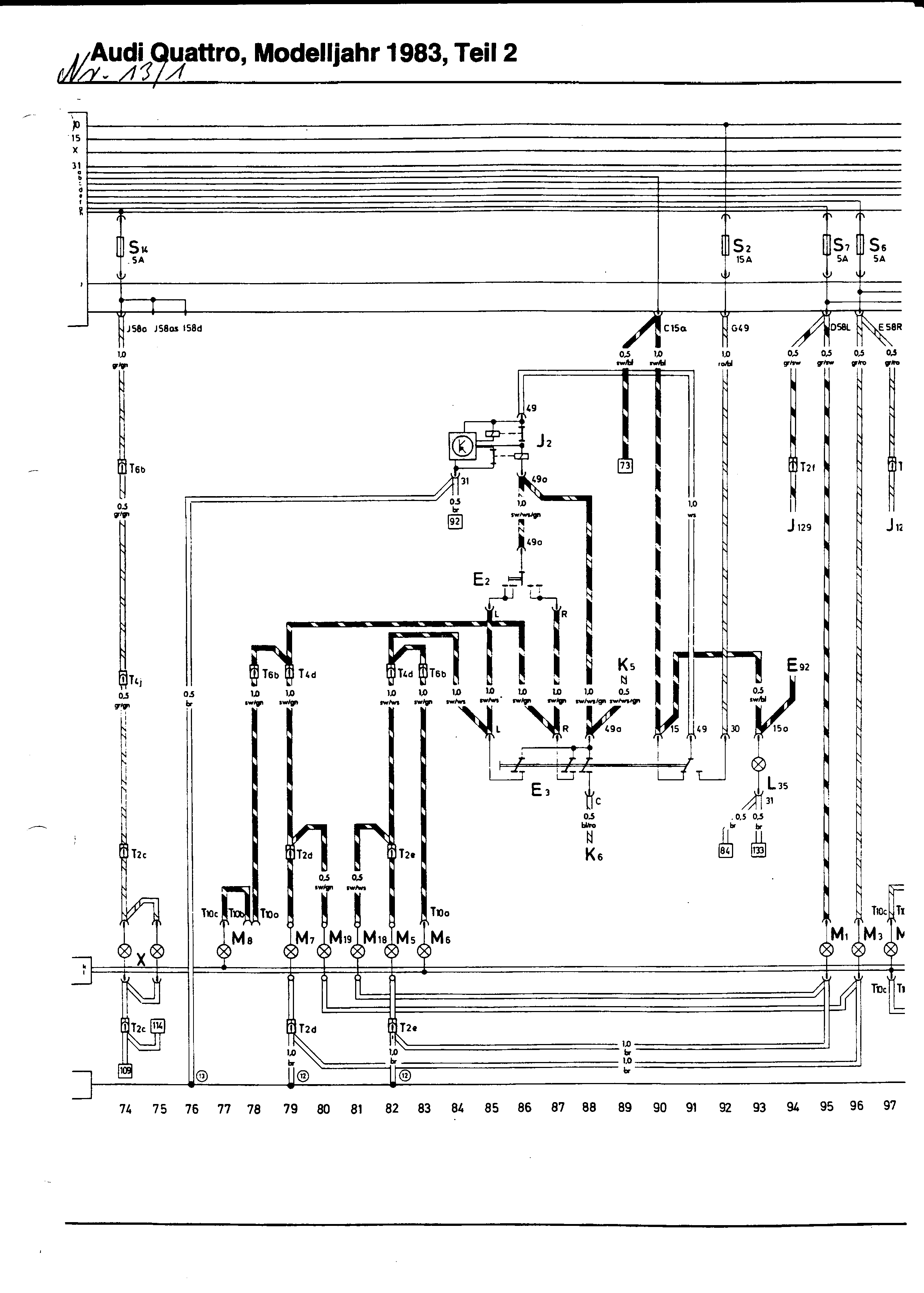

• Tracks 74-96

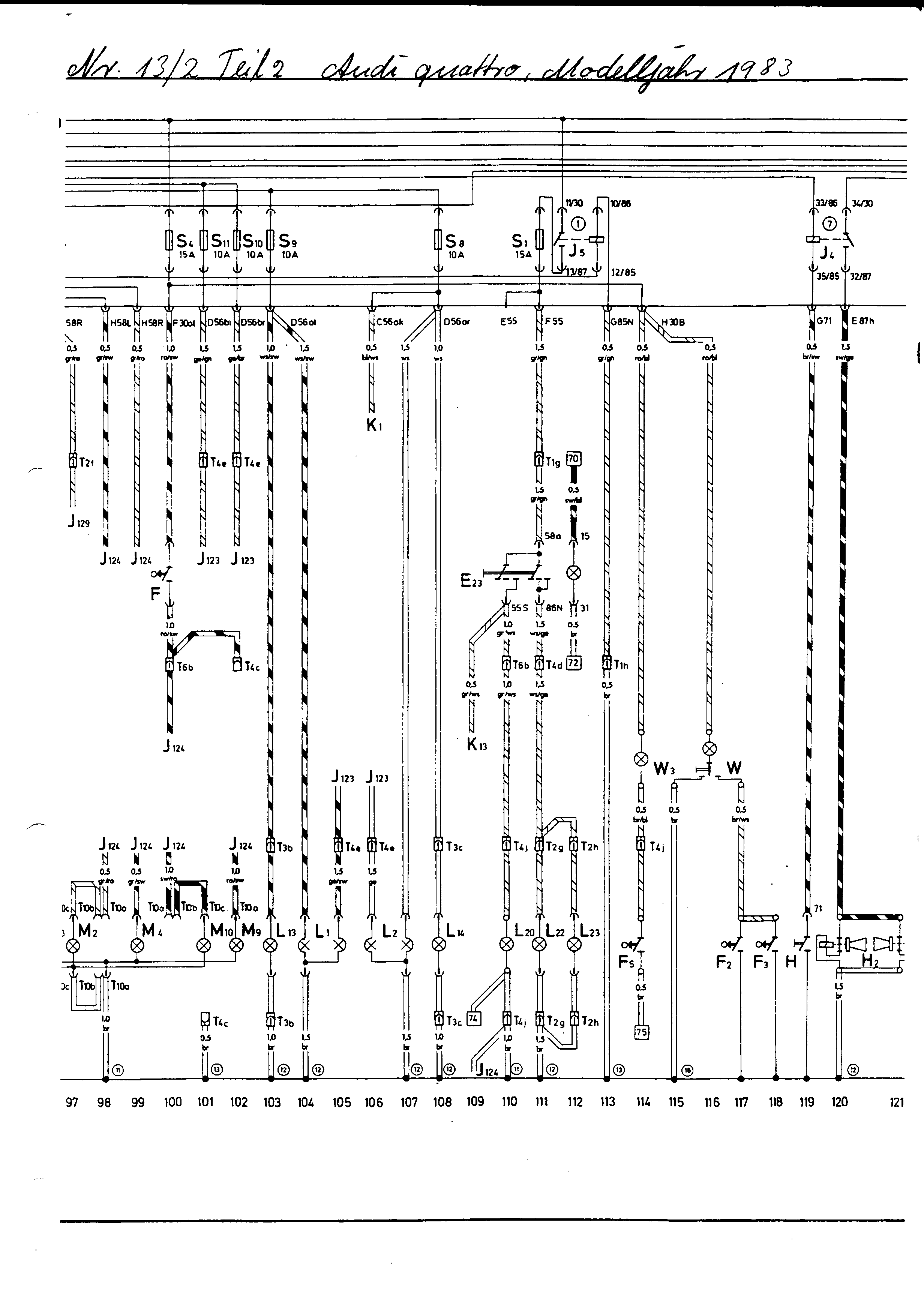

• Tracks 97-120

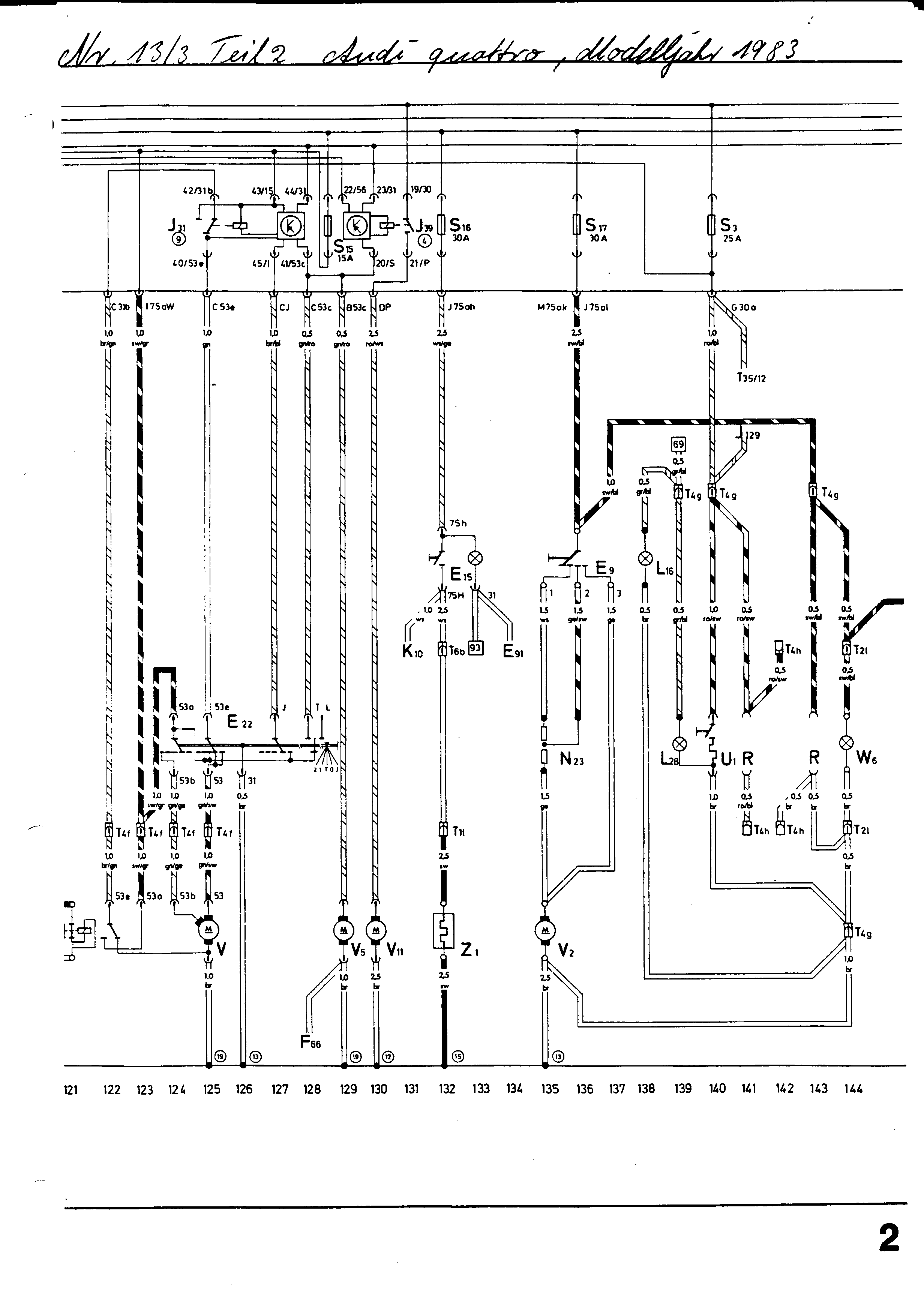

• Tracks 121-144
• Index to tracks 74-144

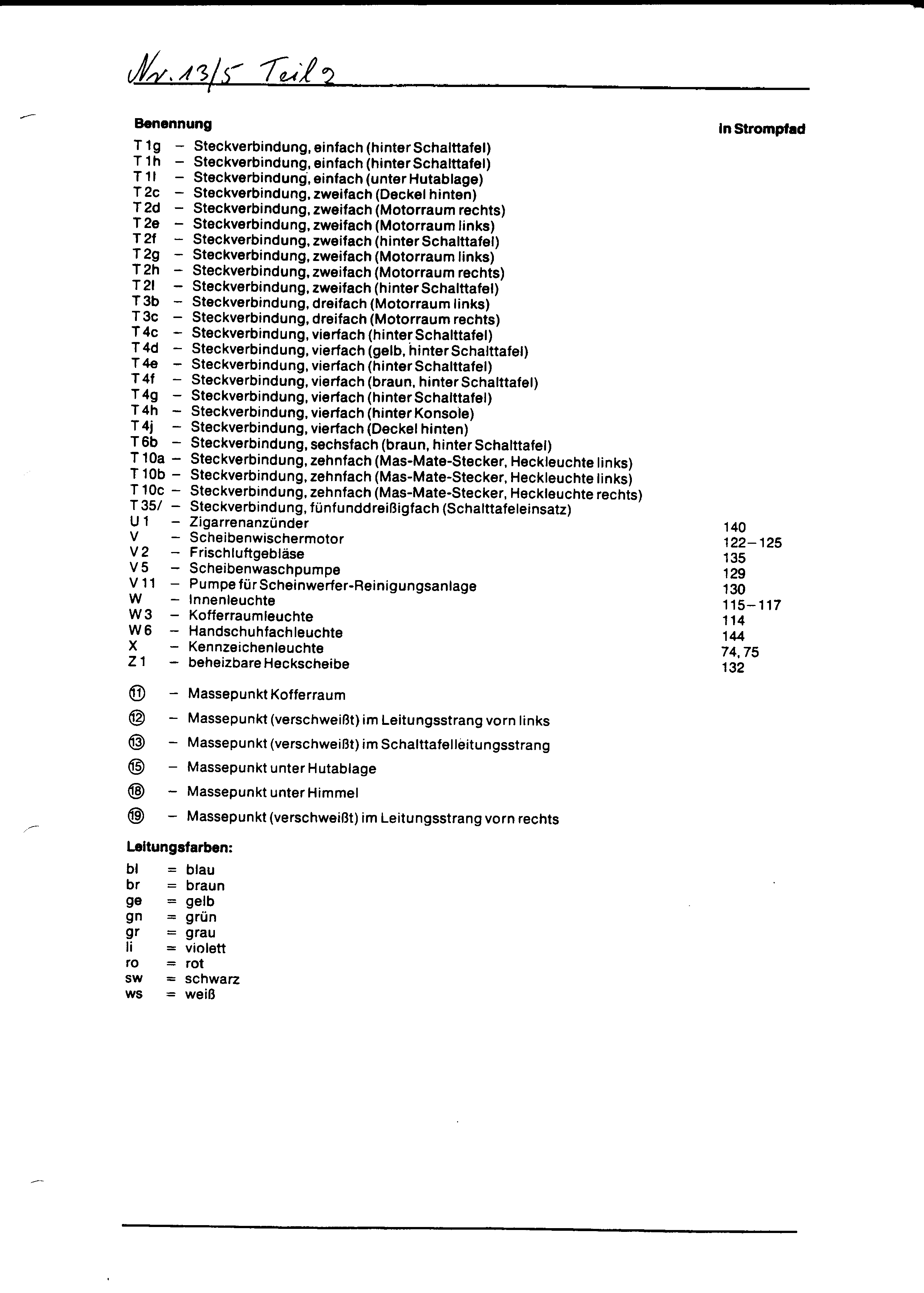

• Index to tracks 74-144 (contd.)

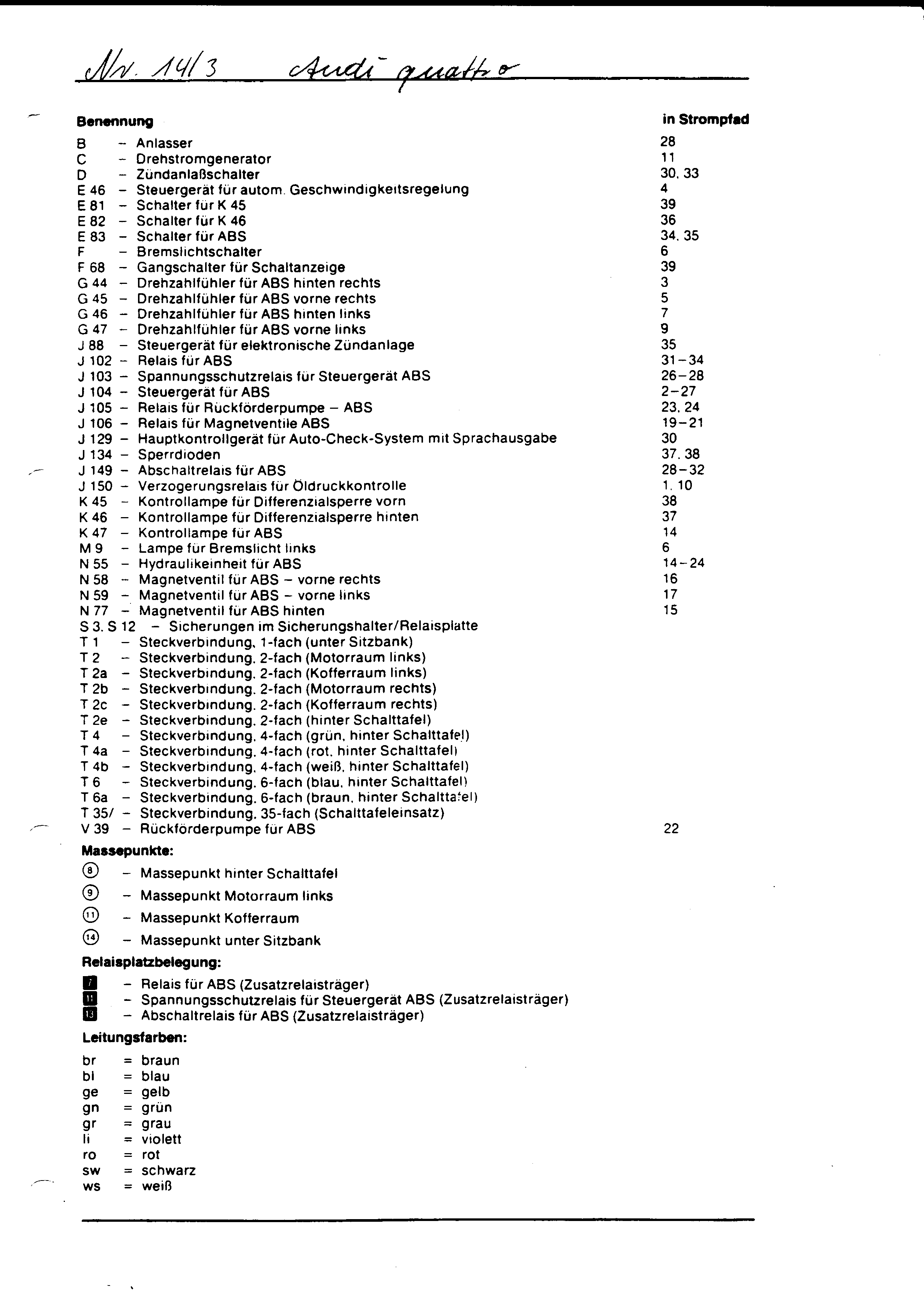

14 - ABS

• Notes and pinout

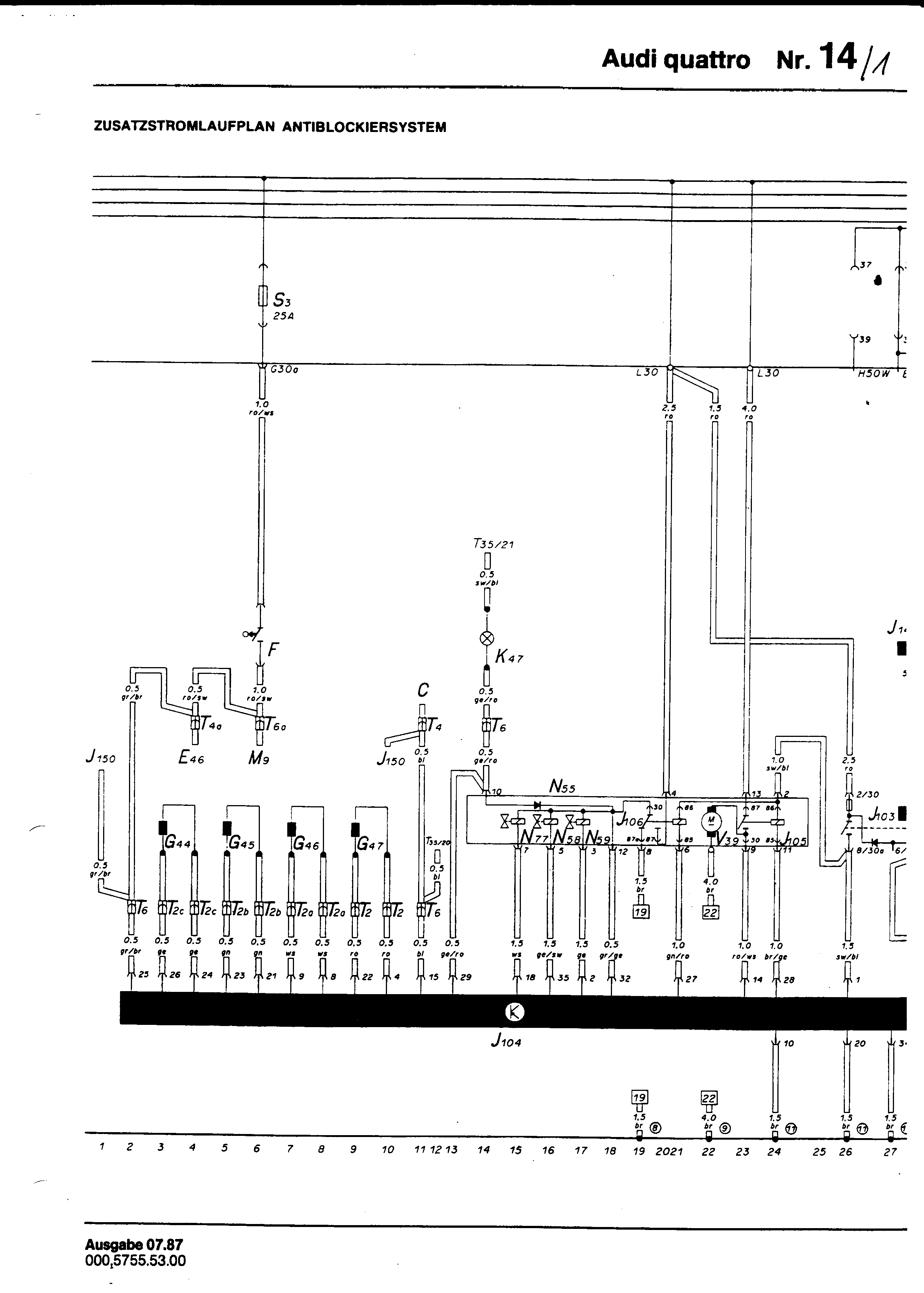

• Tracks 1-26 - Wheel sensors, ABS controller, pump

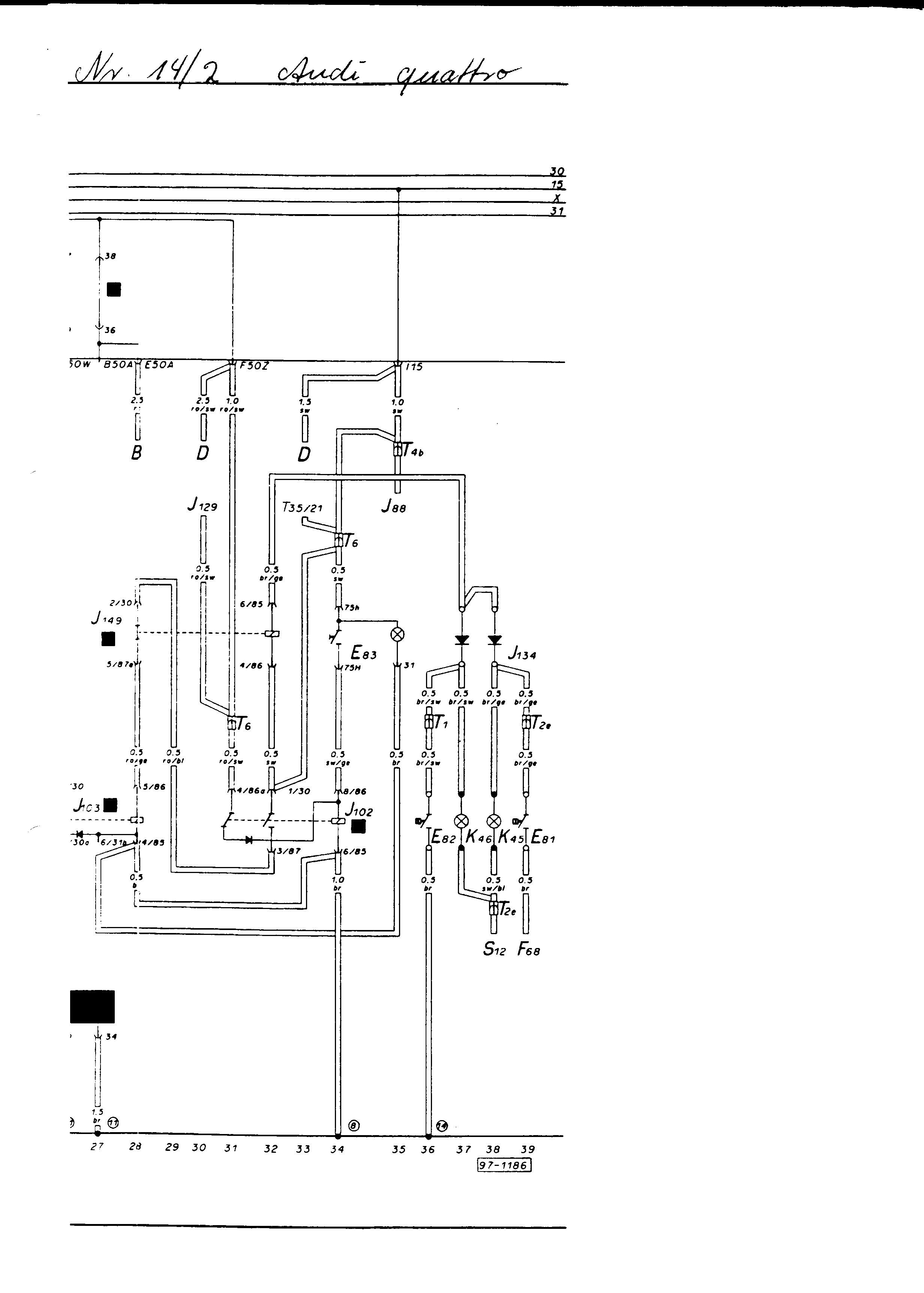

• Tracks 27-39 - Combination relay, differential locks, switches, warning light
• Index

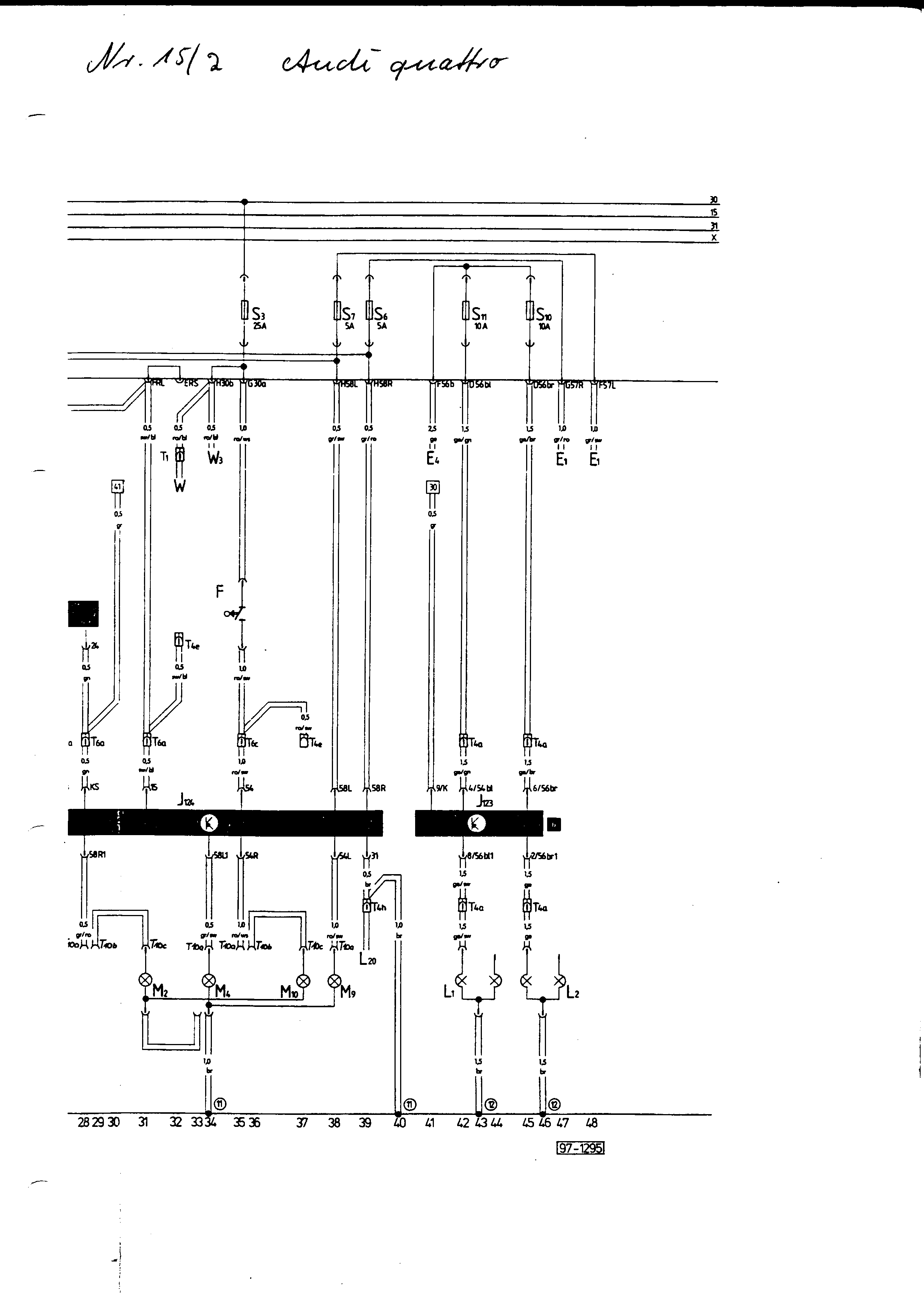

15 - Autocheck with speech synthesiser

• Notes and pinout

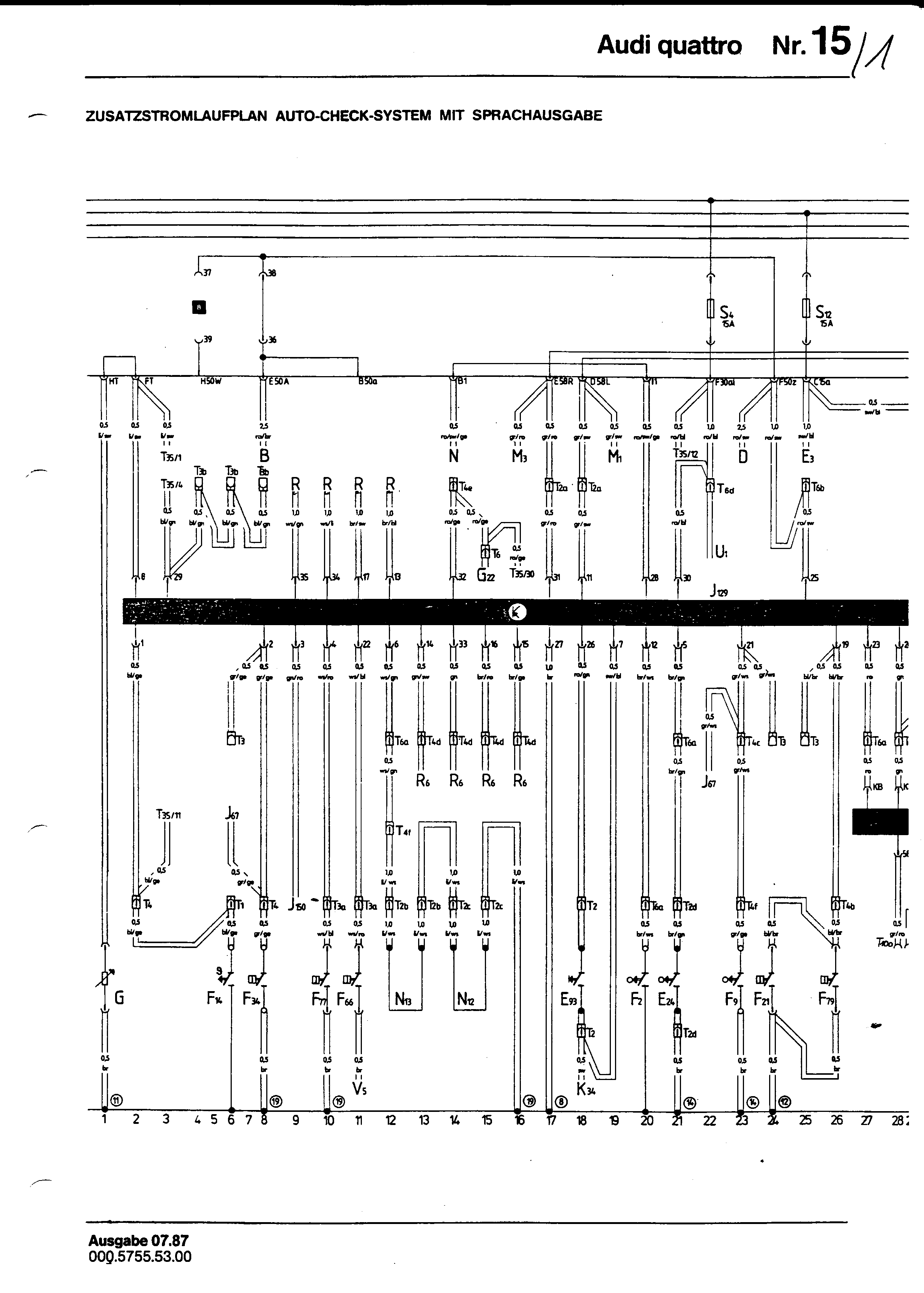

• Tracks 1-27
• Tracks 28-48

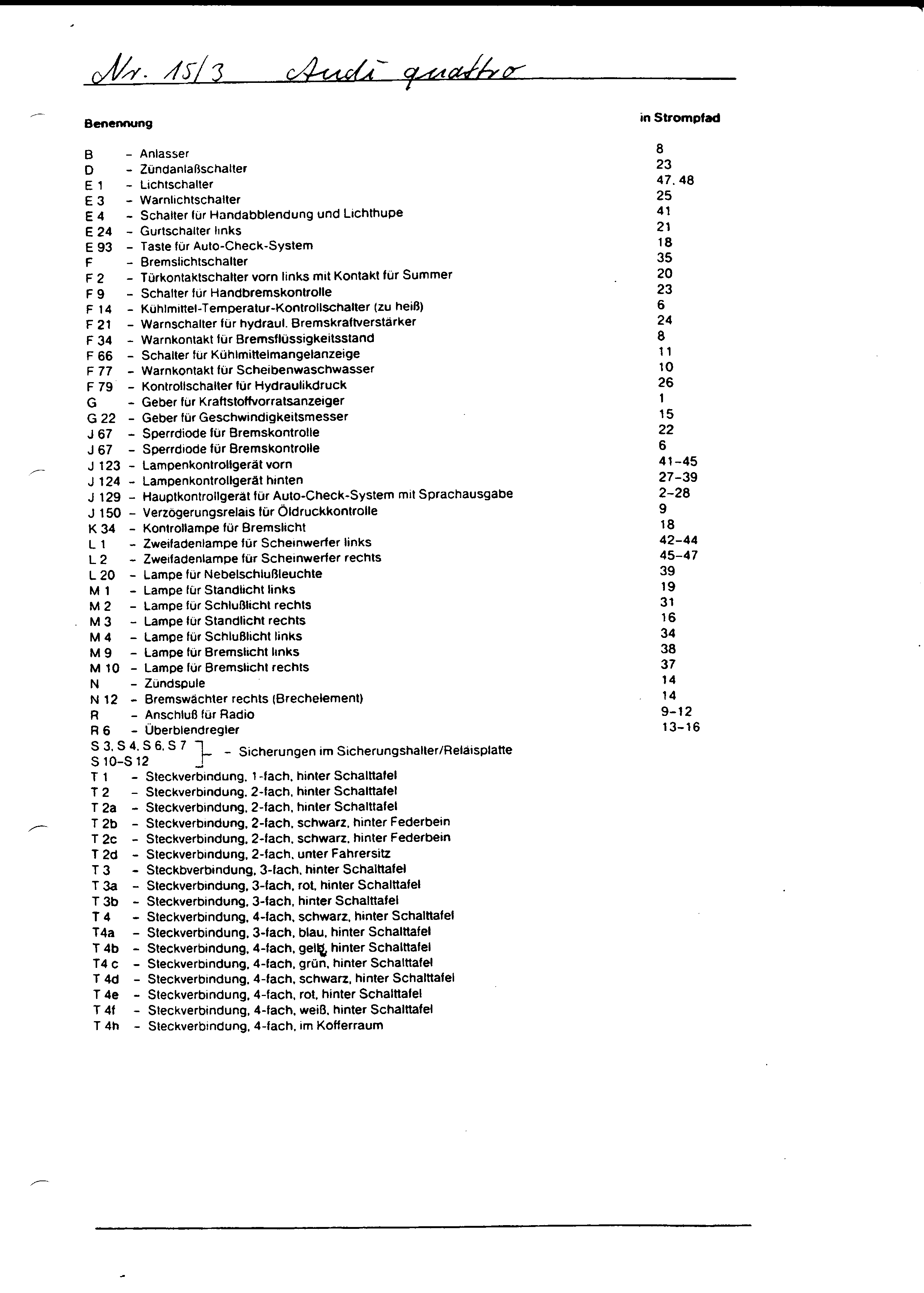

• Index

16 - Electronic dashboard

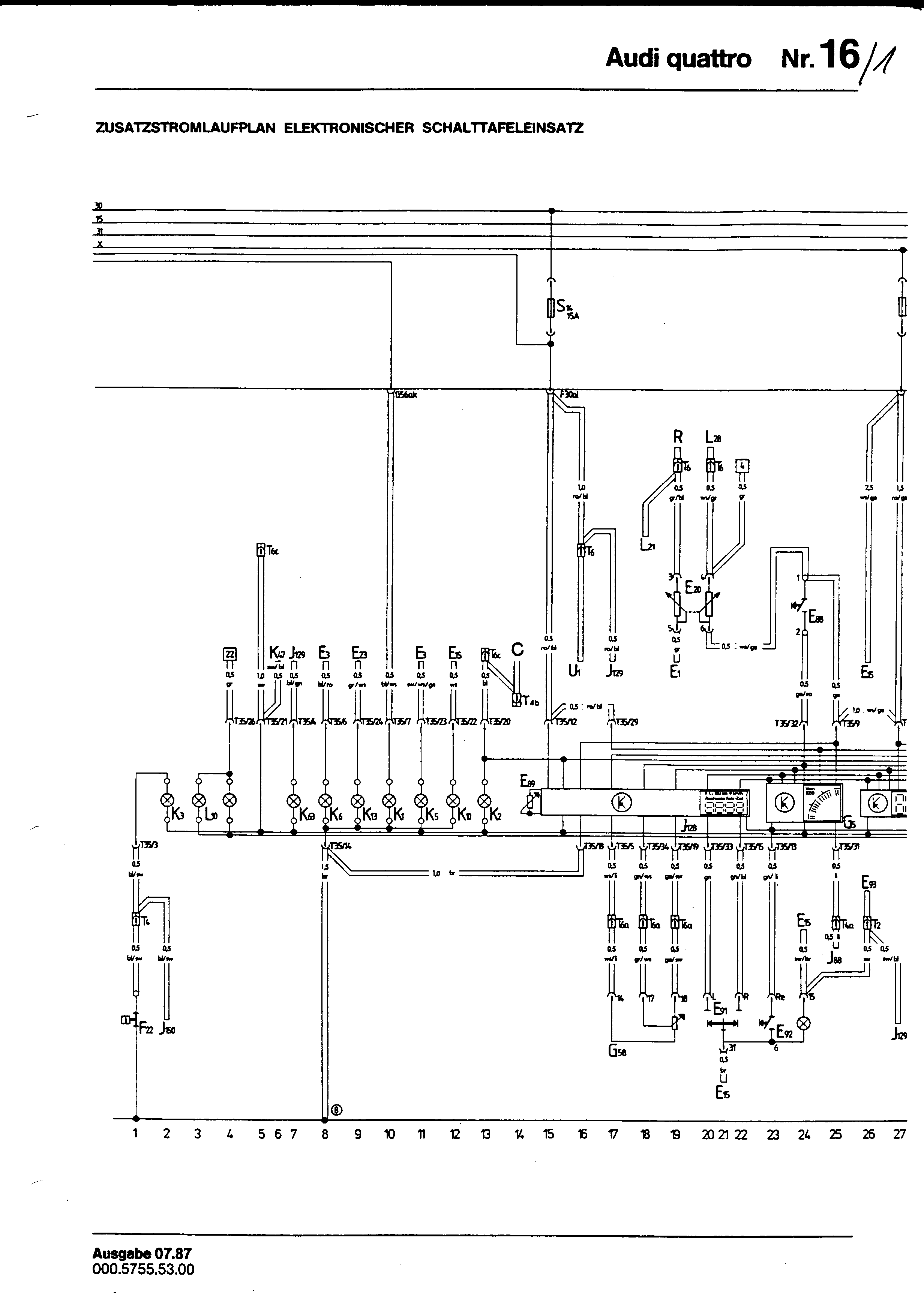

• Tracks 1-26

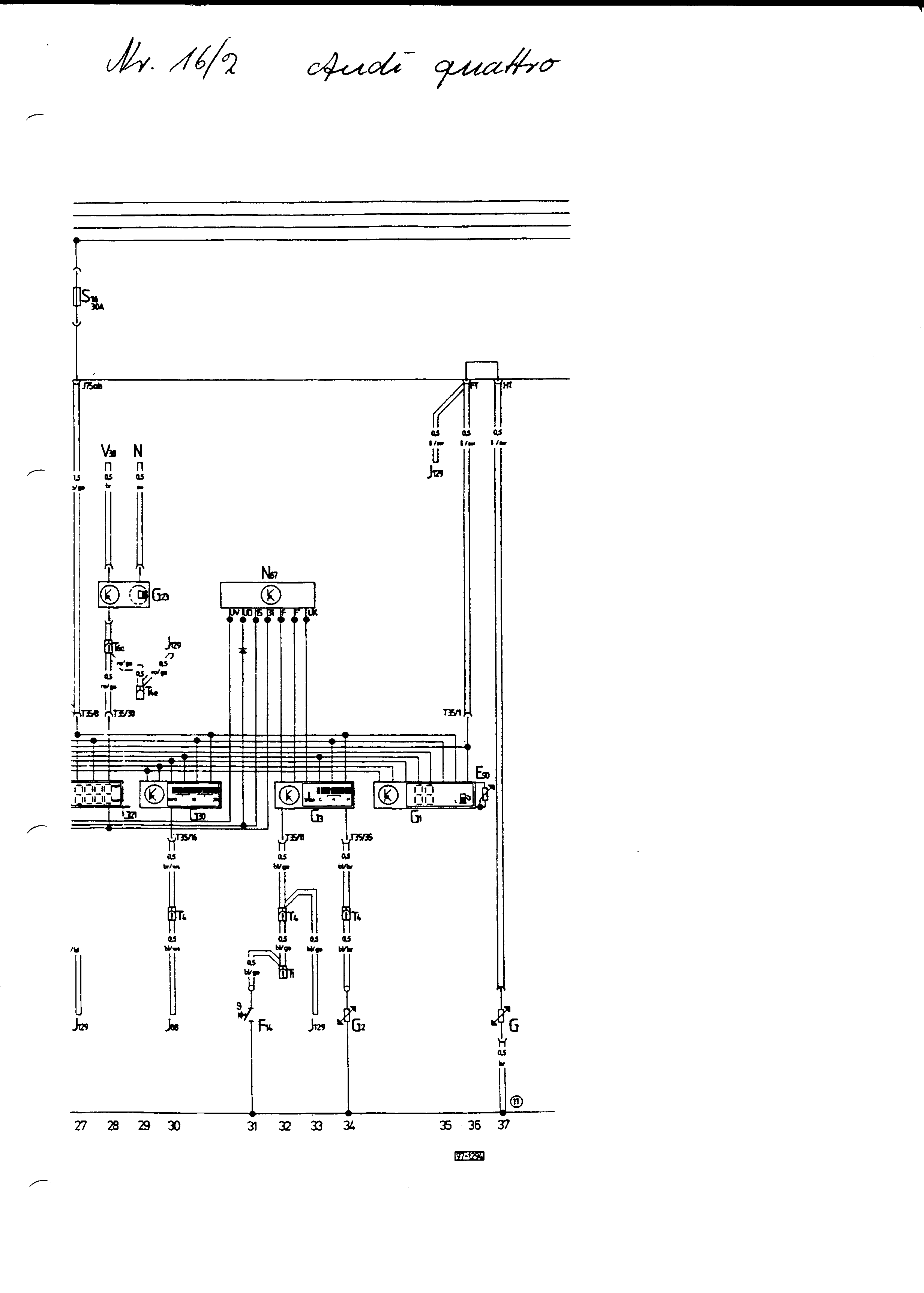

• Tracks 27-37

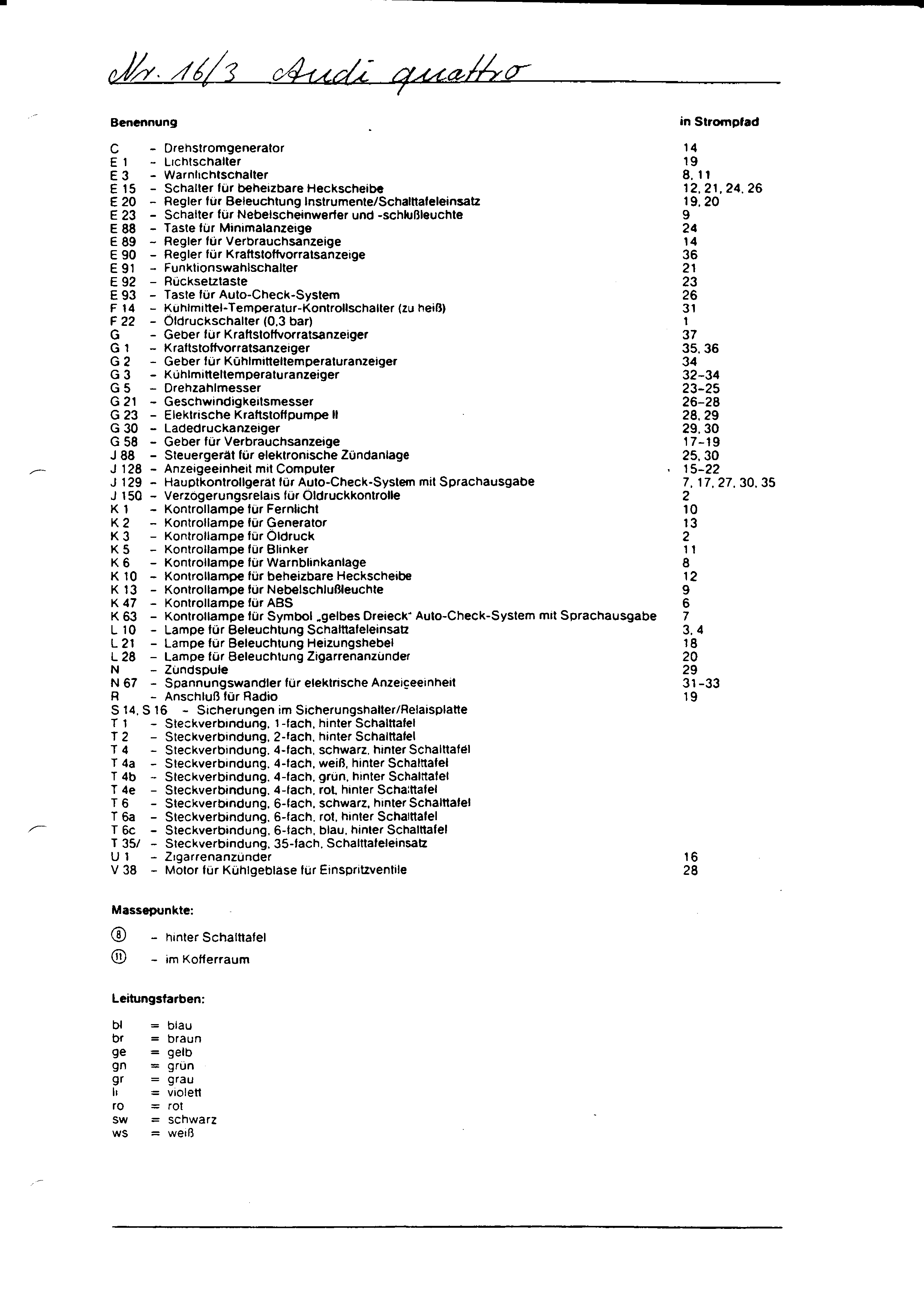

• Index

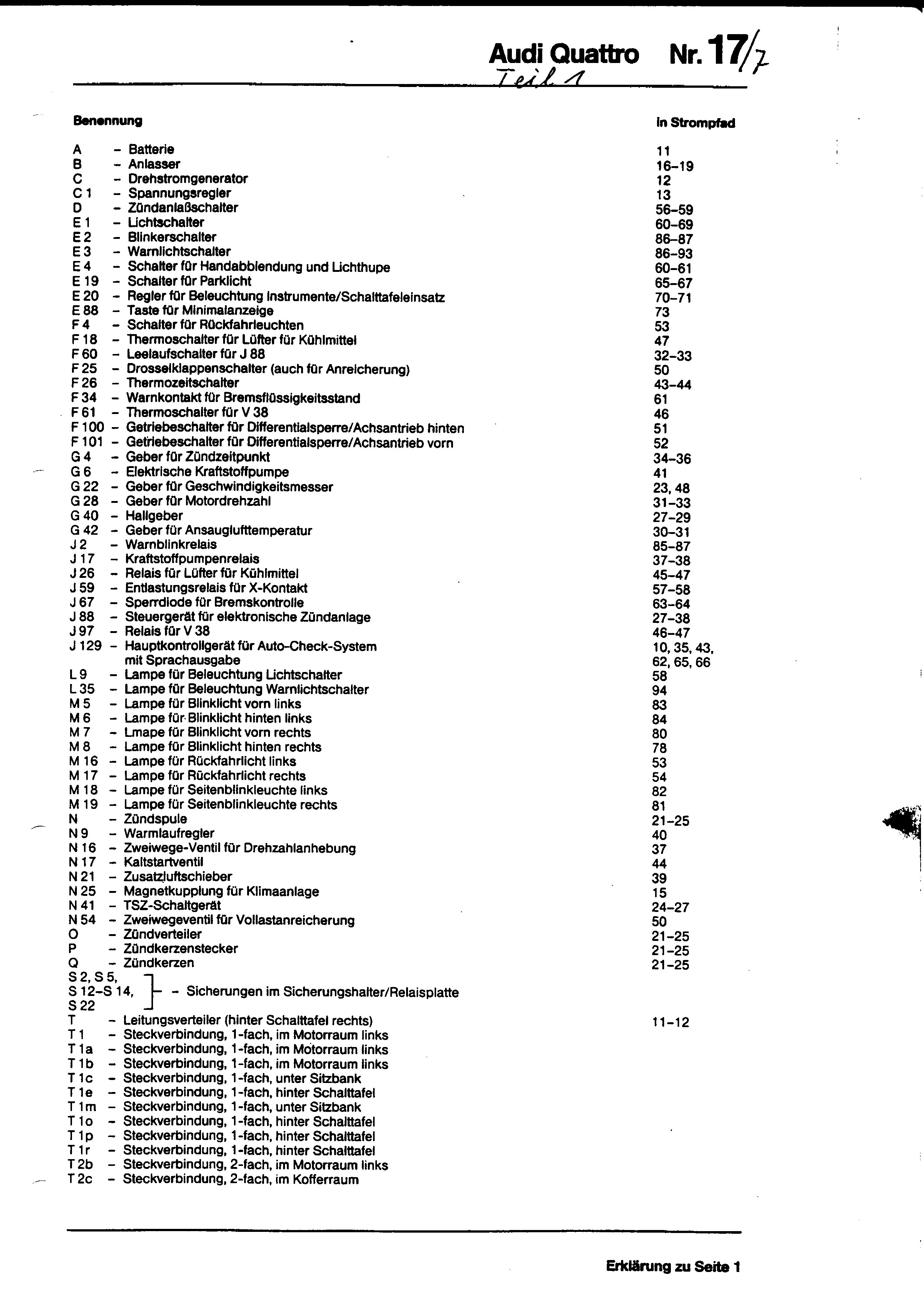

17 - Audi Quattro, 1985

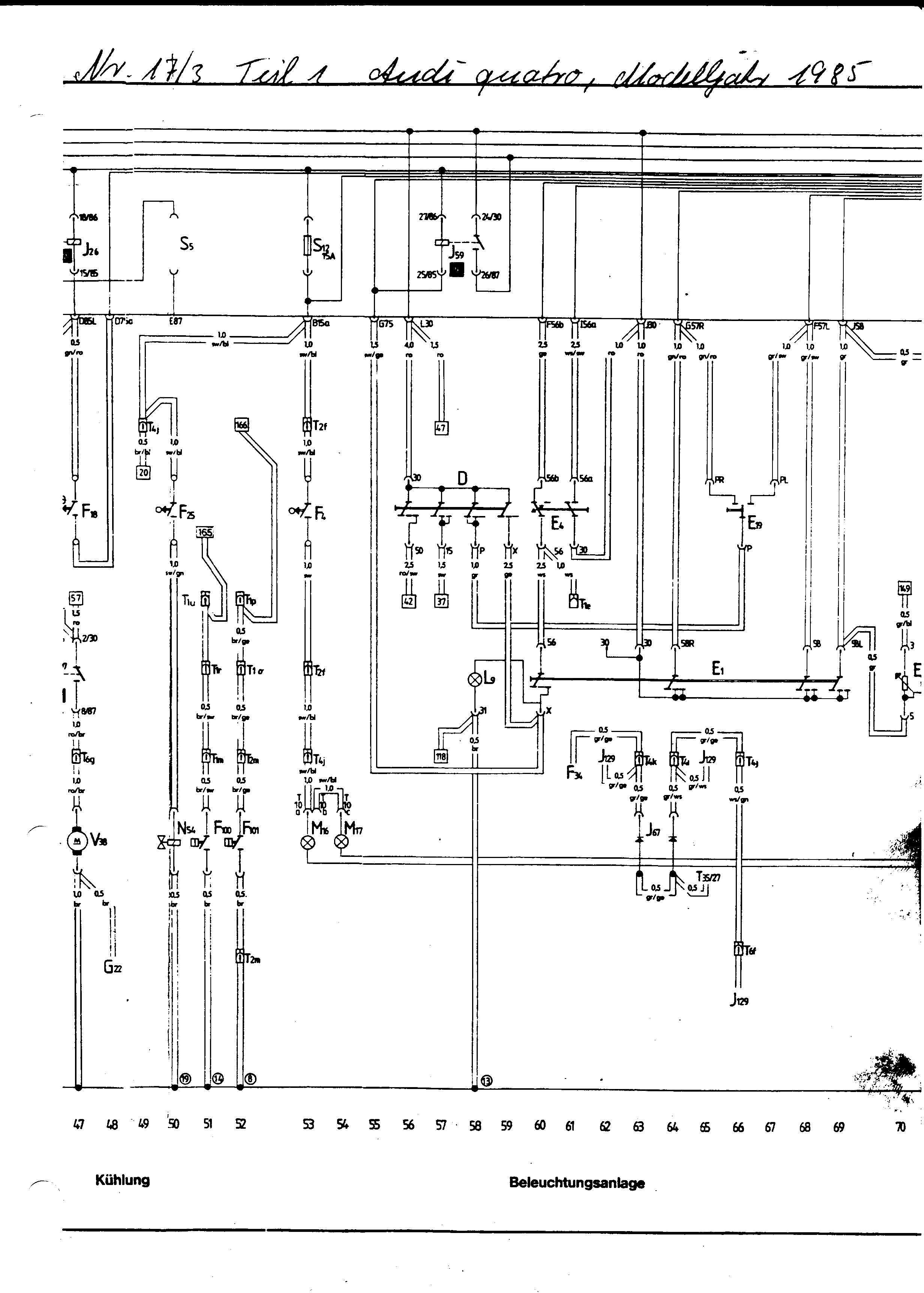

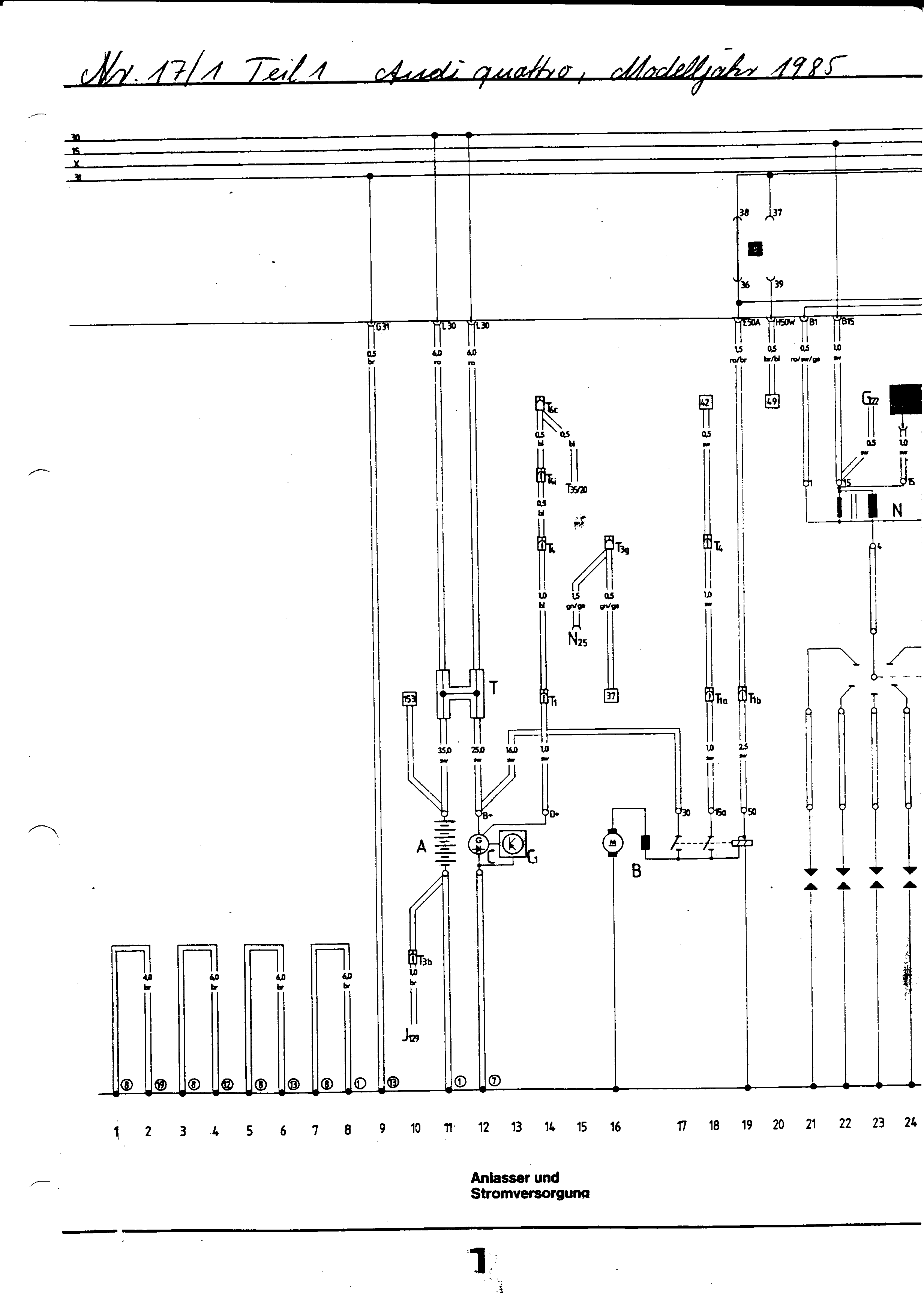

• Tracks 1-23: Starter and power

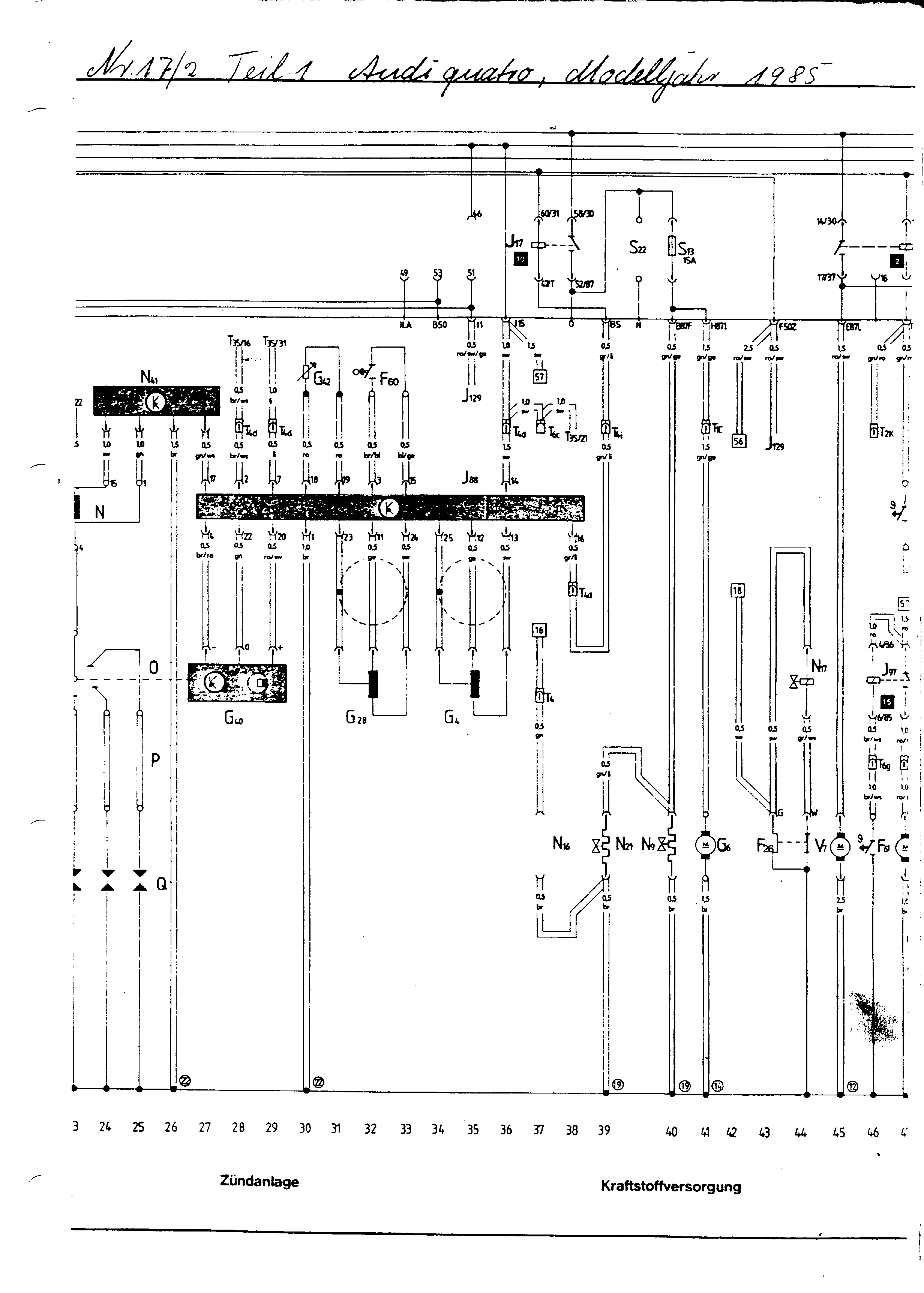

• Tracks 24-46: Ignition and fuel supply
• Tracks 47-69: Cooling and lighting

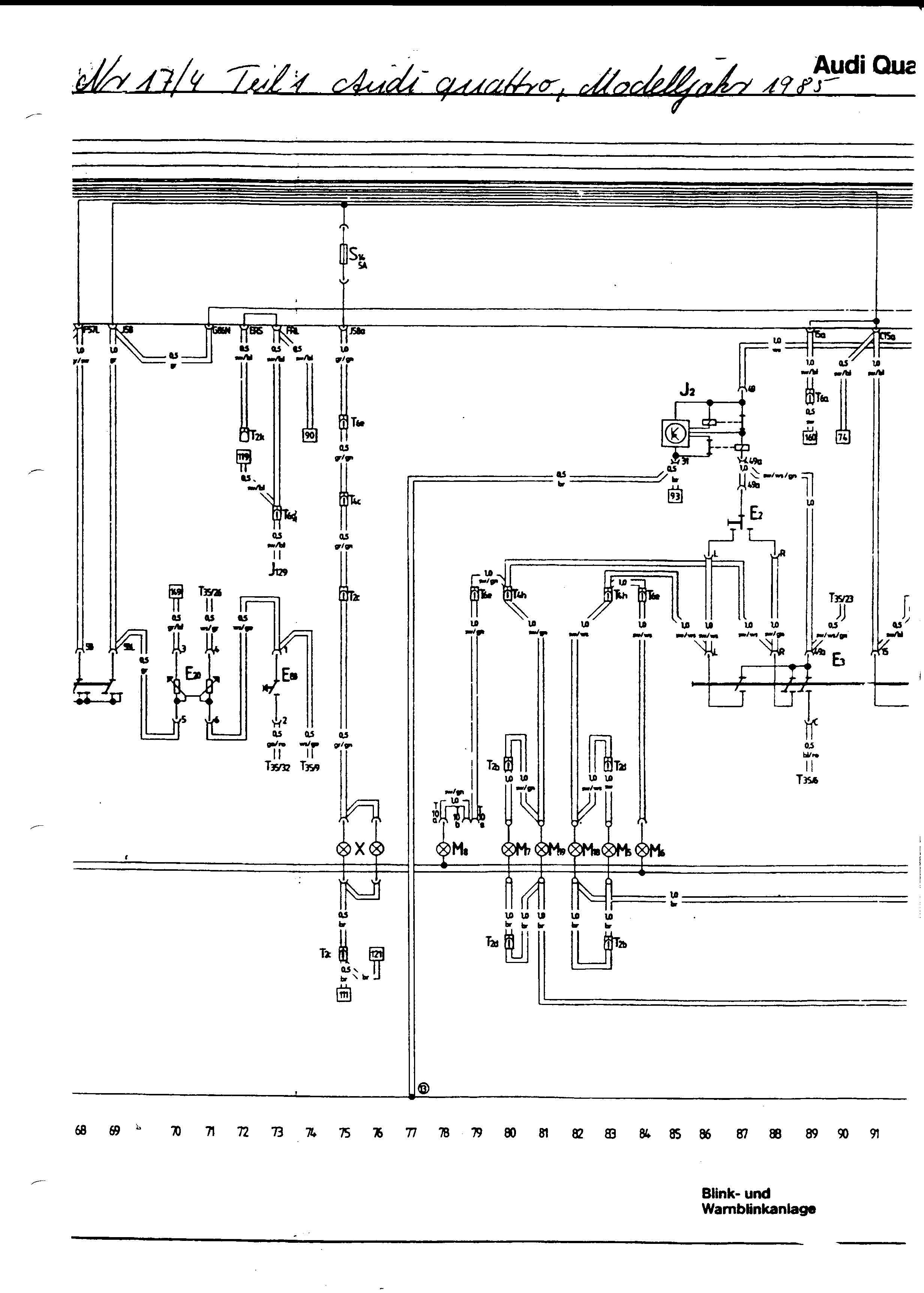

• Tracks 69-89: Blinkers and hazard flashers

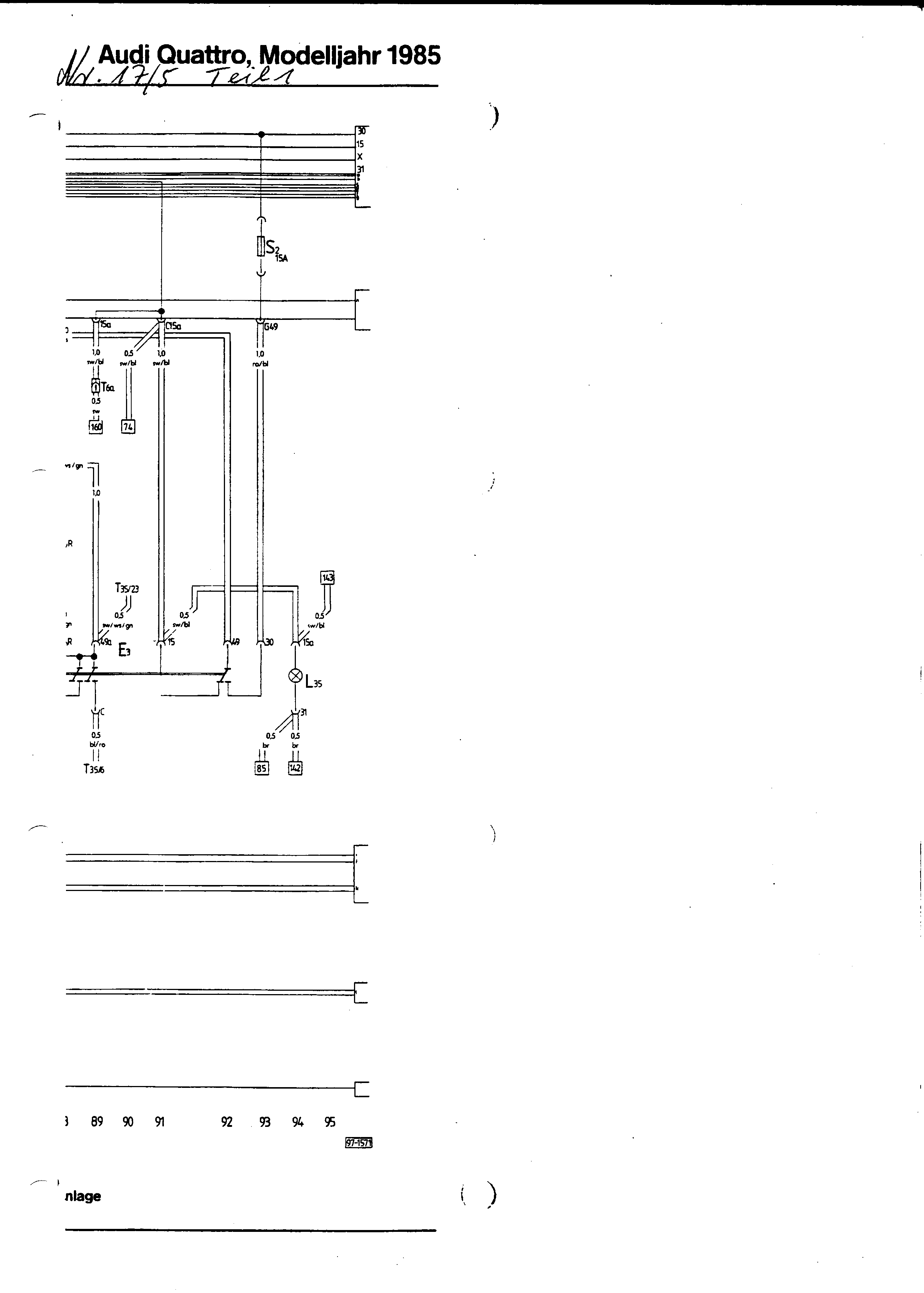

• Tracks 90-95: contd.

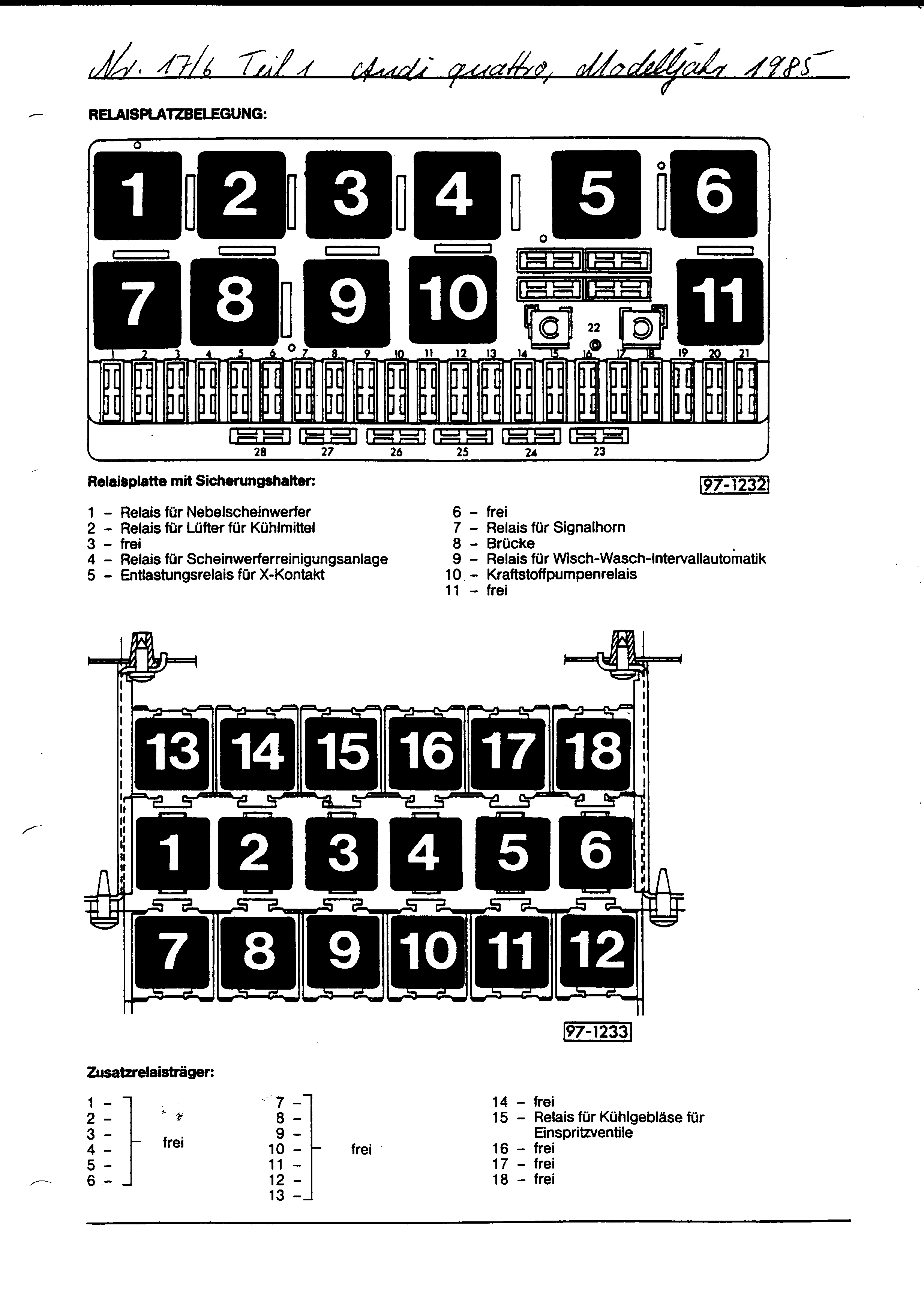

• Relay and fuse positions
• Index to tracks 1-95

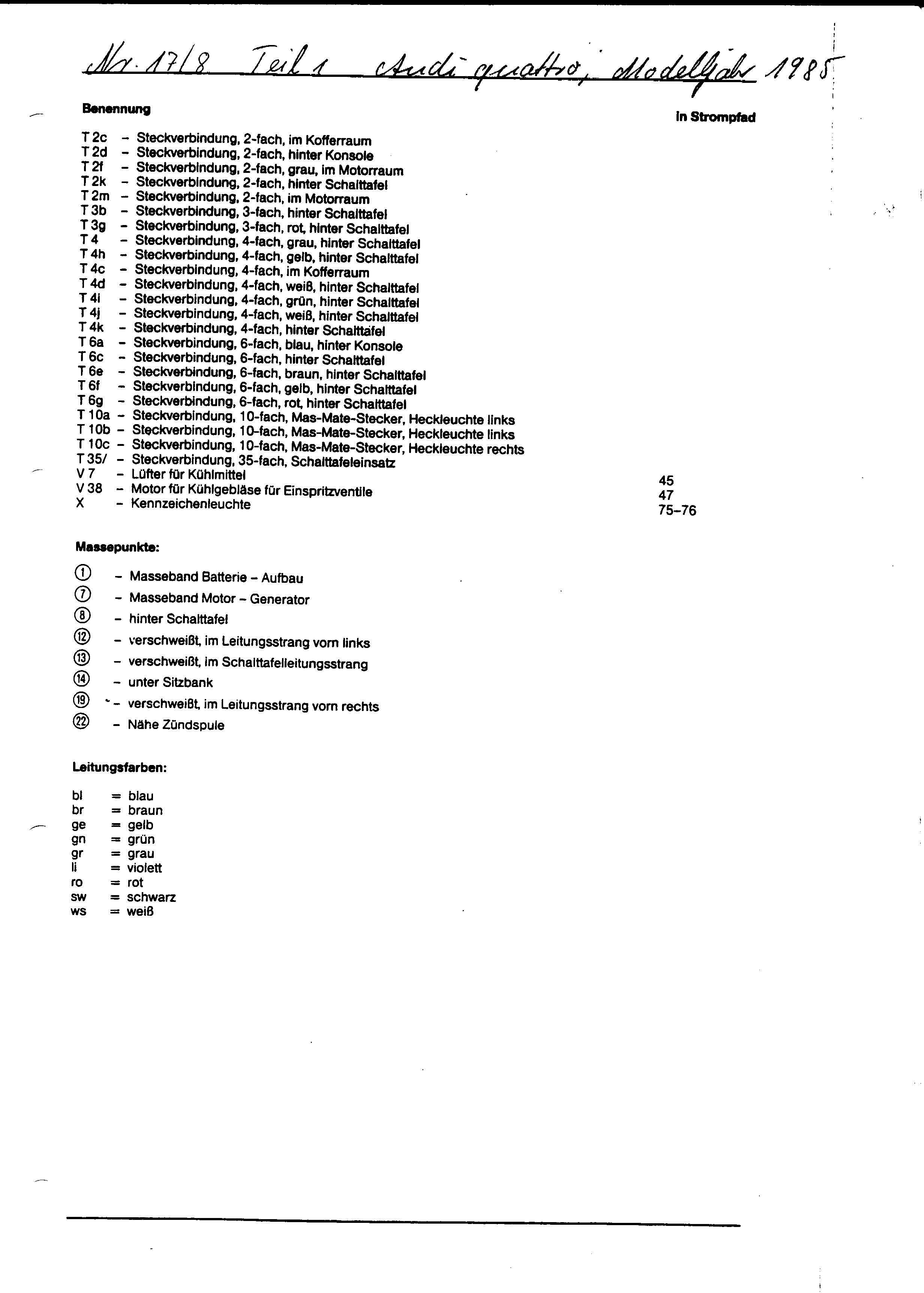

• Index to tracks 1-95 (contd.)

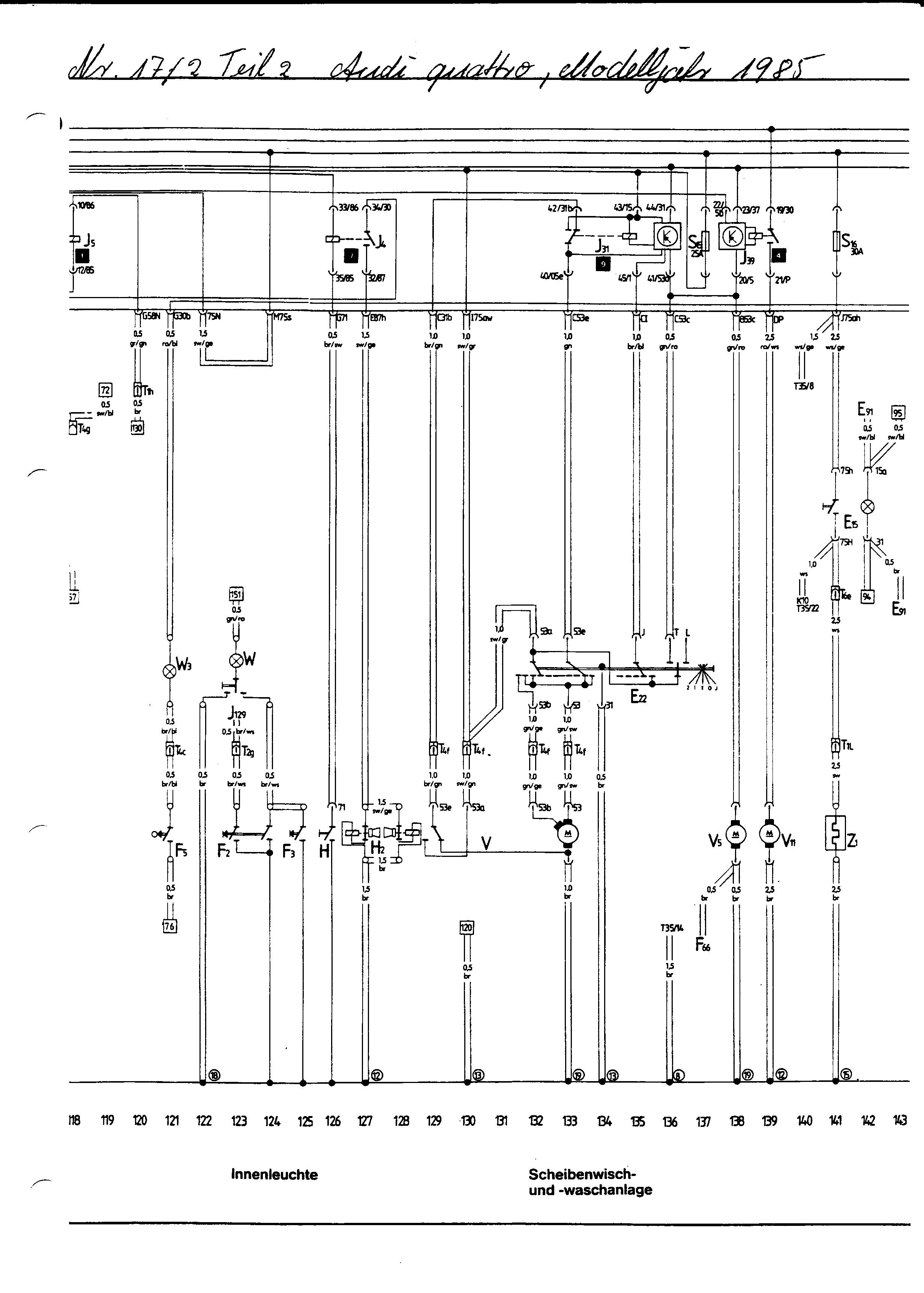

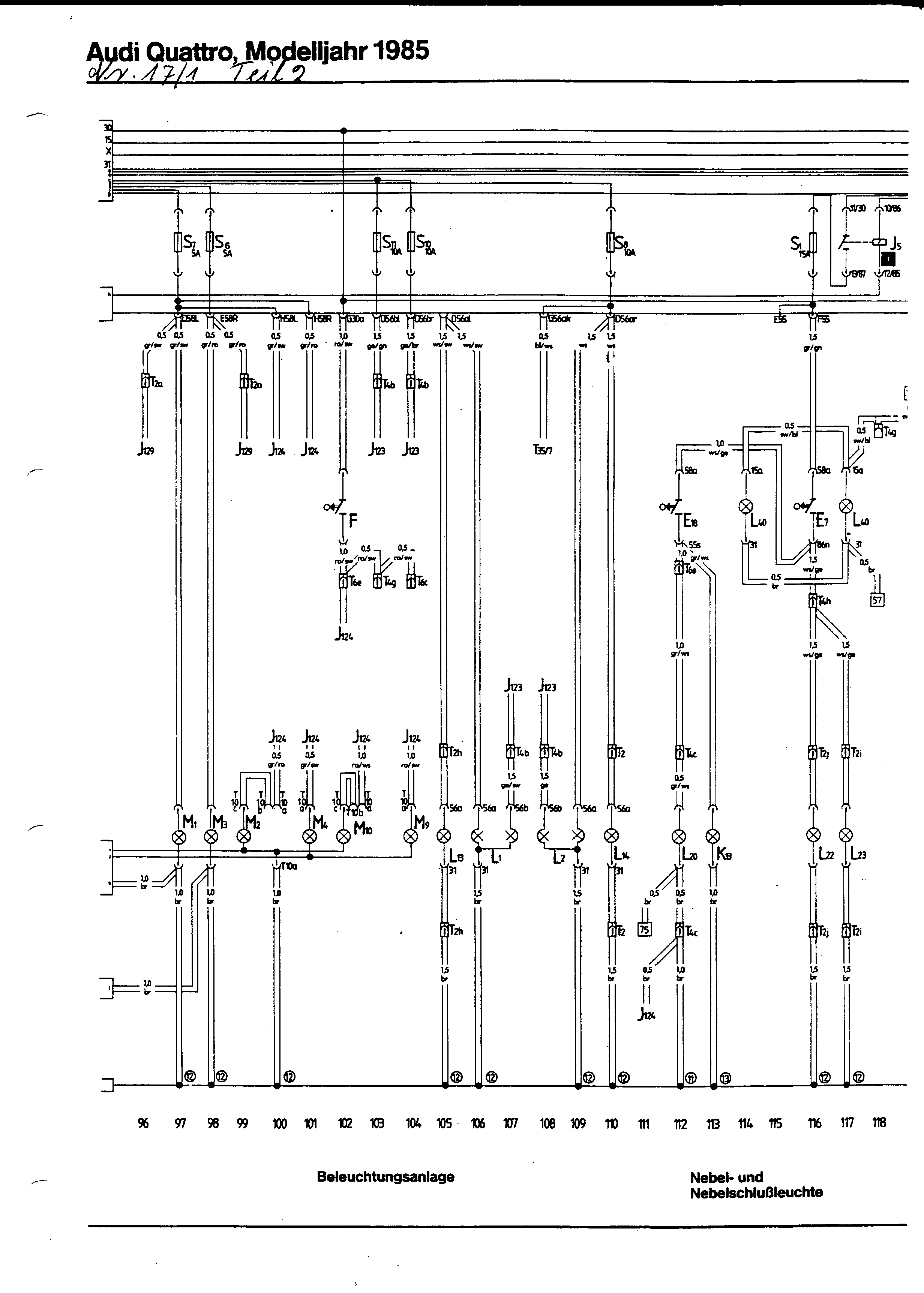

• Tracks 96-117: Lights and fog lights
• Tracks 118-142: Interior lights and screen wash/wipe

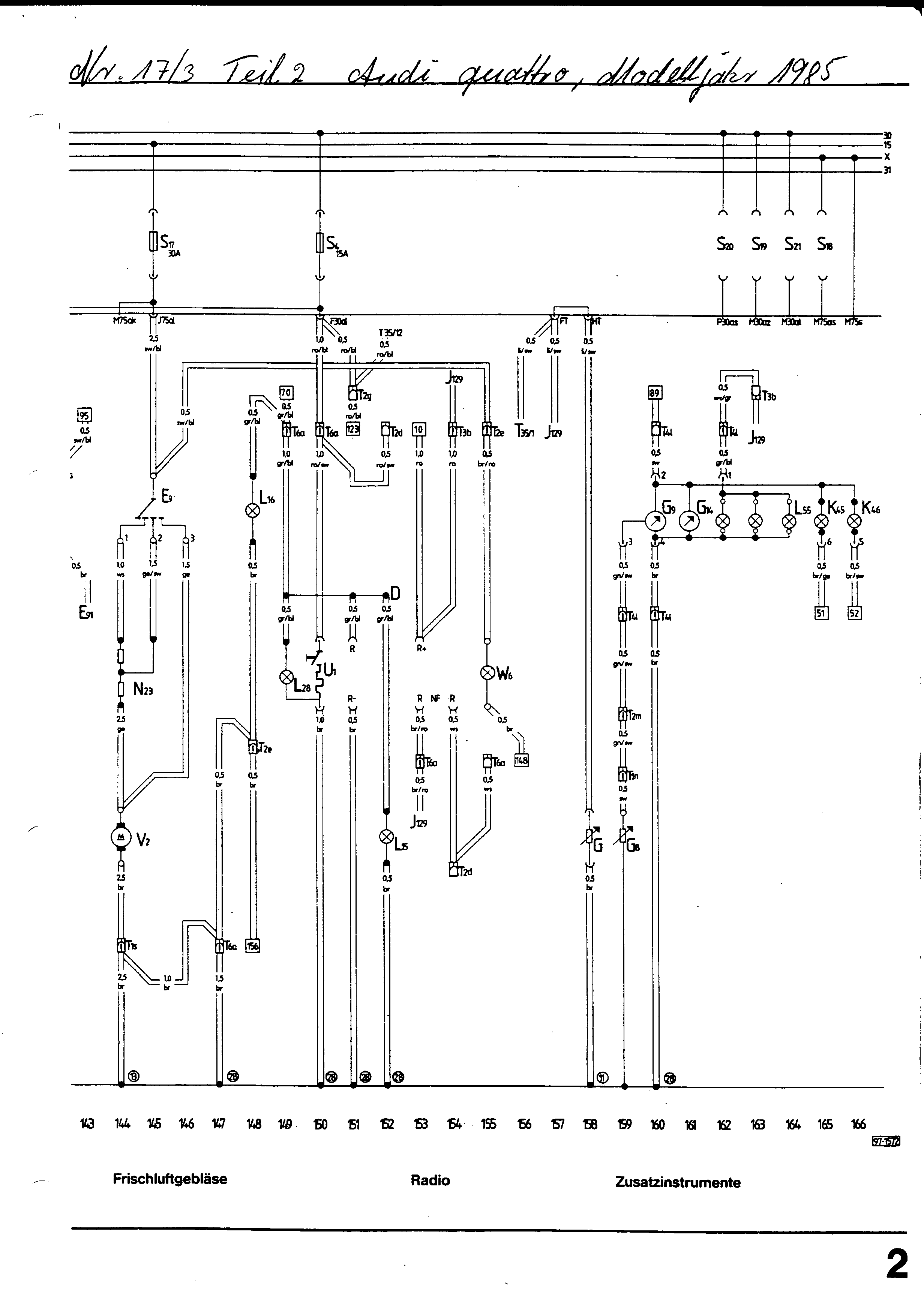

• Tracks 143-166: Ventilator fan, radio and additional instruments

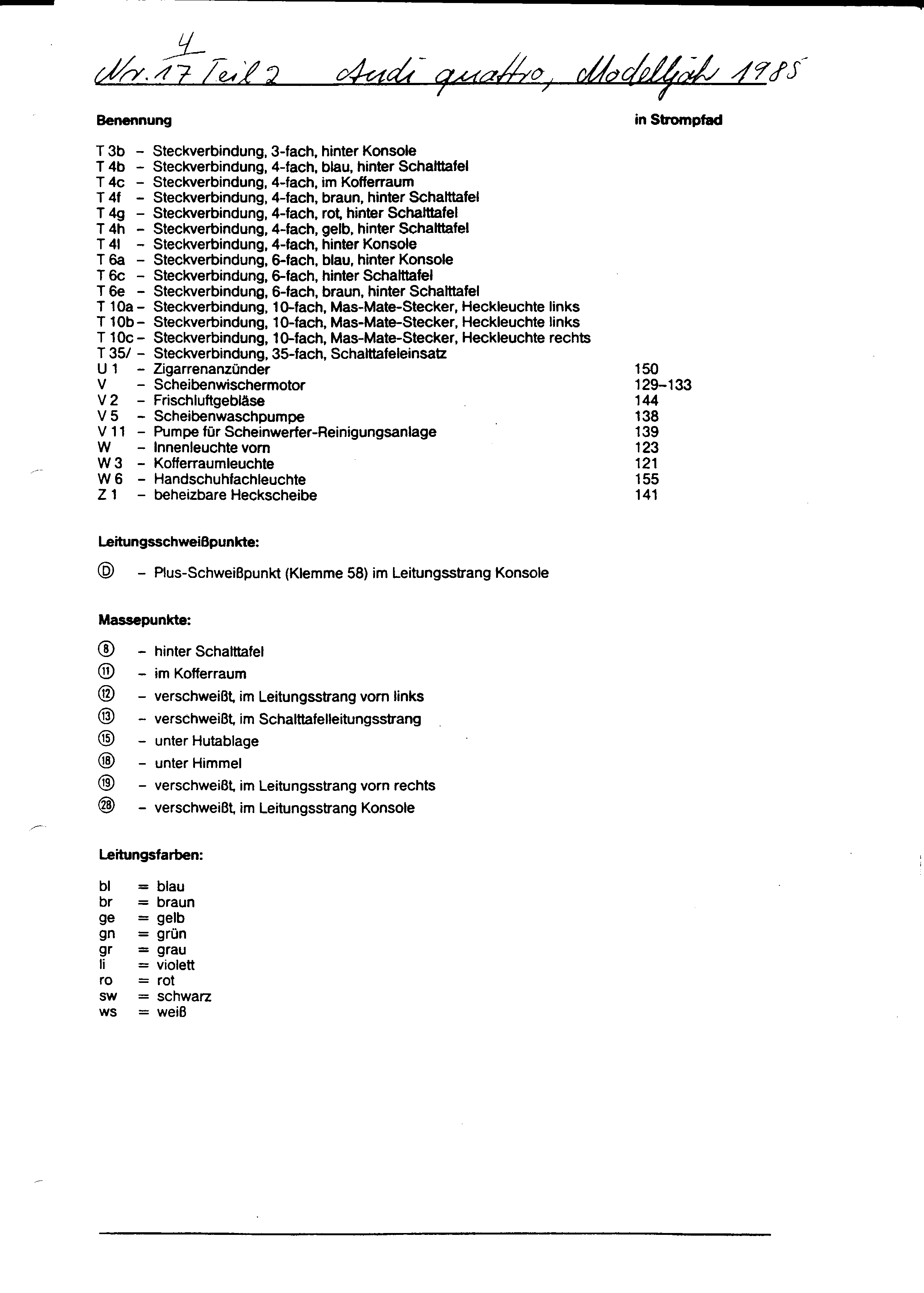

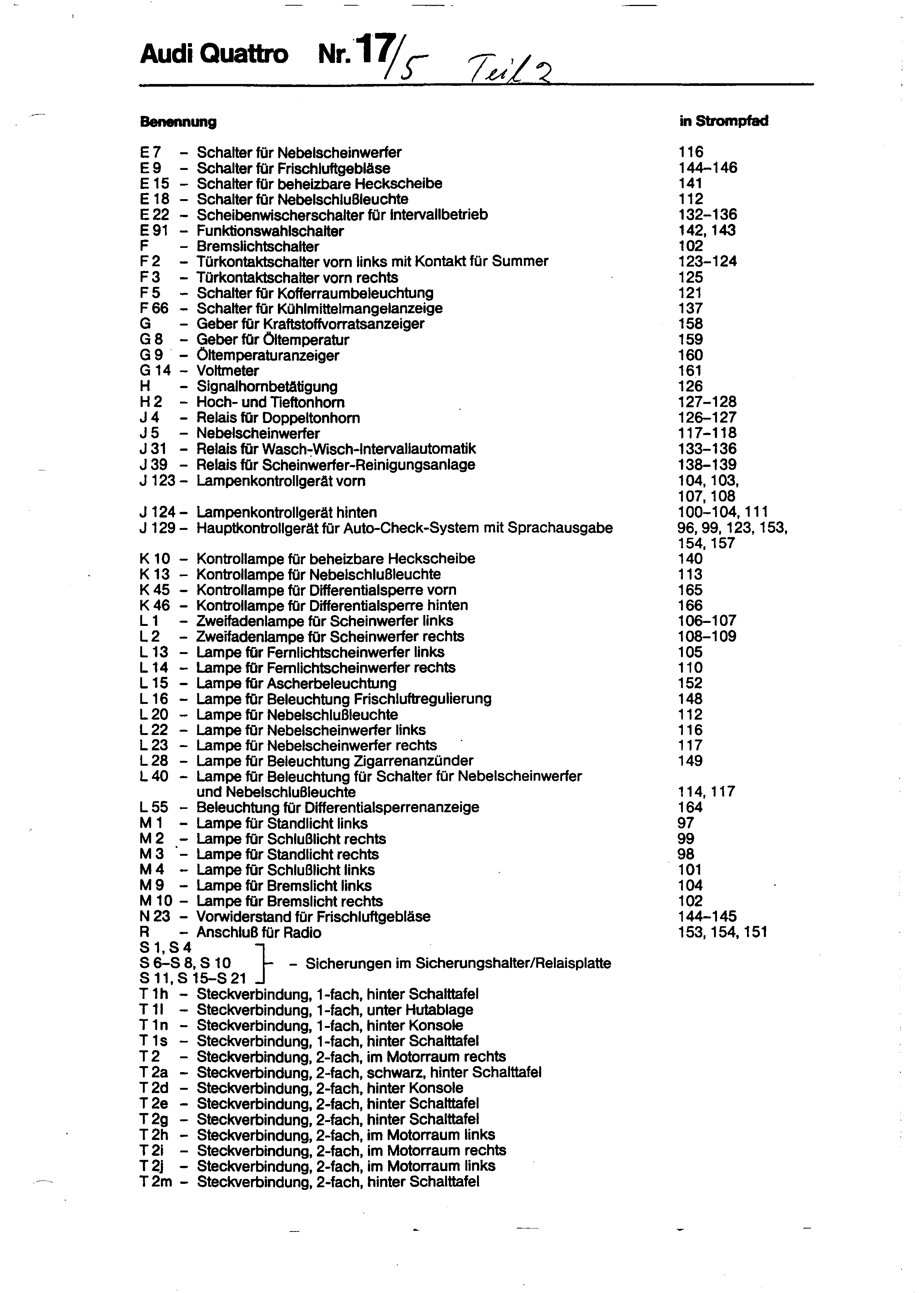

• Index to tracks 96-166
• Index to tracks 96-166 (contd.)

18 - ABS

• Notes and pinout

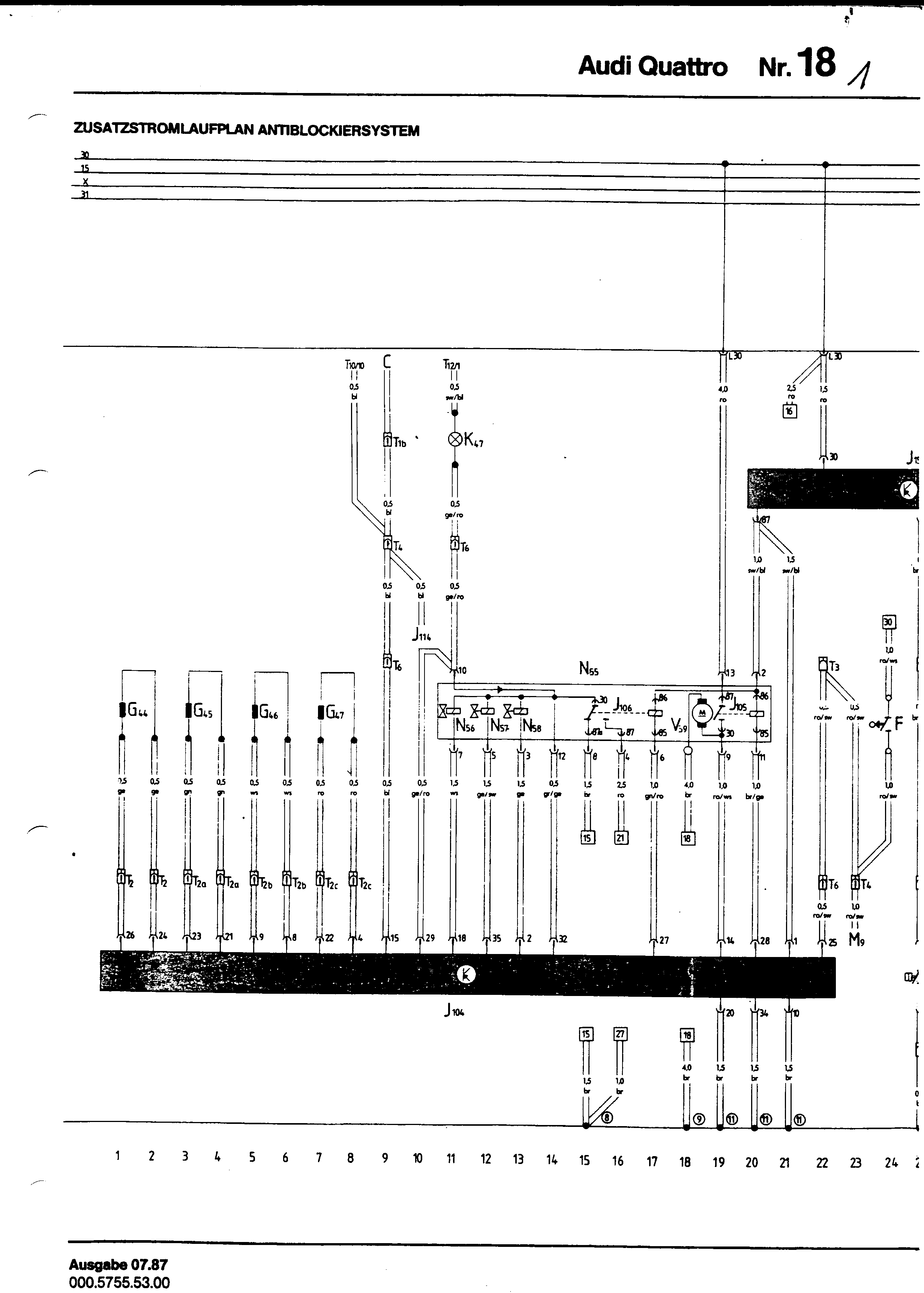

• Tracks 1-24 - Wheel sensors, ABS controller, pump

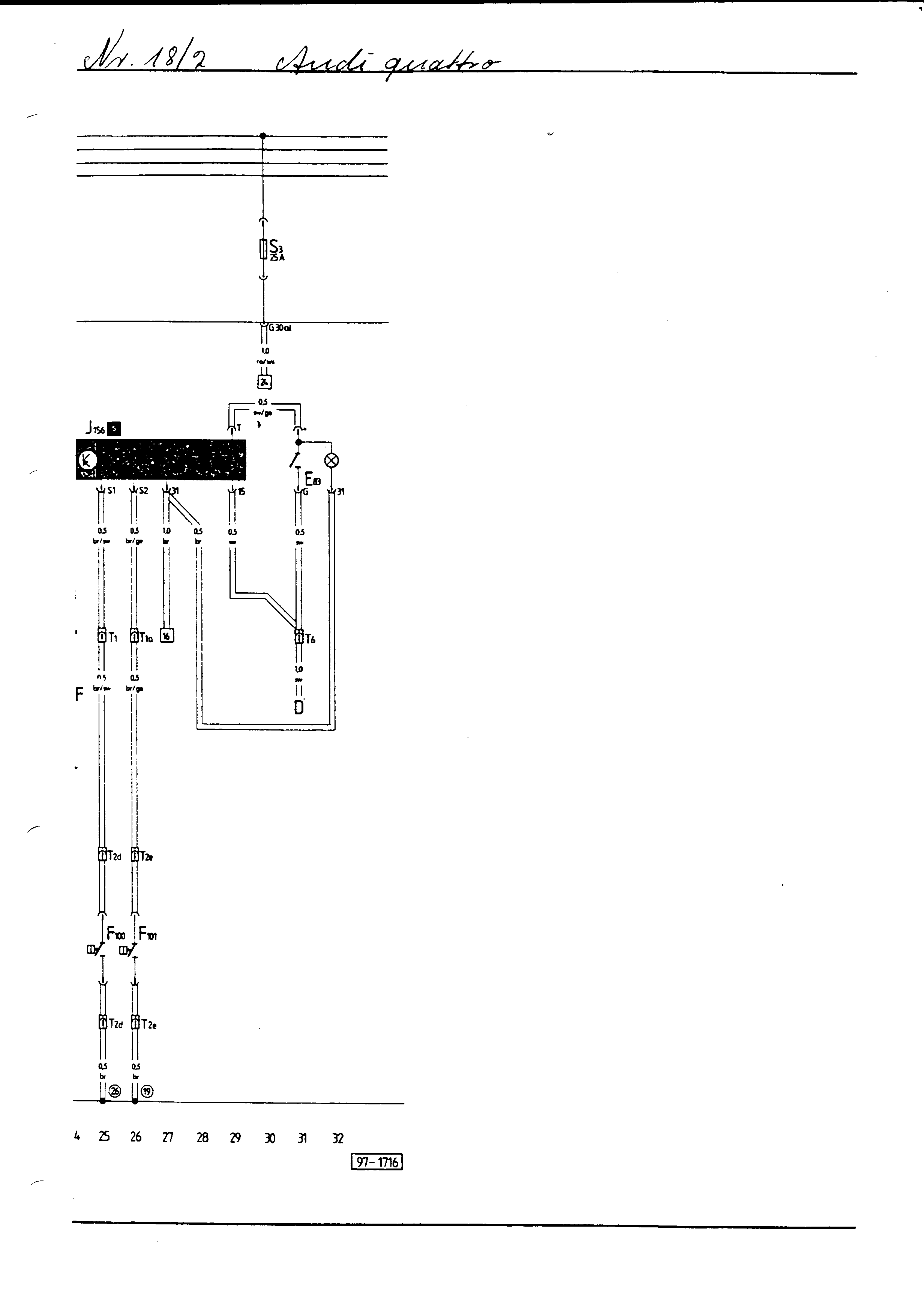

• Tracks 25-32 - Combination relay, differential locks, switches
• Index

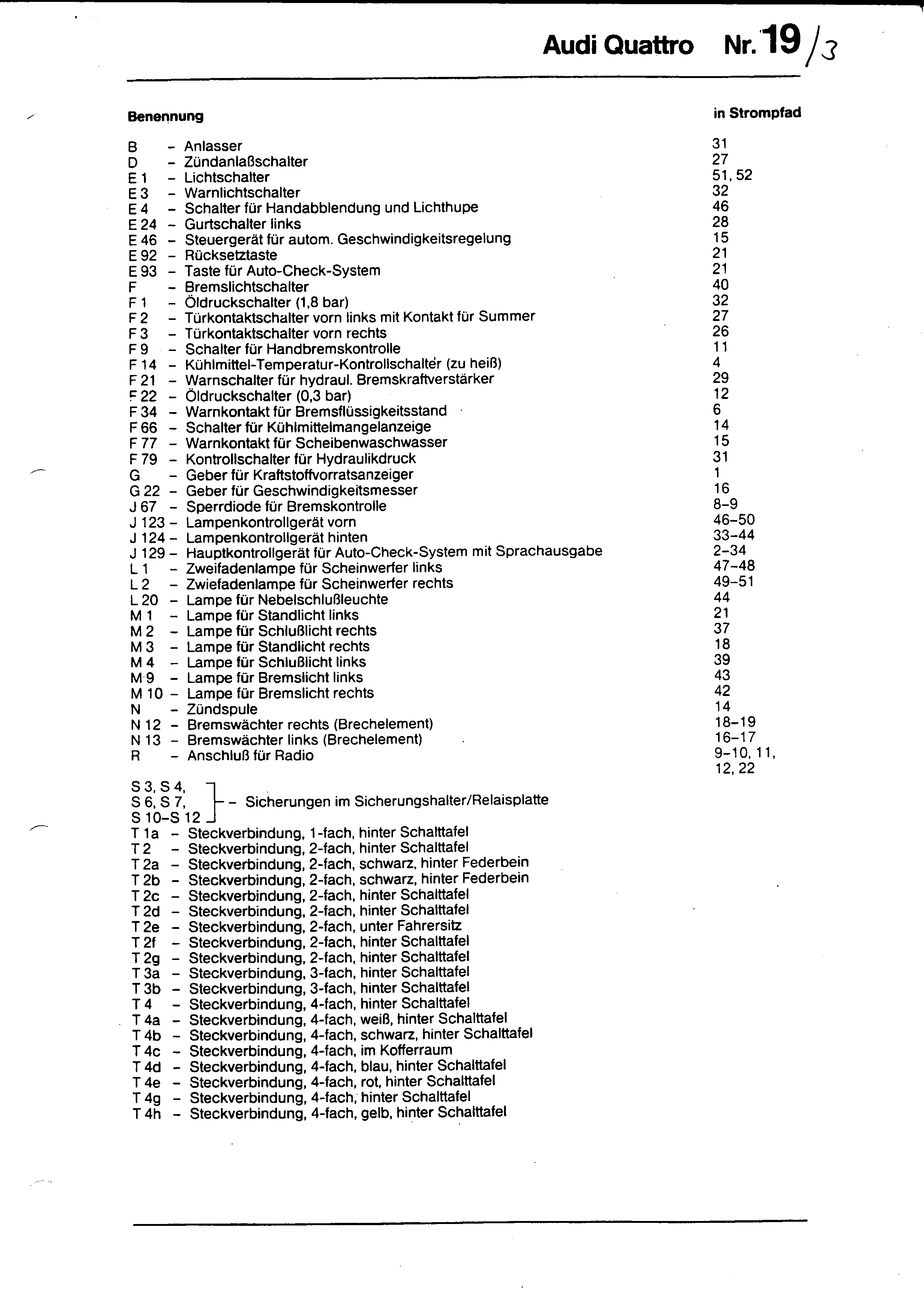

19 - Autocheck unit with speech synthesiser

• Notes and pinout

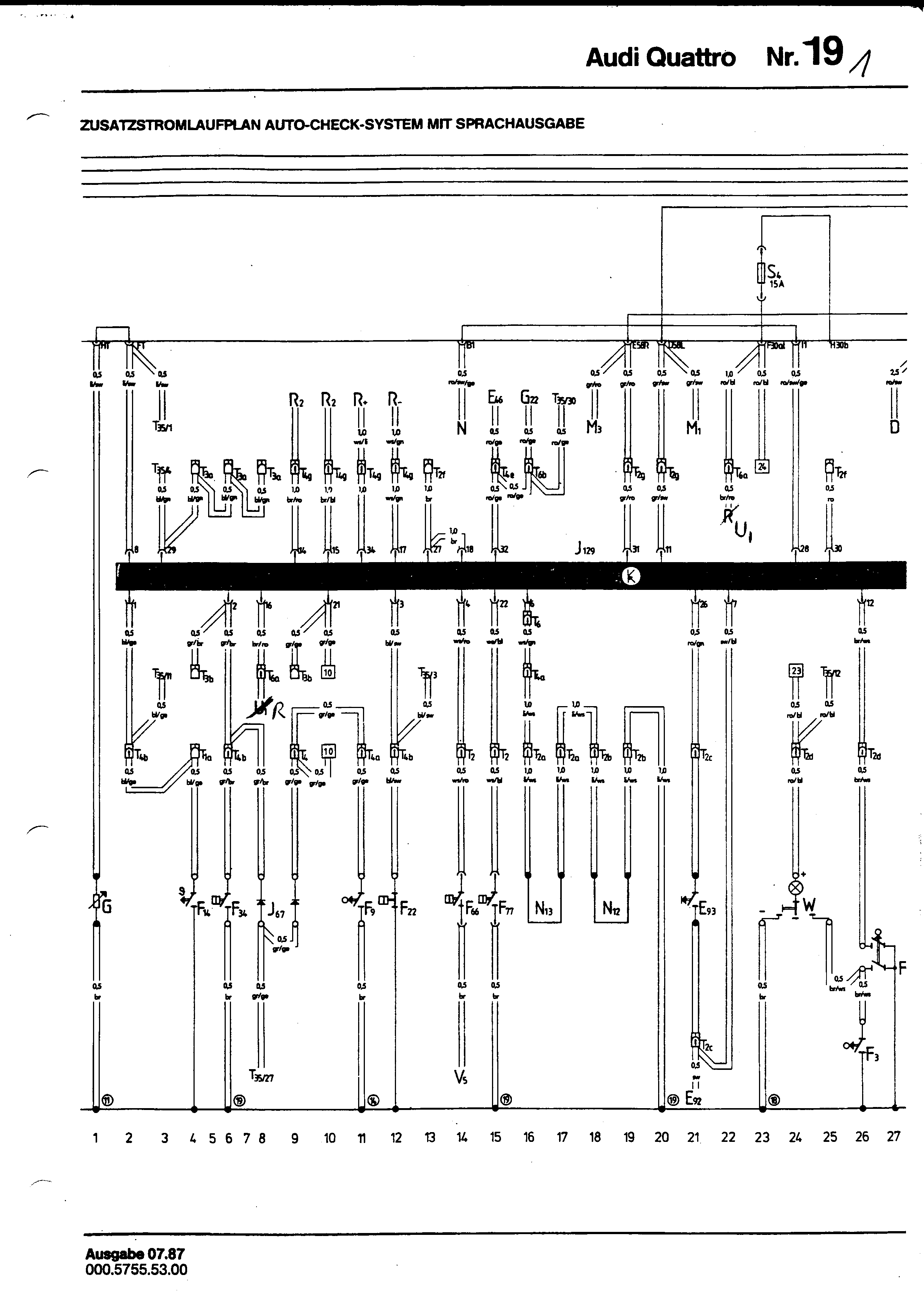

• Tracks 1-26

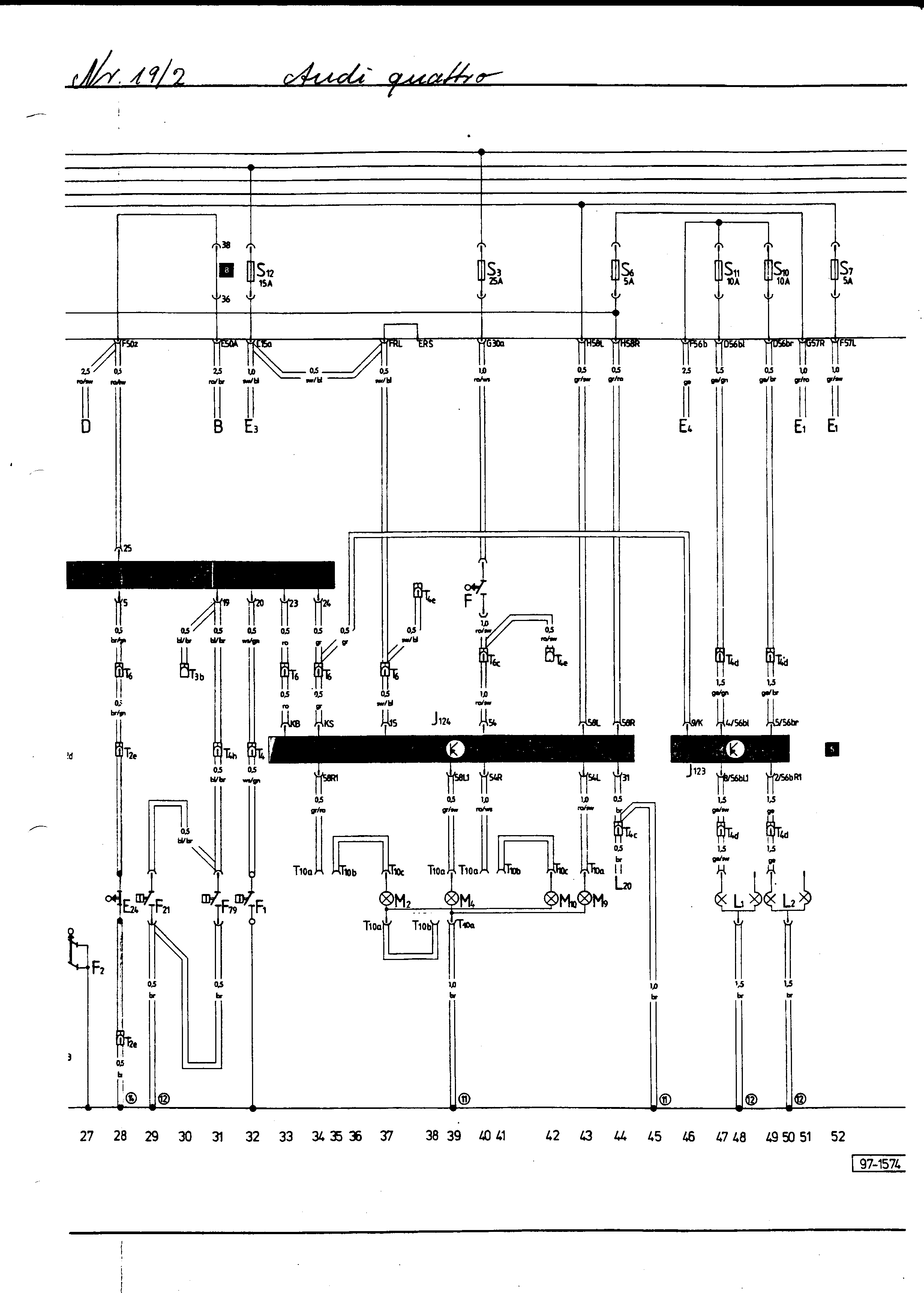

• Tracks 27-52
• Index

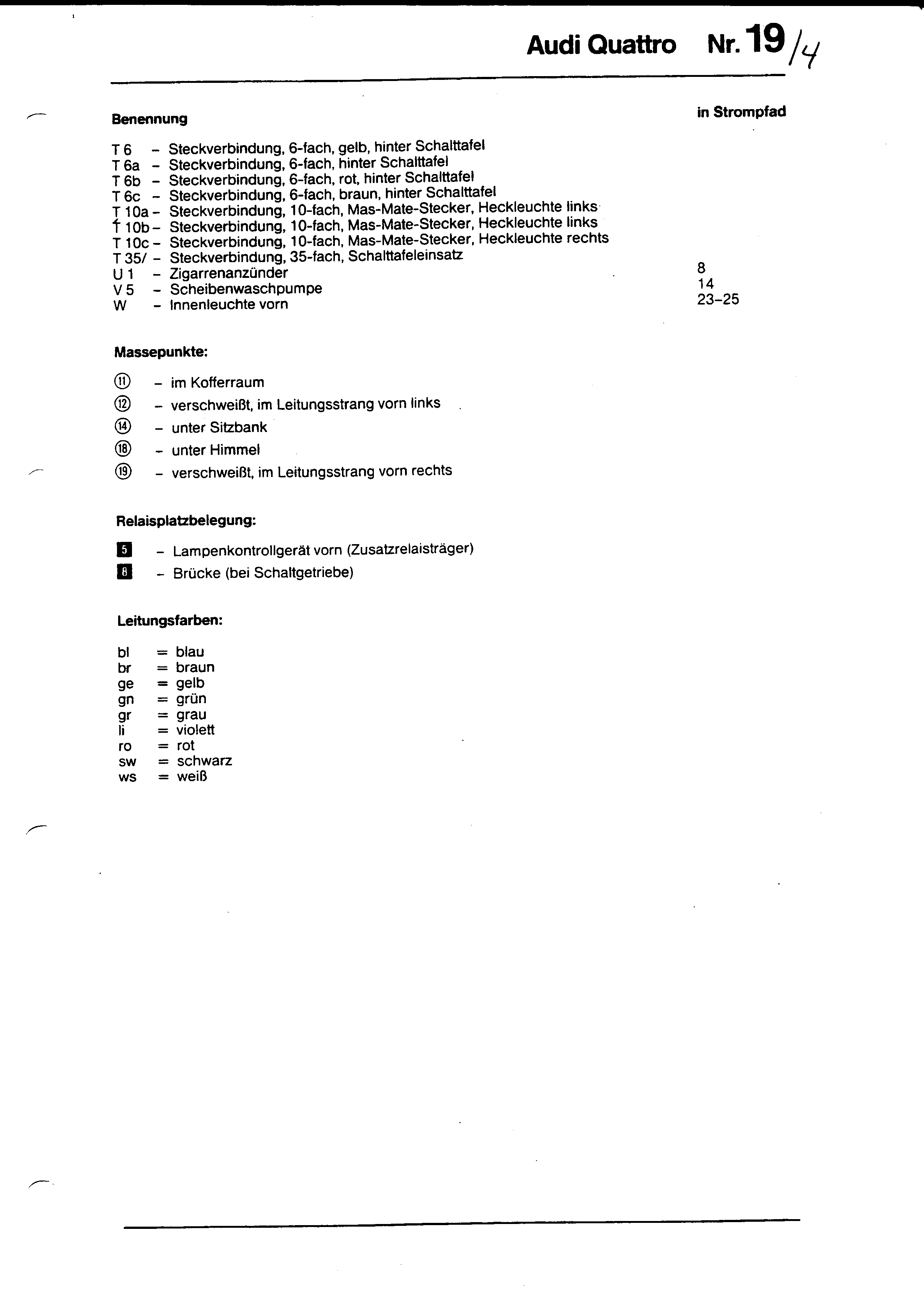

• Index (contd.)

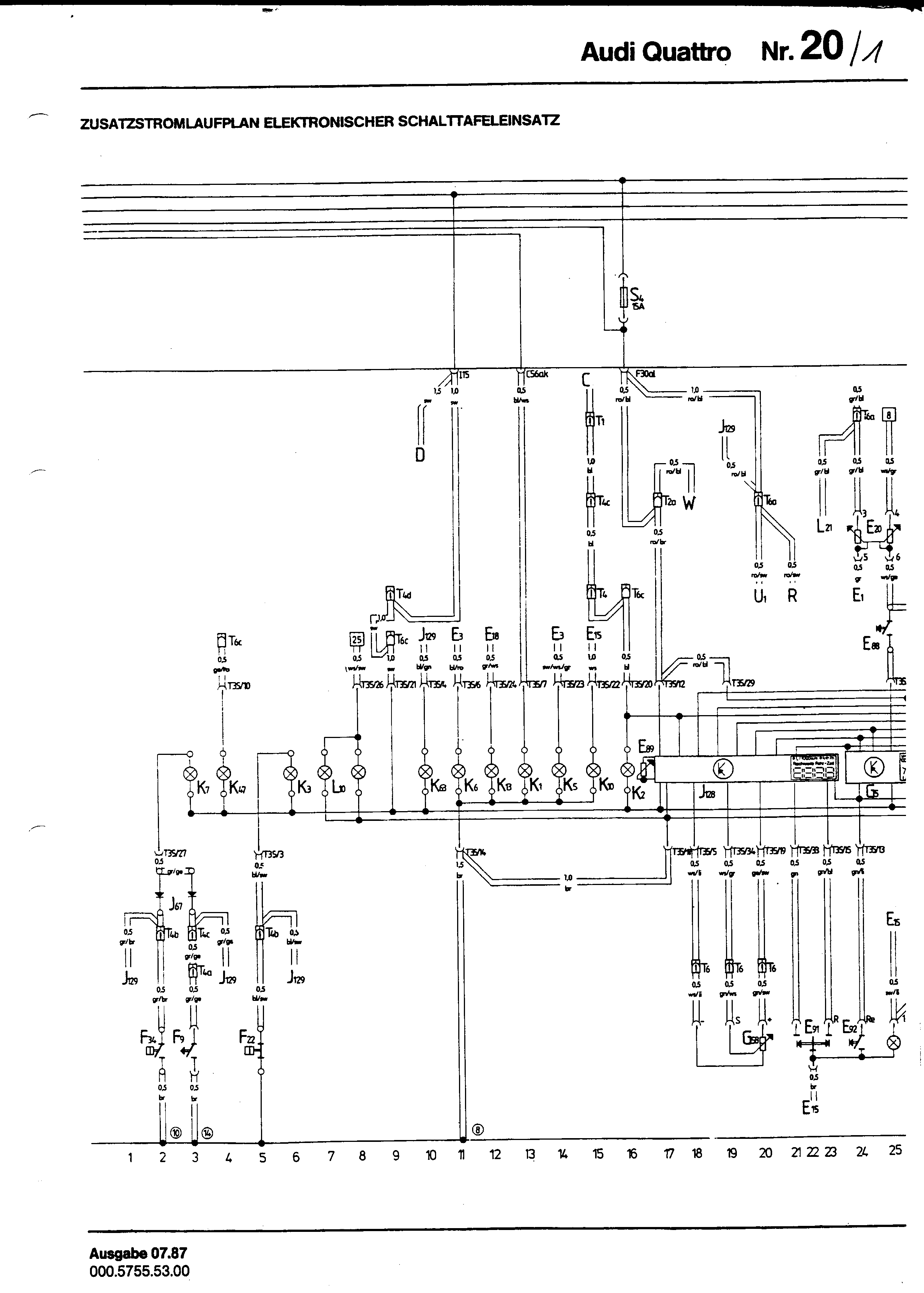

20 - Electronic dashboard

• Tracks 1-24

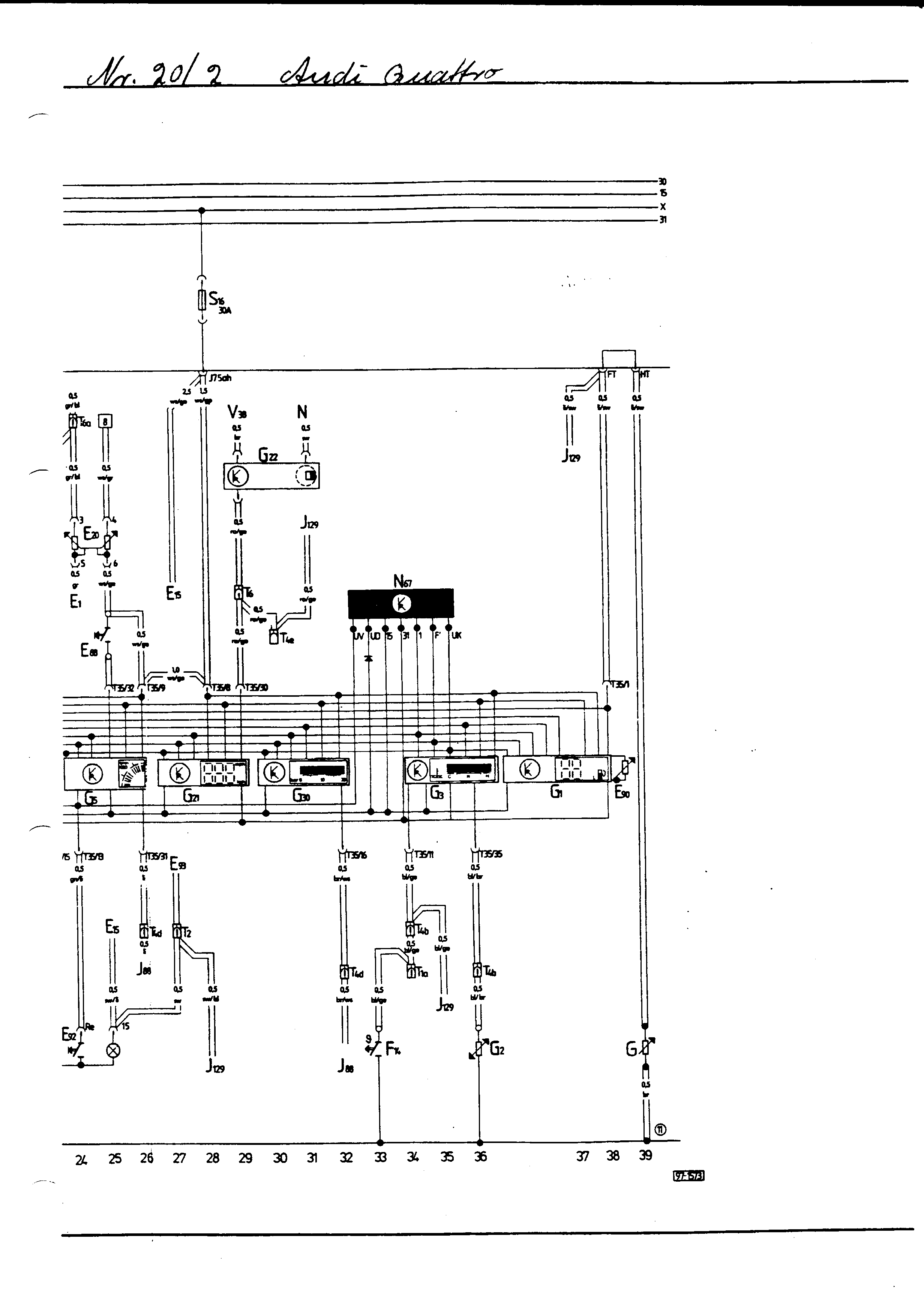

• Tracks 25-39

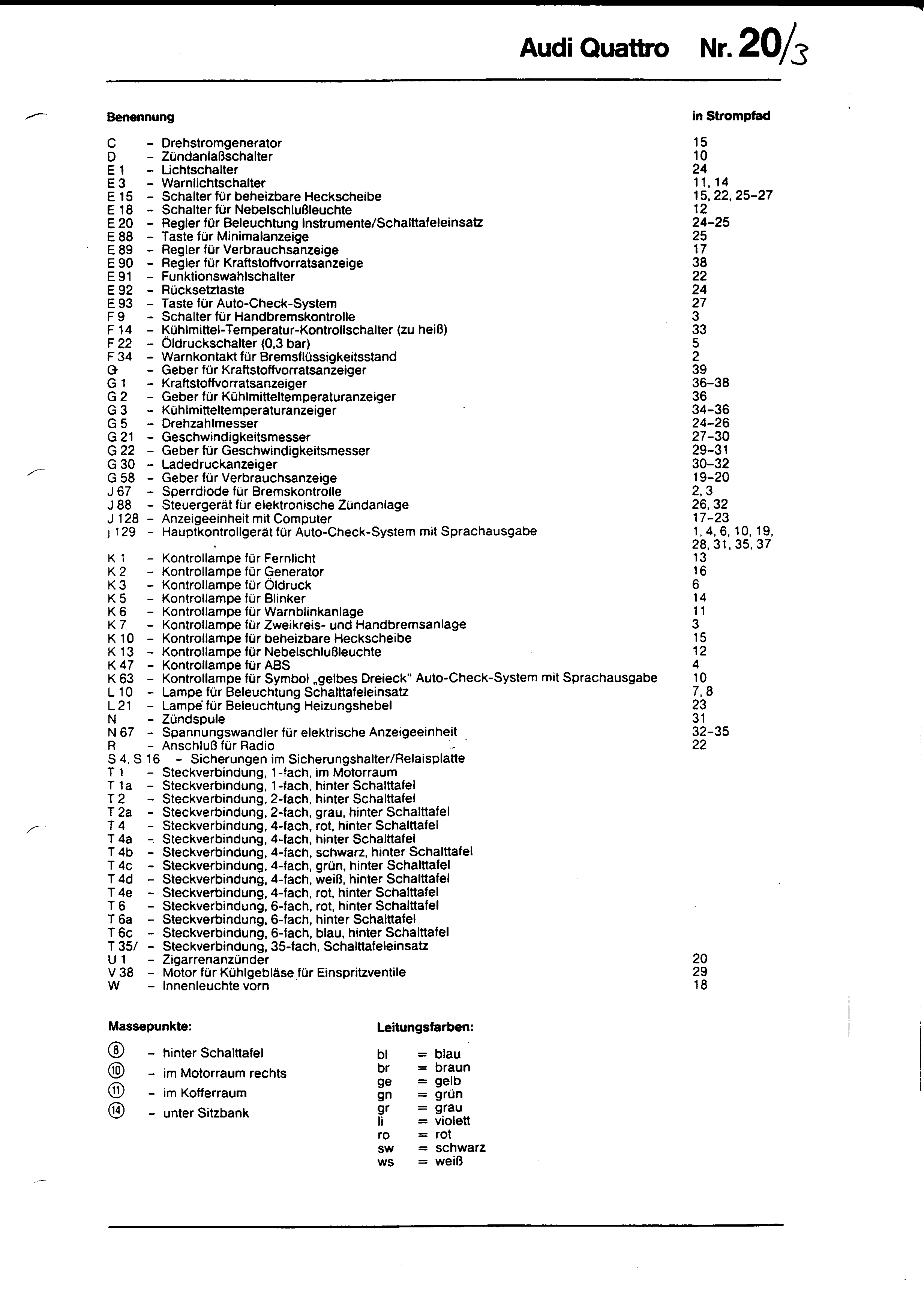

• Index

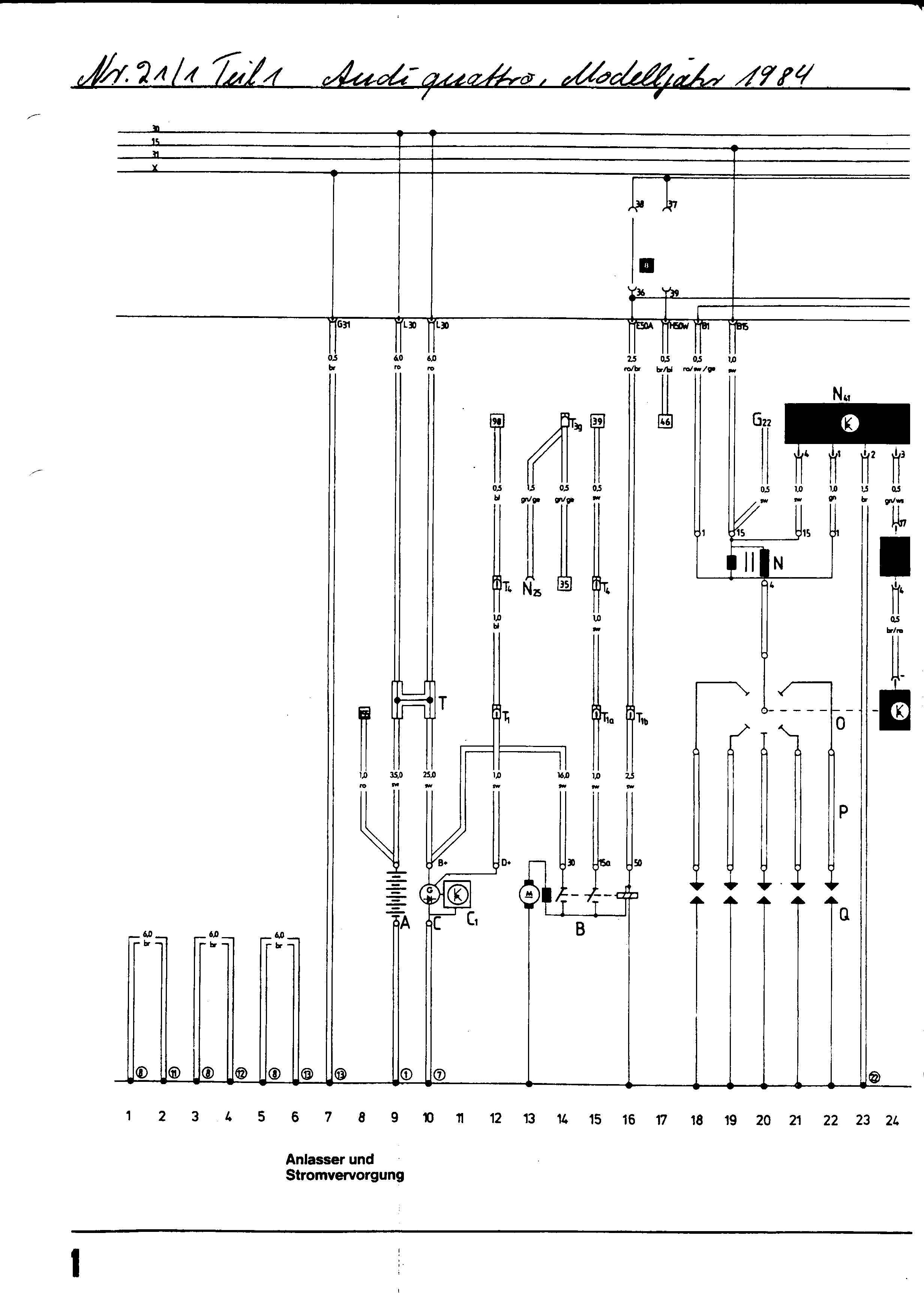

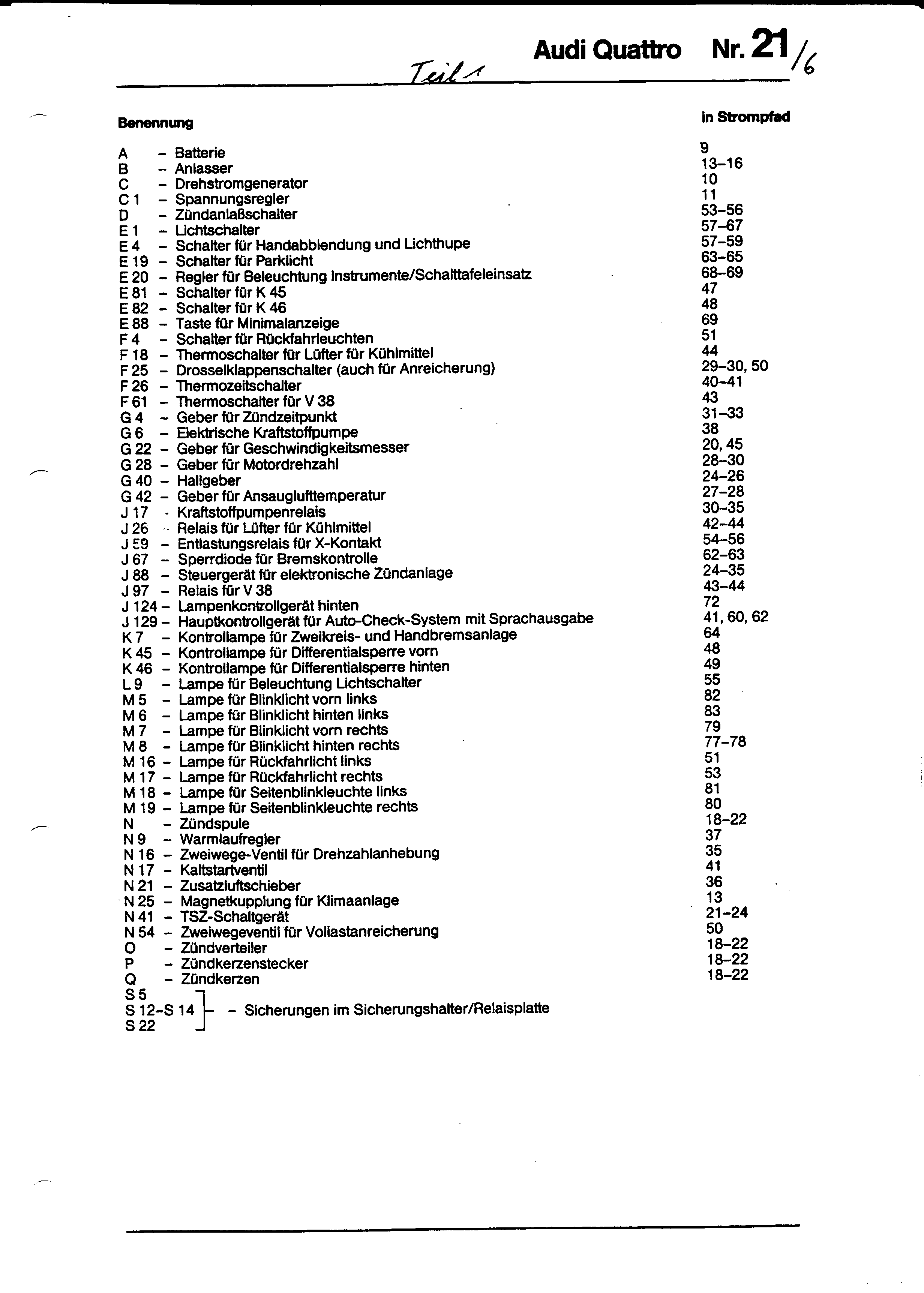

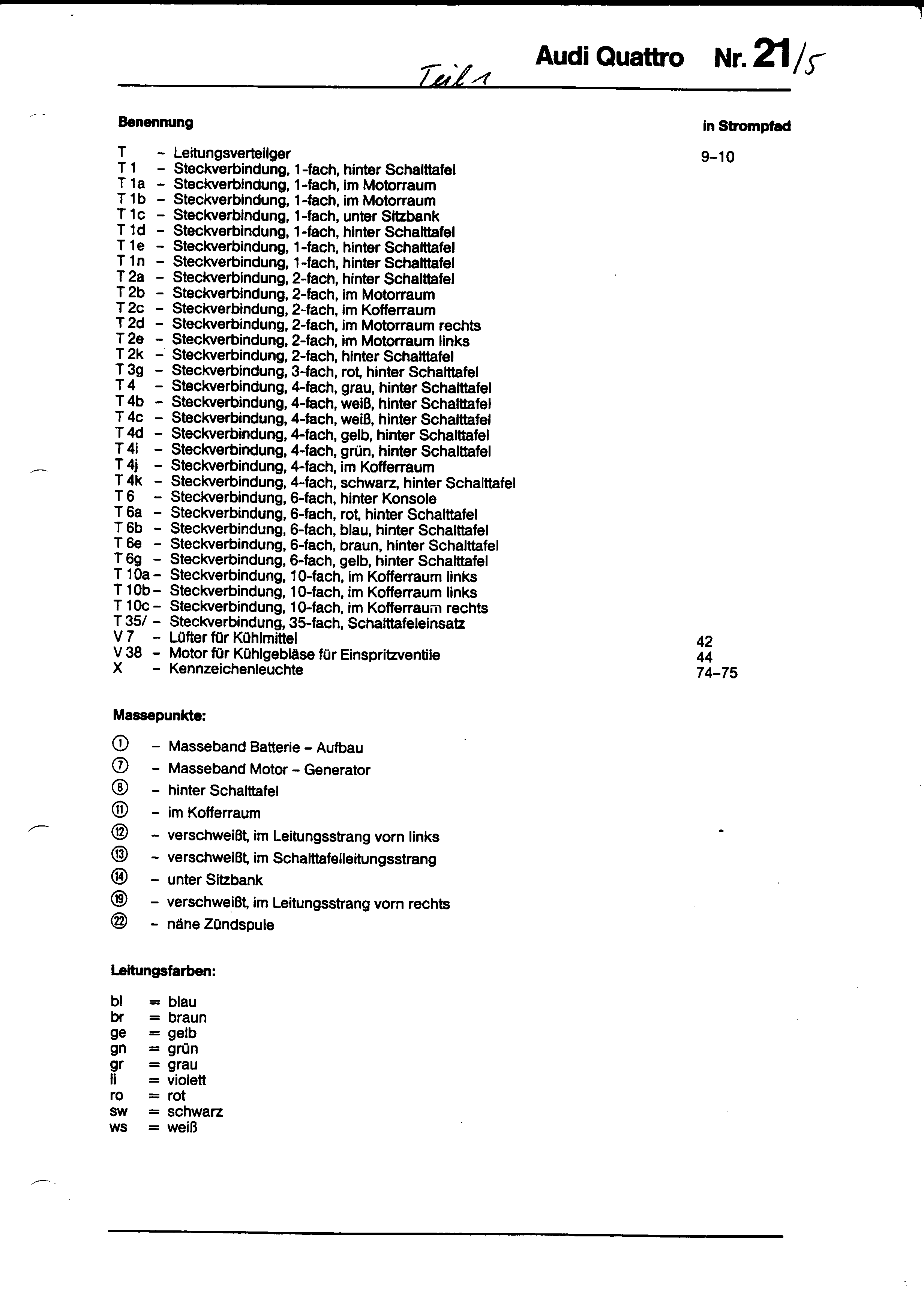

21 - Audi Quattro, 1984

• Tracks 1-23 - Battery, starter, coil, distributor

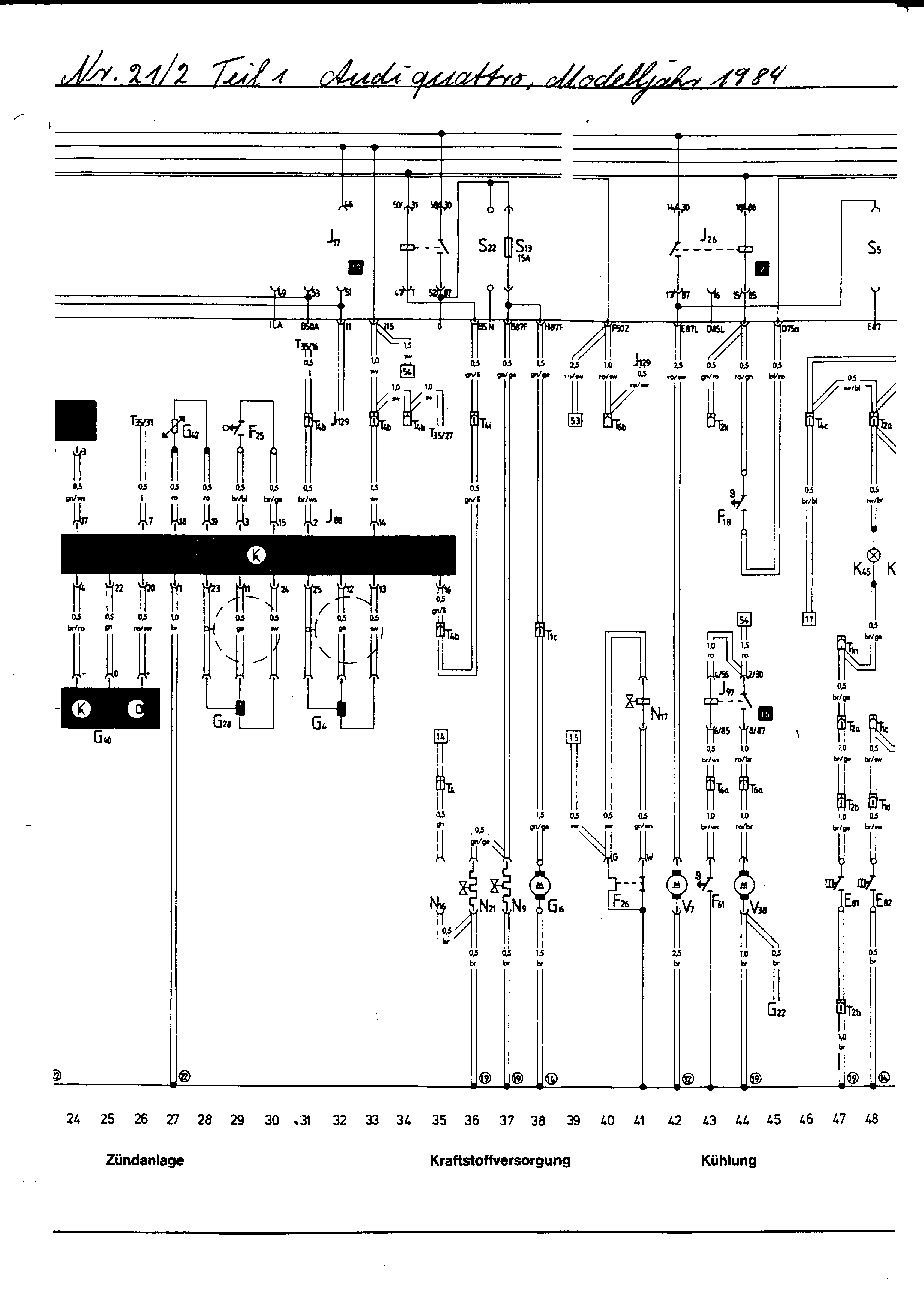

• Tracks 24-48 - Ignition, fuel supply, cooling

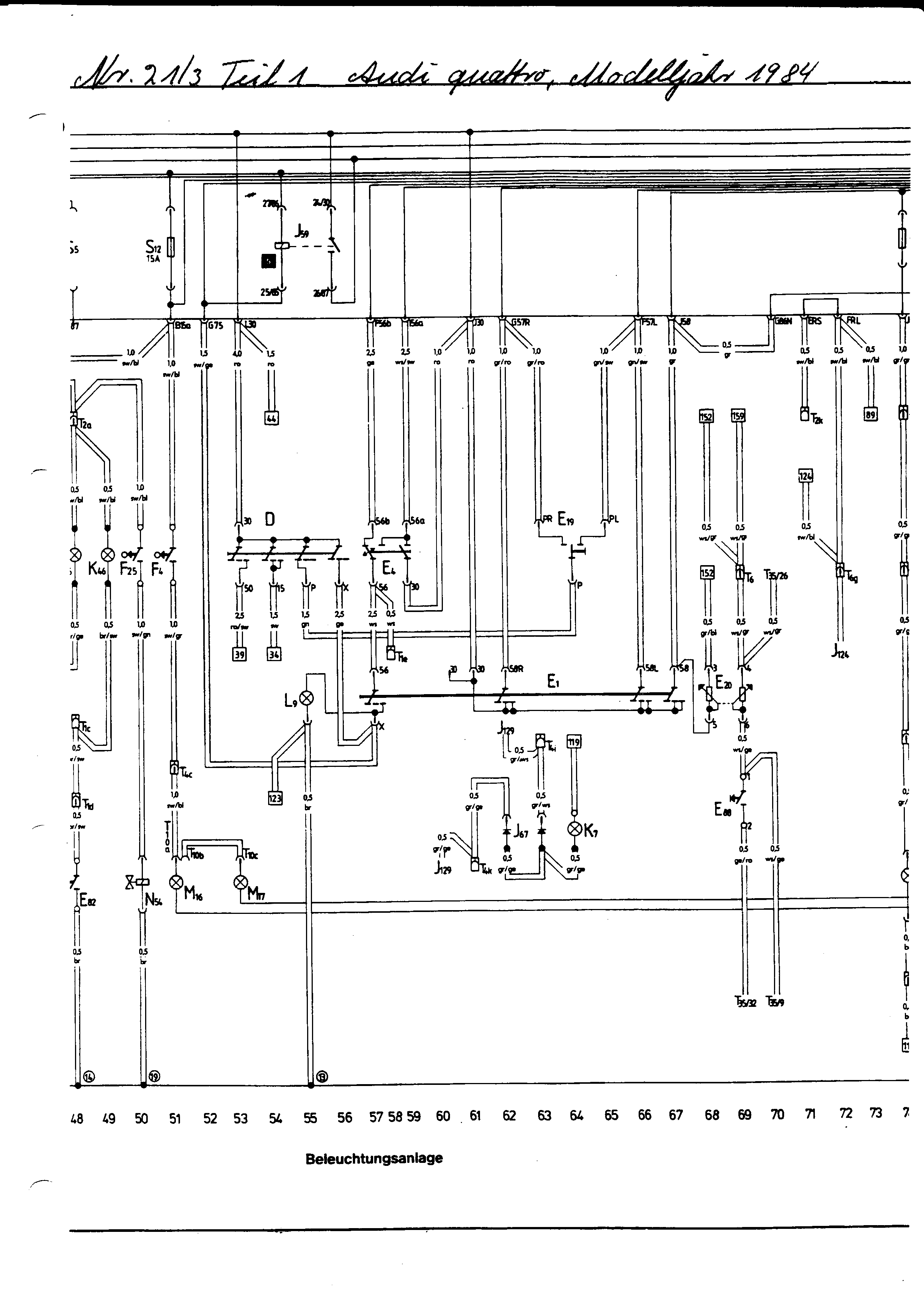

• Tracks 49-73 - Lighting

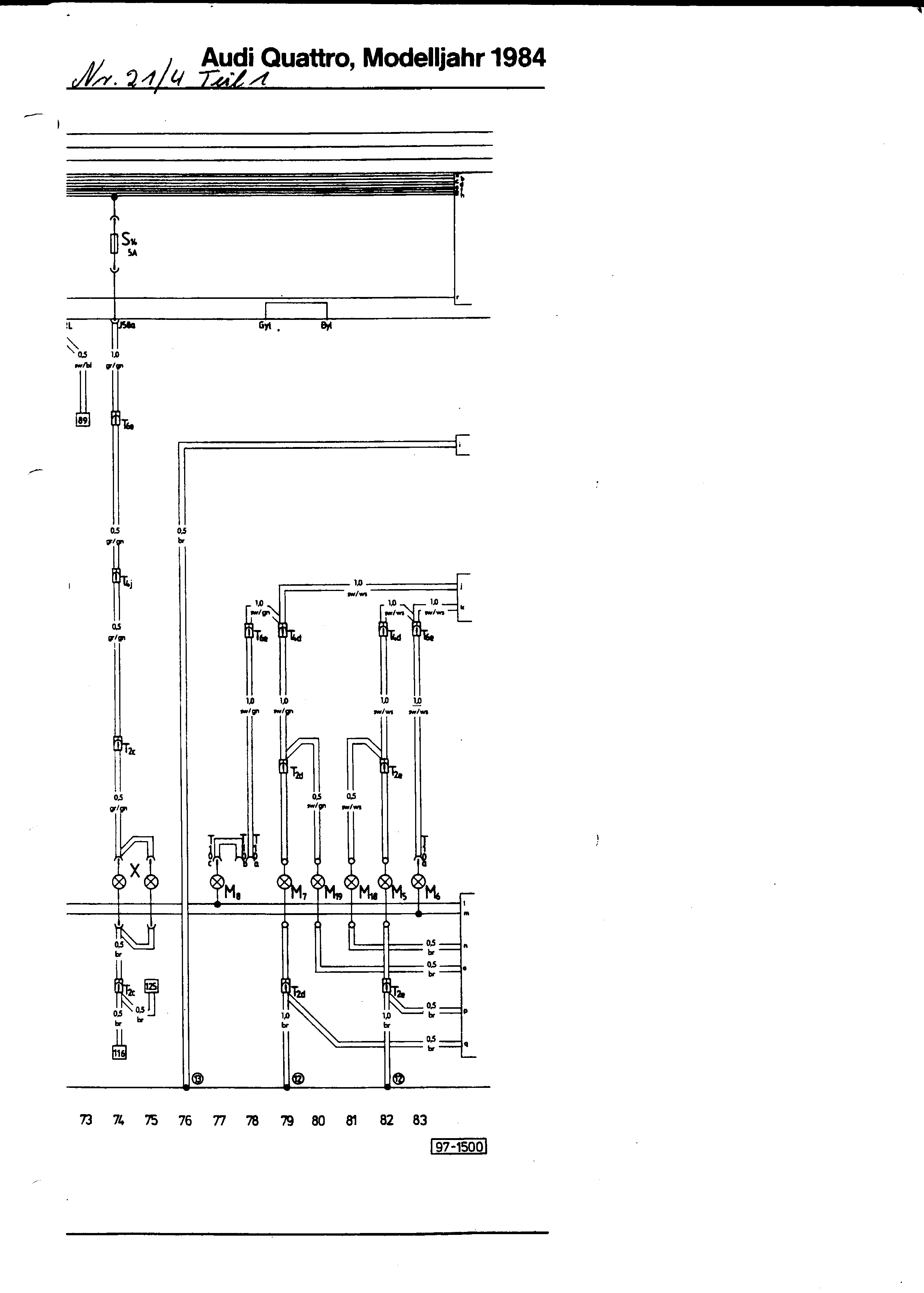

• Tracks 74-83 - Lighting (contd.)
• Index to tracks 1-83
• Index to tracks 1-83 (contd.)

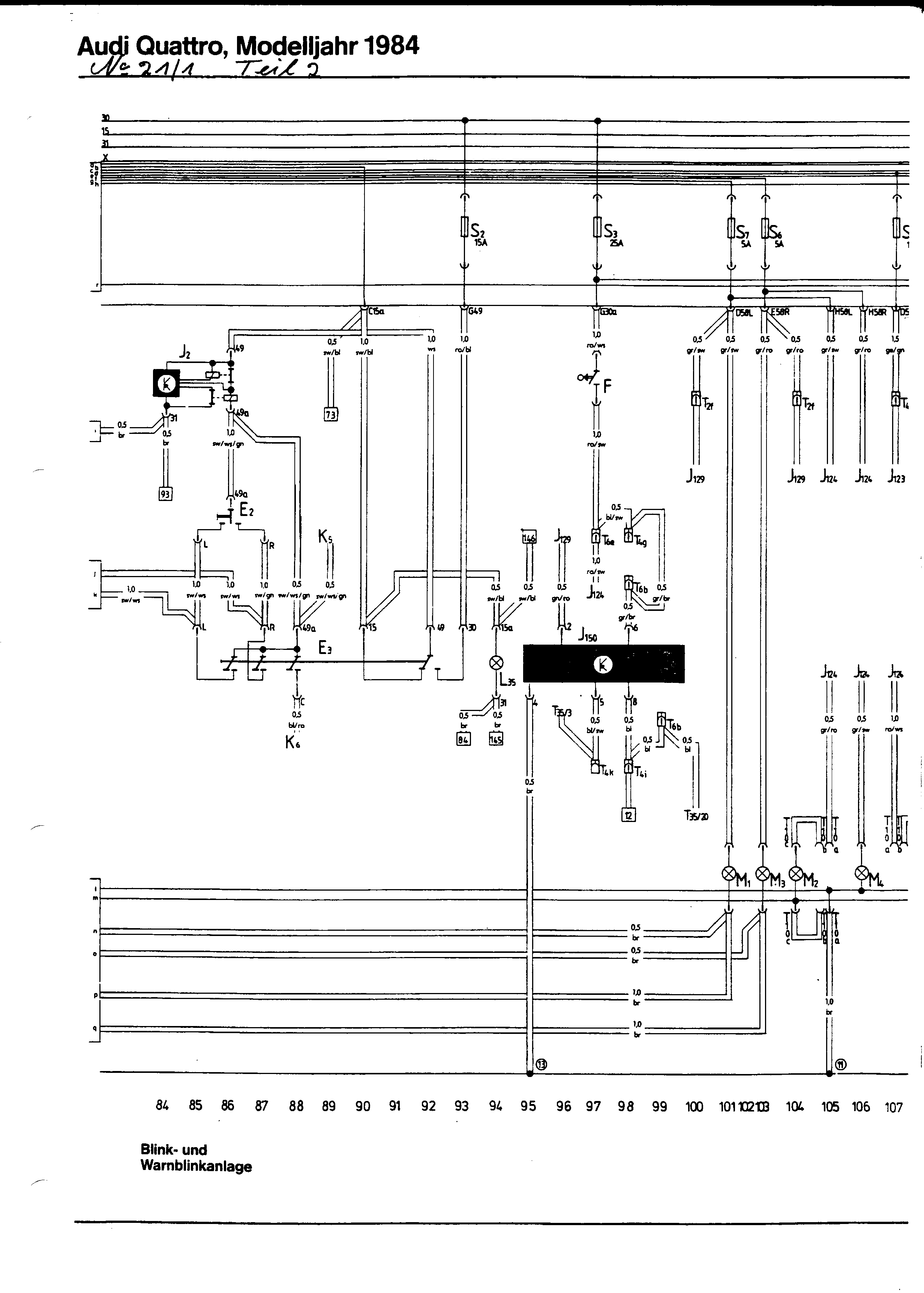

• Tracks 84-106 - Indicators and hazard flashers

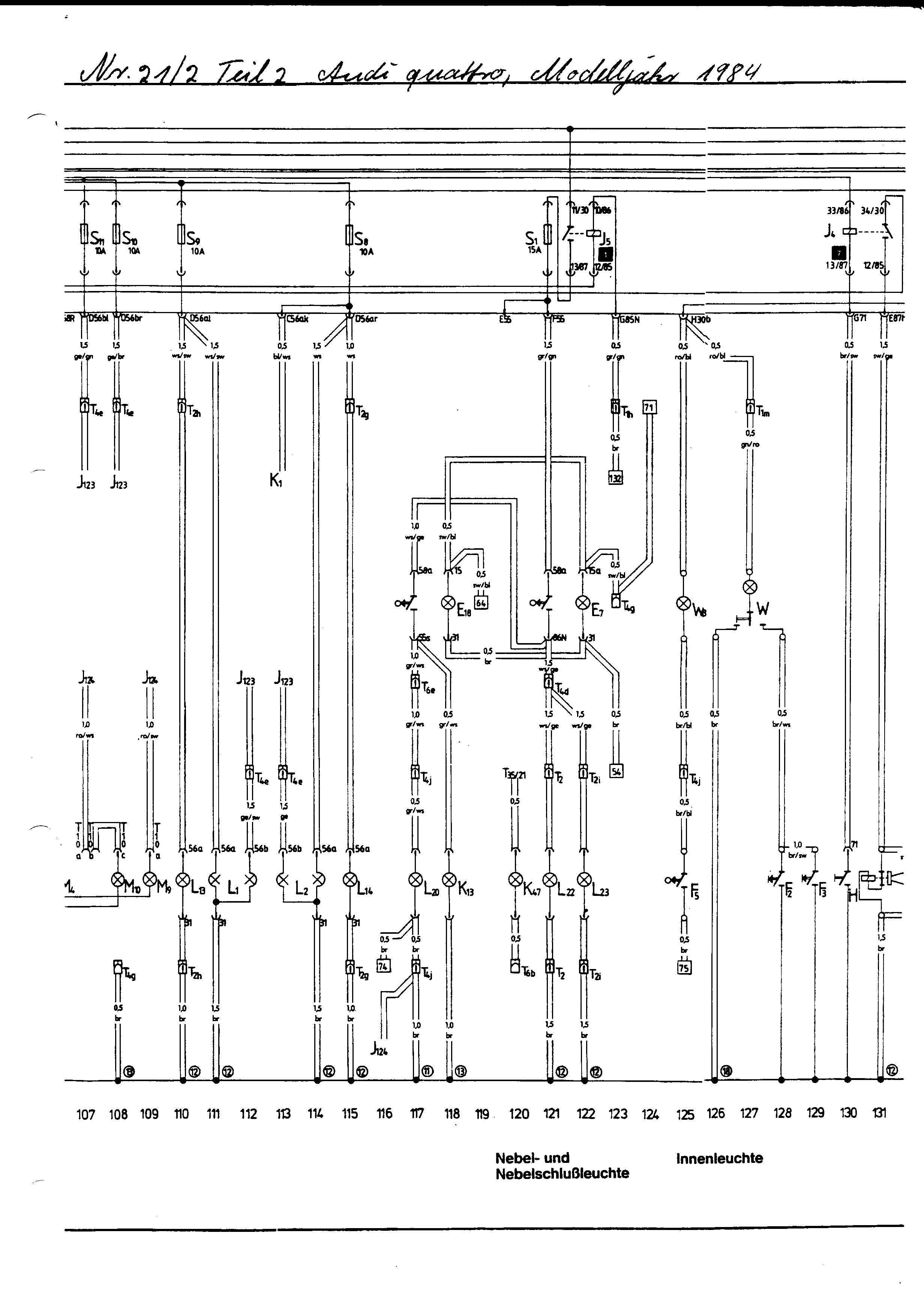

• Tracks 107-130 - Front and rear foglights, interior lights

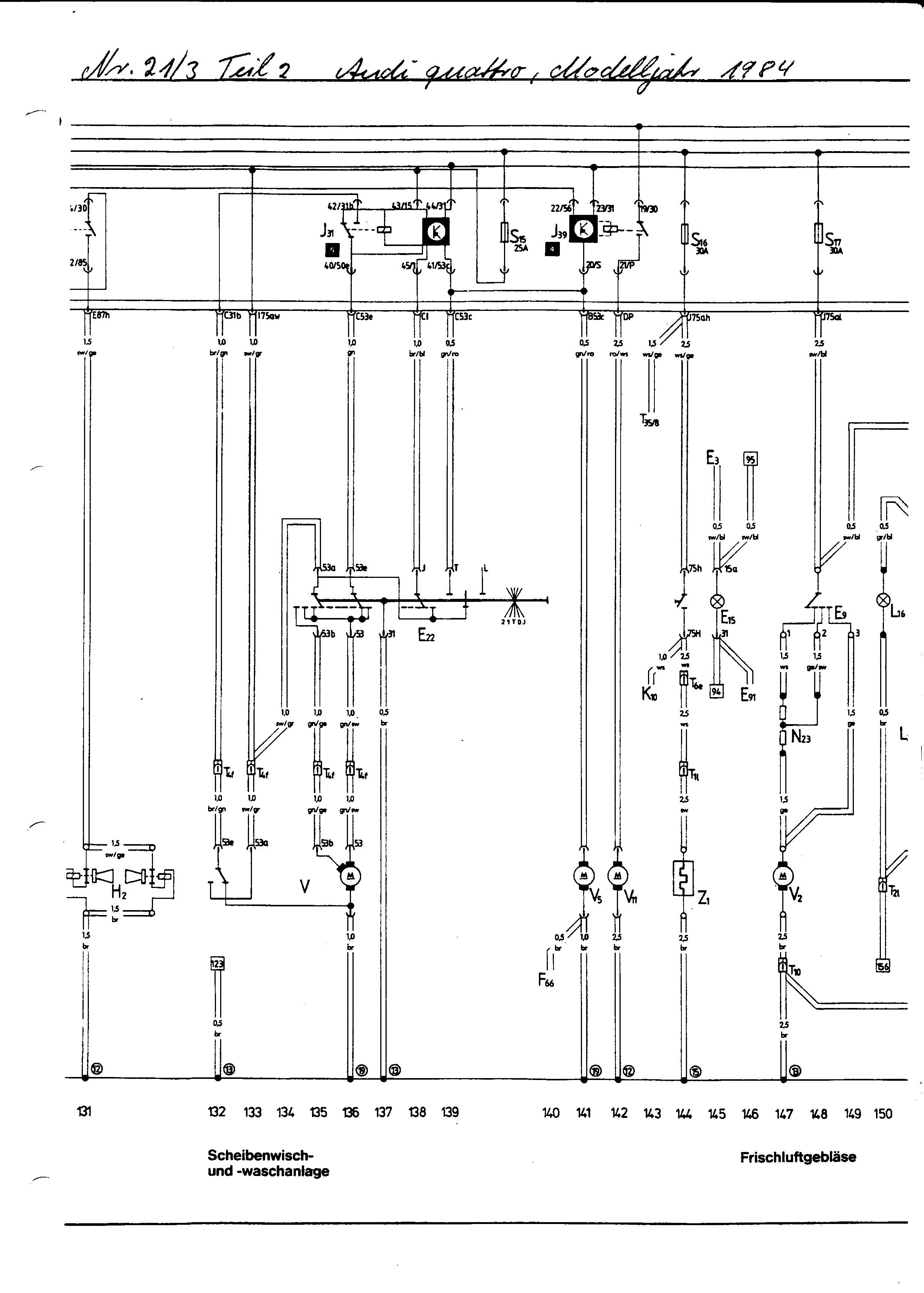

• Tracks 131-149 - Windscreen wash/wipe, fresh air fan

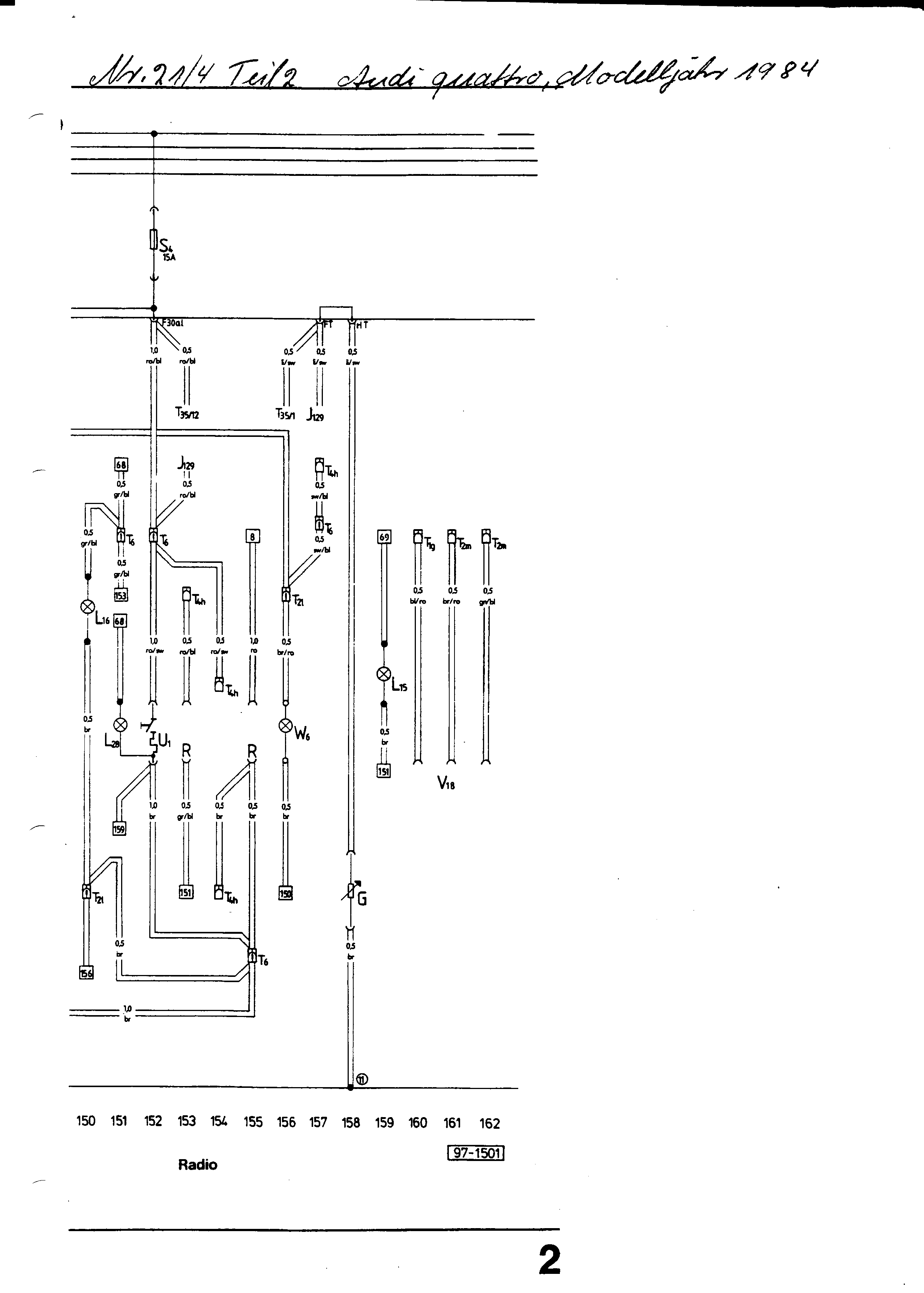

• Tracks 150-162 - Cigarette lighter, radio

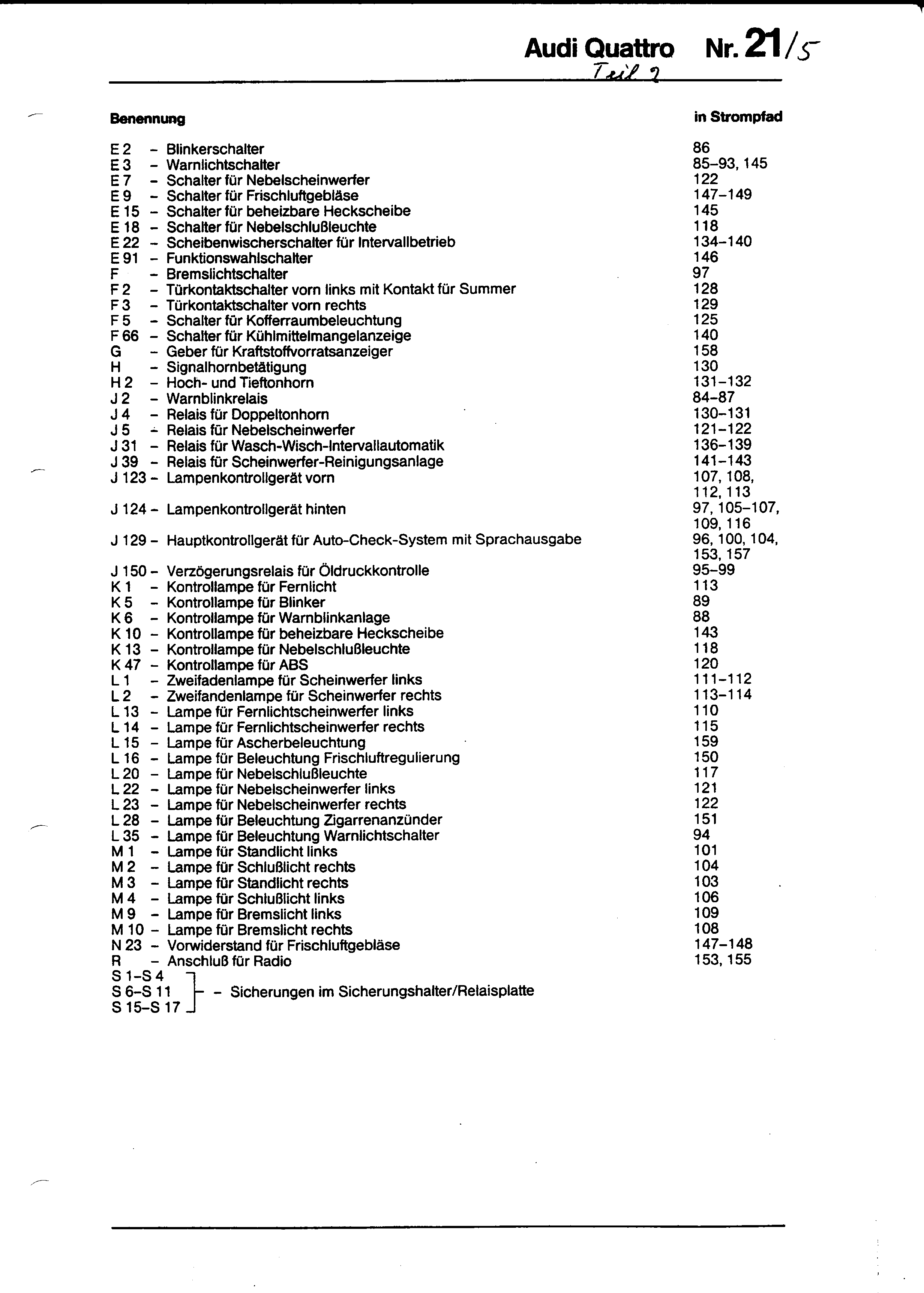

• Index to tracks 84-162

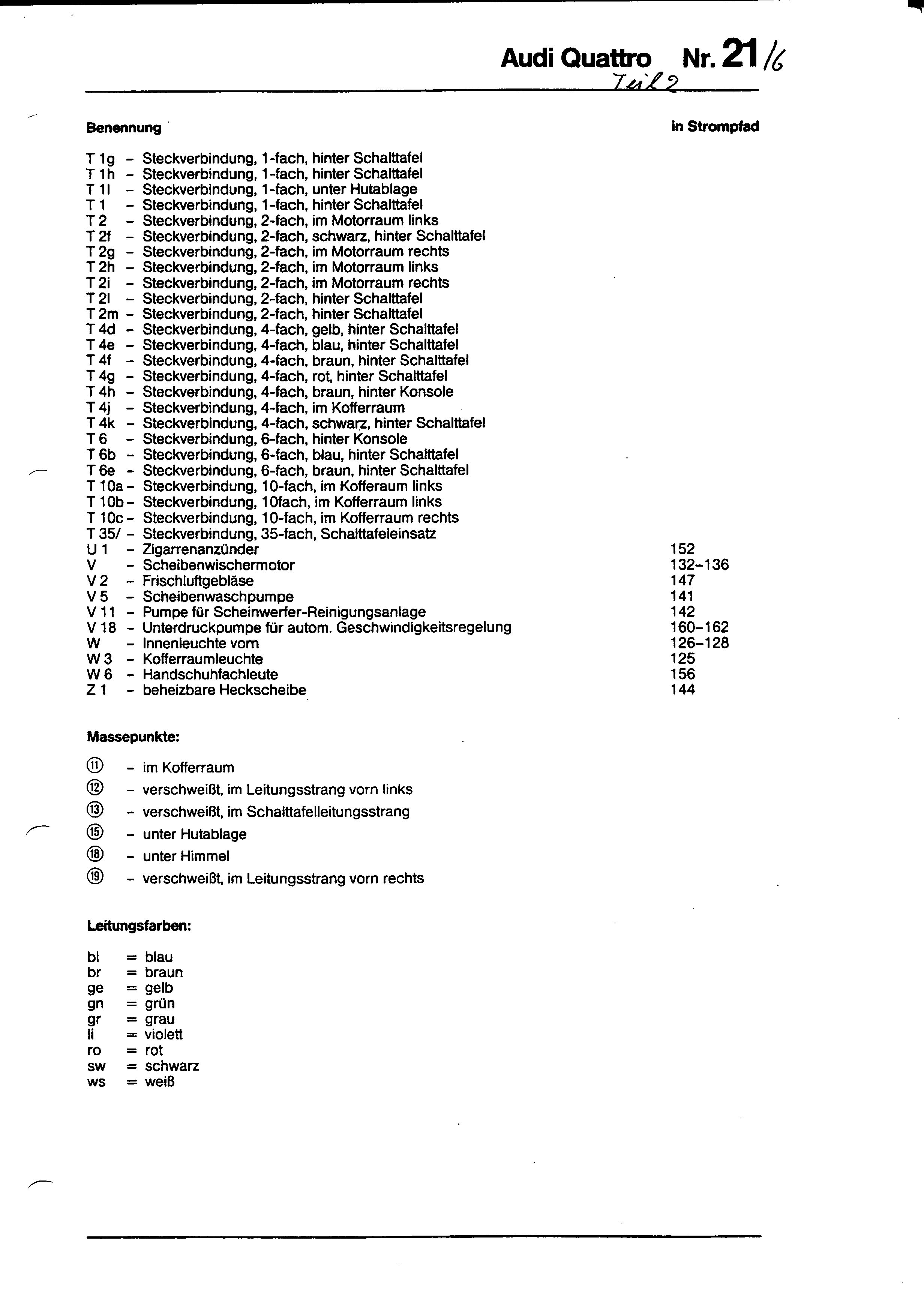

• Index to tracks 84-162 (contd.)

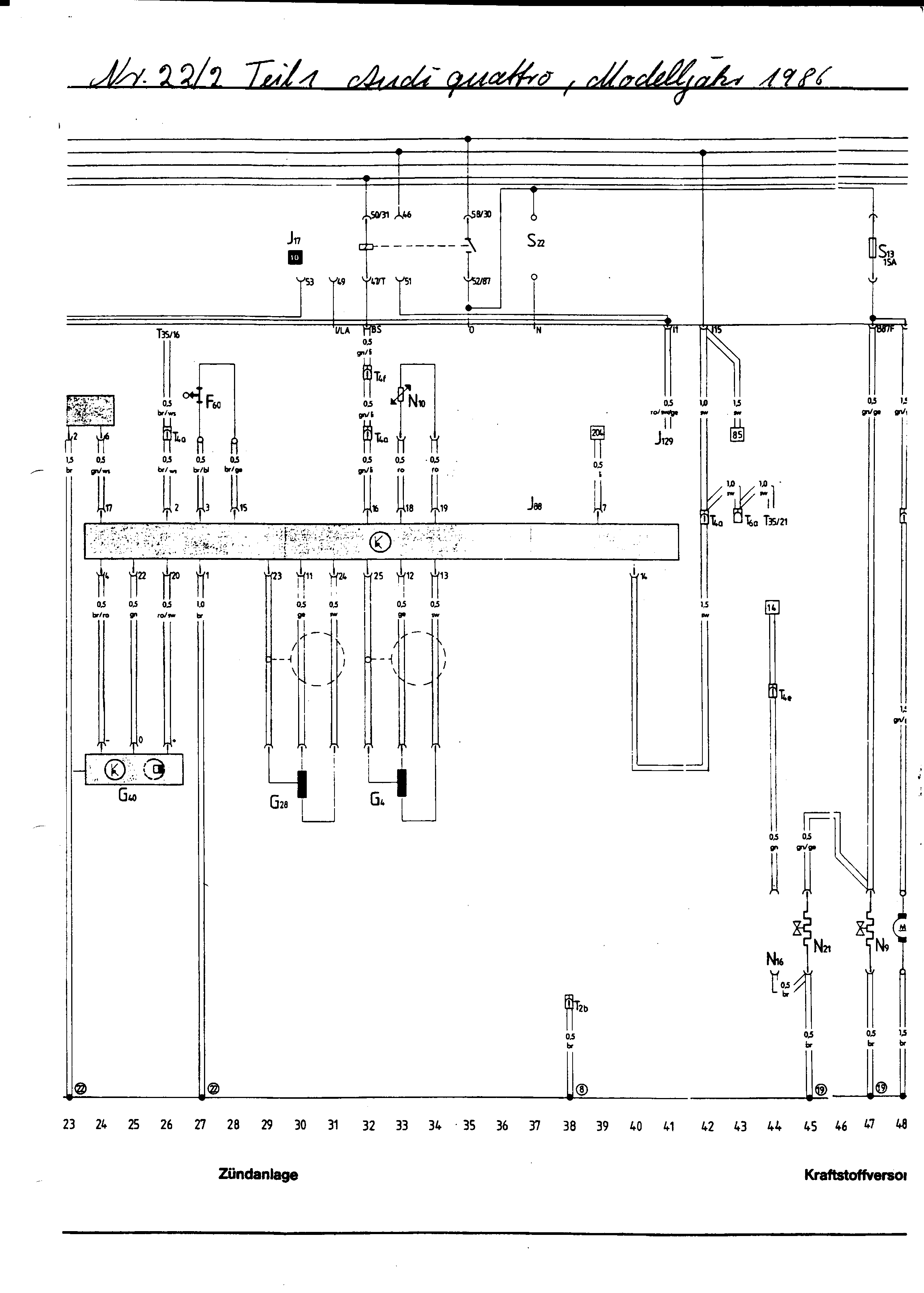

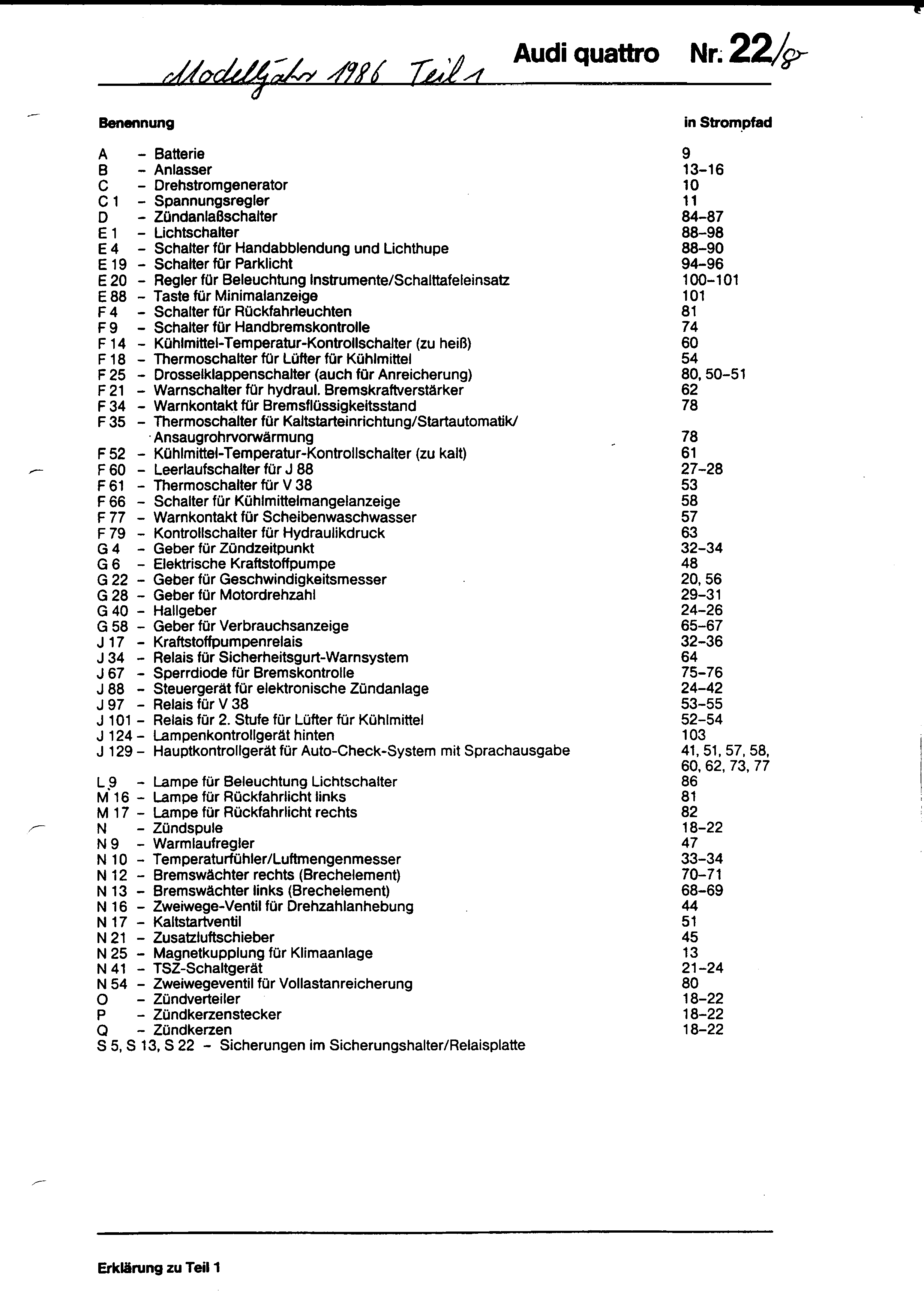

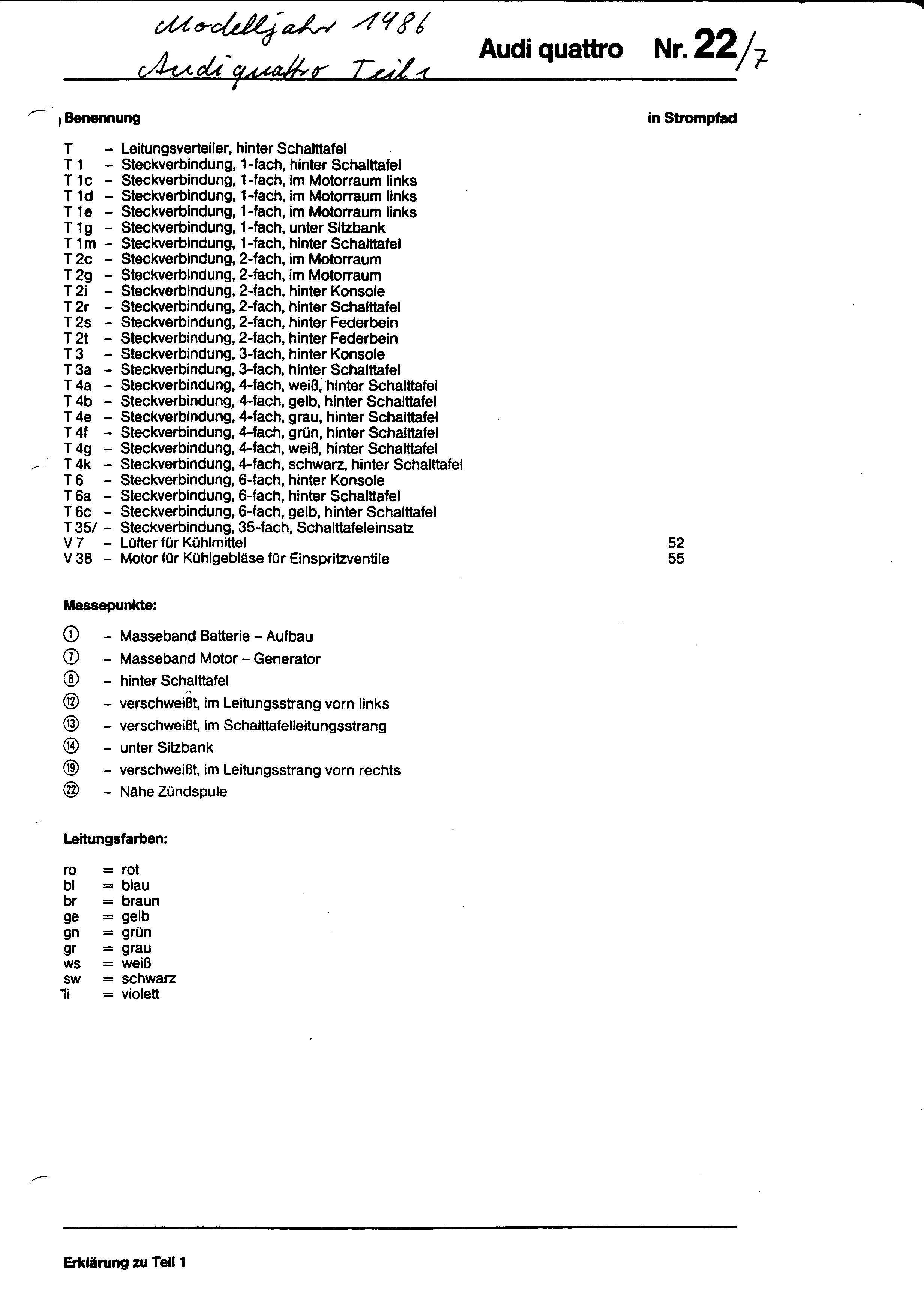

22 - Audi Quattro, 1986/7

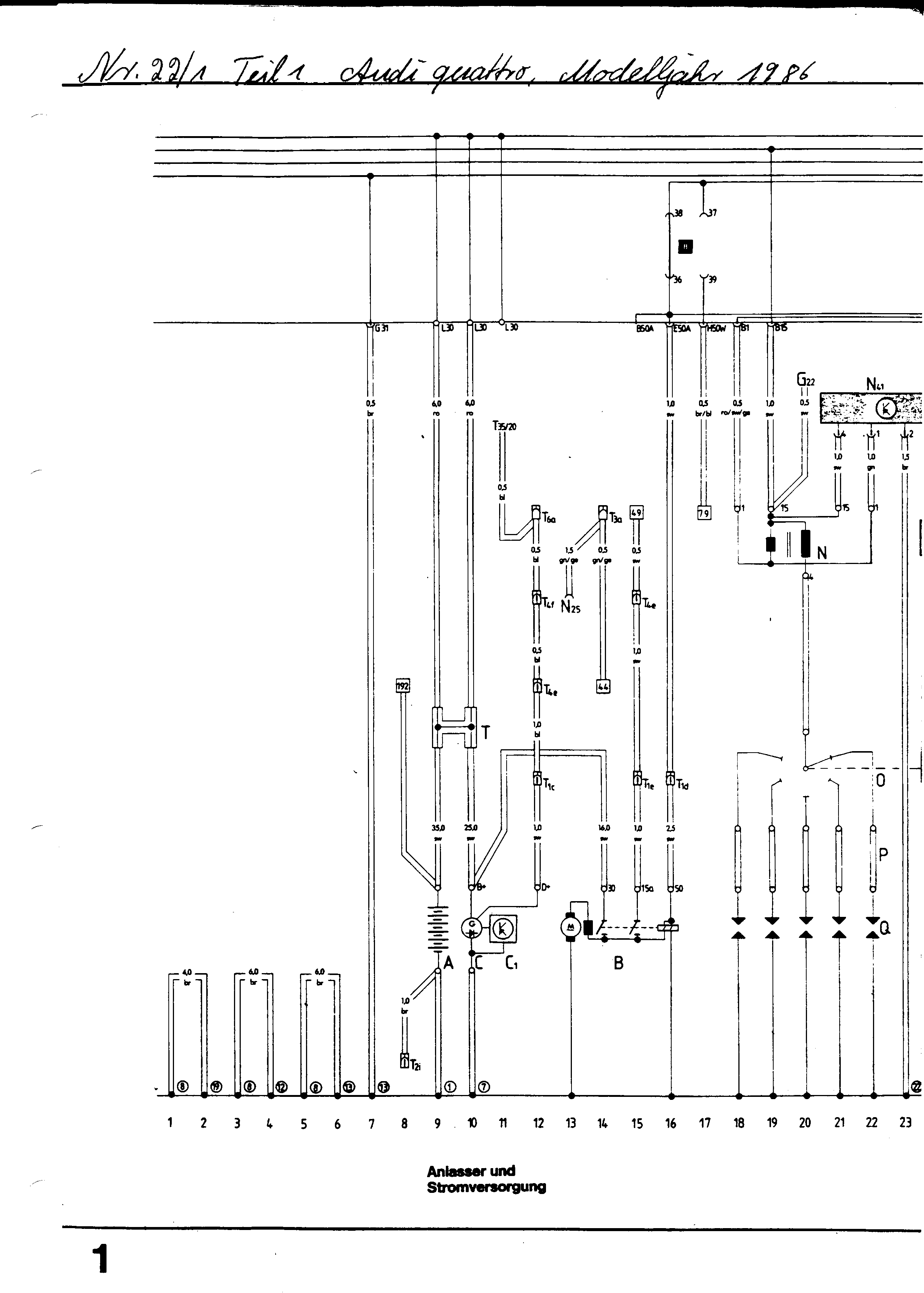

• Tracks 1-22 Starter and power supply, coil and plugs
• Tracks 23-47 Ignition control (ECU) and fuel supply

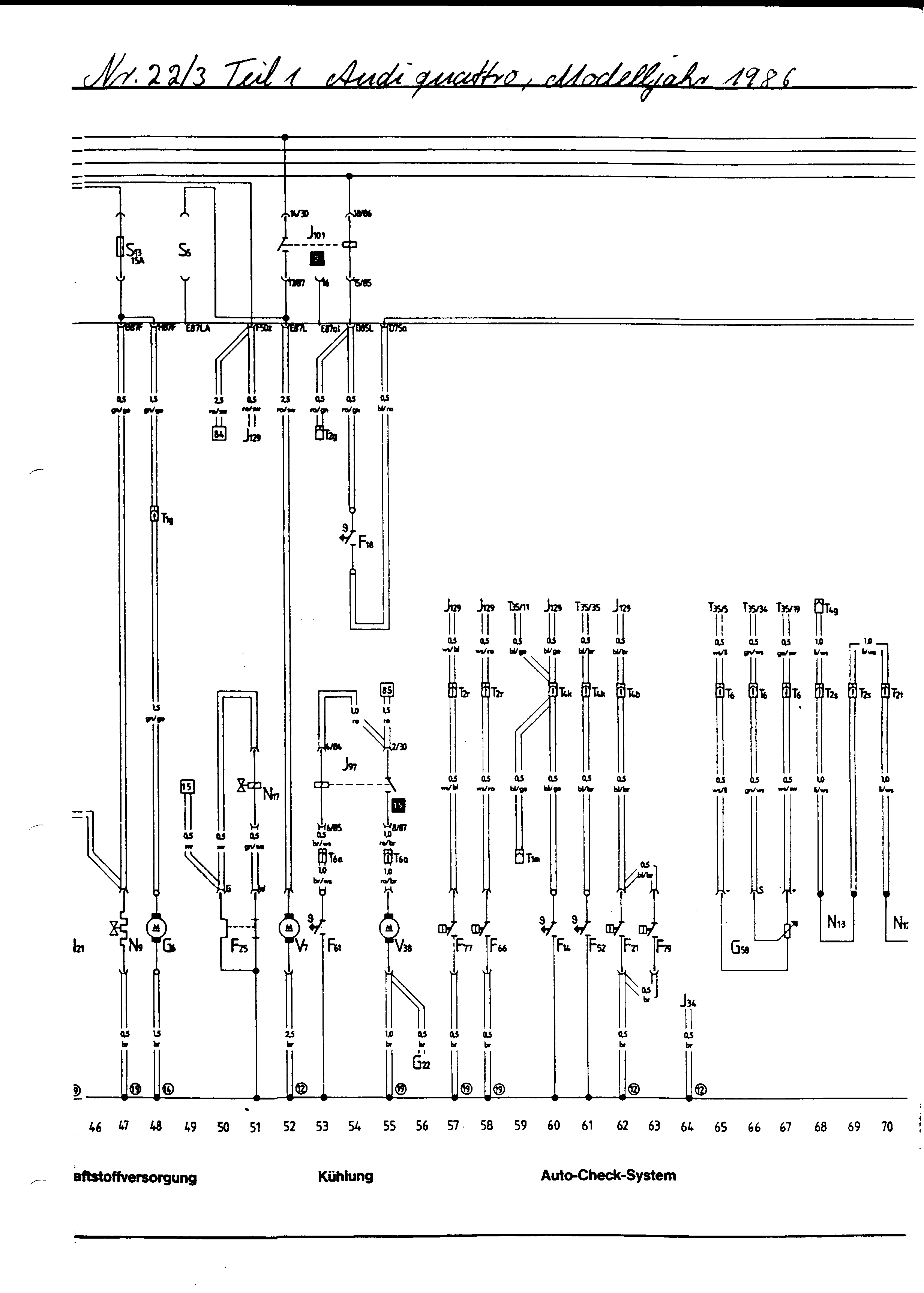

• Tracks 47-69 Fuel supply, cooling and Autocheck

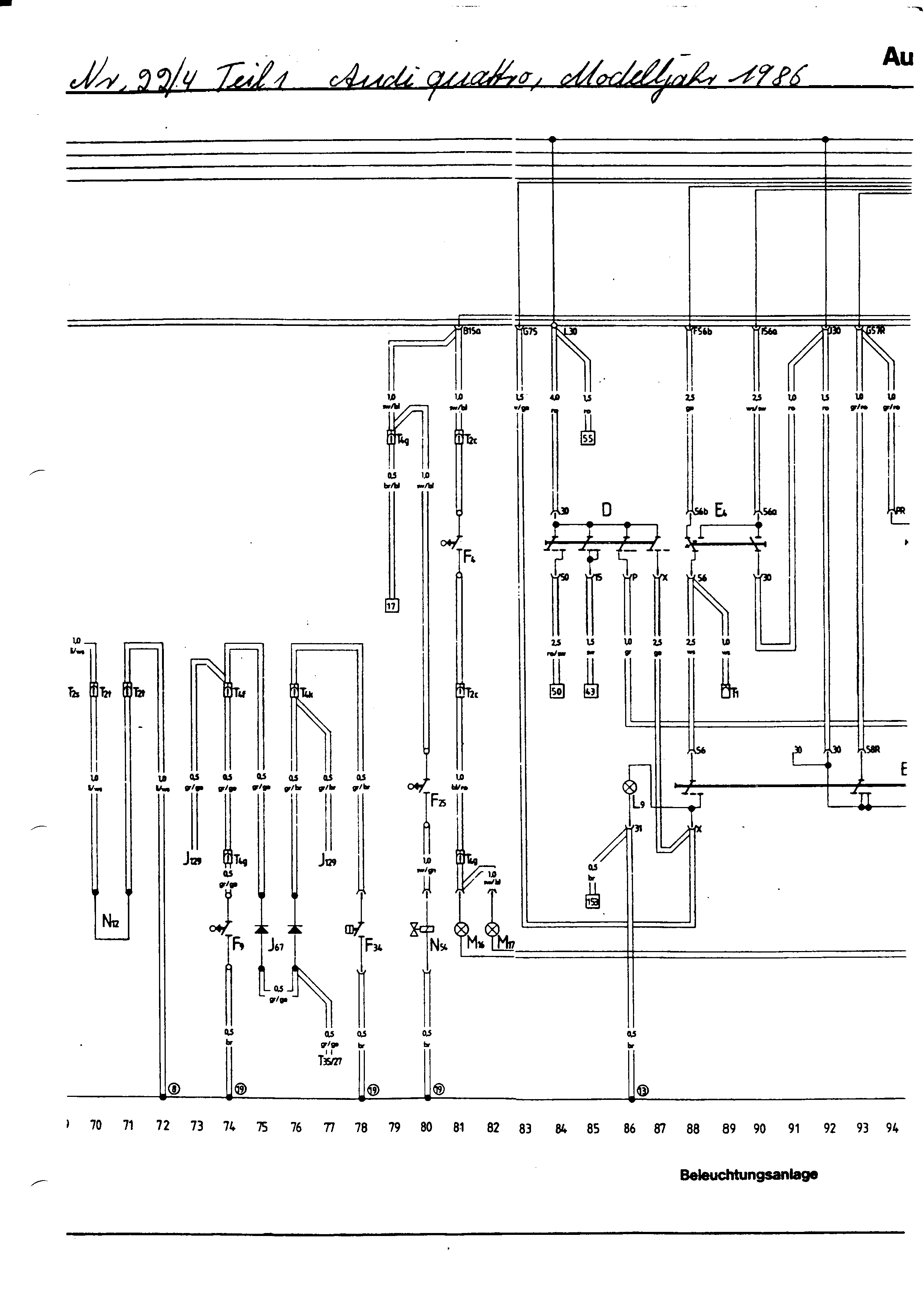

• Tracks 70-93 Autocheck, light switches

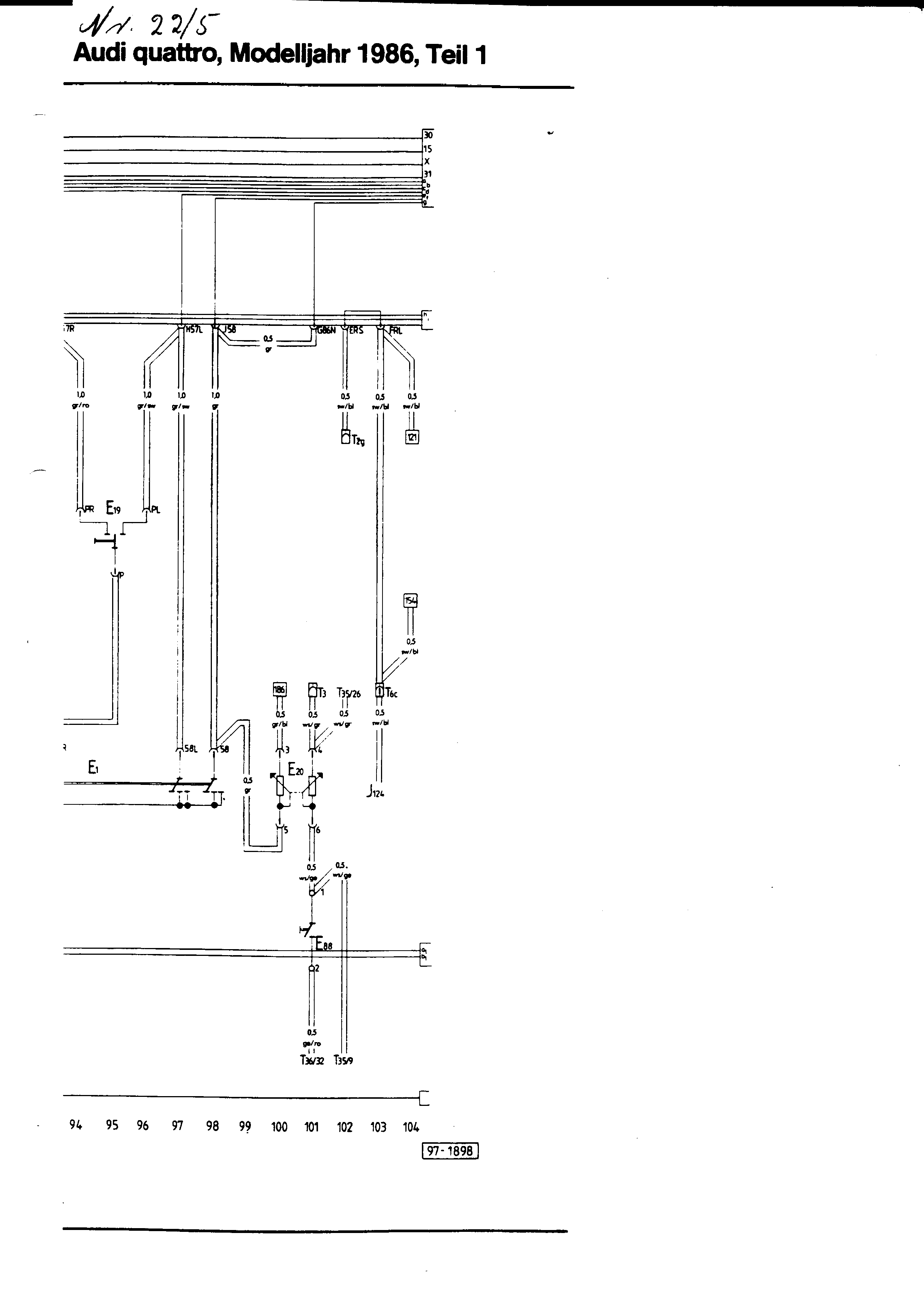

• Tracks 94-104 Light switches cont.

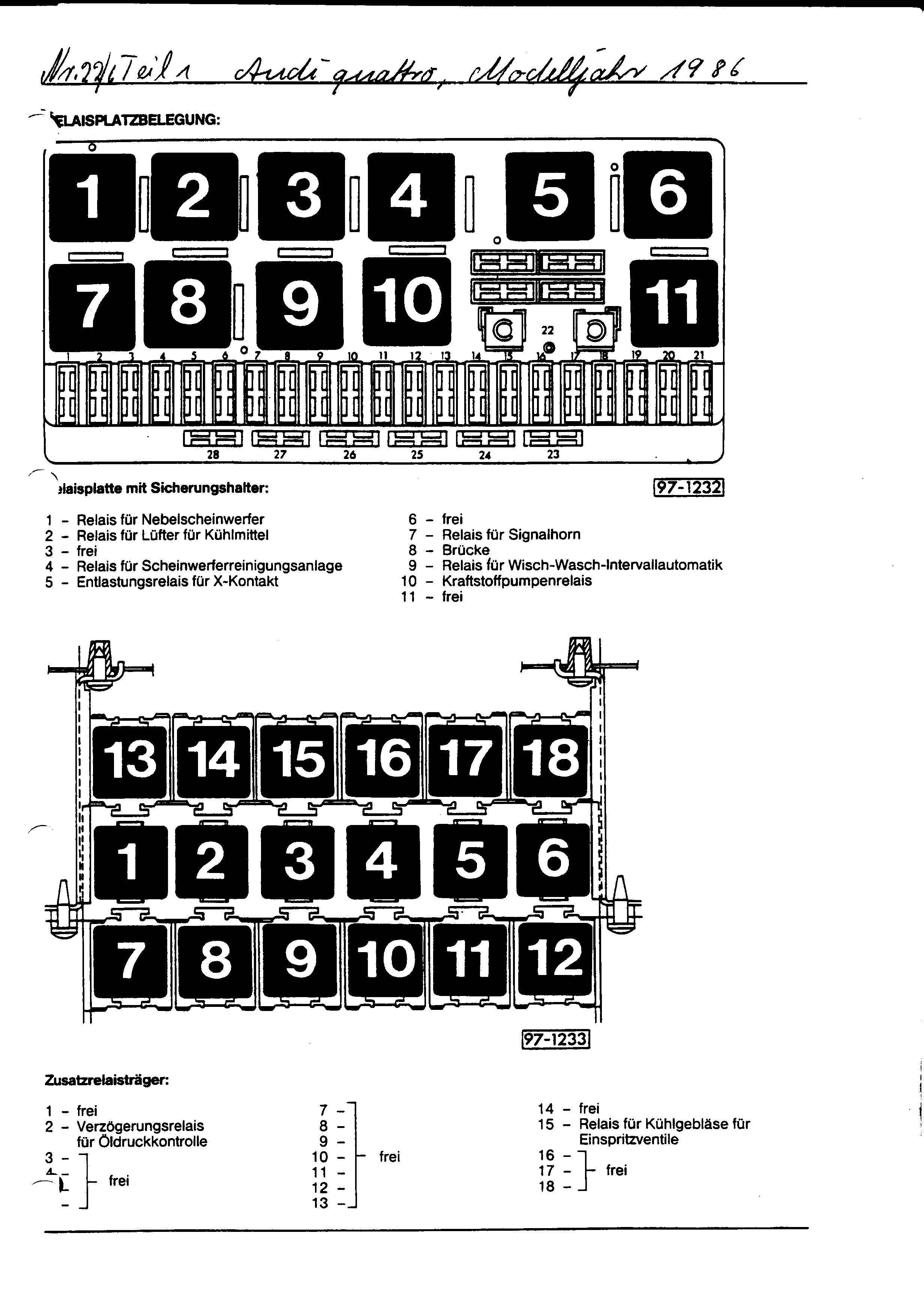

• Relay and fuse positions
• Index to tracks 1-104
• Index to tracks 1-104 (contd.)

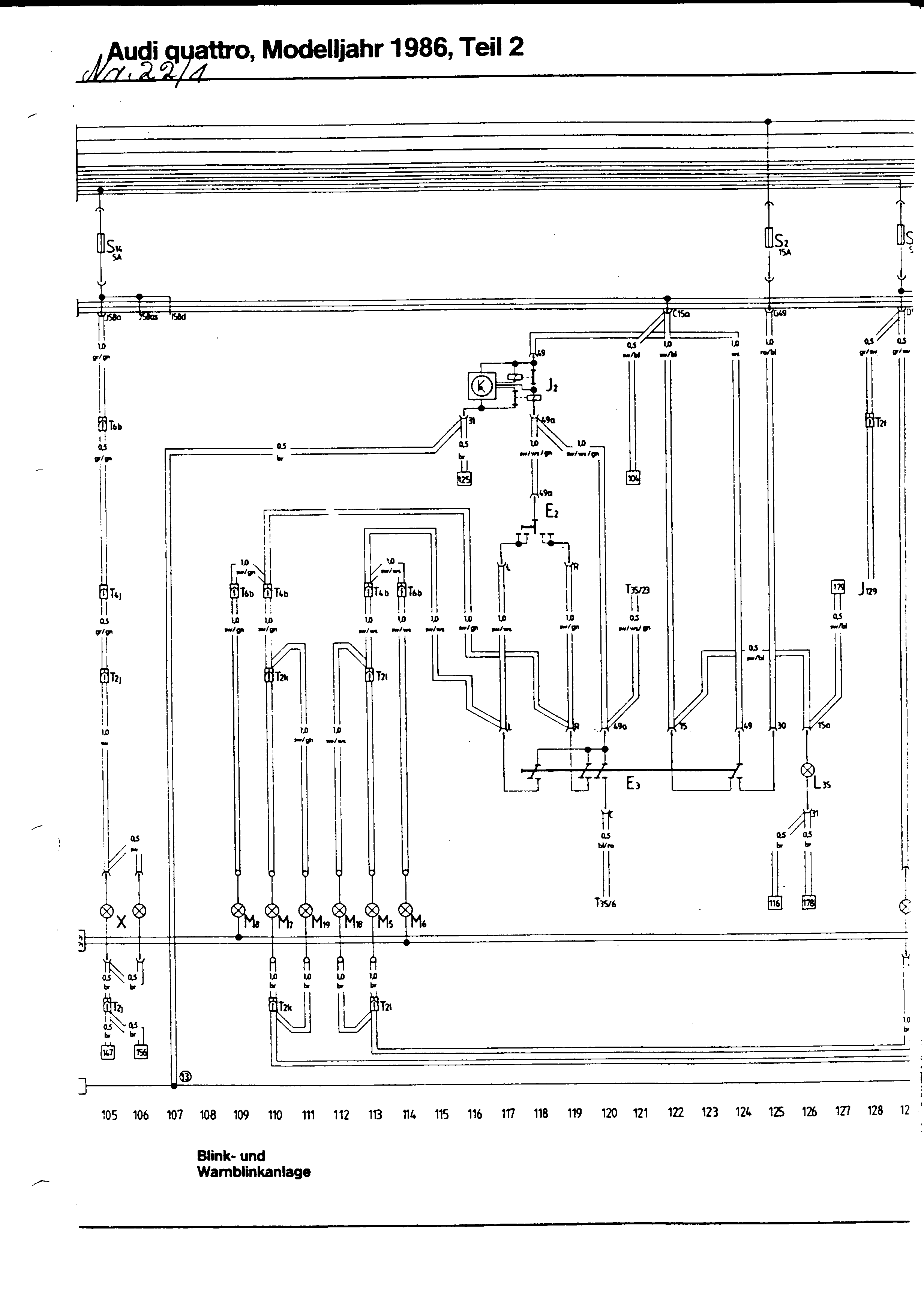

• Tracks 105-128 Indicators and hazard flashers

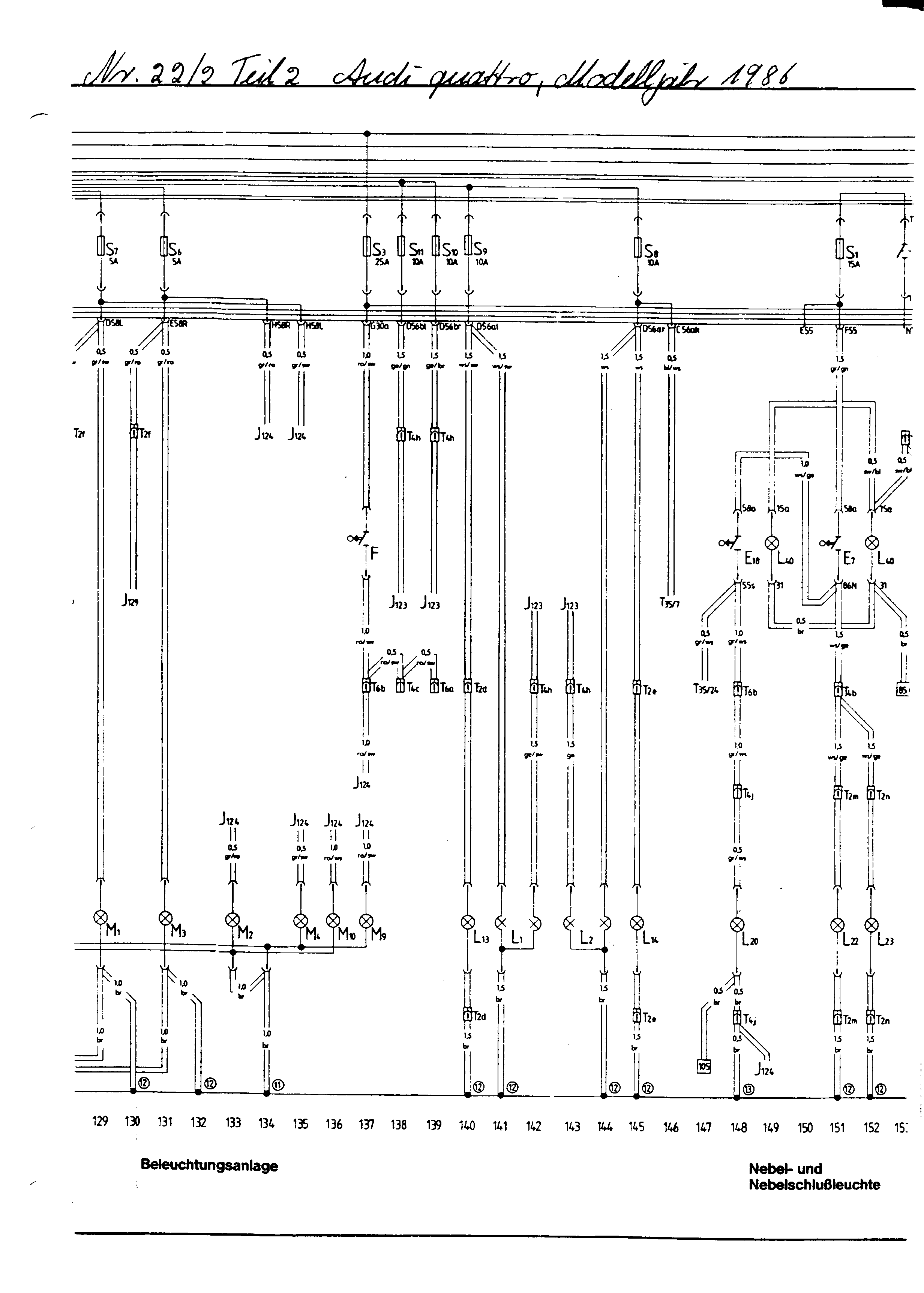

• Tracks 129-152 Lights and foglights

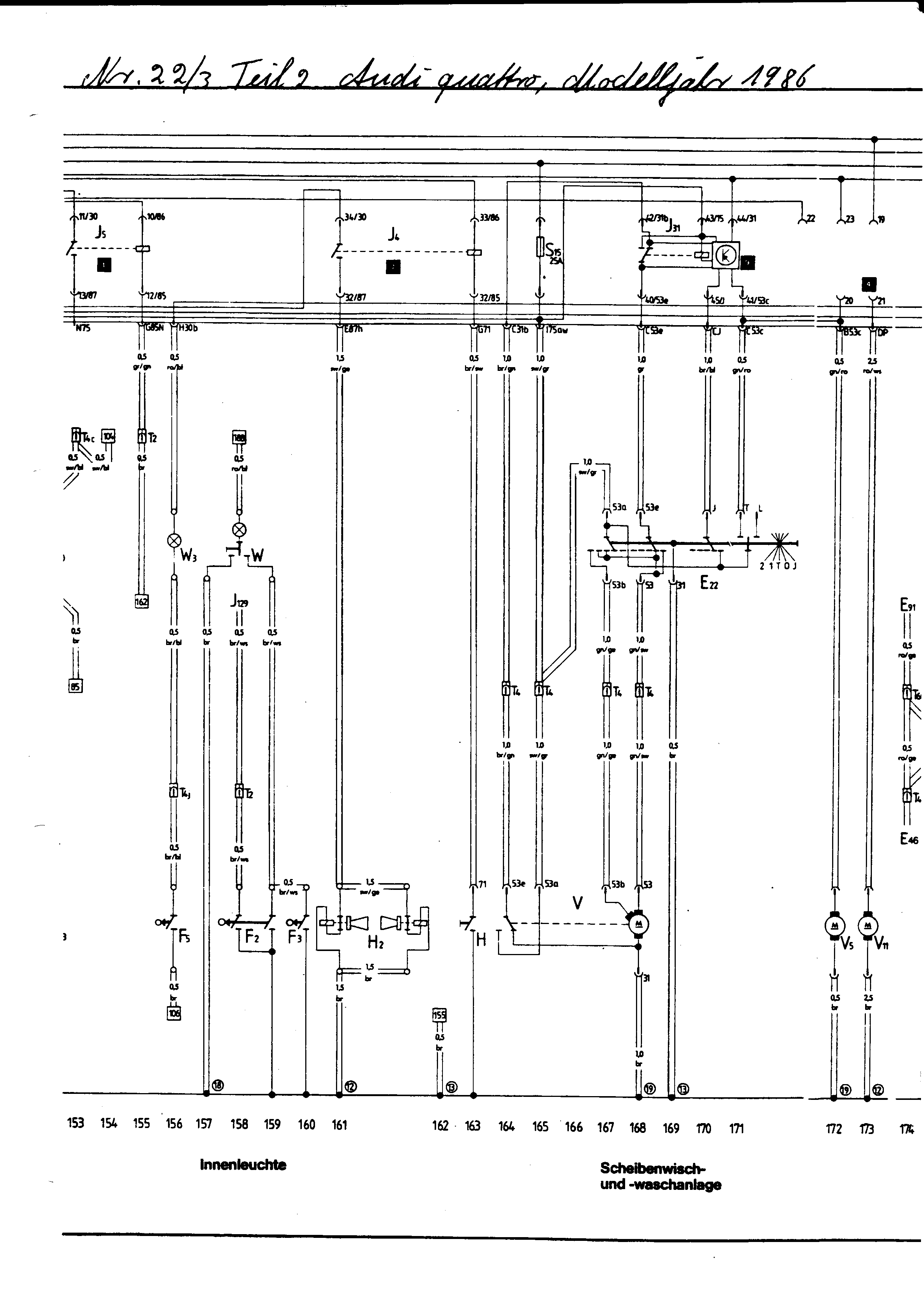

• Tracks 153-173 Interior light, screen wash/wipe

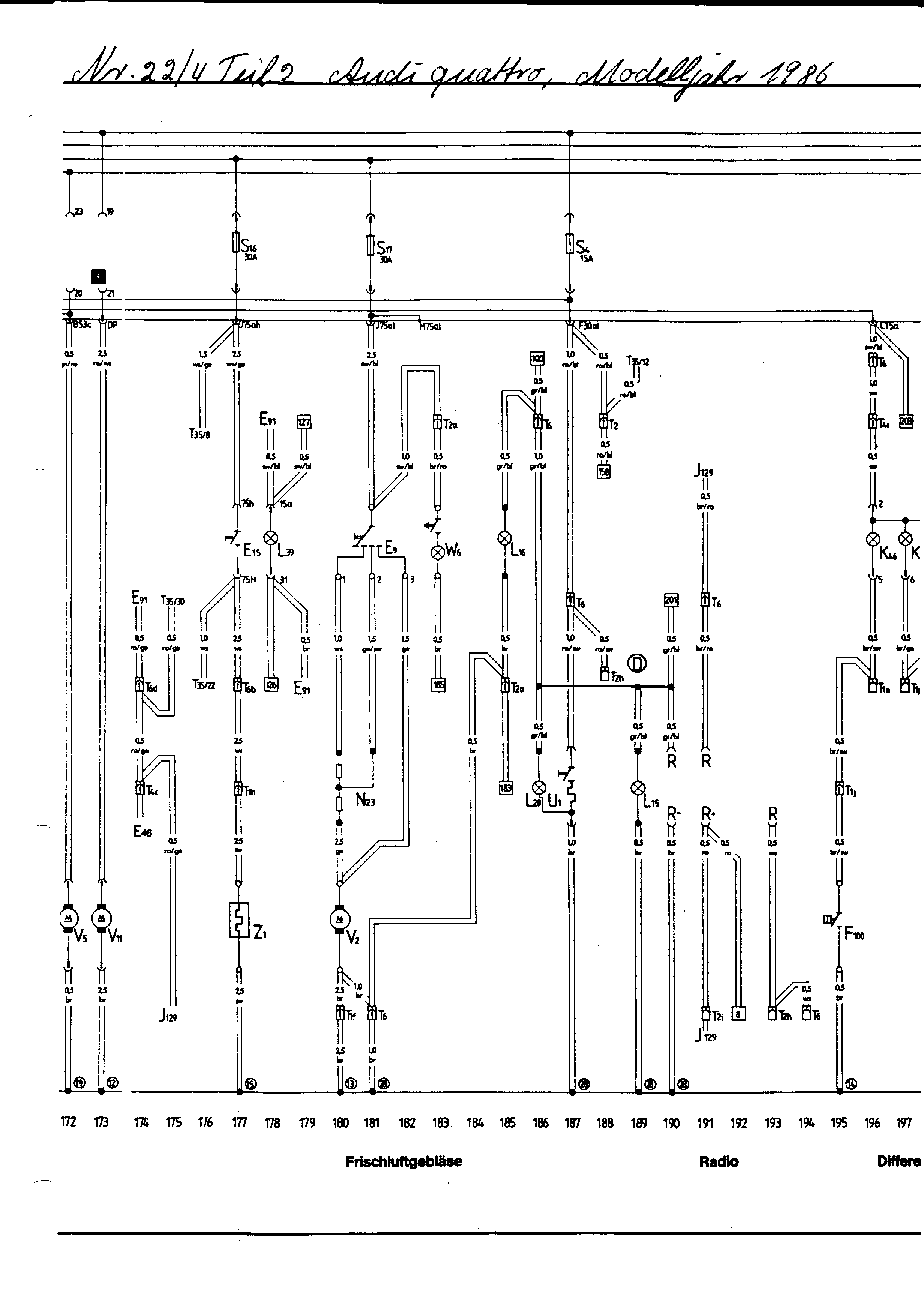

• Tracks 174-196 Fresh air fan, radio

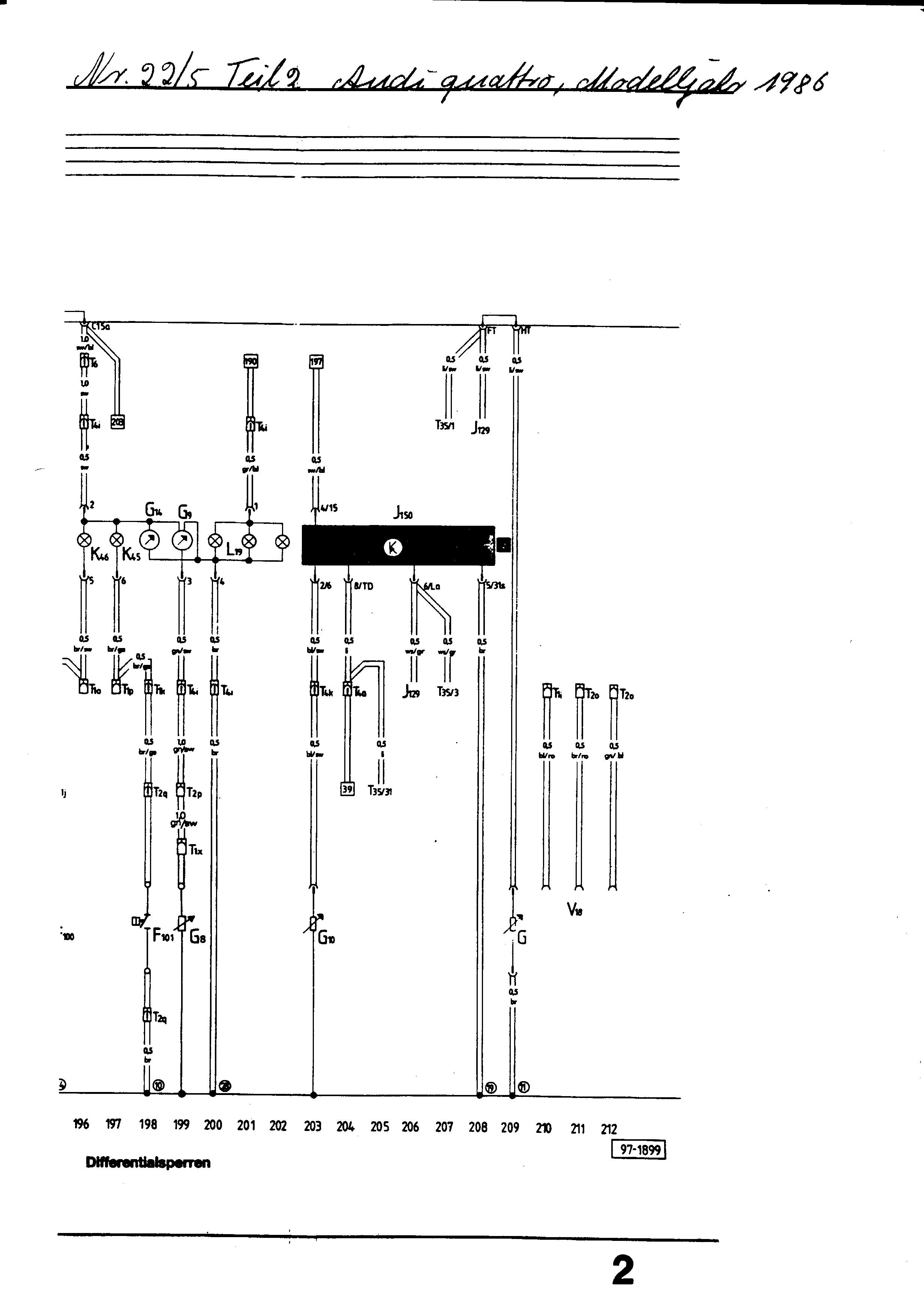

• Tracks 197-212 Differential locks, oil pressure control

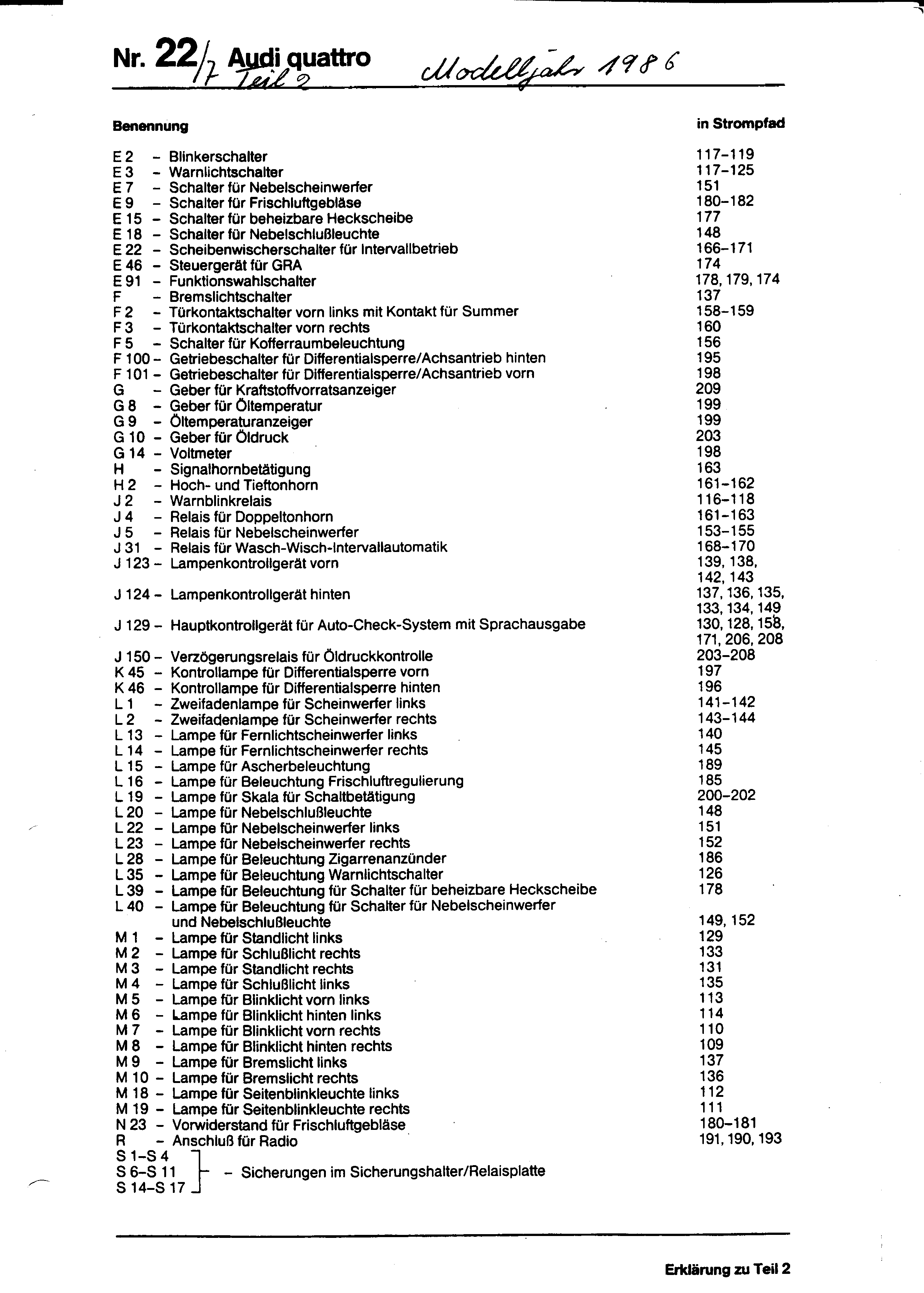

• Index to tracks 105-212

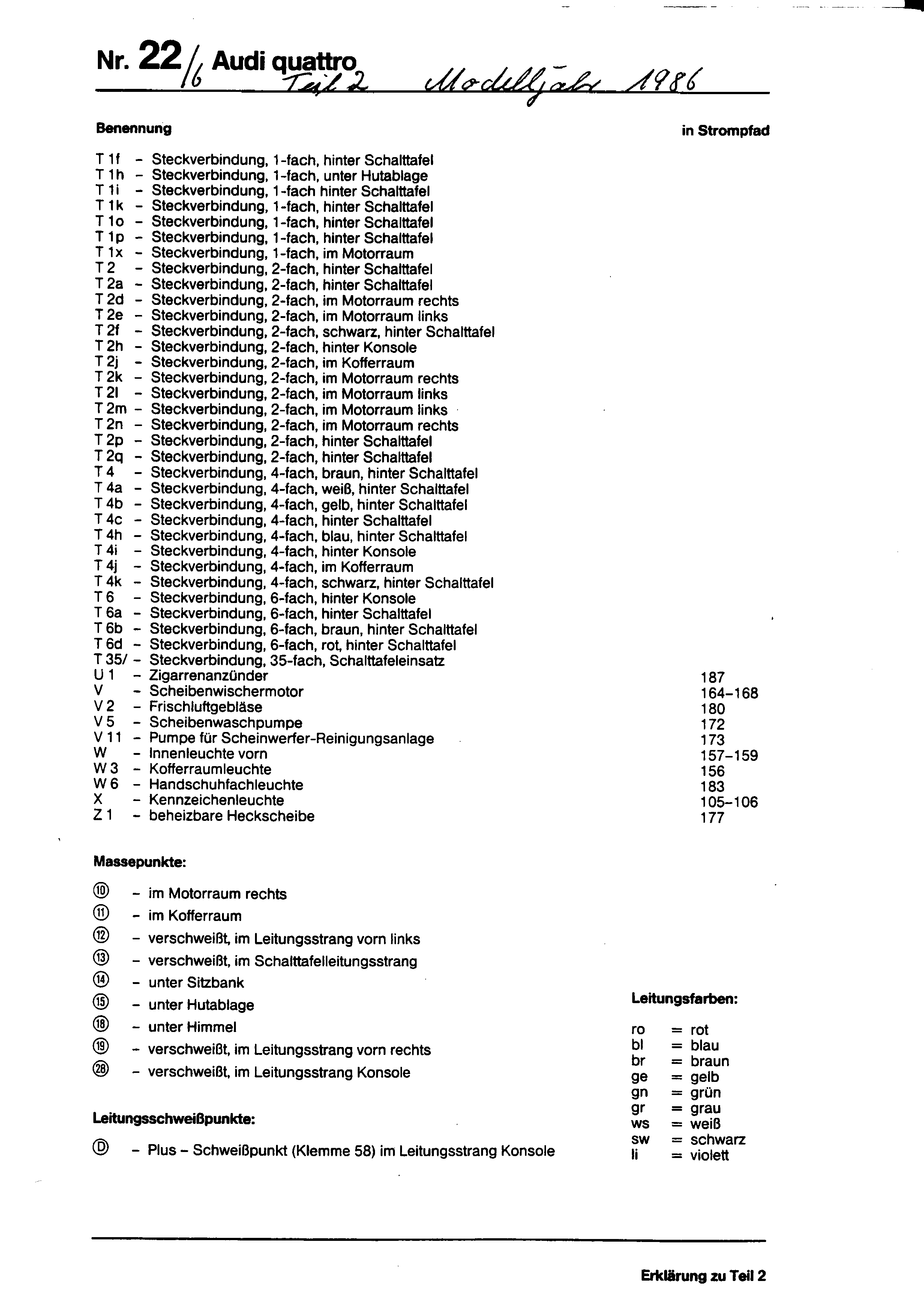

• Index to tracks 105-212 (contd.)

23 - Autocheck unit with speech synthesiser

• Notes and pinout

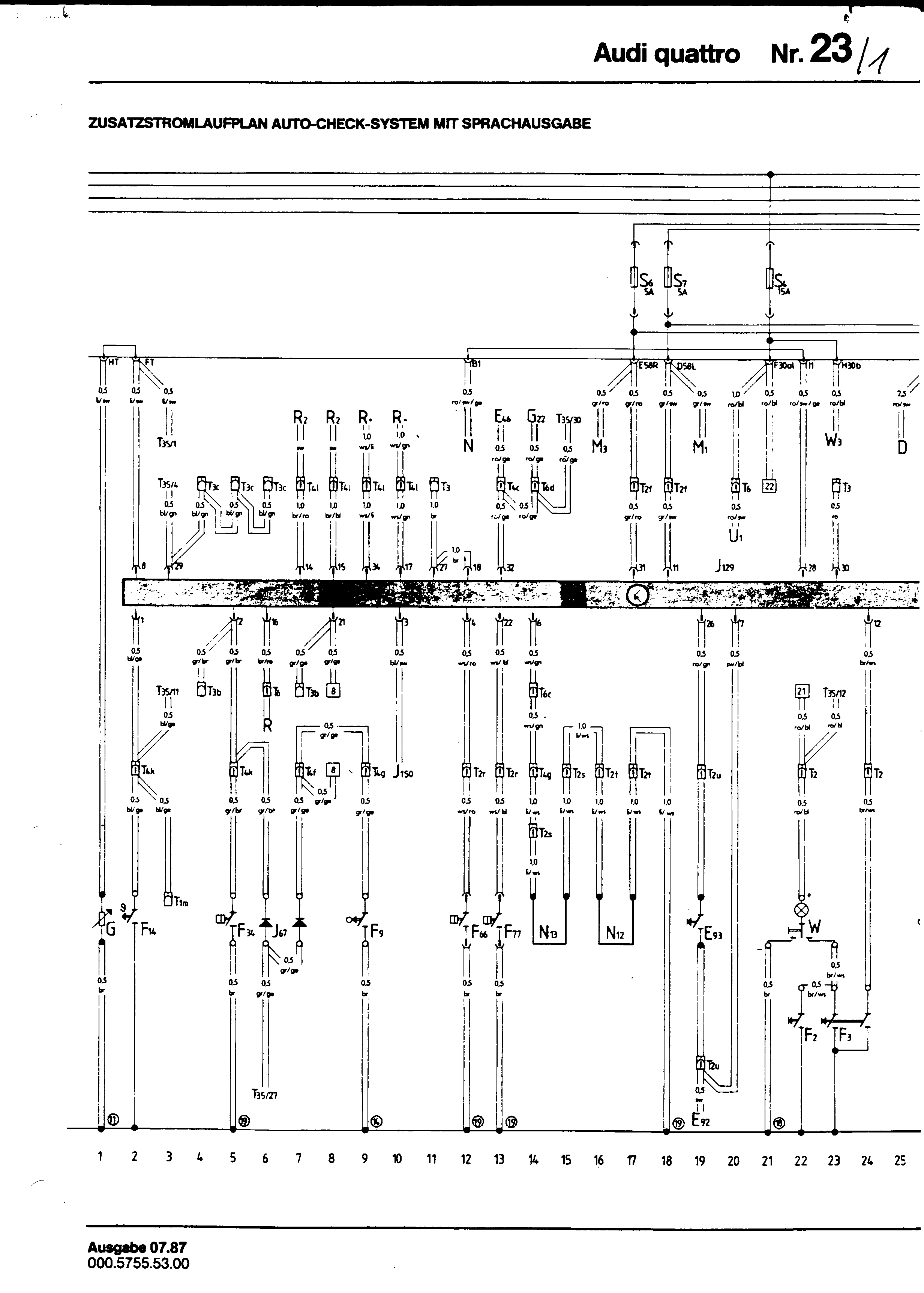

• Tracks 1-24

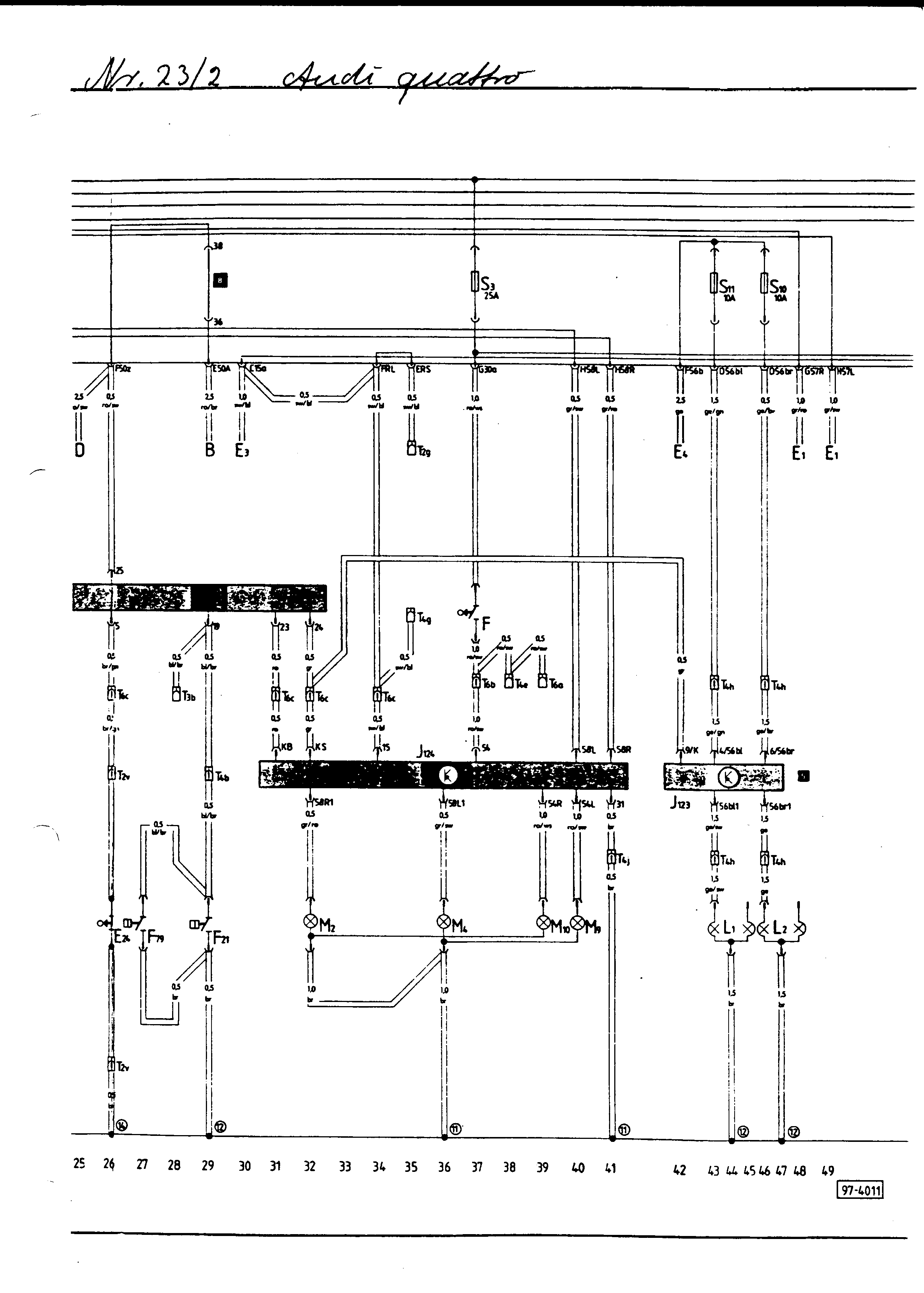

• Tracks 25-49

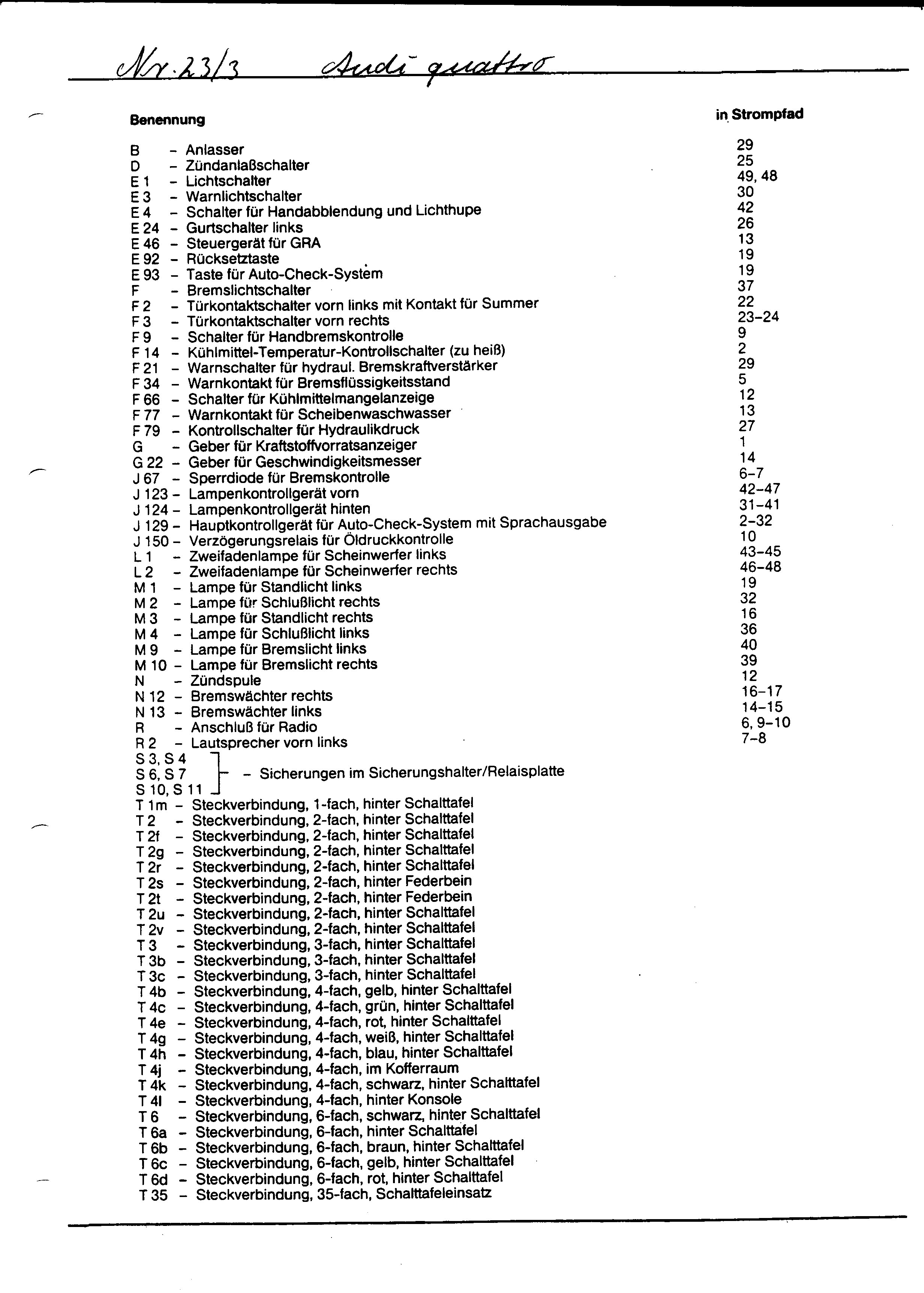

• Index

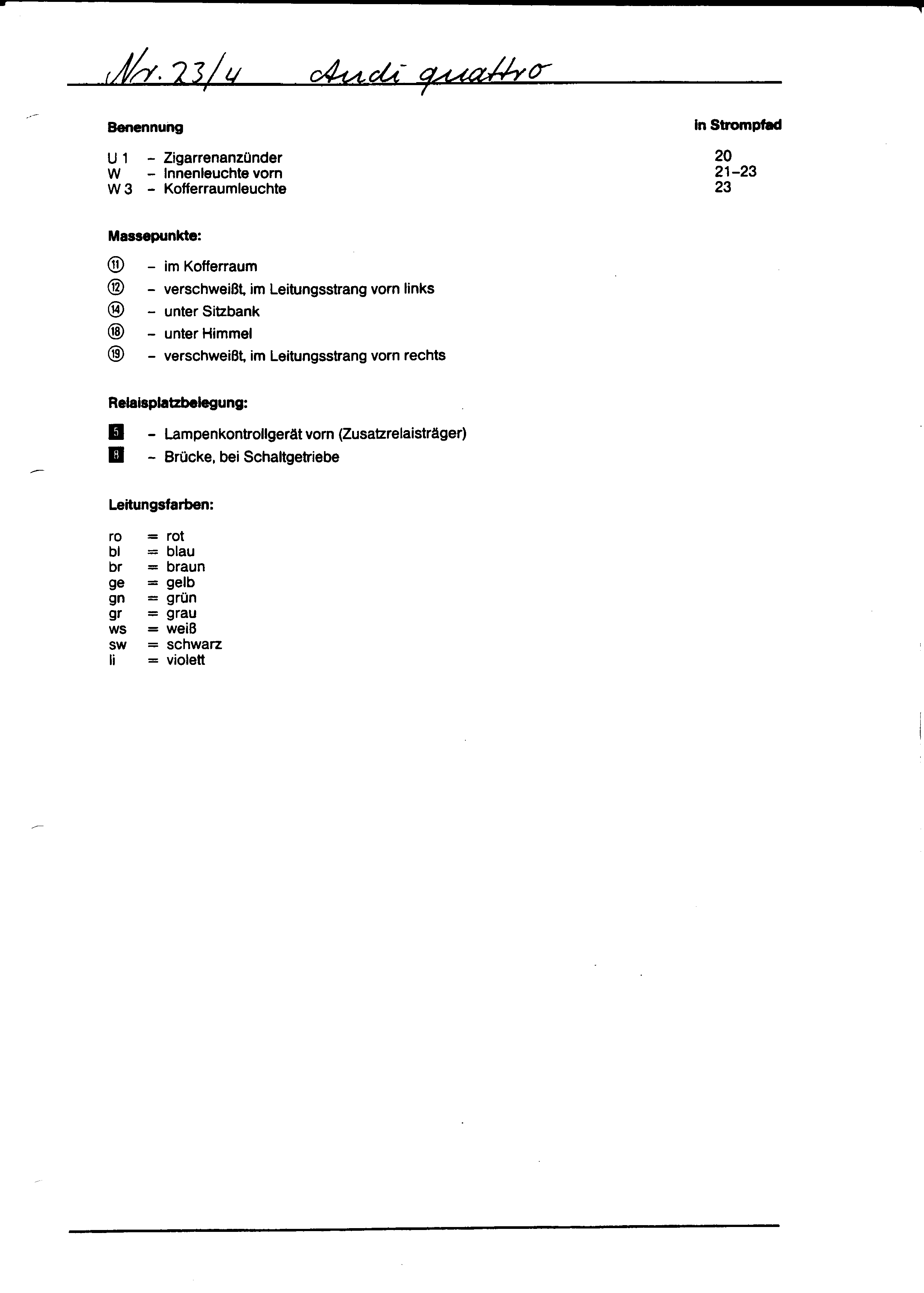

• Index (contd.)

24 - Electronic dashboard

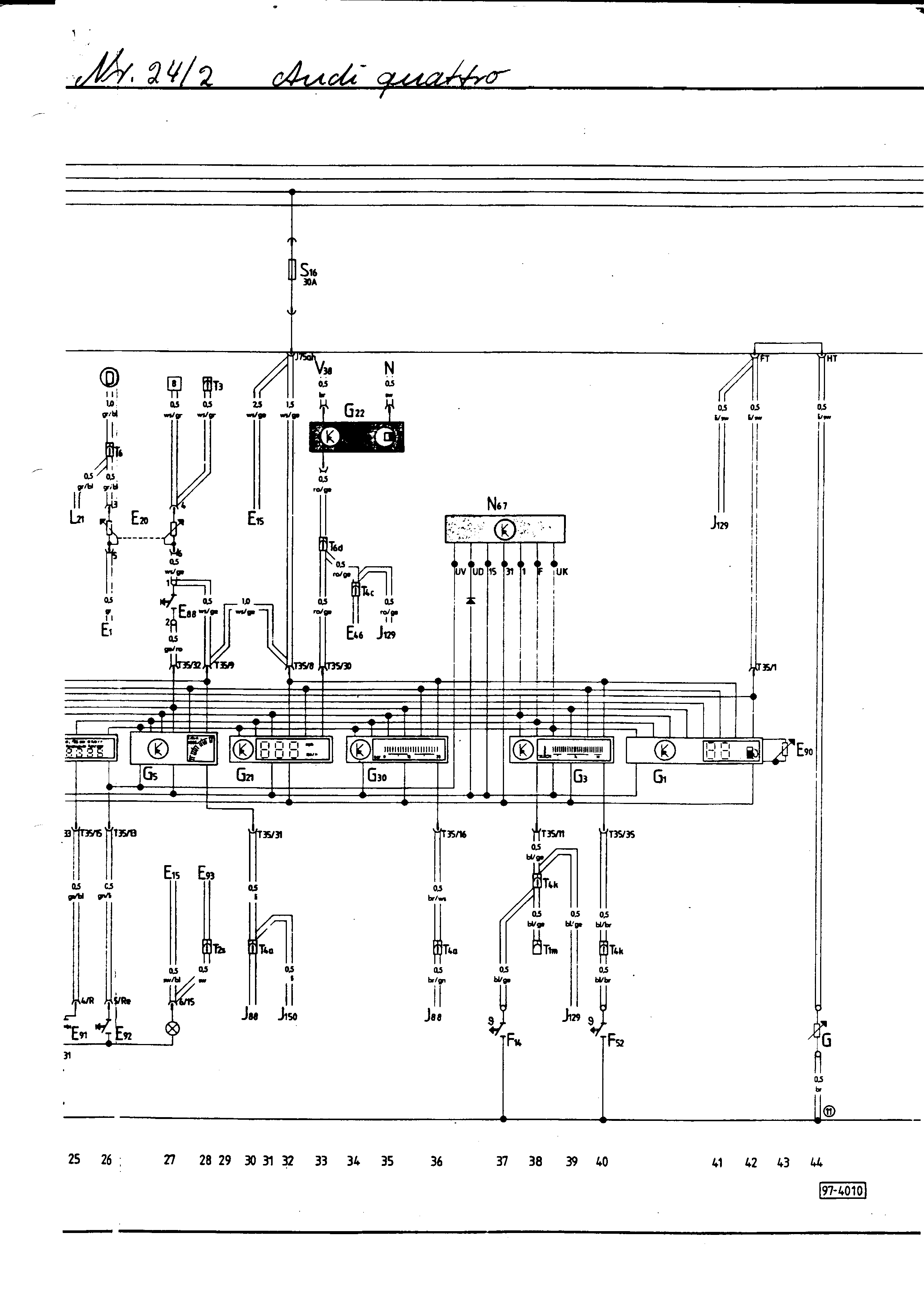

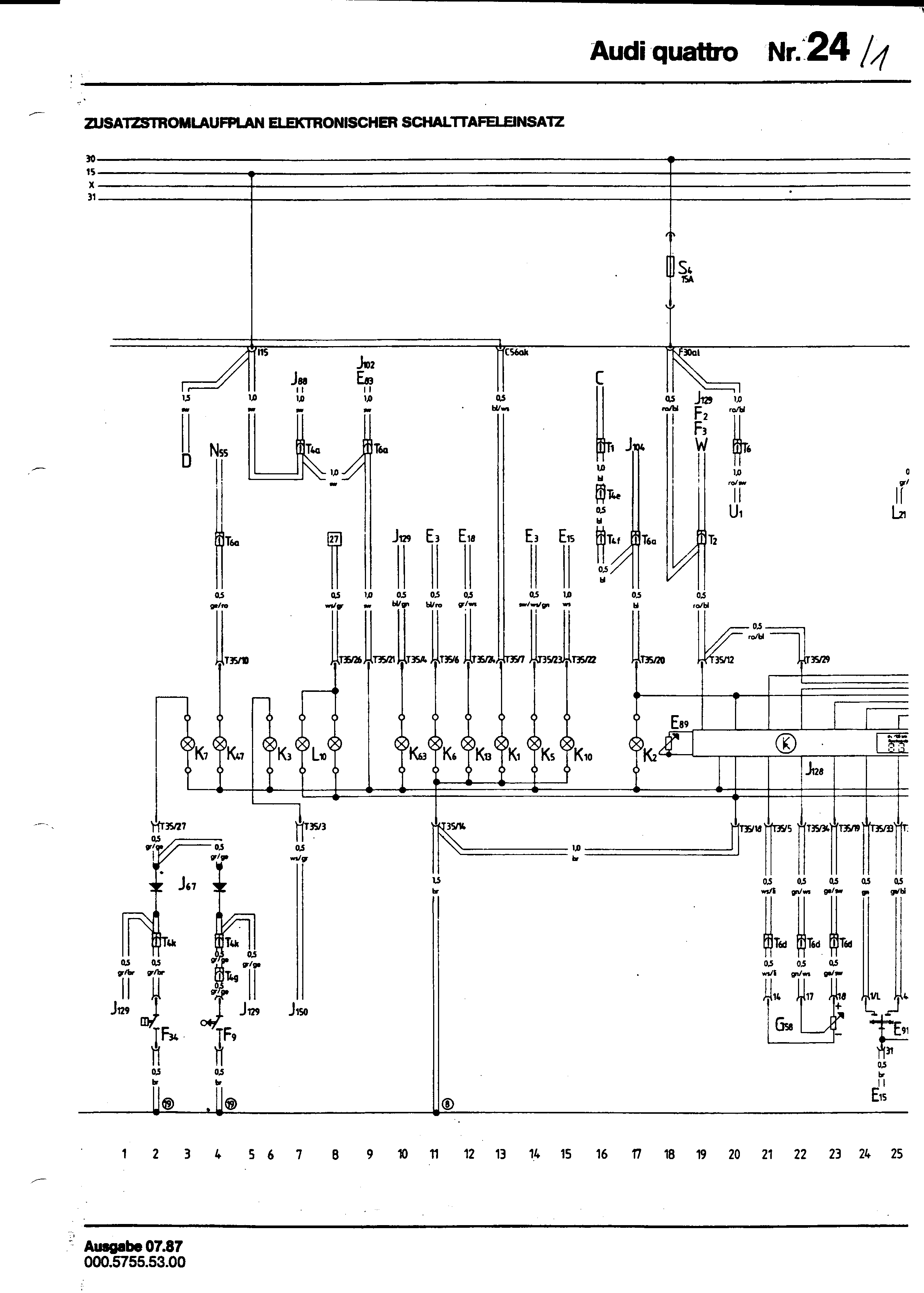

• Tracks 1-24
• Tracks 25-44

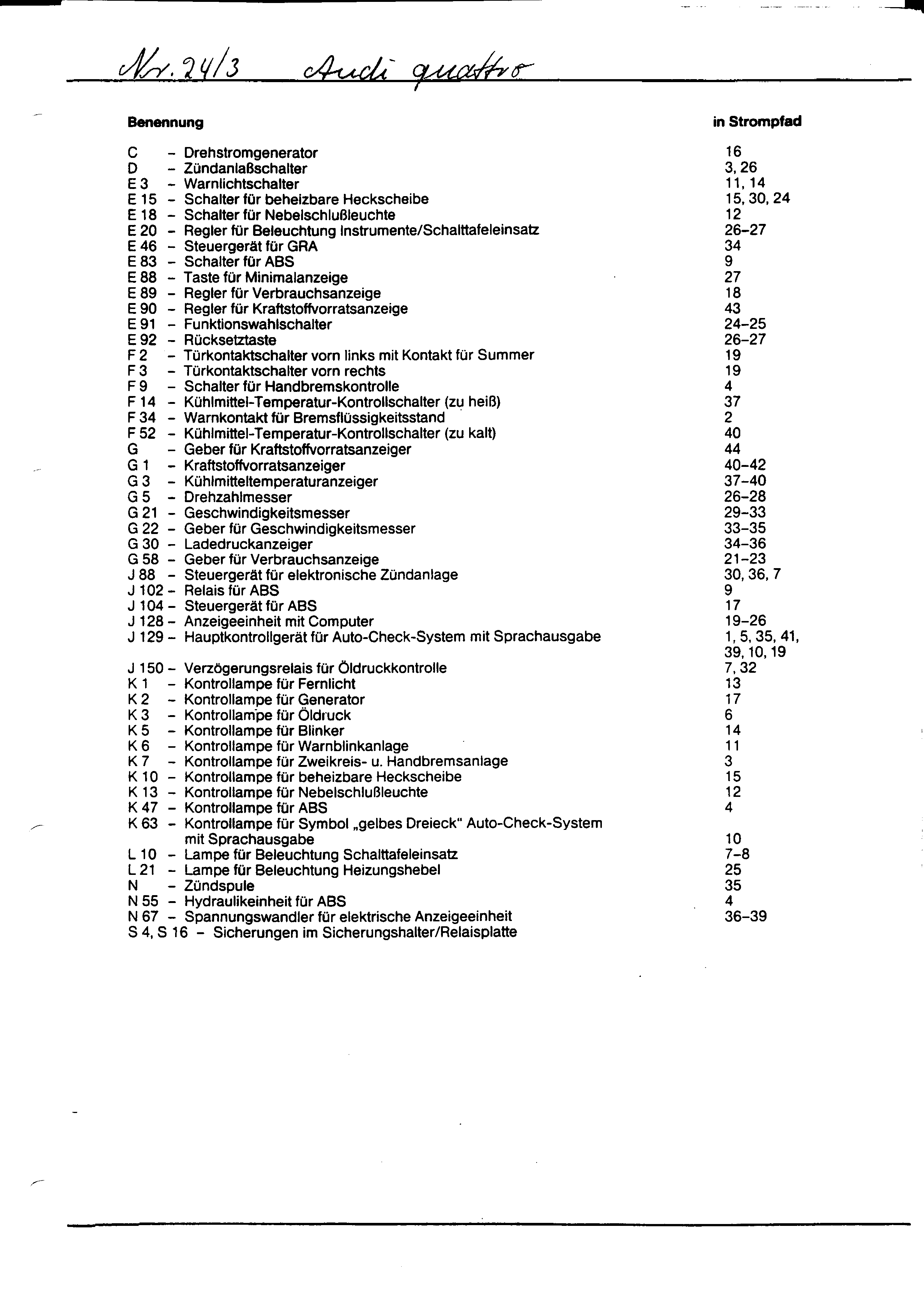

• Index

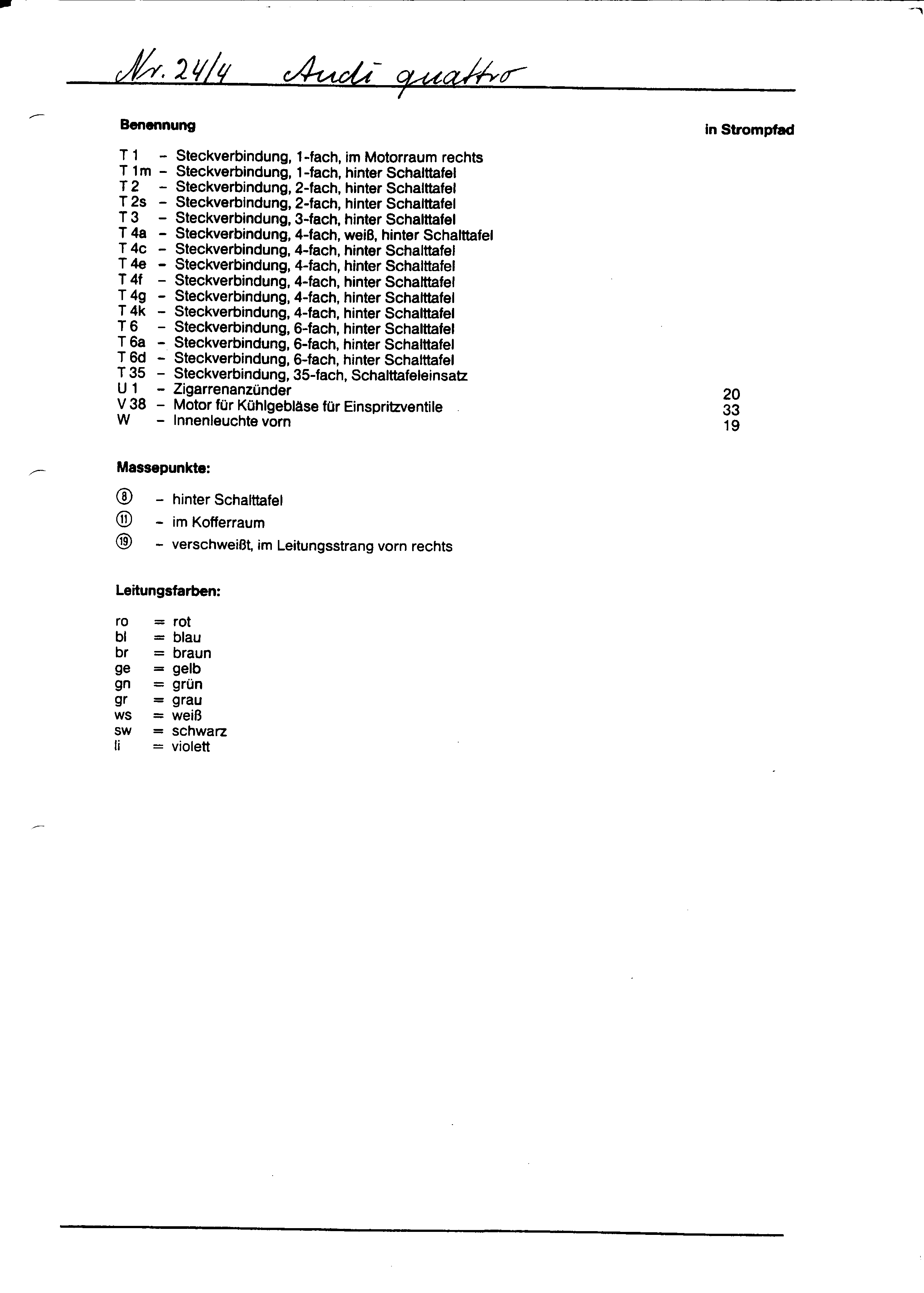

• Index (contd.)

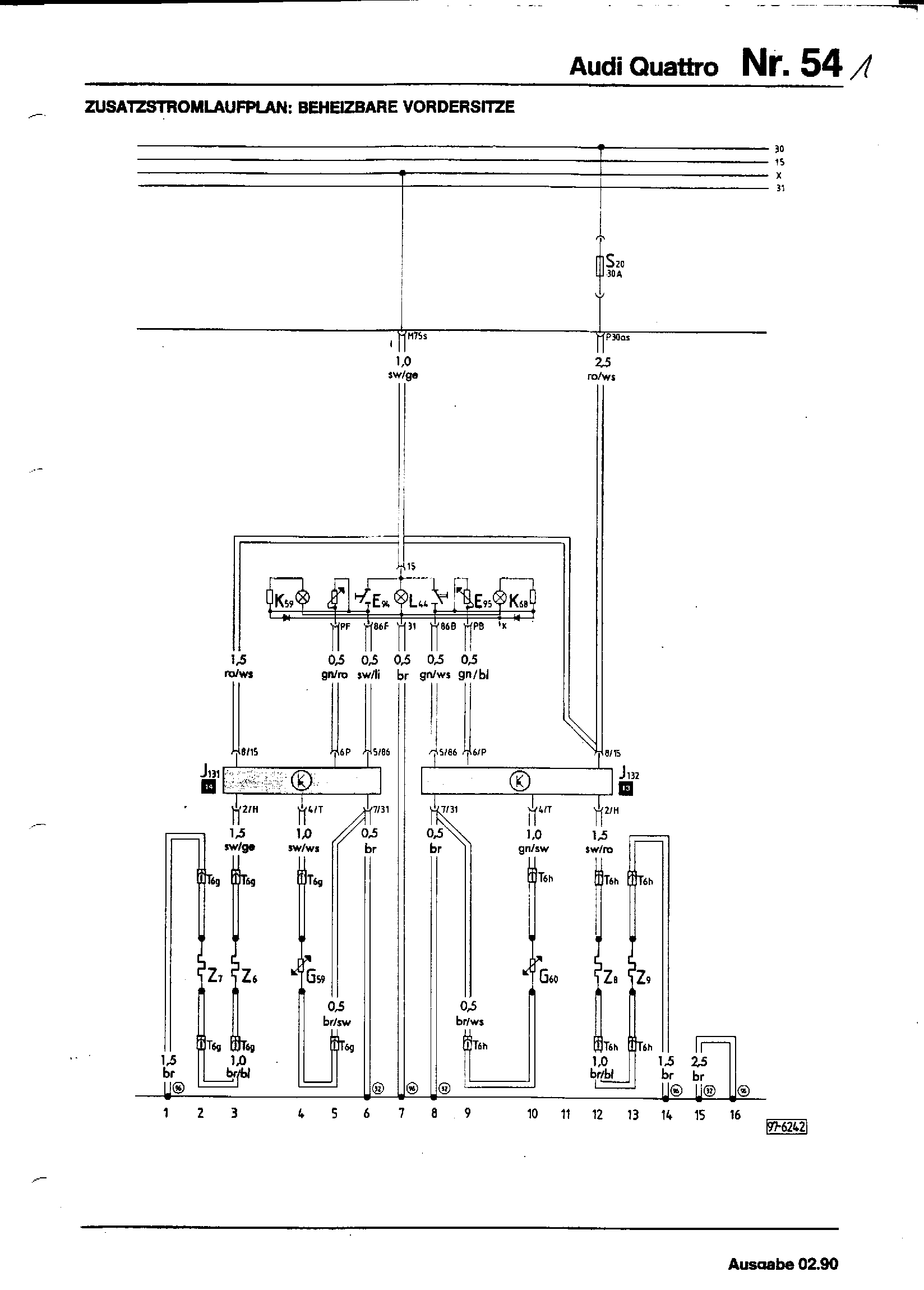

25 - Heated seats - for diagnostics and repair see main site

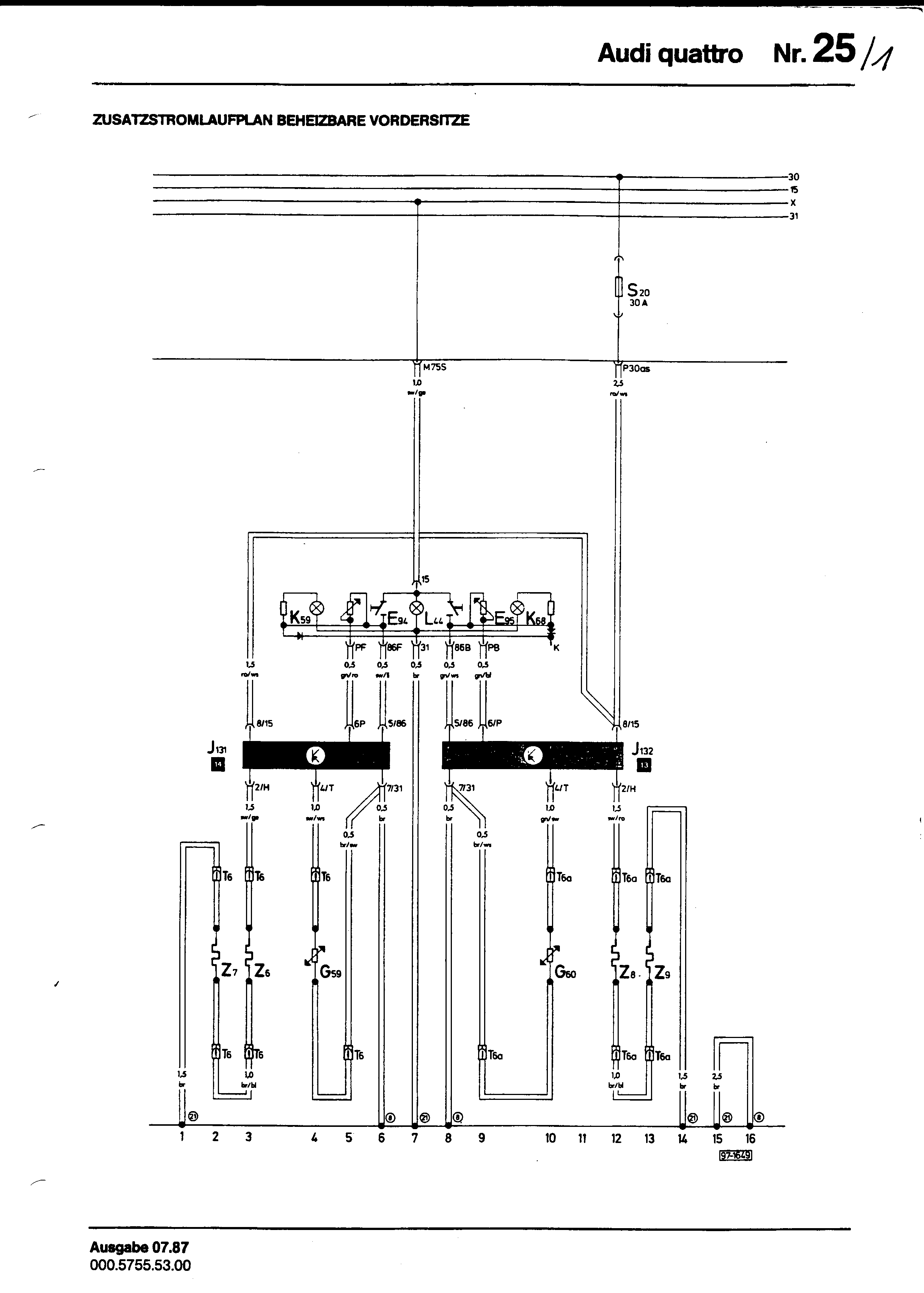

• Tracks 1-16

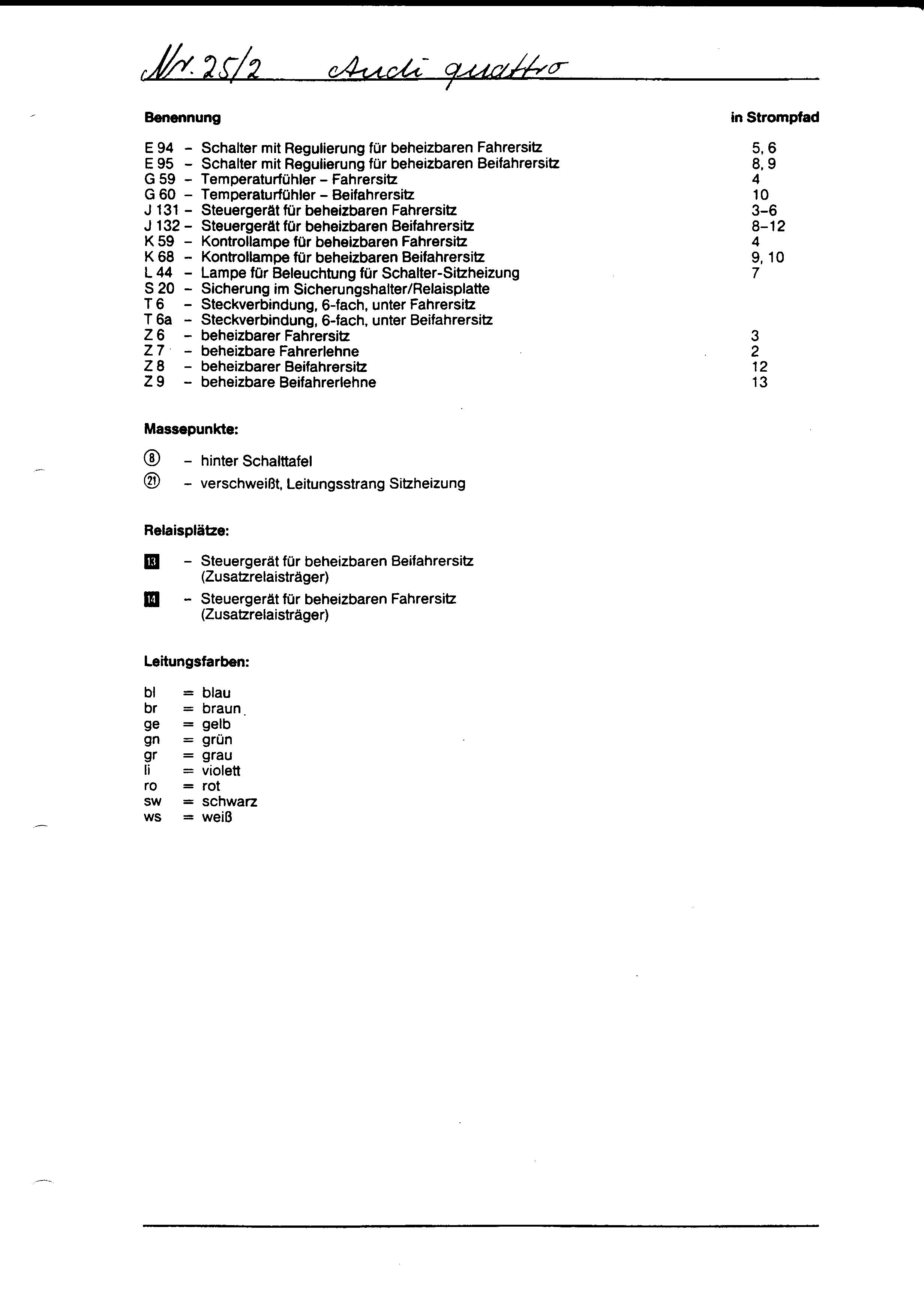

• Index

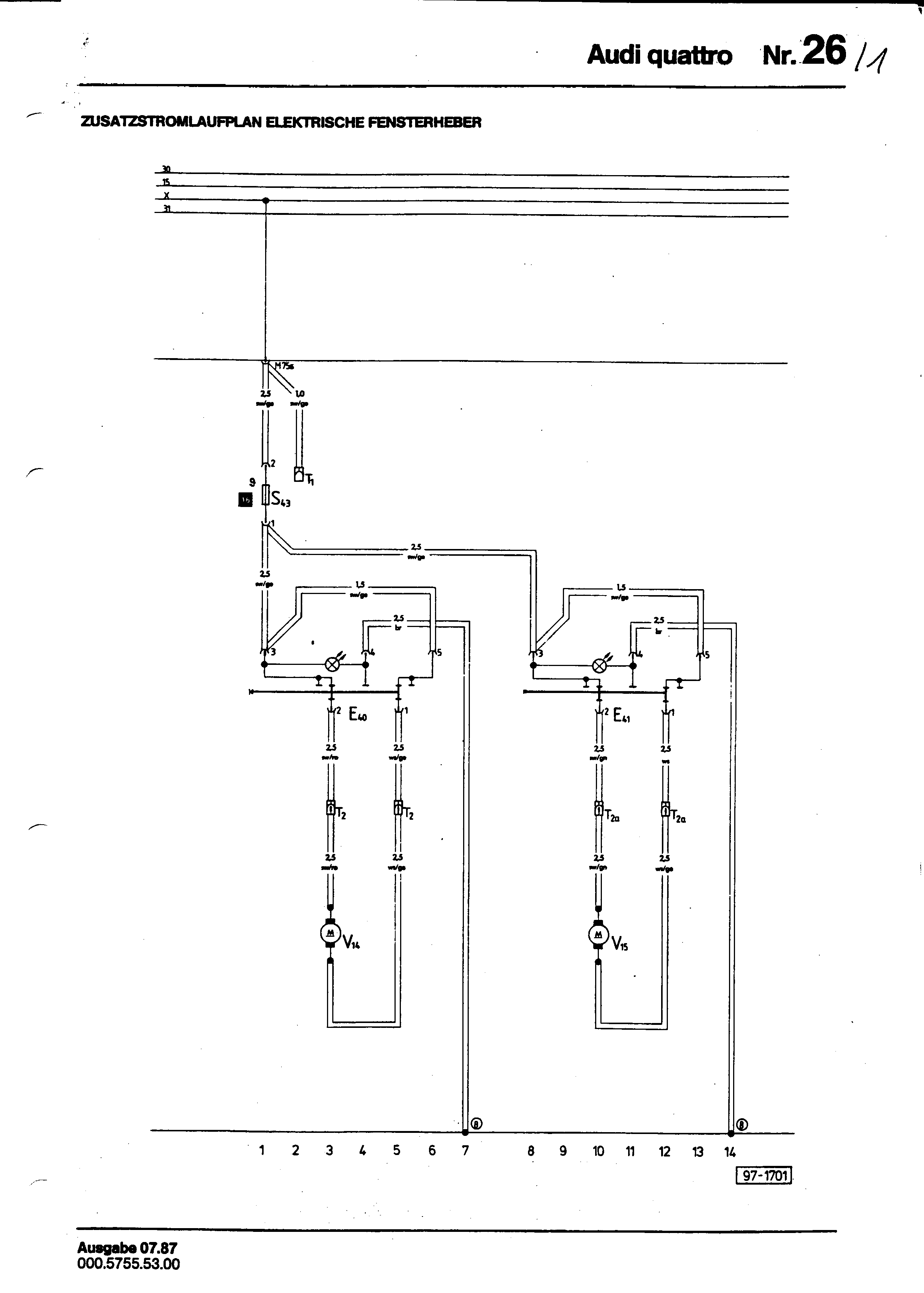

26 - Electric windows

• Tracks 1-14

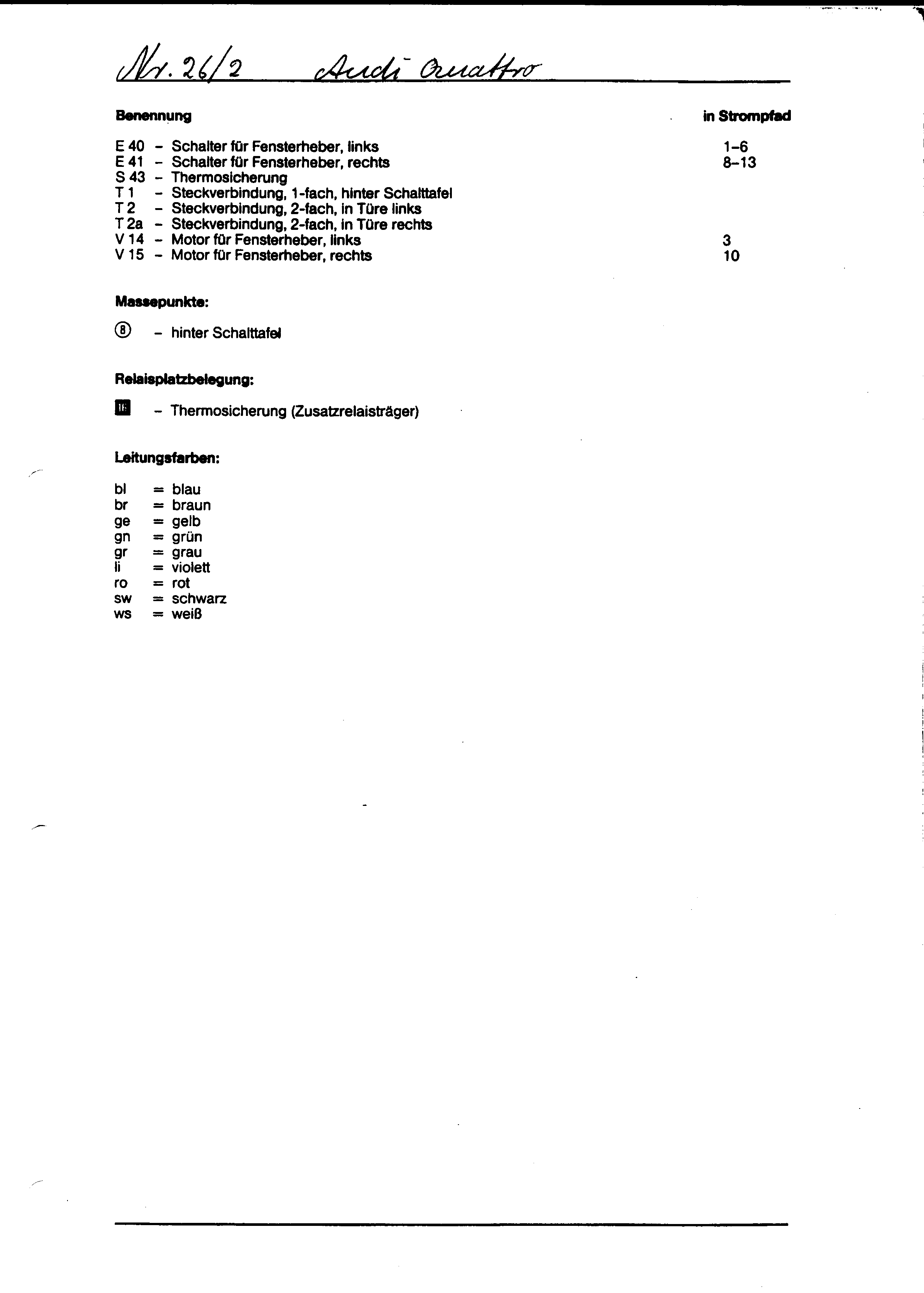

• Index

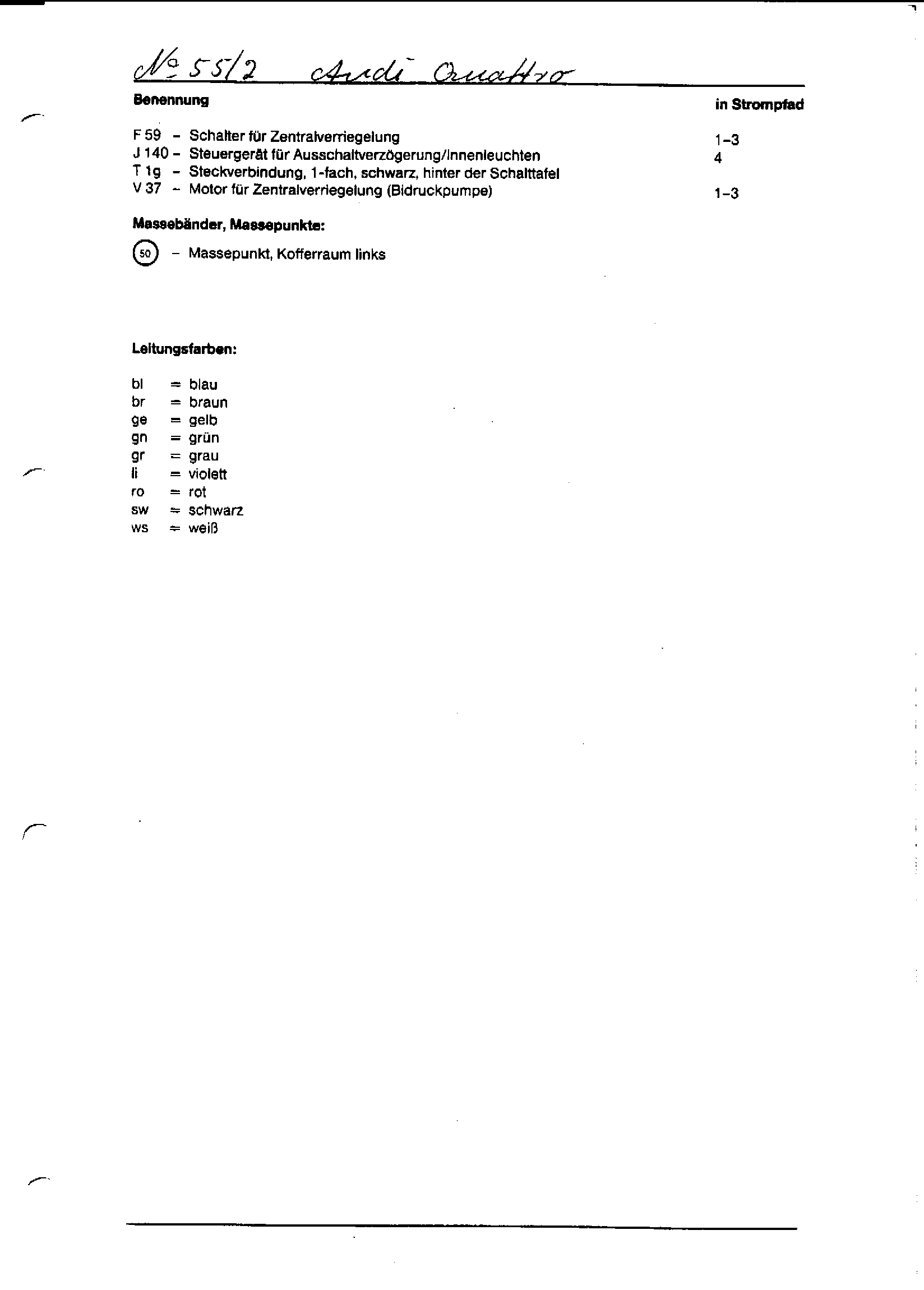

27 - Central locking

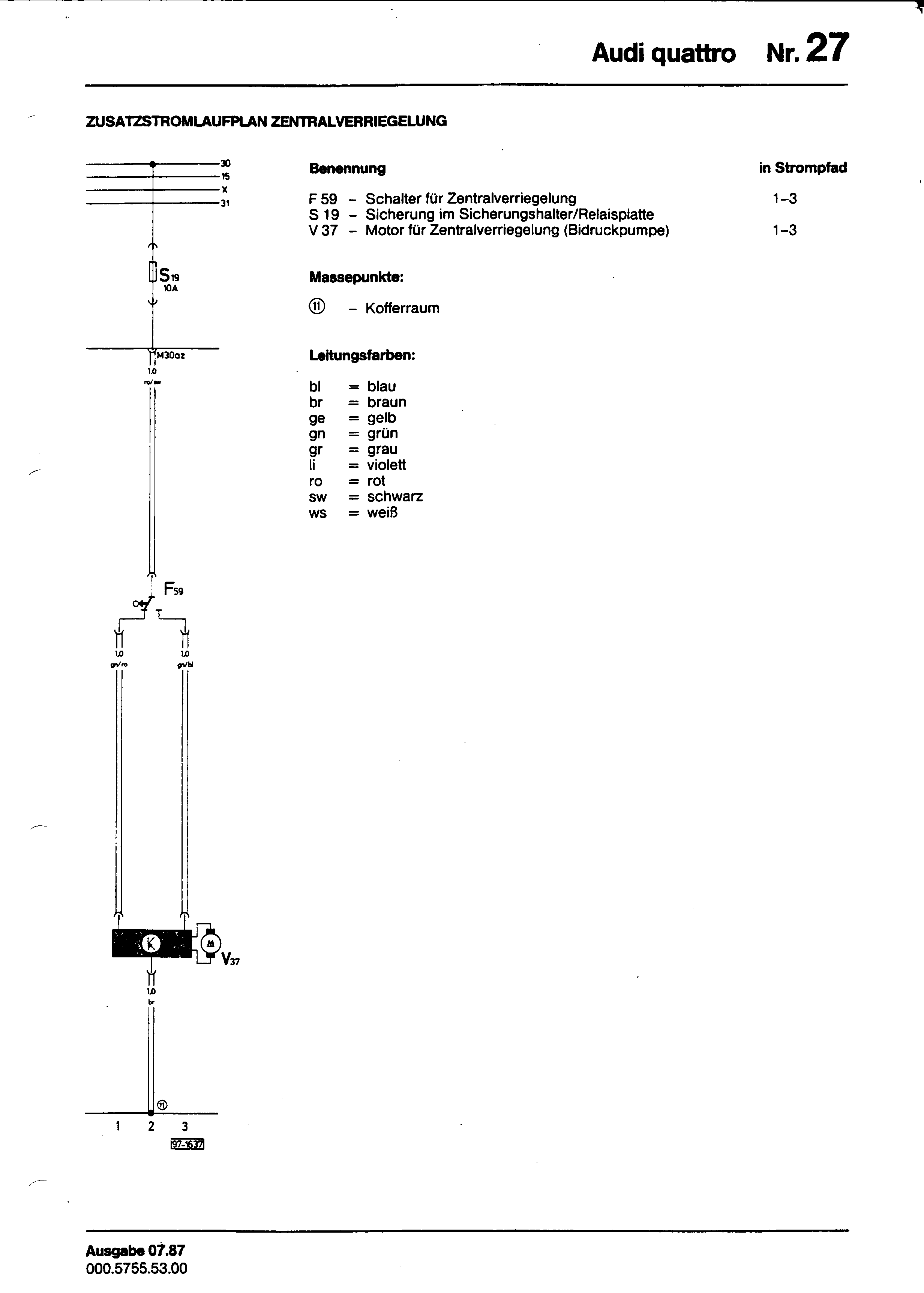

• Tracks 1-3 and index

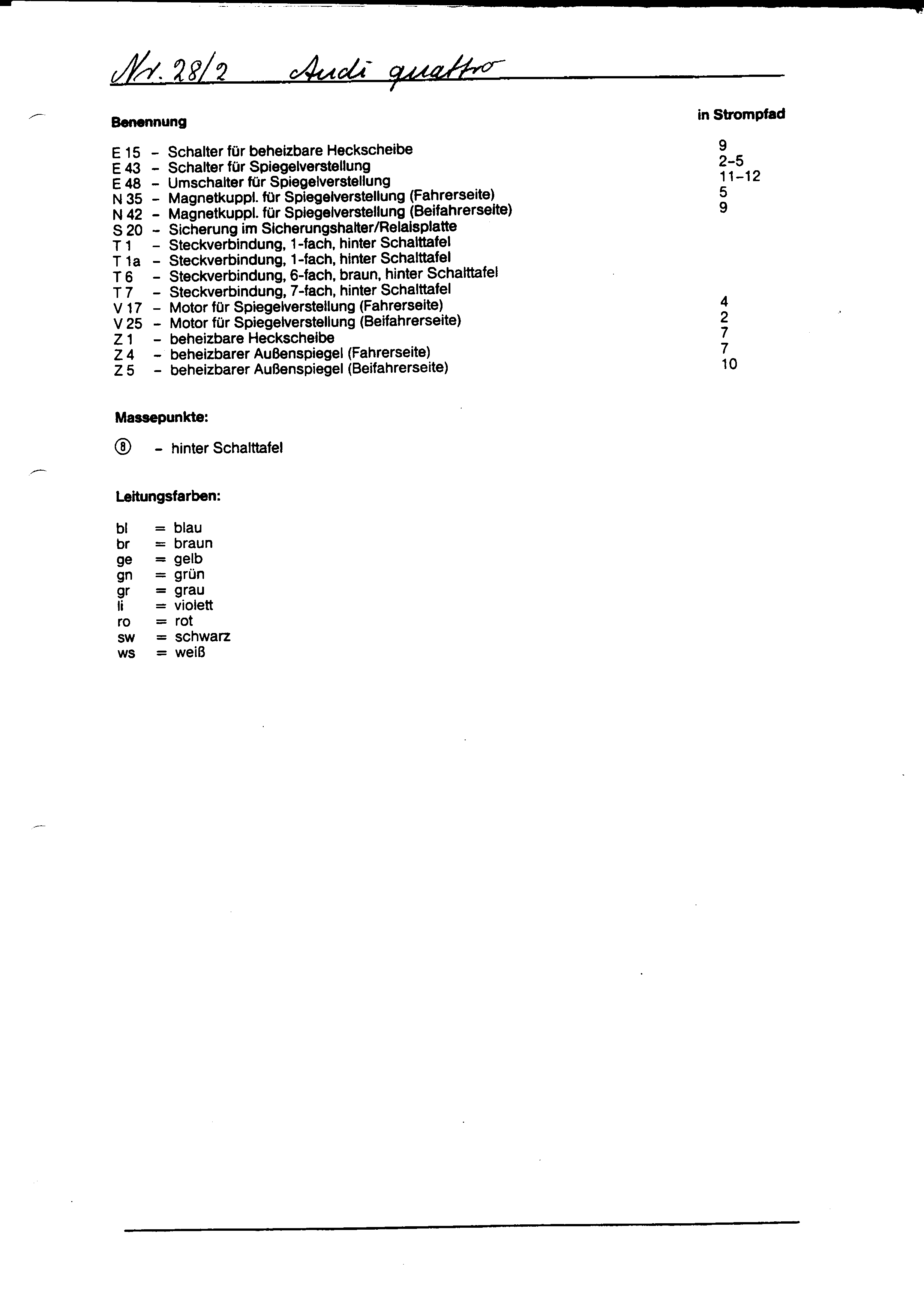

28 - Electrically operated and heated mirrors

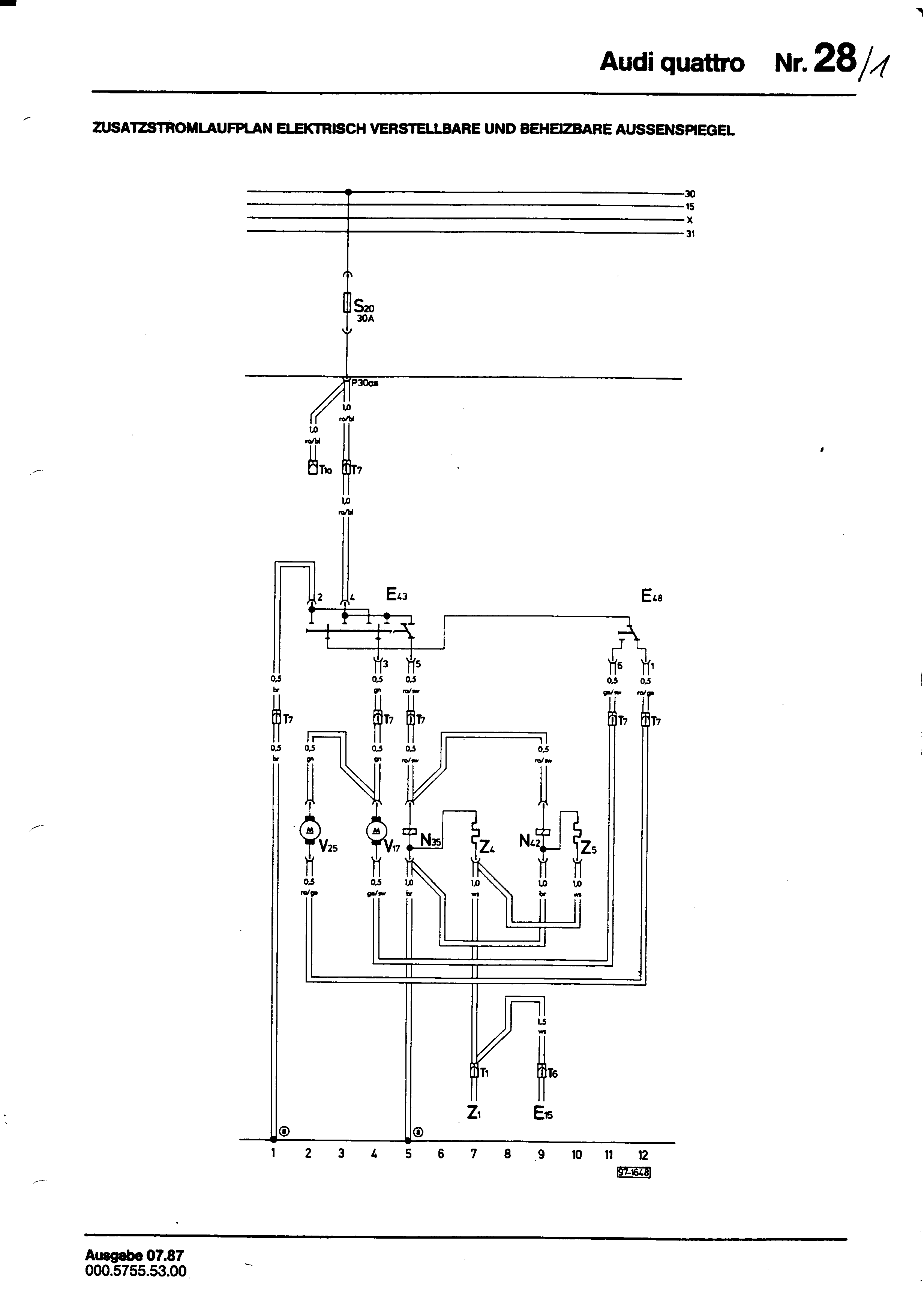

• Tracks 1-12
• Index

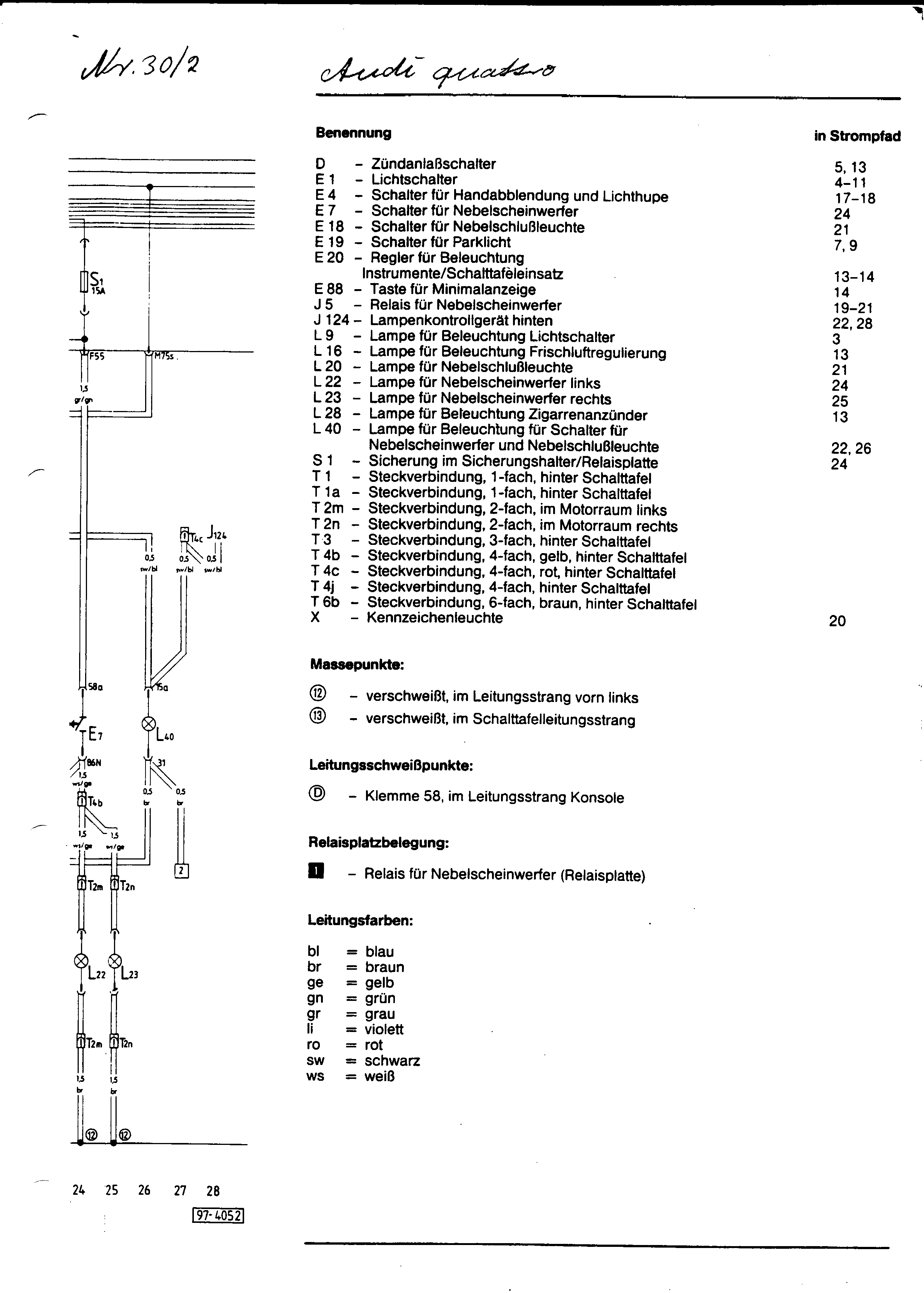

29 - Front and rear fog lights (not Switzerland)

• Tracks 1-23
• Tracks 24-28 and index

30 - Front and rear fog lights (Switzerland)

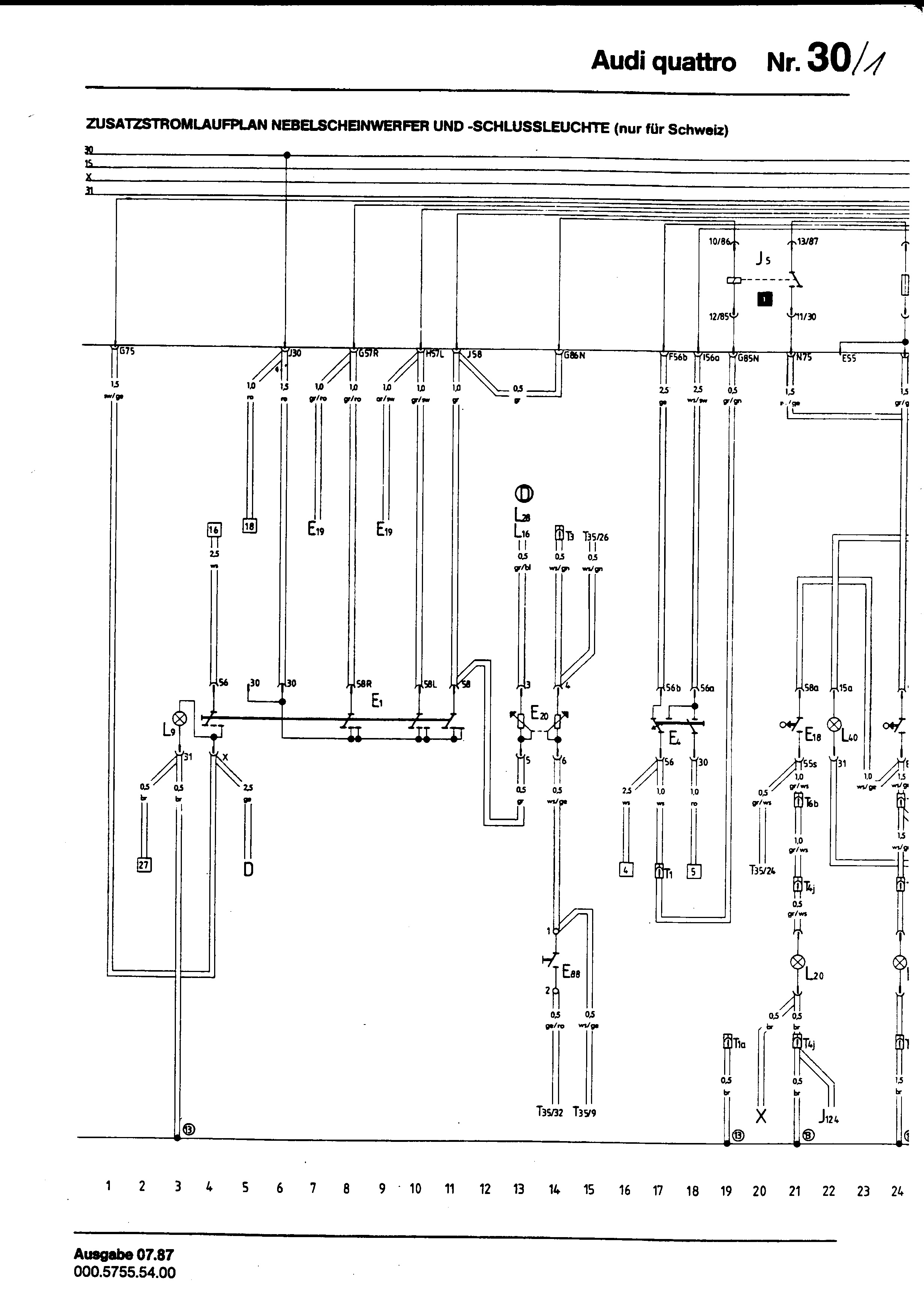

• Tracks 1-23
• Tracks 24-28 and index

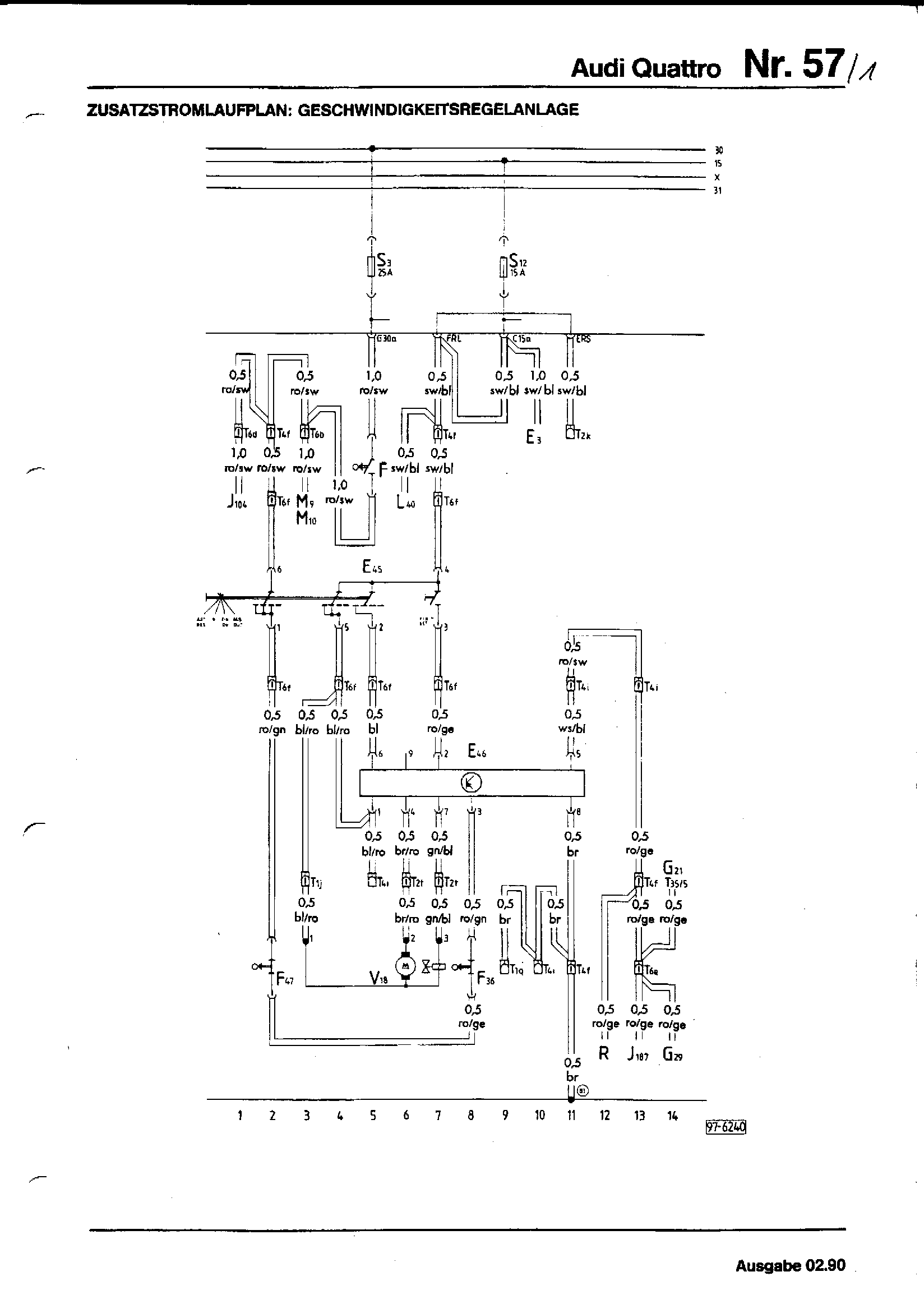

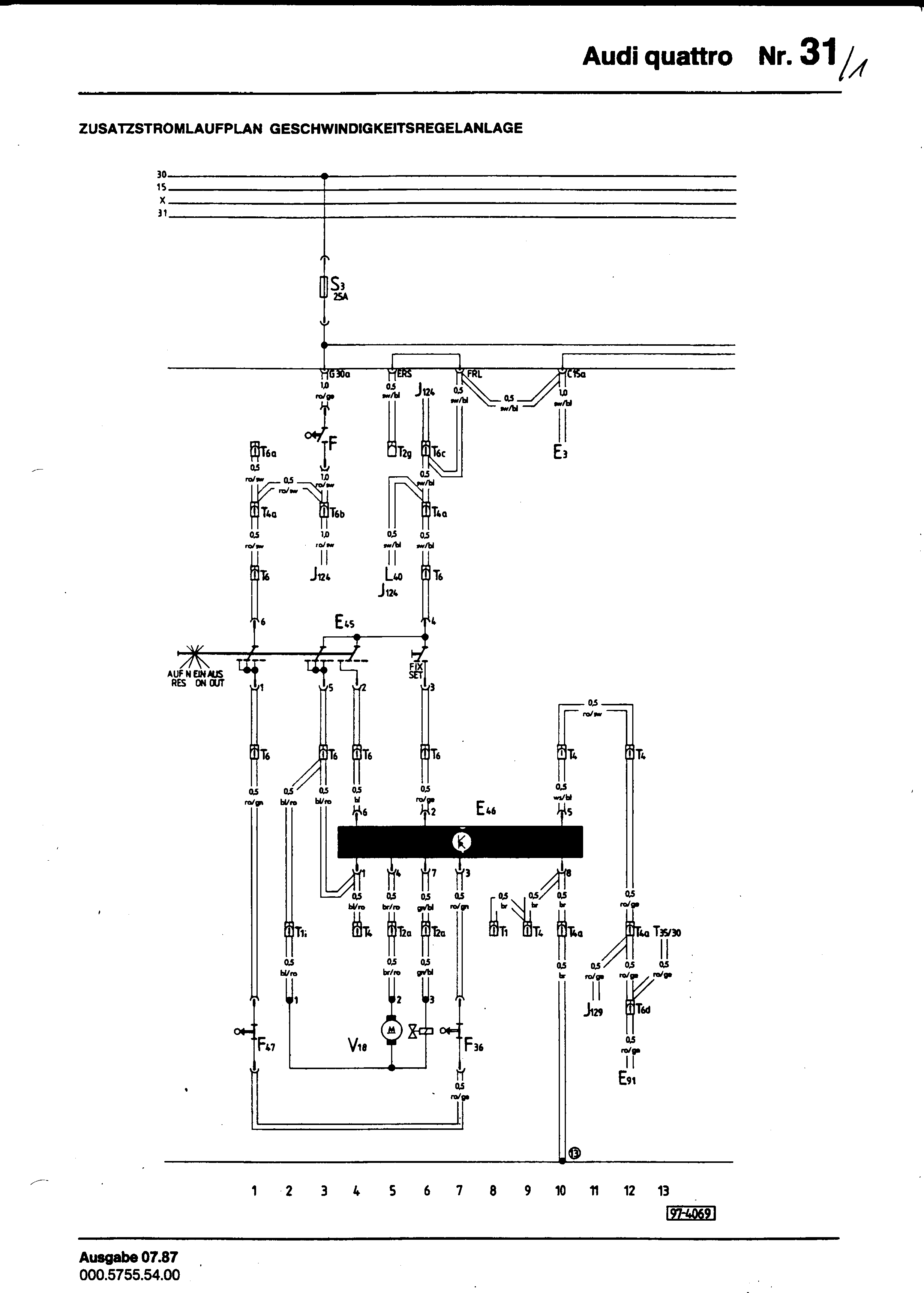

31 - Cruise control

• Tracks 1-13

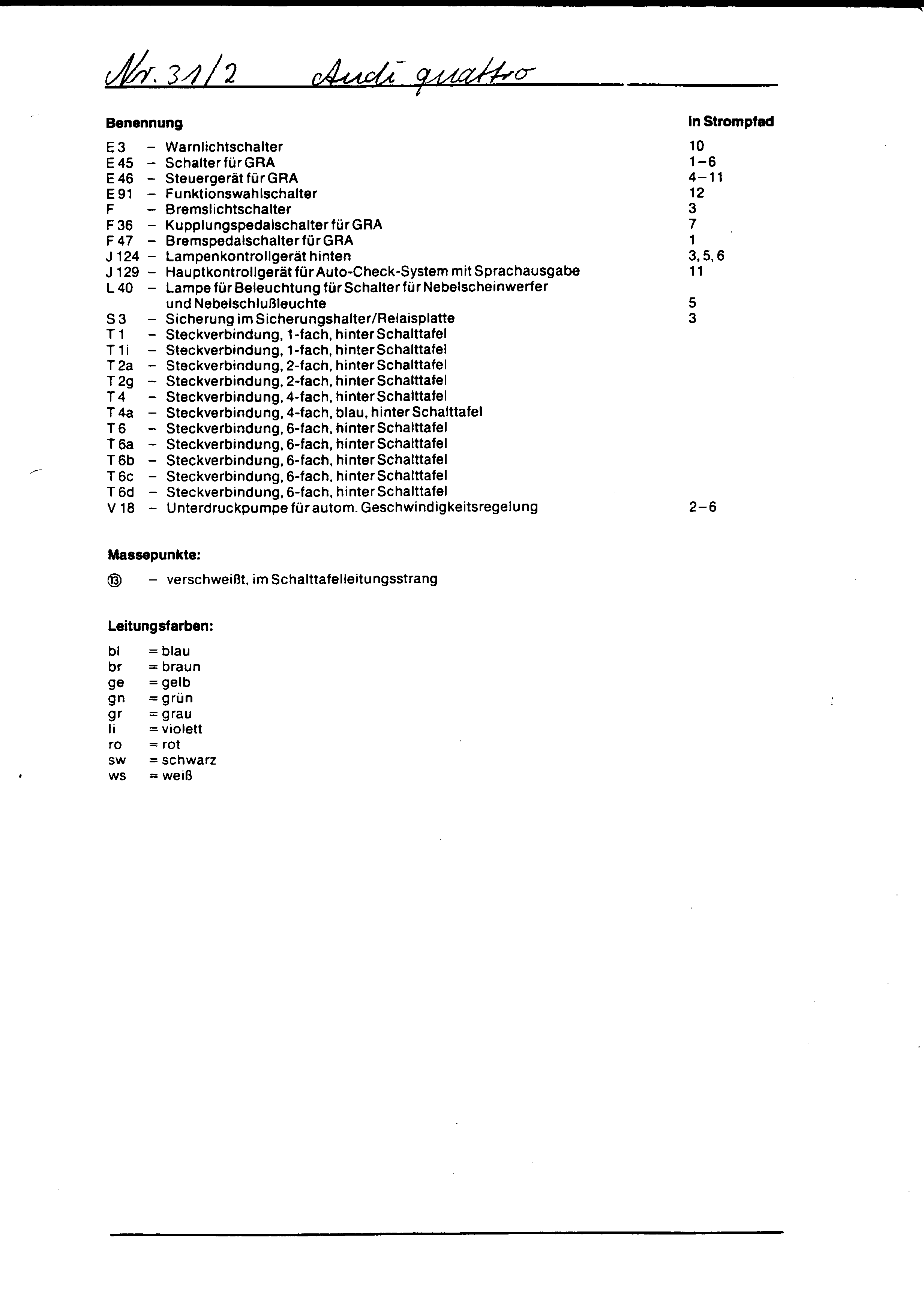

• Index

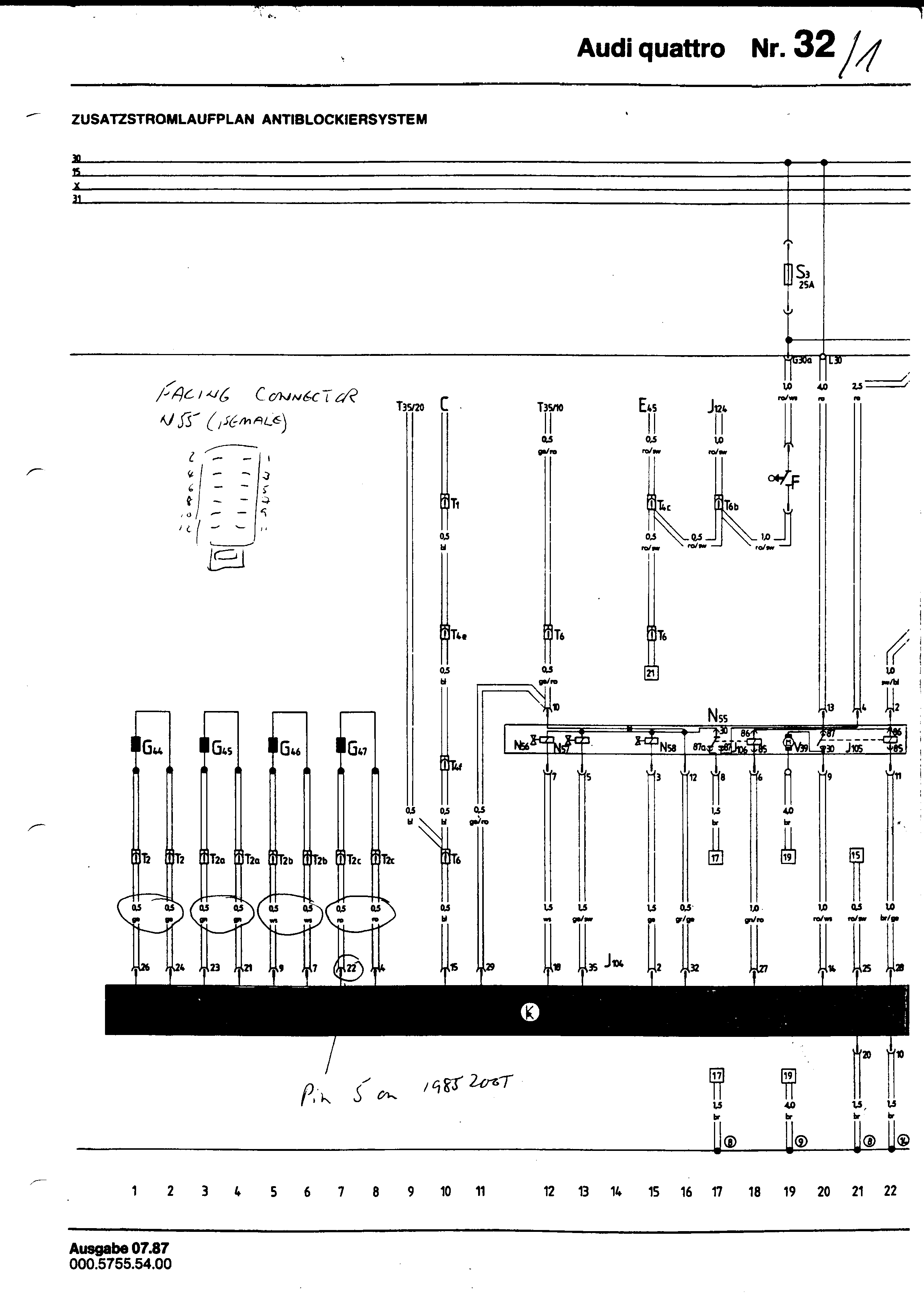

32 - ABS

• Notes and pinout
• Tracks 1-21
• Tracks 22-29

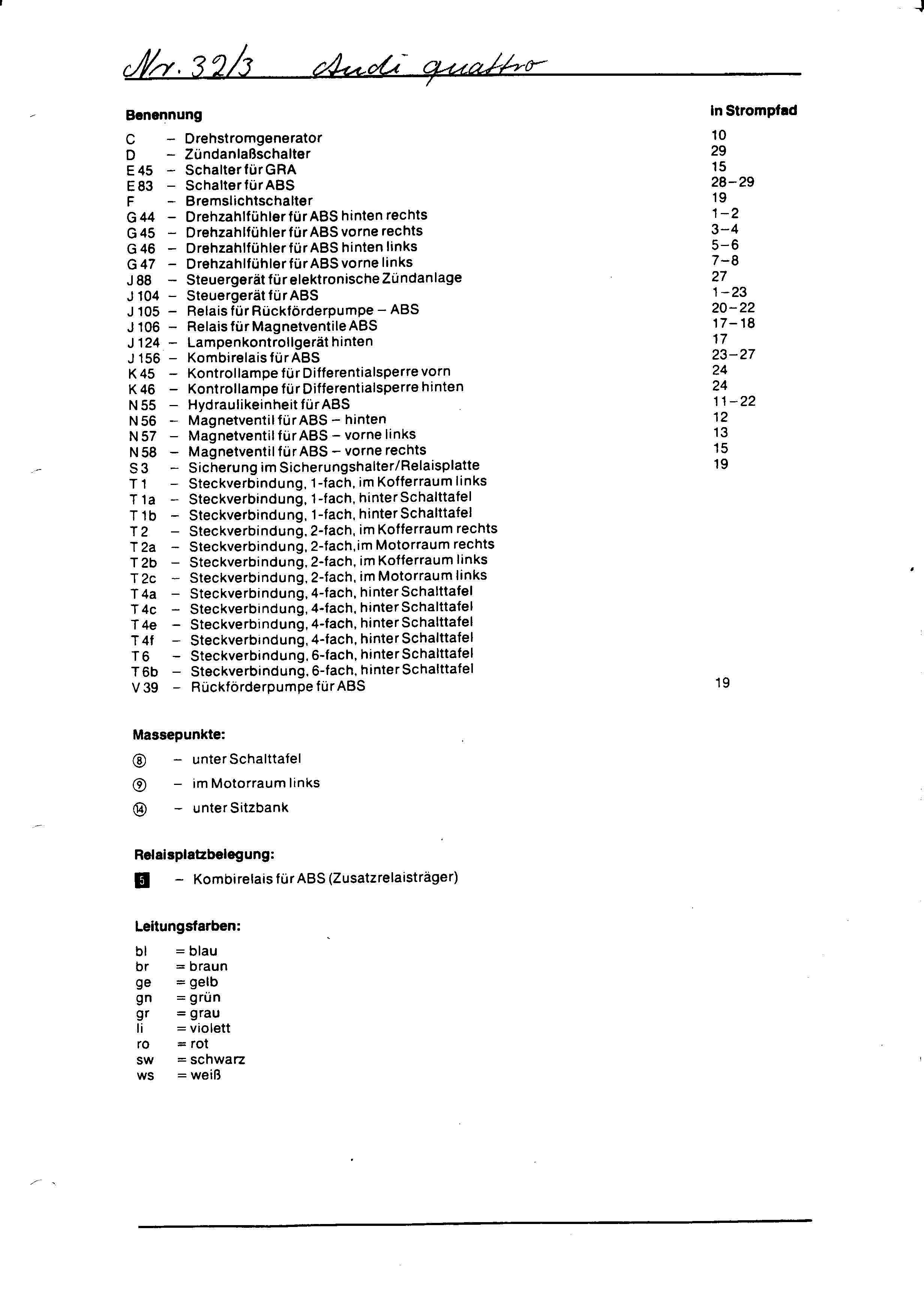

• Index

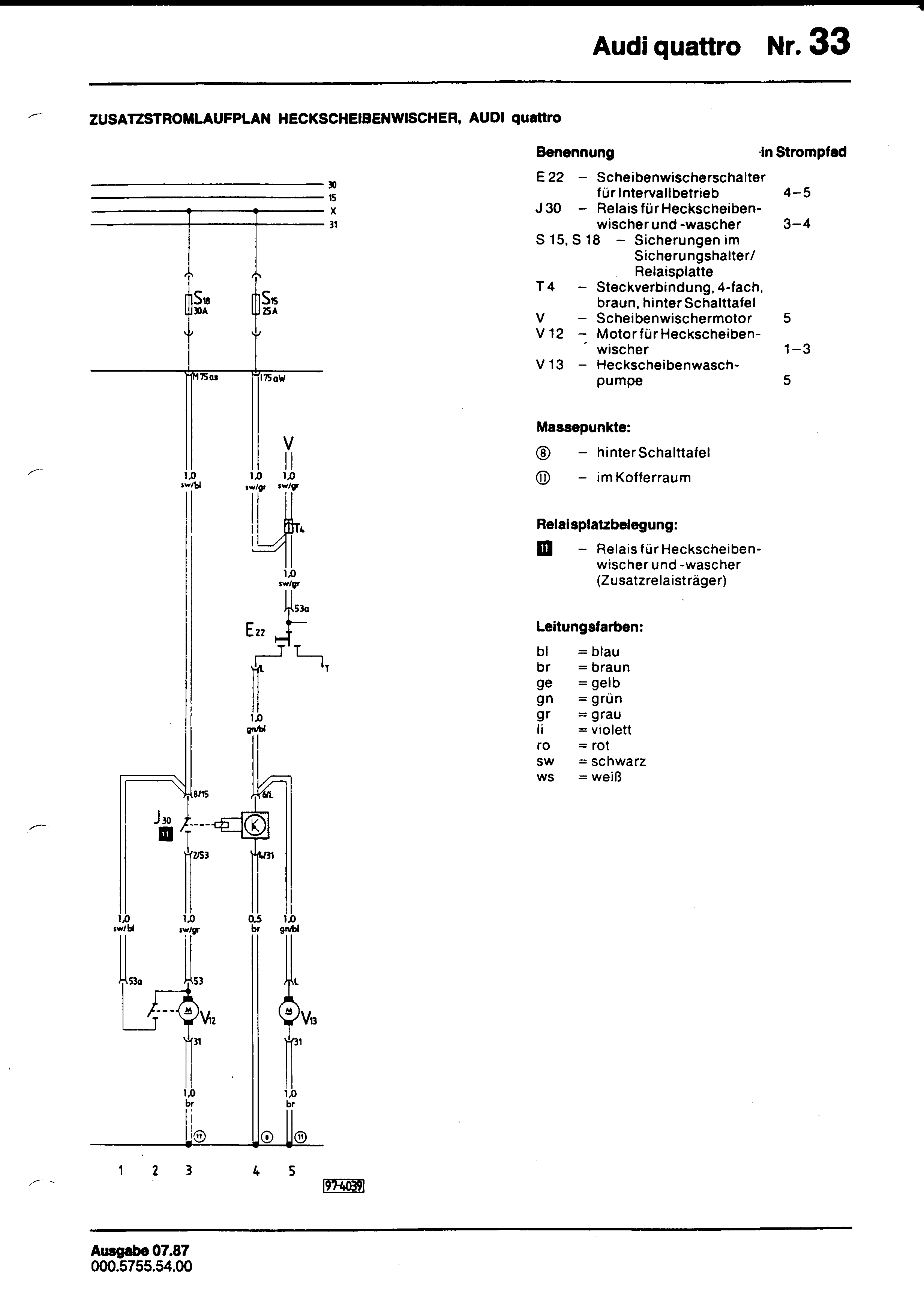

33 - Rear screen wiper

• Tracks 1-5 and index

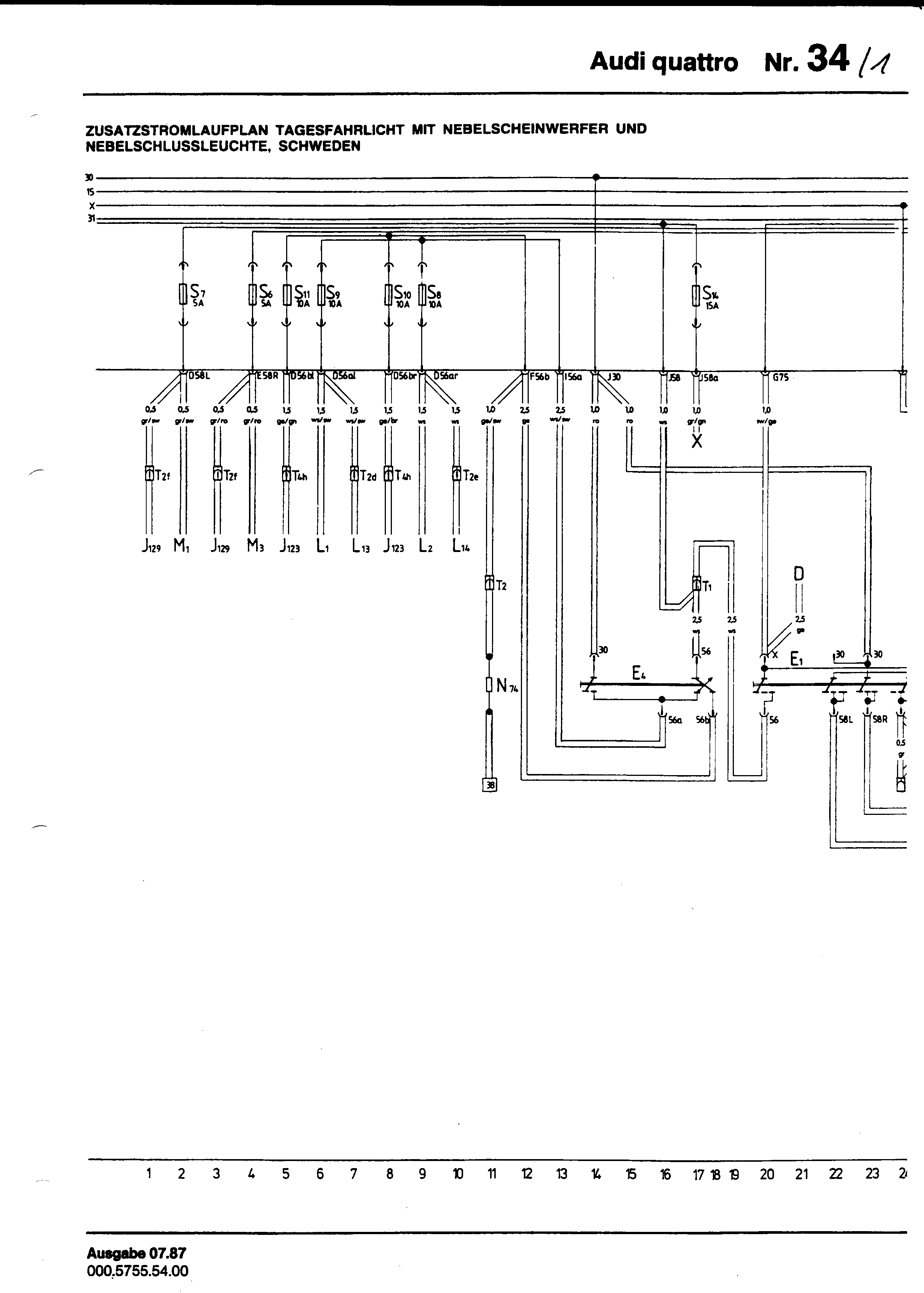

34 - Daytime driving lights and foglights - Sweden

• Tracks 1-23

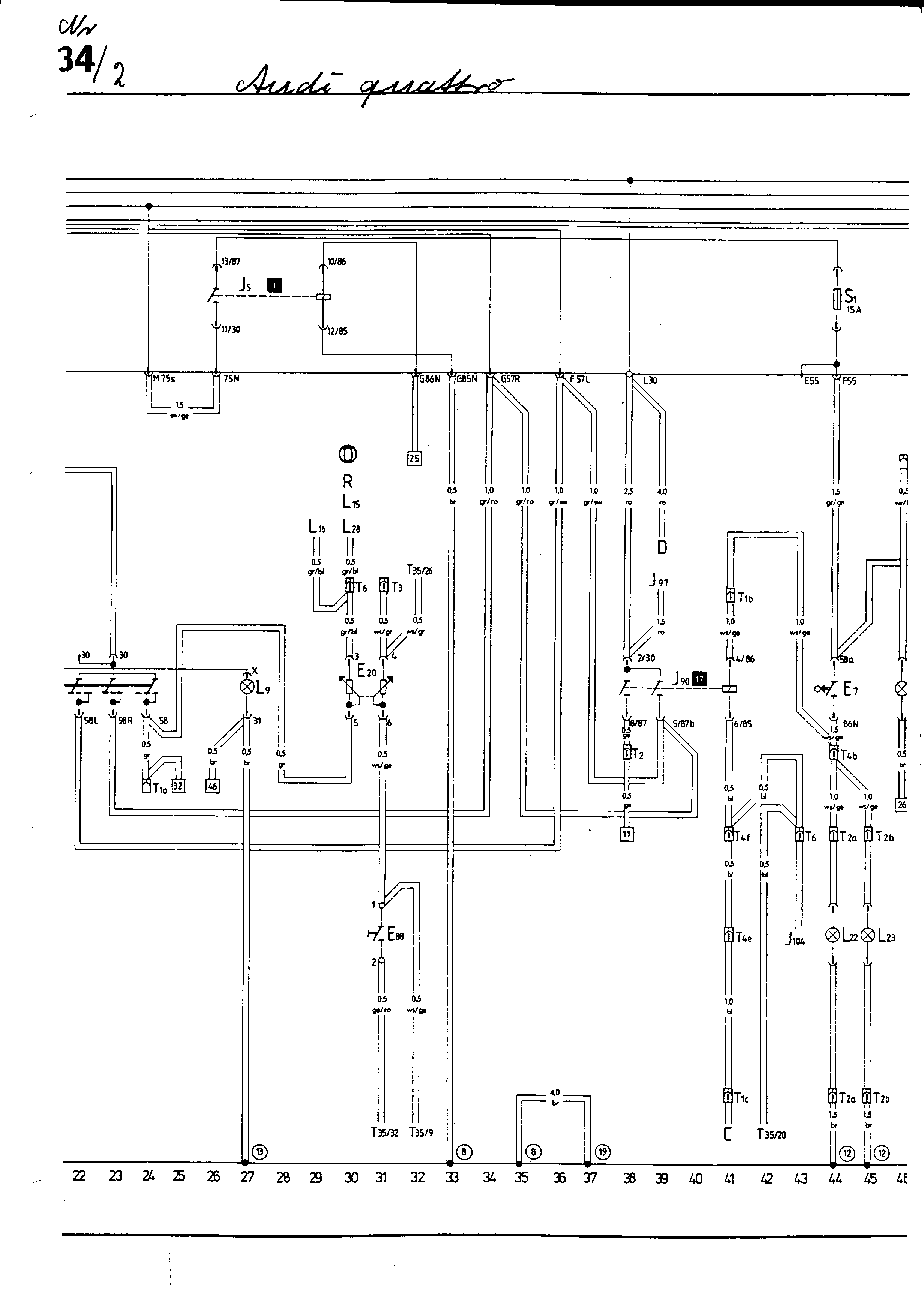

• Tracks 23-45

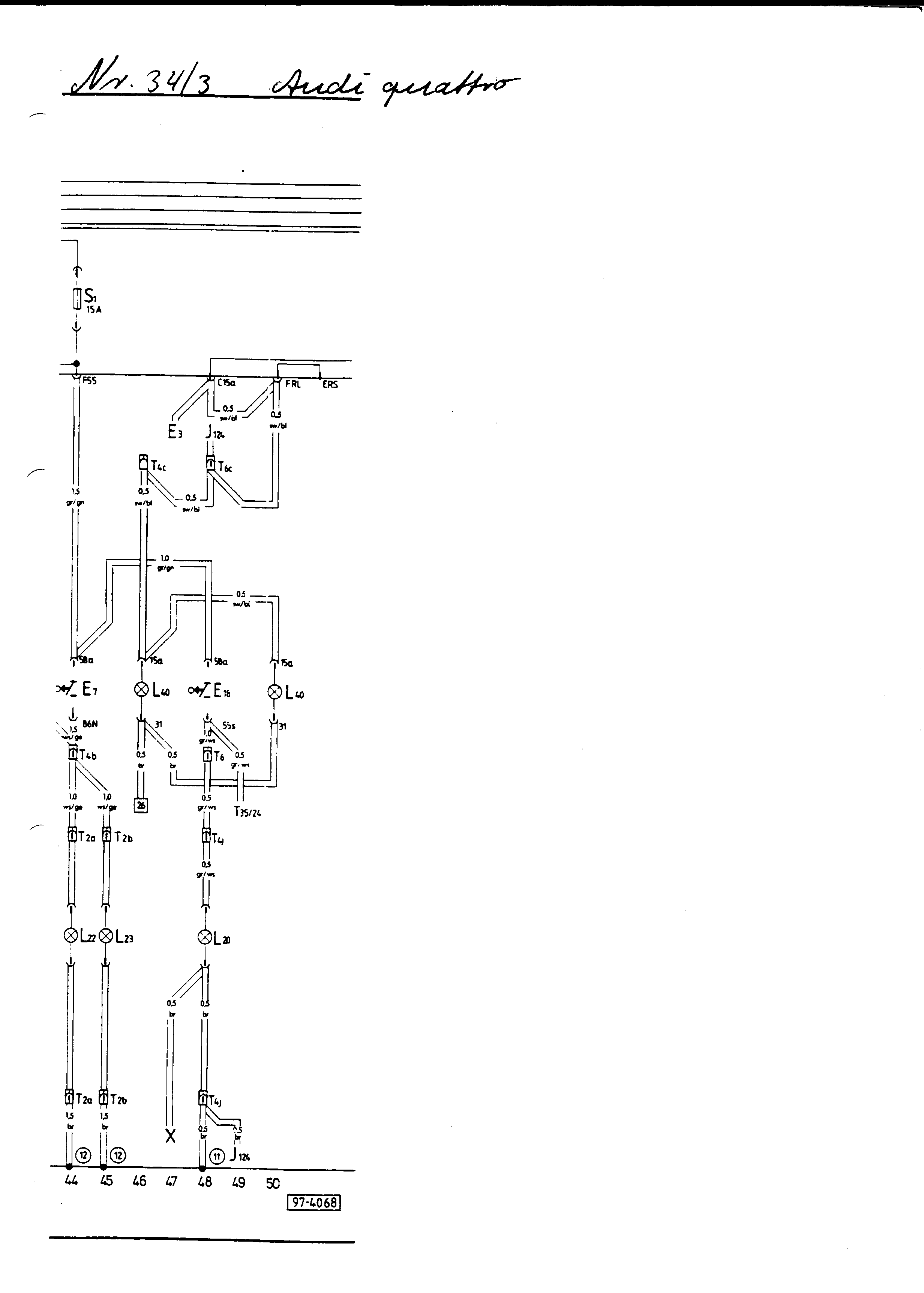

• Tracks 45-50

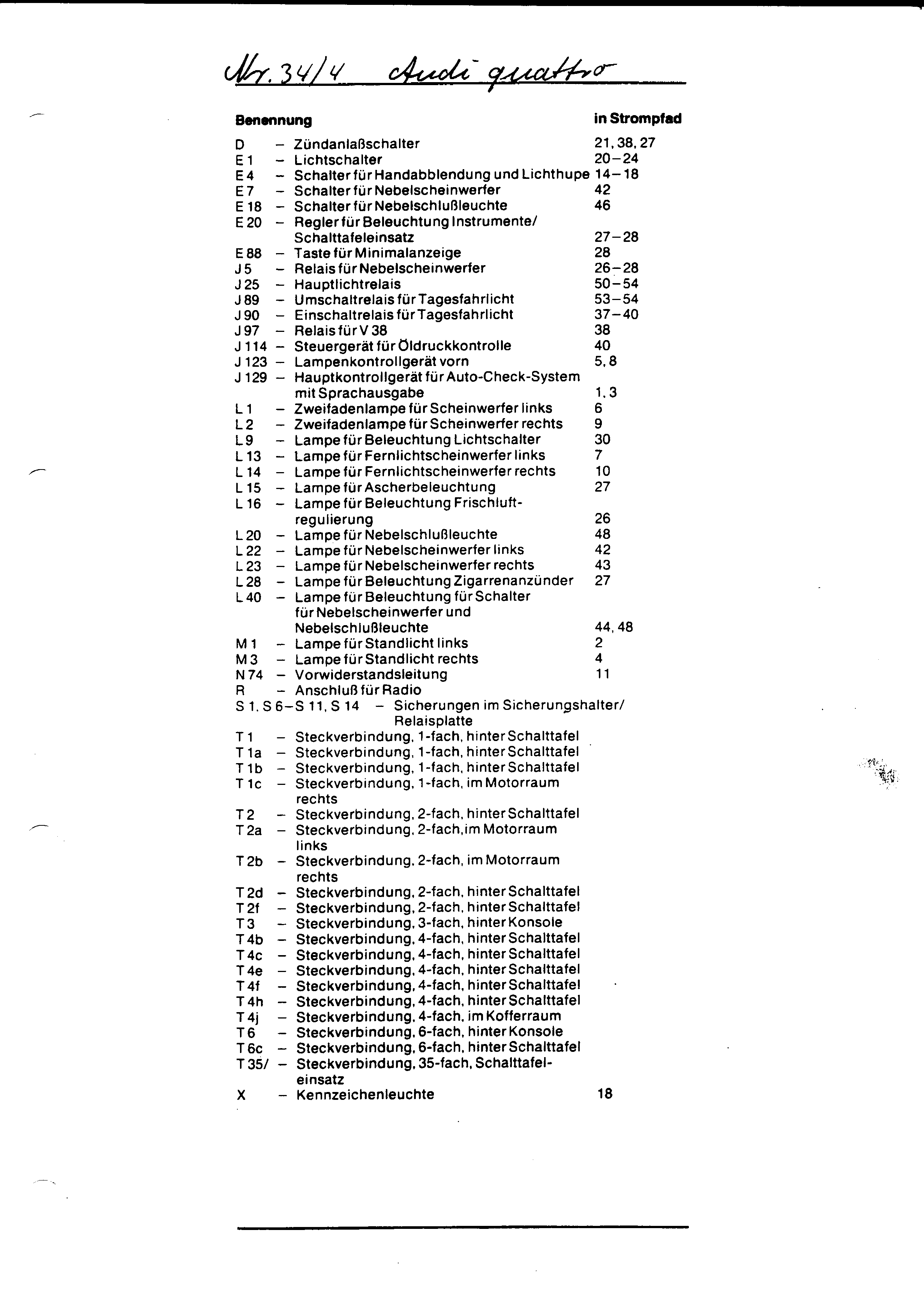

• Index

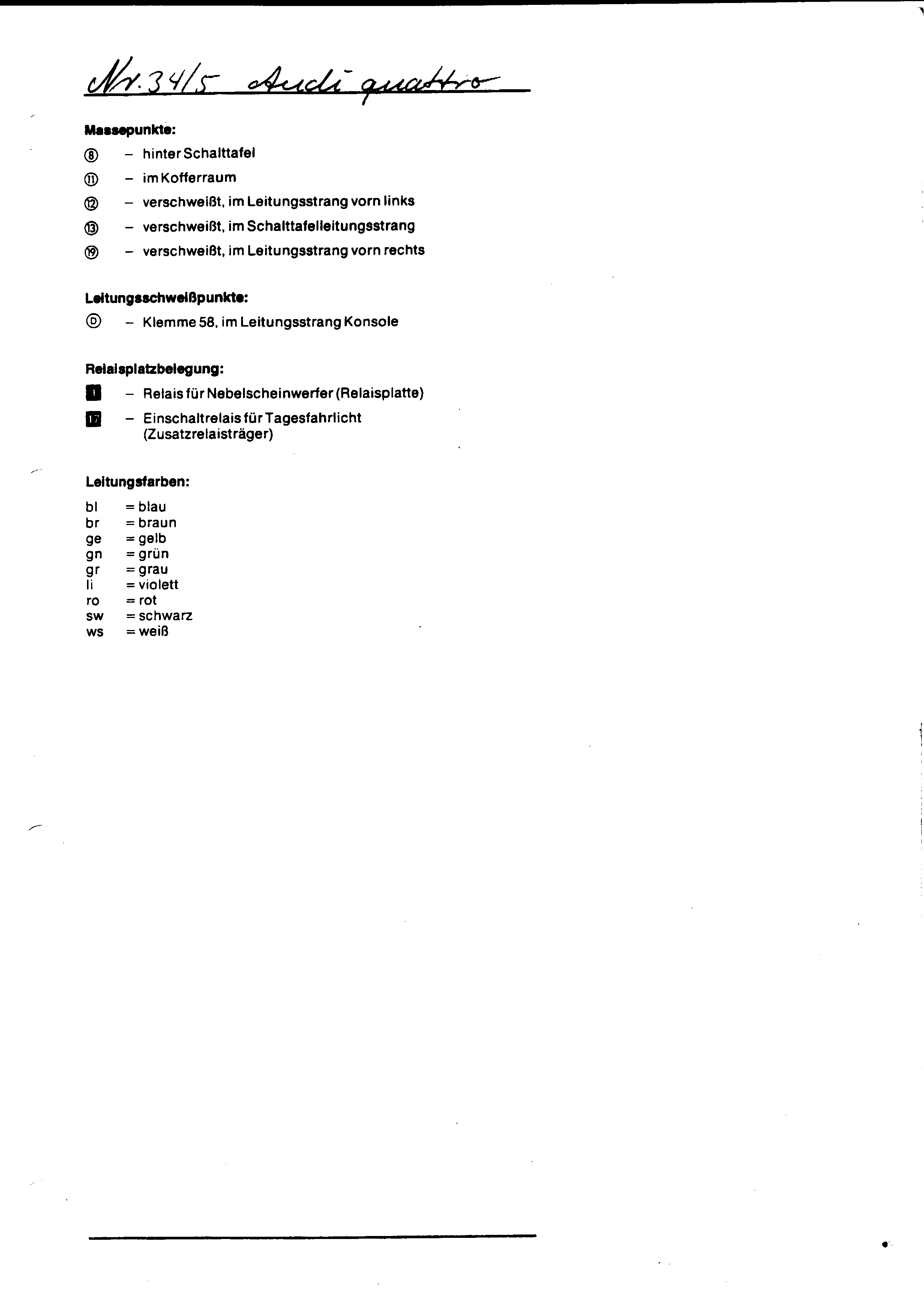

• Index (contd.)

35 - Daytime driving lights and foglights - Norway

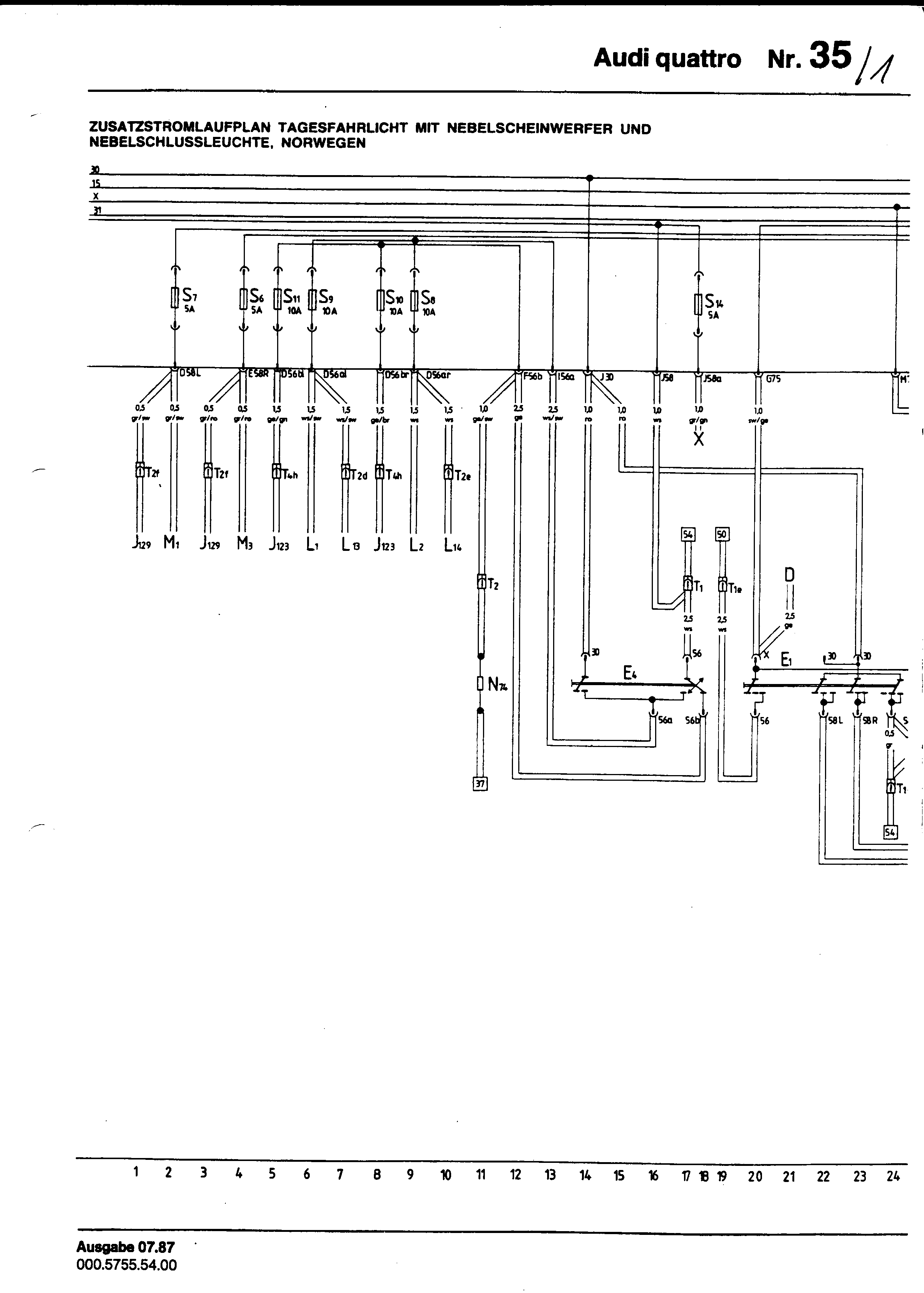

• Tracks 1-23

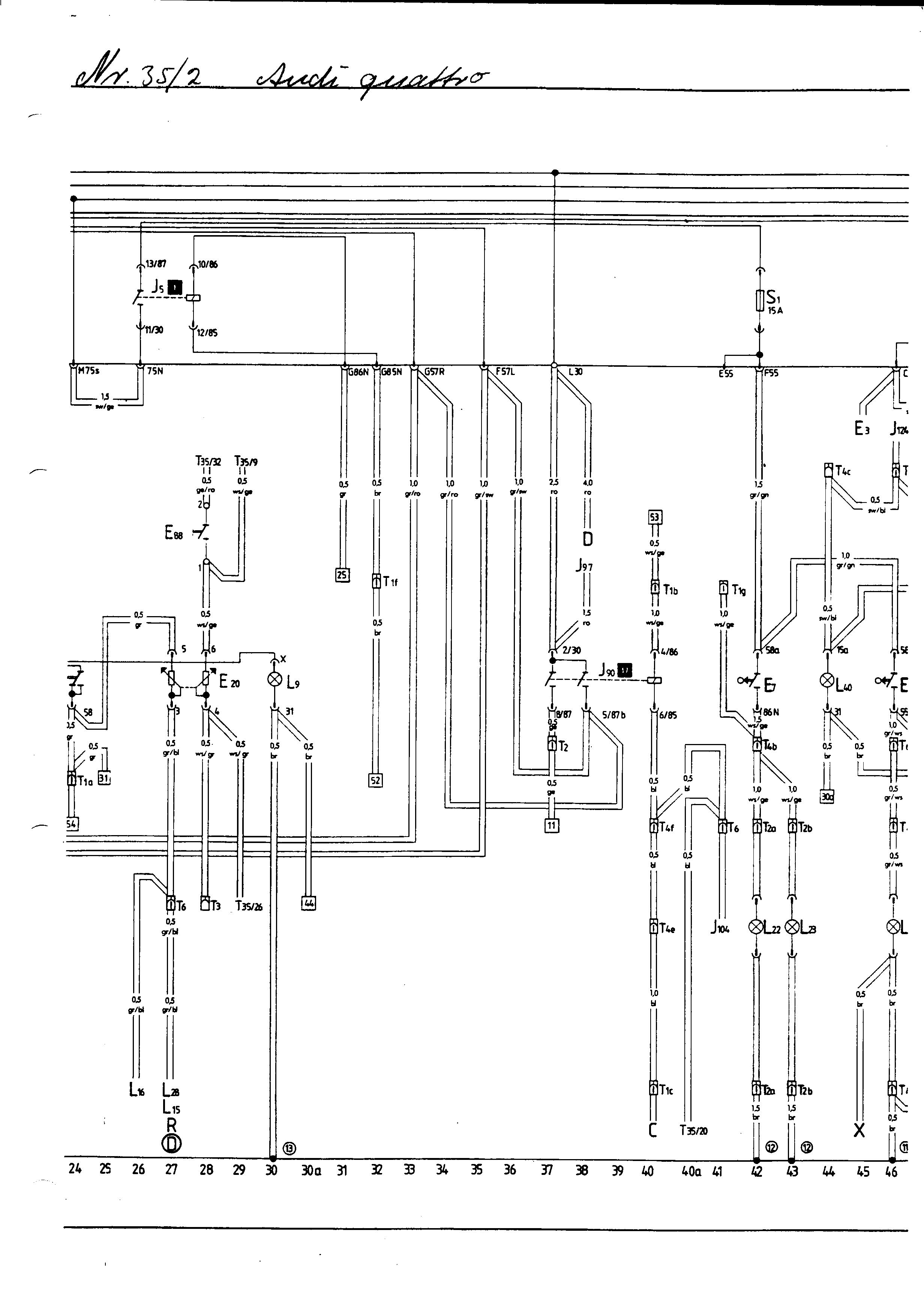

• Tracks 23-45

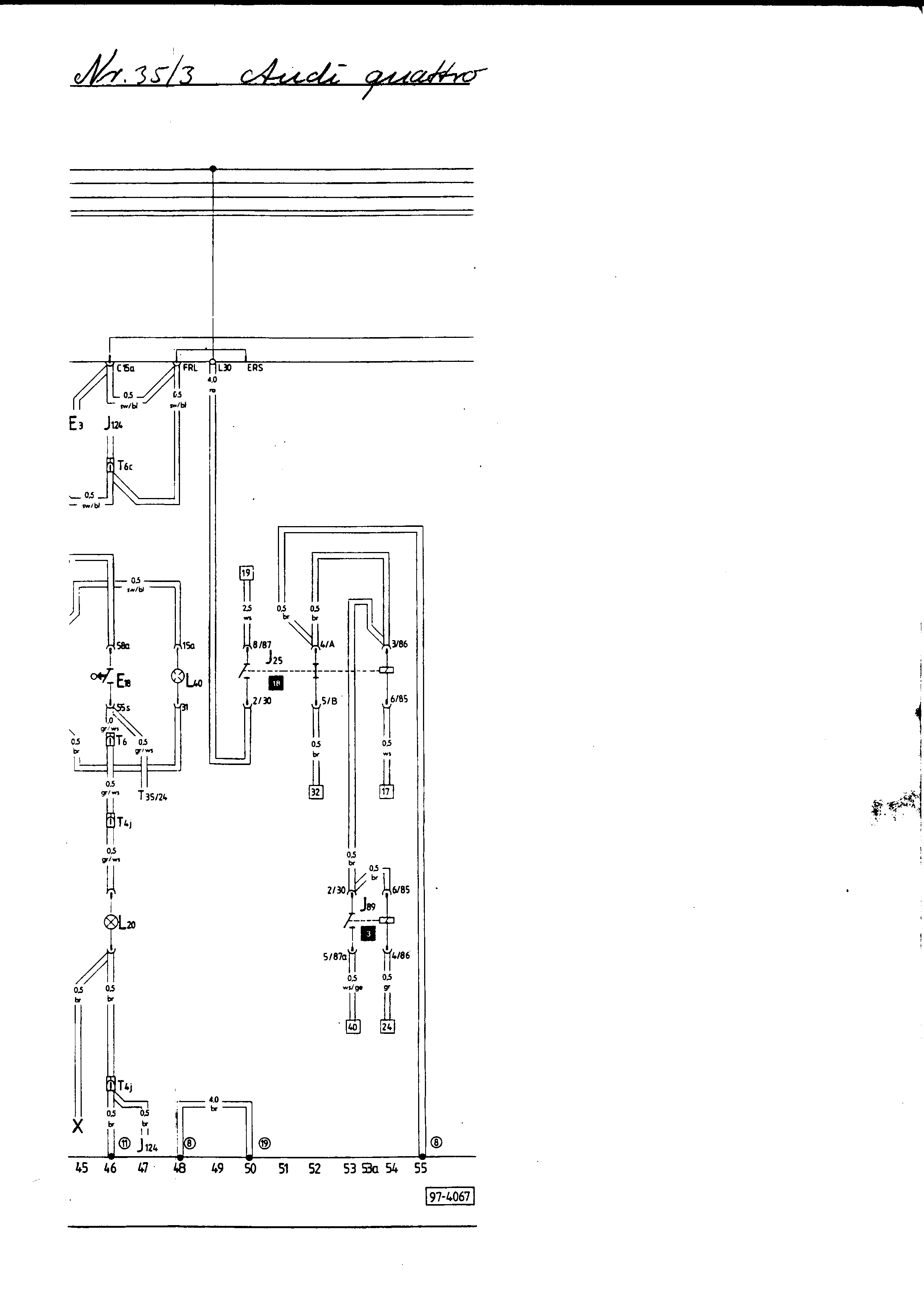

• Tracks 45-50
• Index
• Index (contd.)

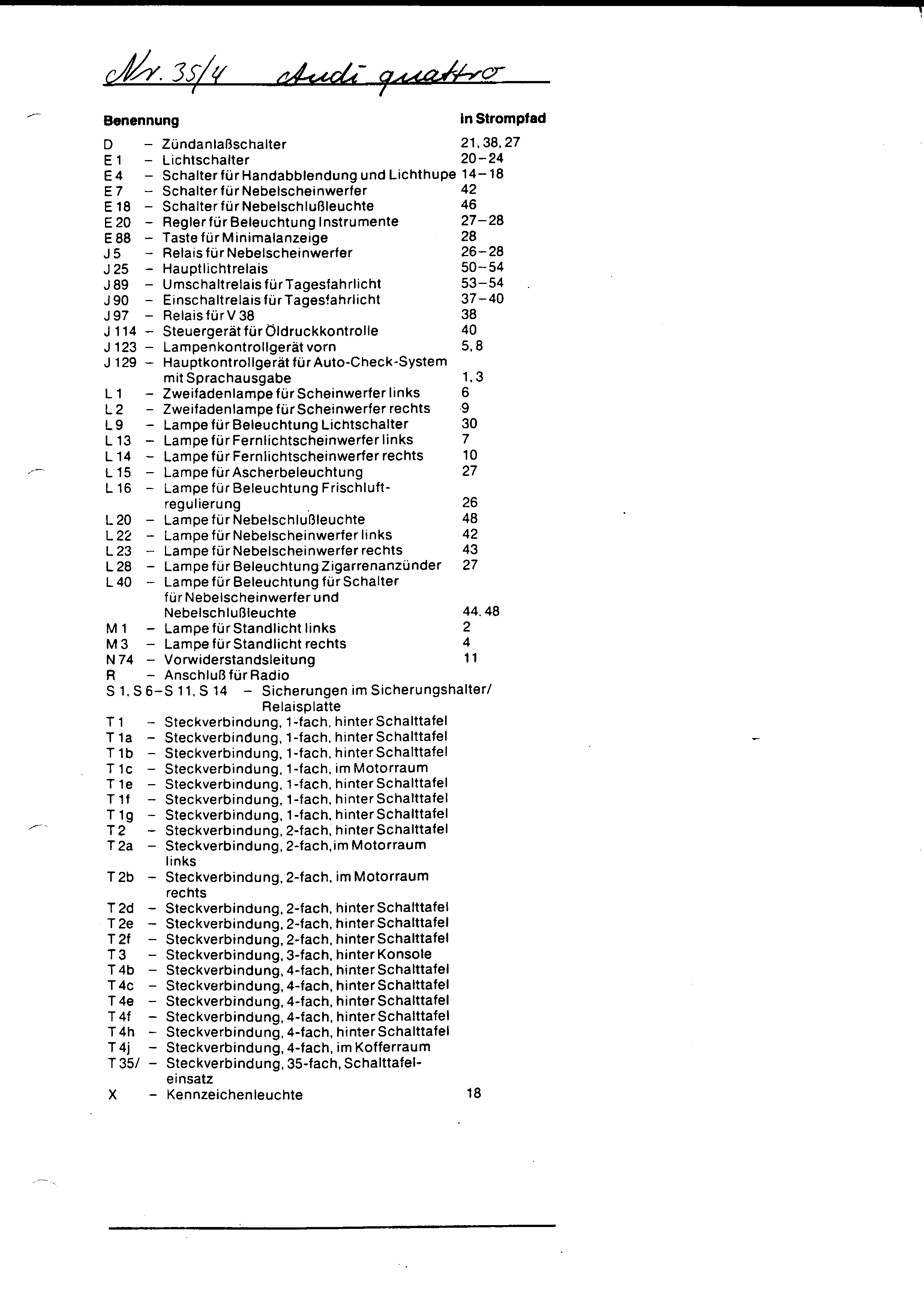

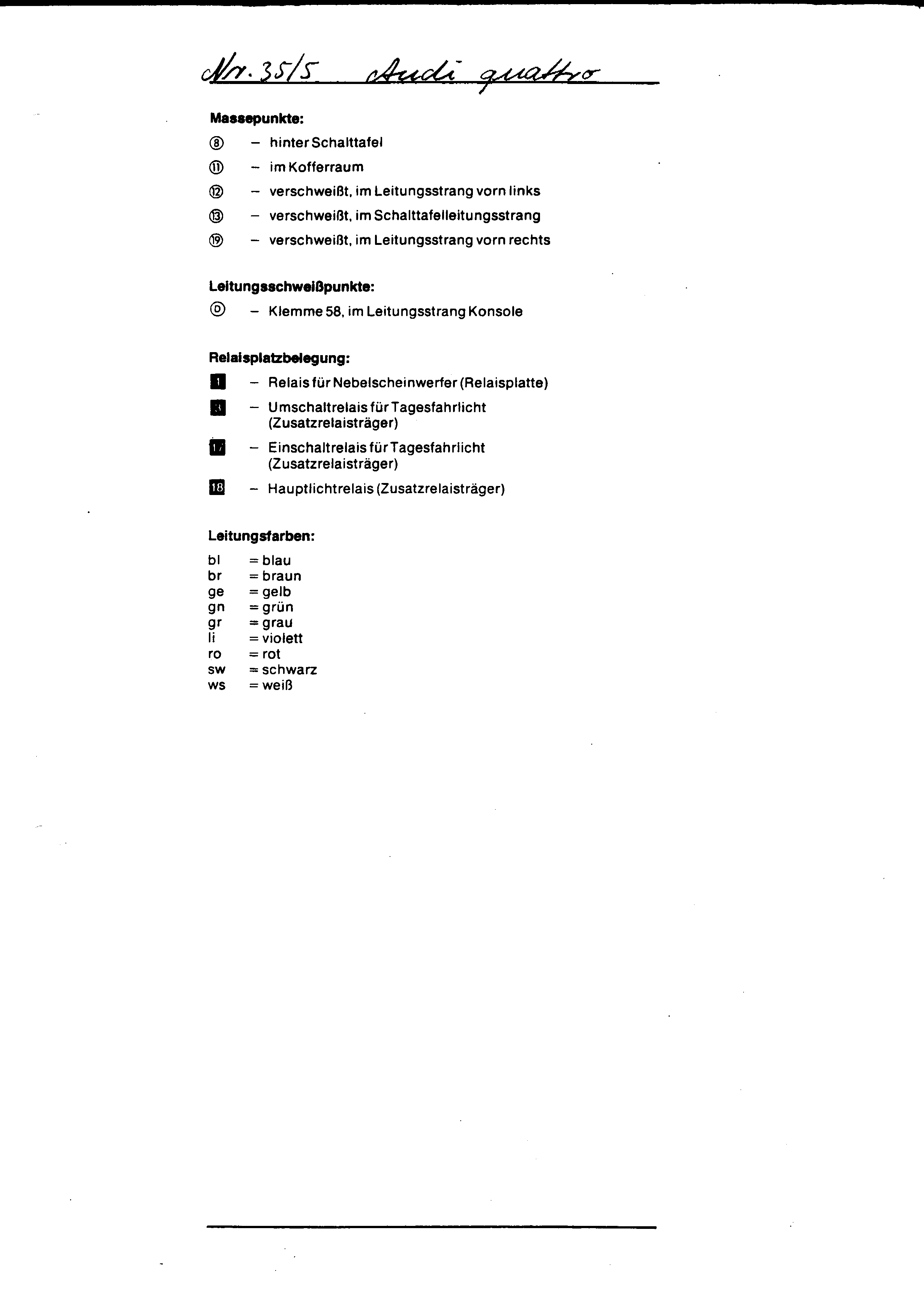

36 - Radio

• ISO connector conversion

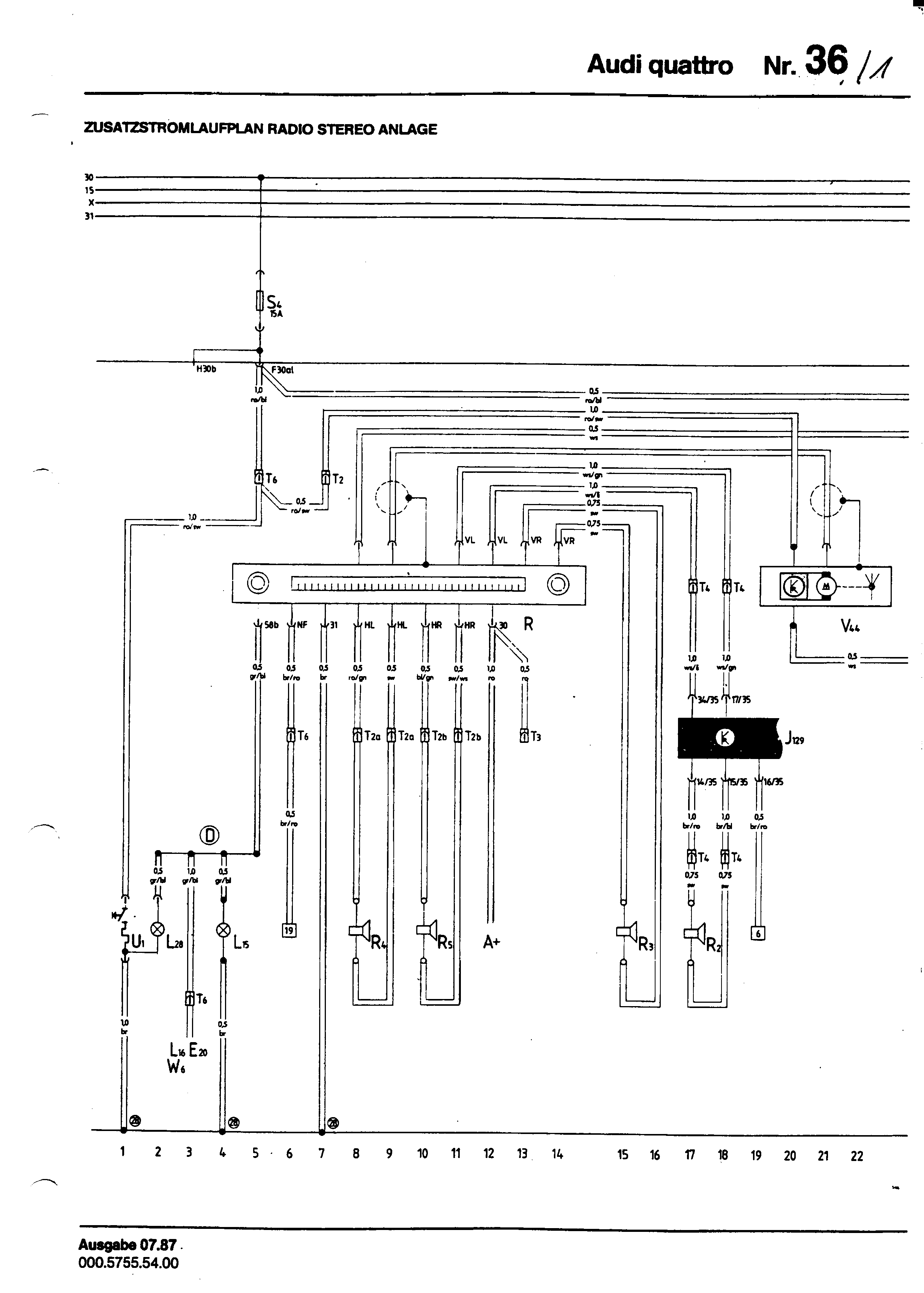

• Tracks 1-22

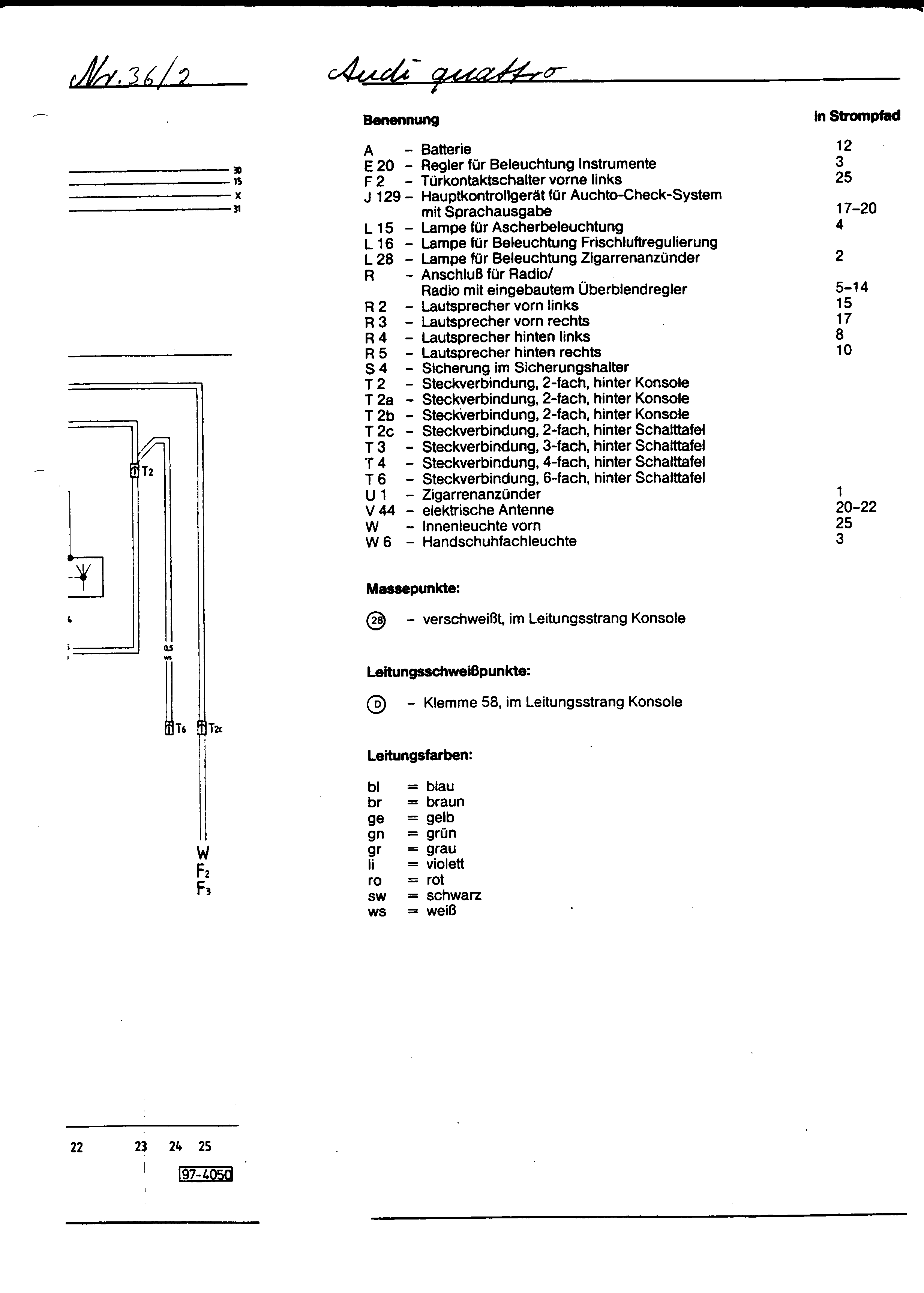

• Tracks 23-25 and index

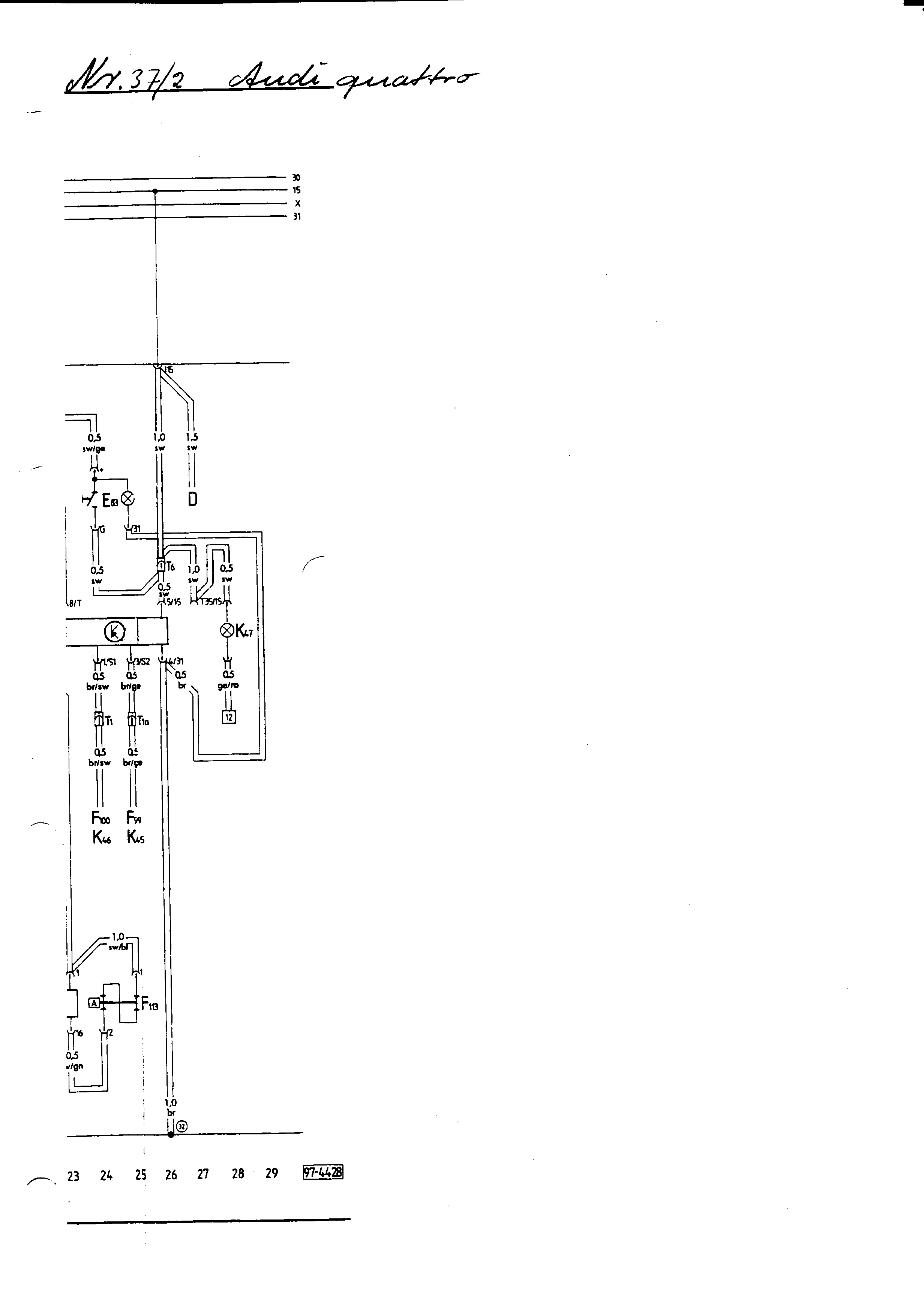

37 - ABS with longitudinal accelerometer

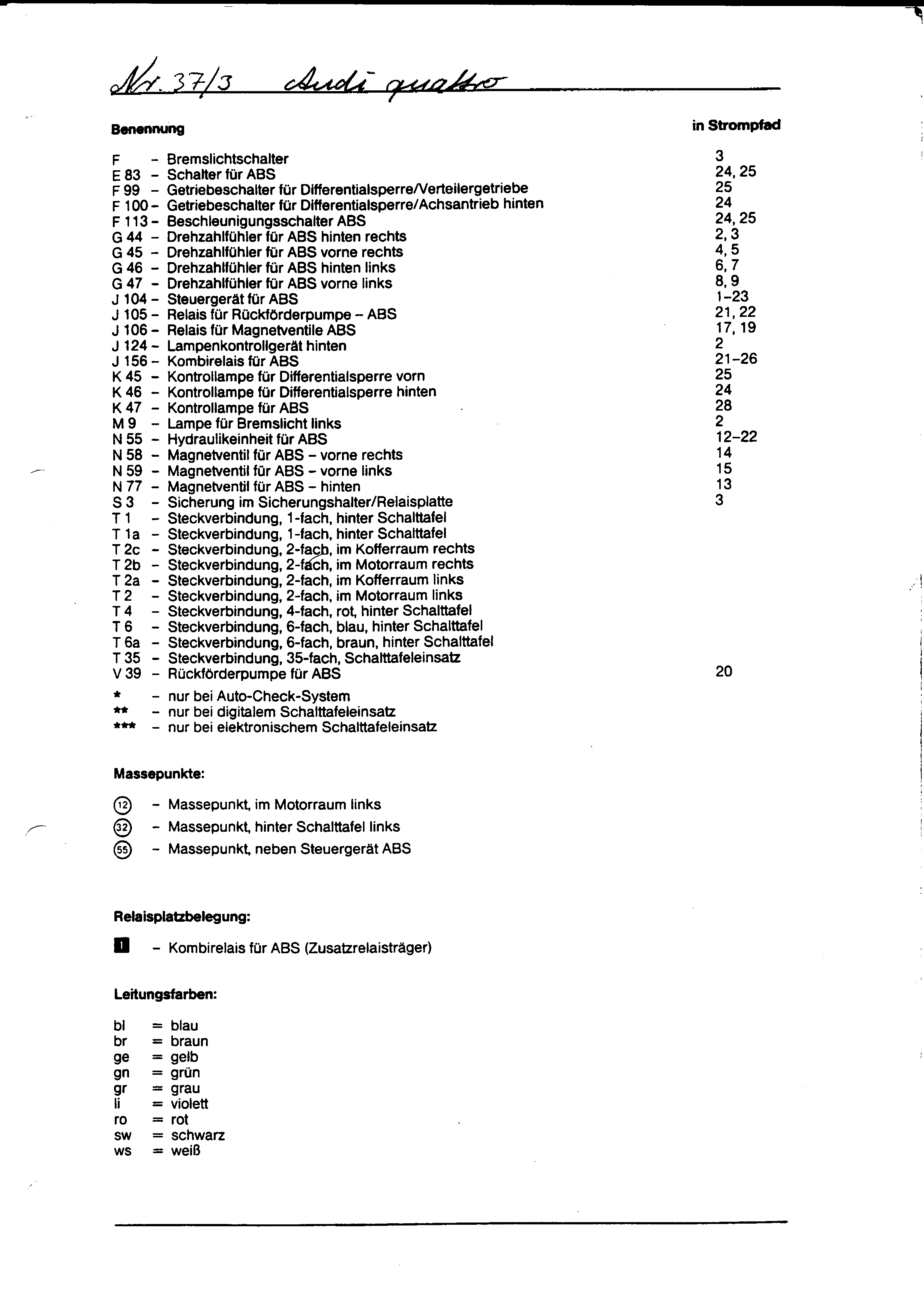

• Notes and pinout

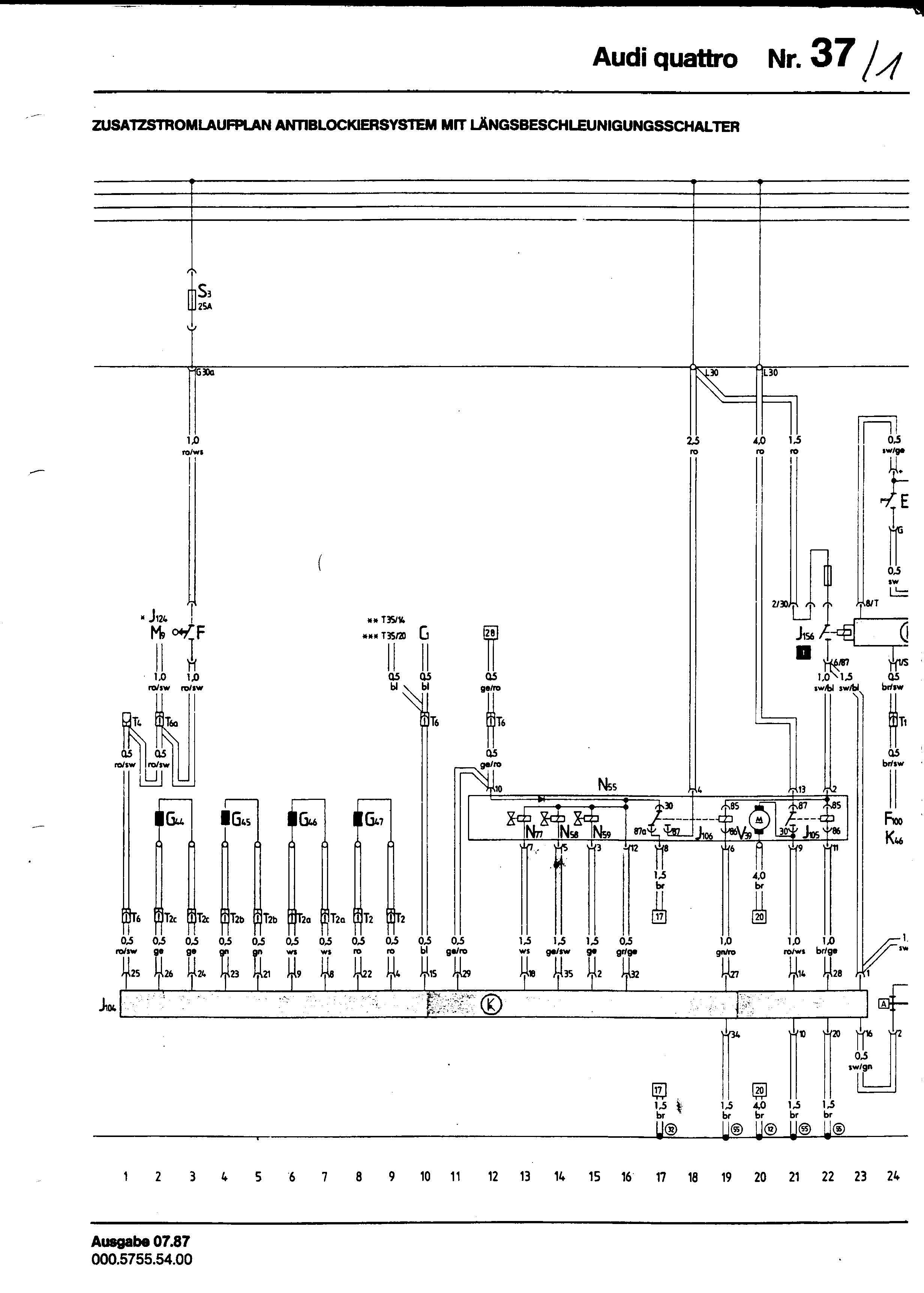

• Tracks 1-23
• Tracks 24-29
• Index

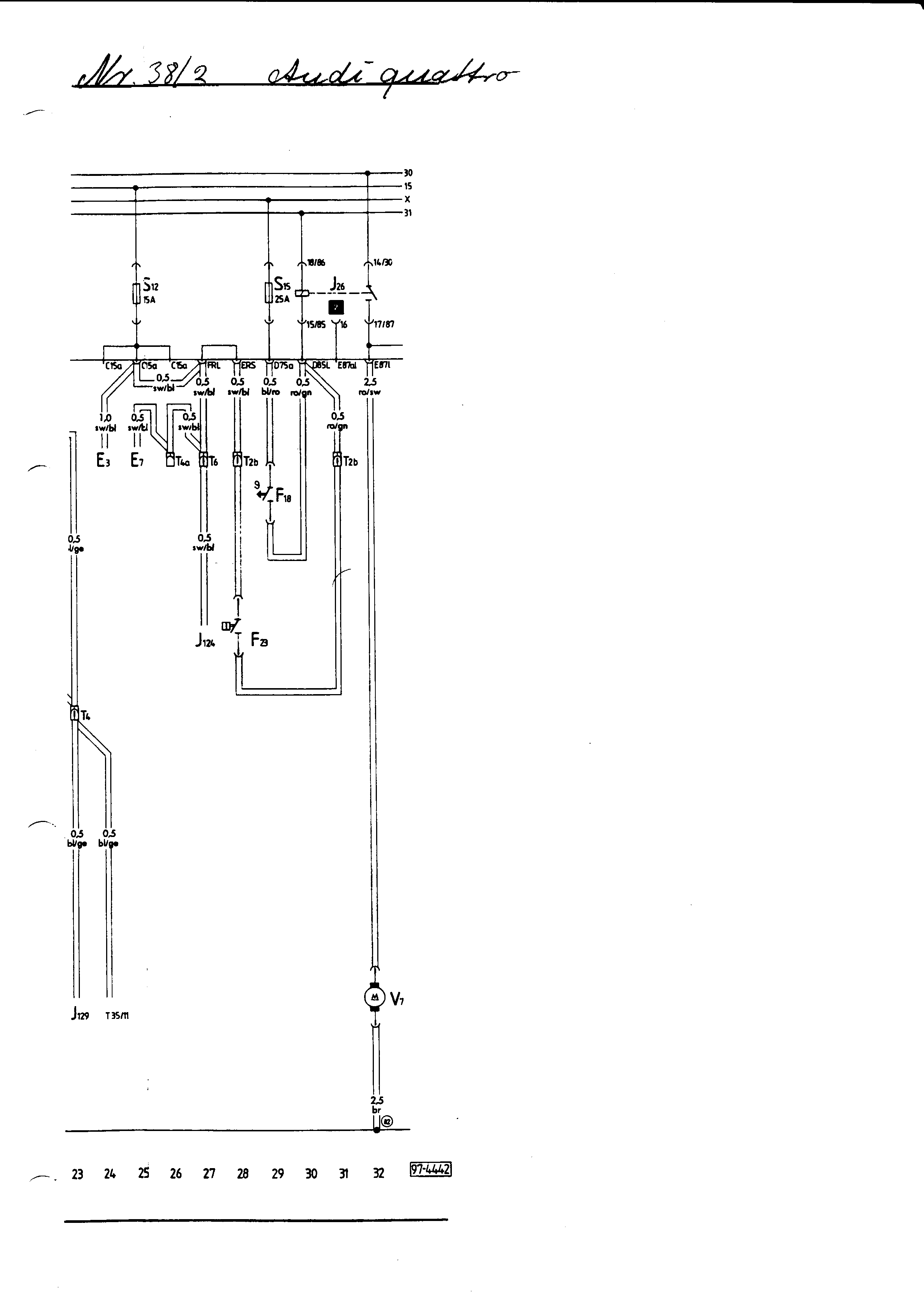

38 - Air conditioning

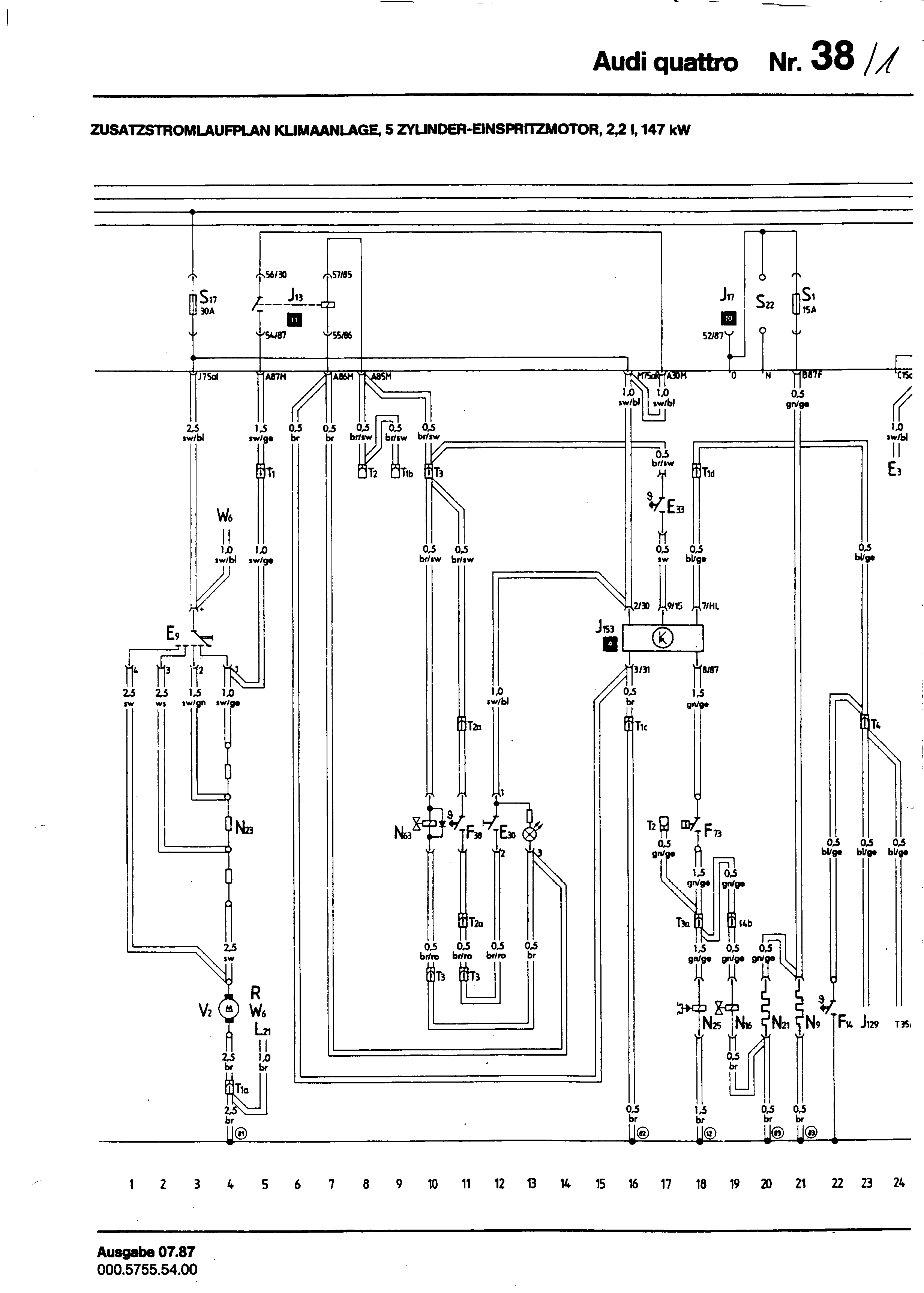

• Tracks 1-23
• Tracks 24-32

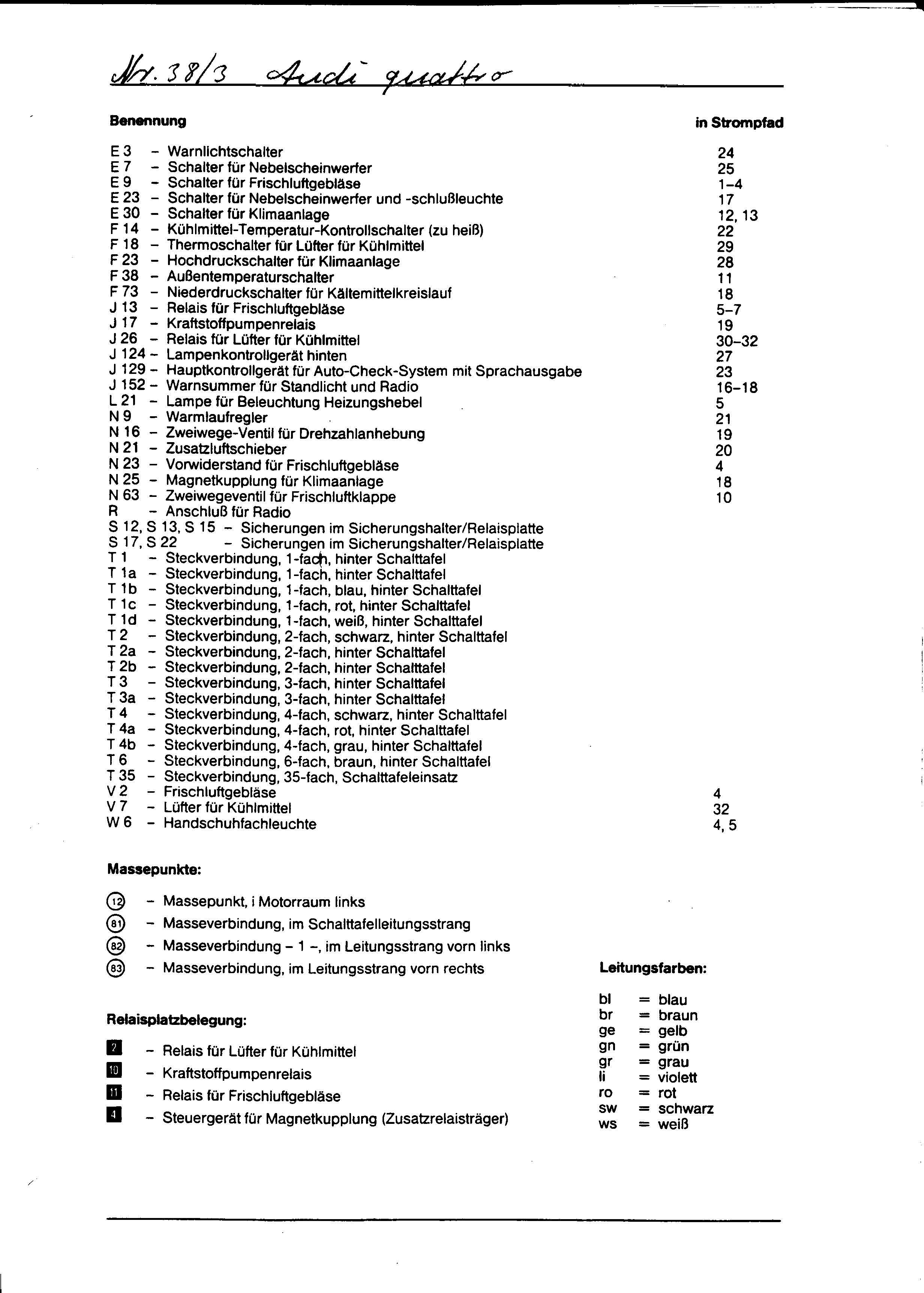

• Index

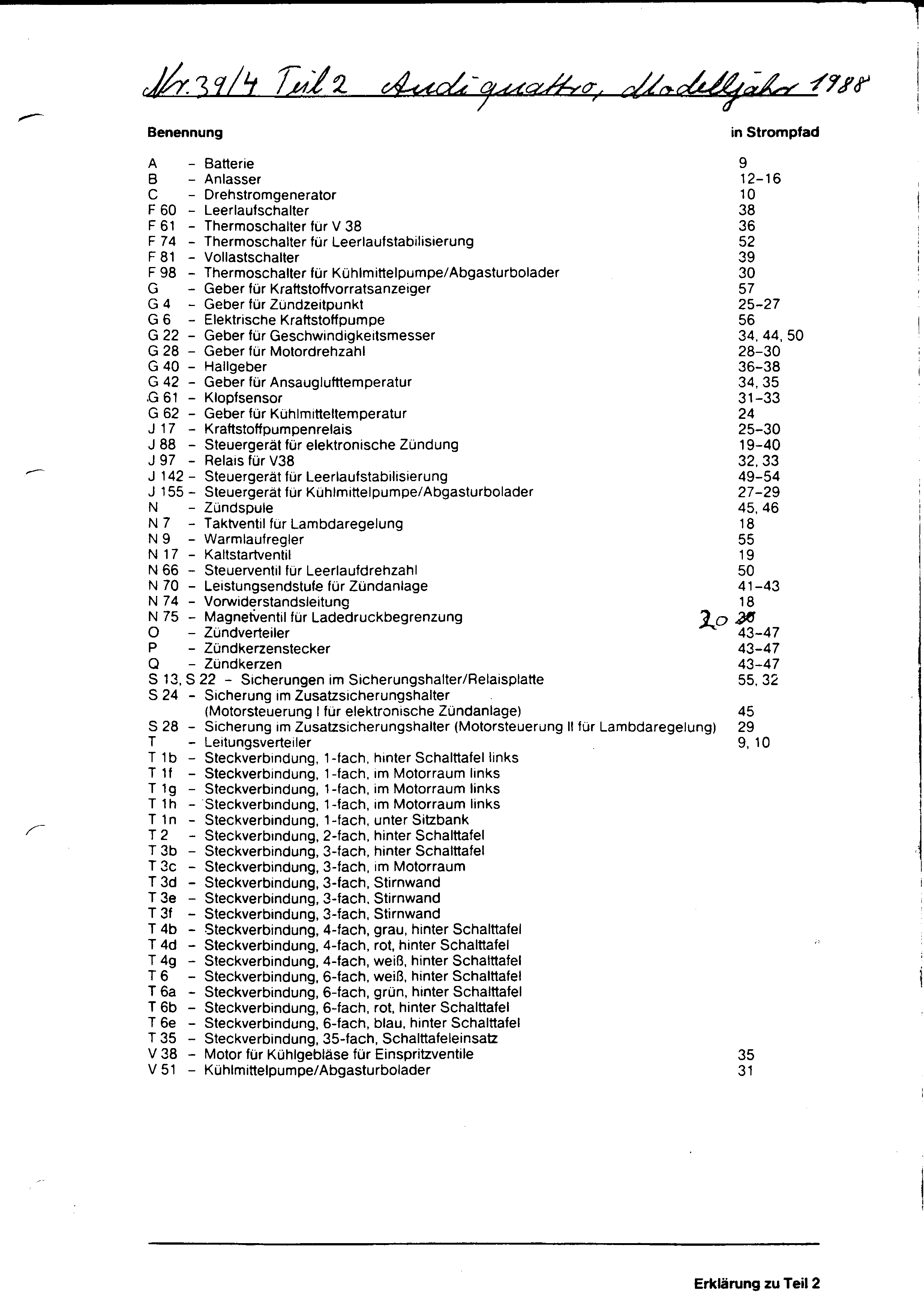

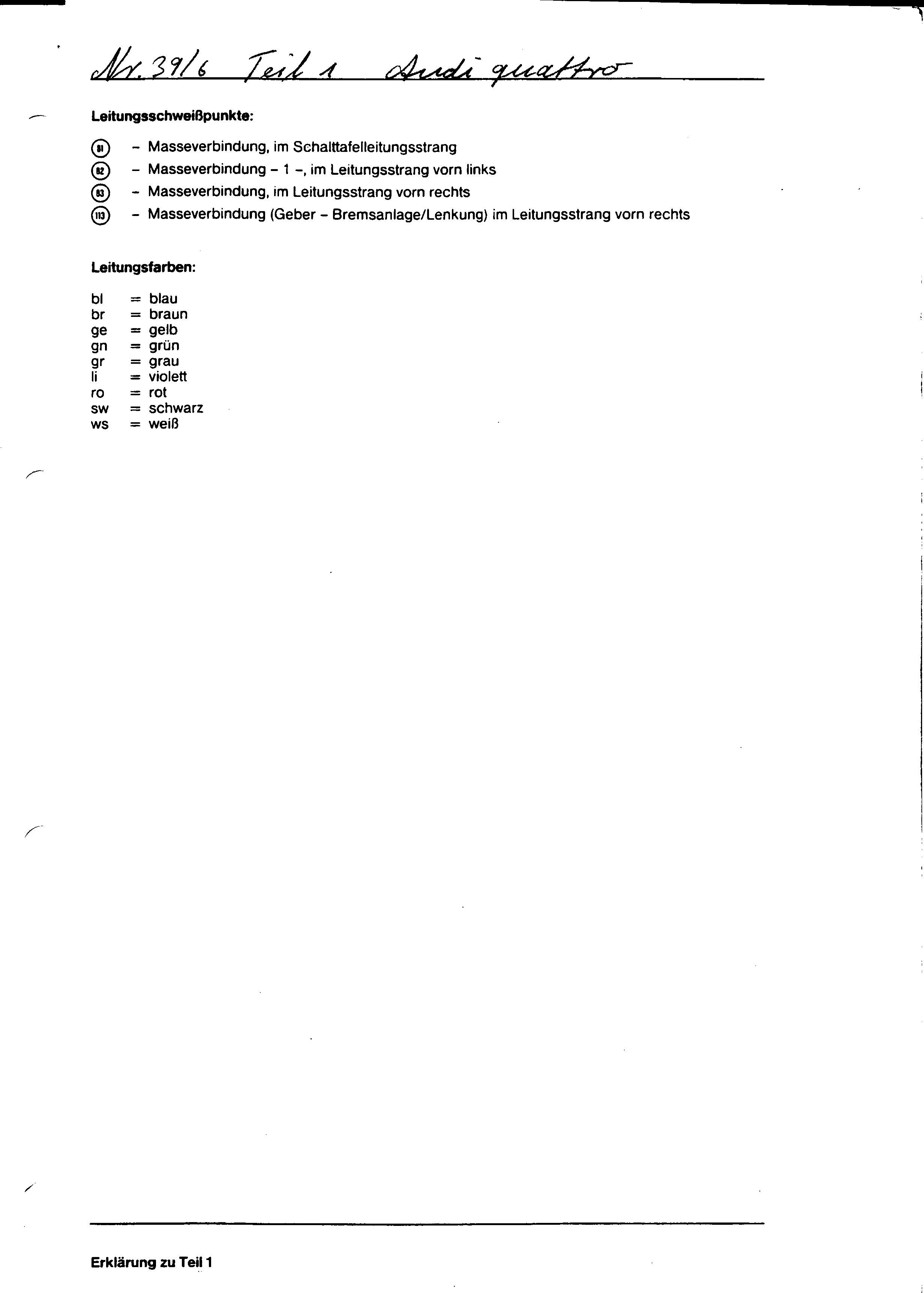

39 - Audi Quattro, 1988, MB engine

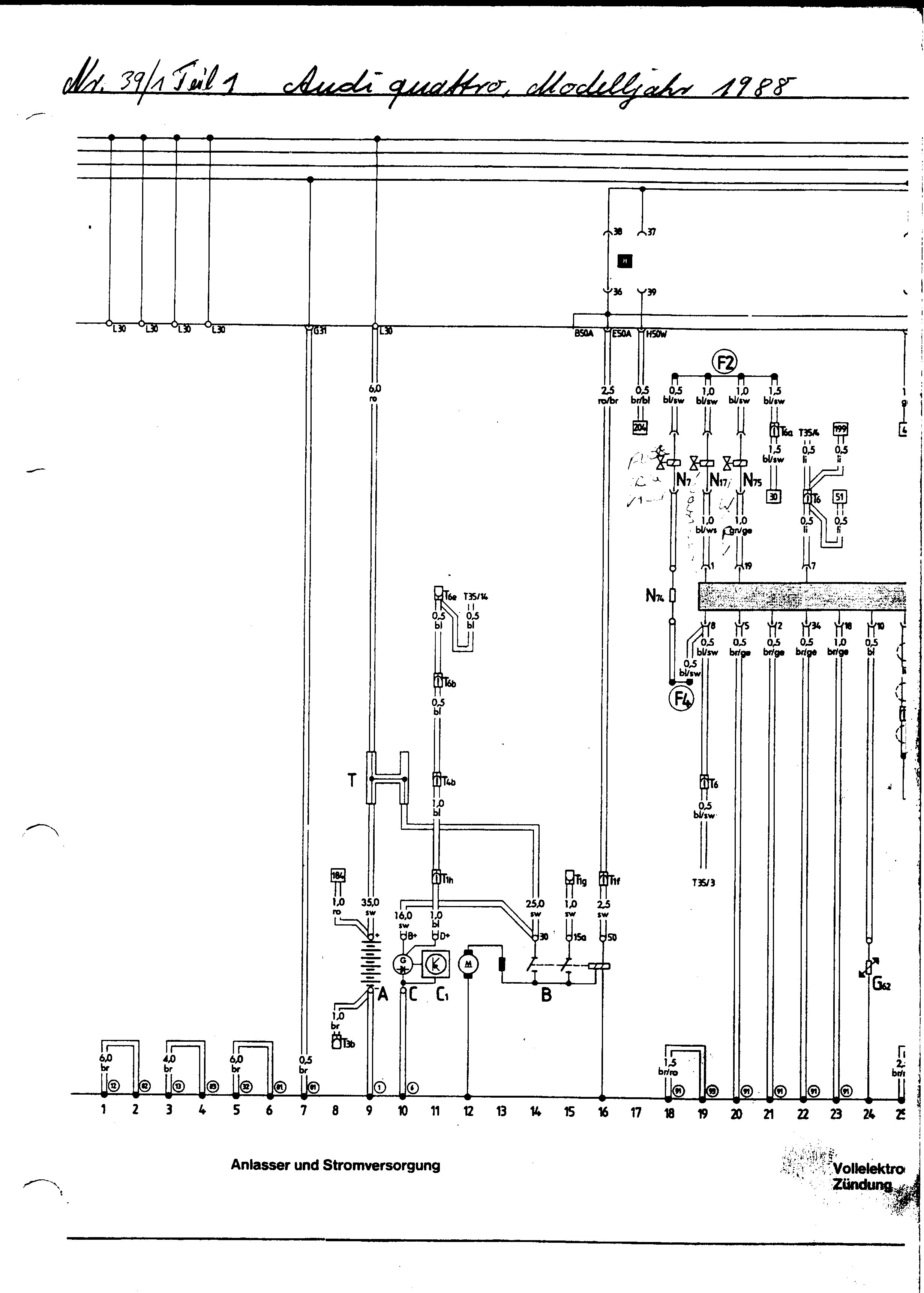

• Tracks 1-23: Starter, battery and alternator

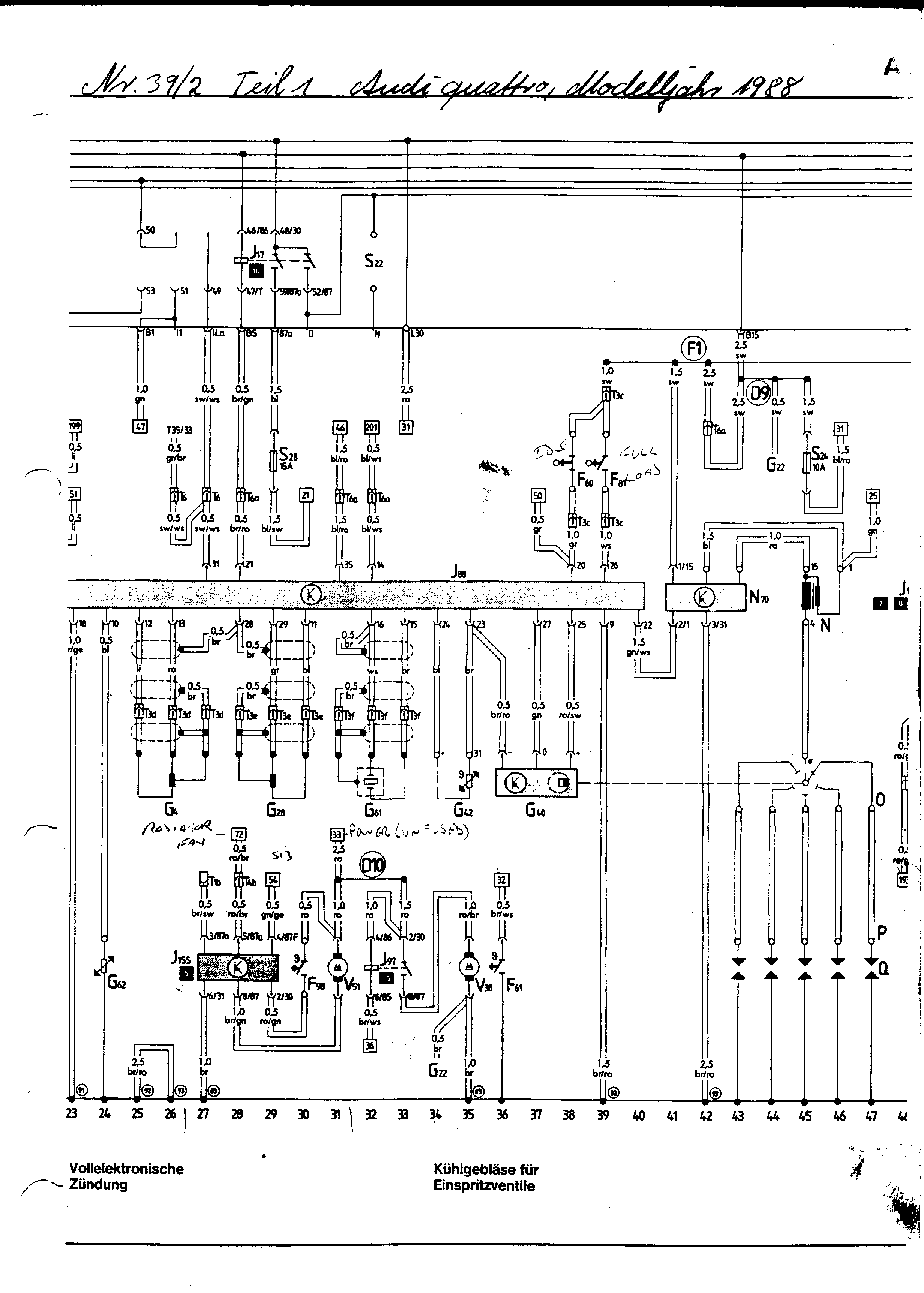

• Tracks 24-47: Ignition, turbo waterpump, injector cooling

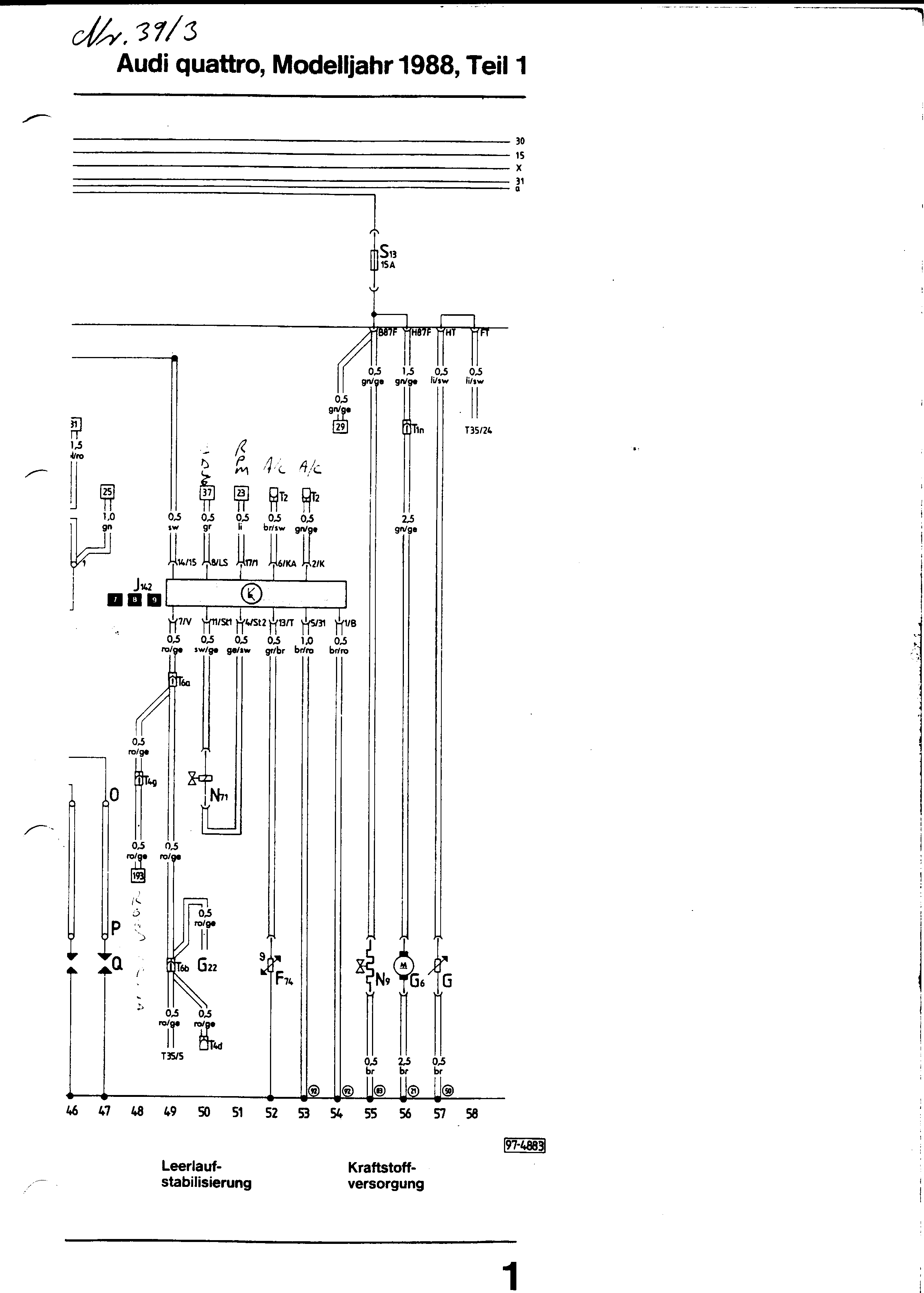

• Tracks 48-58: Idle stabilisation, fuel supply
• Index to tracks 1-58
• Index to tracks 1-58 (contd.)
• Tracks 59-81: Radiator fan, ignition switch

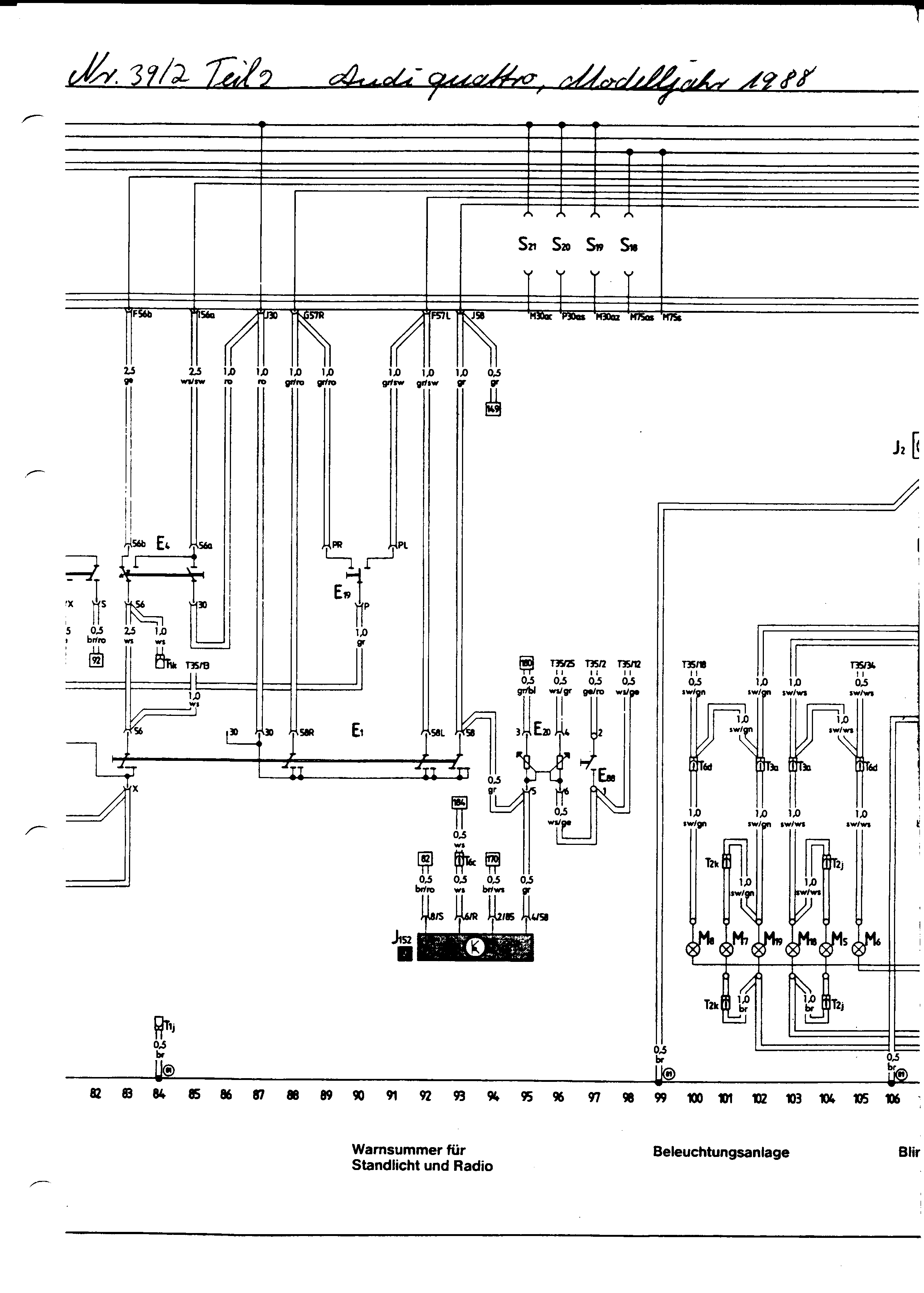

• Tracks 82-105: Light and radio buzzer, lights

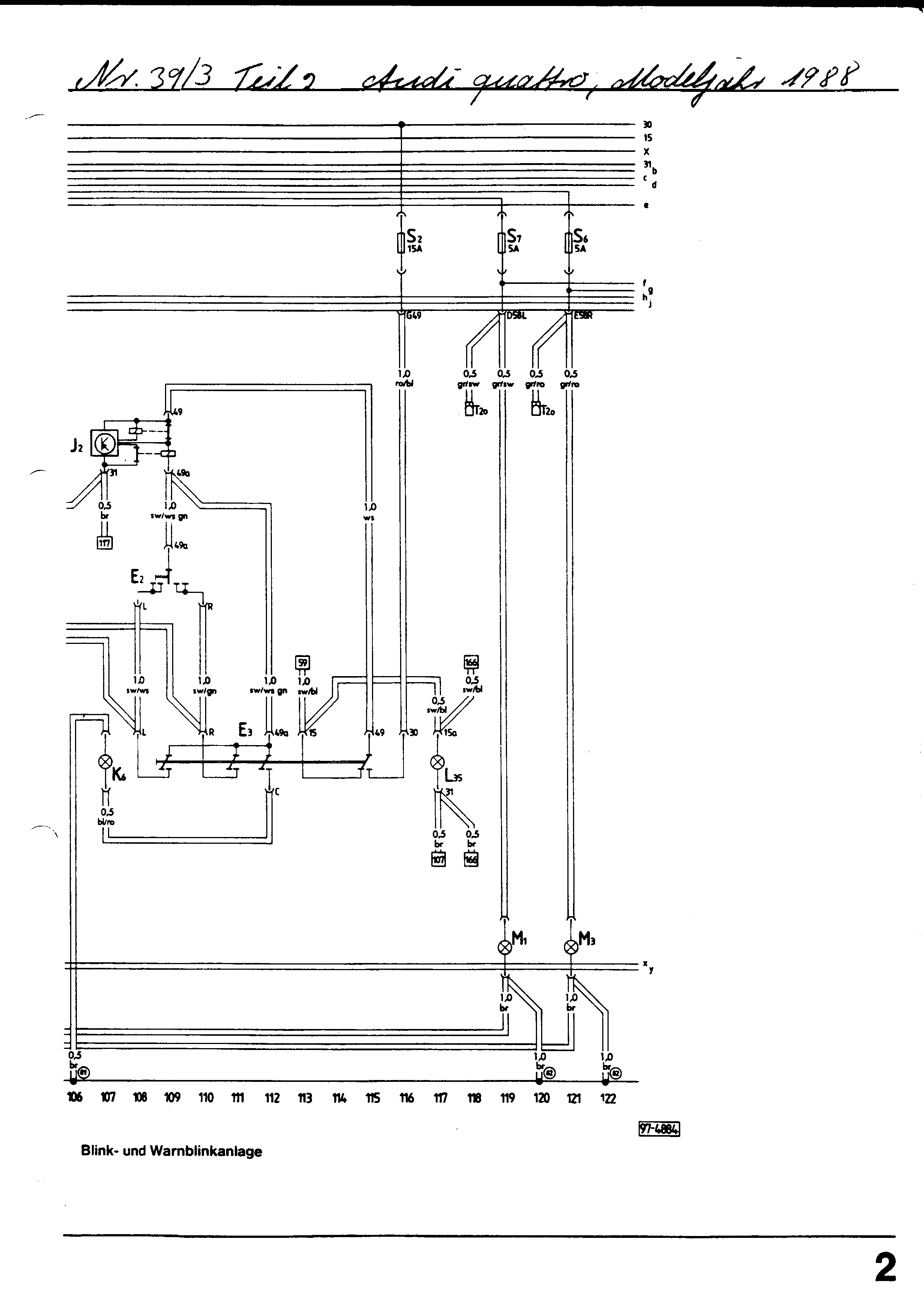

• Tracks 106-122: Blinkers and hazard flashers

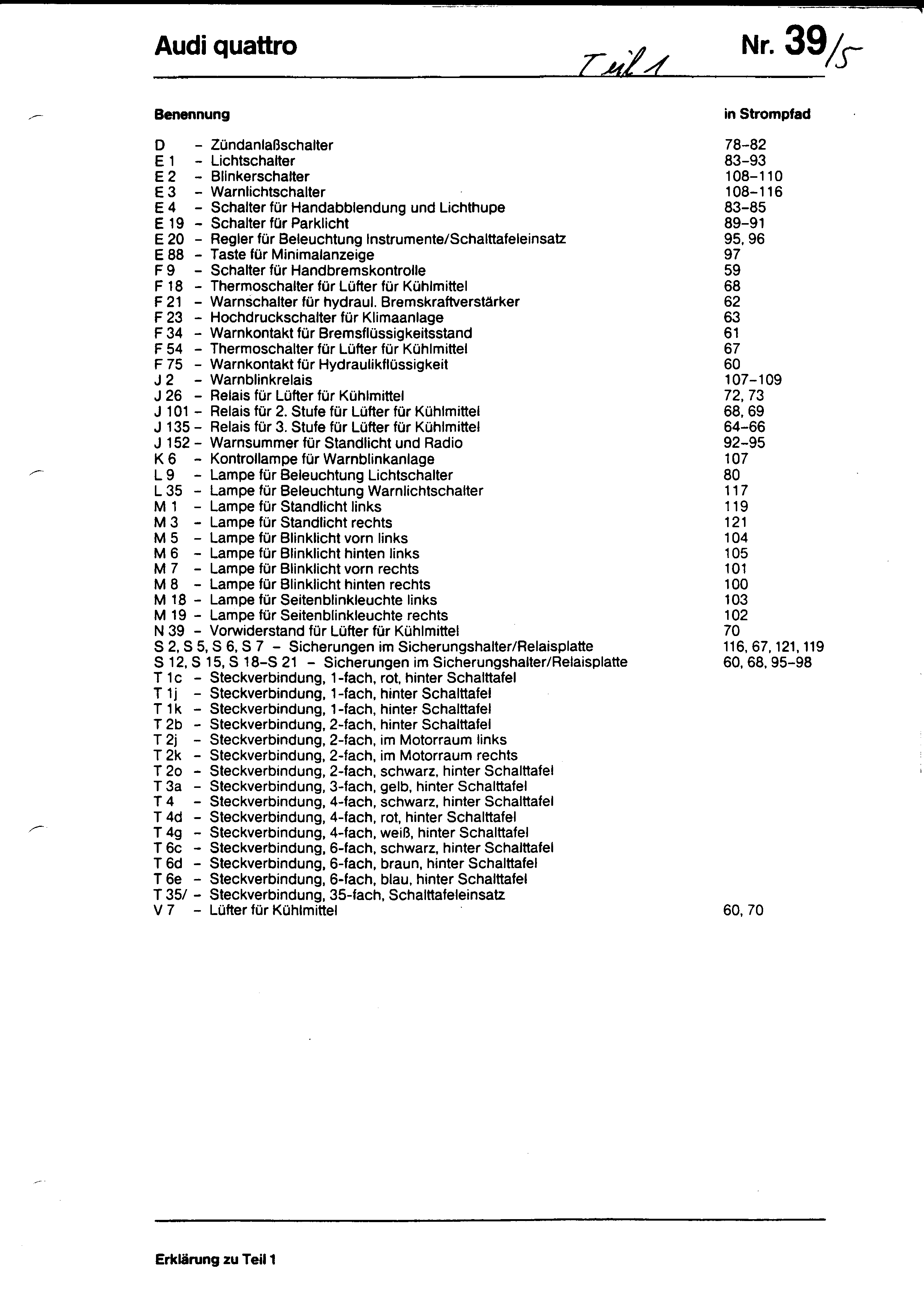

• Index to tracks 59-122
• Index to tracks 59-122 (contd.)

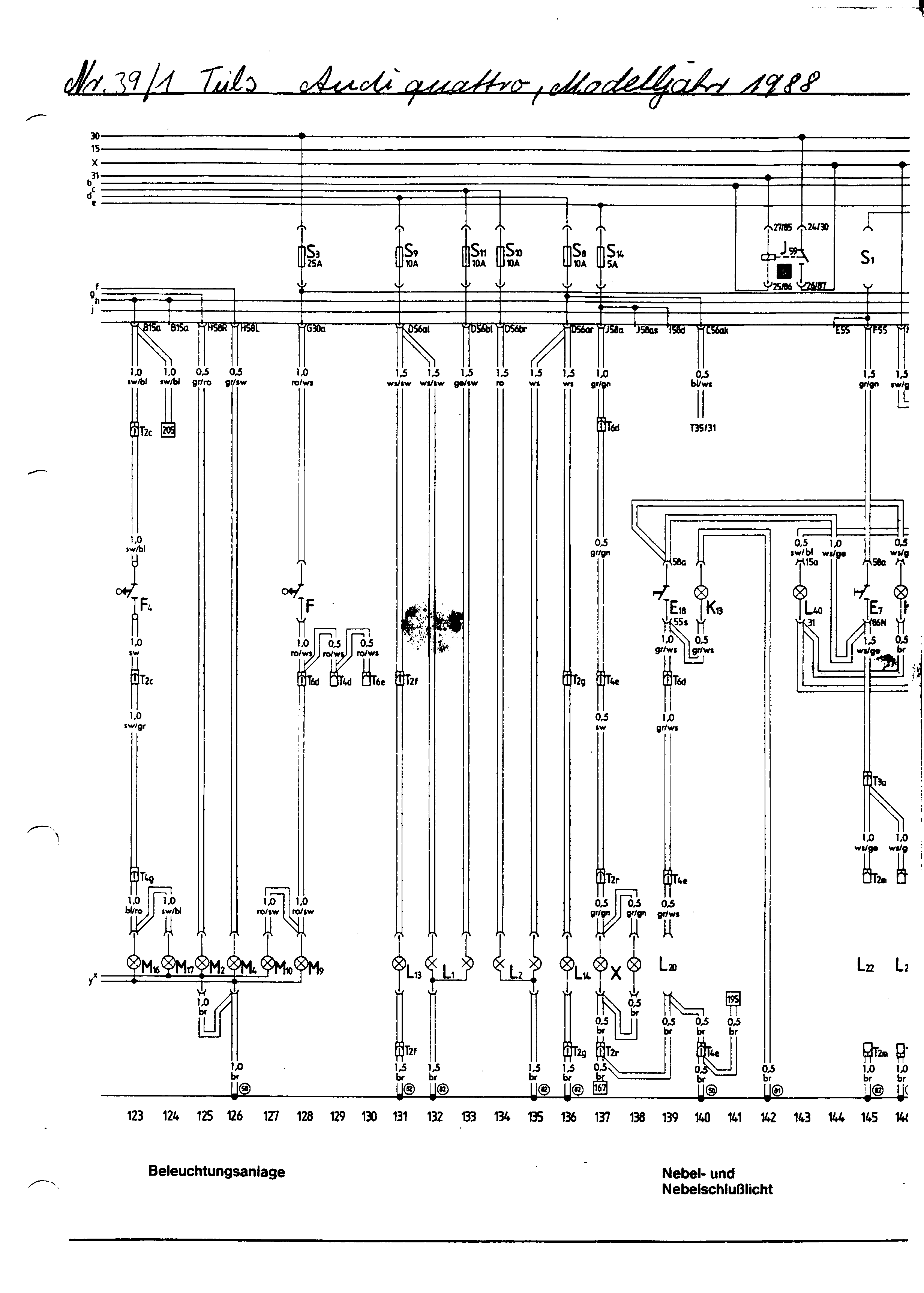

• Tracks 123-144: Lights and fog lights

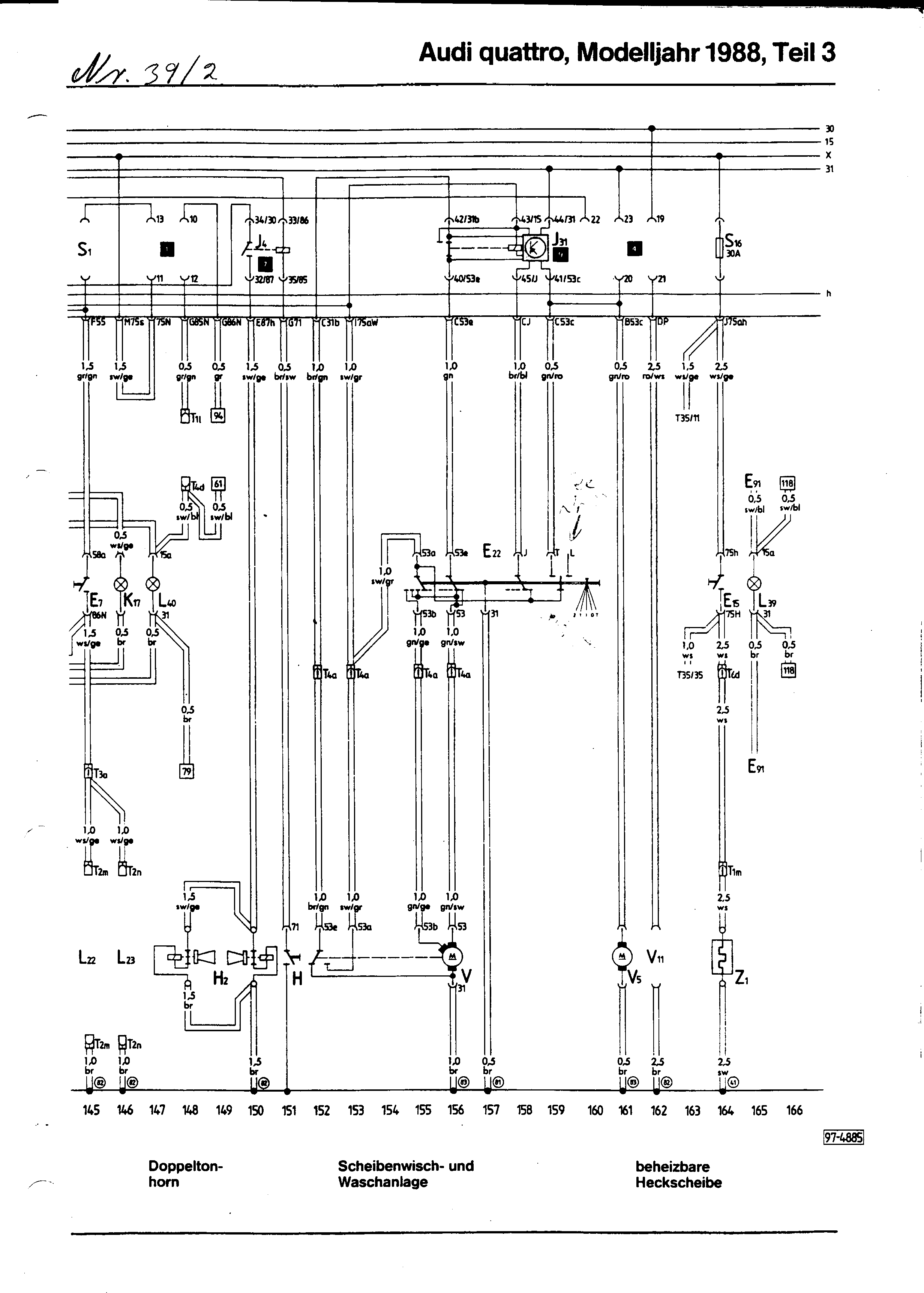

• Tracks 144-166: Horn, wash/wipe and heated rear screen

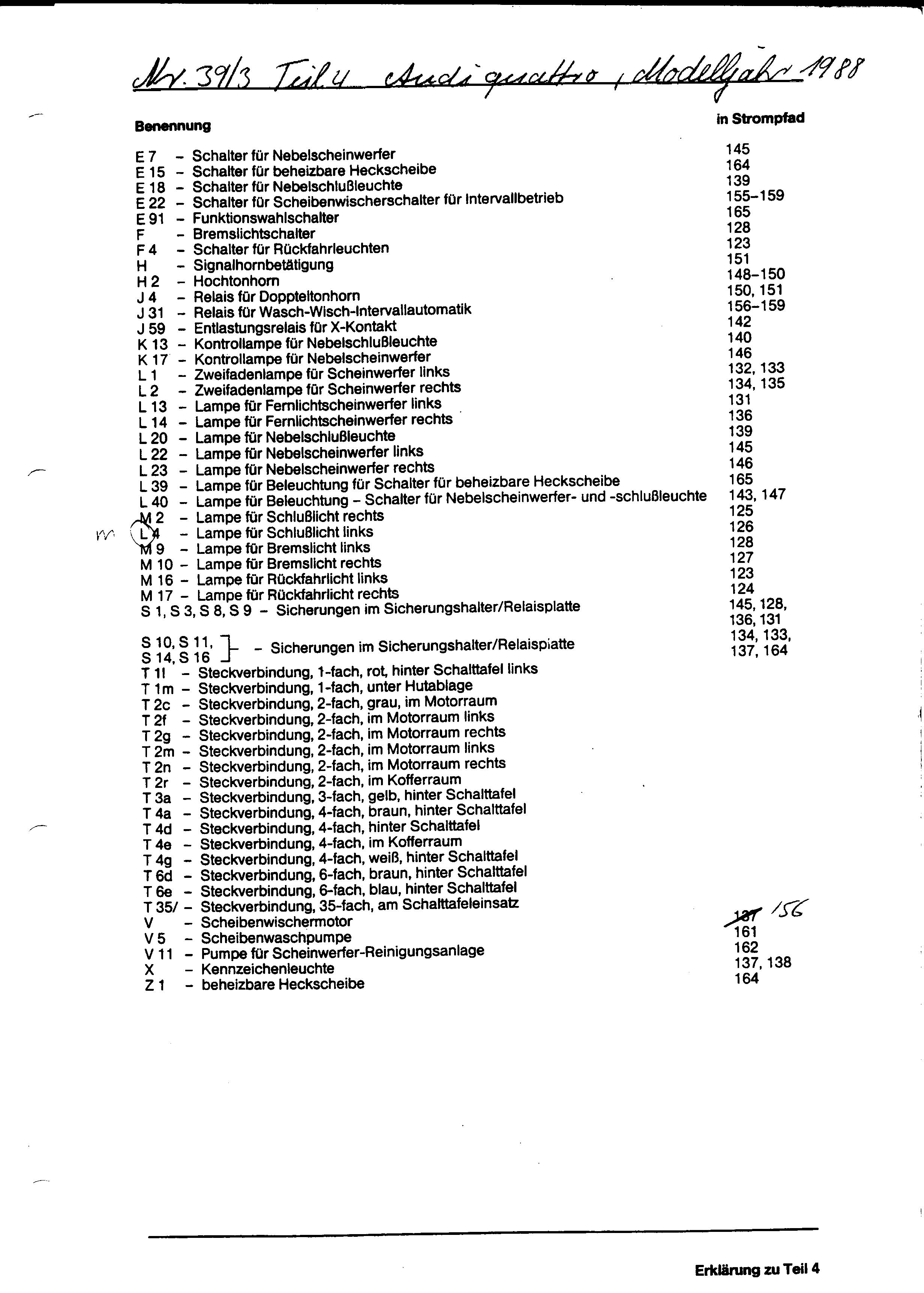

• Index to tracks 123-166

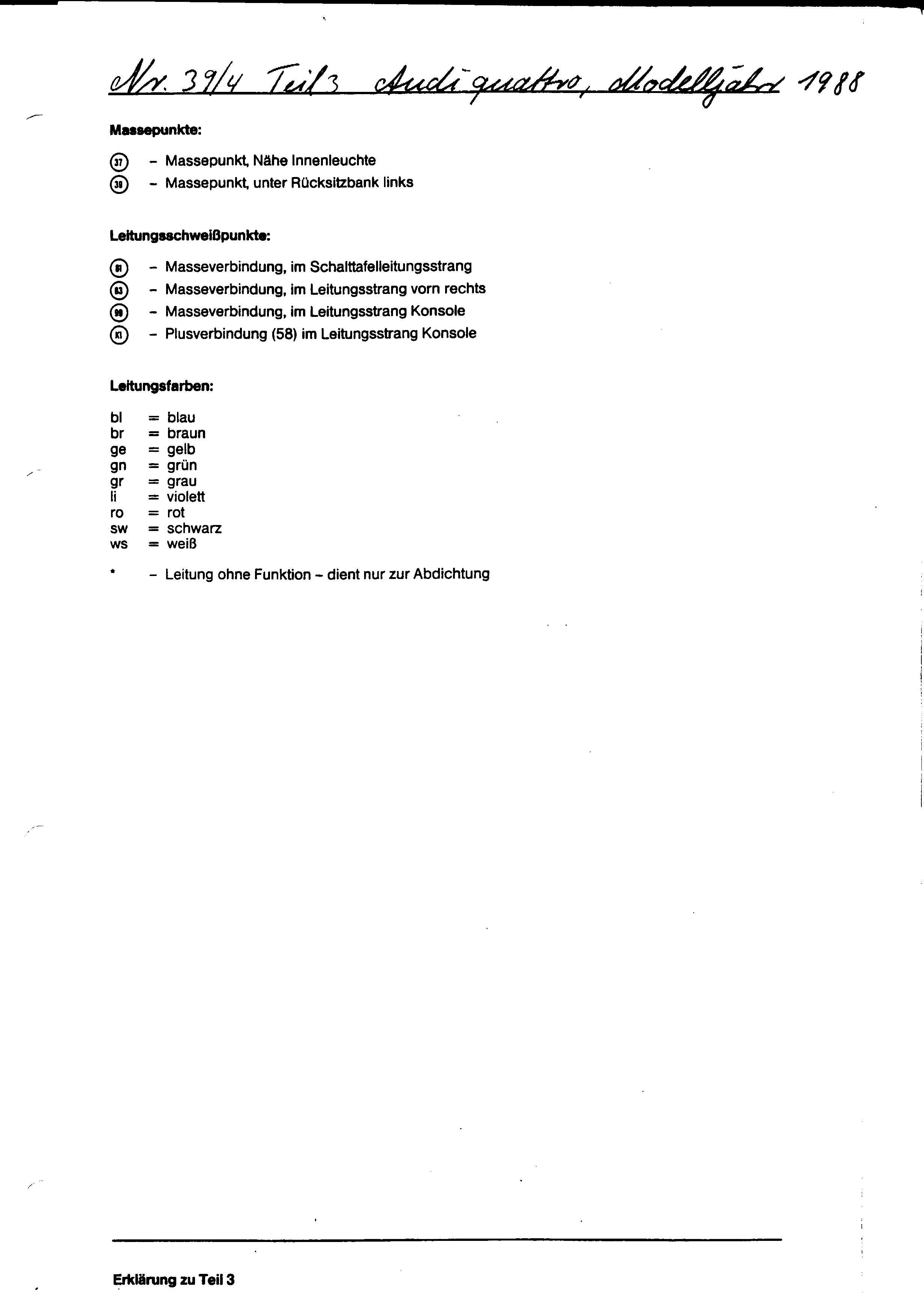

• Index to tracks 123-166 (contd.)

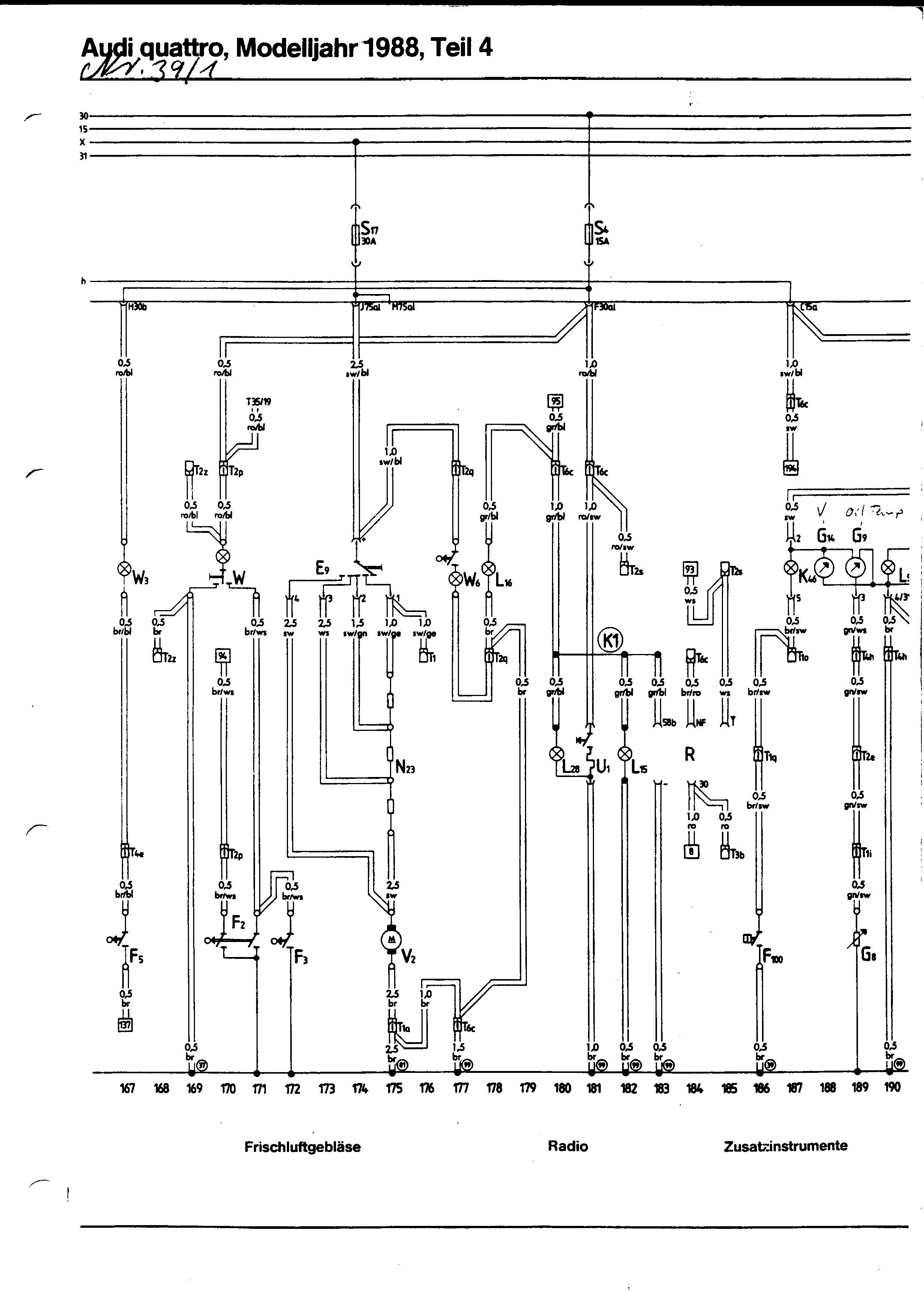

• Tracks 167-189: Ventilator fan, Radio and additional instruments

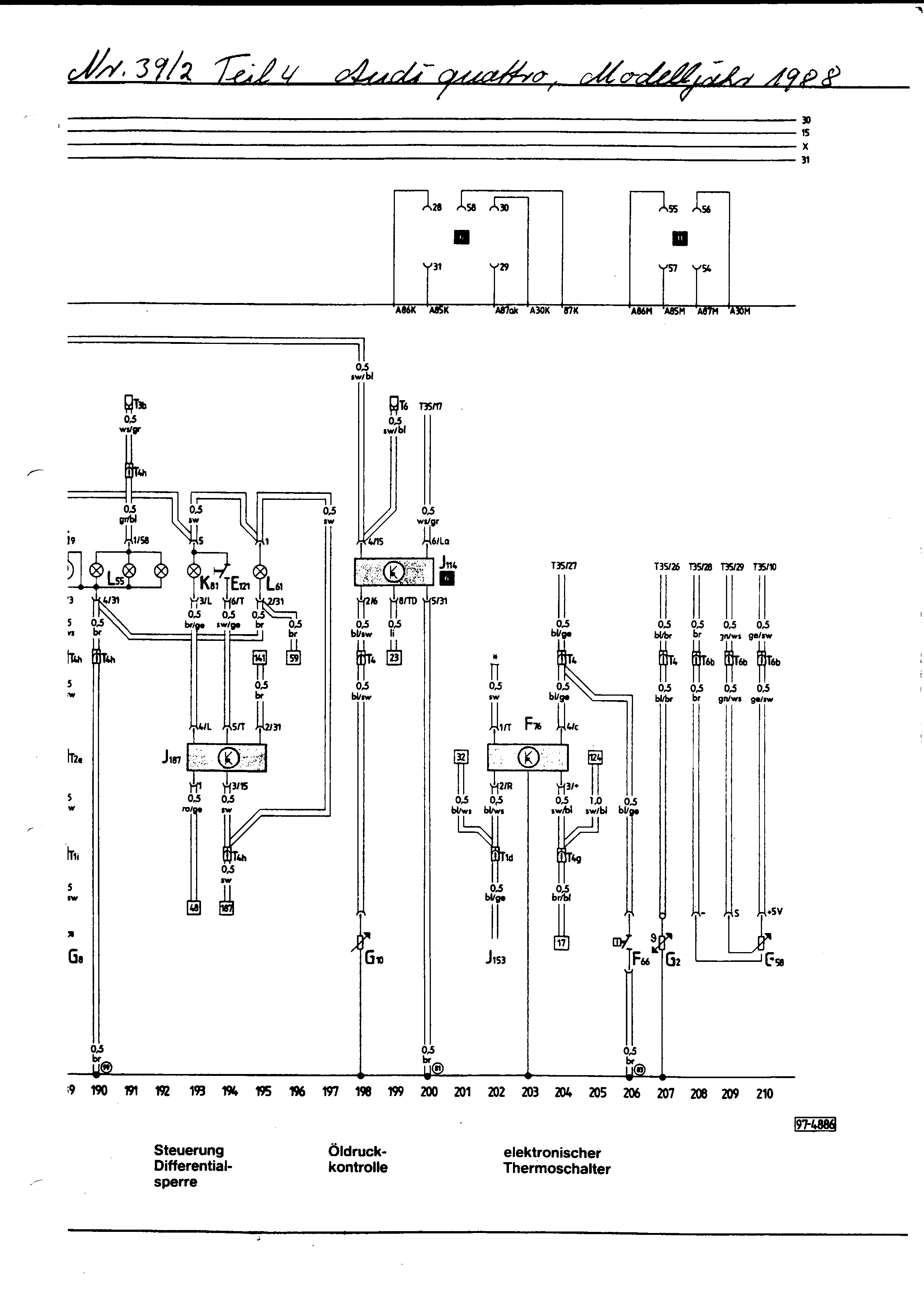

• Tracks 190-210: Differential lock, oil pressure controller, electronic thermoswitch

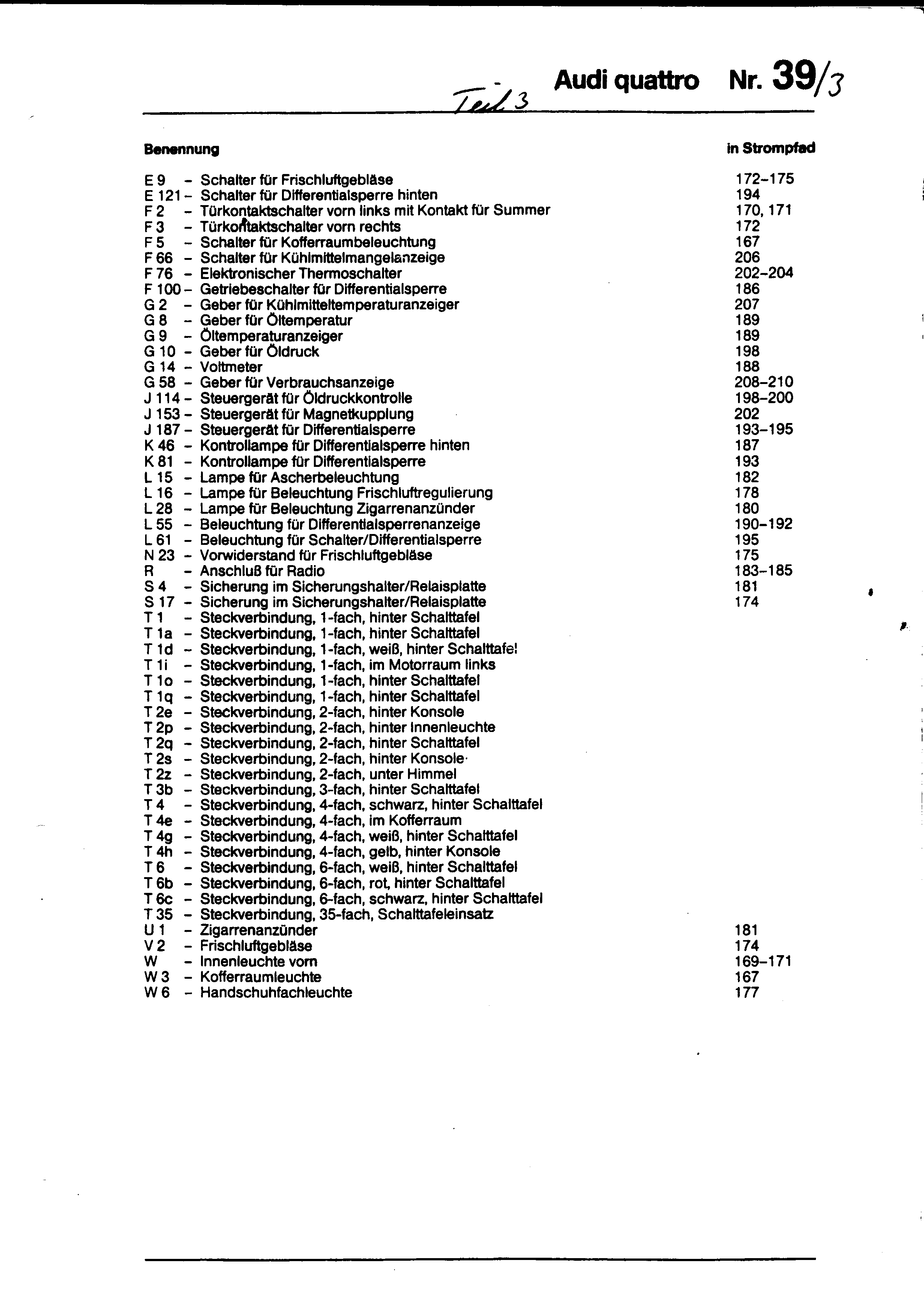

• Index to tracks 167-210

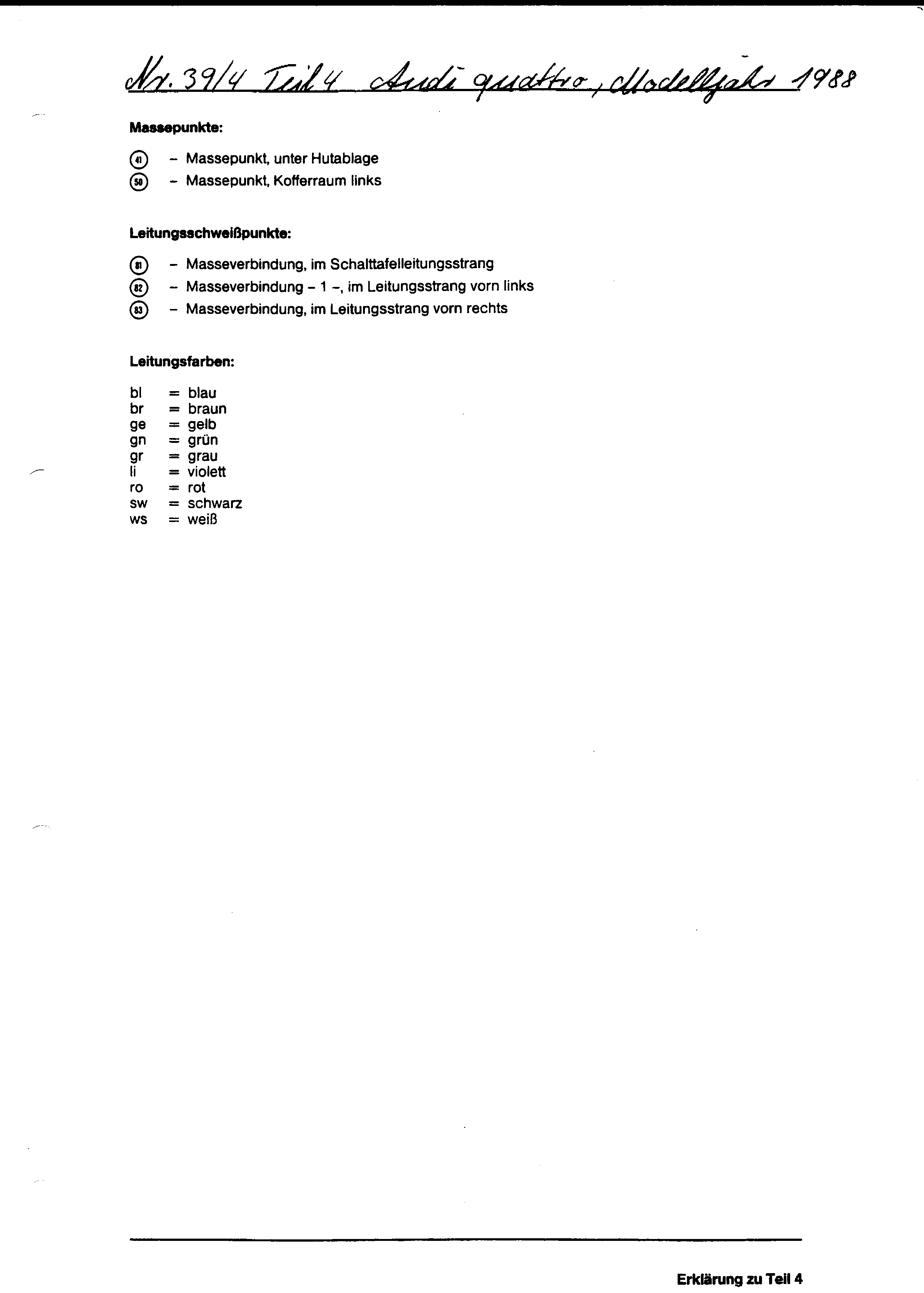

• Index to tracks 167-210 (contd.)

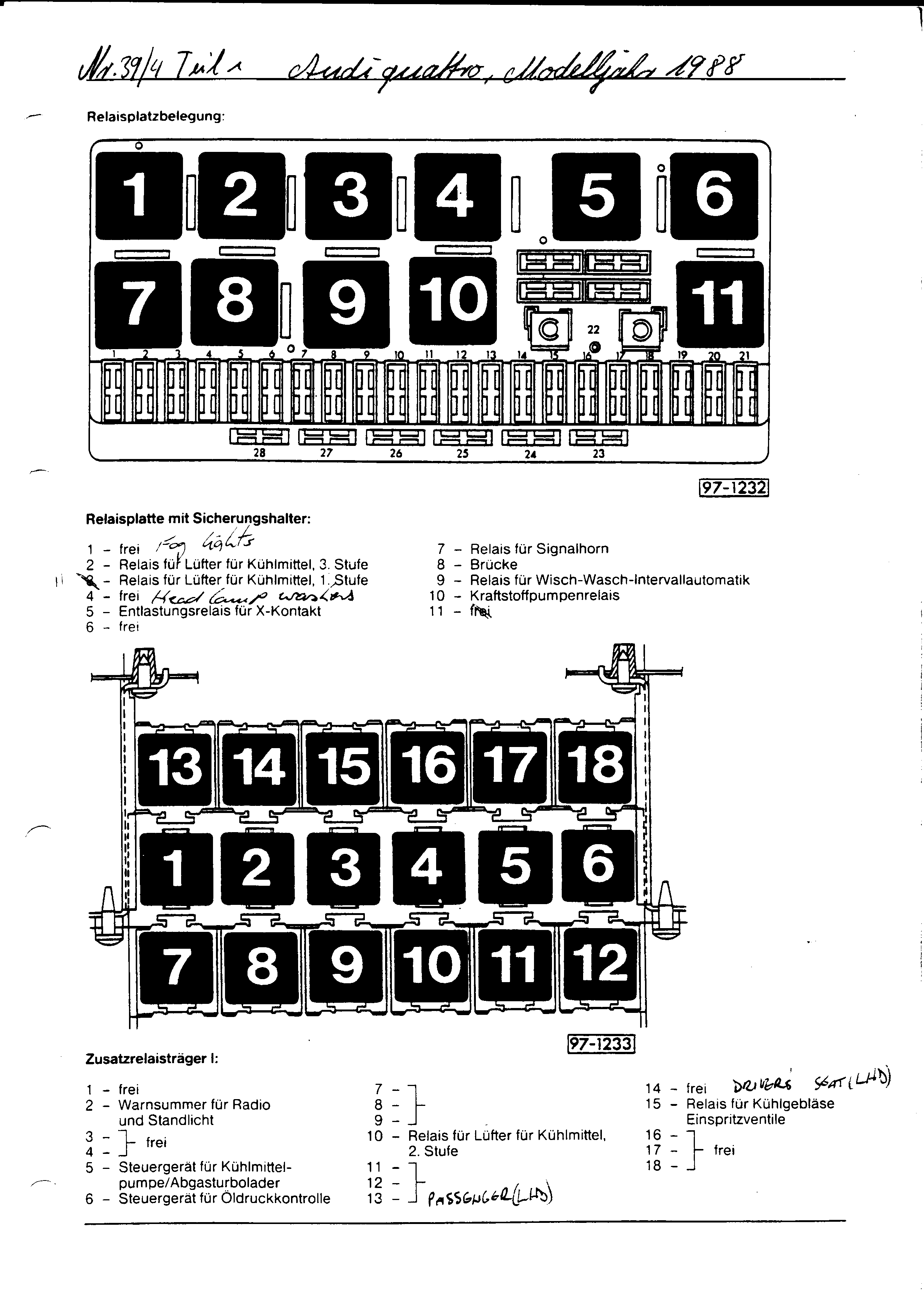

• Relay and fuse positions

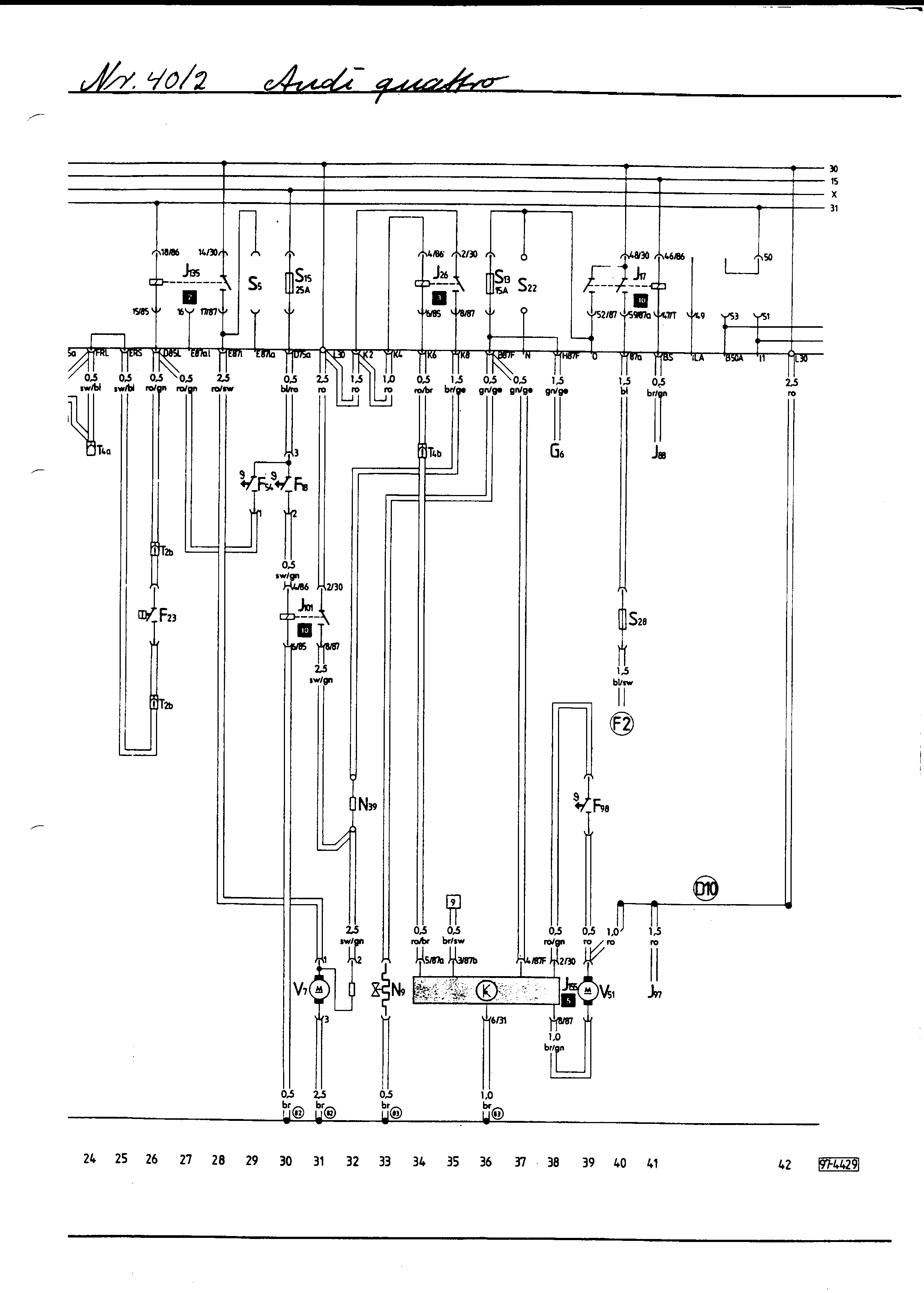

40 - Air conditioning - MB engine

• Tracks 1-23
• Tracks 24-42

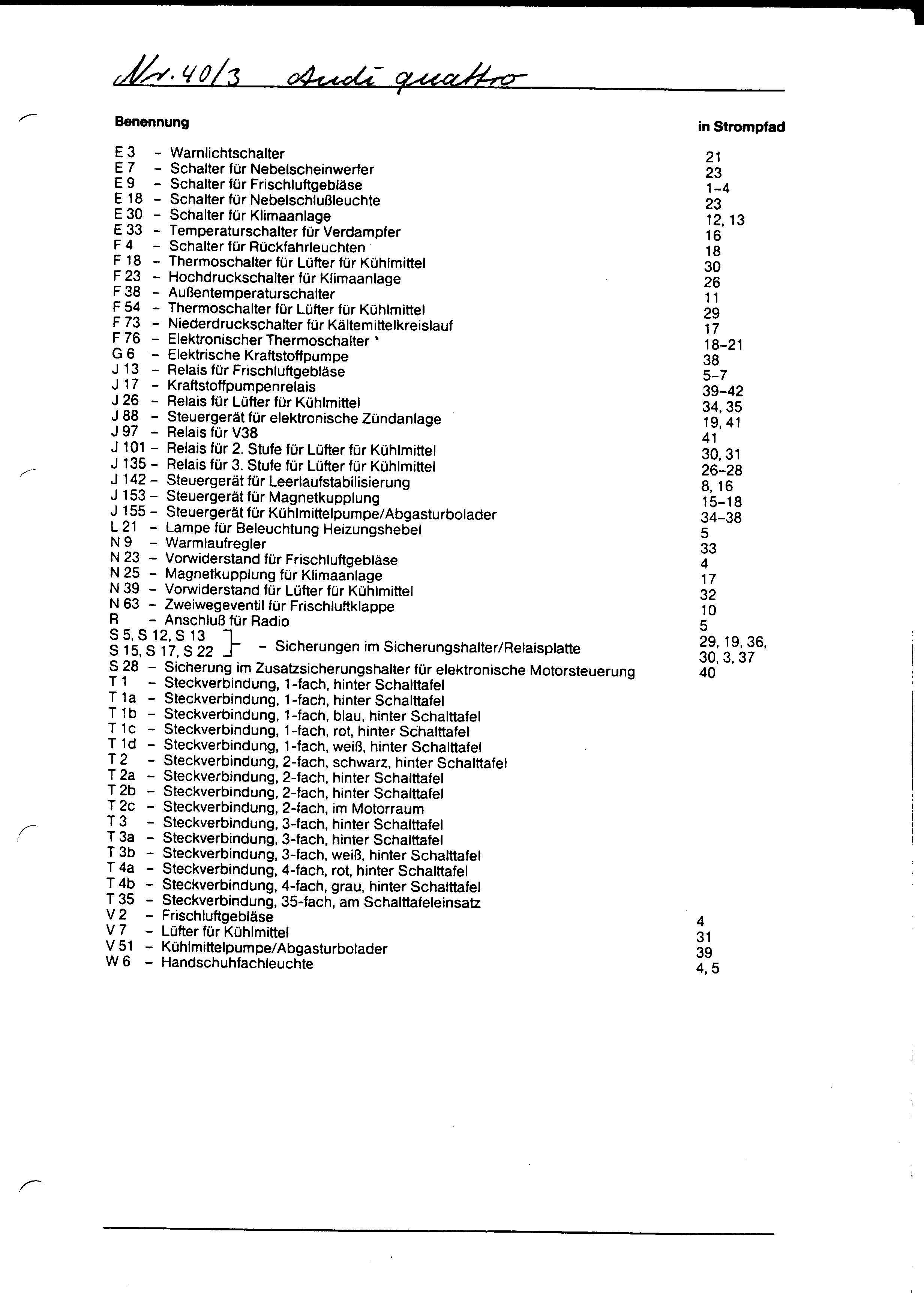

• Index

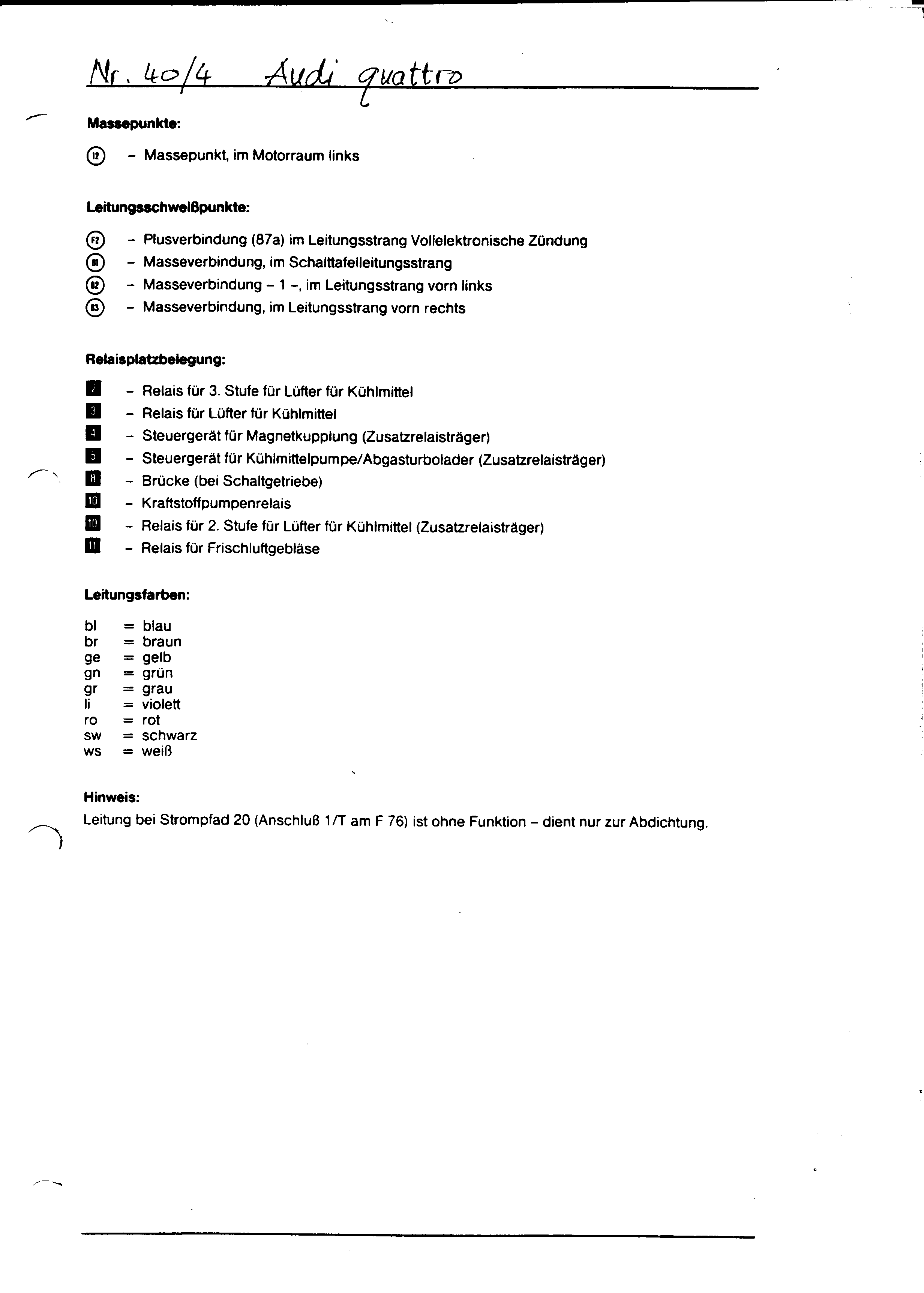

• Index (contd.)

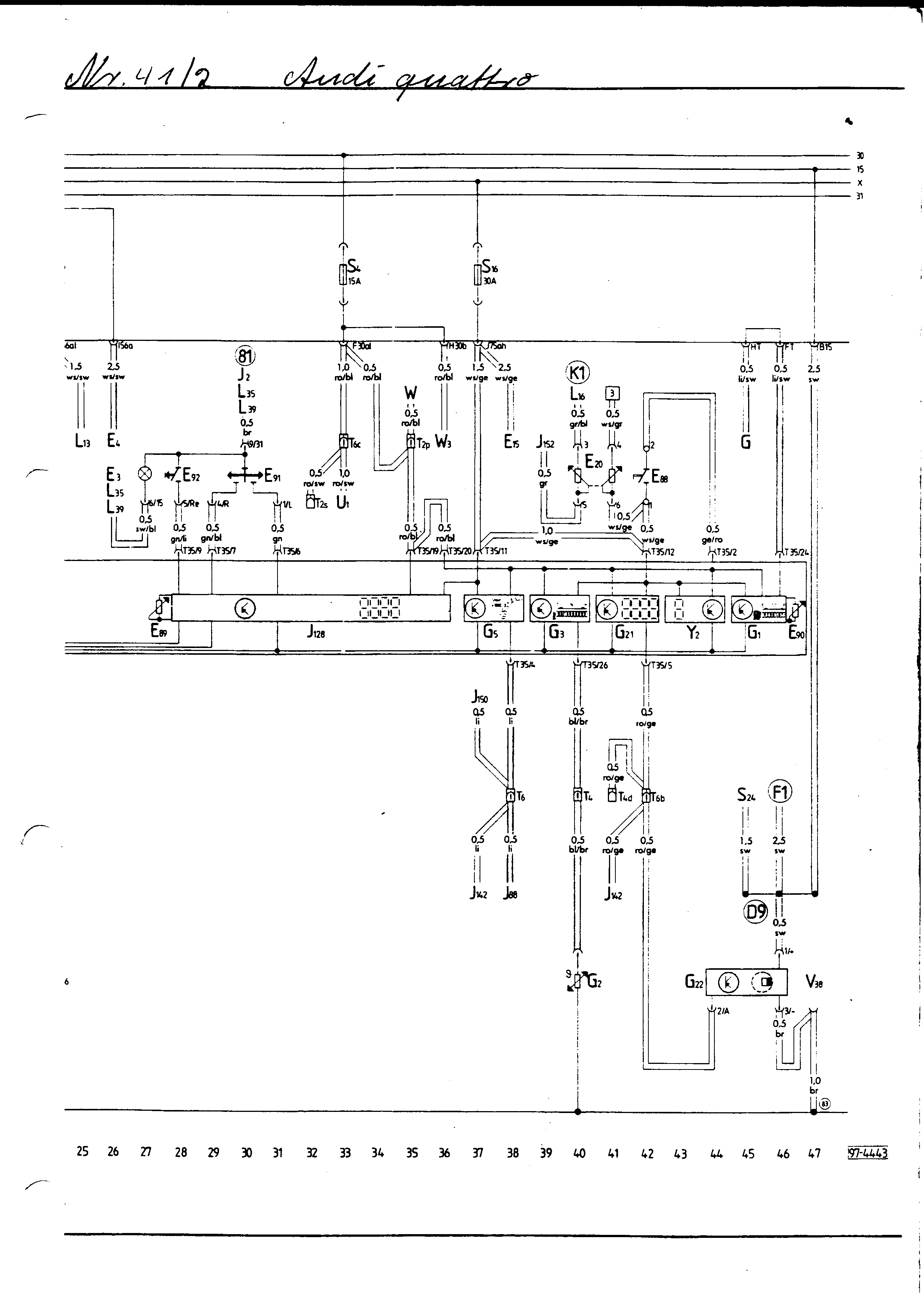

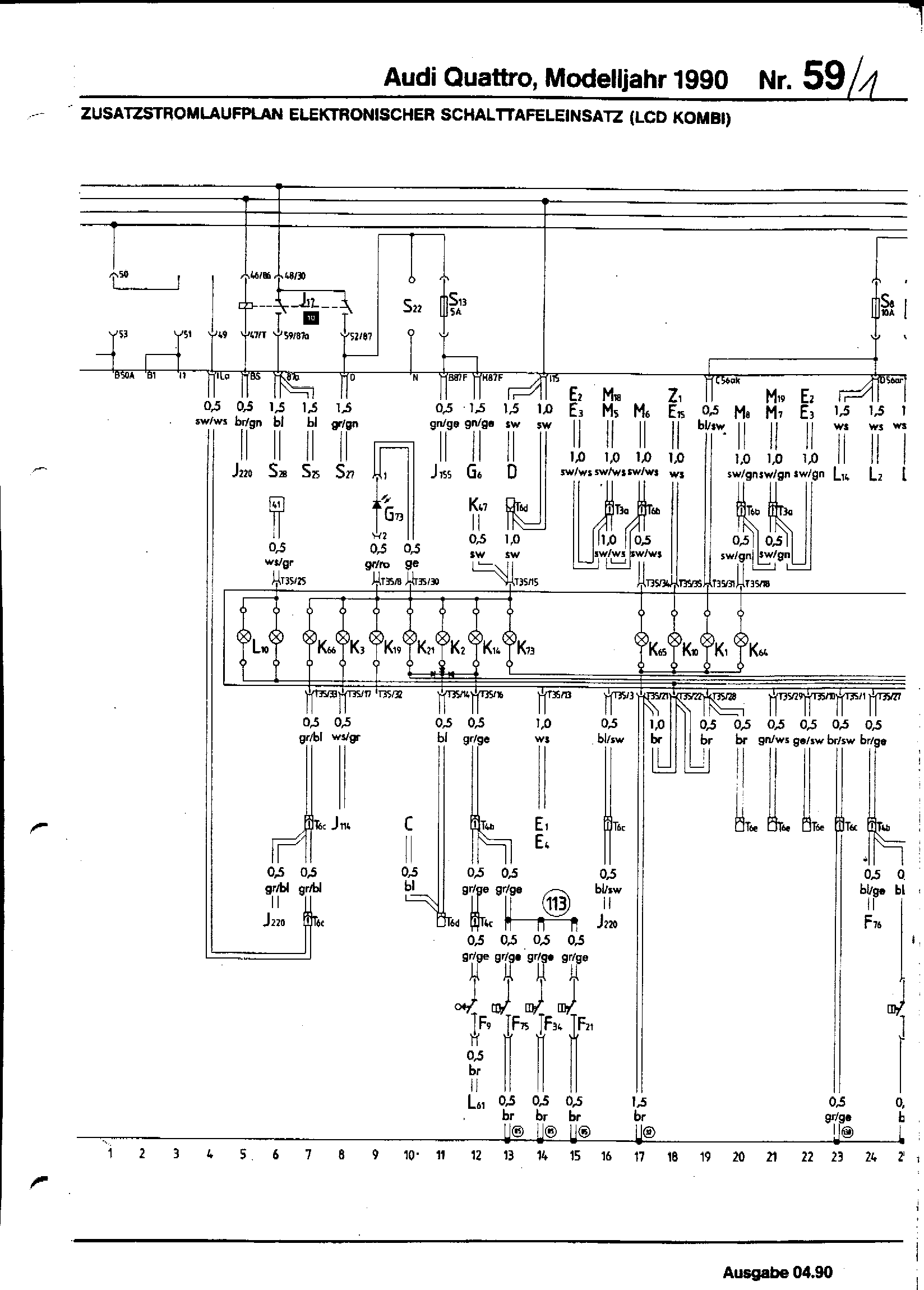

41 - Electronic dashboard

• Bulb identification
• Tracks 1-24
• Tracks 25-47

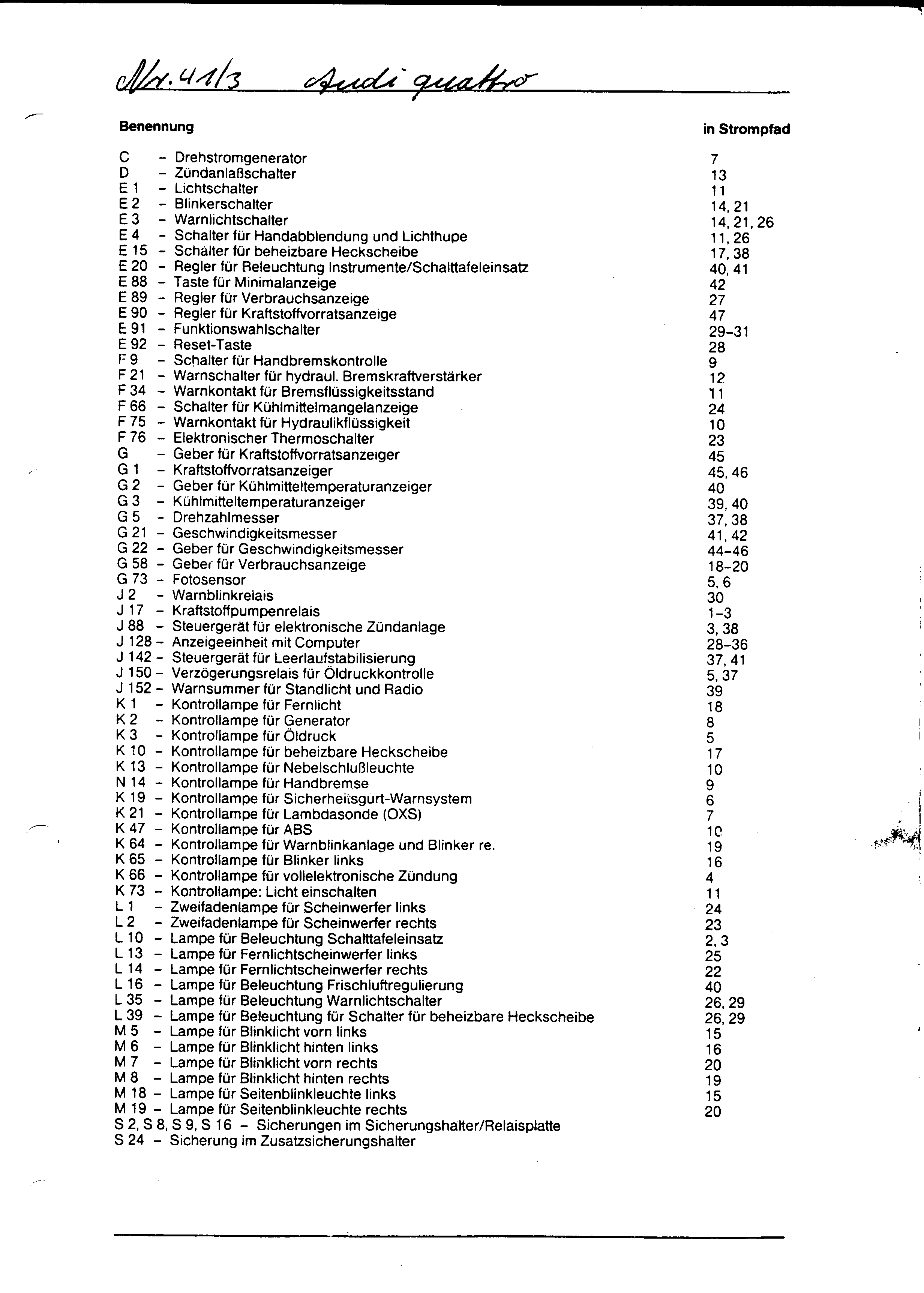

• Index

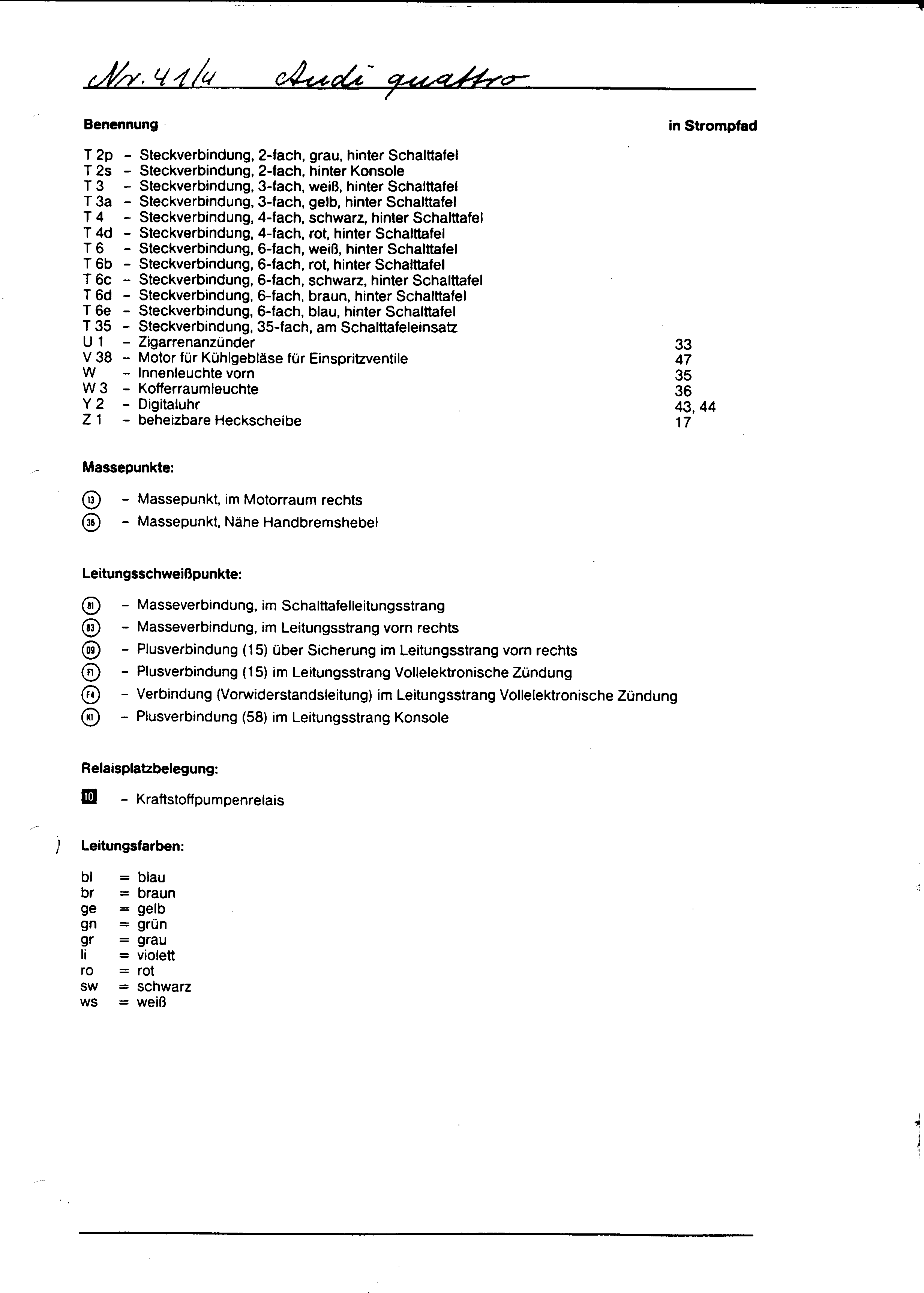

• Index (contd.)

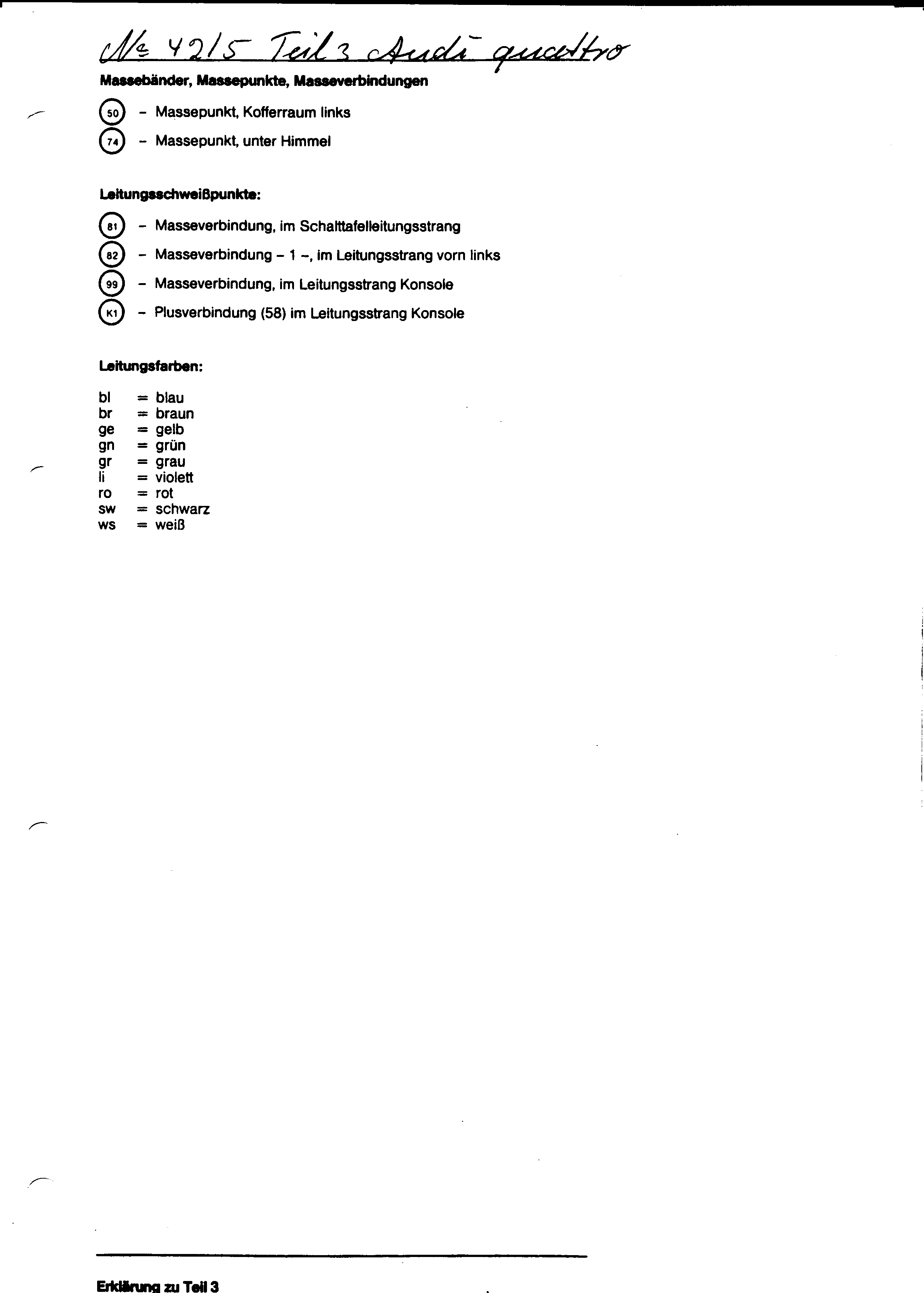

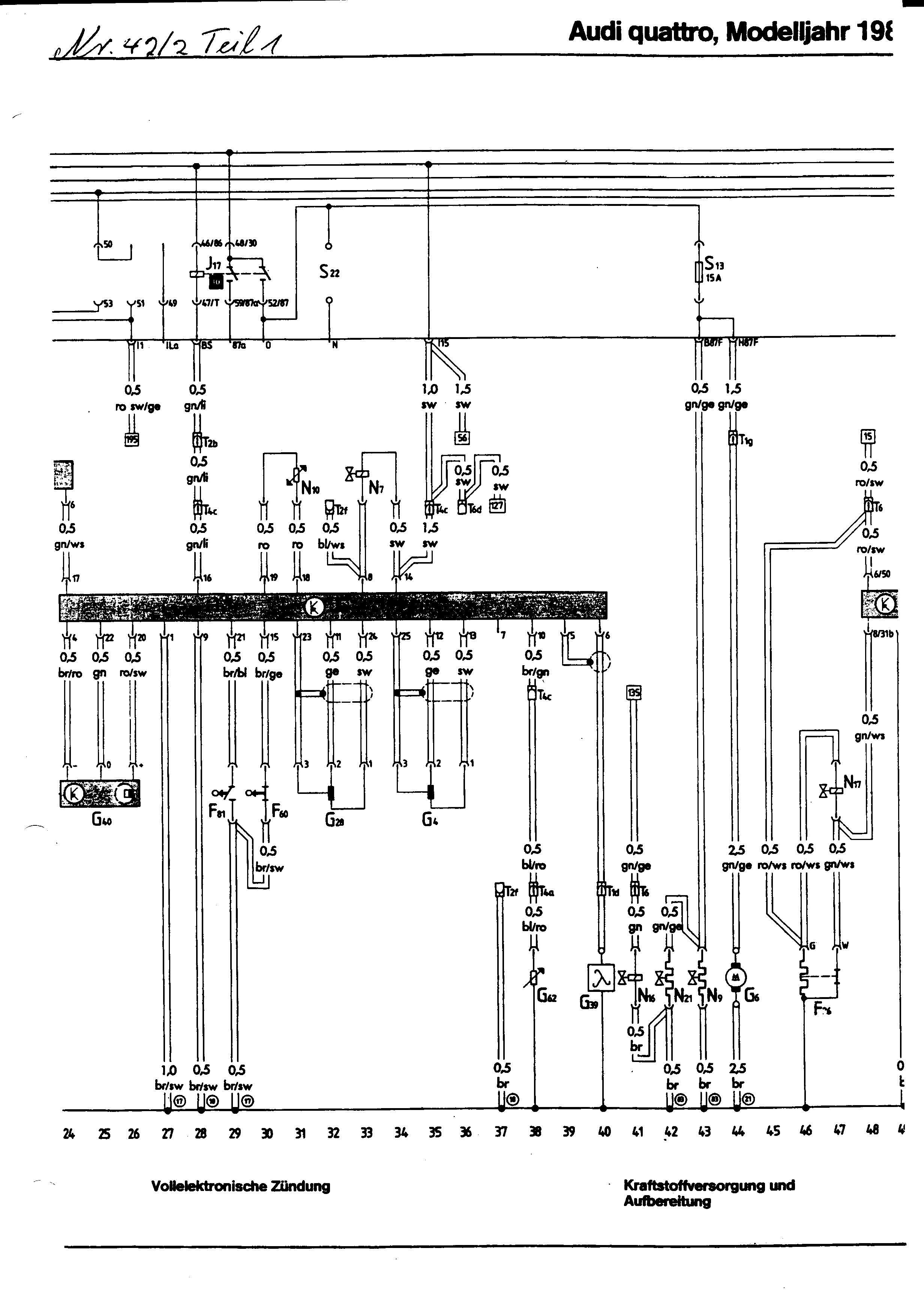

42 - Audi Quattro, 1988, WX engine

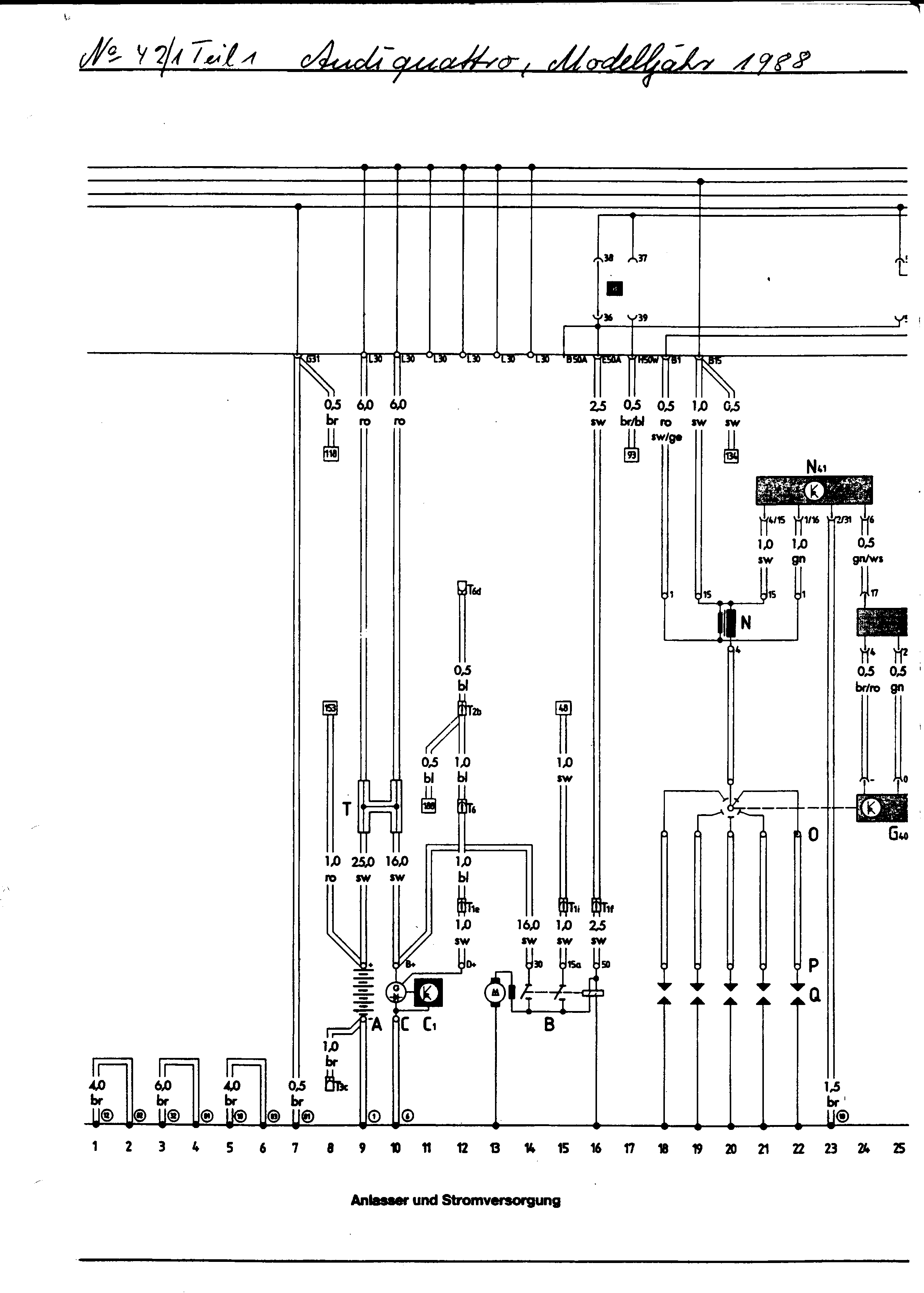

• Tracks 1-23: Starter, battery and alternator
• Tracks 24-47: Ignition, fuel supply

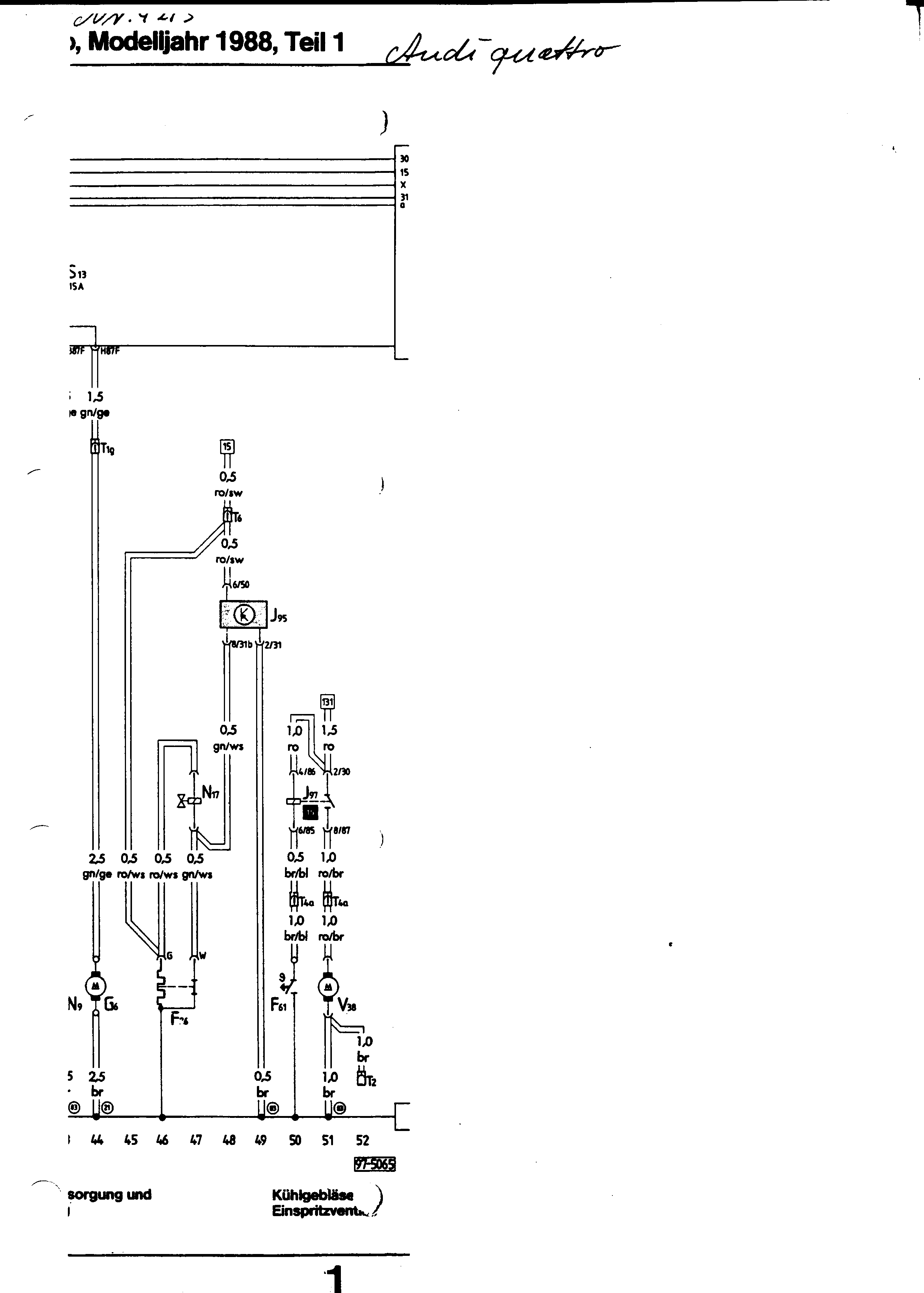

• Tracks 44-52: Injector cooling

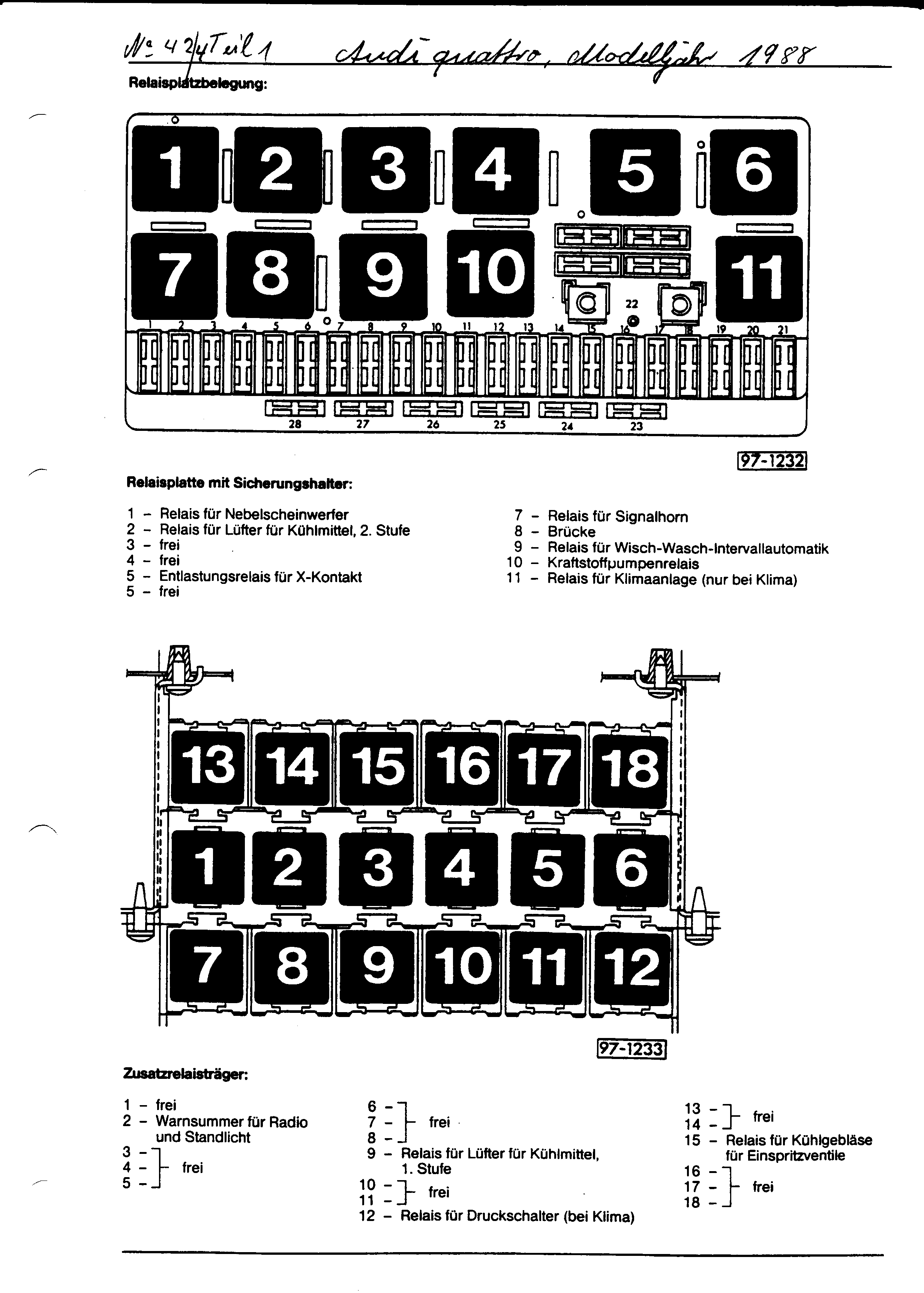

• Relay and fuse positions

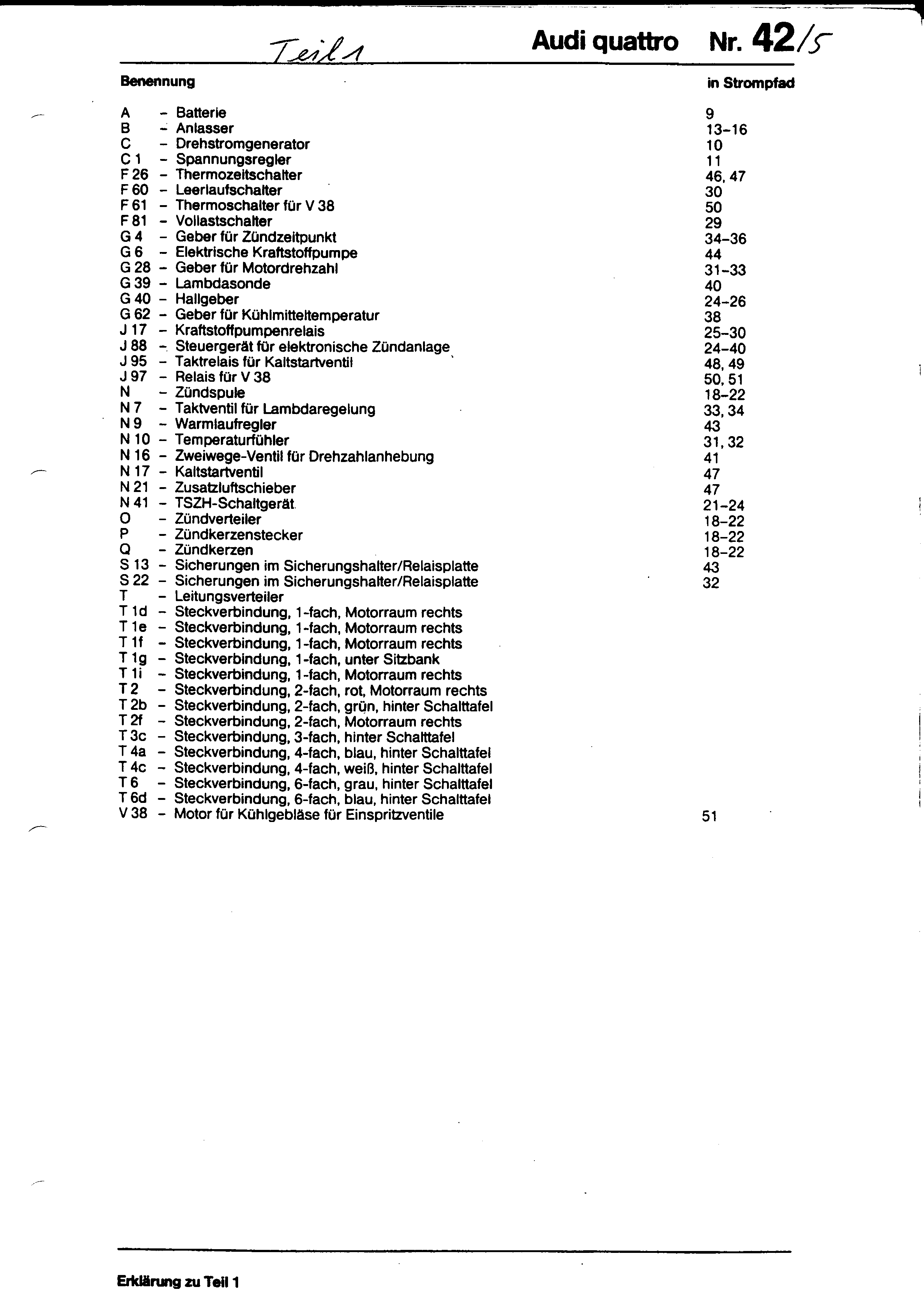

• Index to tracks 1-52

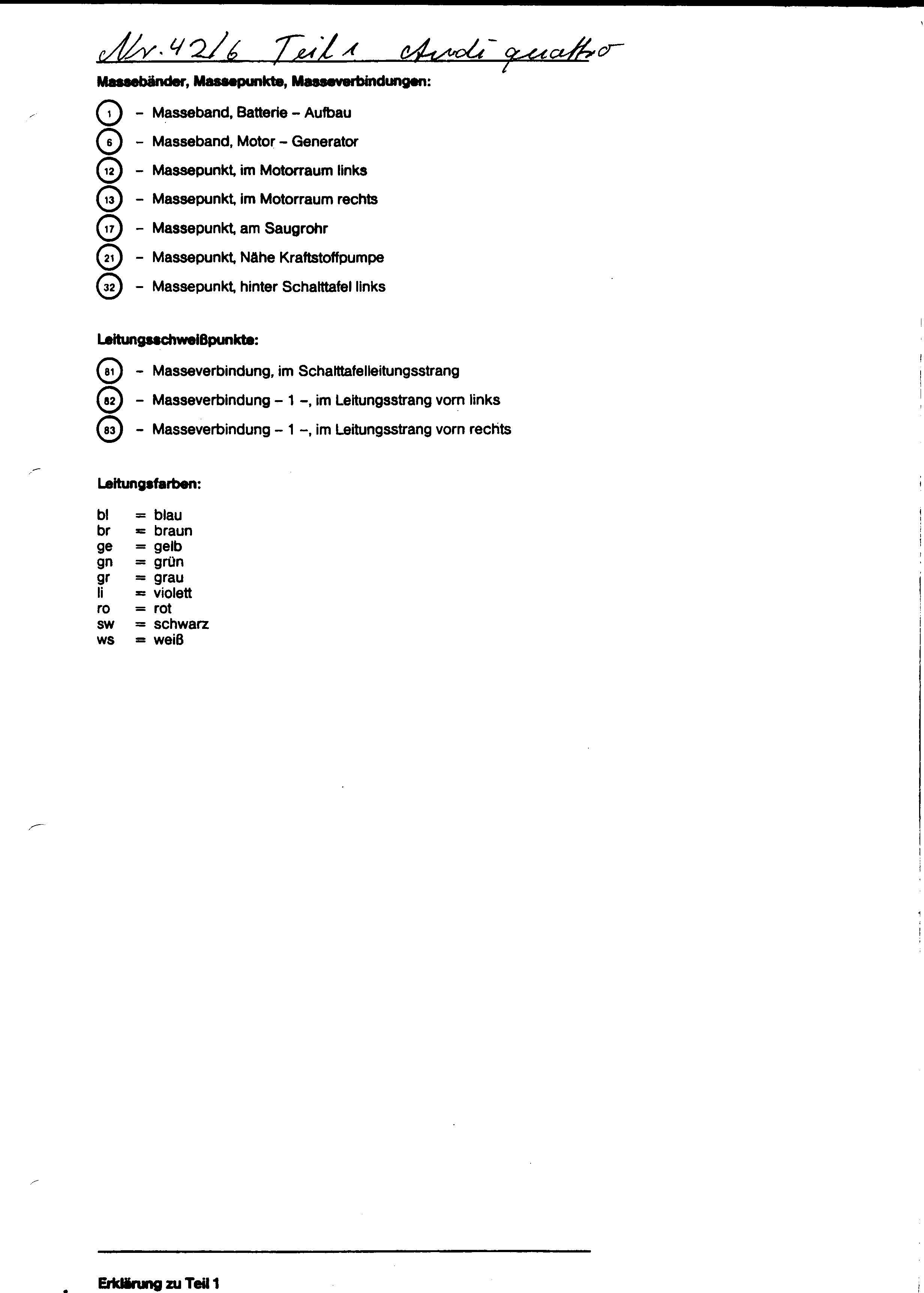

• Index to tracks 1-52 (contd.)

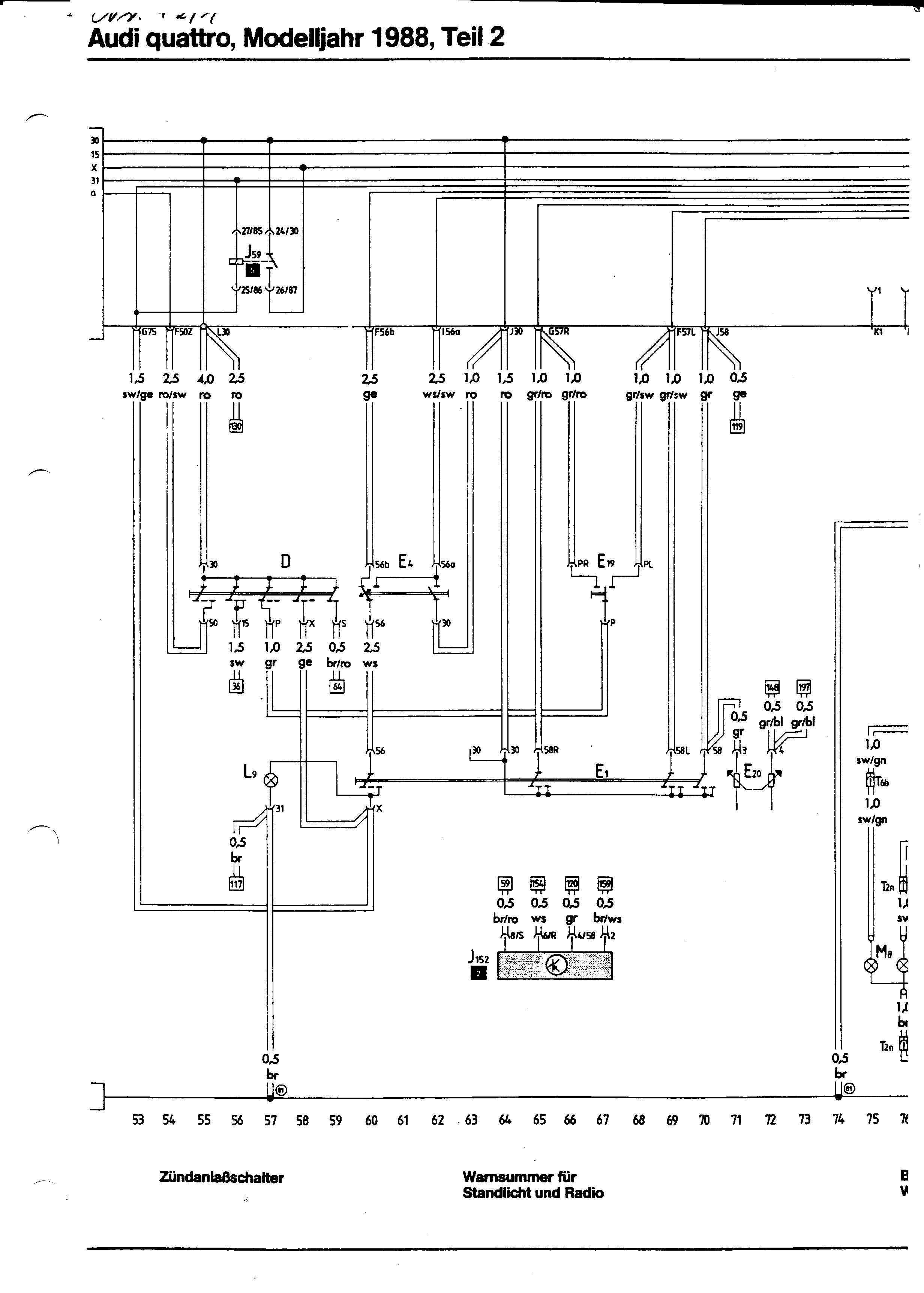

• Tracks 53-74: Ignition switch, radio and lights warning buzzer
• Tracks 75-99: Blinkers and hazard flashers, lights

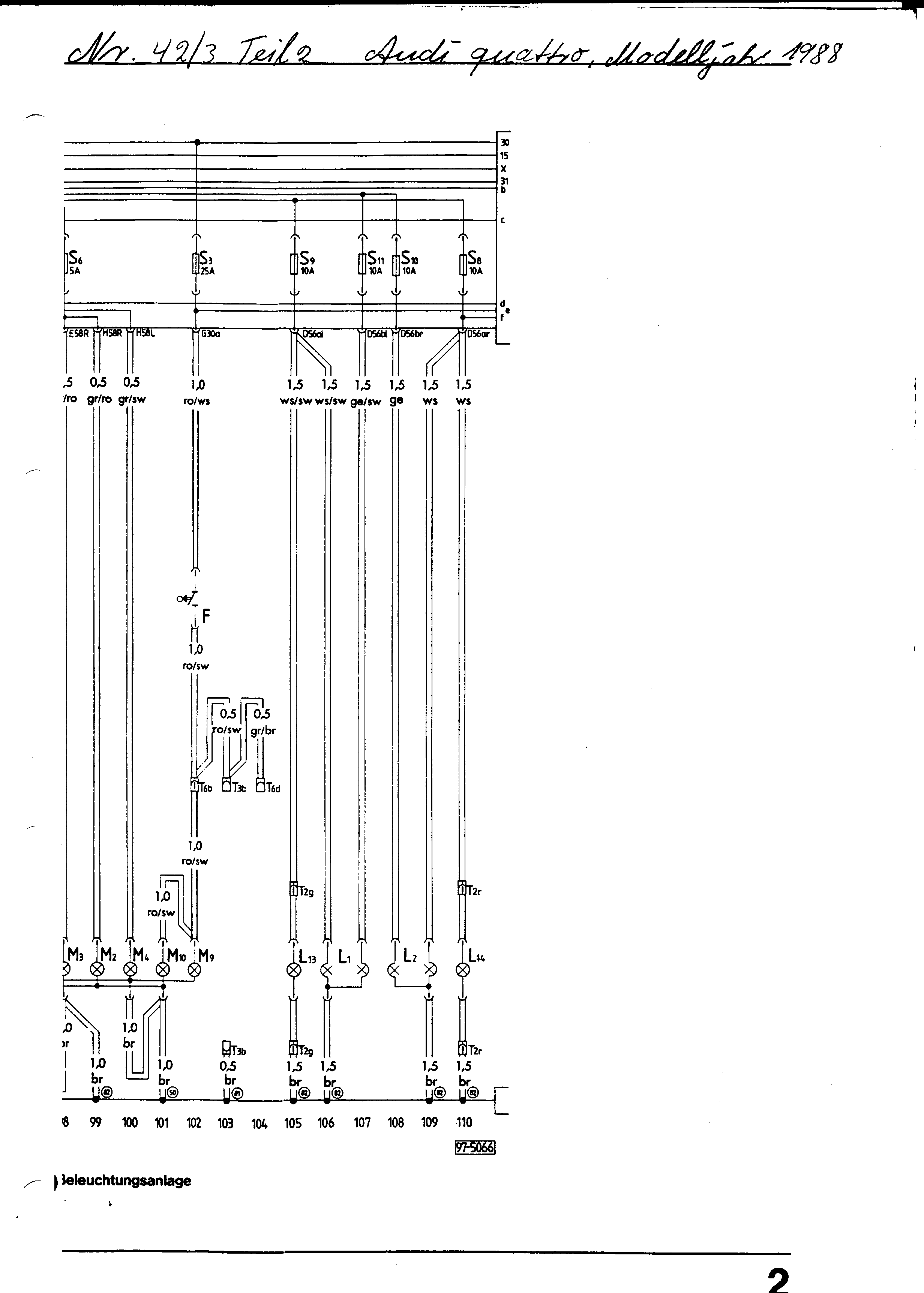

• Tracks 99-110: Lights
• Index to tracks 53-110
• Index to tracks 53-110 (contd.)

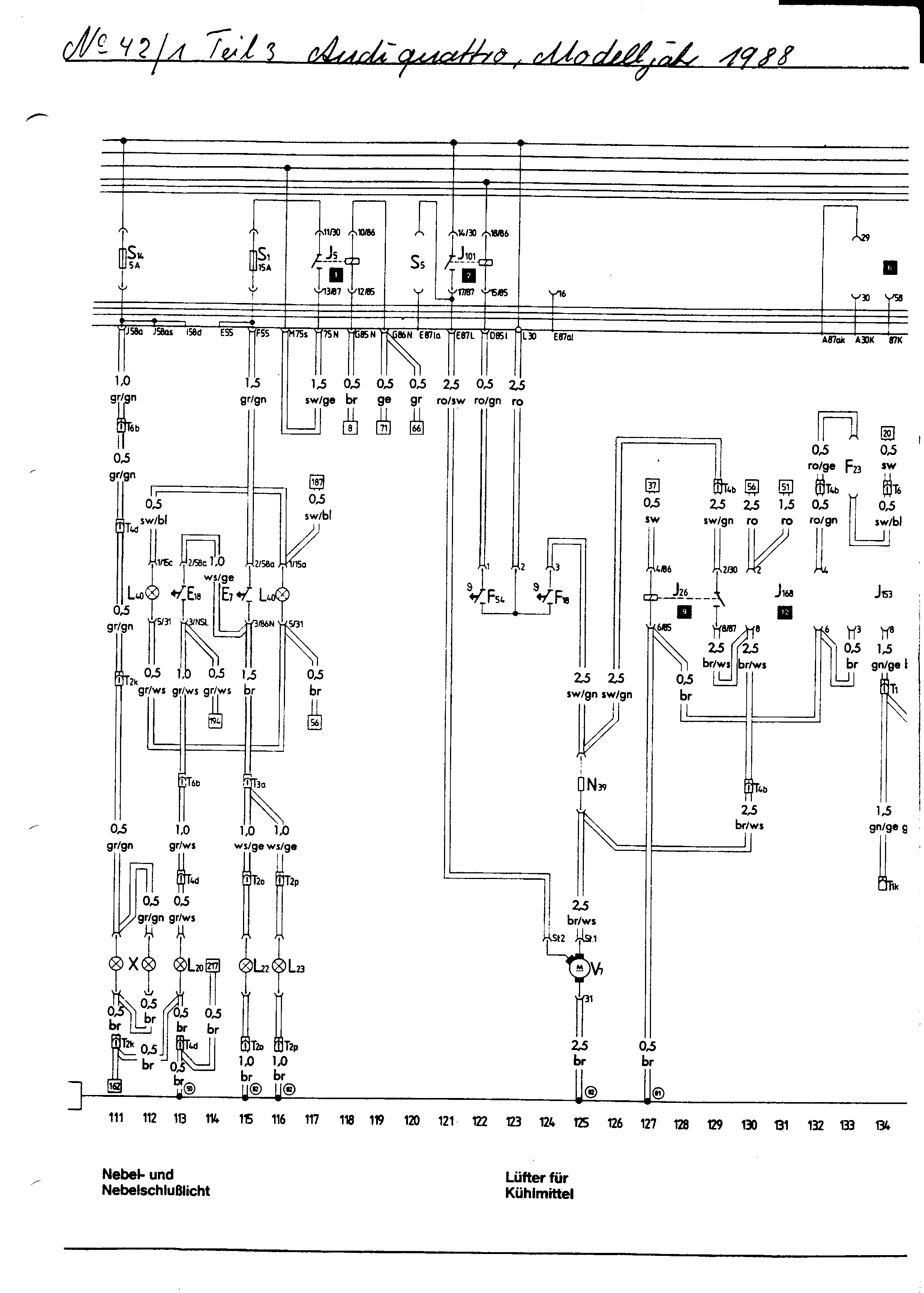

• Tracks 111-133: Fog lights, radiator fan

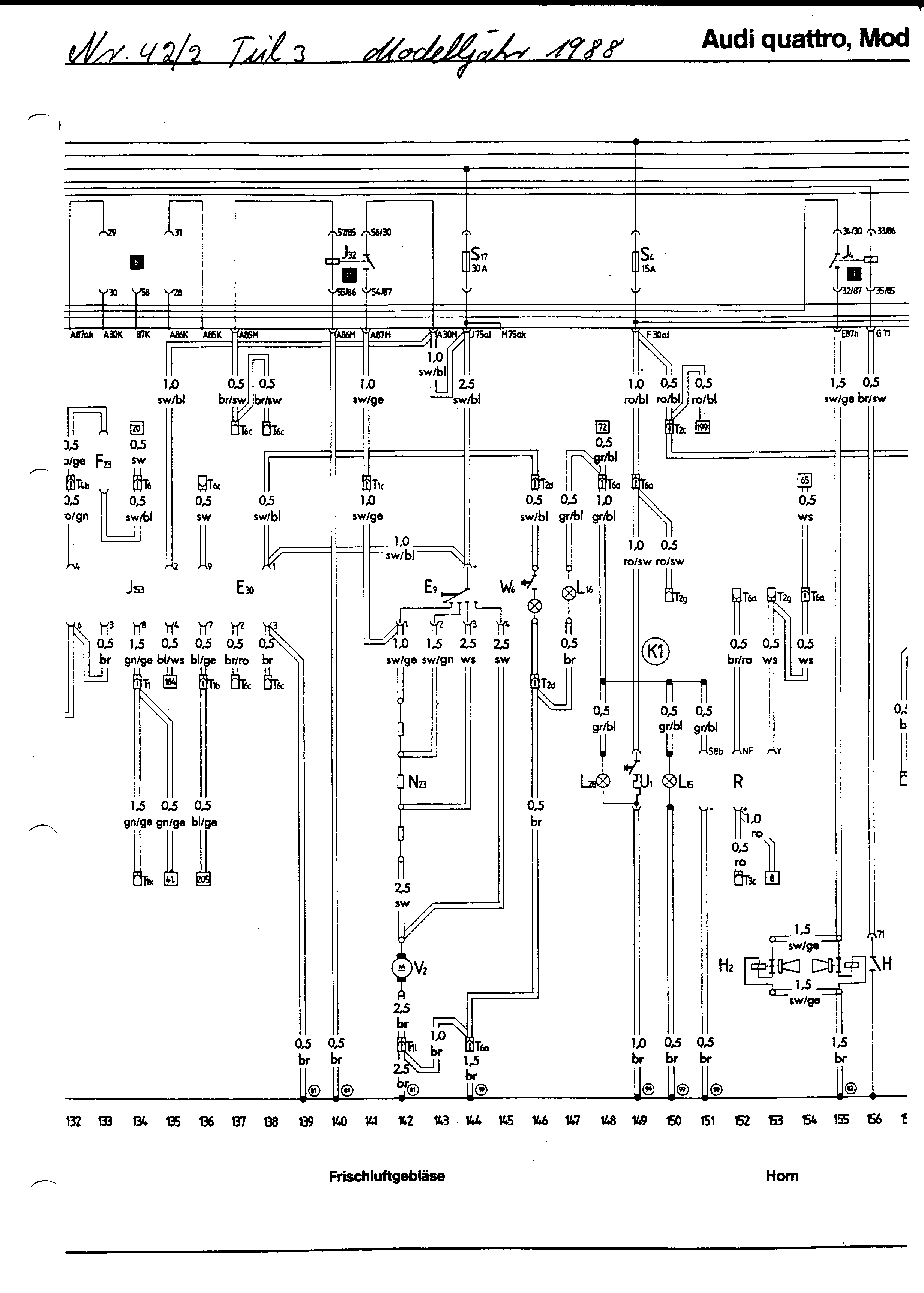

• Tracks 133-156: Ventilator fan, horn

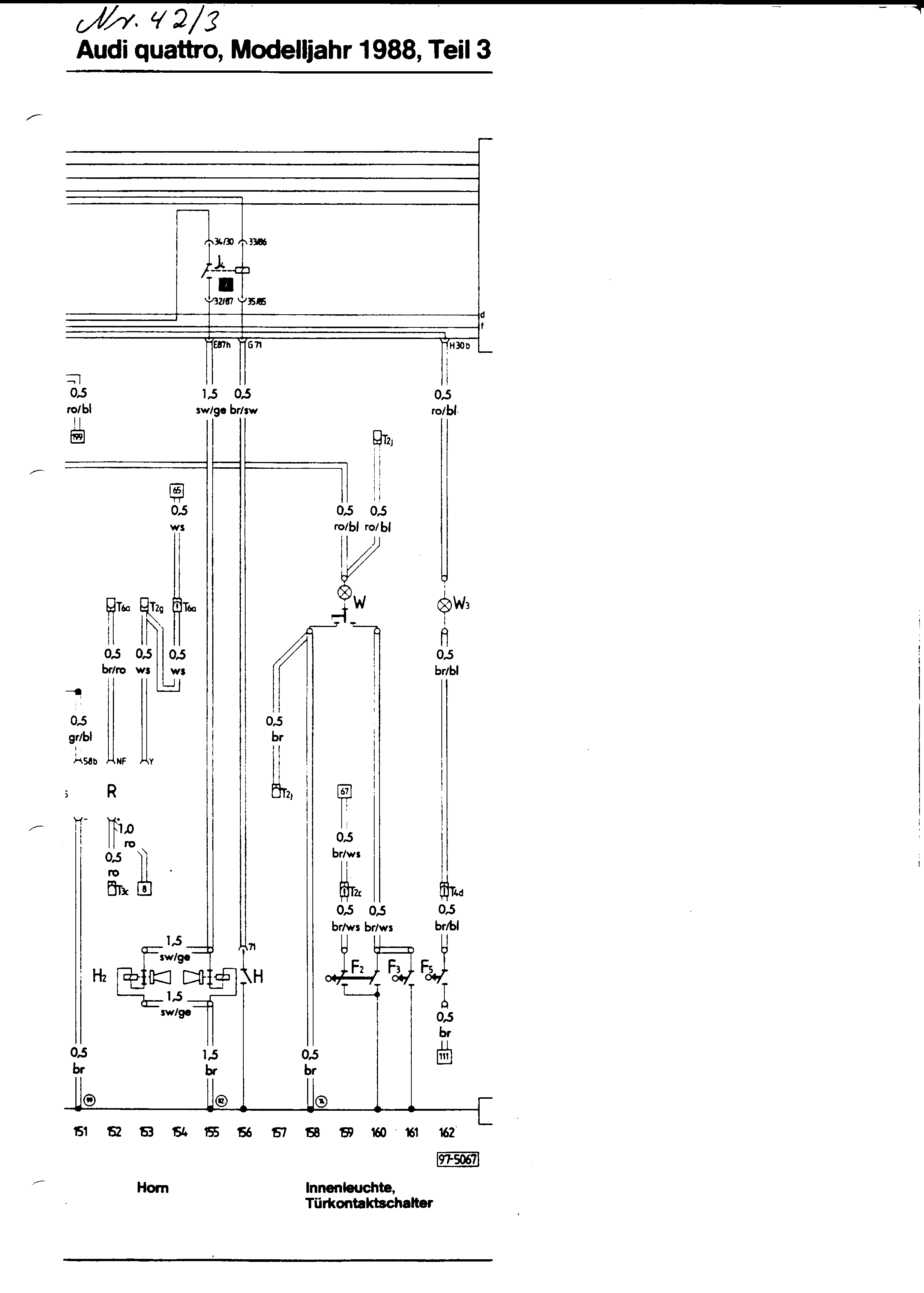

• Tracks 152-162: Horn, interior lights

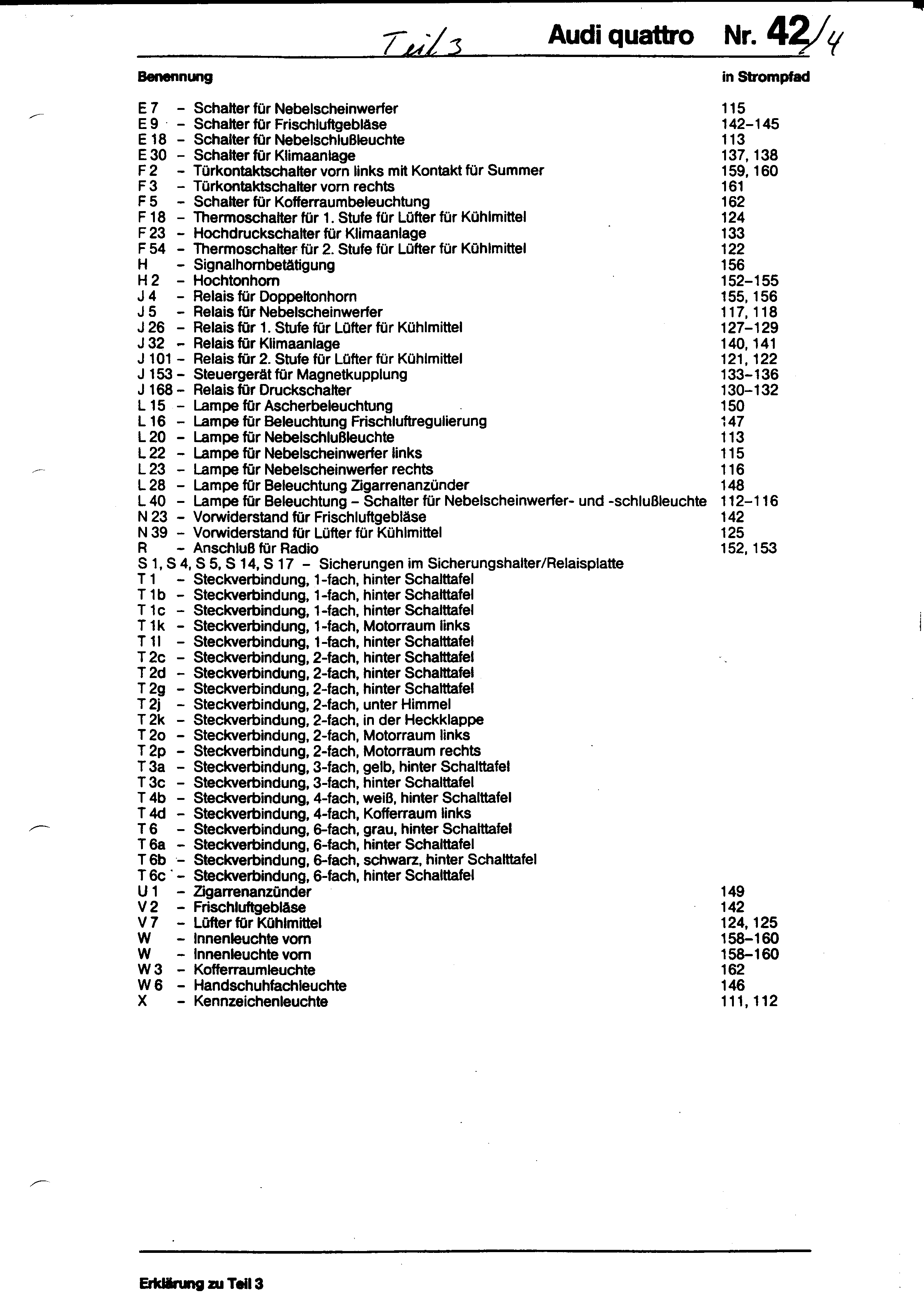

• Index to tracks 111-162
• Index to tracks 111-162 (contd.)

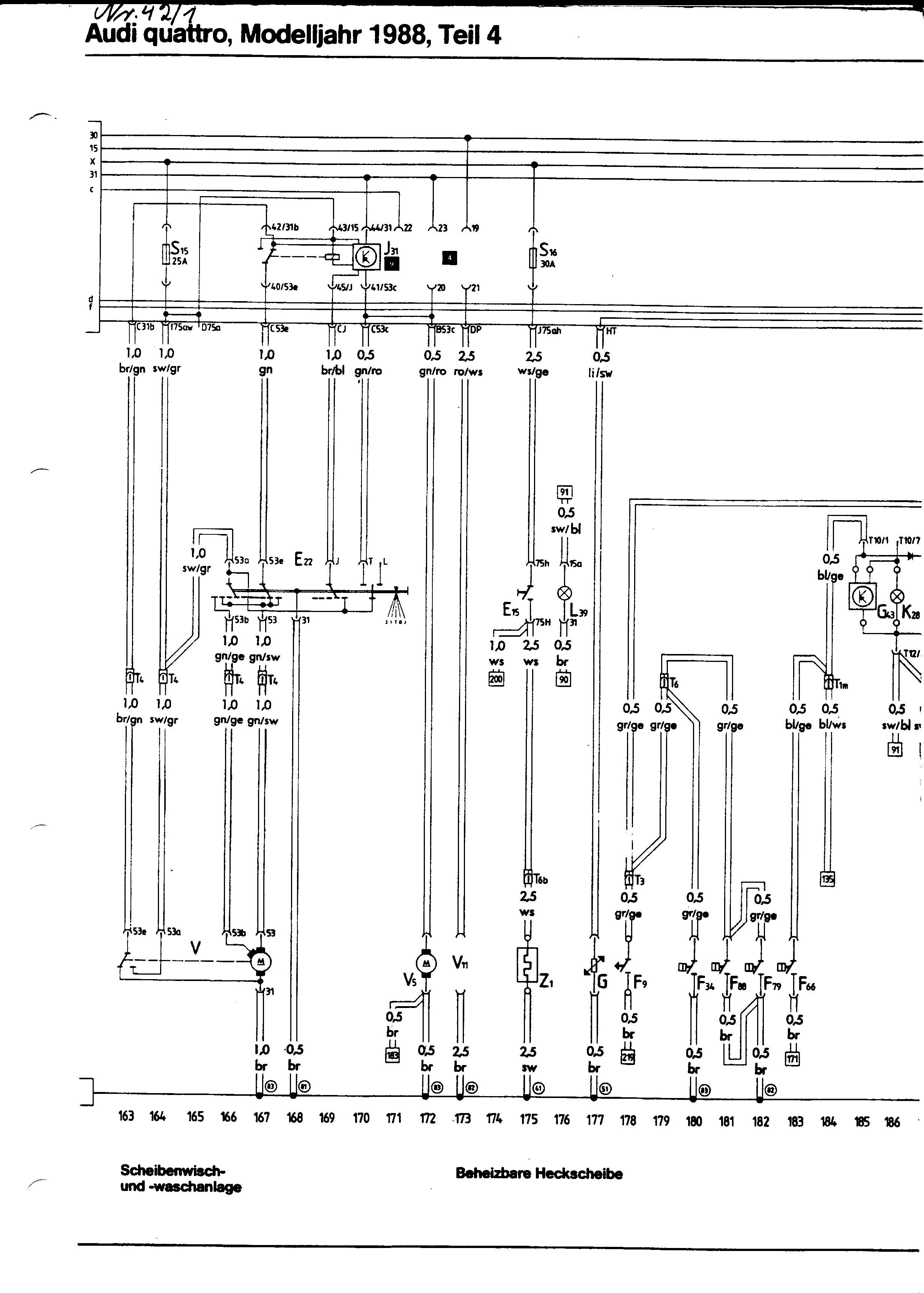

• Tracks 163-185: Wash/wipe, heated rear screen

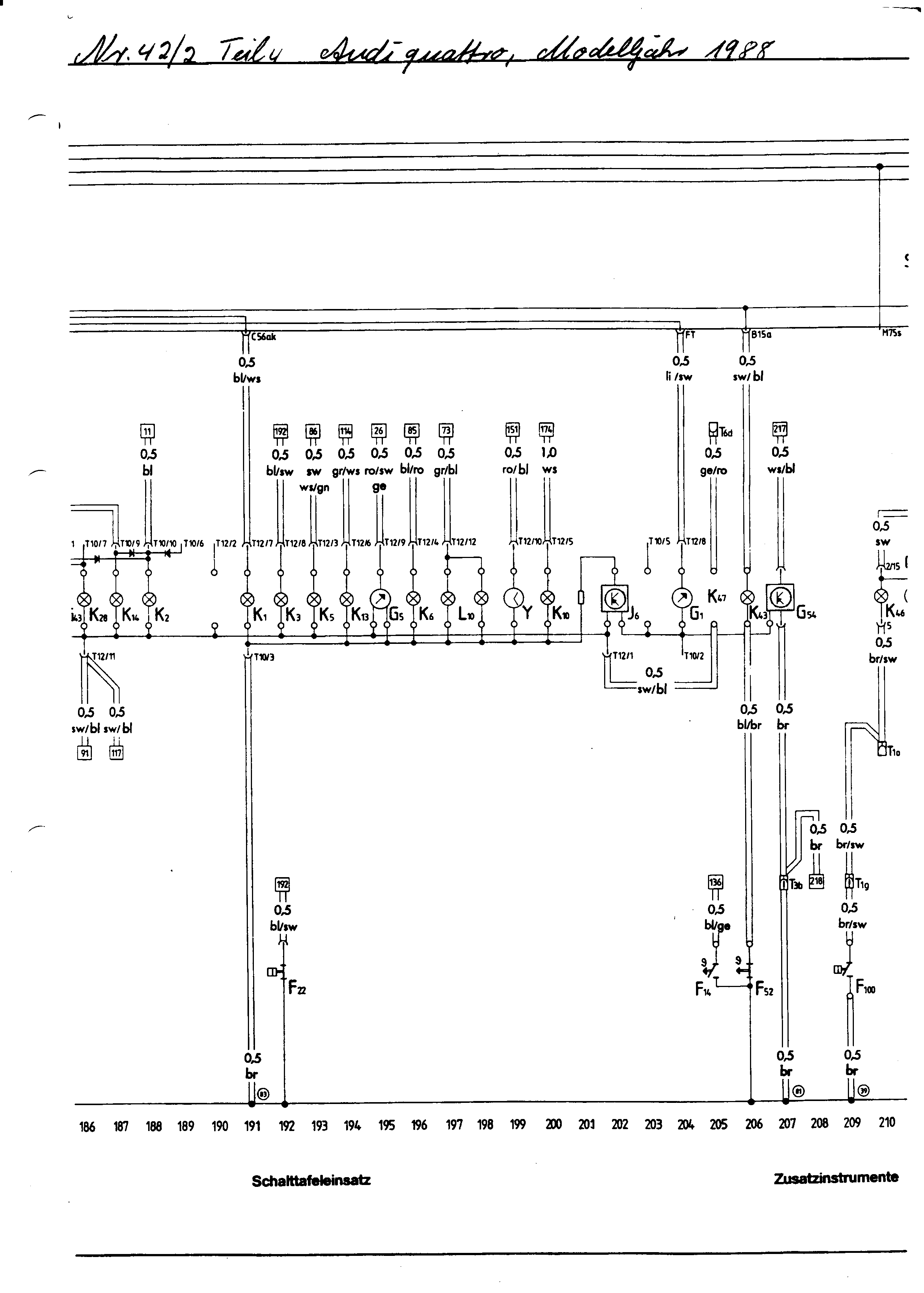

• Tracks 186-209: Dashboard, additional instruments

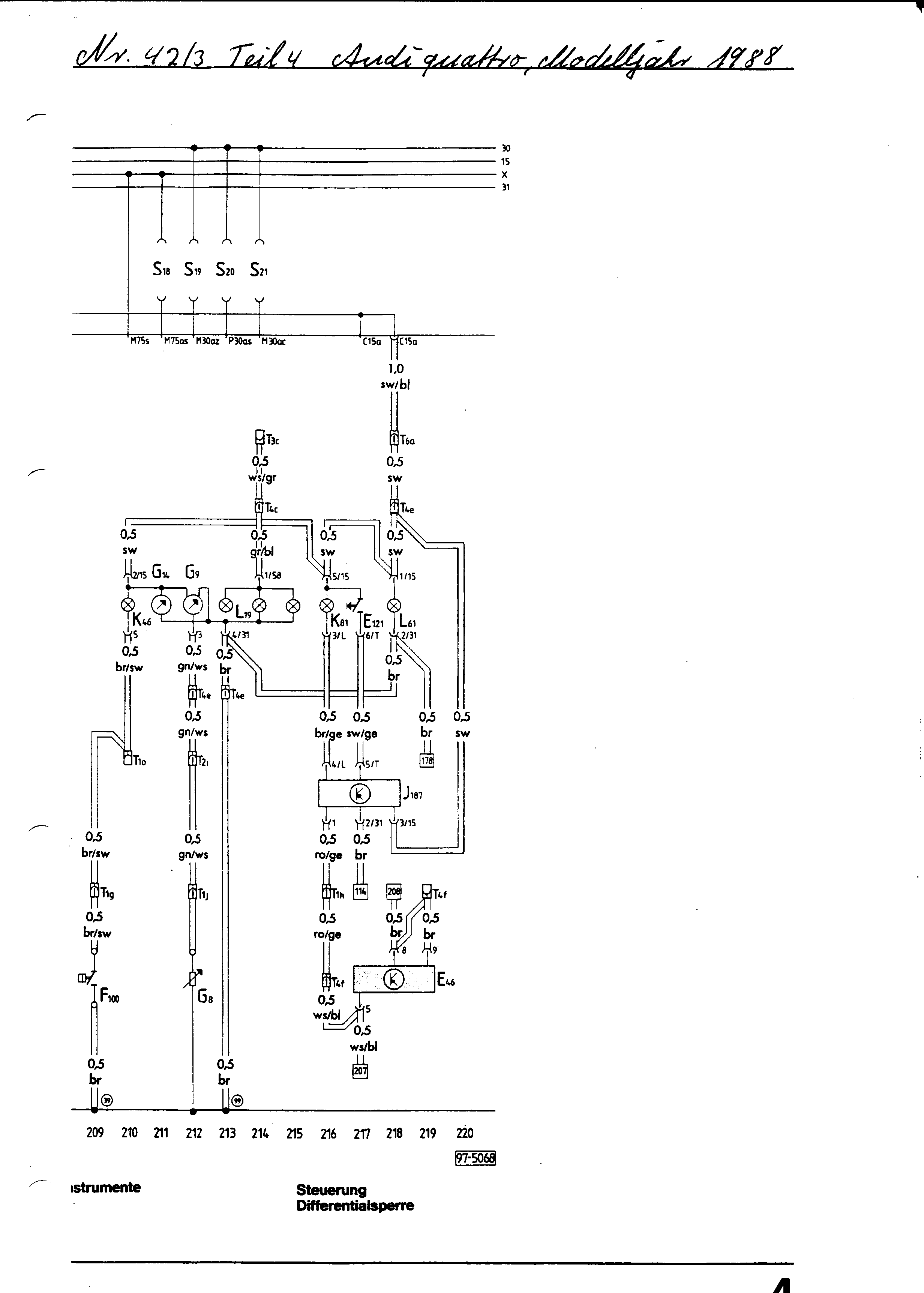

• Tracks 209-220: Differential lock

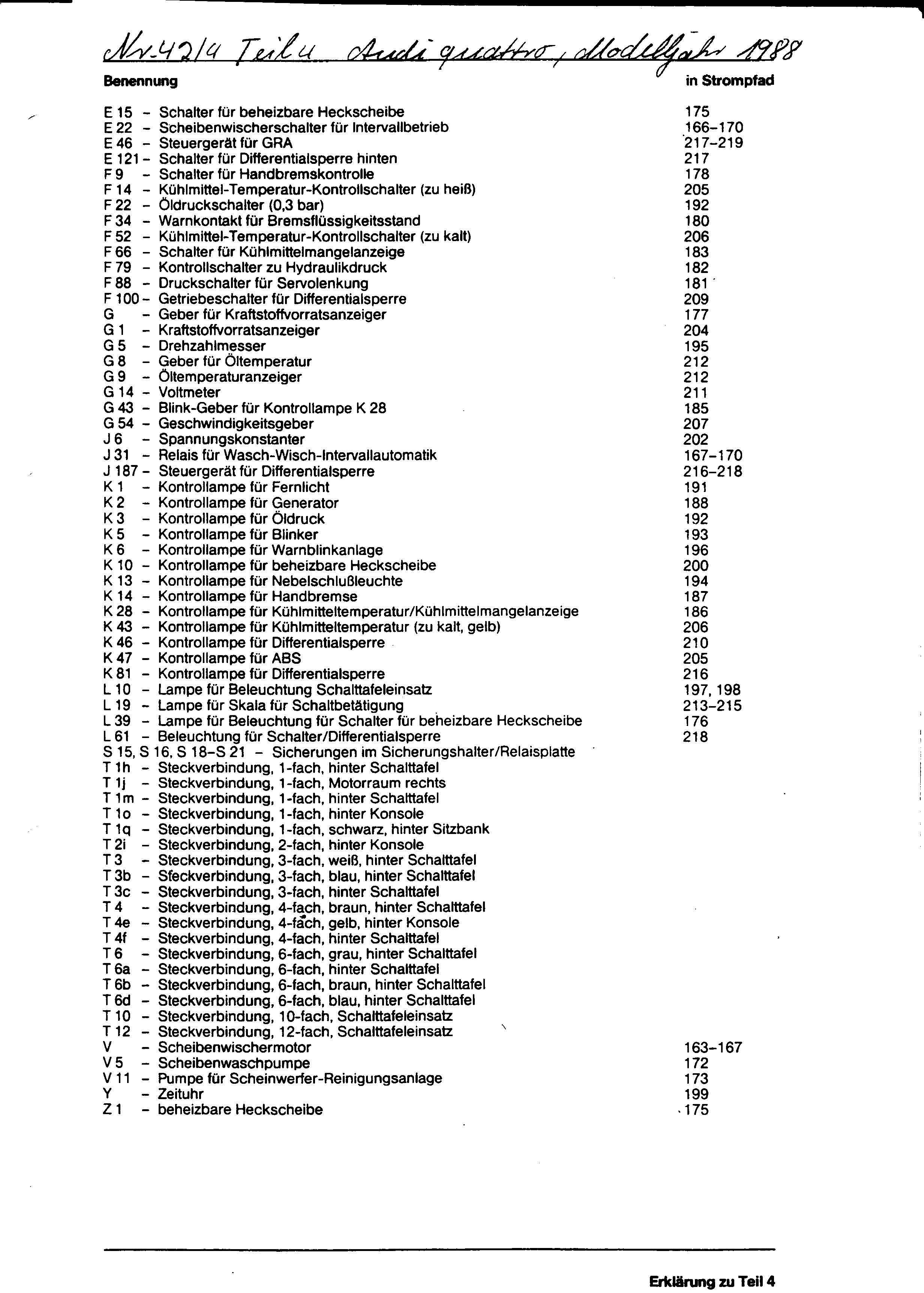

• Index to tracks 163-220

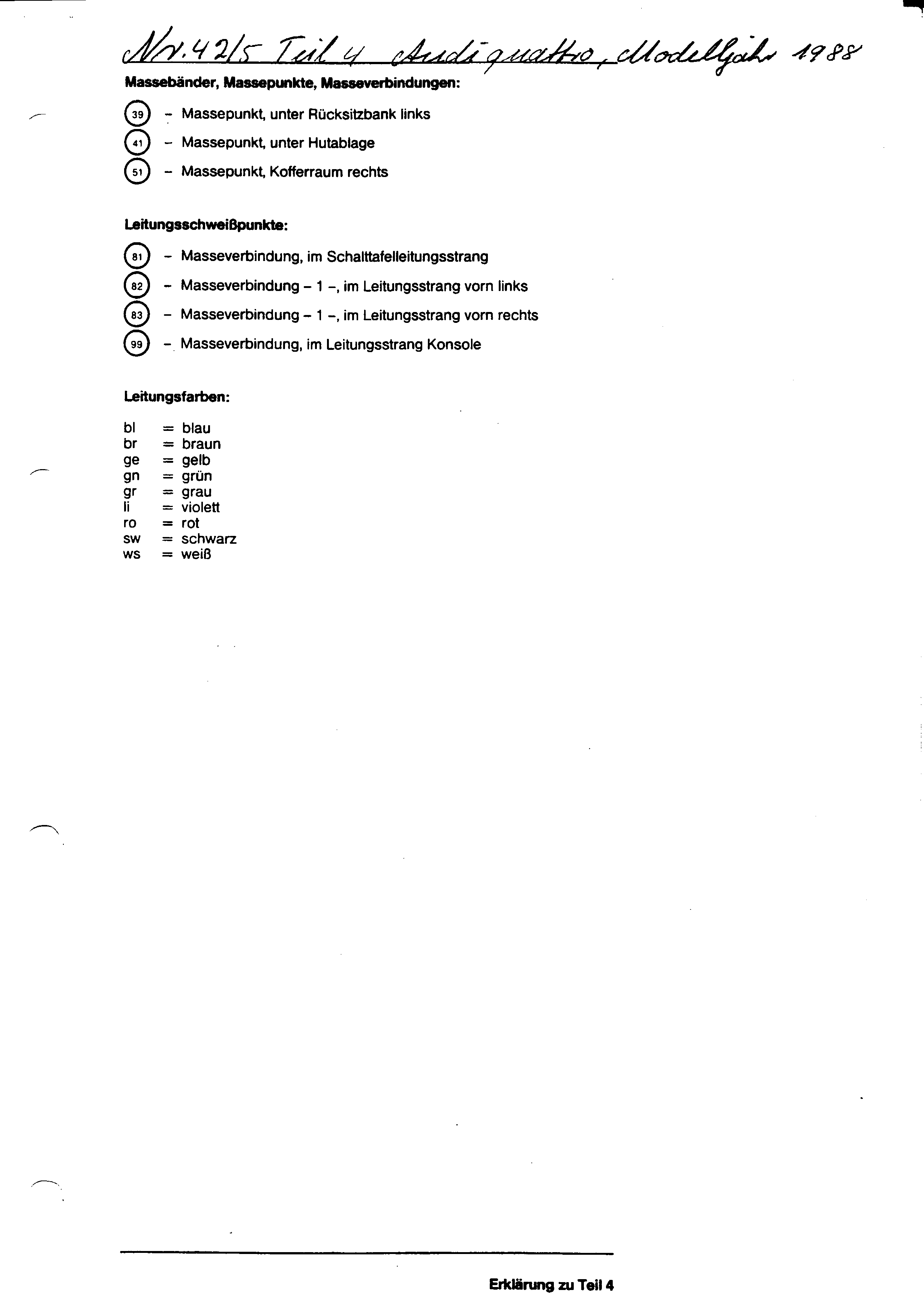

• Index to tracks 163-220 (contd.)

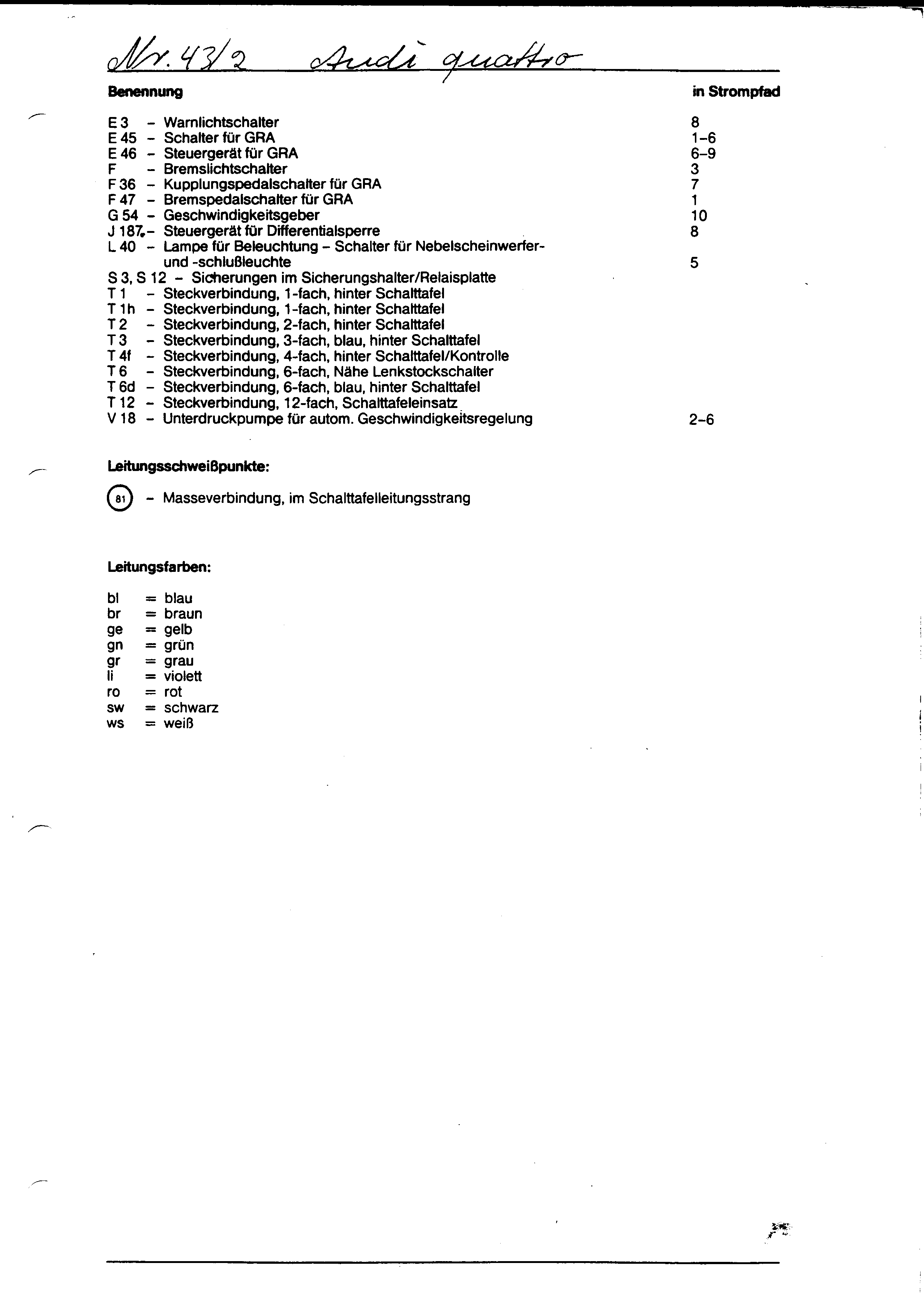

43 - Cruise control - MB engine

• Tracks 1-11
• Index

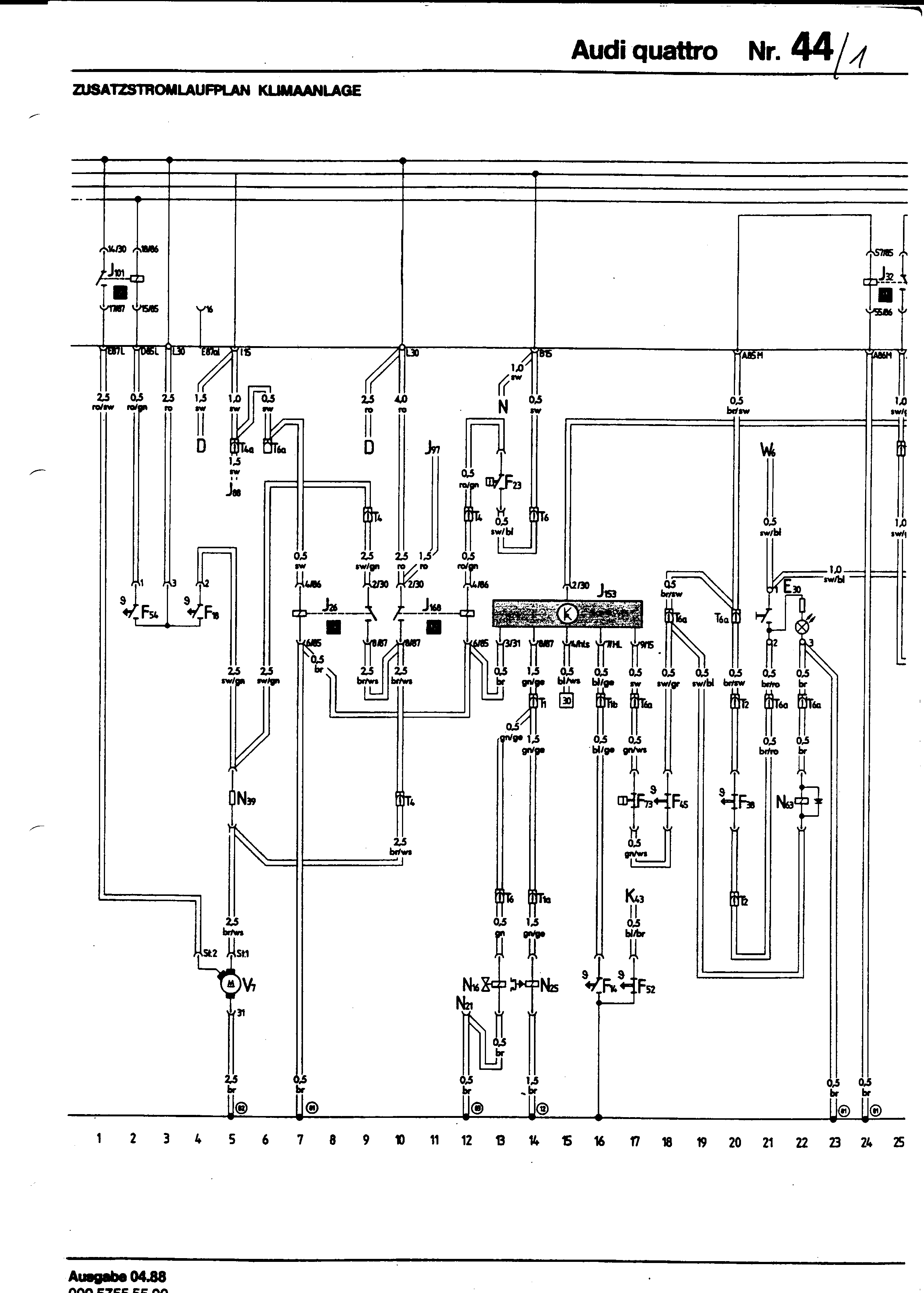

44 - Air conditioning - WX engine

• Tracks 1-23
• Tracks 24-32

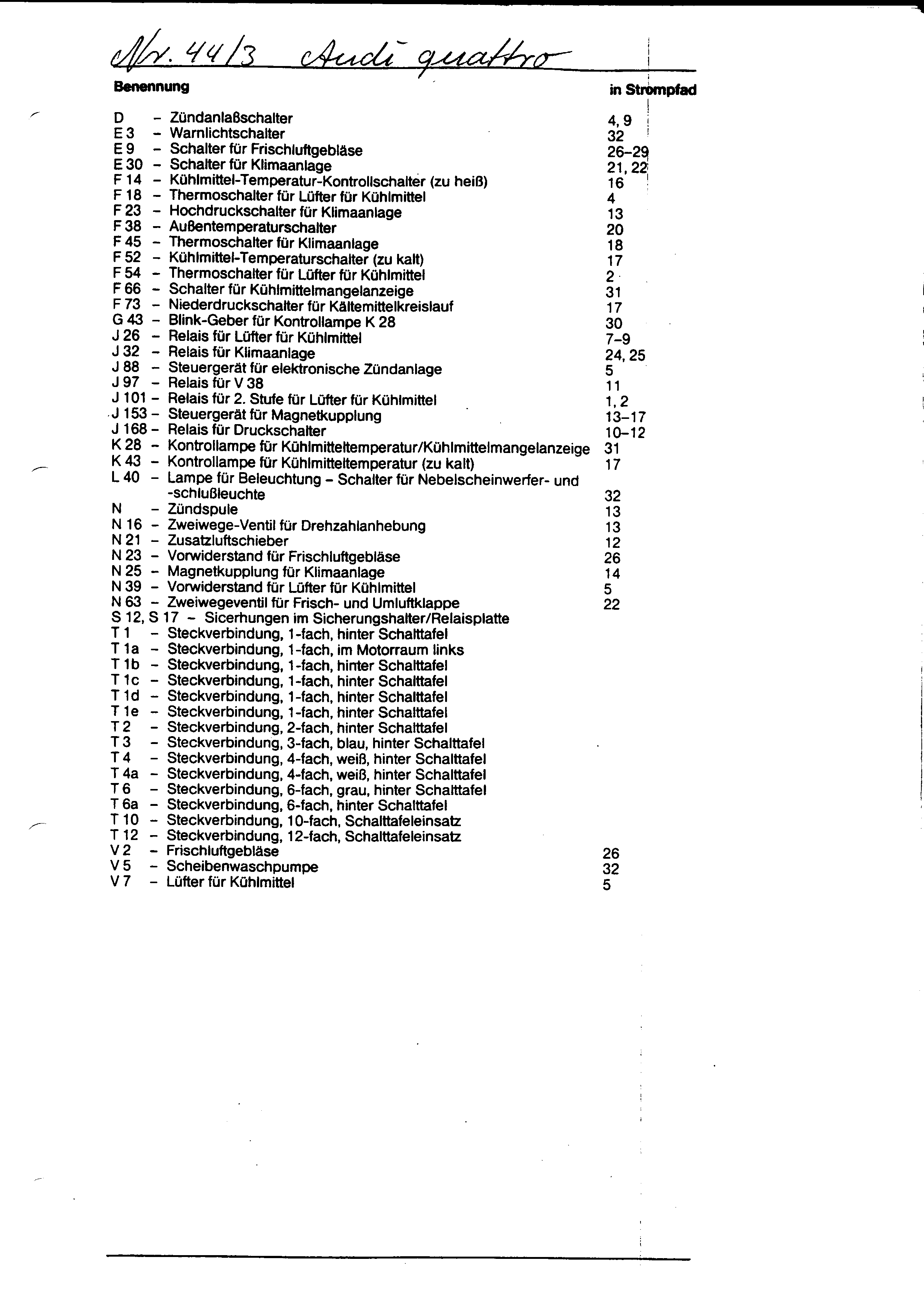

• Index

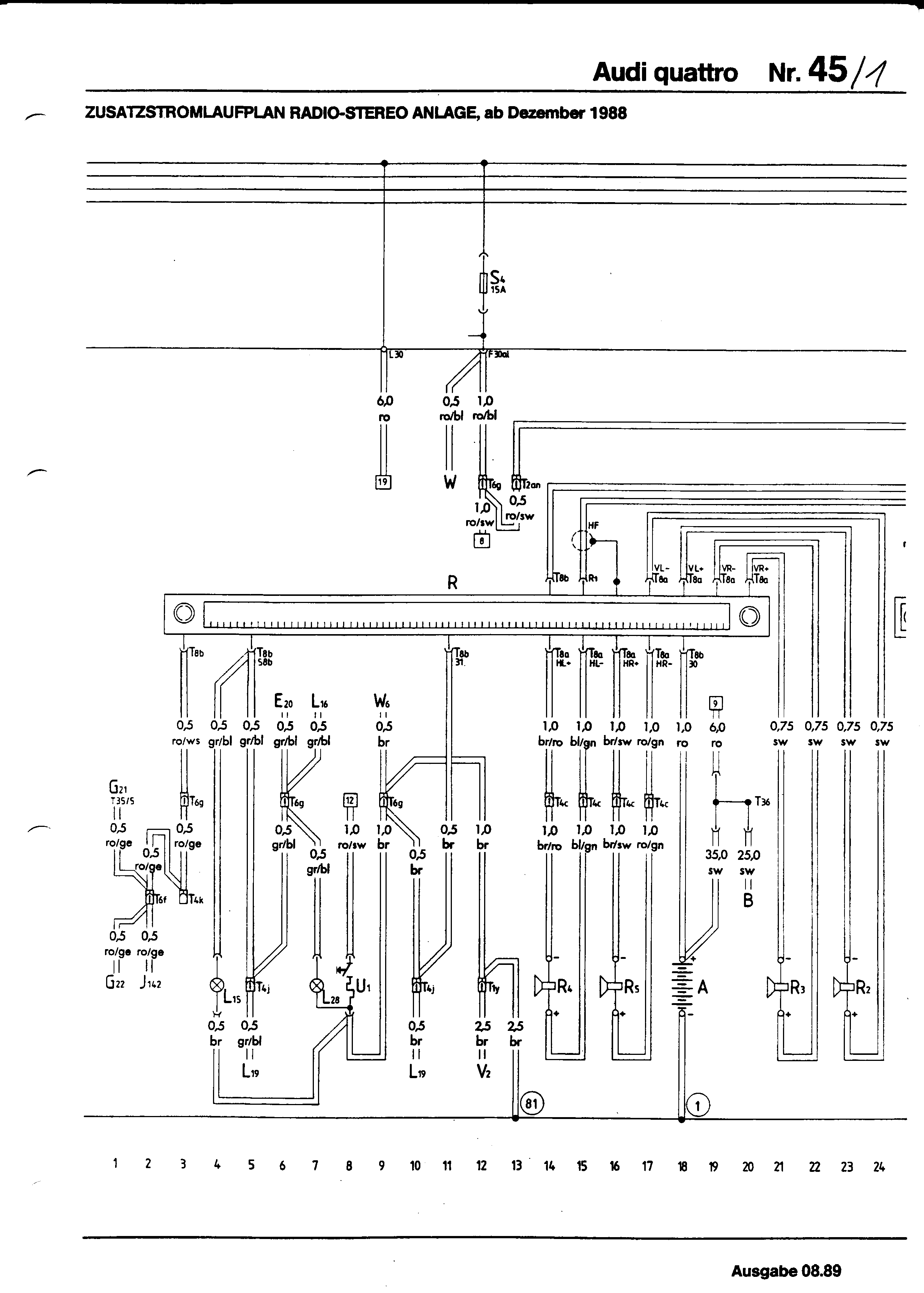

45 - Radio (from December 1988)

• ISO connector conversion
• Tracks 1-24

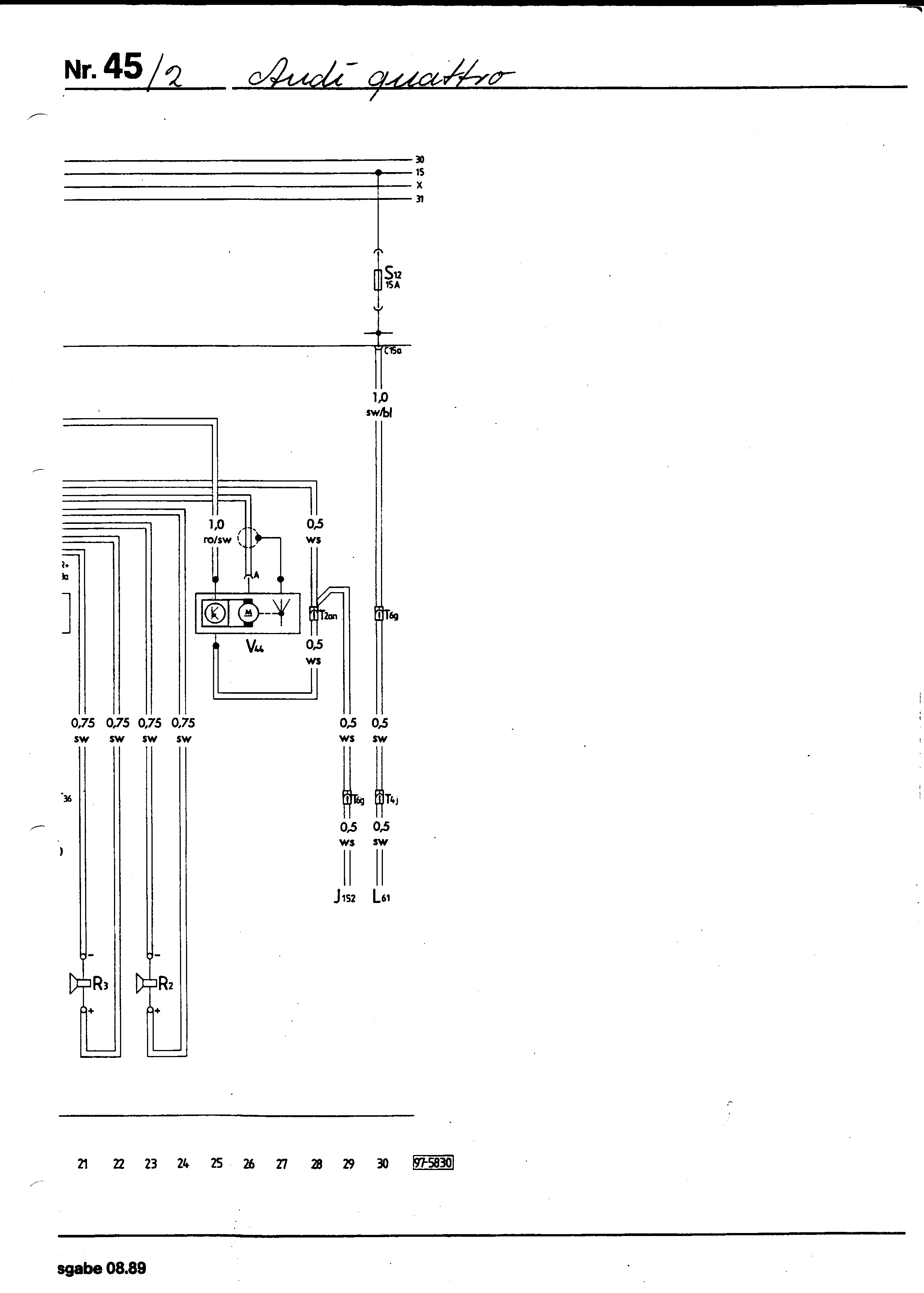

• Tracks 21-30
• Index

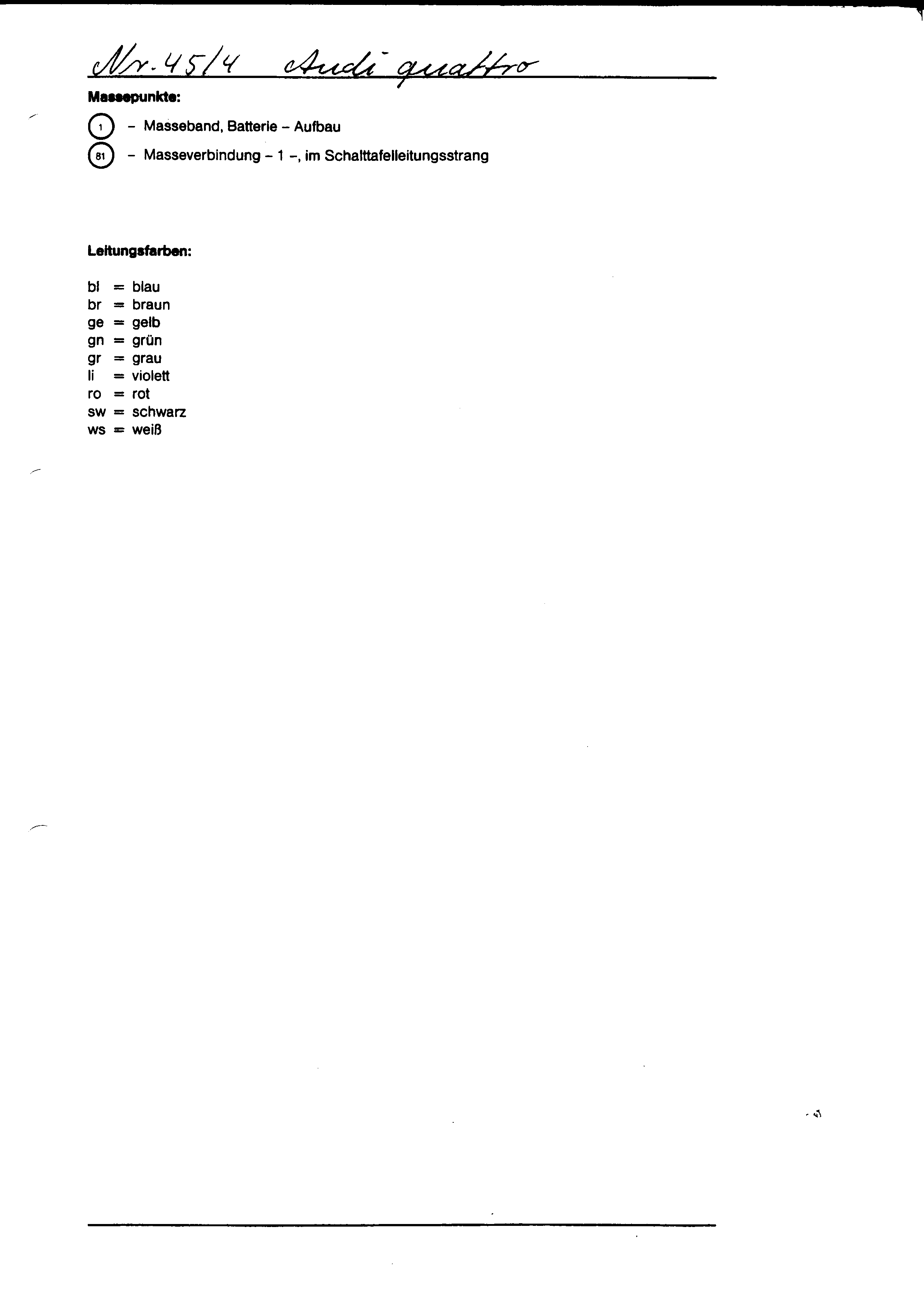

• Index (contd.)

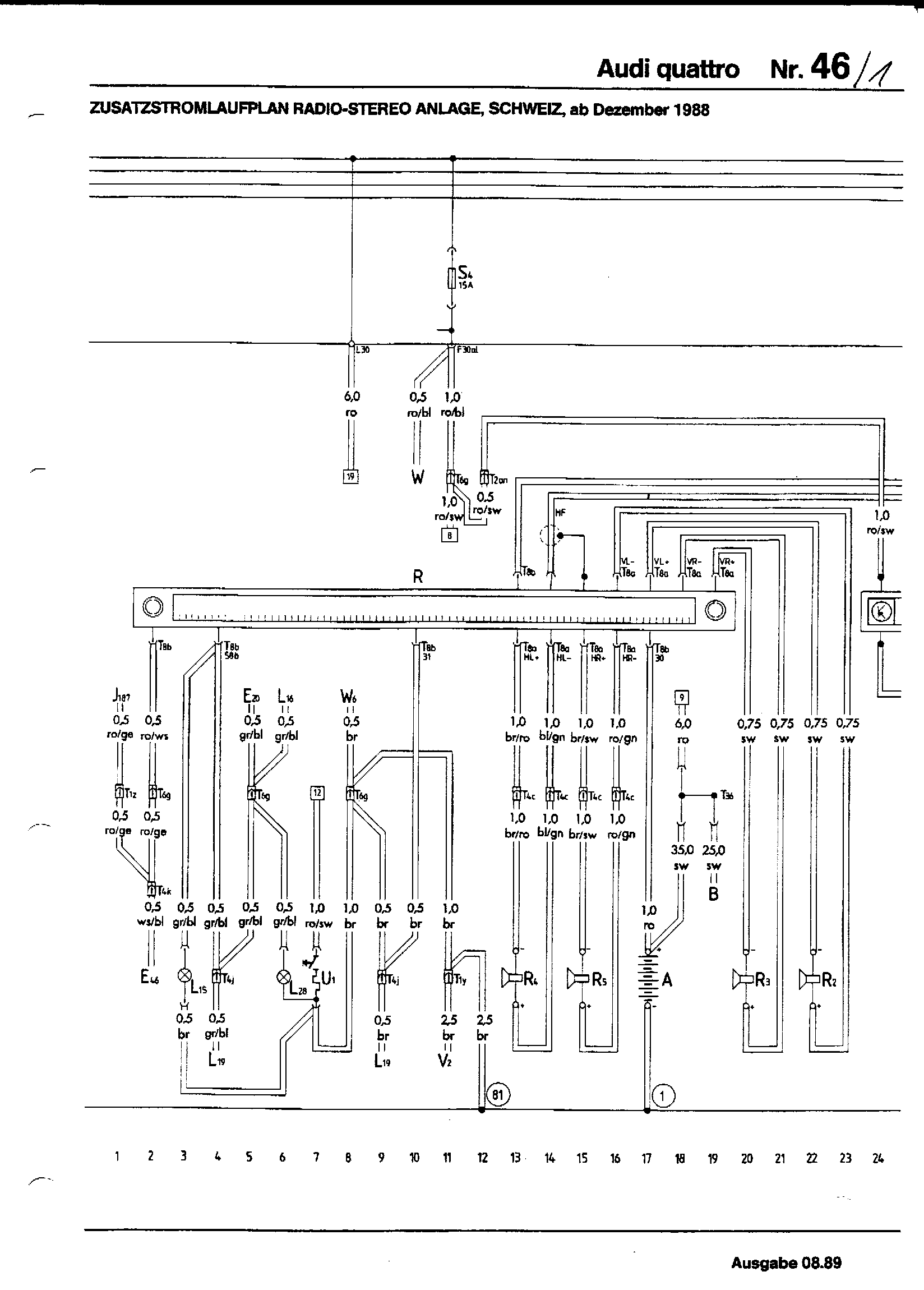

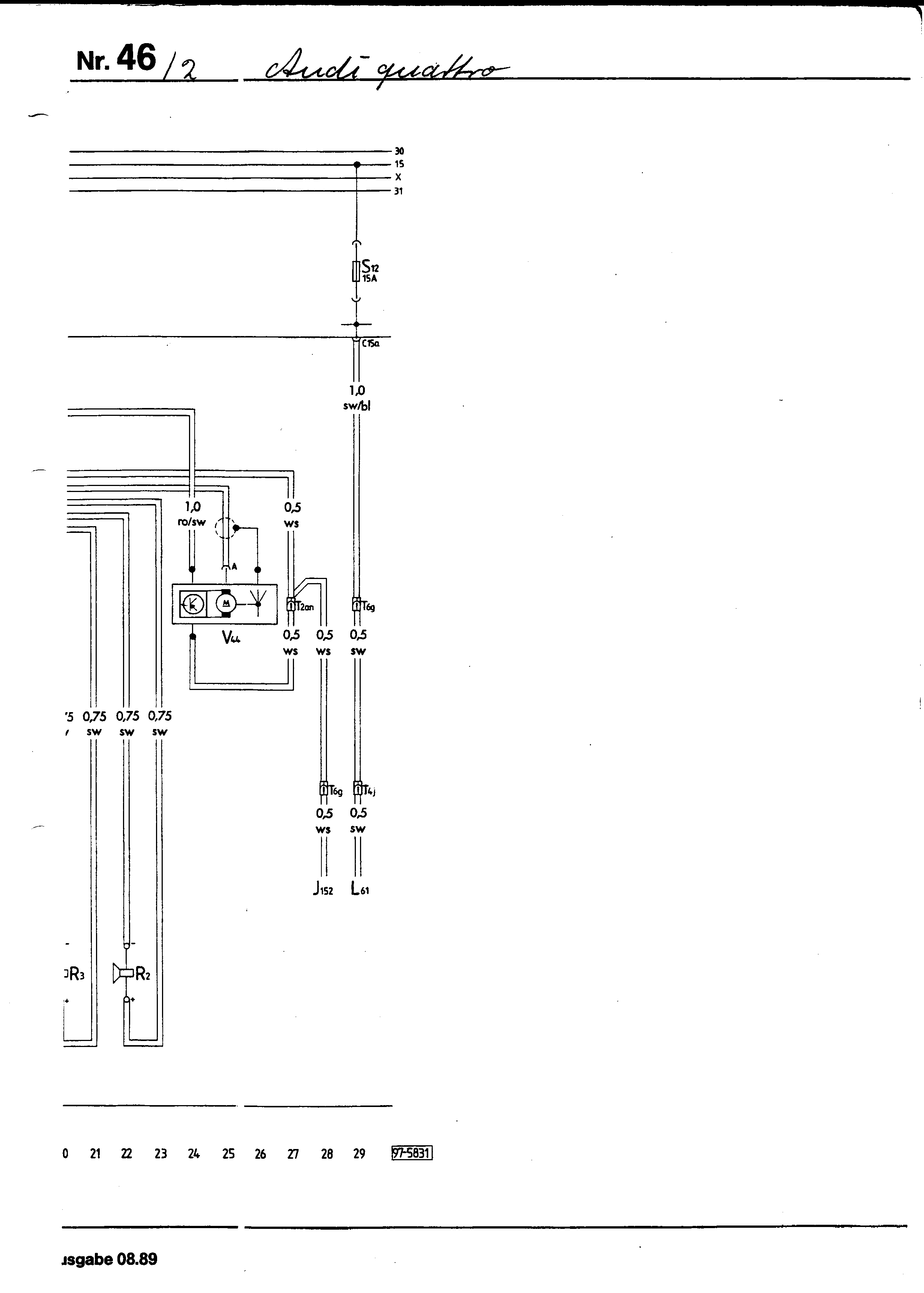

46 - Radio (from December 1988 - Switzerland)

• ISO connector conversion
• Tracks 1-24
• Tracks 21-30

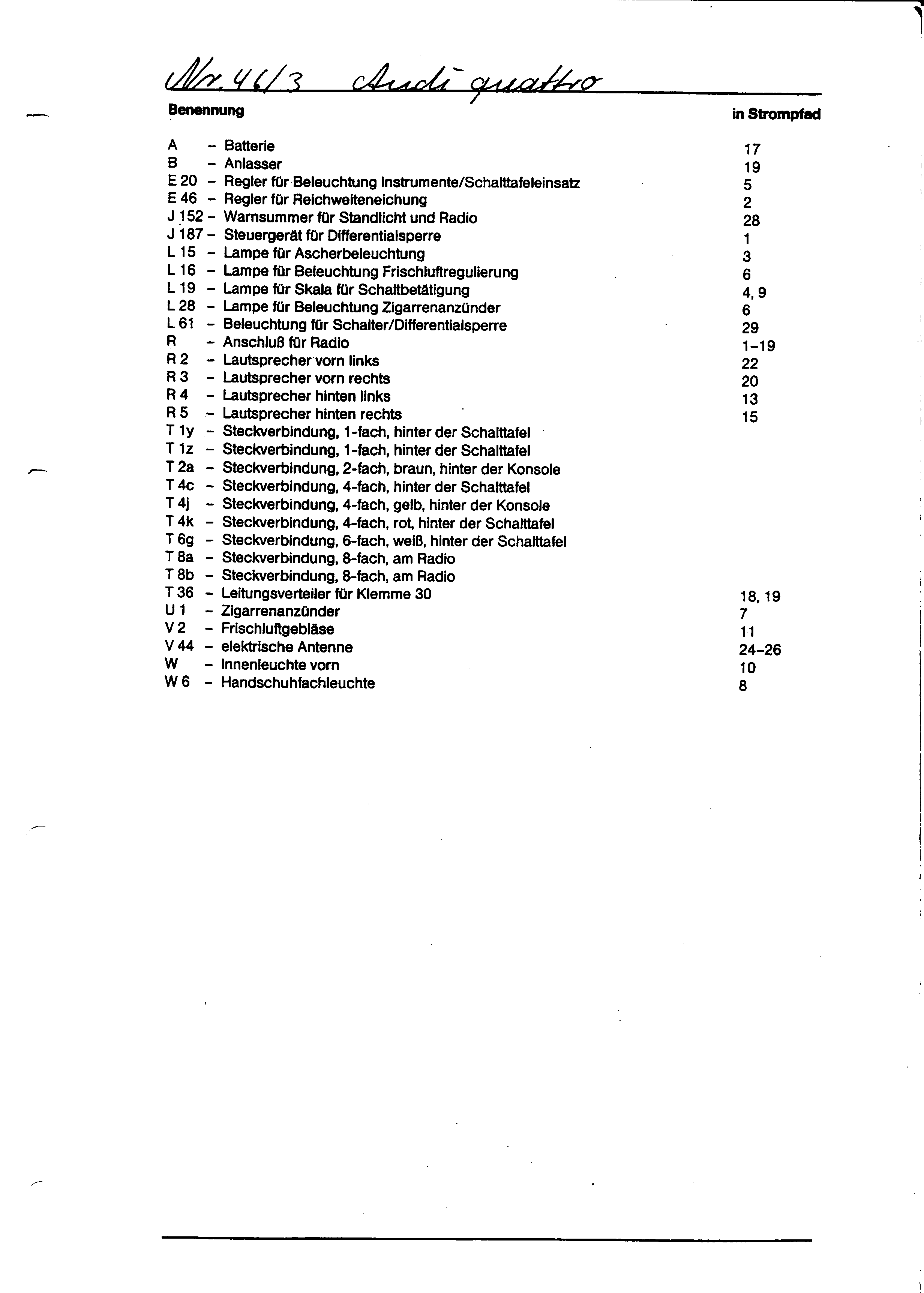

• Index

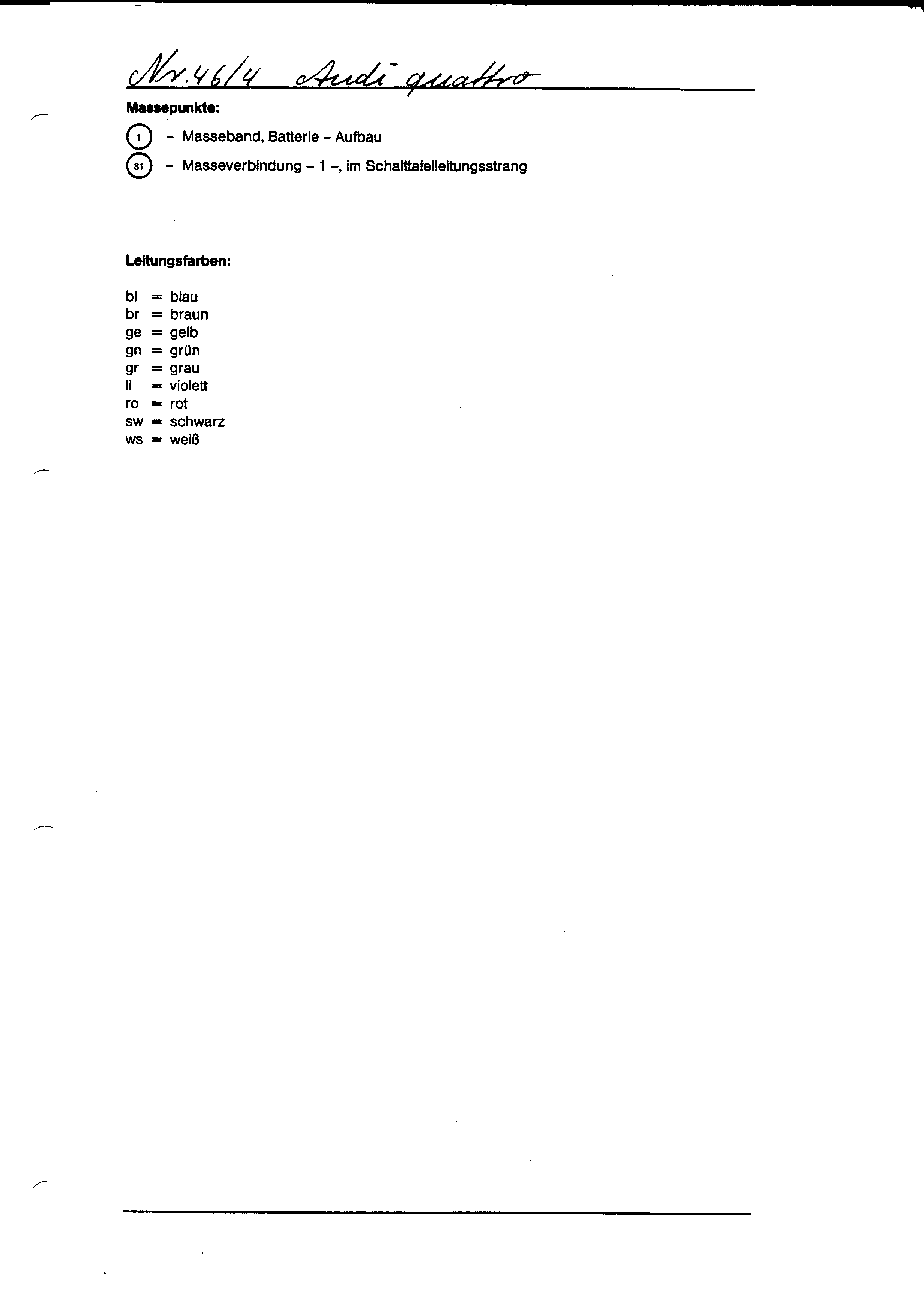

• Index (contd.)

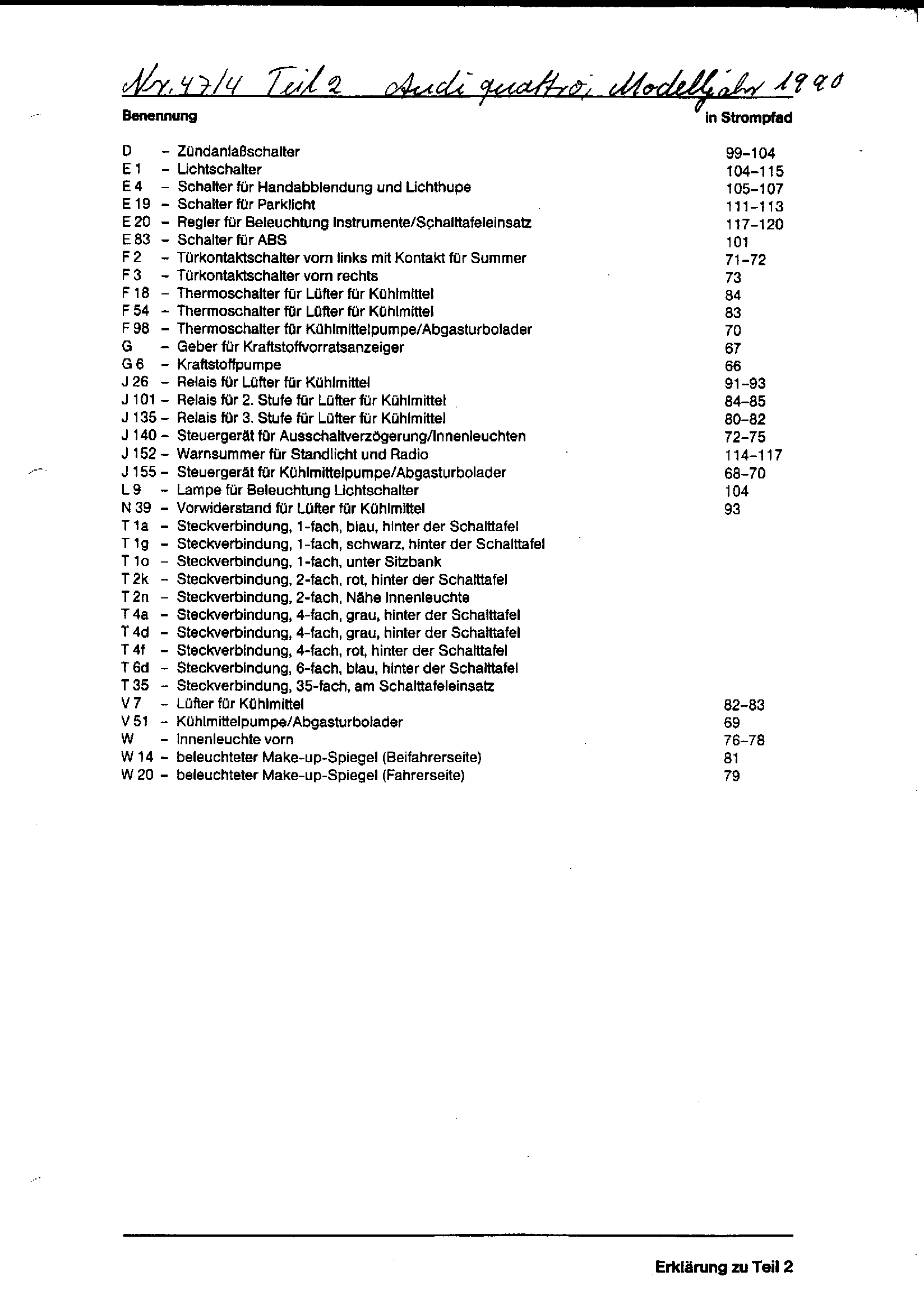

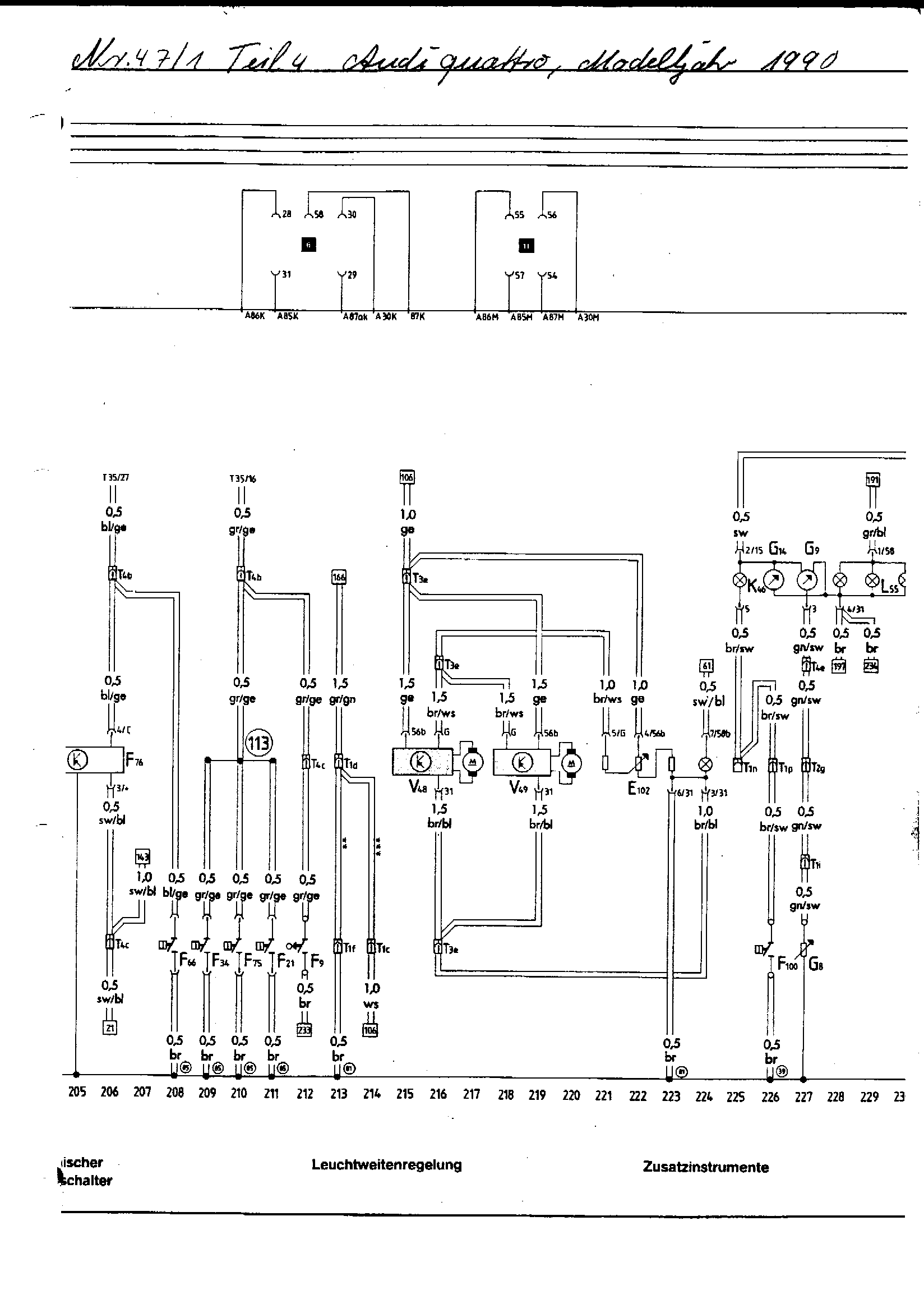

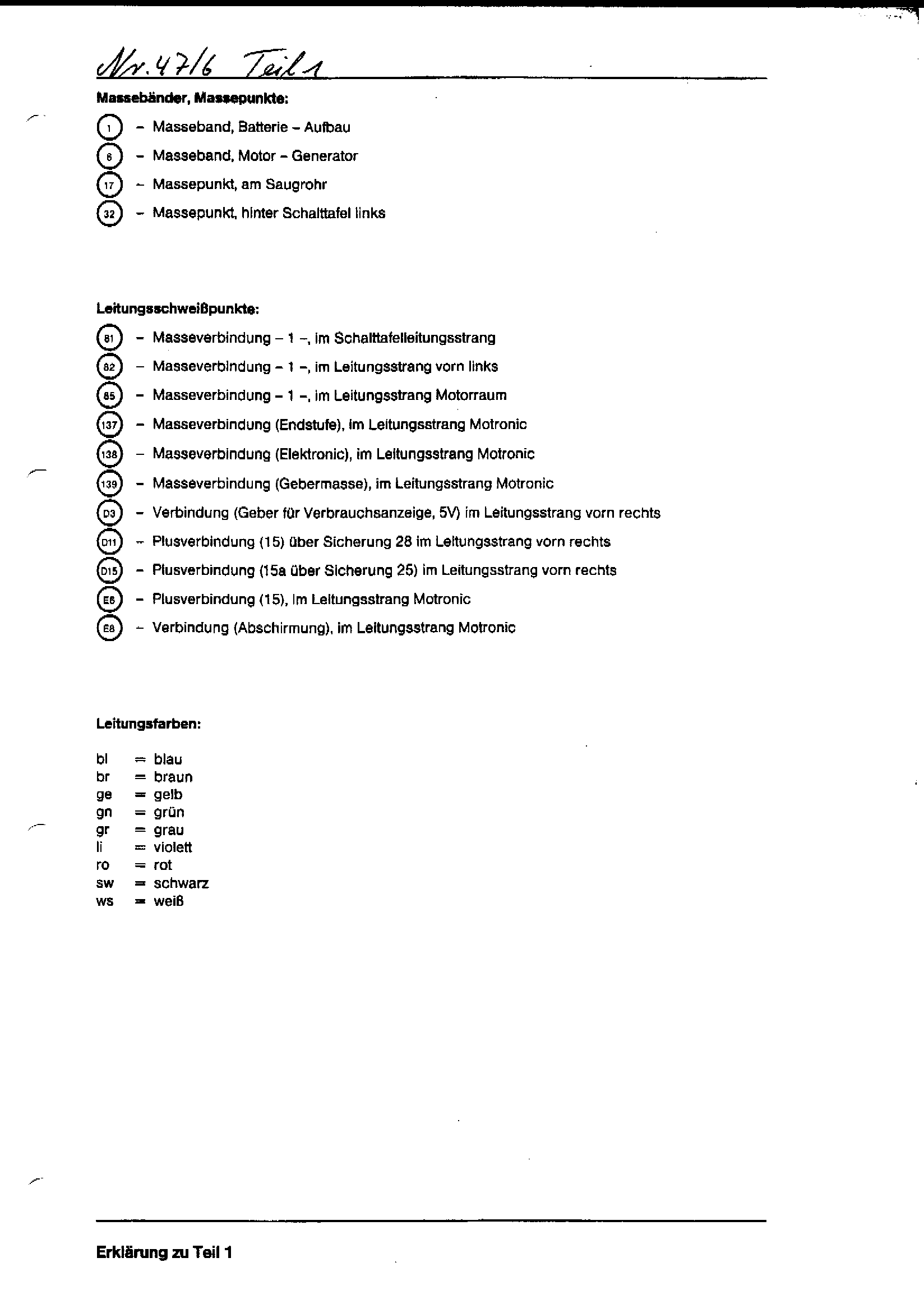

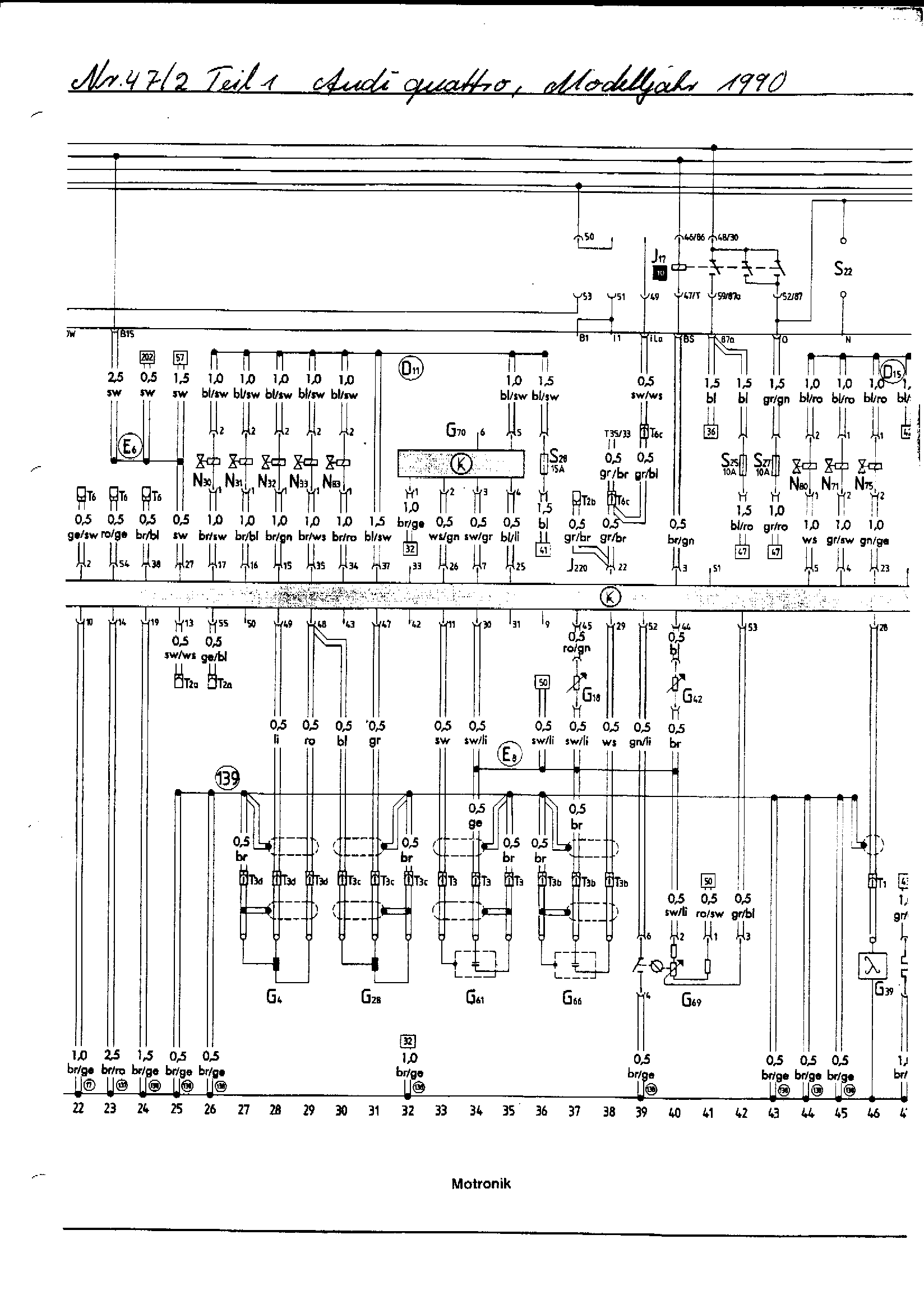

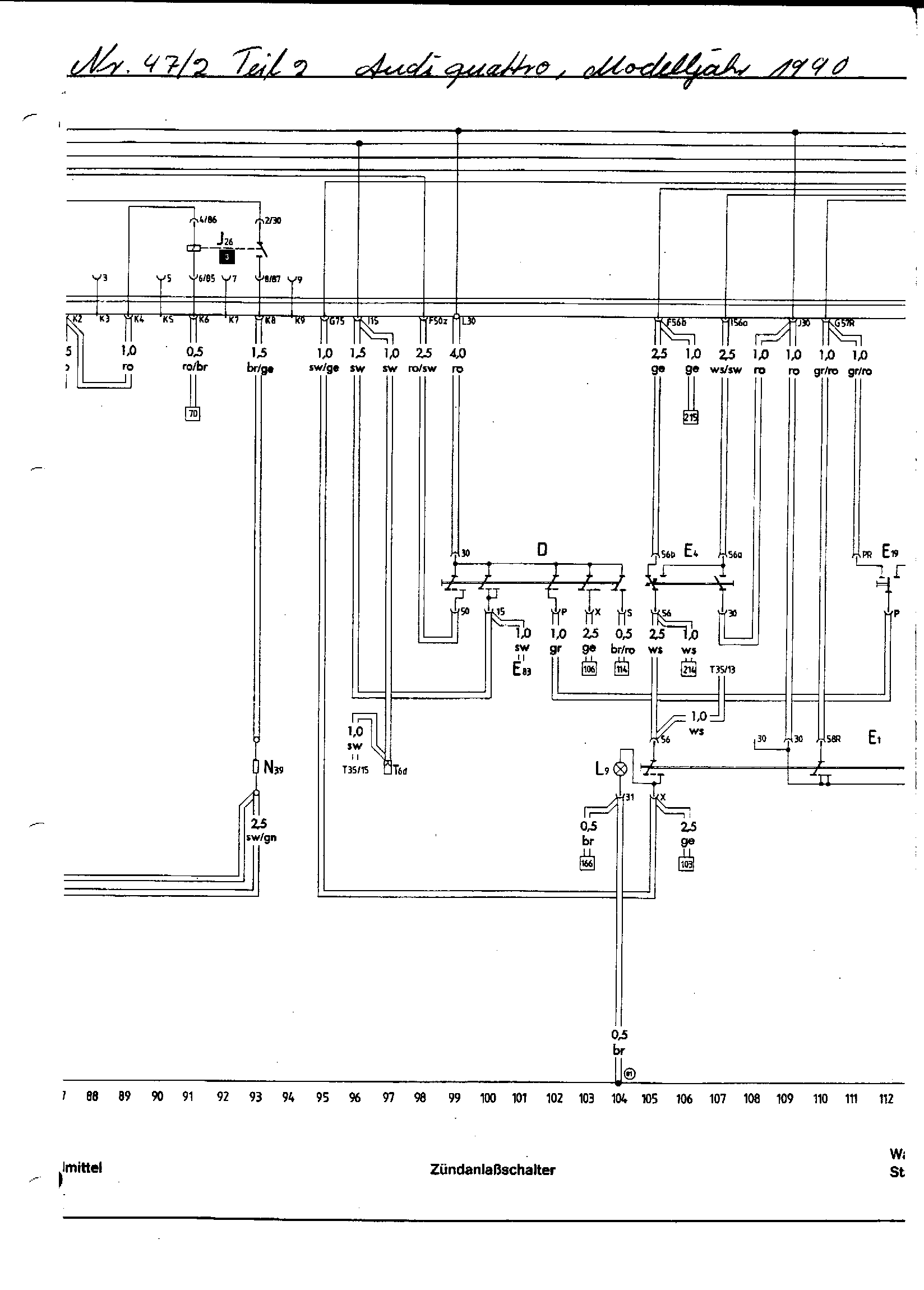

47 - Audi Quattro, 1990, RR engine

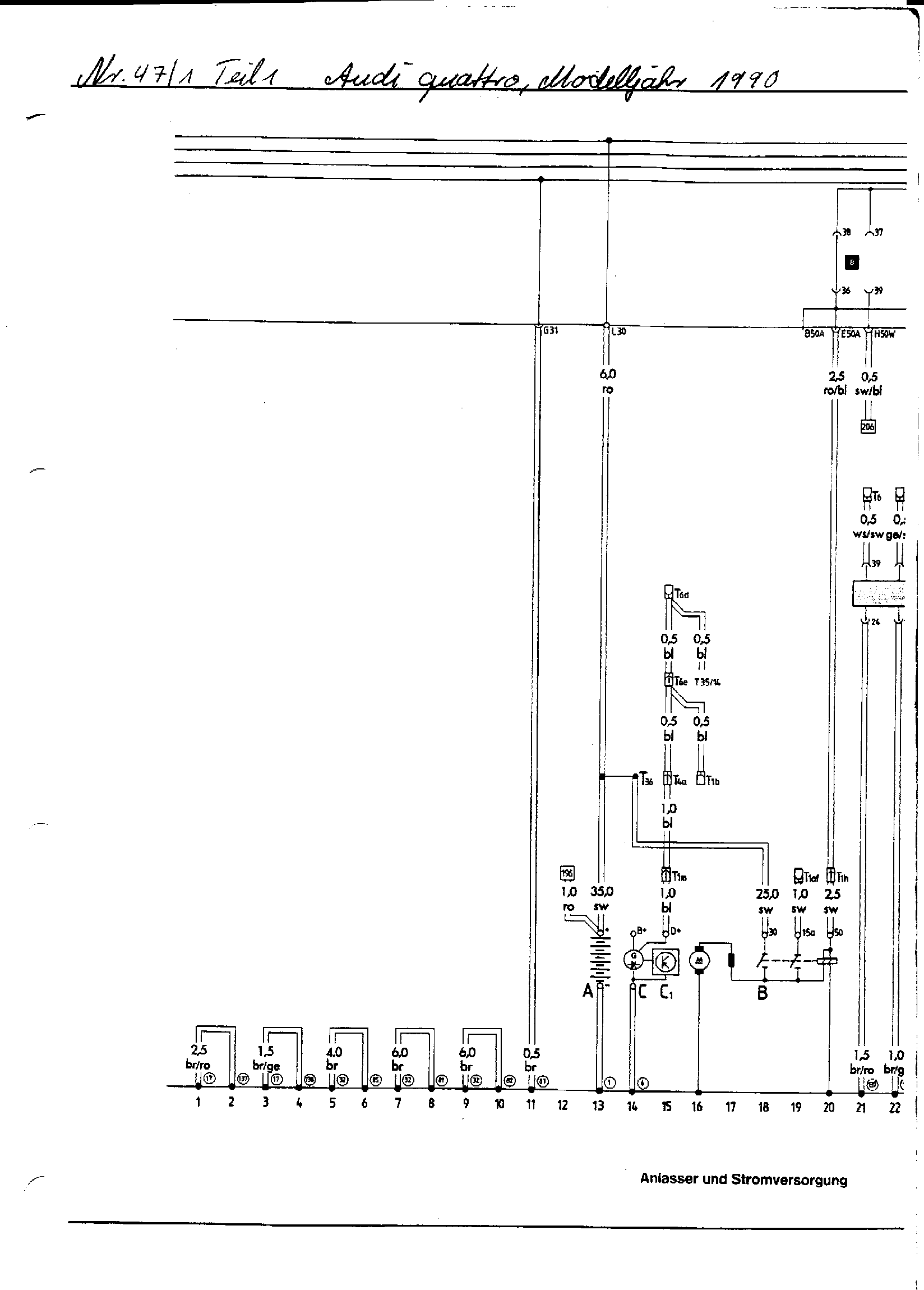

• Tracks 1-21
• Tracks 22-46

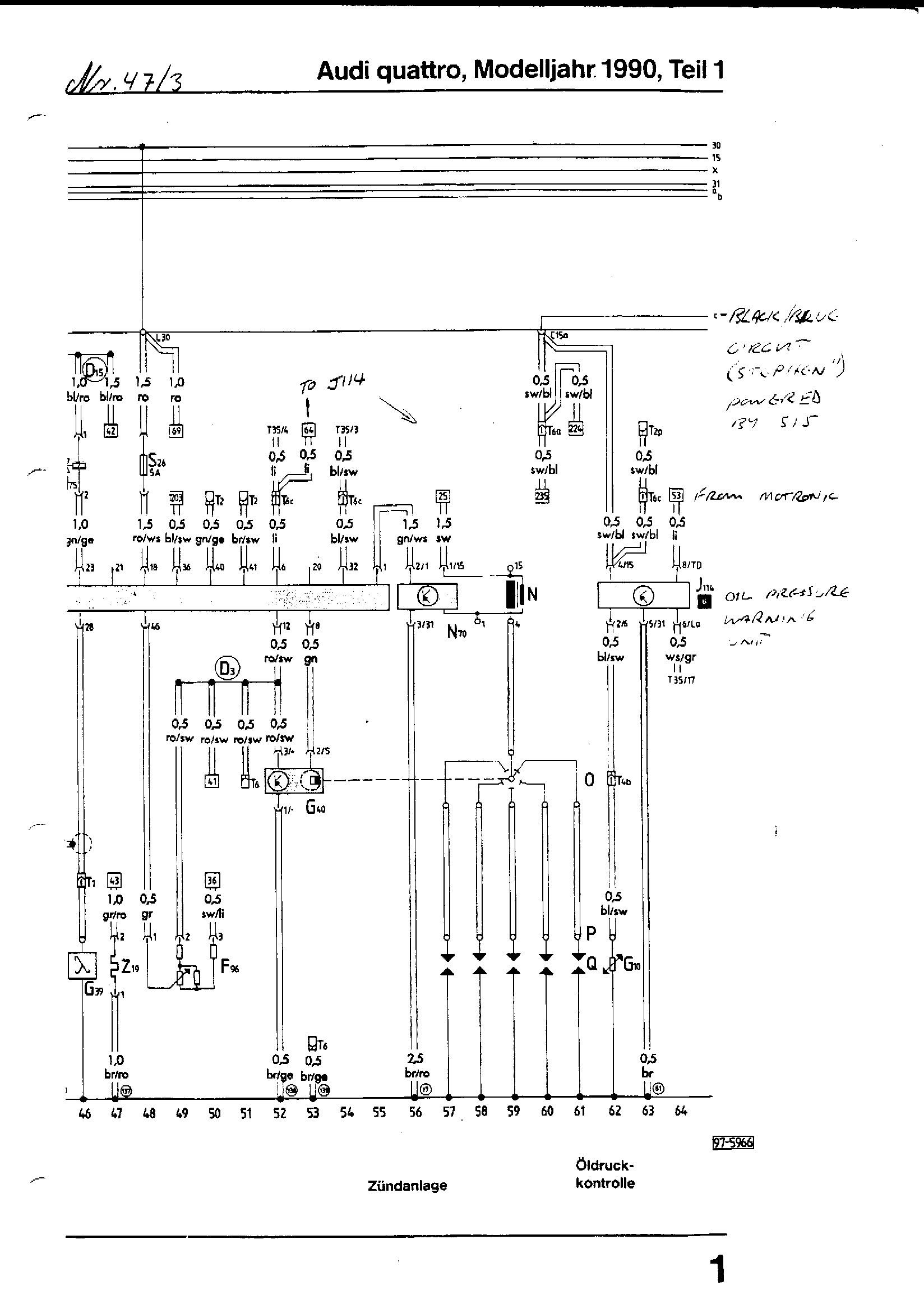

• Tracks 47-64

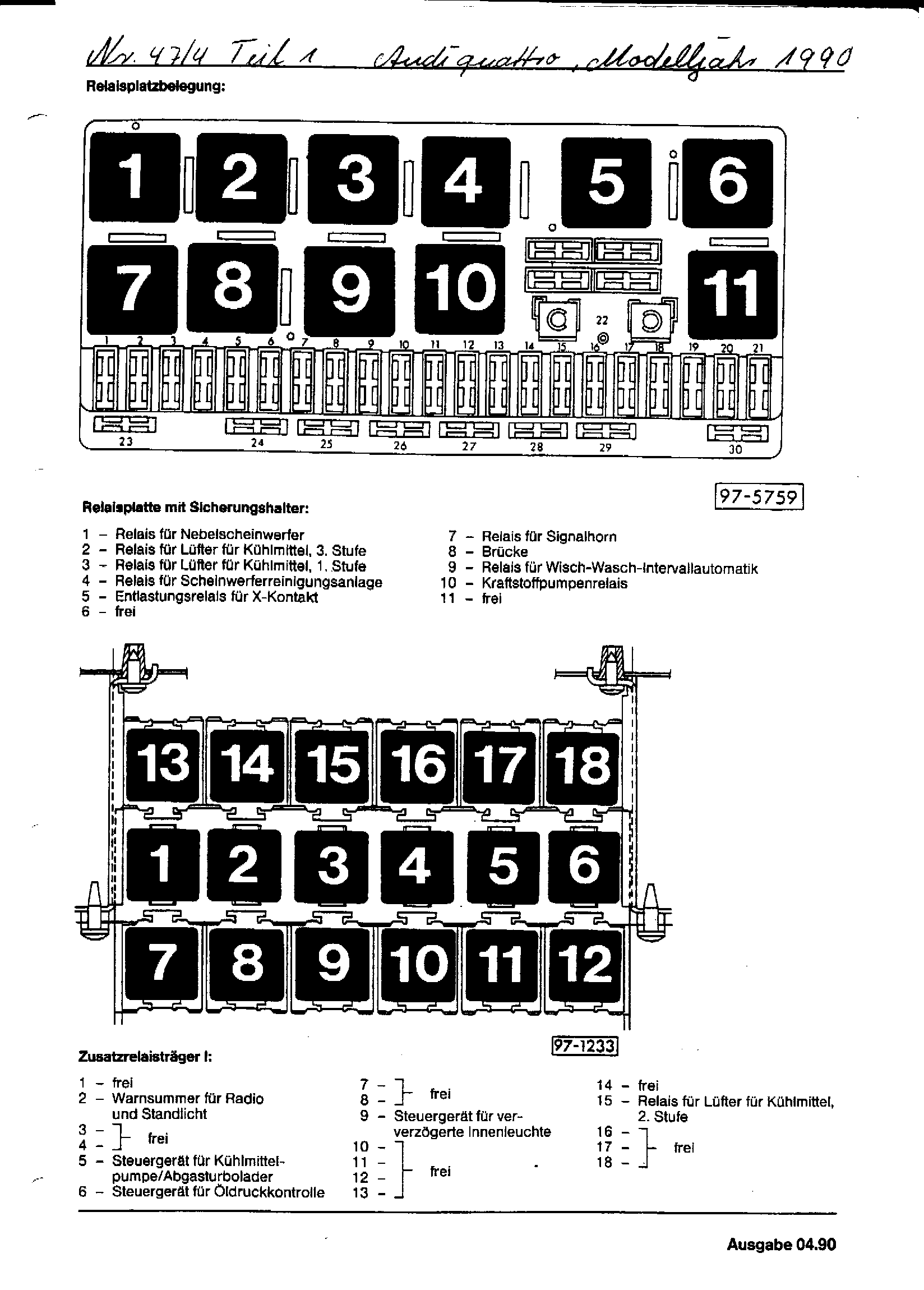

• Relay Positions

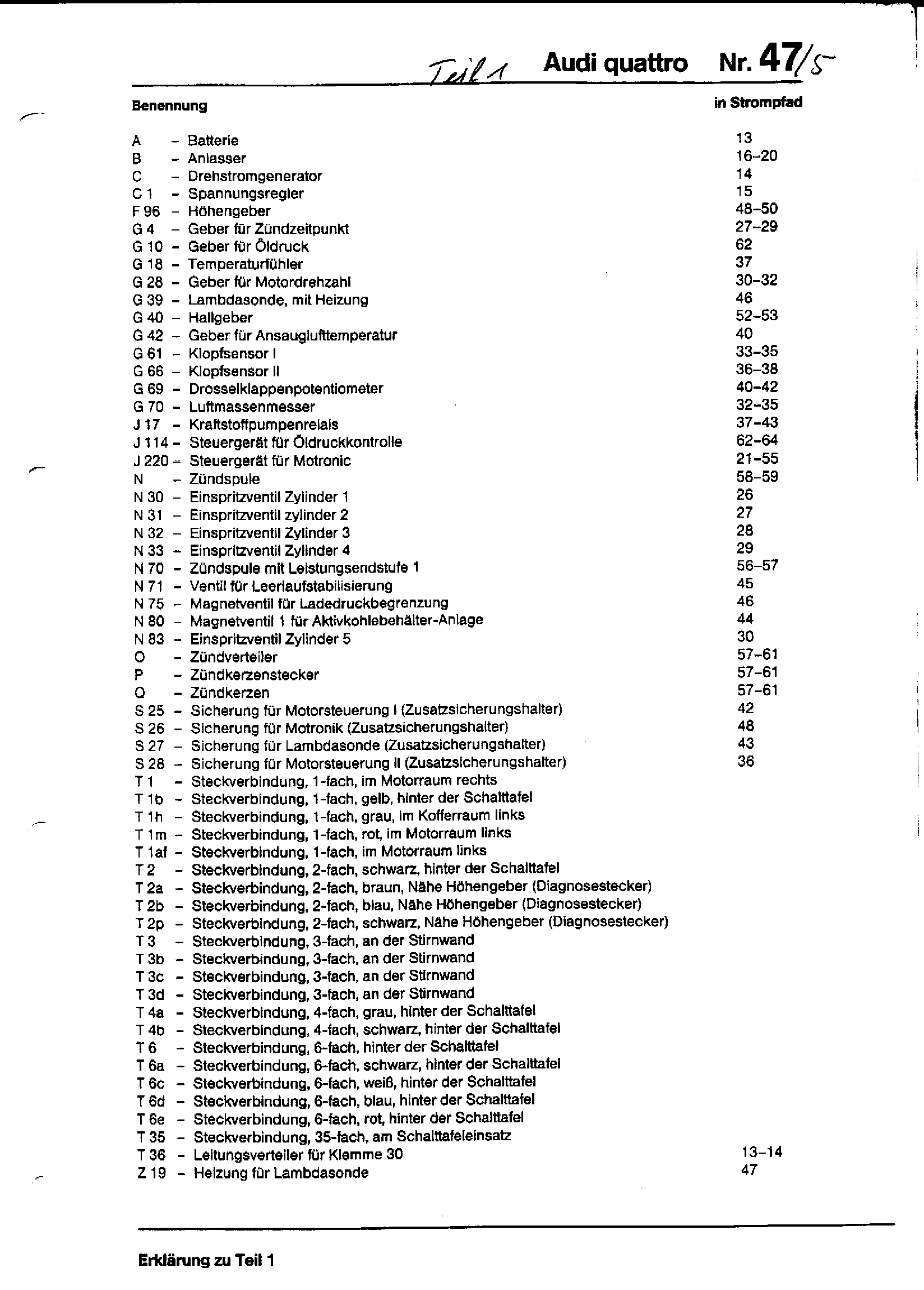

• Index to tracks 1-64
• Index to tracks 1-64 (contd.)

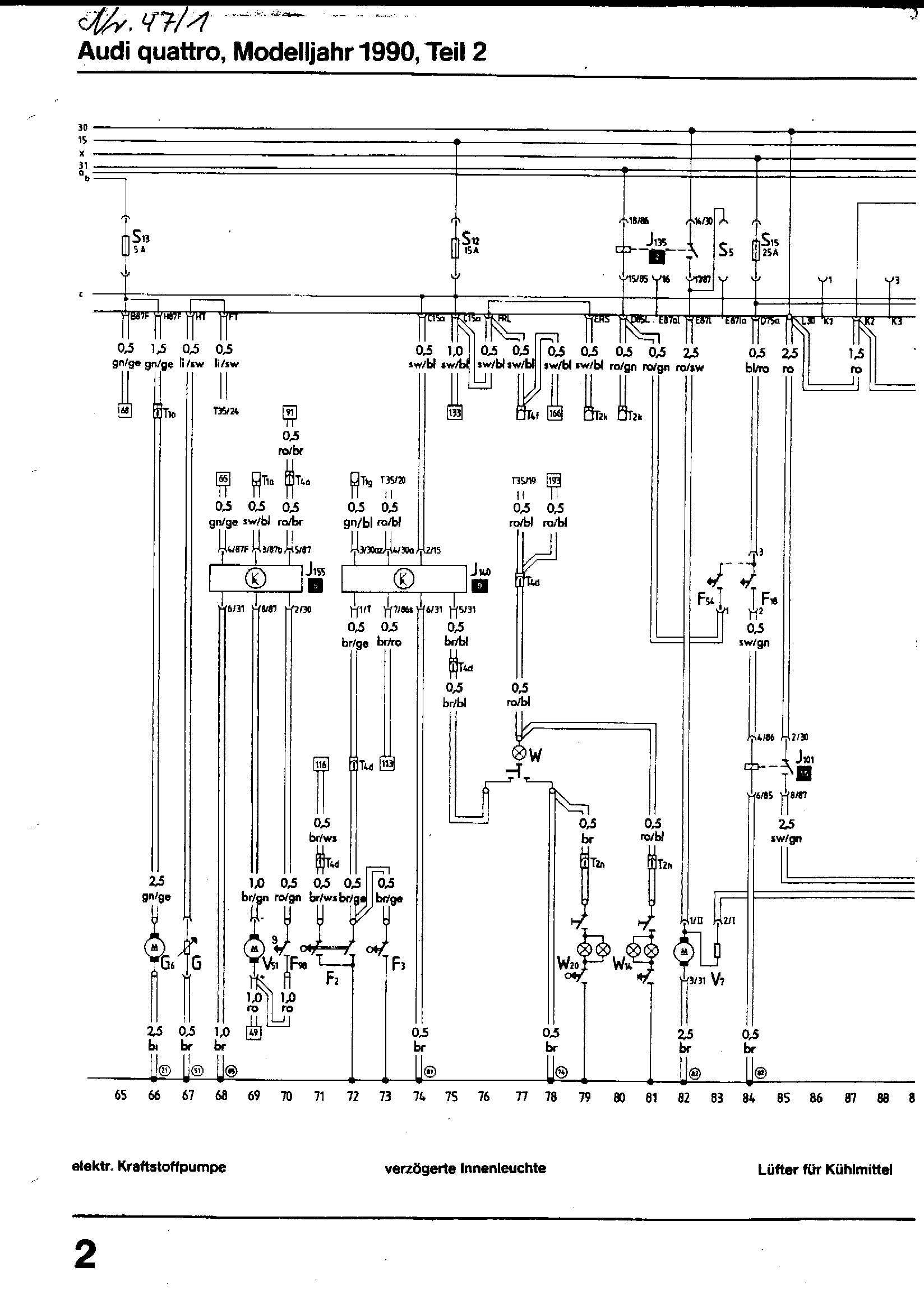

• Tracks 65-87
• Tracks 88-111

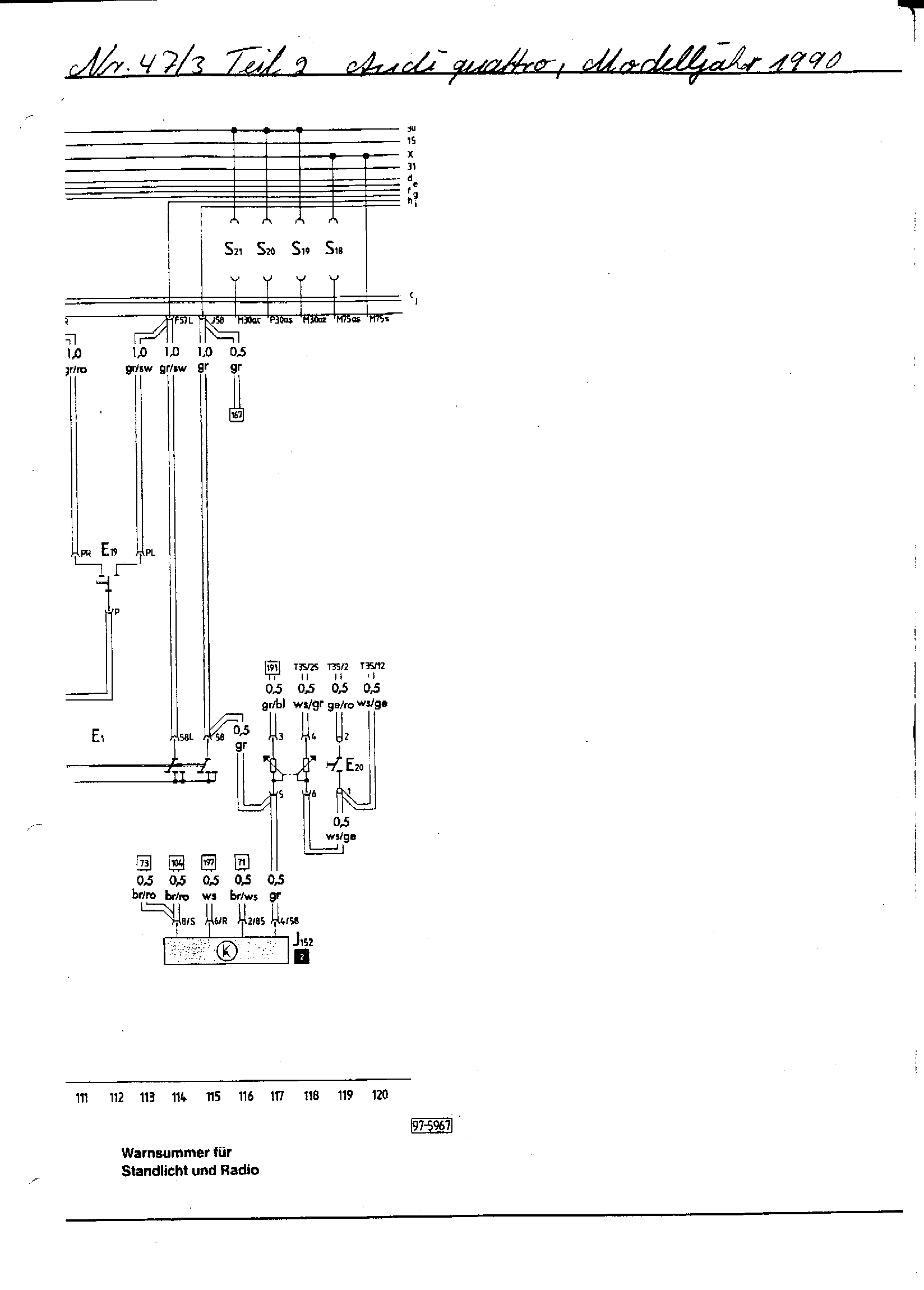

• Tracks 112-120
• Index to tracks 65-120

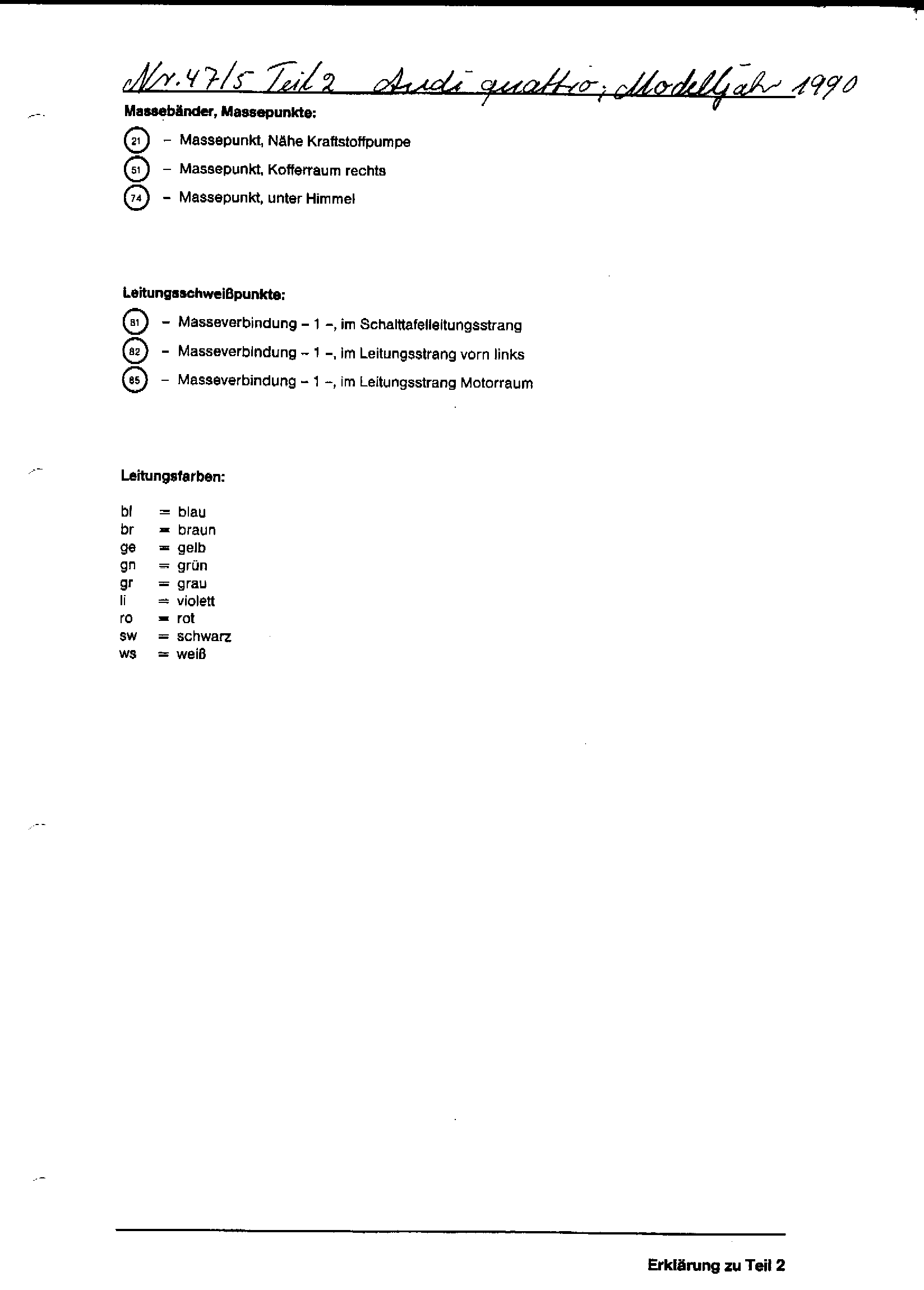

• Index to tracks 65-120 (contd.)
• Tracks 121-141

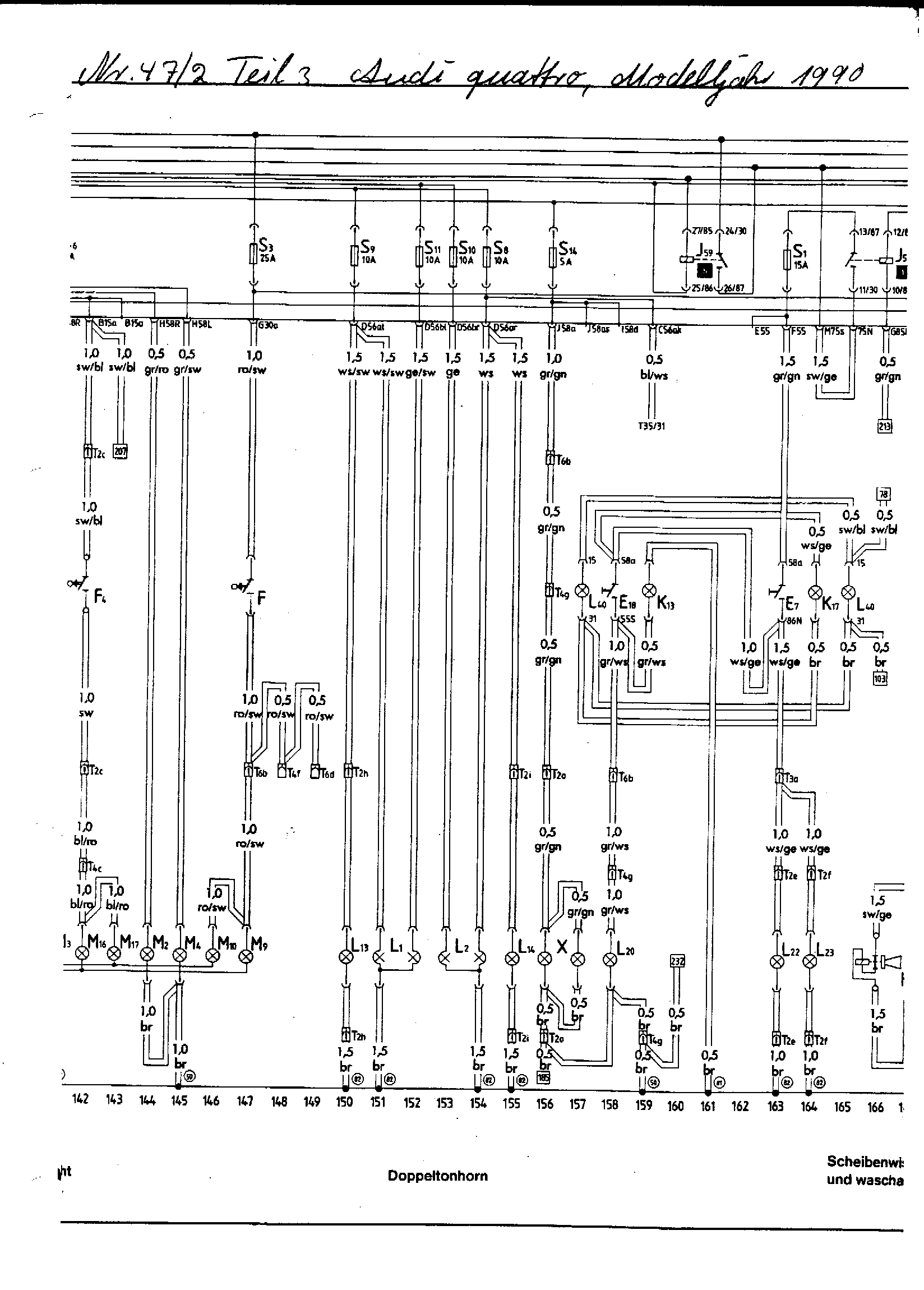

• Tracks 142-165
• Tracks 166-184

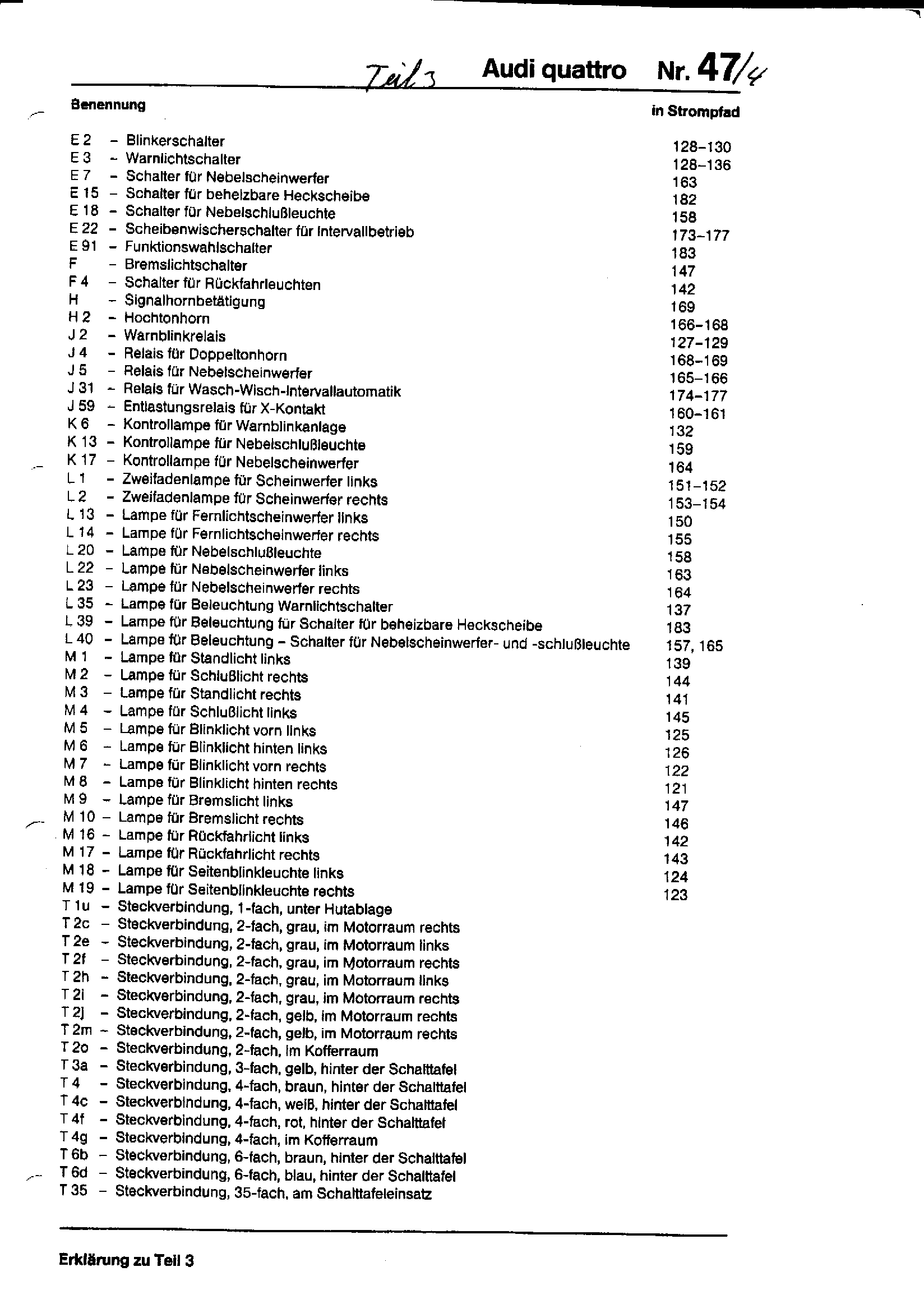

• Index to tracks 121-184

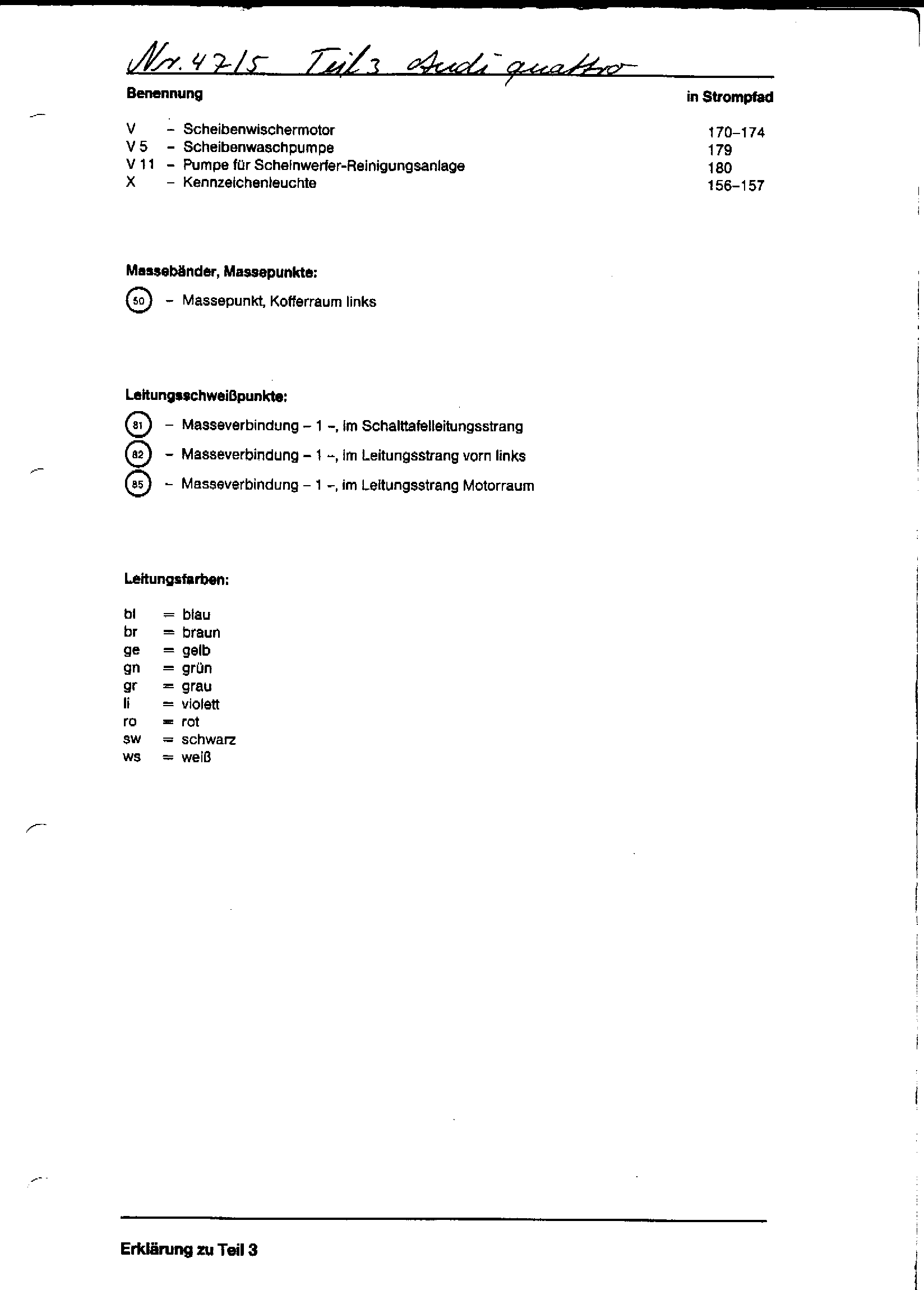

• Index to tracks 121-184 (contd.)

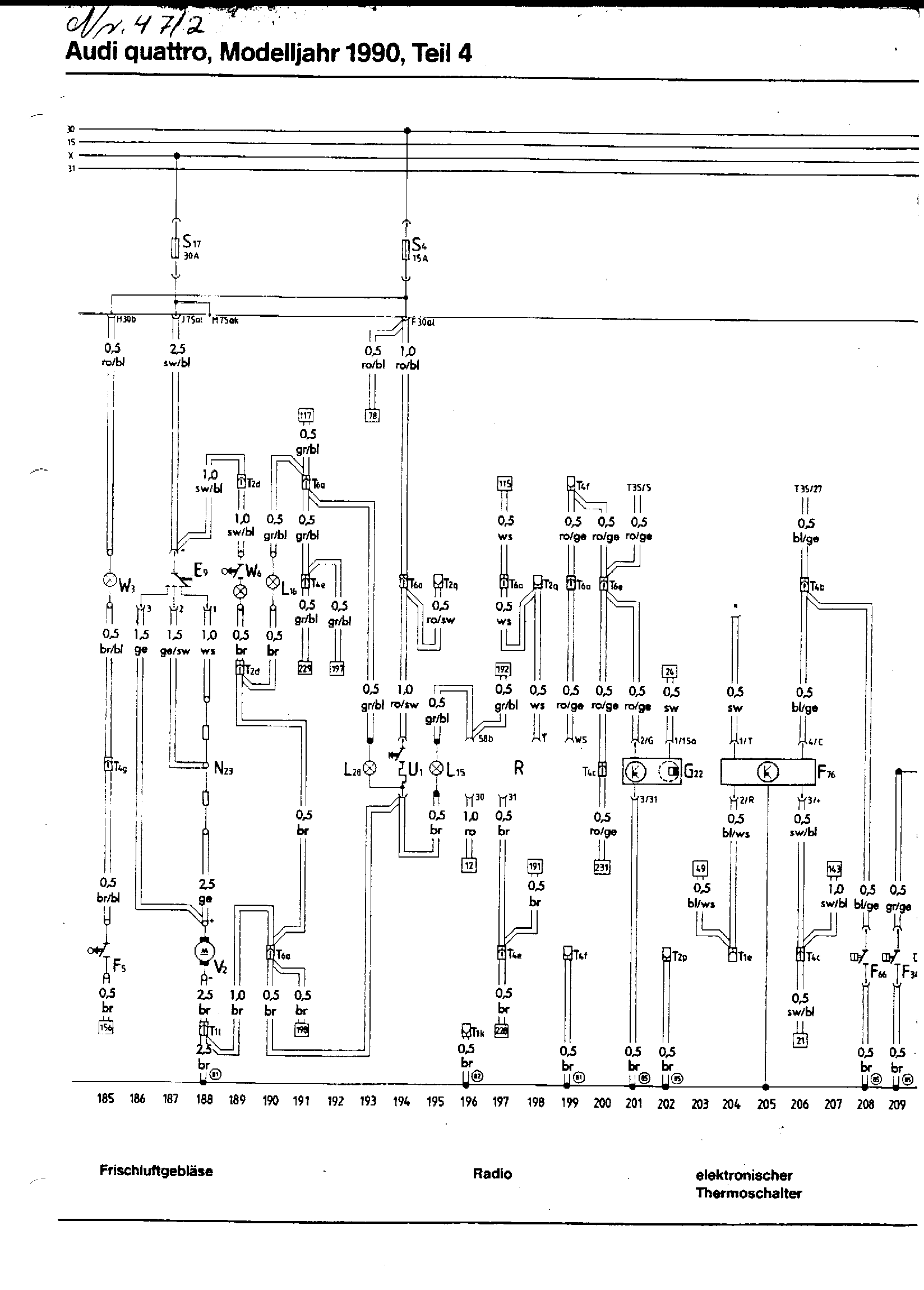

• Tracks 185-208
• Tracks 206-229

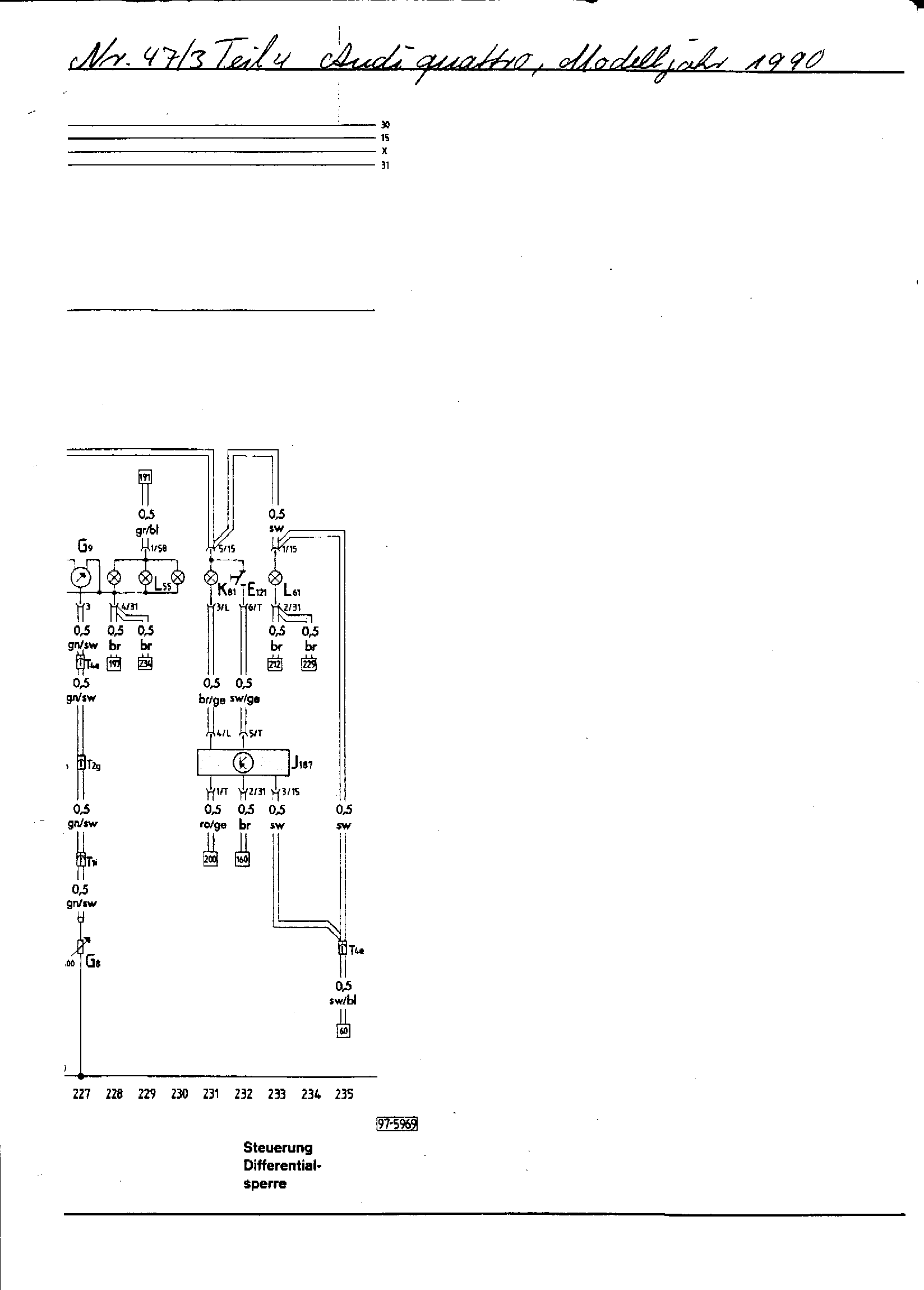

• Tracks 227-235

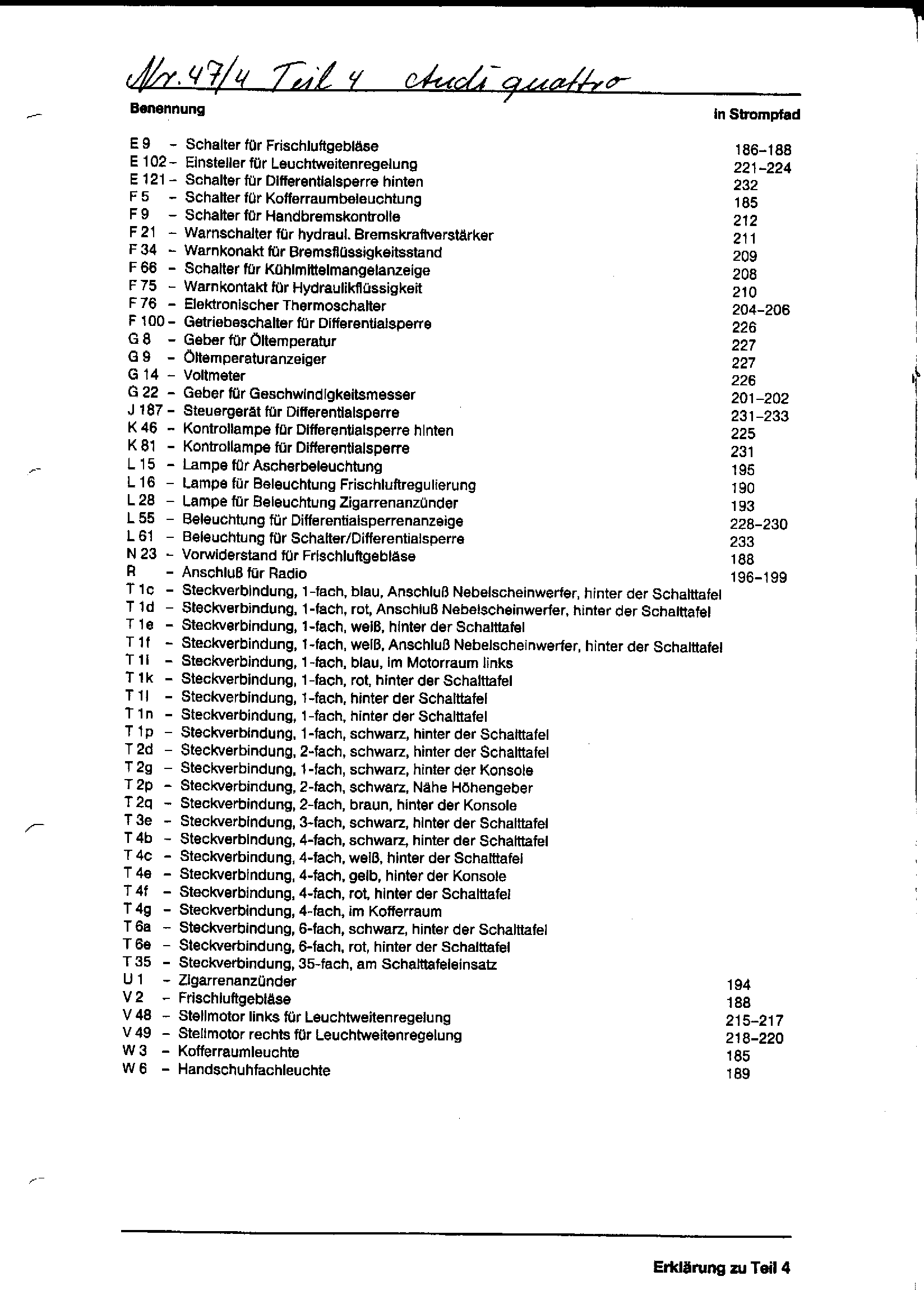

• Index to tracks 185-235

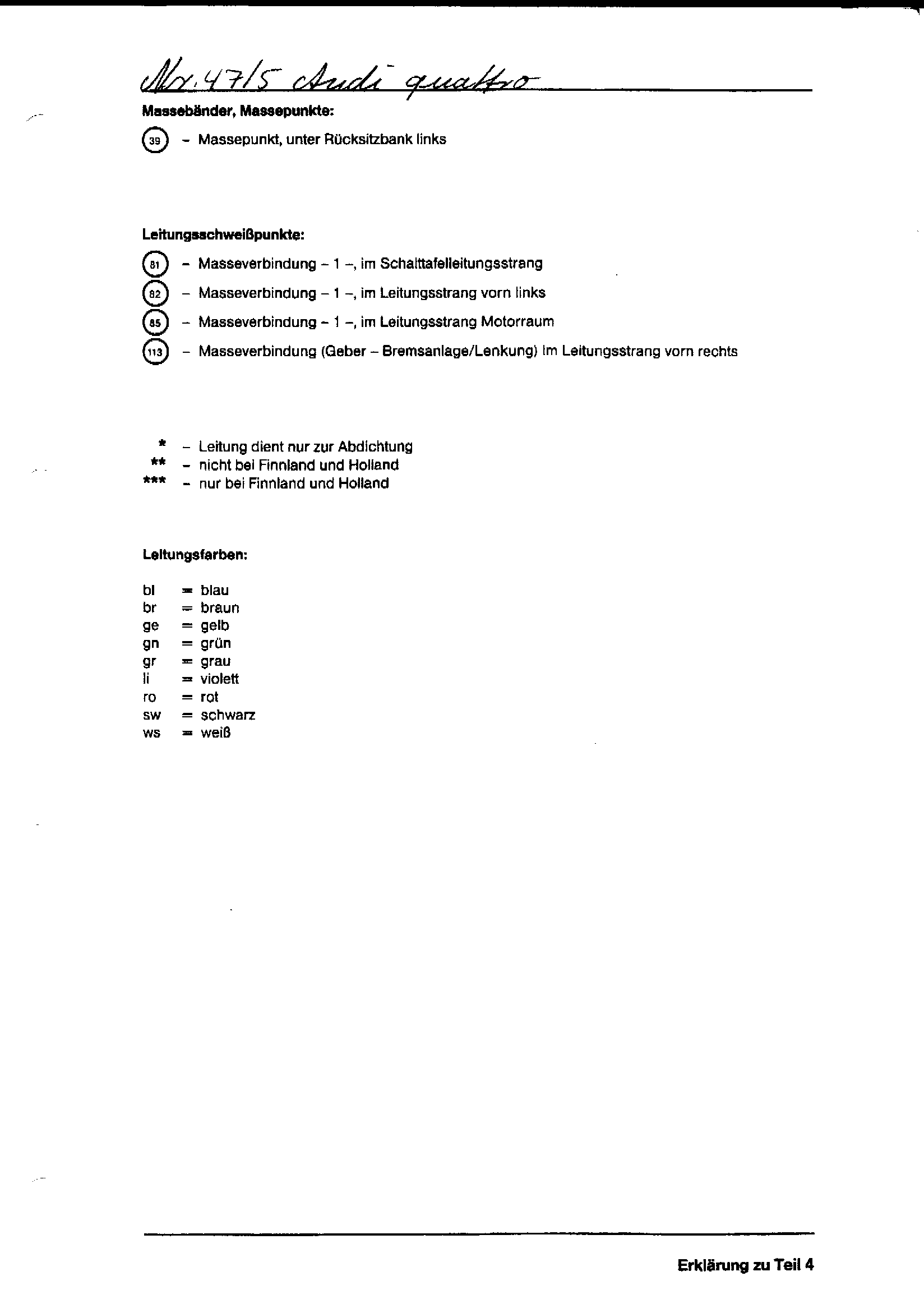

• Index to tracks 185-235 (contd.)

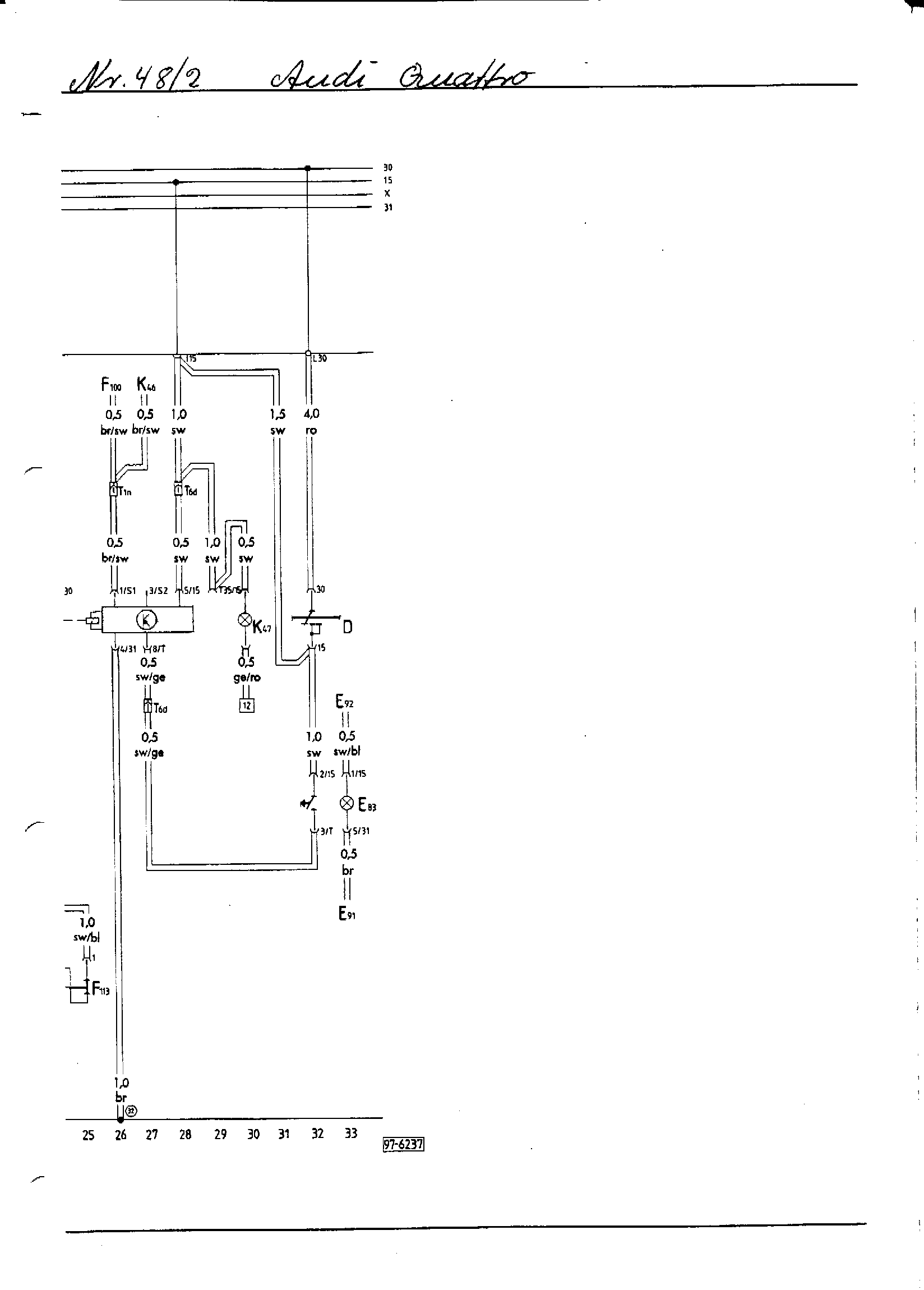

48 - ABS with longitudinal accelerometer

• Notes and pinout
• Tracks 1-24
• Tracks 25-33

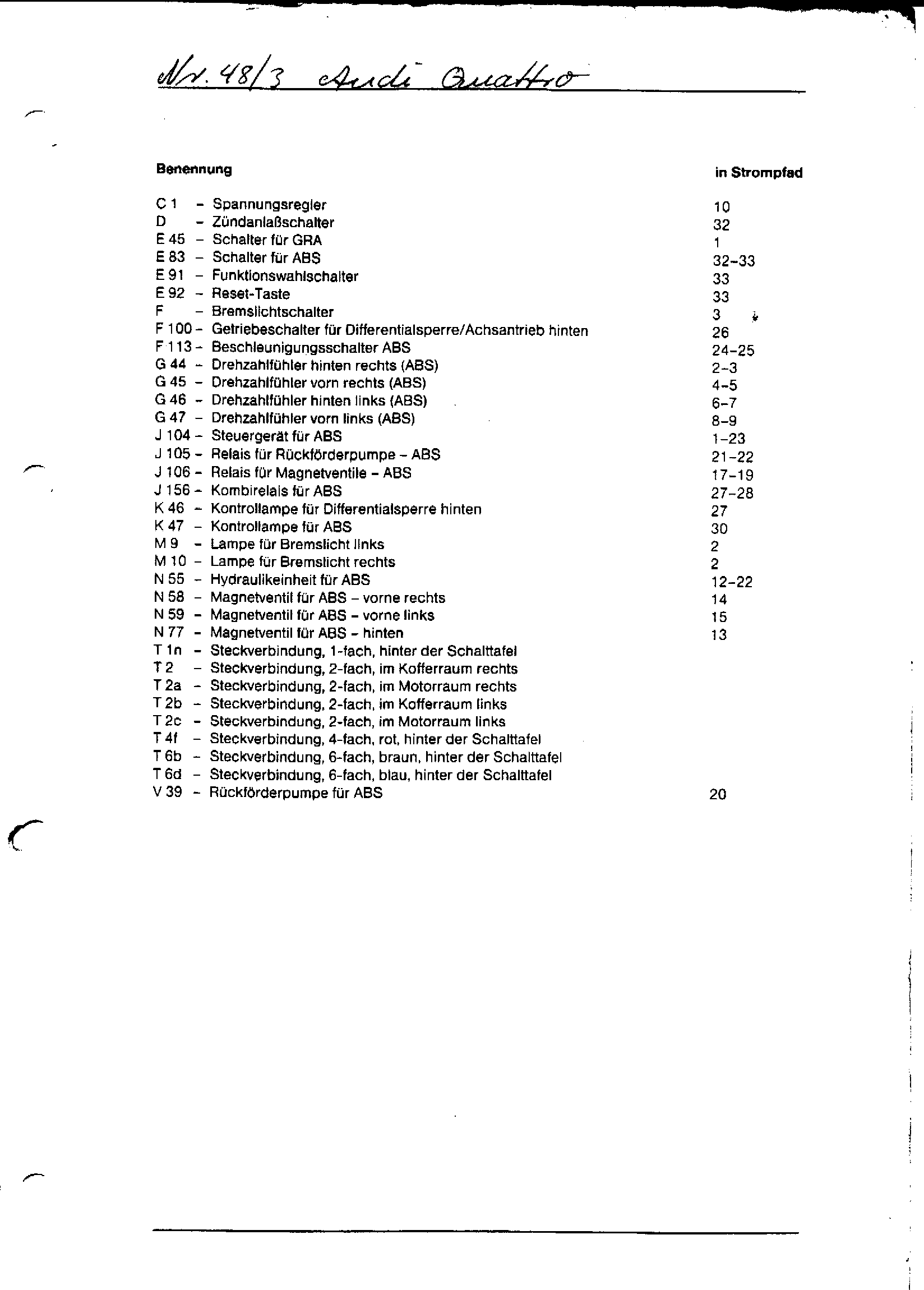

• Index

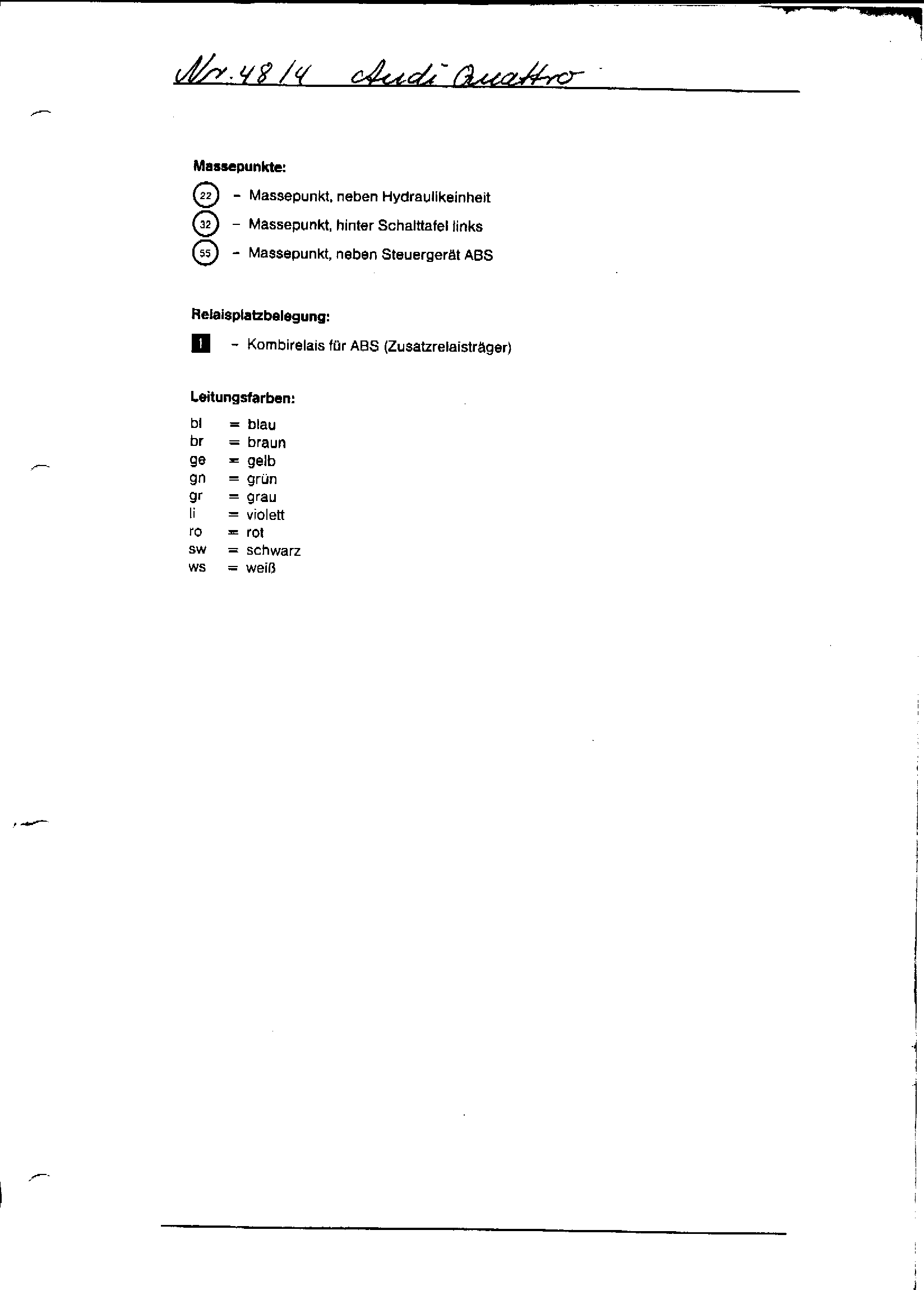

• Index (contd.)

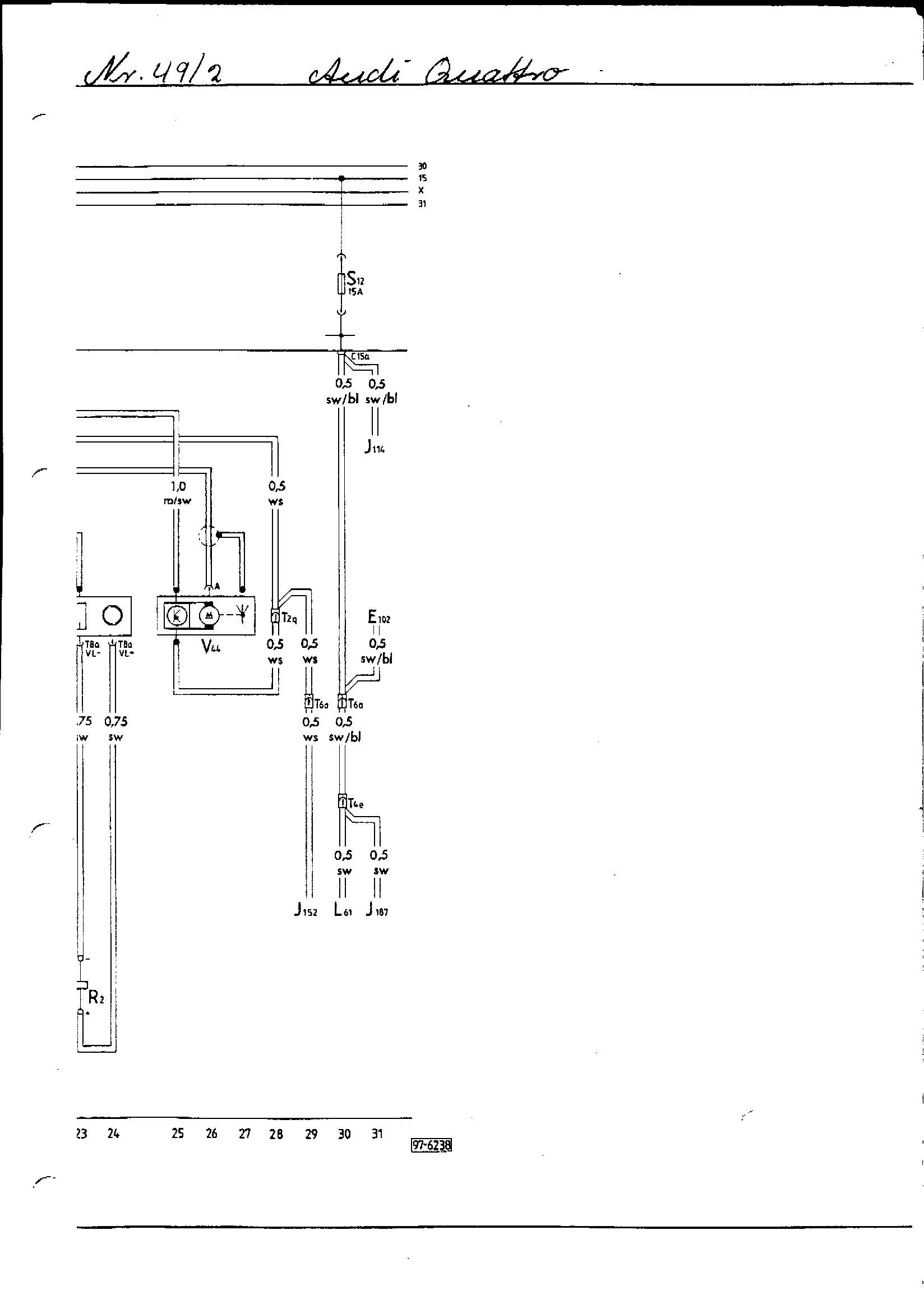

49 - Radio

• ISO connector conversion

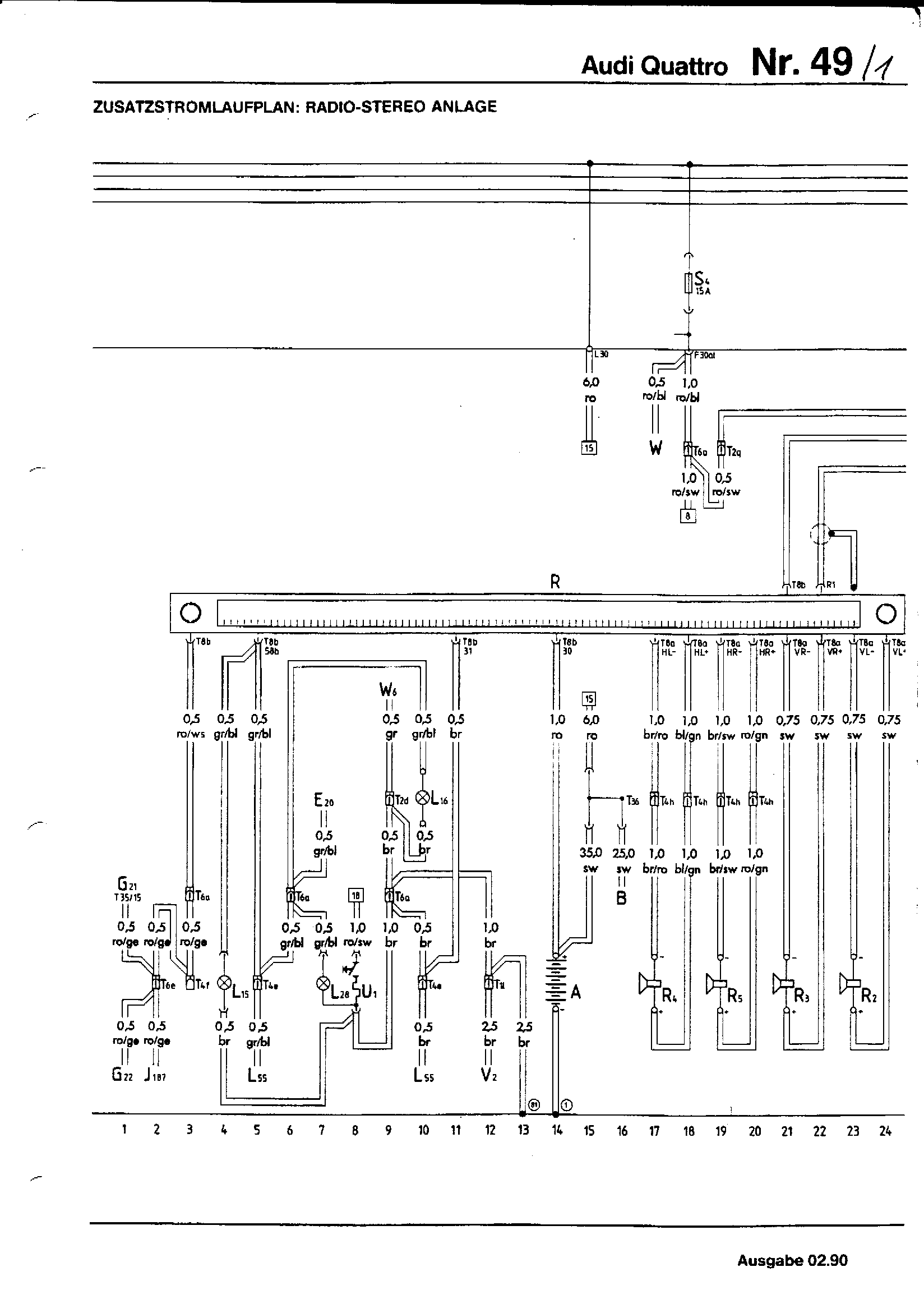

• Tracks 1-24
• Tracks 25-31

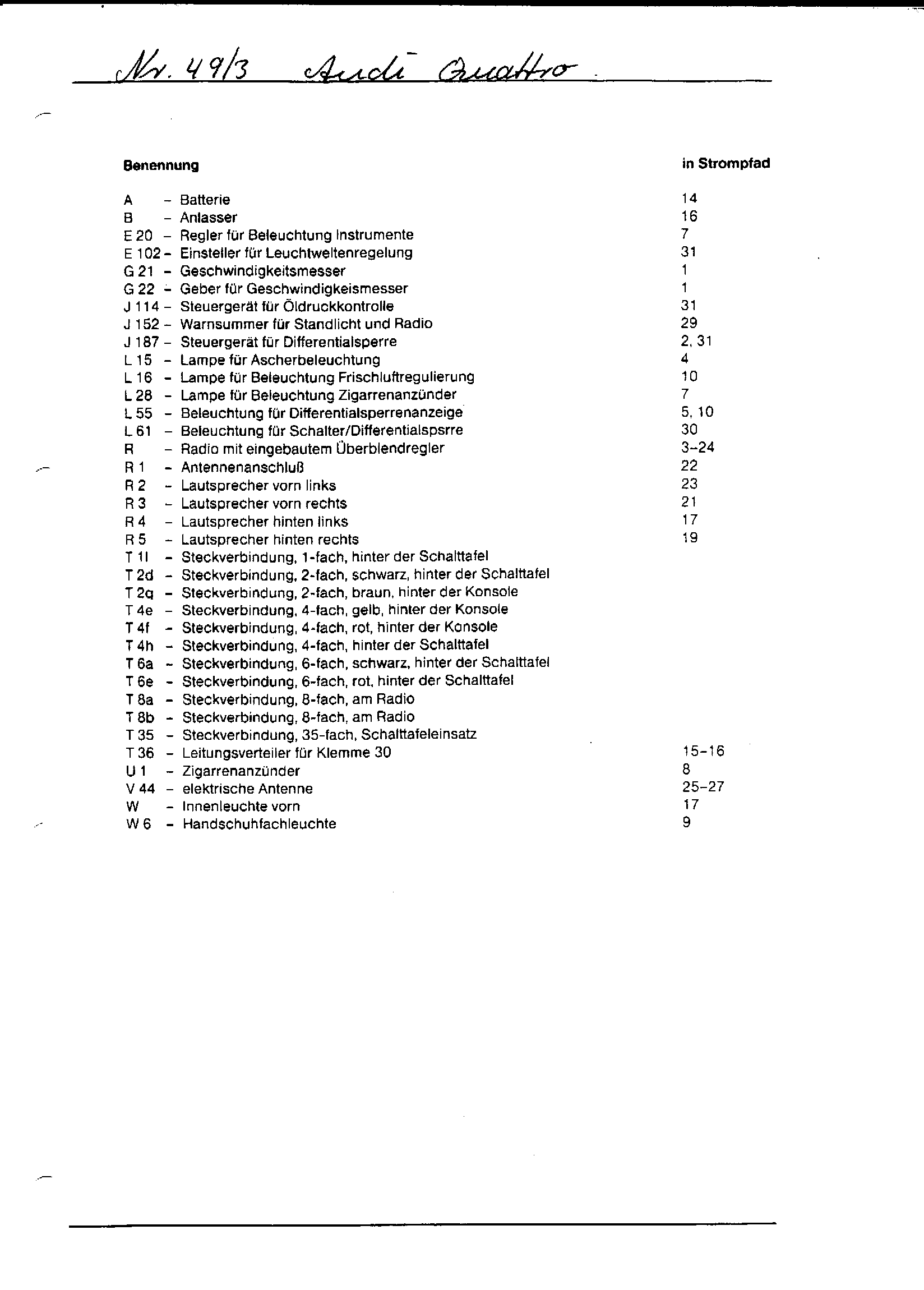

• Index

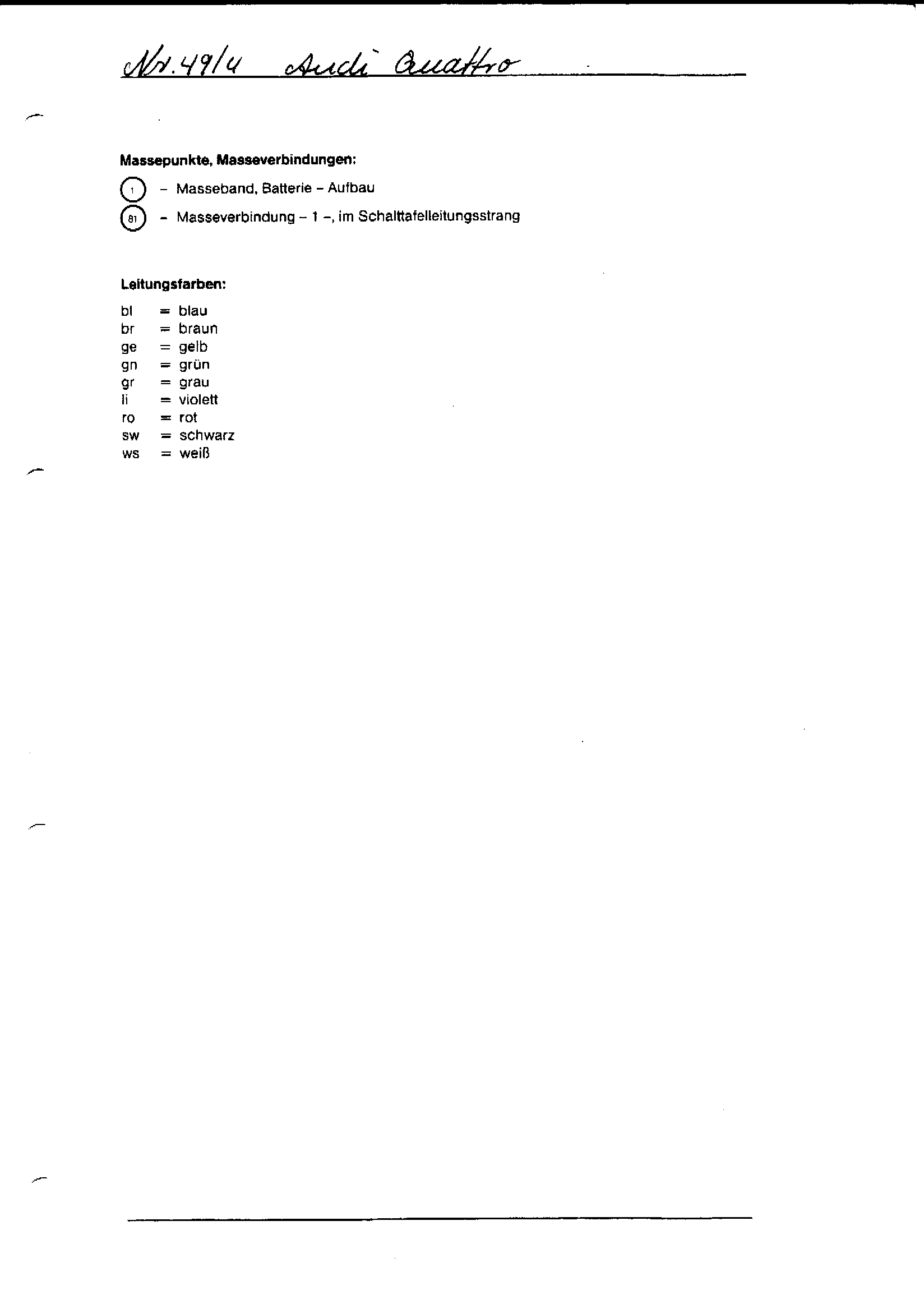

• Index (contd.)

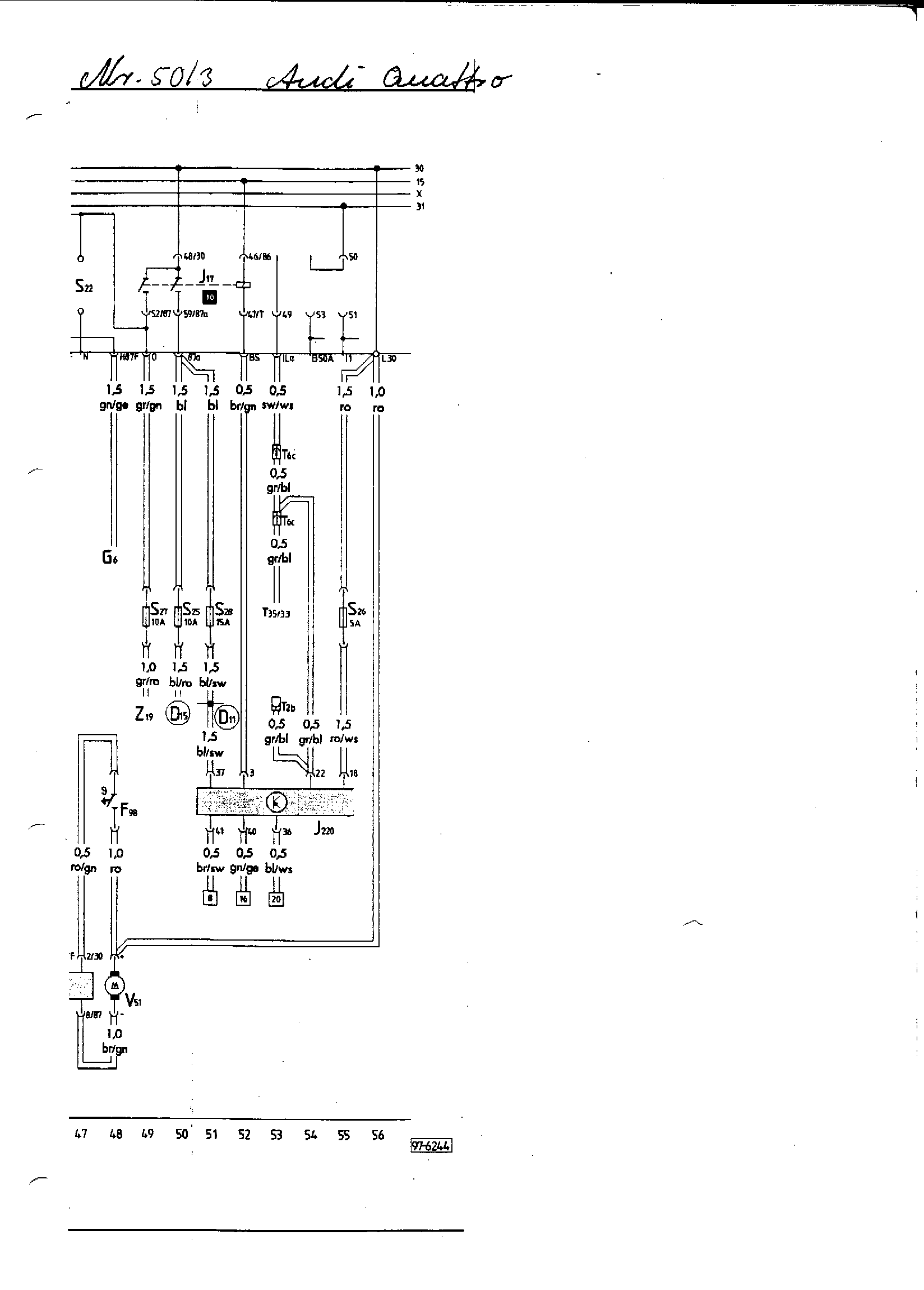

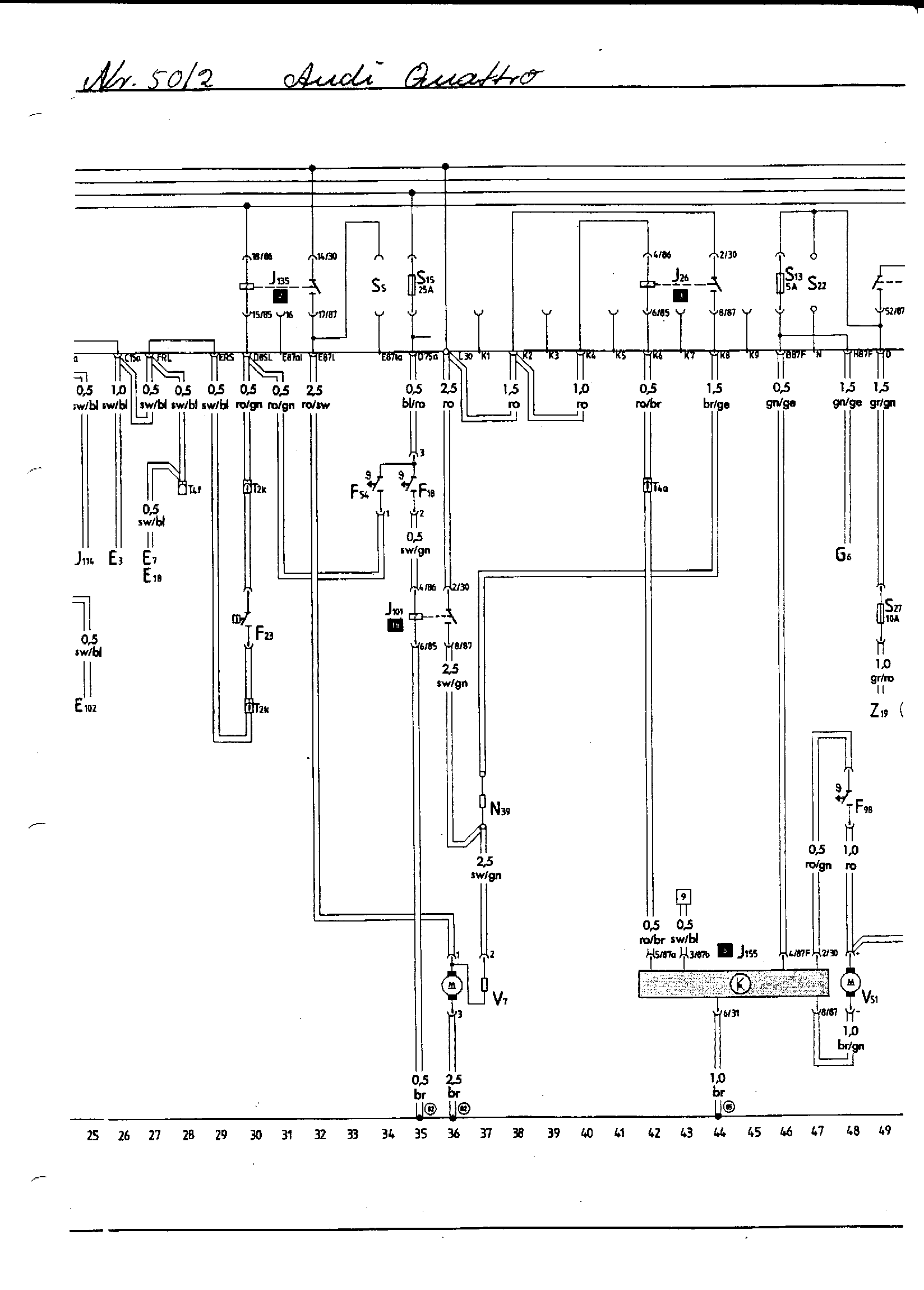

50 - Air Conditioning

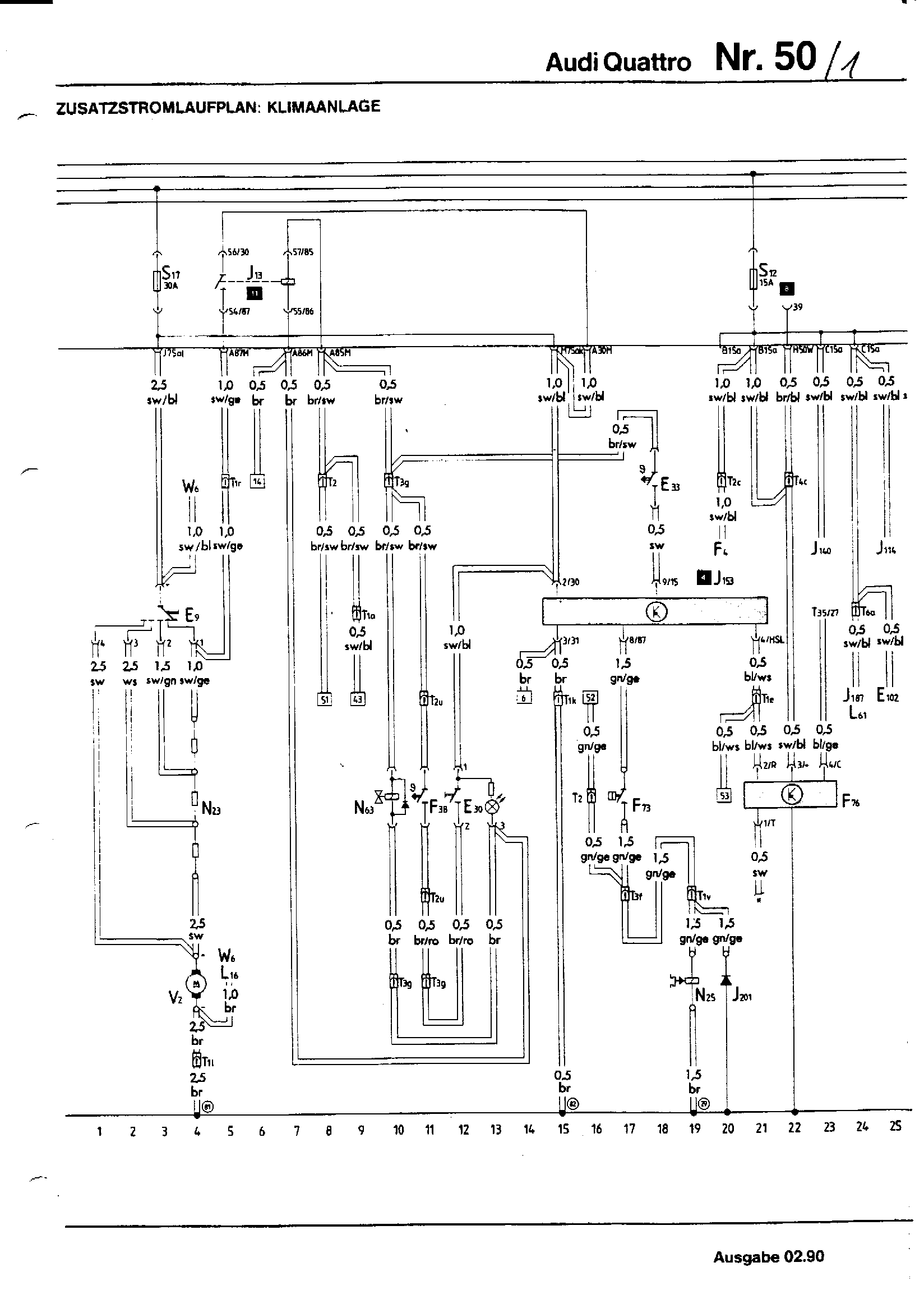

• Tracks 1-24
• Tracks 25-48
• Tracks 49-56

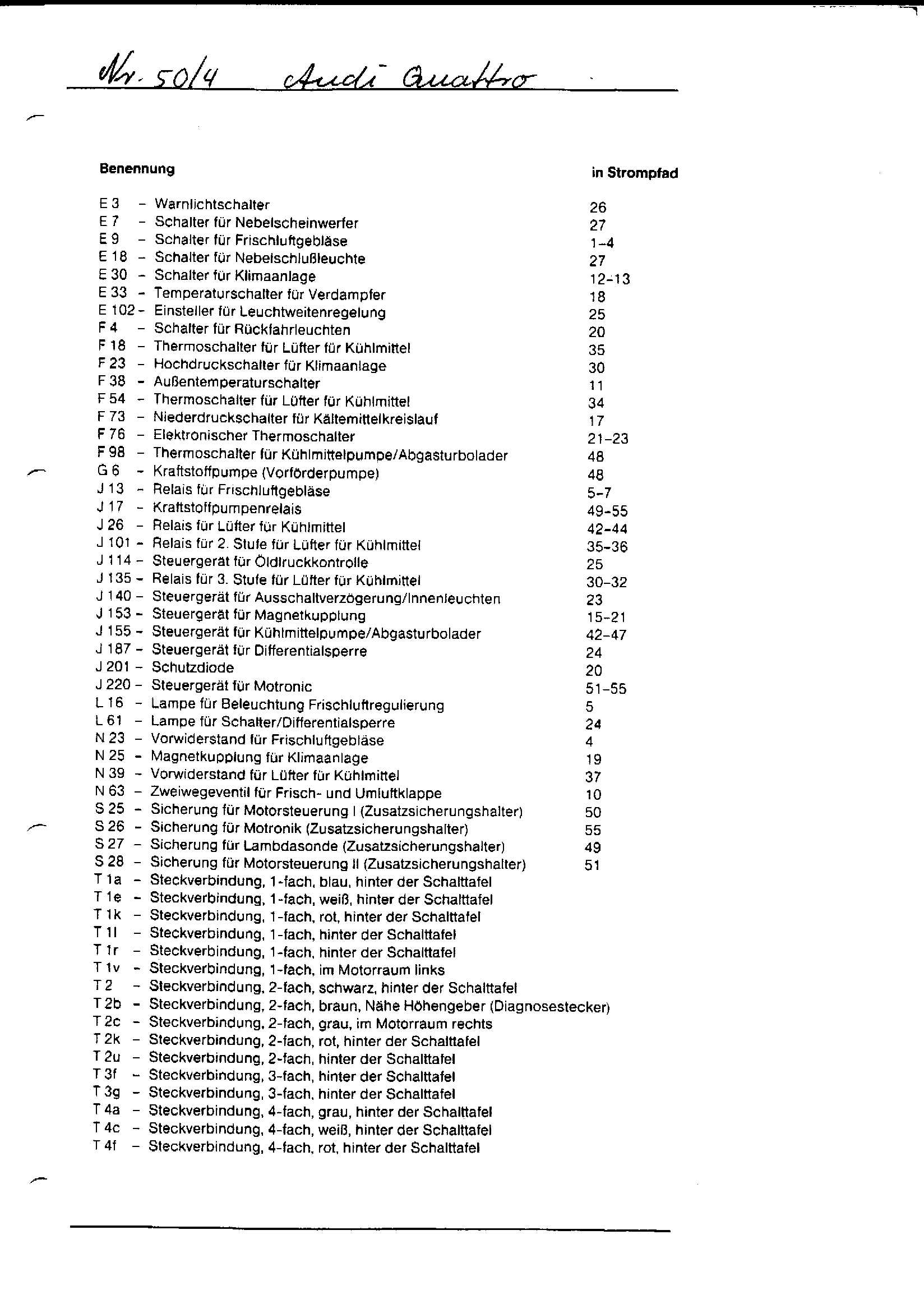

• Index

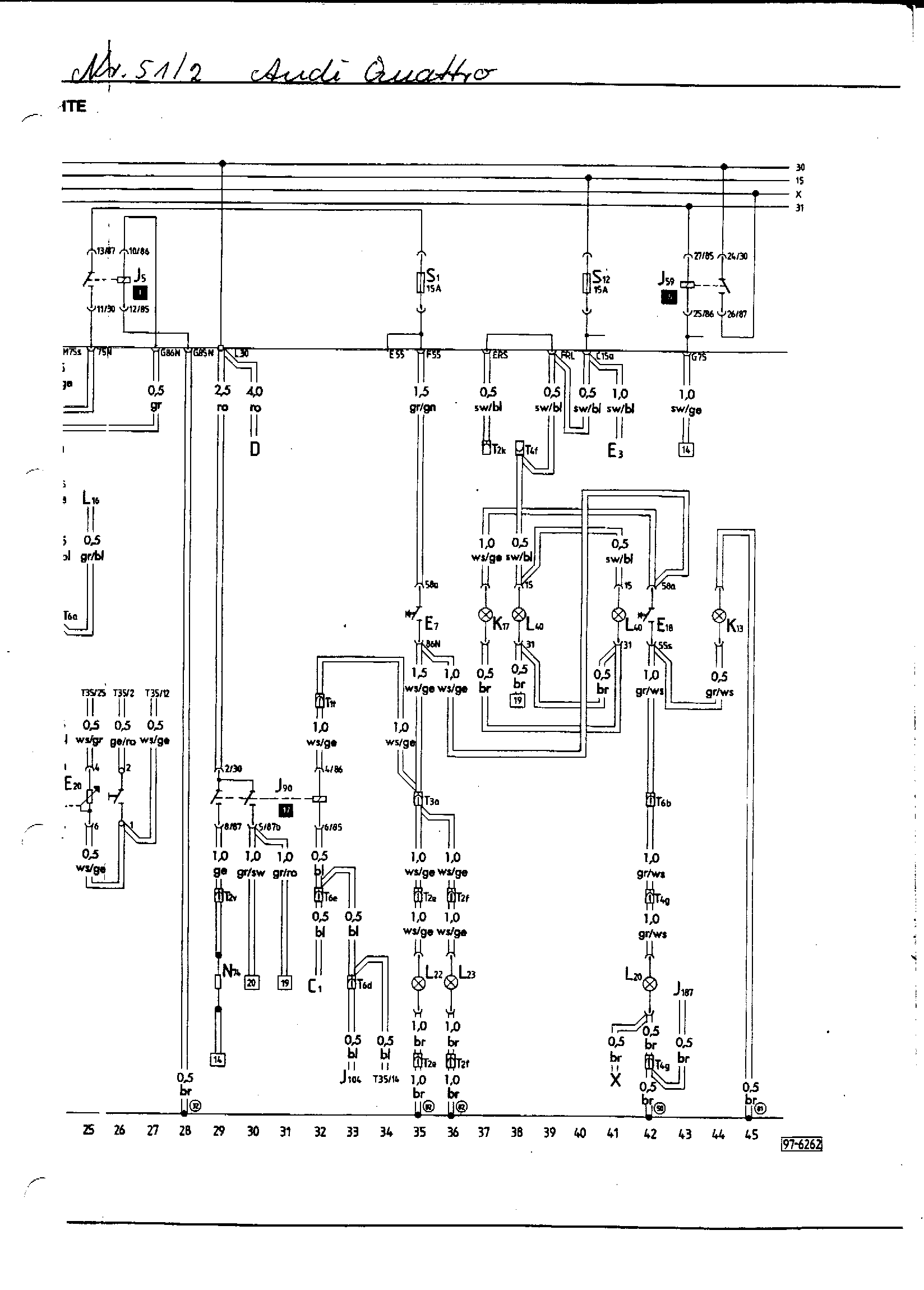

51 - Daytime driving and fog lights (Sweden)

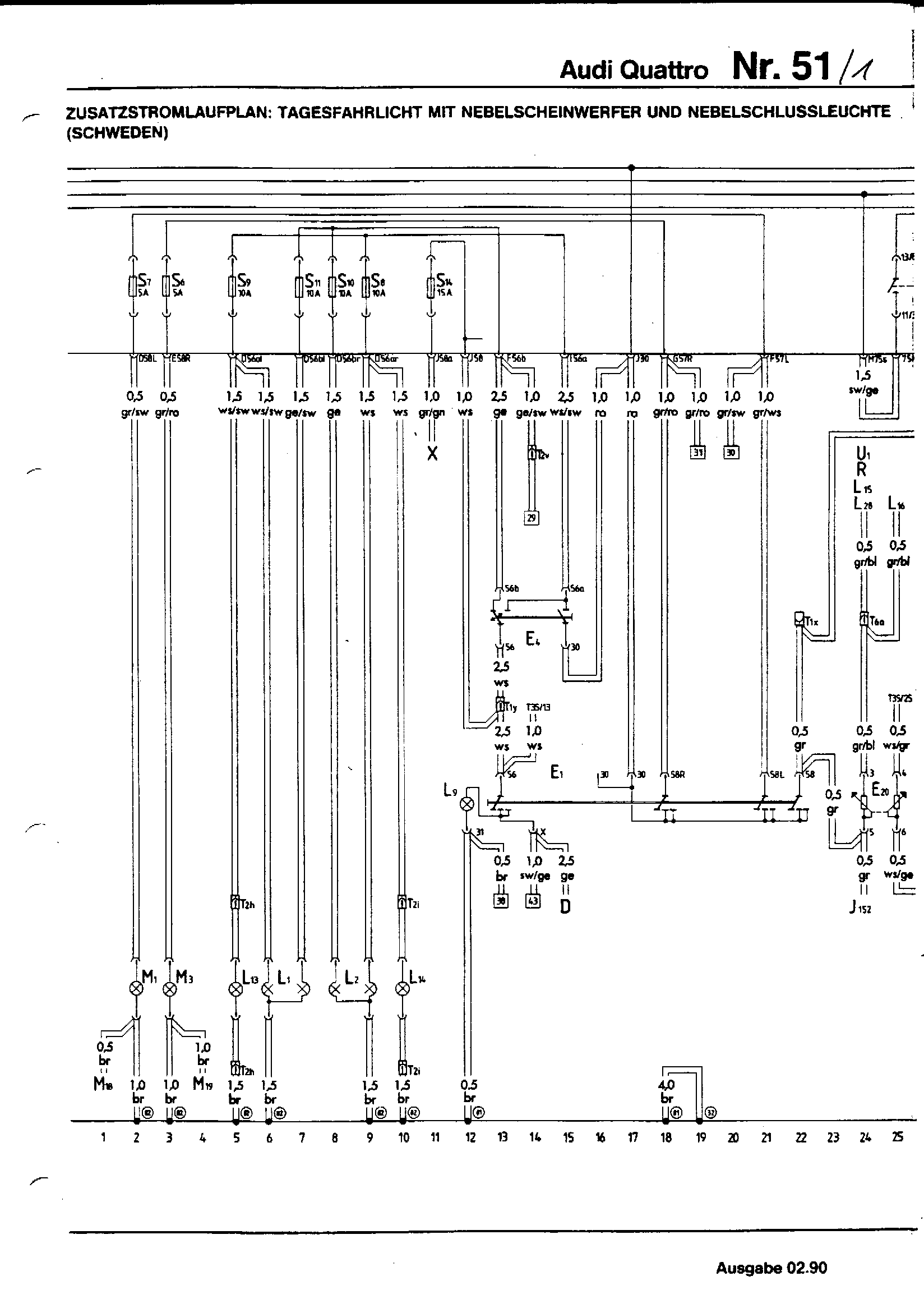

• Tracks 1-24
• Tracks 25-45

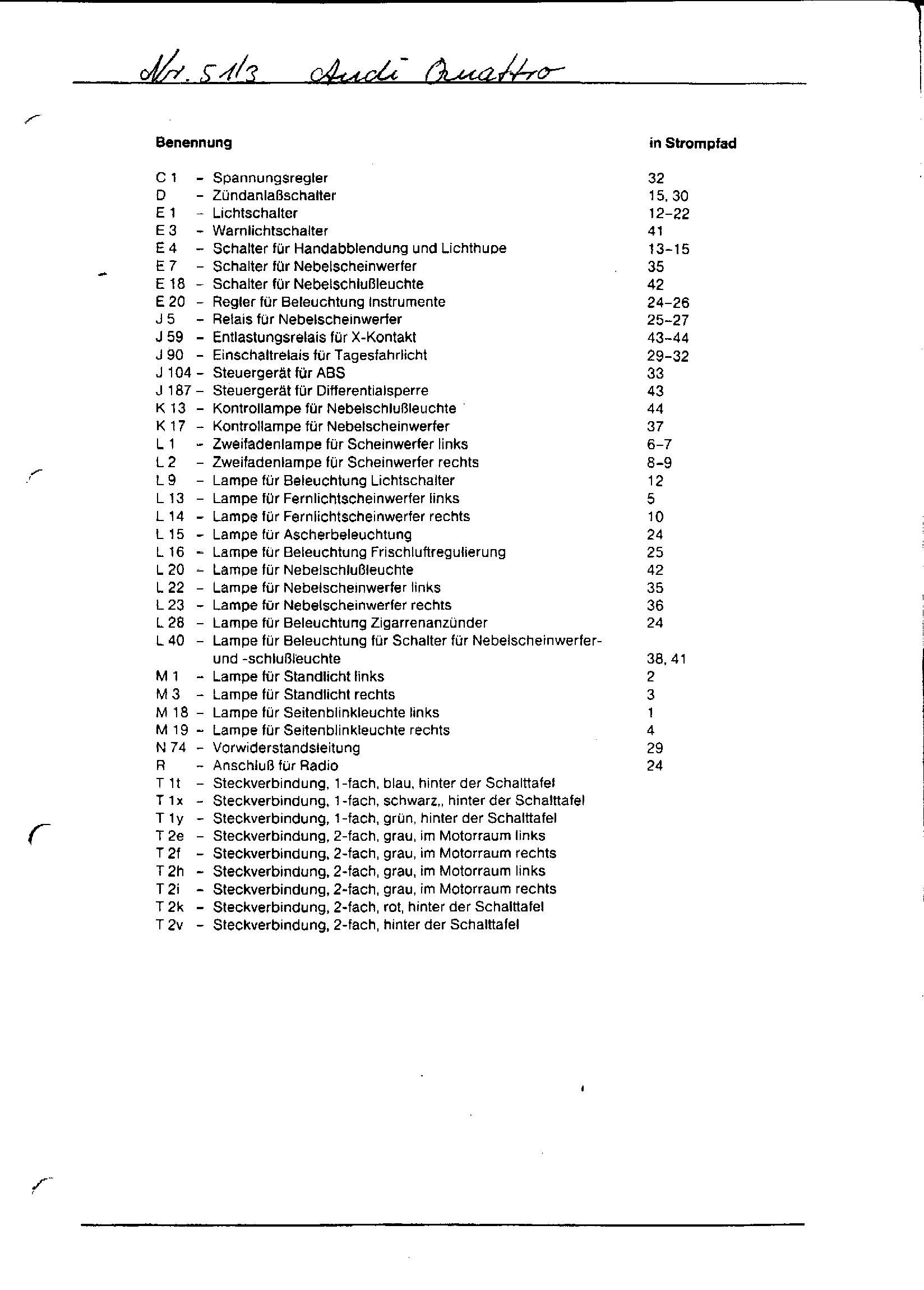

• Index

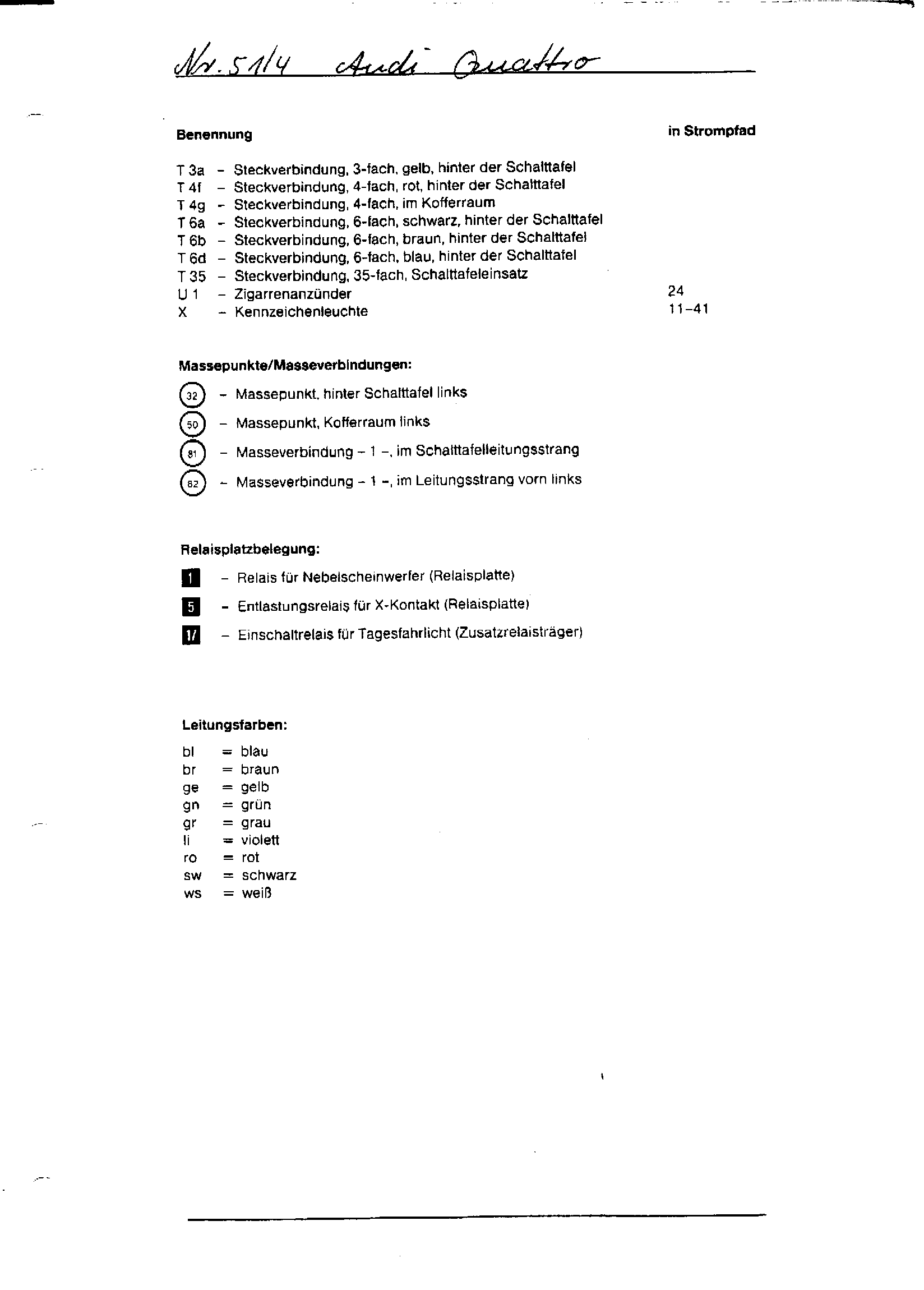

• Index (contd.)

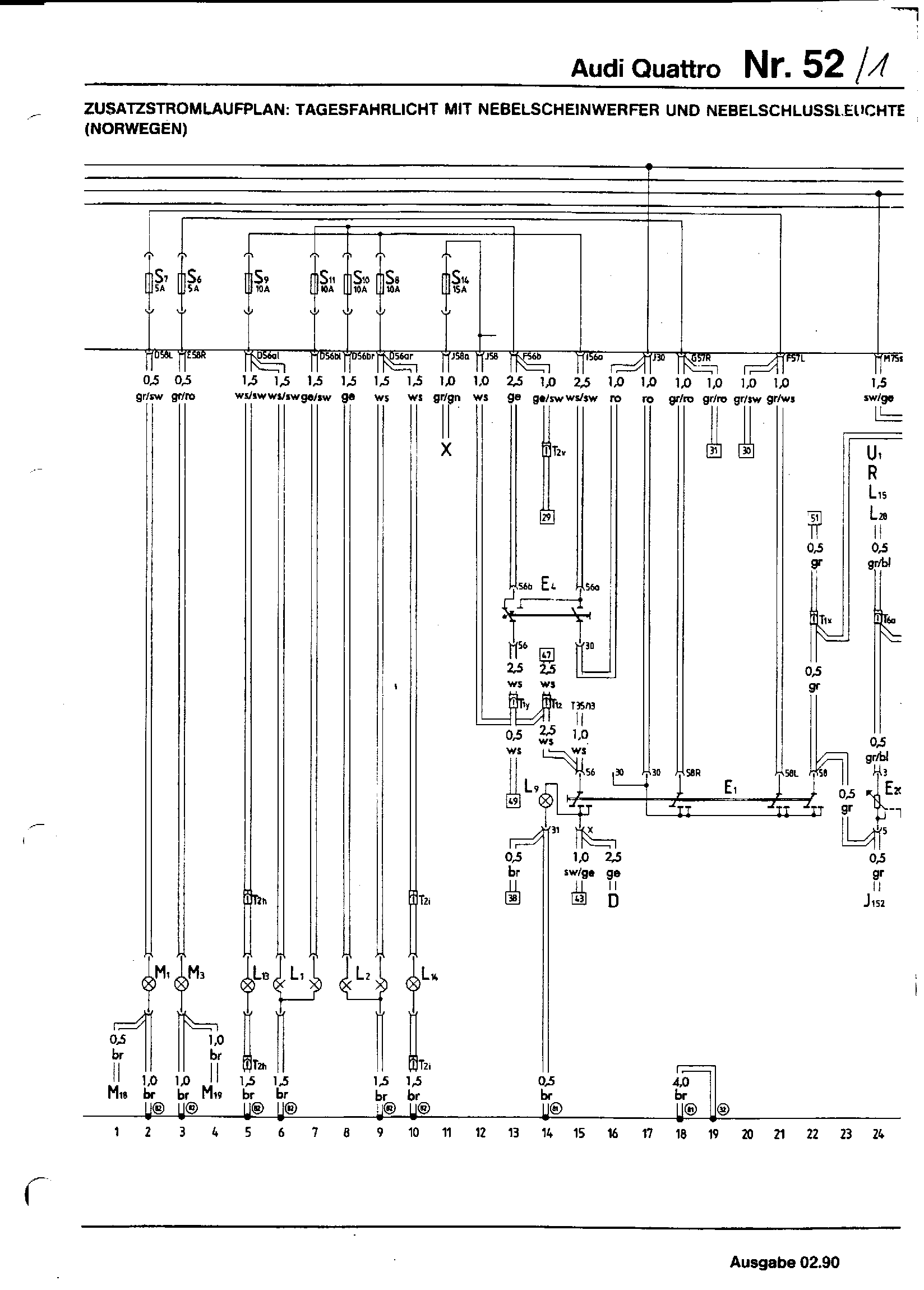

52 - Daytime driving and fog lights (Norway)

• Tracks 1-24

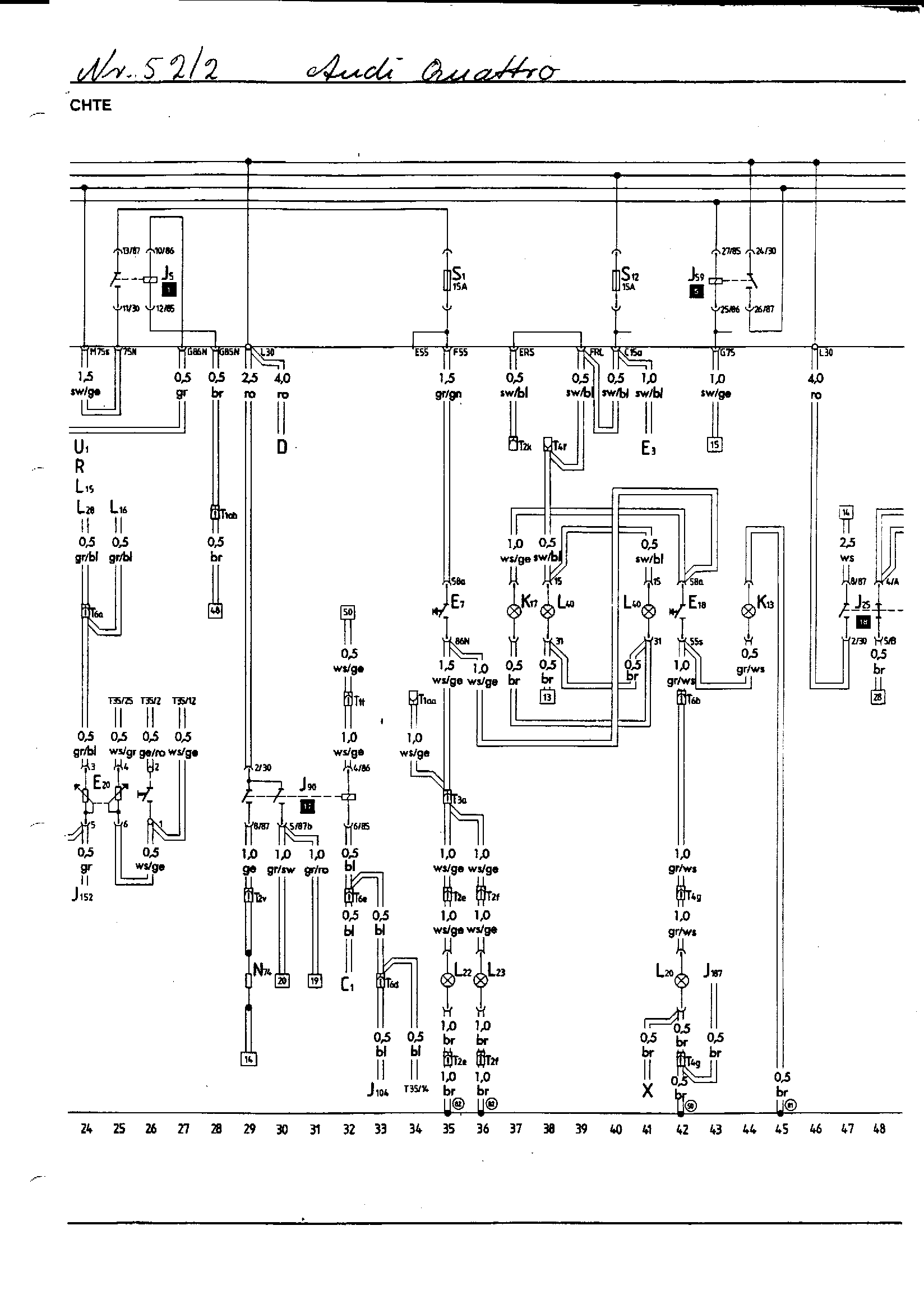

• Tracks 25-45
• Tracks 46-52

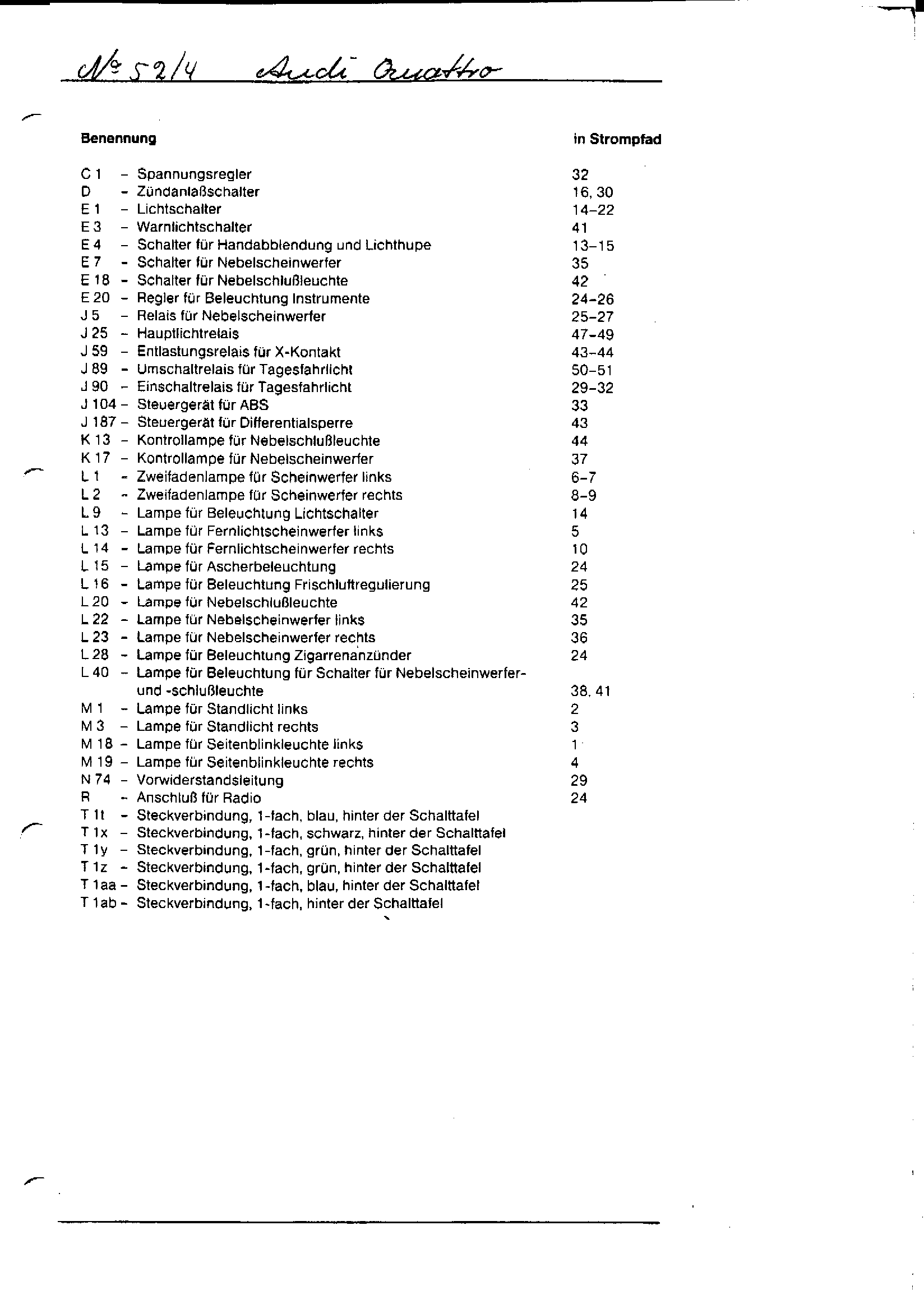

• Index

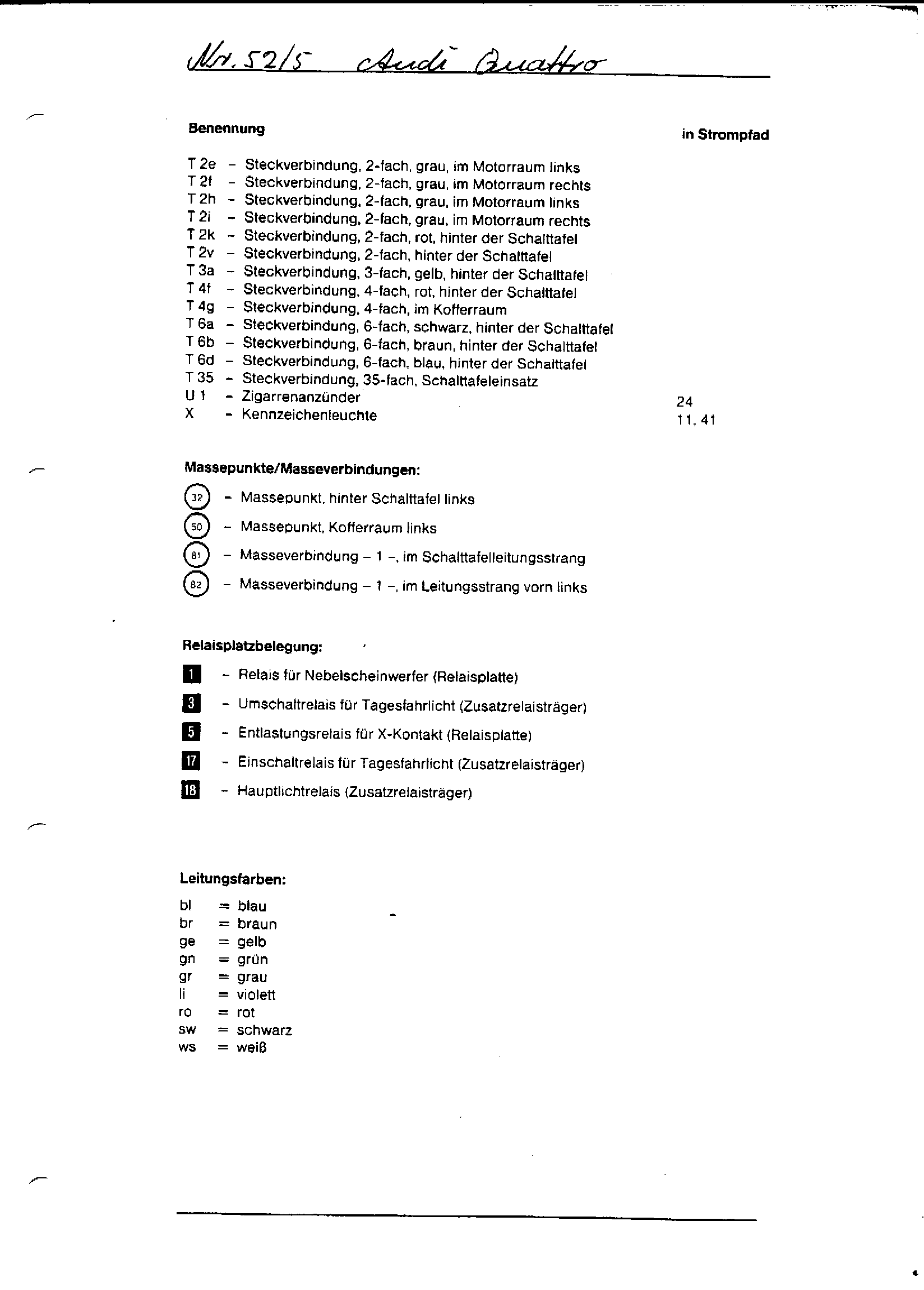

• Index (contd.)

53 - Rear screen wiper

• Tracks 1-6

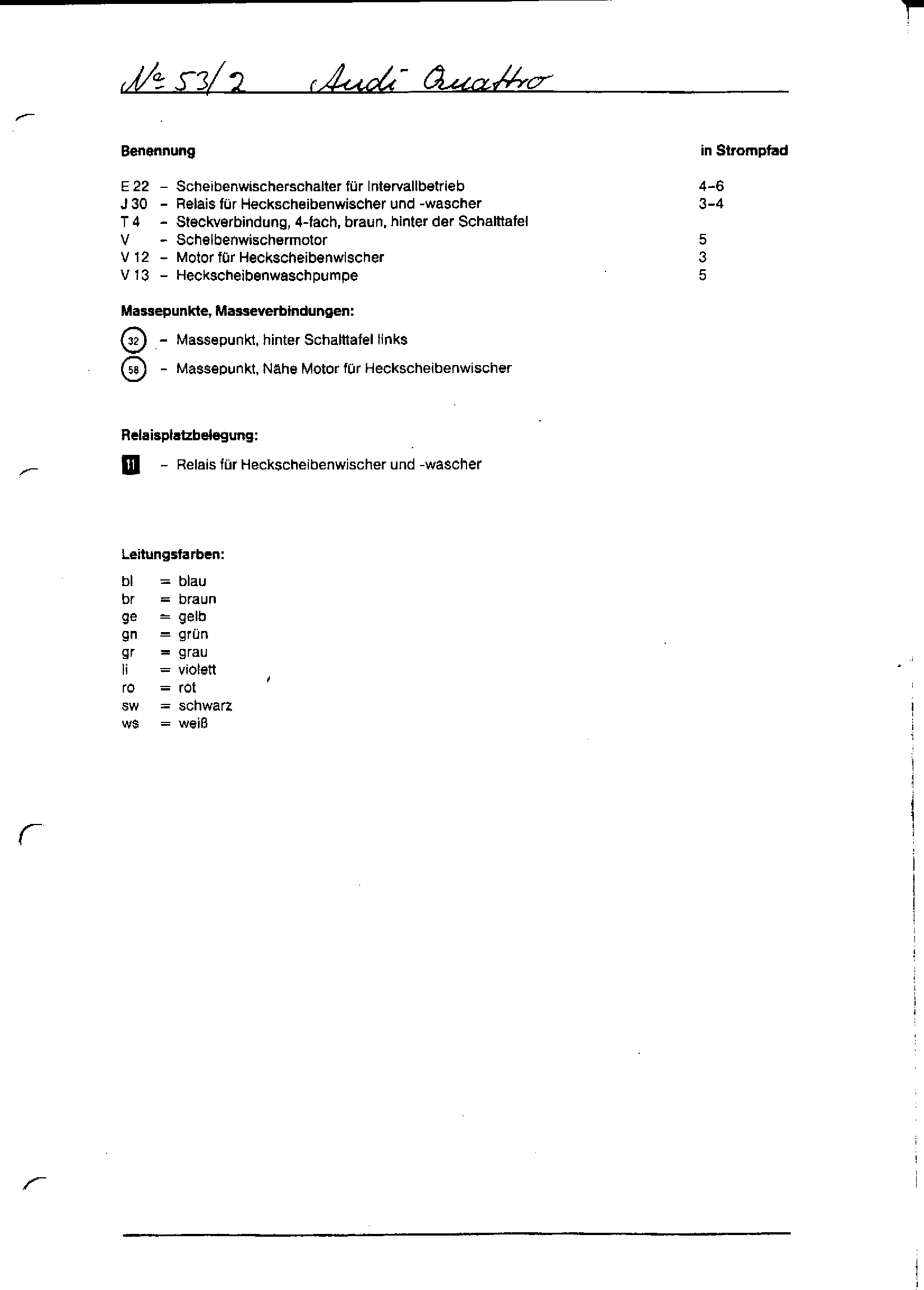

• Index

54 - Heated seats - for diagnostics and repair see main site

• Tracks 1-16

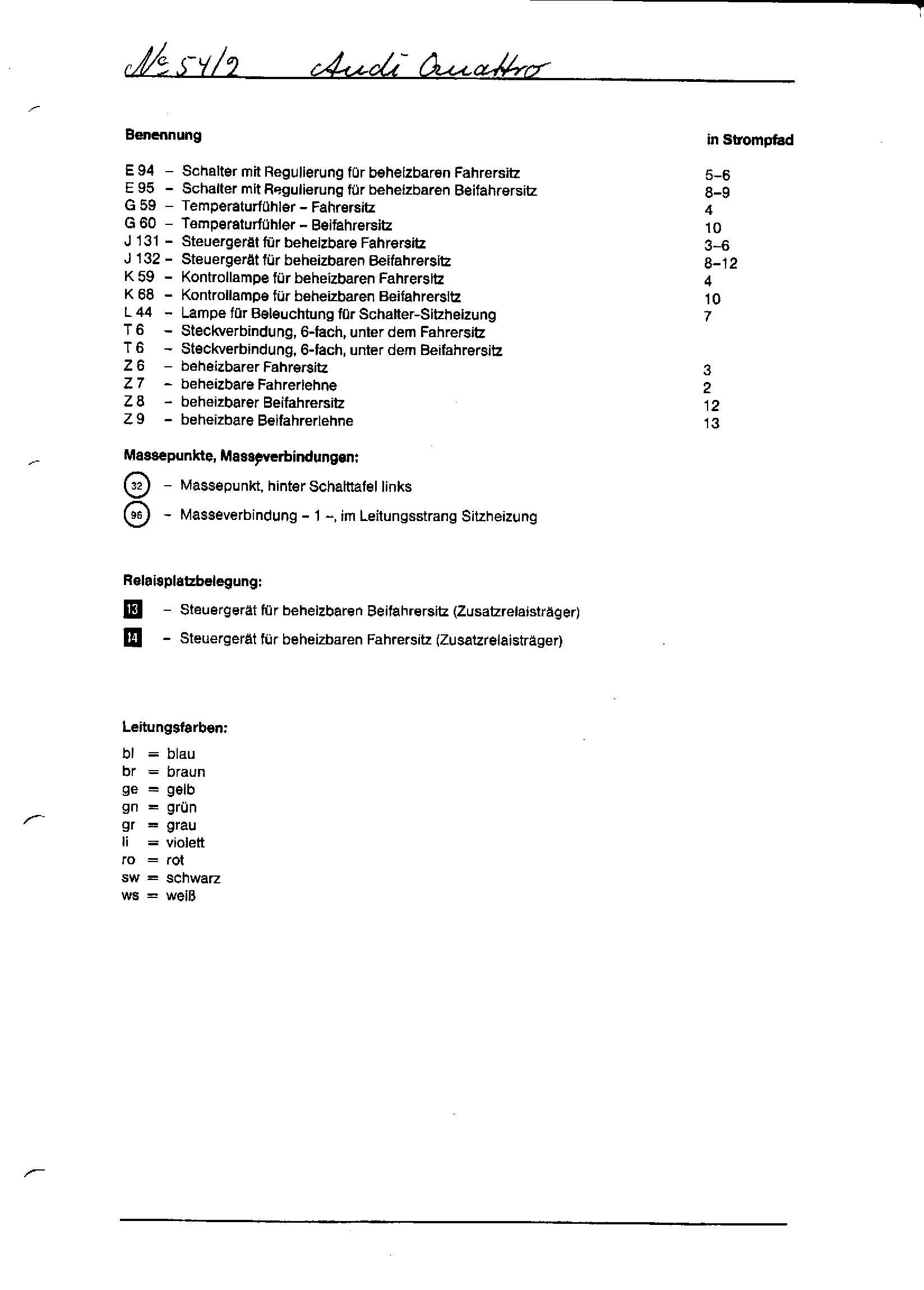

• Index

55 - Central locking

• Tracks 1-24
• Index

56 - Electric windows

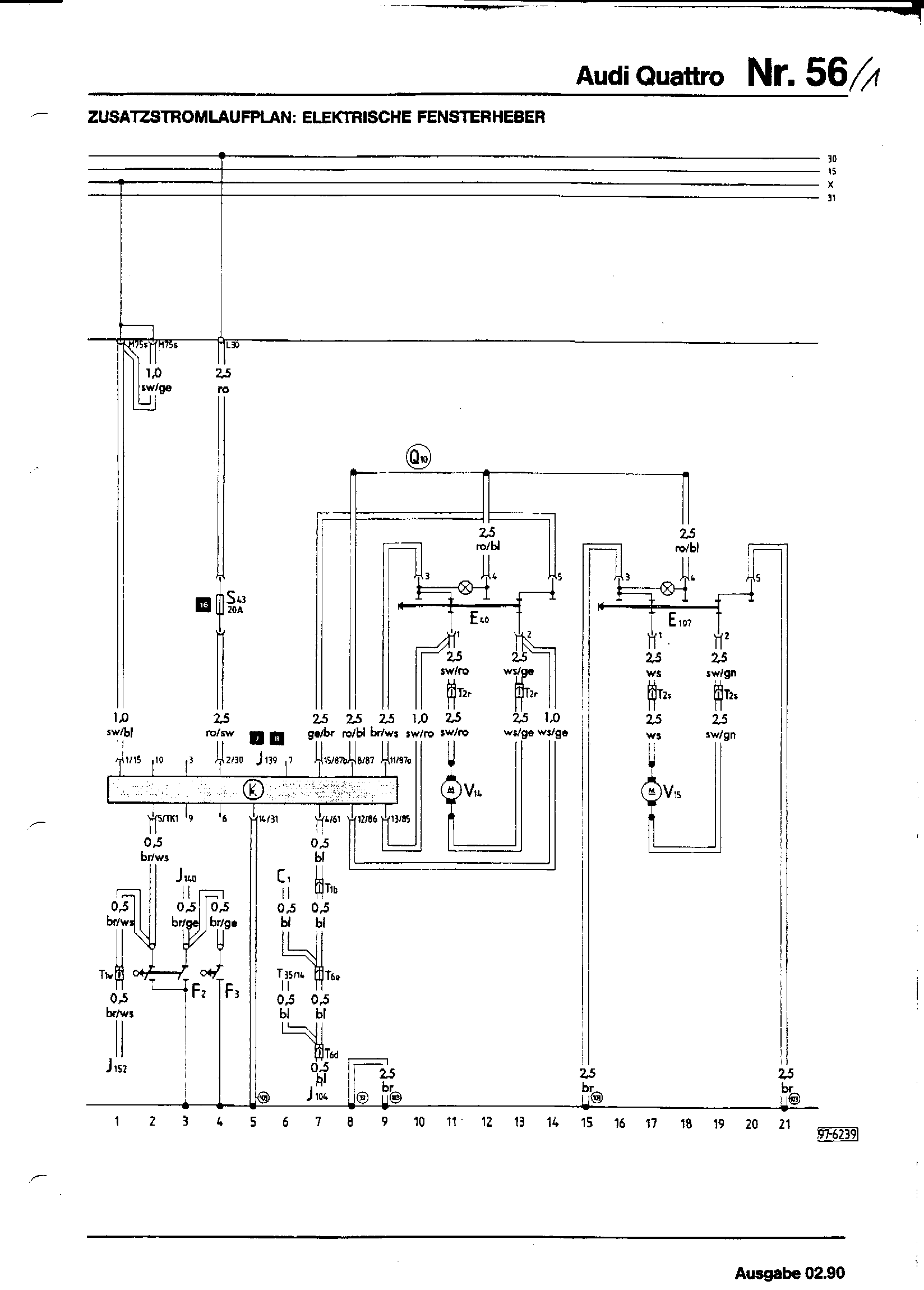

• Tracks 1-21

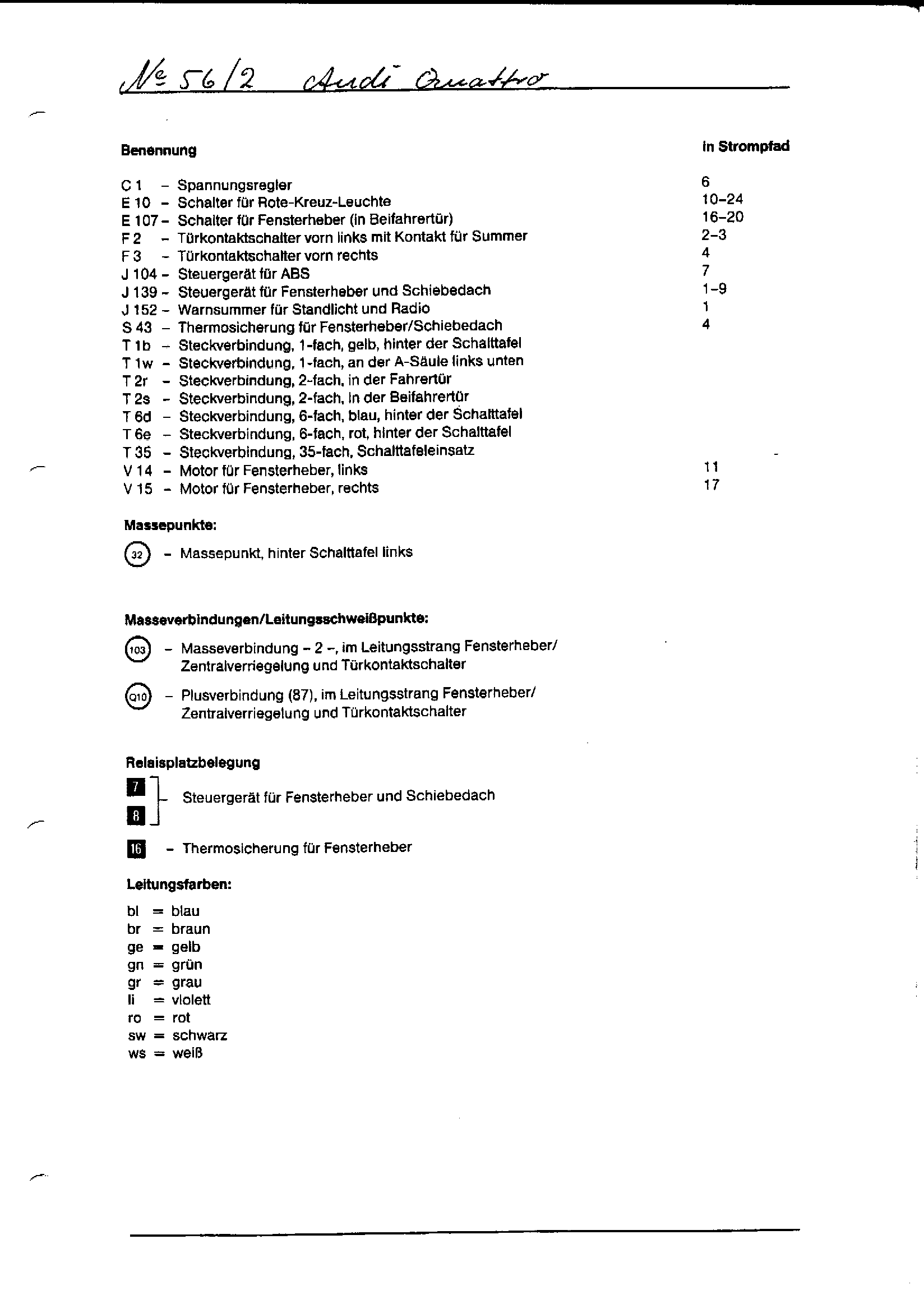

• Index

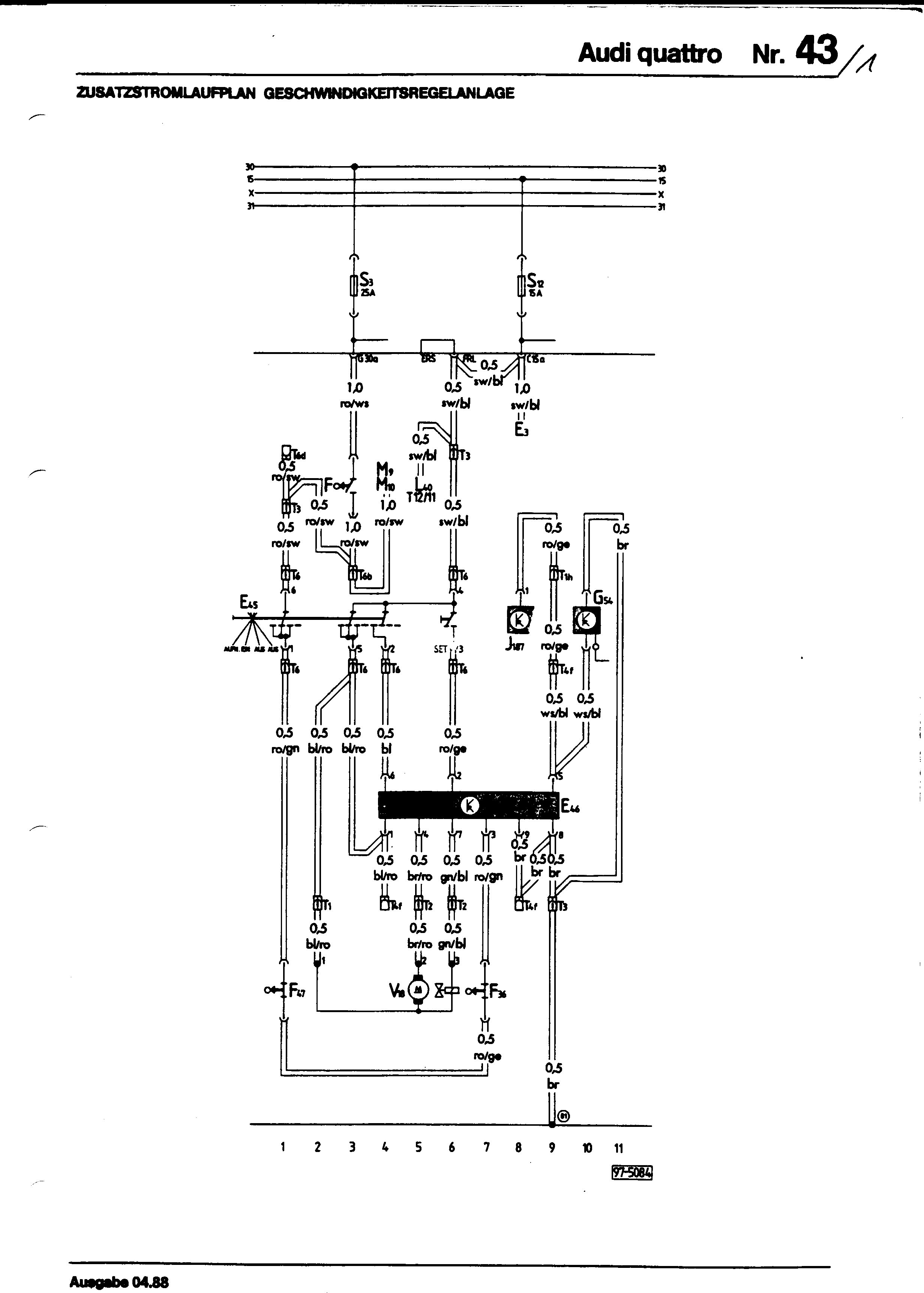

57 - Cruise control

• Tracks 1-14

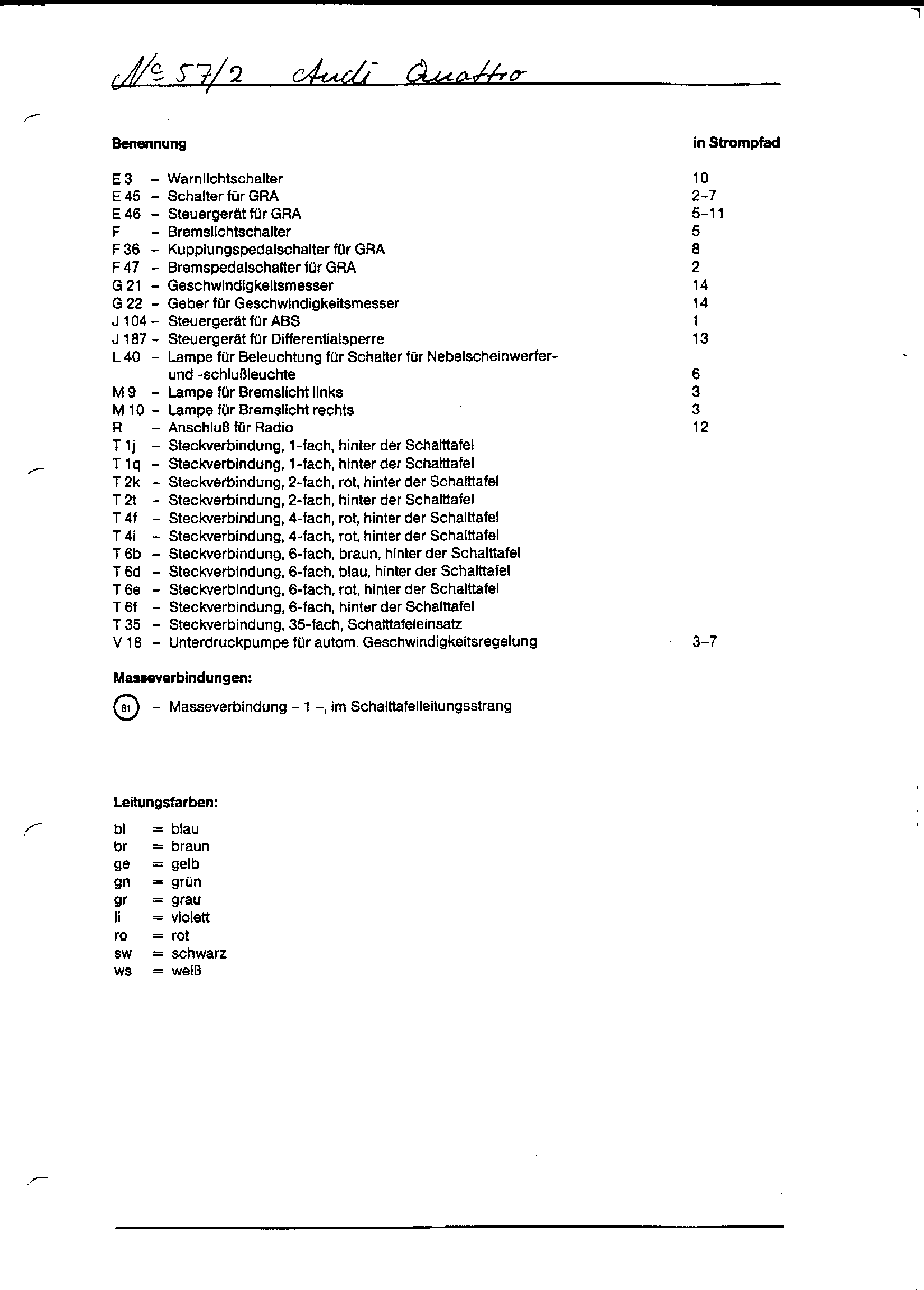

• Index

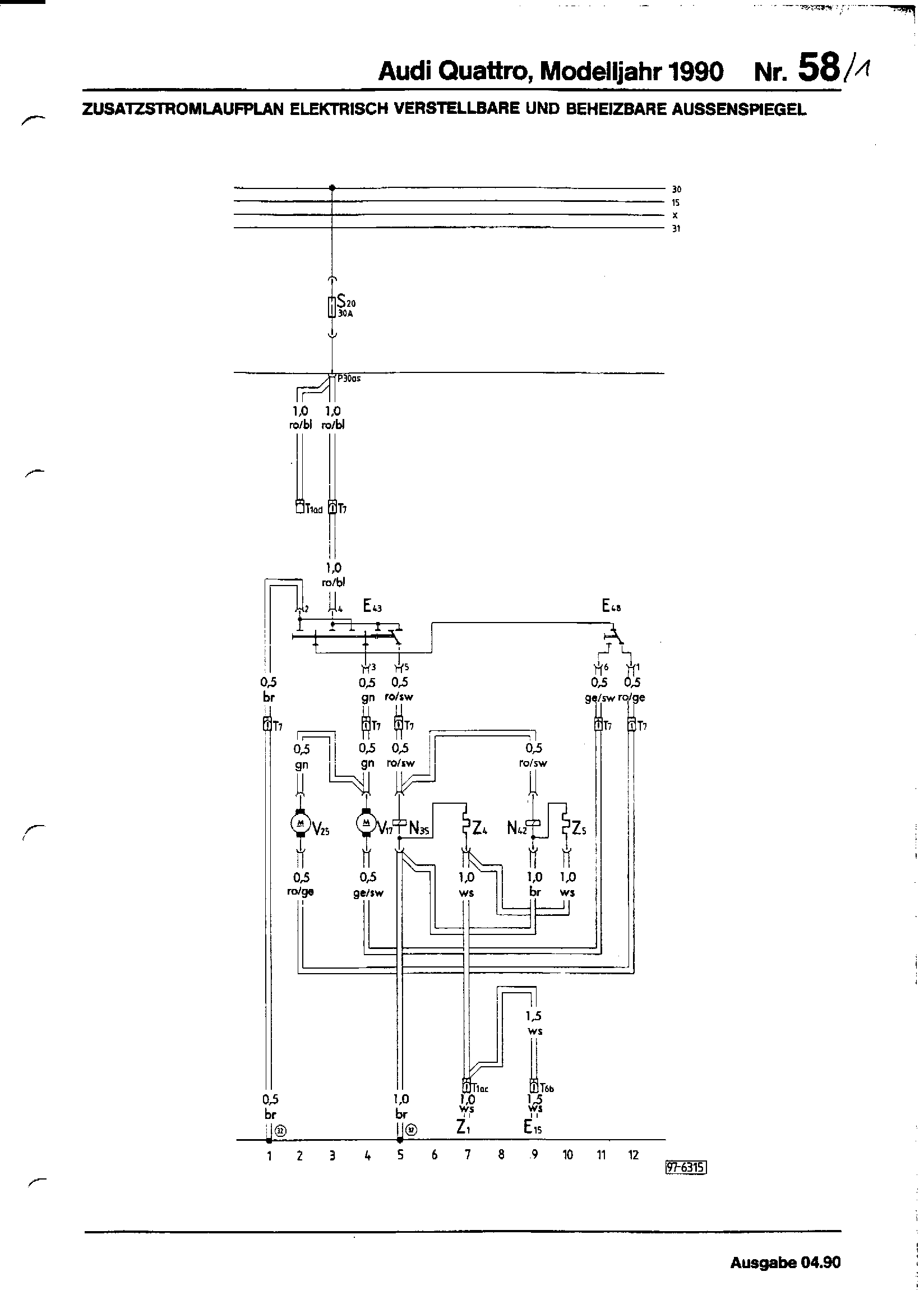

58 - Electric rear view mirrors

• Tracks 1-12

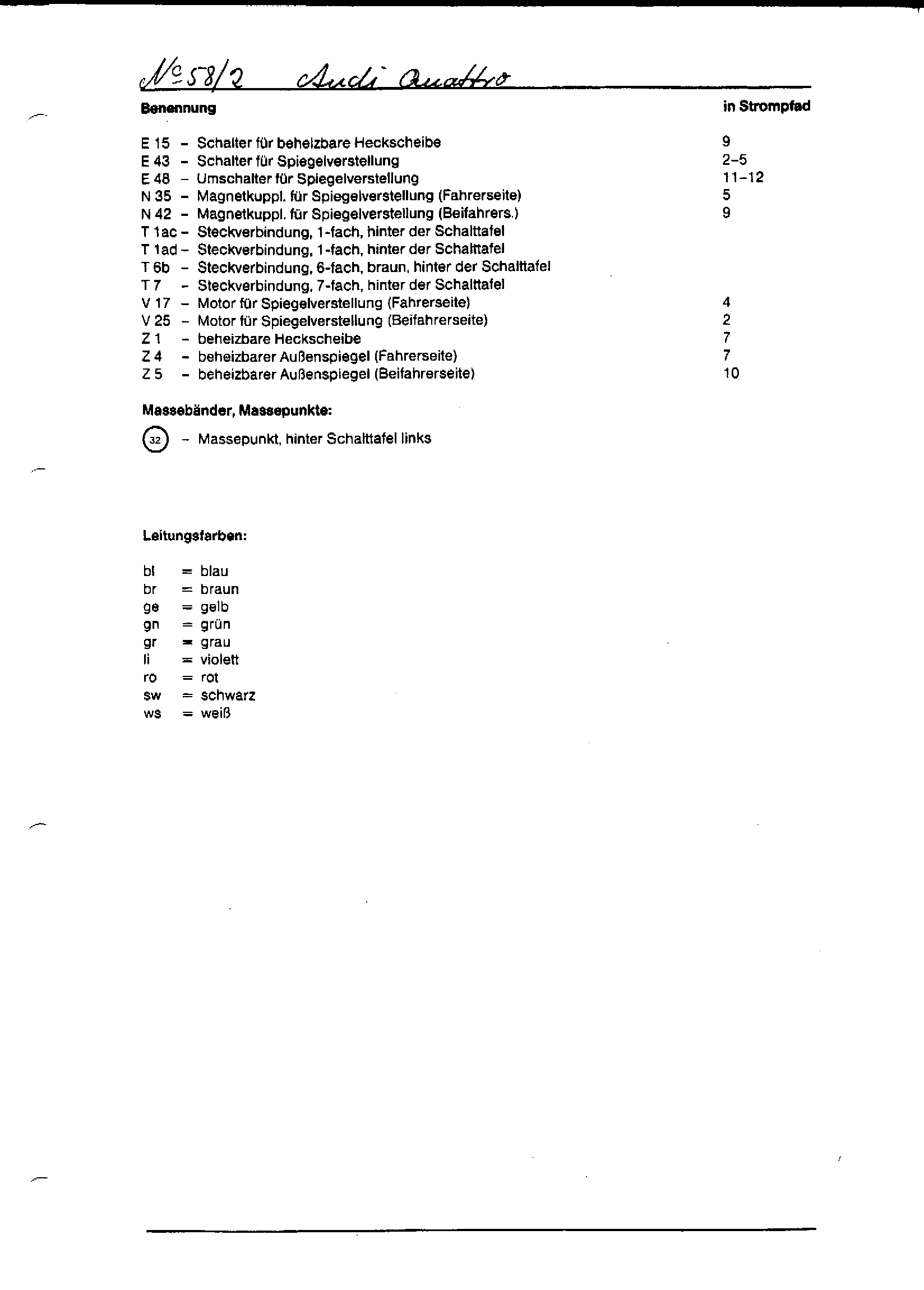

• Index

59 - Electronic dashboard

• Bulb identification
• Tracks 1-24

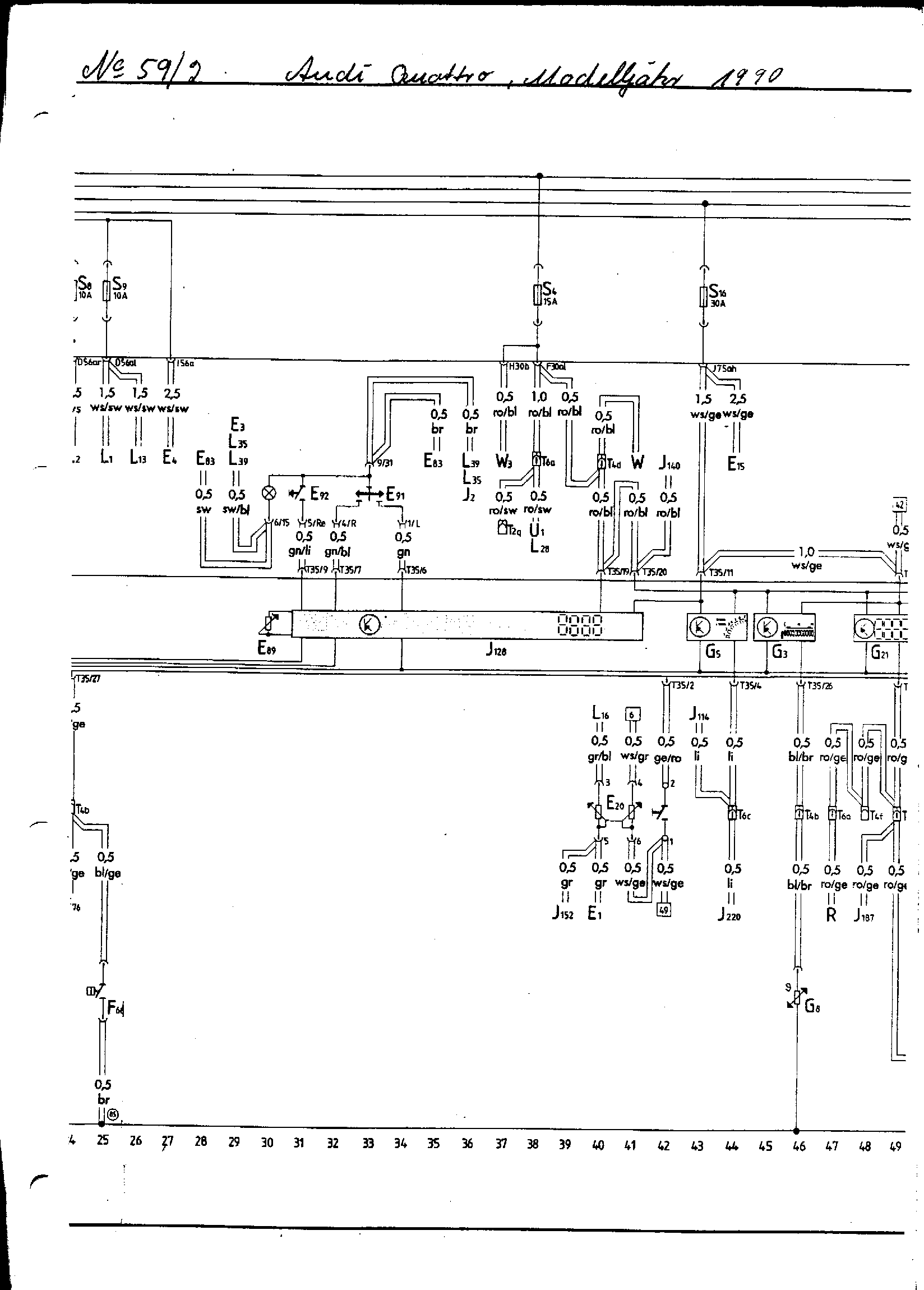

• Tracks 25-48

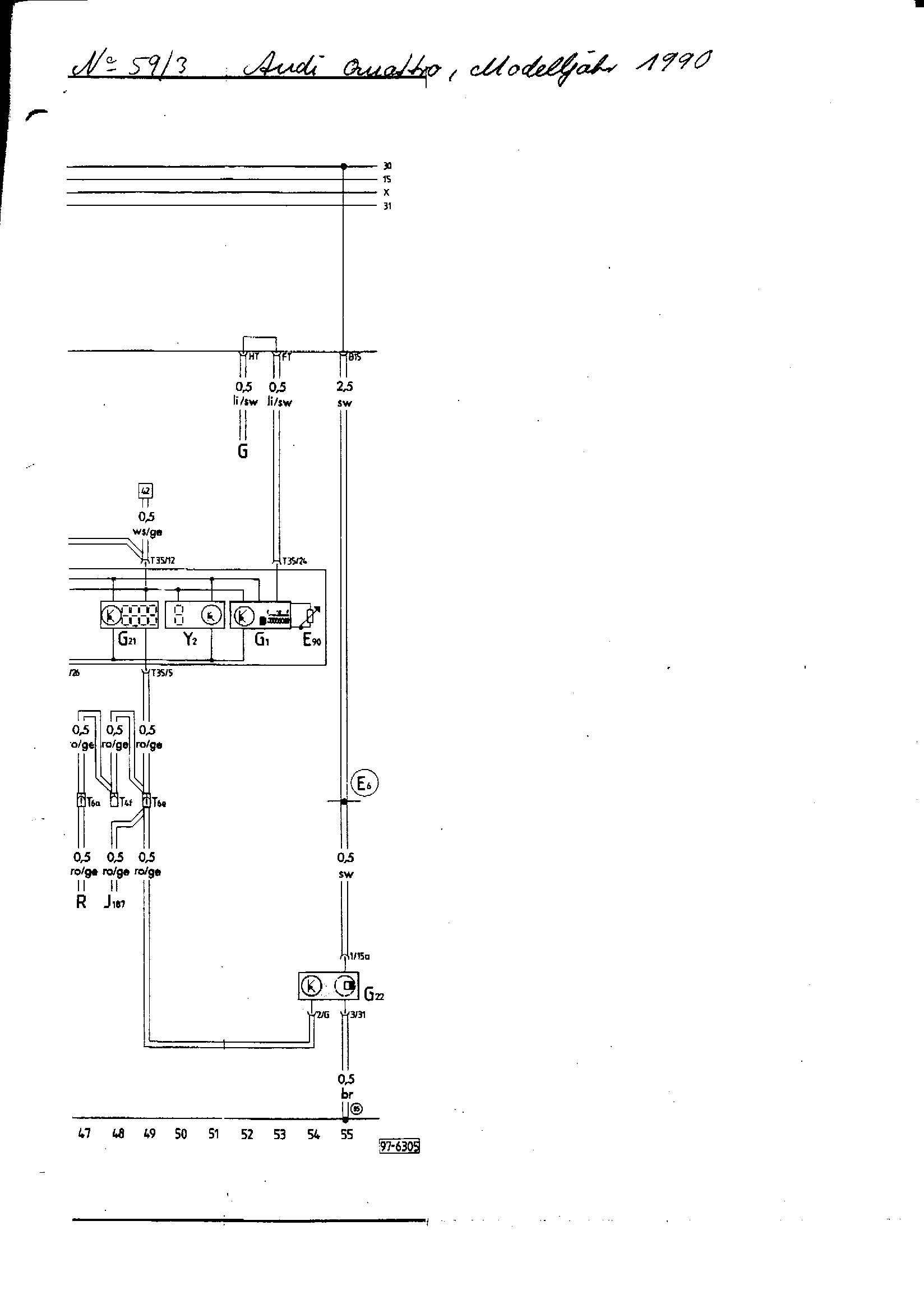

• Tracks 49-55

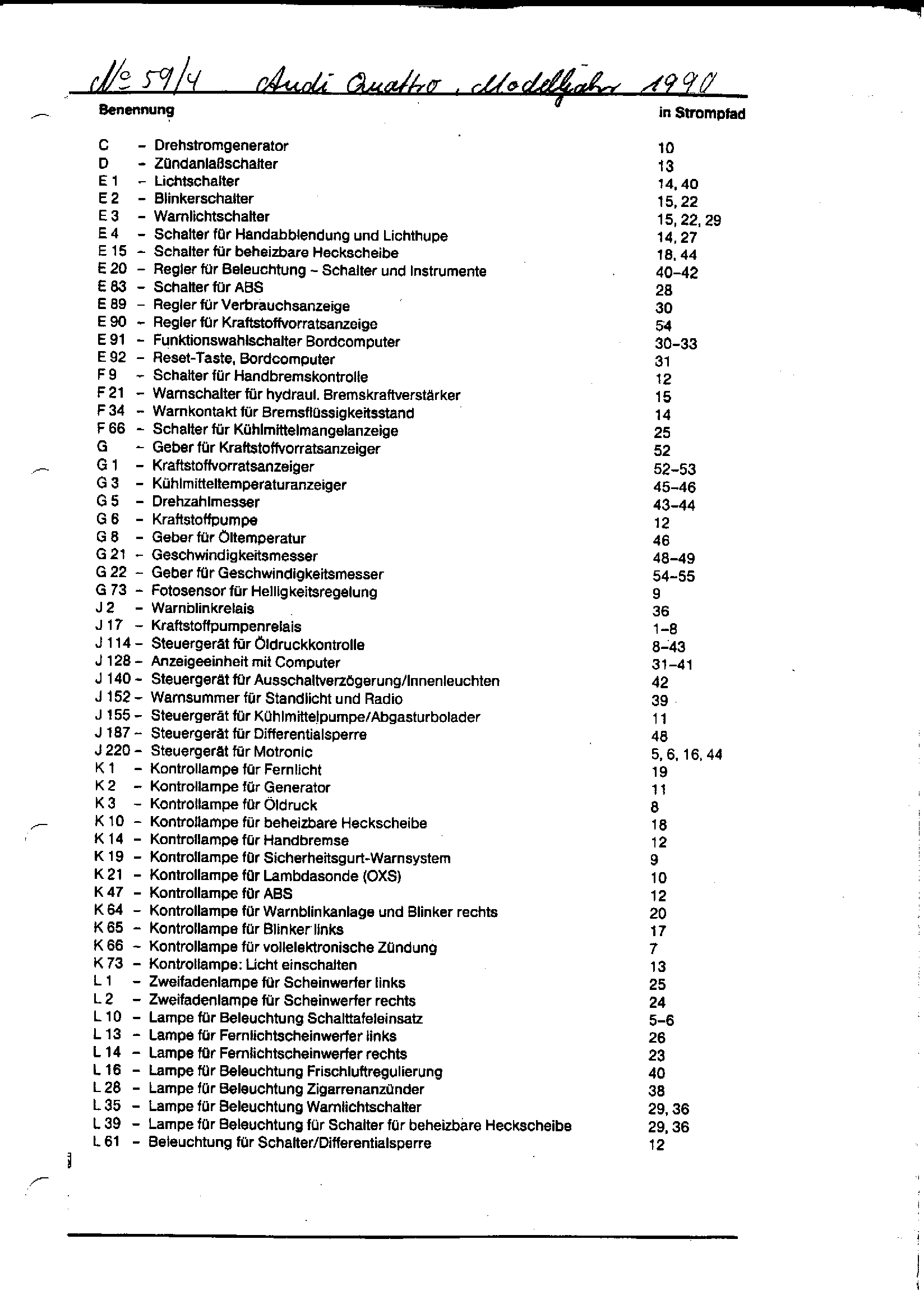

• Index

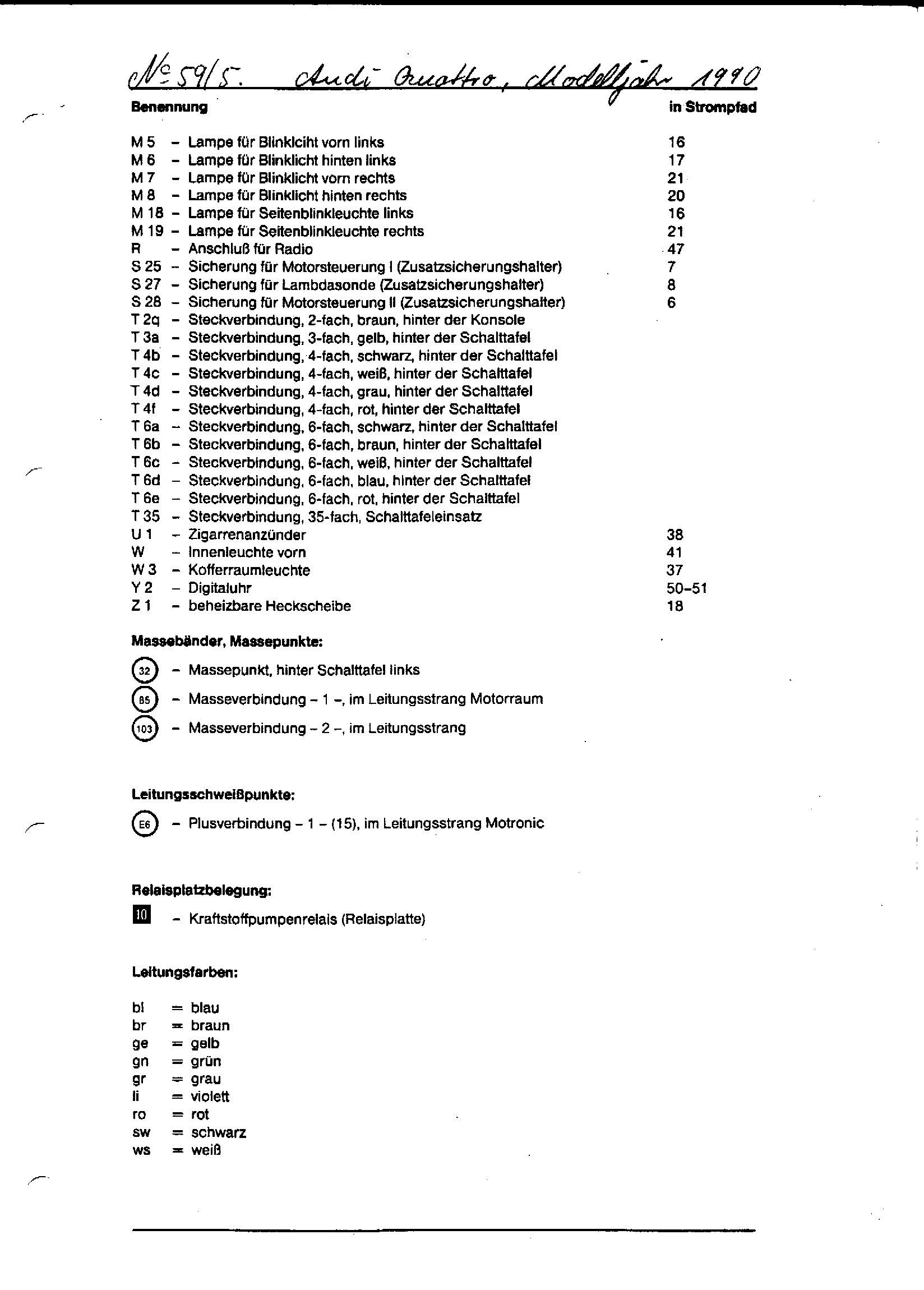

• Index (contd.)

Back to Audi ur-quattro wiring circuit diagram index

Kerbside Motors Home Page and Contact Information

Contact Phil Payne by email or use mobile/SMS 07833 654800
